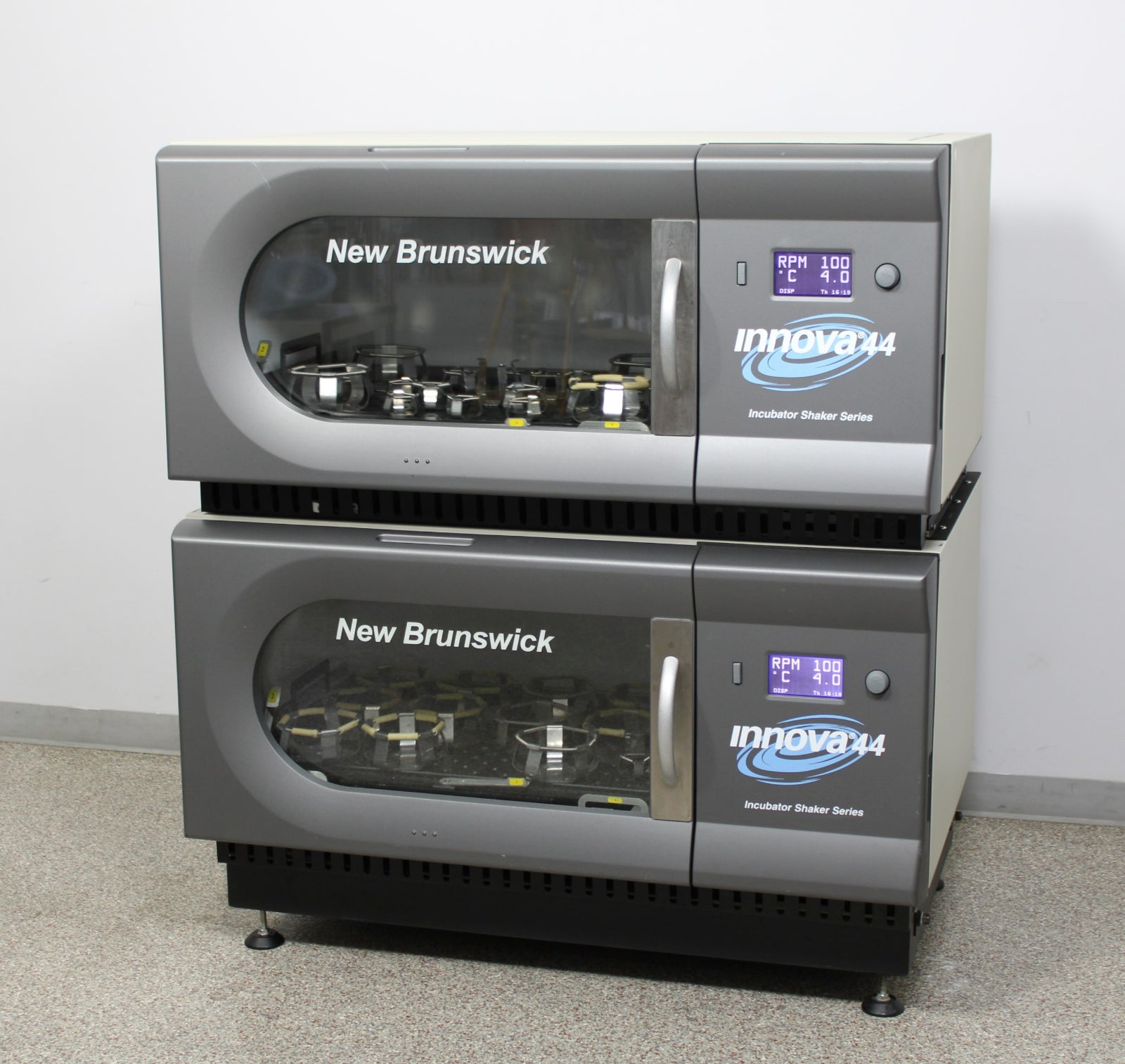

- x2 New Brunswick Innova 44/44R Refrigerated Incubator Shakers
- x2 Shaker Platforms
- x31 Assorted Flask Clamps
- x2 Power Cables
- 120-day Warranty
After its initial disinfection and inspection, our technicians tested the New Brunswick Innova 44/44R refrigerated incubator shaker with the following results:
- Tested shaking to max: PASSED
- Heated to 80°C: PASSED
- Cooled to 4.0°C: PASSED
- All user interface buttons work: PASSED
- Incubator chamber lights work: PASSED
- Door function operates: PASSED
|
Manufacturer
|
New Brunswick
|
|
Model
|
Innova 44R Inc/Ref Shaker
|
|
Mfg. No.
|
M1282-0014, M1282-0014
|
|
Serial No.
|
SI44HM904696, SI44FN003814
|
|
Temperature range
|
Incubated: 5°C above ambient to 80°C
Refrigerated: 20°C below ambient (min. 4°C) to 80°C
|
|
Temperature uniformity
|
+/-0.25°C at 37°C
|
|
Speed range
|
2.5 cm orbit: 25 - 400 rpm
5.1 cm orbit or 2 stacked units: 25 - 300 rpm
3 stacked units: 25 - 250 rpm
|
|
Orbit options
|
2.5 cm (1.0 in)
5.1 cm (2.0 in)
|
|
Placement/orientation
|
Floor, stackable (x3)
|
|
Platform size
|
76 x 46 cm (30 x 18 in)
|
|
Slide-out platform
|
yes
|
|
Drive mechanism
|
Triple-eccentric counterbalanced drive
|
|
Motor type
|
Solid state, DC brushless motor
|
|
Space-saving glide-up doors
|
yes
|
|
Audible and visual alarms
|
yes
|
|
Available program modes
|
Constant speed and temperature
Programmable multi-steps
RS-232 communication port
|
|
Steps per program
|
15
|
|
Stored programs
|
4
|
|
Timer
|
0.01 - 99.59 h, continuous
|
|
Electrical requirements
|
120V, 60Hz, Phase 1, 1500VA
|
|
Dimensions (W x D x H)
|
2 units stacked: 53 x 34 x 60 in
|
