This Cary 670 FTIR is untested as the software installed is not licensed, and the unit will not work without the license. It has been inspected and is in good condition with no damage; however, we believe that it will work without issue.

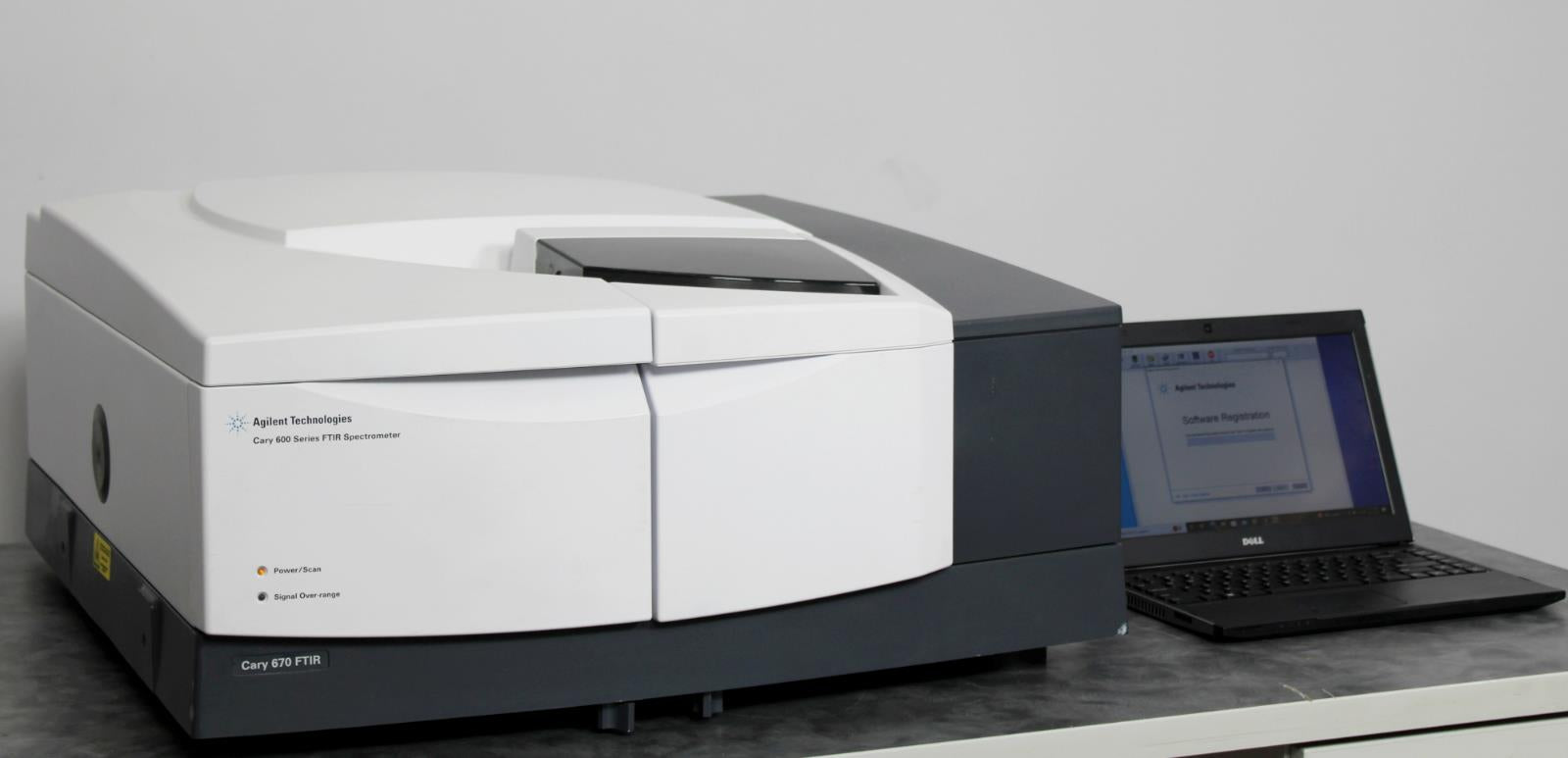

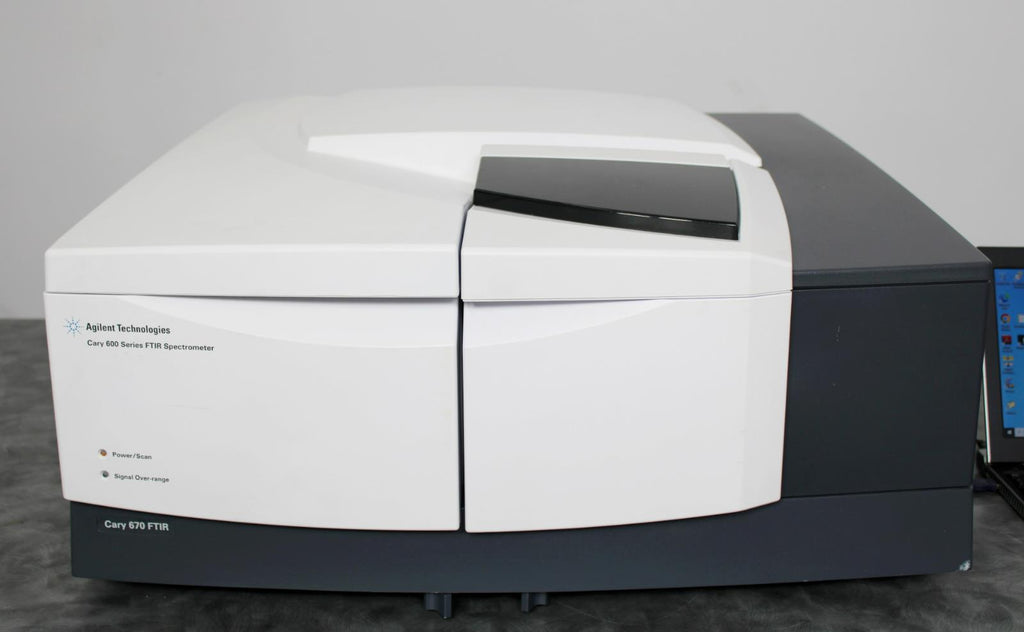

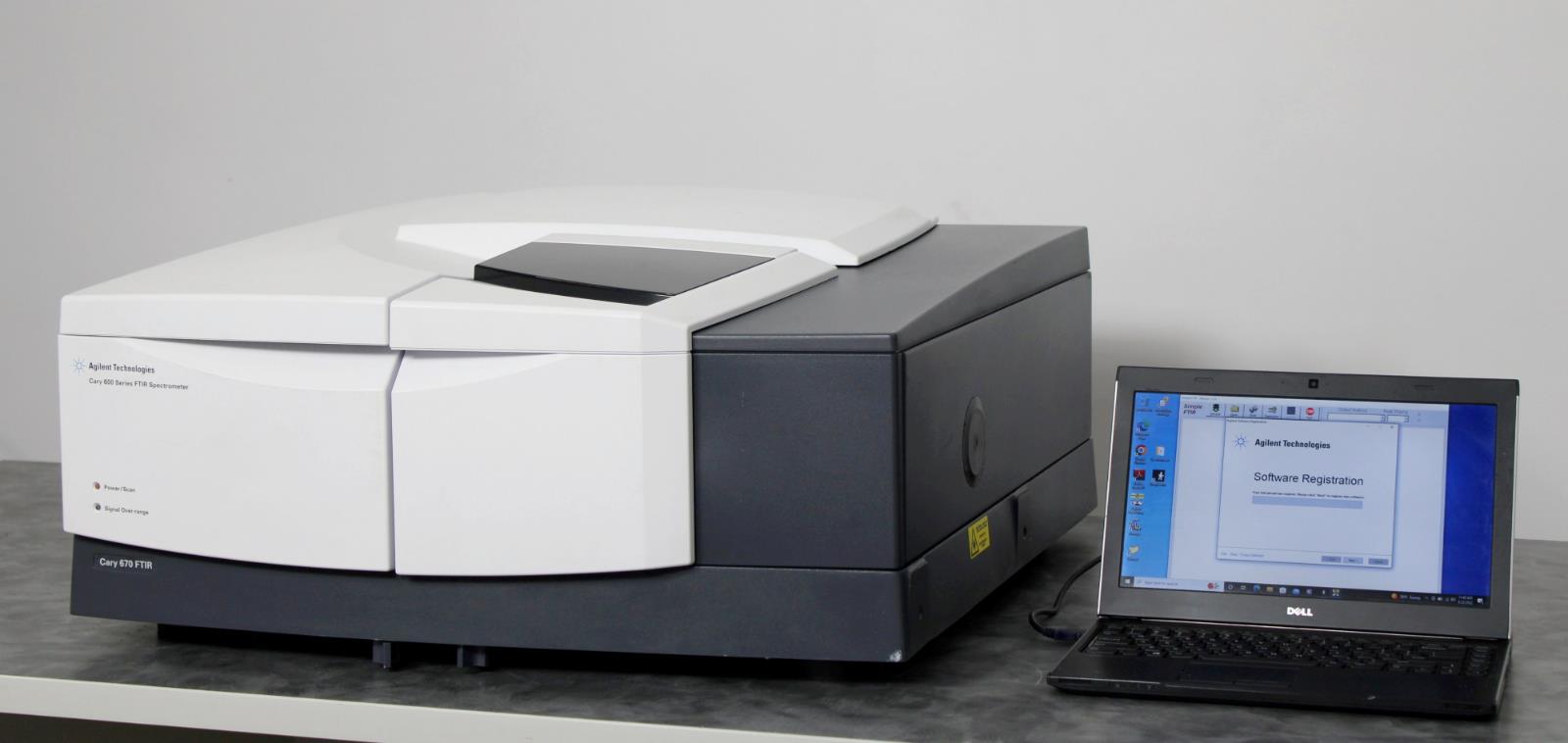

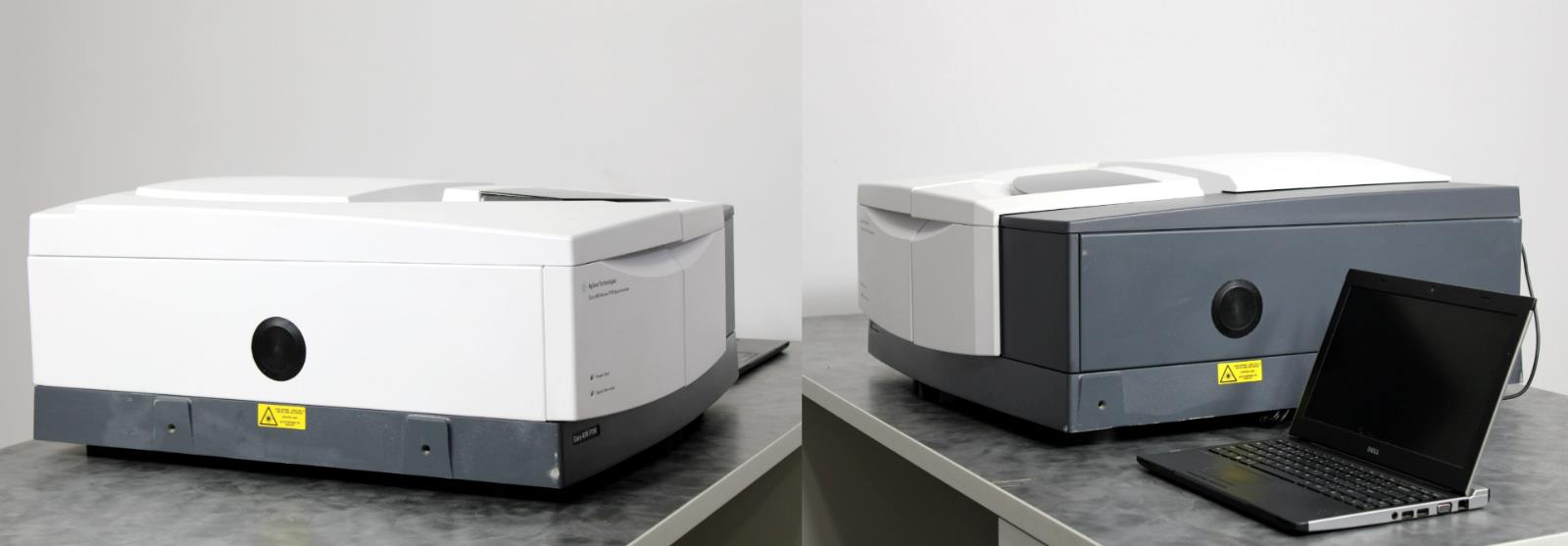

- Agilent Cary 670 FTIR Spectrometer
- Dell Laptop with Charger

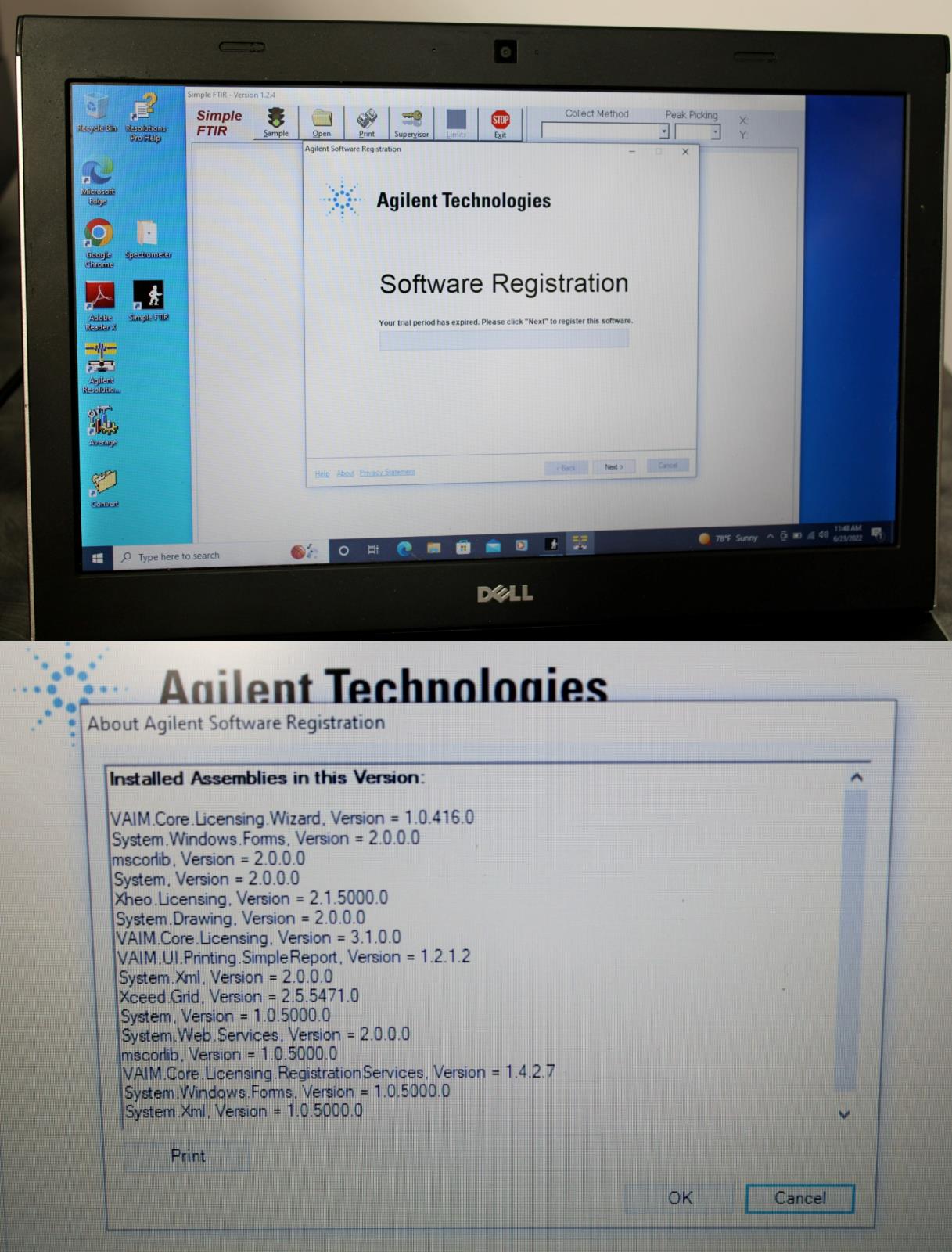

Note: Software is installed but does not control the spectrometer due to missing license numbers.
|
Manufacturer
|
Agilent
|
|
Model
|
Cary 670 FTIR
|
|
Serial No.
|
IR1109M015
|
|
Interferometer type
|
57 mm dynamically aligned, 60° air breaking Michelson
|
|
Spectral range (cm^-1)
|
Typical: Mid-IR: 9000 - 350
Optional: 53000 - 10
|
|
Spectral resolution (cm^-1)
|
Typical: better than 0.06
Guaranteed: better than 0.075
|
|
Signal-to-noise ratio
|
Guaranteed 5 sec p-p: >48000:1
Typical 5 sec p-p: >70000:1
Typical 5 sec p-p with ATR: >12000:1
Typical 1 min p-p: >200000:1
Typical 1 min RMS: >860000:1
|
|
Infrared power (at the sample focus)
|
>200 mW
|
|
Wavenumber
|
Accuracy: 0.005cm^-1 at 2200cm^-1
Precision: 0.002cm^-1
|
|
Photometric performance
|
Ordinate linearity DLaTGS (Deviation from 0%T based on ASTM1421): Better than 0.06%T
Ordinate linearity, linearized MCT (Deviation from 1.60 Abs polystyrene peak at 2920 cm-1): Better than 0.10 Abs
|
|
Kinetics scan rates
|
Standard (16 cm-1 spectral resolution): >110 spectra/second
Optional (16 cm-1 spectral resolution): N/A
|
|
Time resolved spectroscopy
|
µs sampling rate: Upgrade
|
|
Spectrometer enclosure
|
Standard: Purged
Optional N/A
|
|
A/D Converter
|
Delta-Sigma, 24 bit, 600kHz (Dual ADC standard)
|
|
Spectrometer interface
|
USB 2
|
|

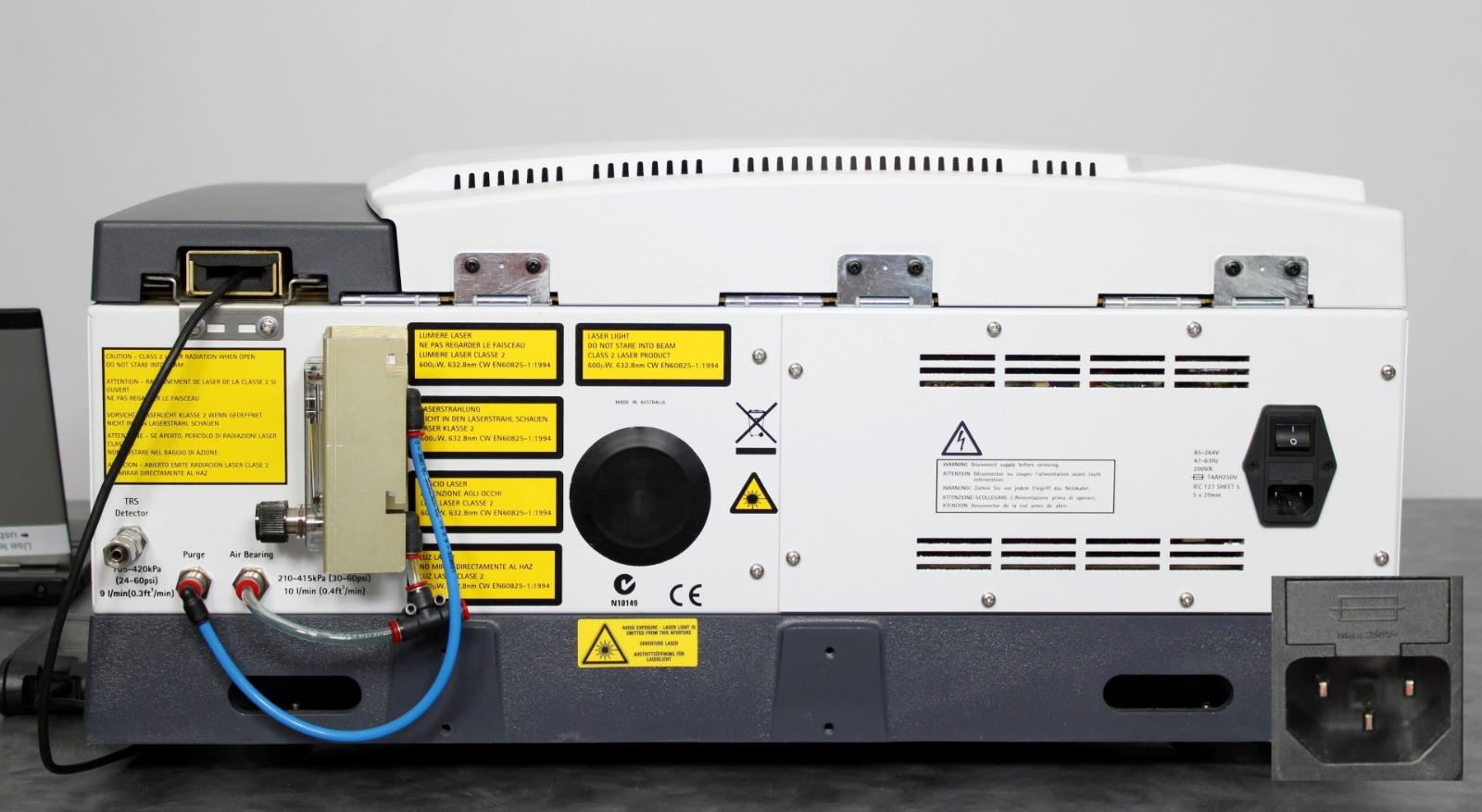

External ports
|
3 (left, right and rear emission)
|
|
Upgradeable
|
Yes, to 680 FTIR
|
|
Step-scan capability
|
Upgrade
|
|
Dimensions (W x D x H)
|
27.9 x 29.8 x 13.5 in.
|
|
Weight
|
176 lbs.
|
