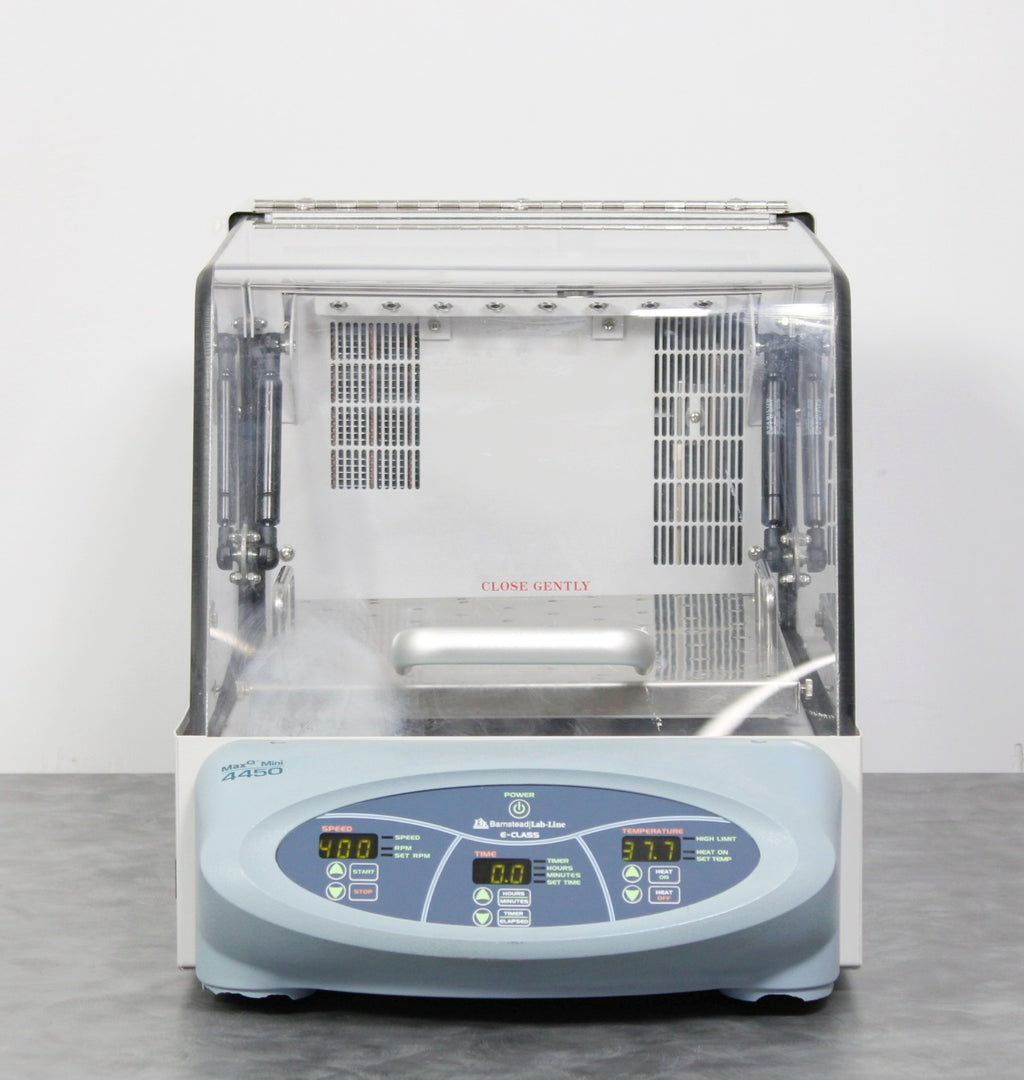

- Barnstead MaxQ Mini 4450 Incubator Shaker
- Shaker Platform
- 115V AC Power Cable
- 120-Day Warranty
- Flask Clamps
- Tube Racks
Please ask about our MANY size clamps available, or search our listings for availability and prices.
After its initial disinfection and inspection, our technicians tested the Barnstead MaxQ Mini 4450 incubator shaker with the following results:
- Heat tested to setpoint of +50°C; held steady for over 24 hours: PASSED
- Shaking tested from 15 rpm to 500 rpm: PASSED
There are two uncommon options on this shaker, a cooling coil (CC) and a gassing manifold (GM).
- The cooling coil requires an external chiller (not included) that then allows the chamber temperature to be cooled below the ambient temperature.
- The gassing manifold has a single external gas inlet port connected to 8 internal fittings to allow direct gassing into flasks for anaerobic cultures.
|
Manufacturer
|
Barnstead International
|
|
Model
|
MaxQ Mini 4450
|
|
Model No.
|
SHKE4450CCGM
|
|
Serial No.
|
1413060564661
|
|
Speed range
|
15 to 500 rpm, +/-1 rpm
|
|
Temperature range
|
5°C above ambient to 80°C
|
|
Platform load capacity
|
35 lb (15.9 kg)
|
|
Run modes
|
Continuous
Timed operation of 0.1 to 999 hours
Timed operation of 0.1 to 999 minutes
|
|
Display
|
3 individual LED displays indicate temperature, time and speed simultaneously. 3 characters, height 1/2 inches (1.27cm)
|
|
Mutable alarms
|
Audible portion of the alarm can be silenced for a period of 1 hour without deactivating the actual alarm condition by depressing any key.
|
|
Alarm speed
|
Audible with flashing led indicate when speed deviates more than 10% of set point
|
|
Timer
|
Beeps twice when time has expired. Shaking motion stops.
|
|
Unbalanced load
|
If the unit is running in an unbalanced condition, an alarm will sound and the shaker will stop until the end user corrects the condition. The speed display will flash "bAL" on the speed panel LED.
|
|
Motor
|
Solid-state brushless DC
|
|
Motion
|
Orbital 0.75 in (1.9 cm)
|
|
Soft start feature
|
Software algorithms prevent sudden start/stops
|
|
RS232 interface
|
Monitor speed, temperature, and time via a PC
|
|
Electrical requirements
|
120V, 50/60Hz, 4.5A, 500W
|
|
Platform dimensions (W x D x H)
|
13 x 11 in
|
|
Dimensions (W x D x H)
|
14.5 x 27 x 15.5 in
|
