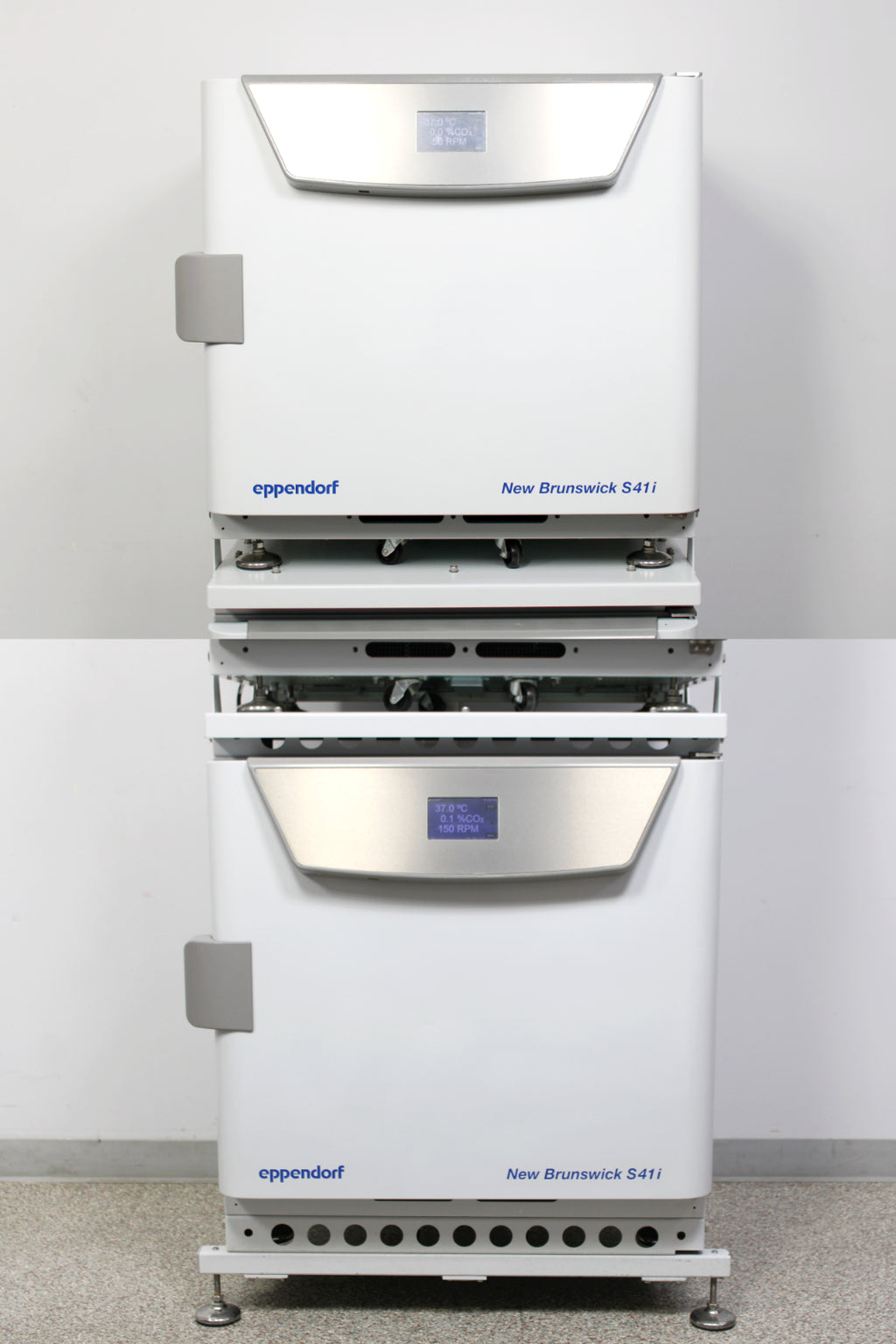

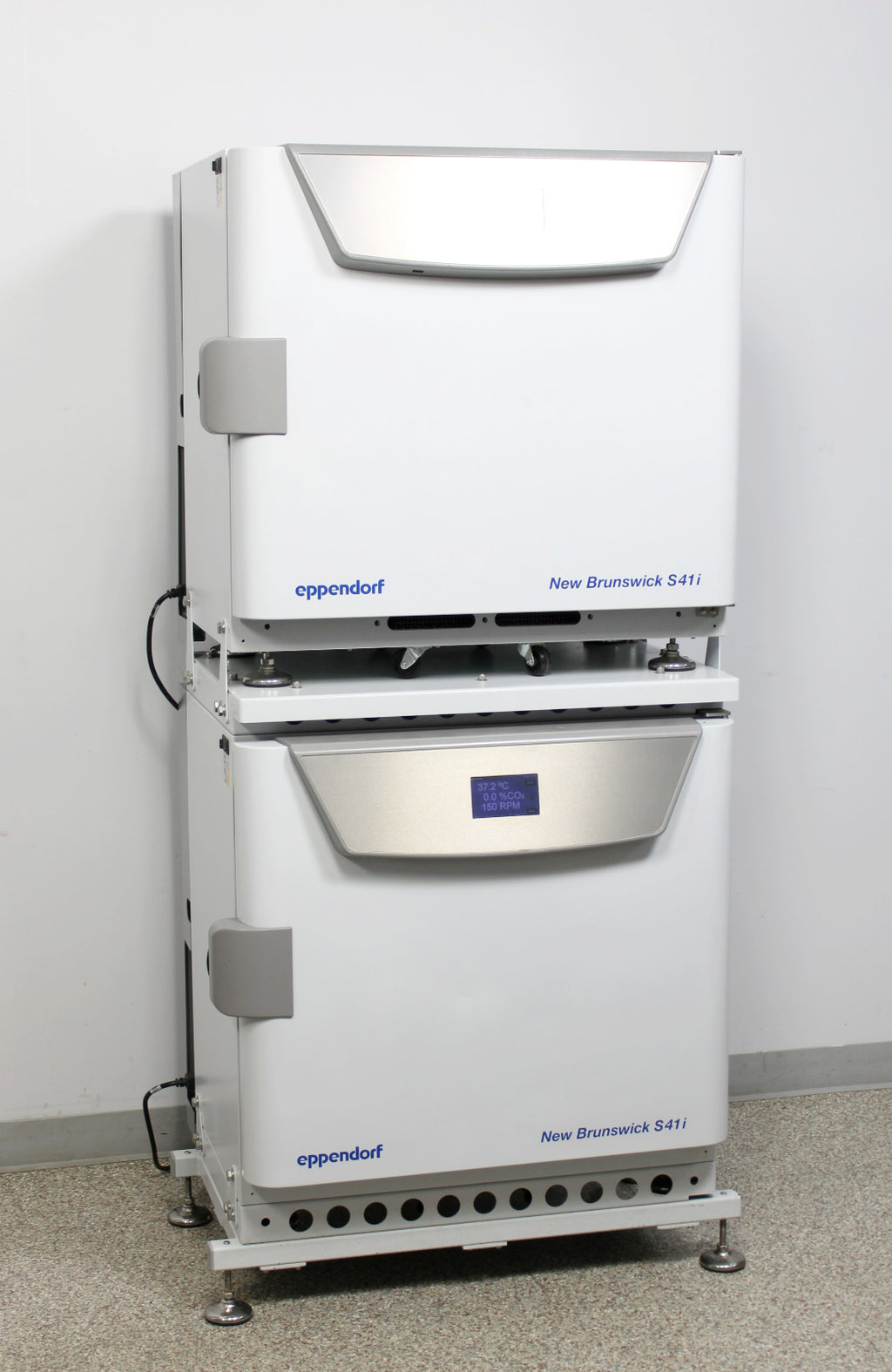

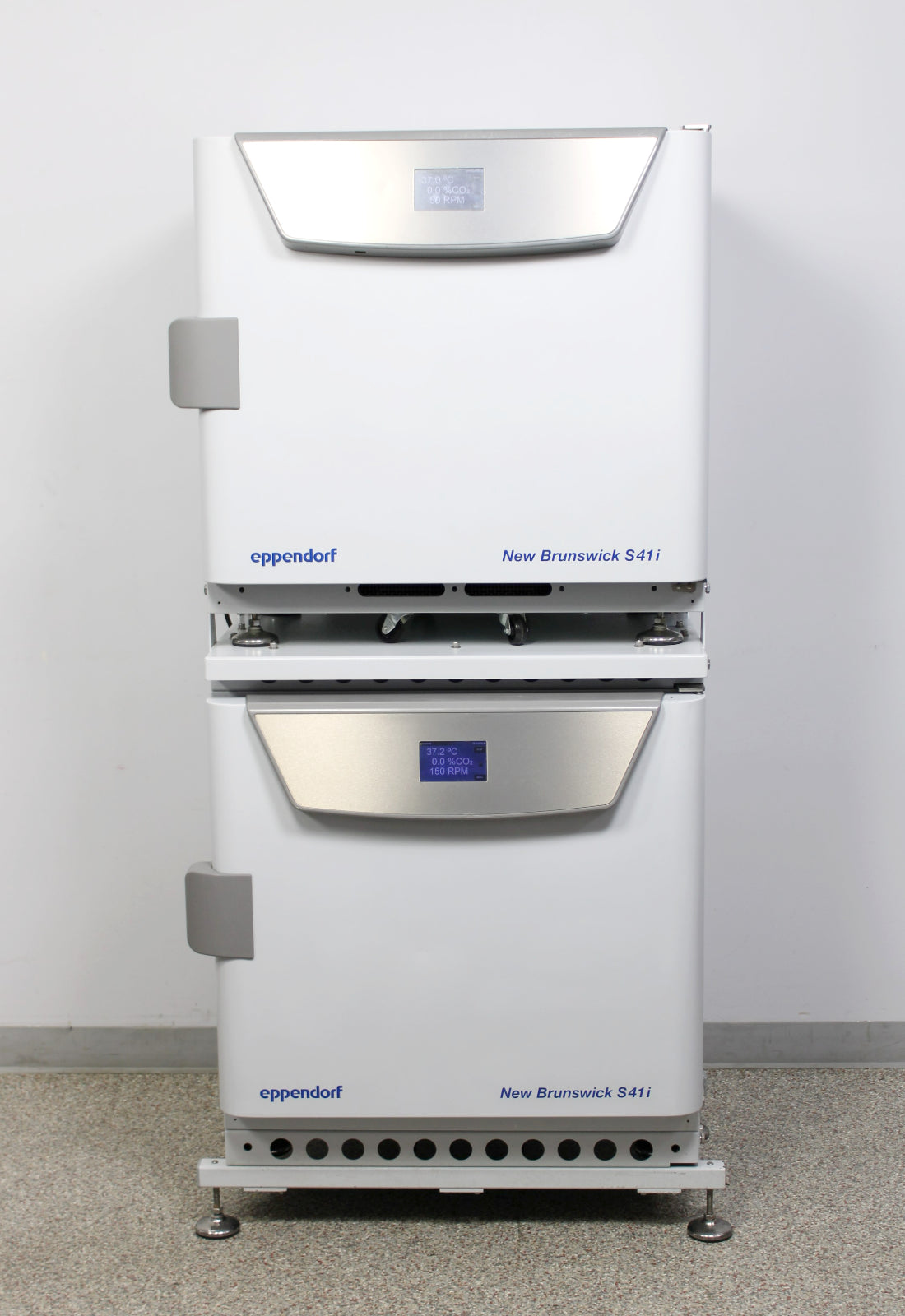

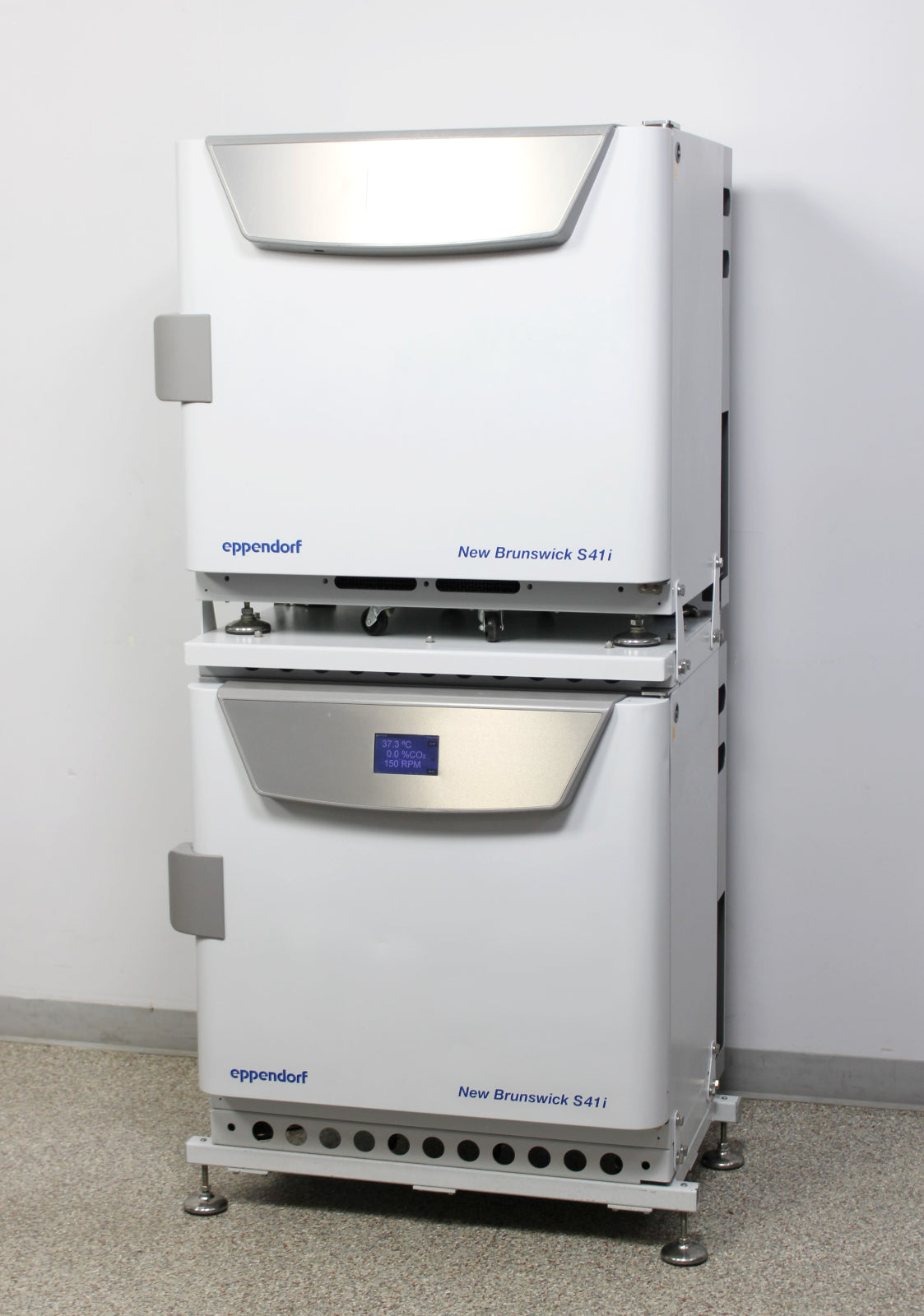

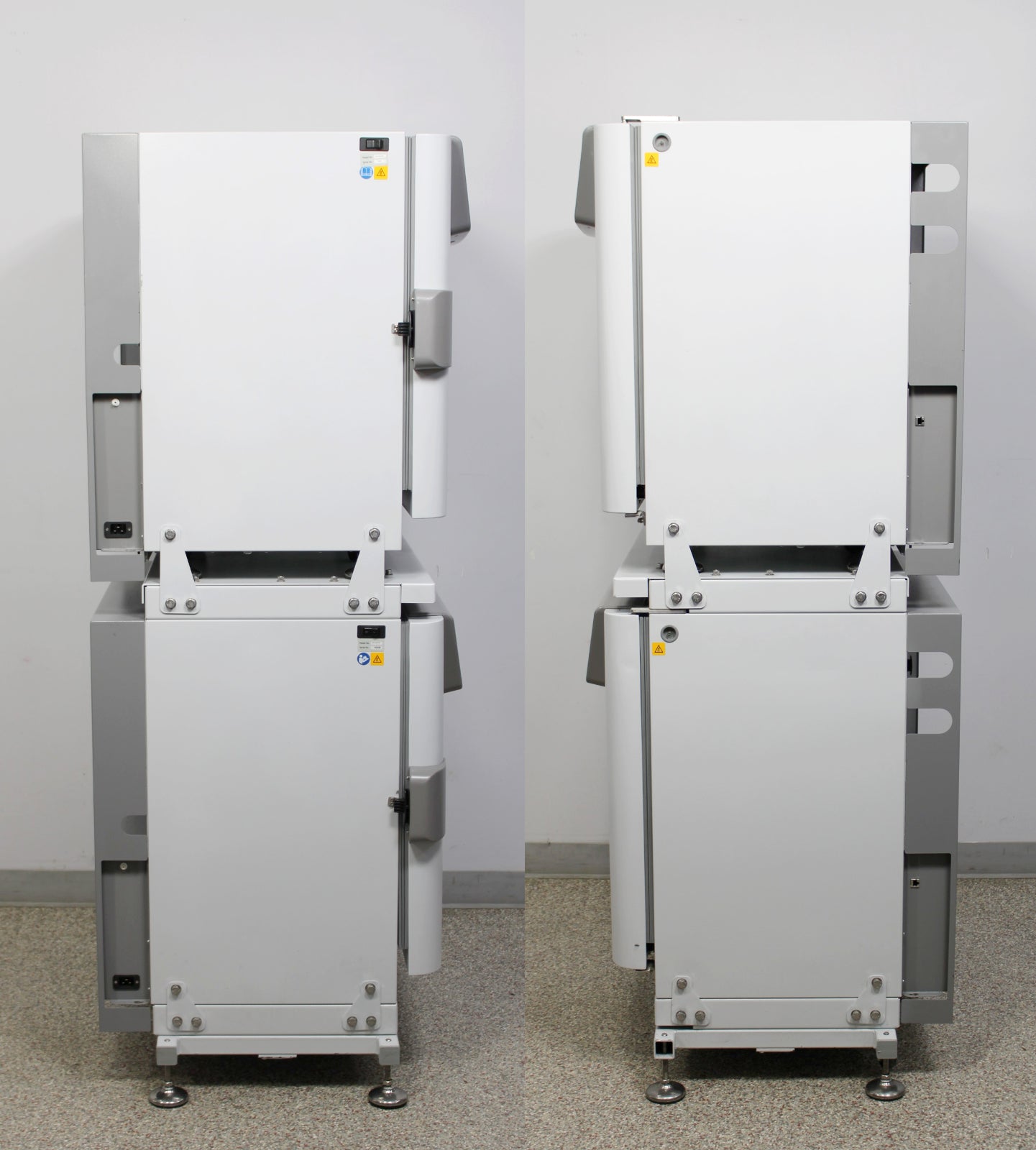

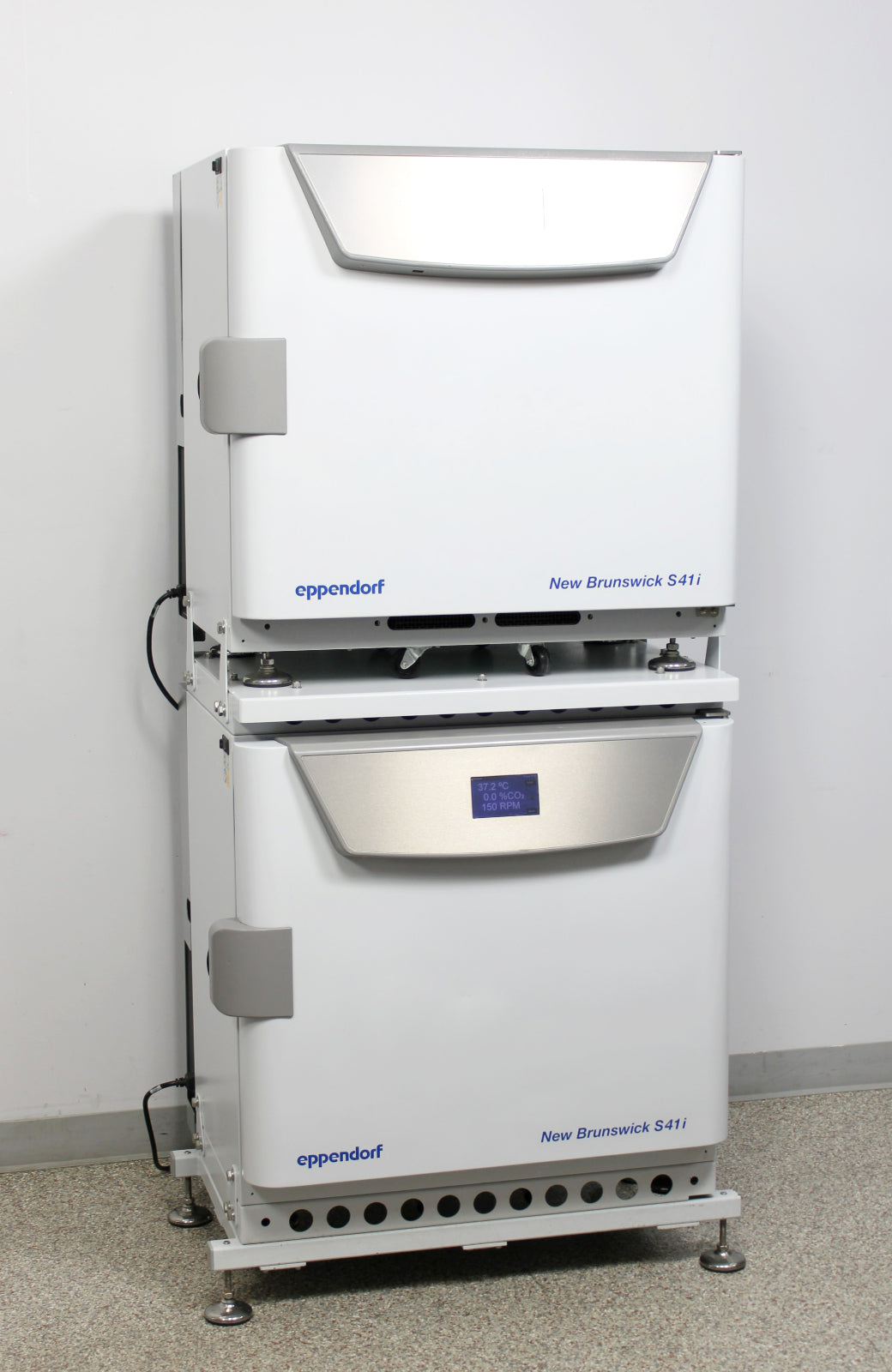

- x2 Eppendorf New Brunswick S41i CO2 Incubator Shakers
- x2 Power Cables
- 120-Day Warranty
- Shaker Platforms
- Shelves
After its initial disinfection and inspection, our technicians tested the Eppendorf New Brunswick S41i stacked CO2 incubator shakers with the following results:
- Tested shaking: PASSED
- Tested heating: PASSED
- Tested CO2: PASSED

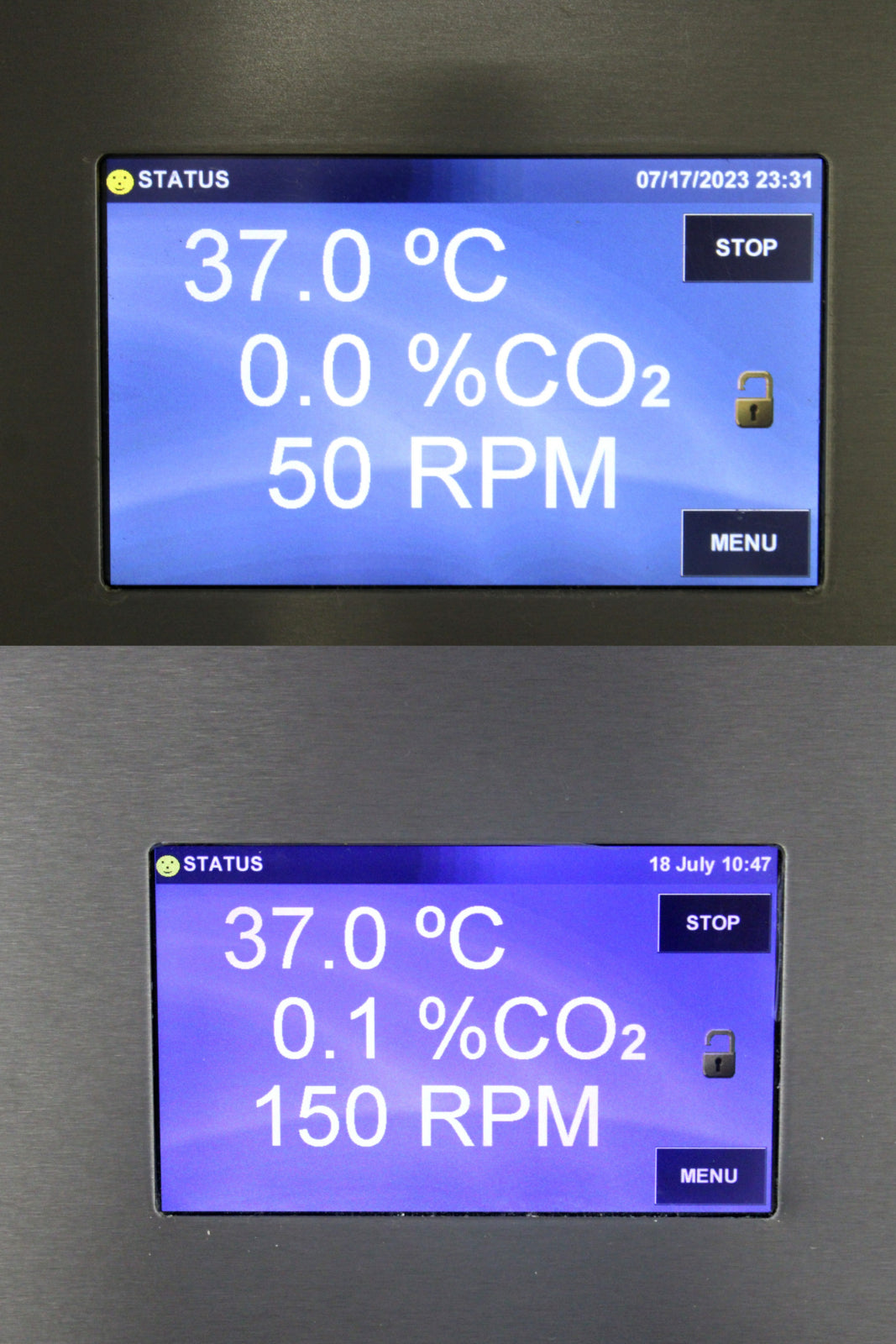

- Tested touch screen user interface: PASSED
|
Manufacturer
|
Eppendorf
|
|
Model
|
New Brunswick S41i
|
|

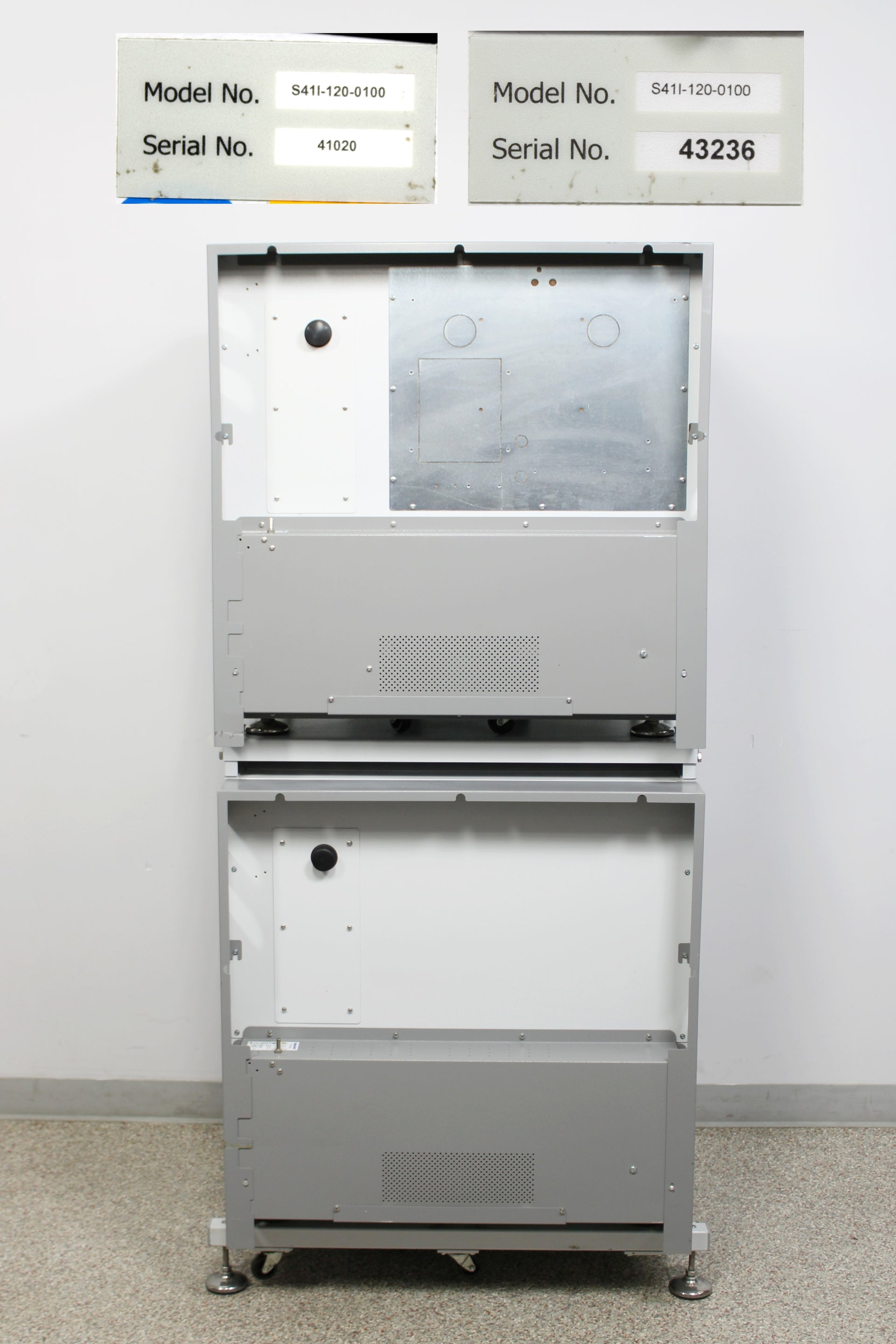

Model No.
|
S41I-120-0100
|
|
Serial No.
|
41020, 43236
|
|
Capacity
|
170L
|
|
Speed range
|
25-400 rpm (25-250 rpm for bottom unit if stacked)
|
|
Temperature range
|
Ambient +4°C to 50°C
|
|
Temperature control increment
|
±0.1°C
|
|
Temperature stability at 37°C
|
±0.1°C
|
|
Temperature uniformity
|
±0.25°C at 37°C (in flask media)
|
|
Temperature accuracy
|
±0.2°C
|
|
CO2 range
|
0.2-20%
|
|
CO2 control increment
|
±0.1%
|
|
CO2 stability at 5% CO2
|
±0.2%
|
|
CO2 uniformity
|
±0.1%
|
|
Timer
|
Continuous
|
|
Available program modes
|
Constant speed and temperature
|
|
Audible and visual alarms
|
Yes
|
|
High temperature disinfection (HTD)
|
120°C
|
|
Sealed inner glass doors
|
Yes
|
|

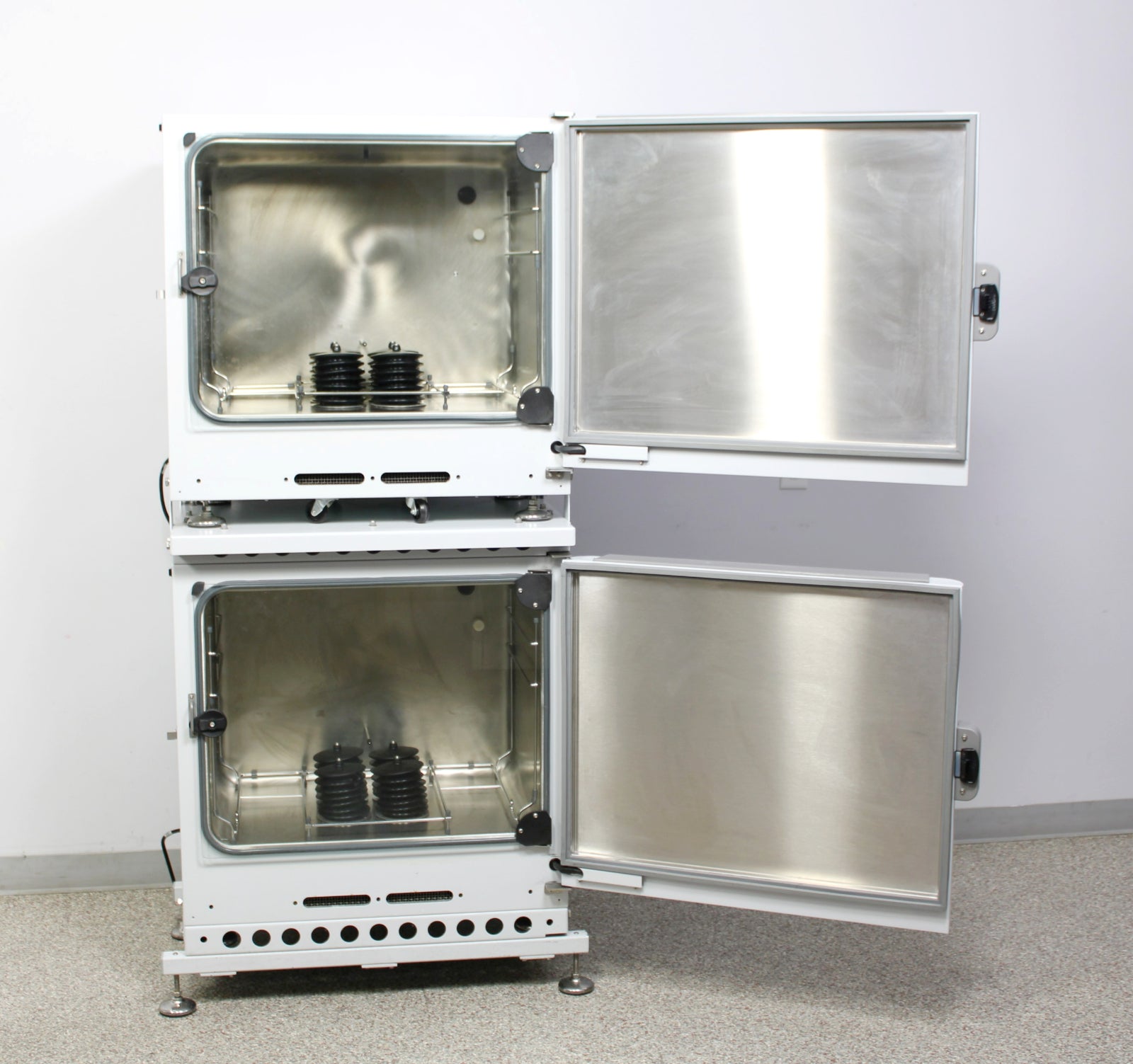

Door opening
|
Opening to front
|
|

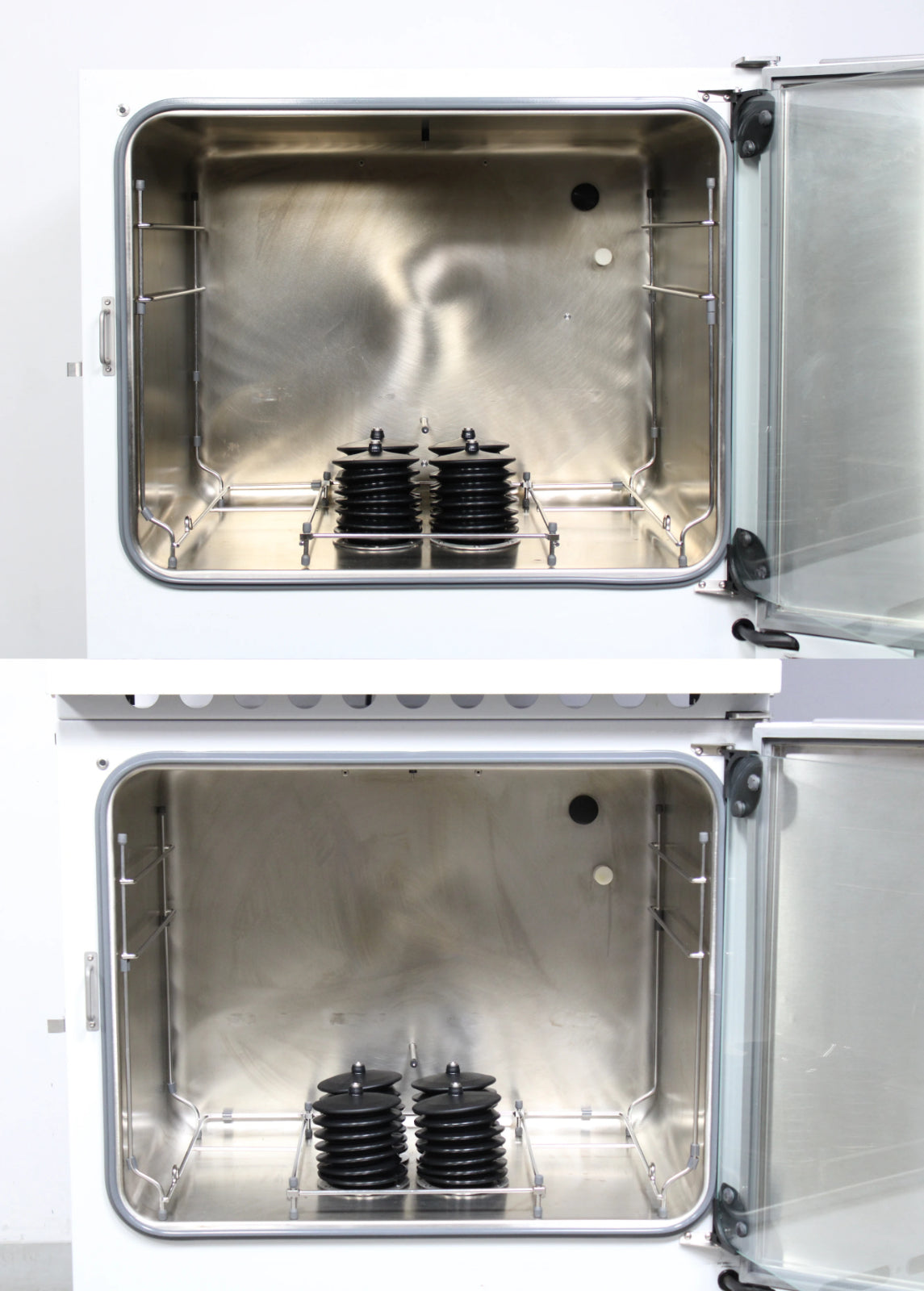

Number of shelves (standard/max)
|
1/2
|
|
Benchtop (B), Under Bench (U), Floor (F) or Stackable (S)
|
U, F, S (x2)
|
|
Drive mechanism
|
Triple-eccentric counterbalanced drive
|
|
Motor type
|
Solid state, DC brushless motor
|
|
Orbit
|
2.5 cm (1 in)
|
|
Data export interface
|
Ethernet
|
|
On-board data logging
|
Standard
|
|
BMS relay
|
Standard
|
|
Memory
|
non-volatile with automatic power failure restart
|
|
Access port
|
1
|
|
Platform size
|
36 x 61 cm (14 x 24 in)
|
|

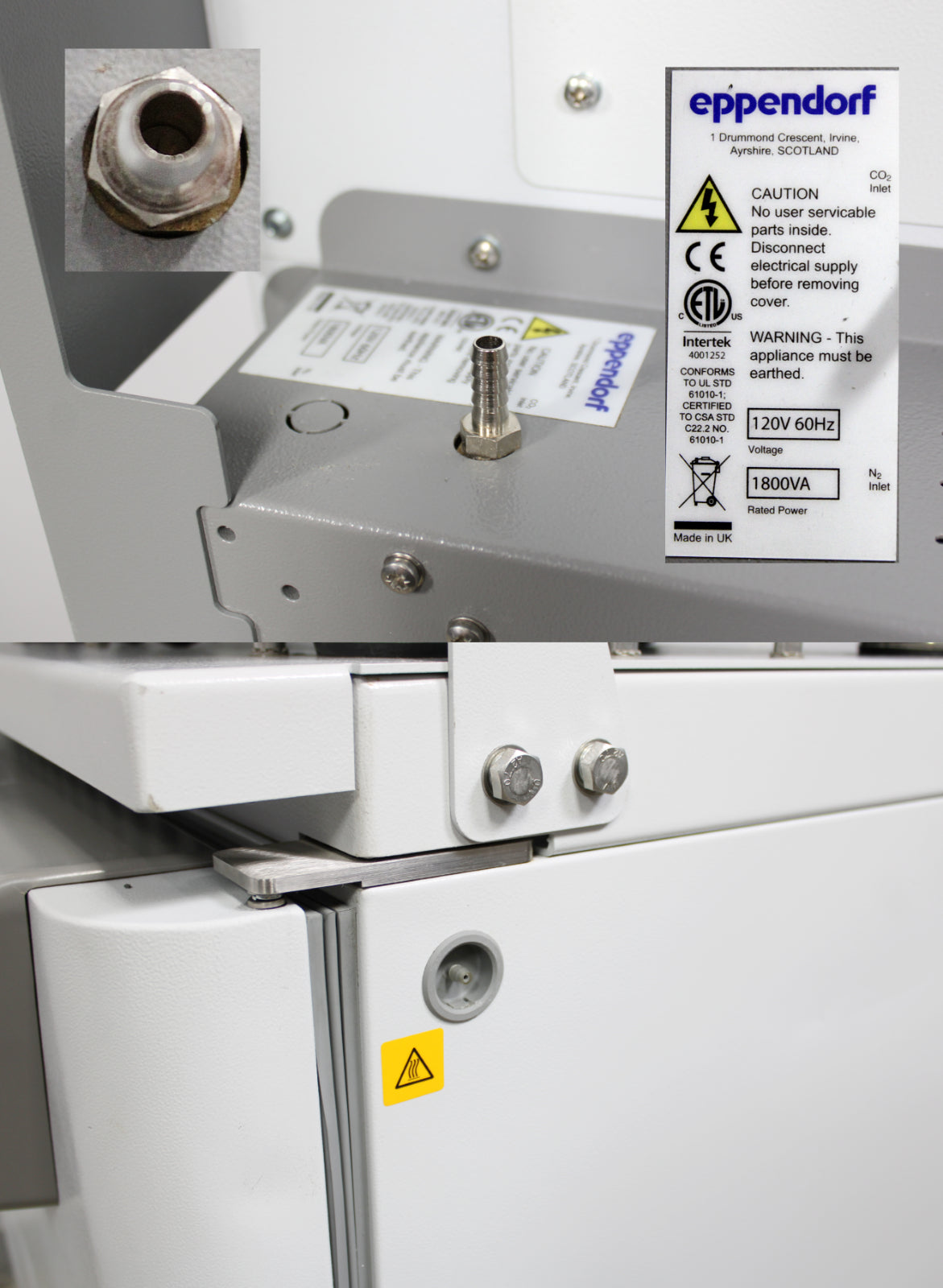

Rated power
|
1800VA
|
|
Electrical requirements
|
120V, 50/60Hz
|
|
Dimensions (W x D x H)
|
1 unit: 34.4 x 28.7 x 33.5 in
2 units: 34.4 x 28.7 x 74 in
|
|
Weight w/o accessories
|
154 kg (340 lb)
|
