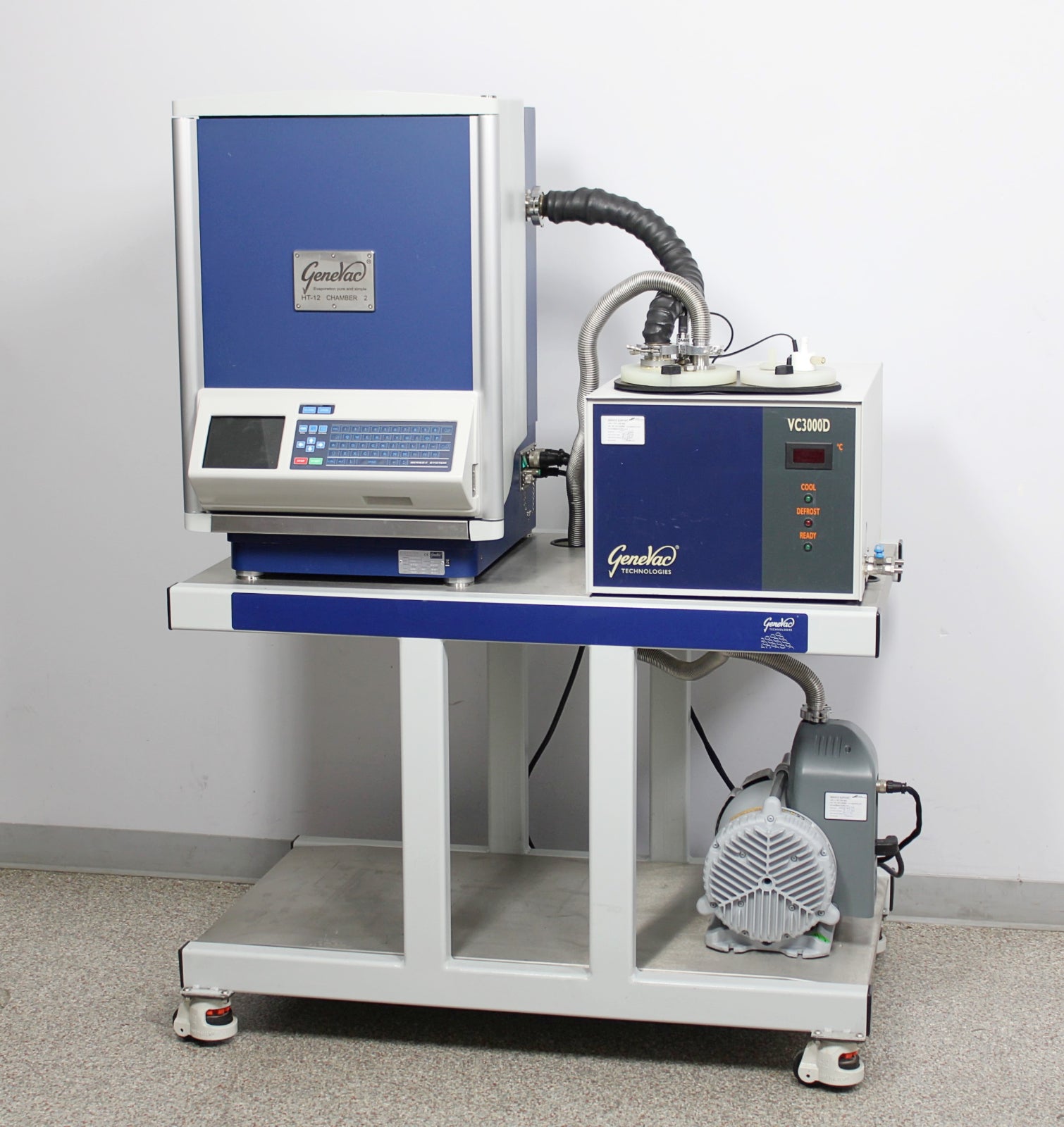

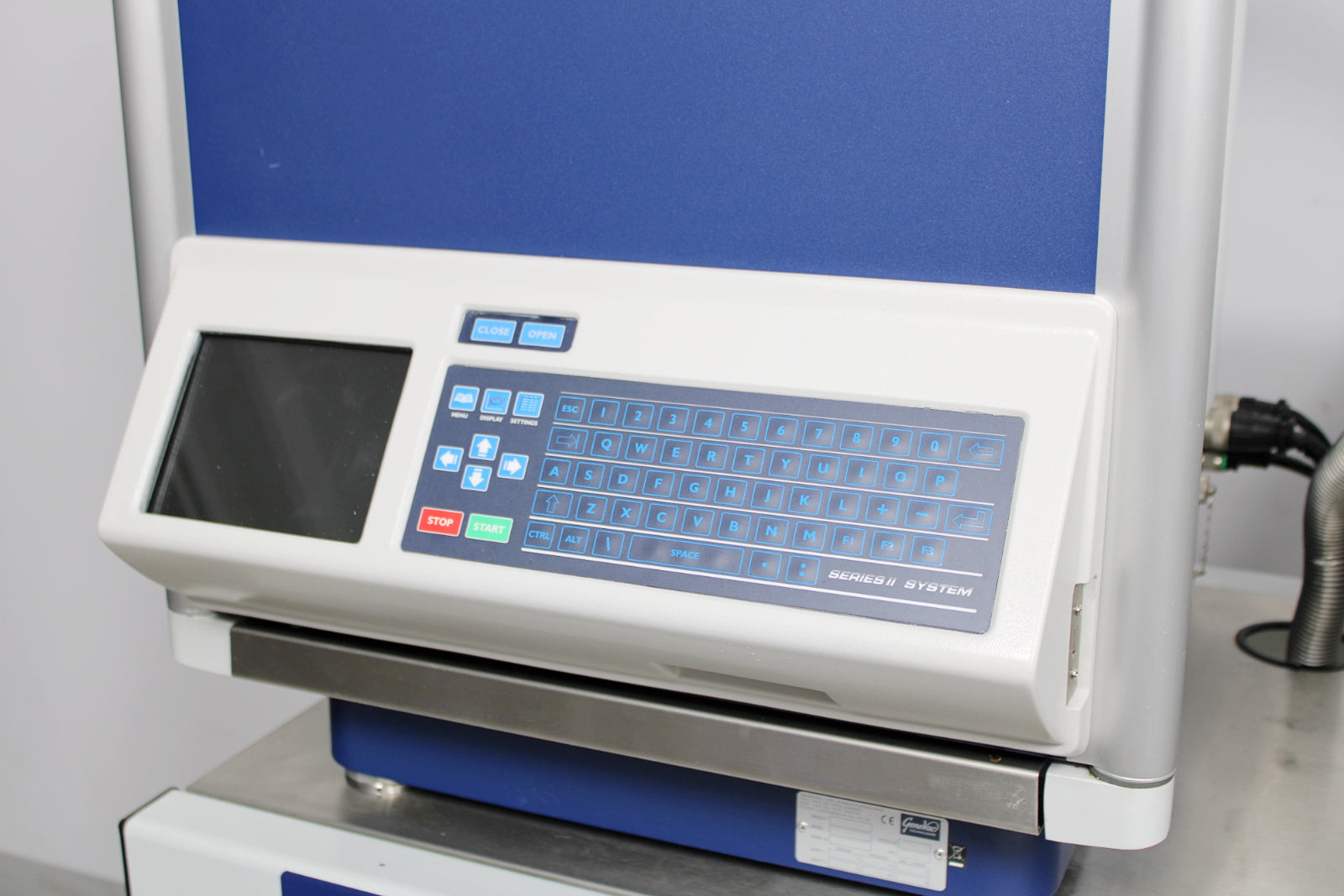

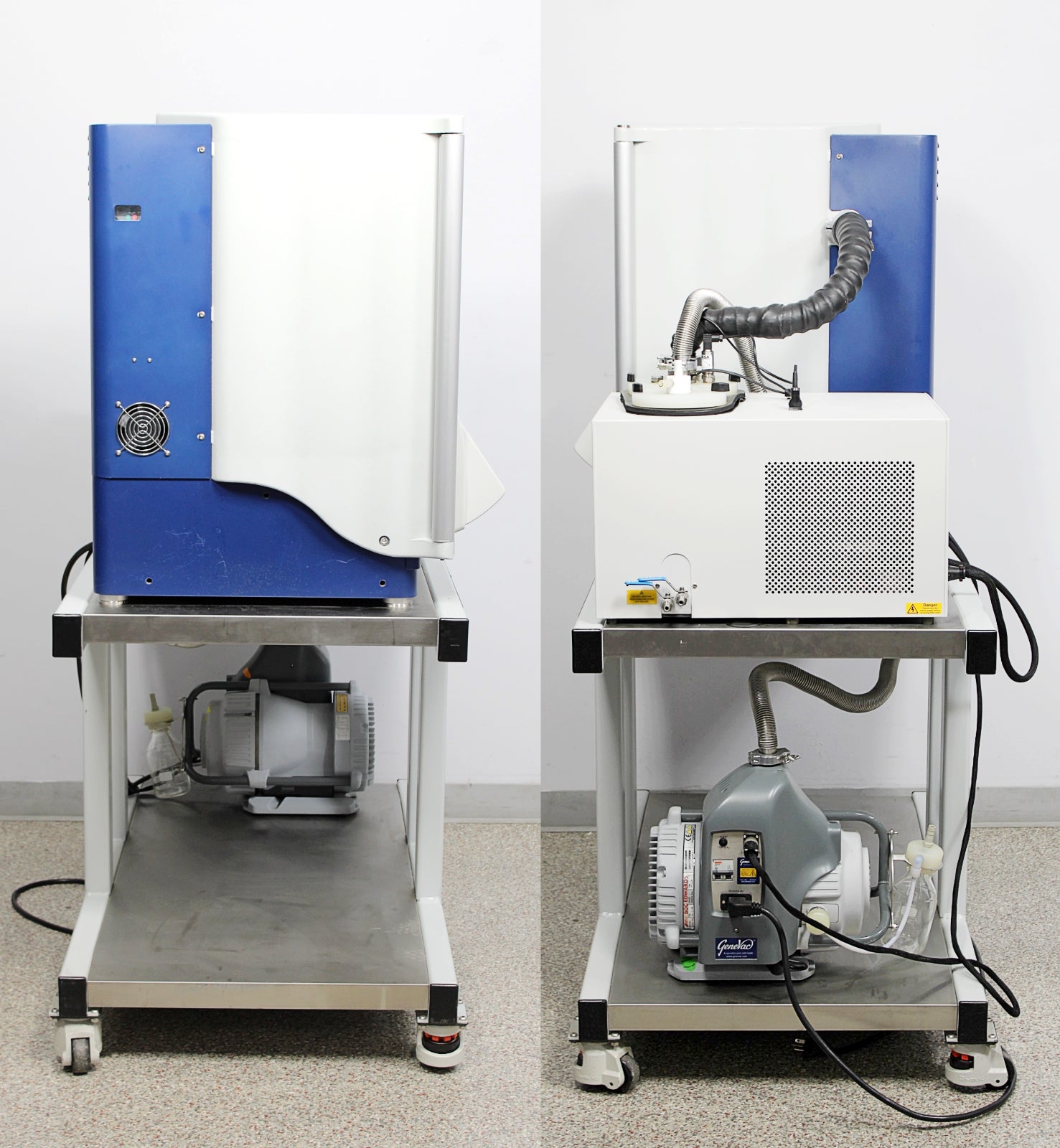

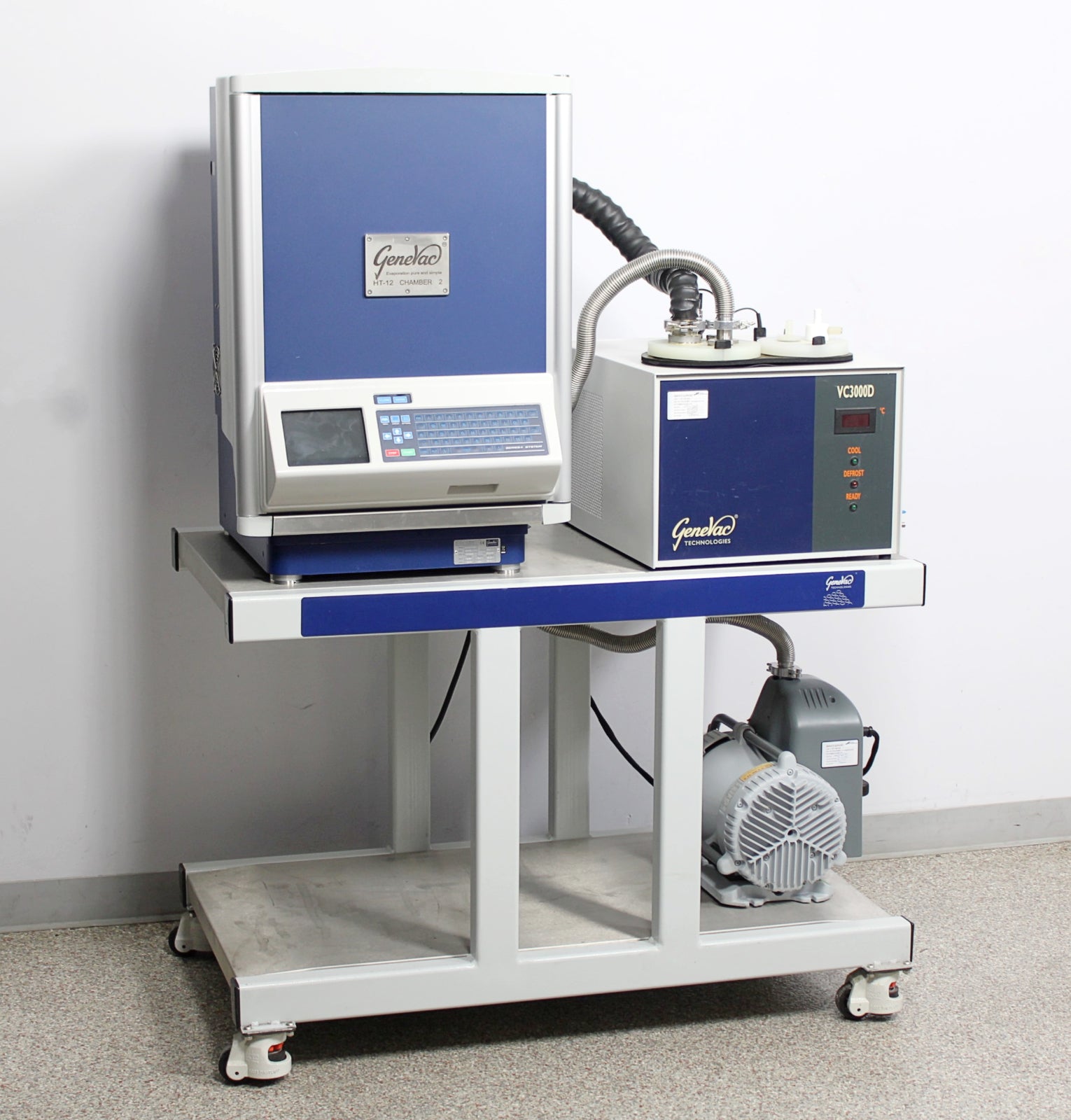

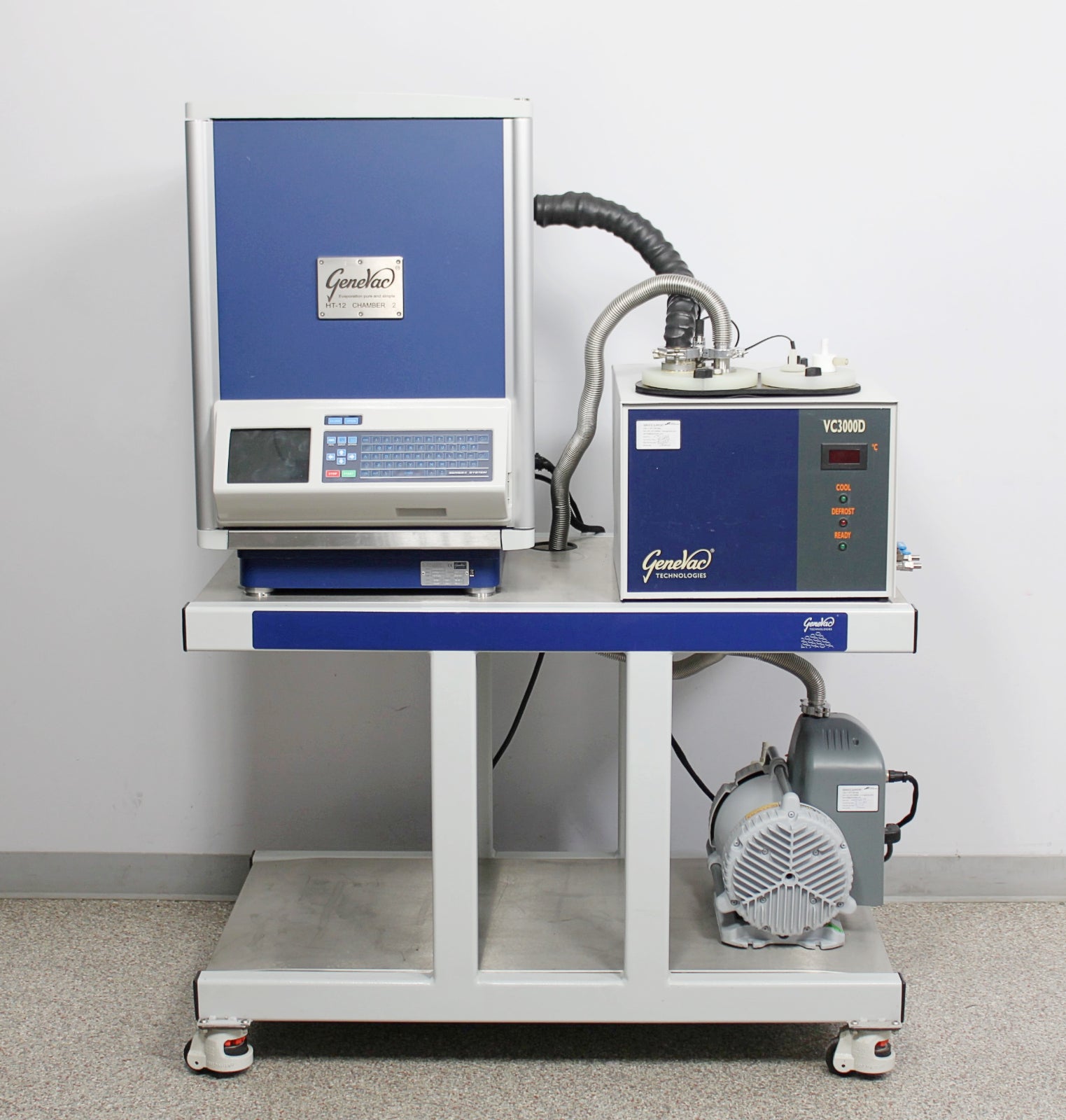

- GeneVac HT-12 centrifugal vacuum evaporator

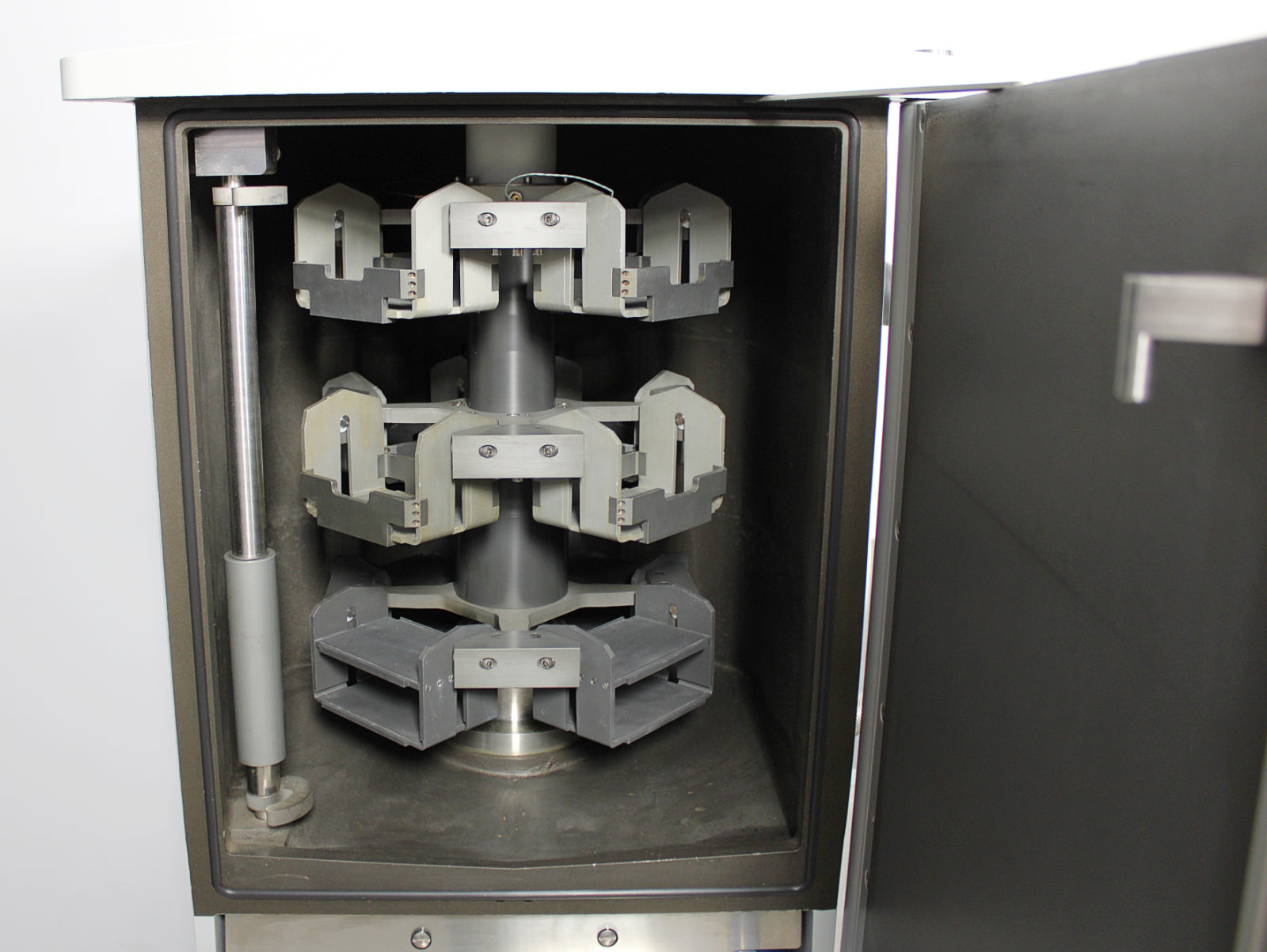

- Twelve (12) GeneVac rotor swing buckets
- GeneVac VC3000D condenser
- Edwards XDS5 dry scroll vacuum pump
- GeneVac rolling cart
- Vacuum hose
- Power cables
- 120-Day warranty
The GeneVac rolling cart is included with this evaporator system. If you do not want this rolling cart, then please contact us about removing it.

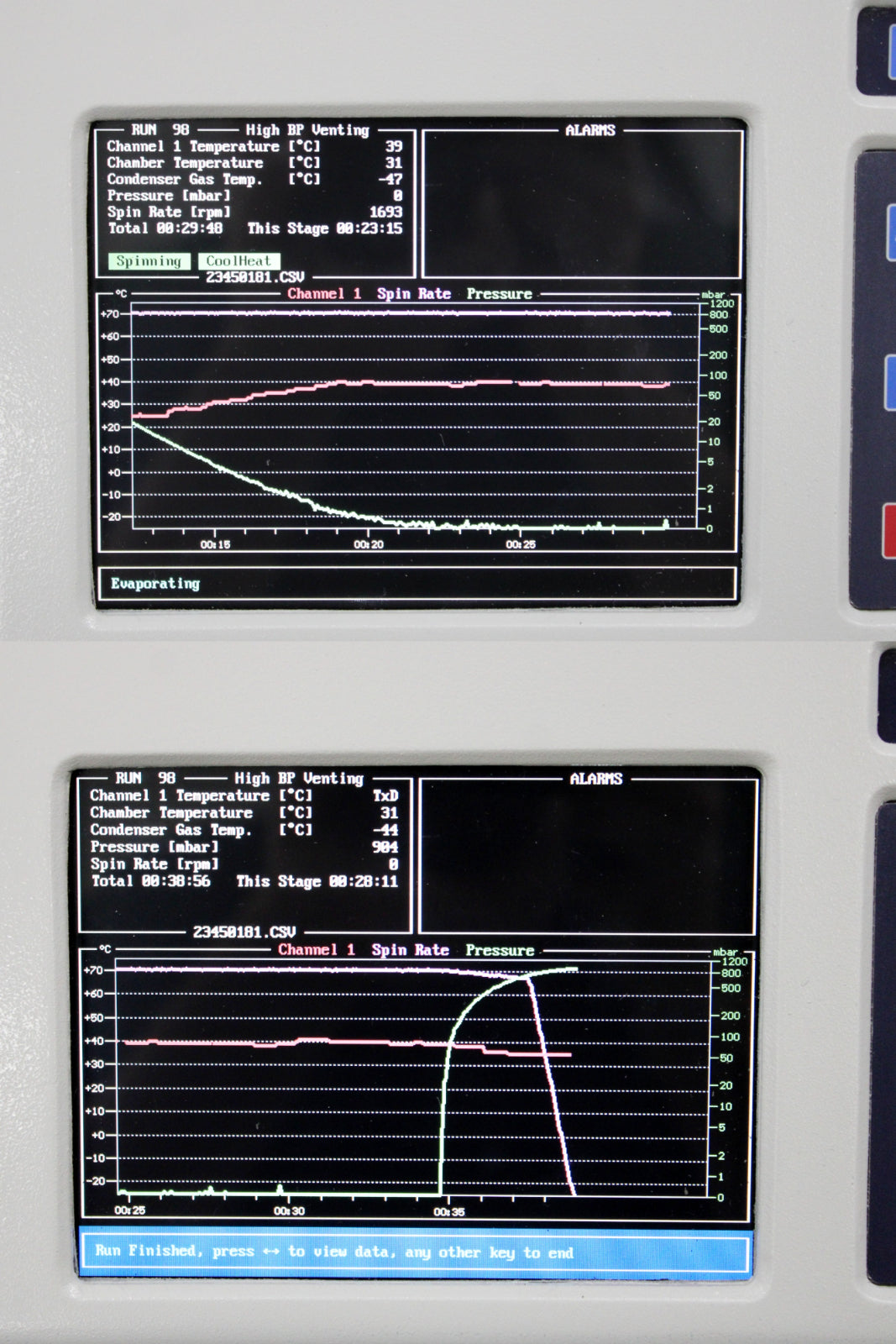

After its initial disinfection and inspection, our technicians tested the GeneVac HT-12 centrifugal vacuum evaporator system with the following results:
- Chamber heating: PASSED
- Chamber cooling: PASSED
- Rotor spinning up to speed: PASSED
- Sample temperature: PASSED
- Condenser cooling: PASSED
- Condenser temperature: PASSED
- Condenser defrost: PASSED
- Vacuum integrity: PASSED
- Door open and close: PASSED
- Replaced vacuum transducer
|

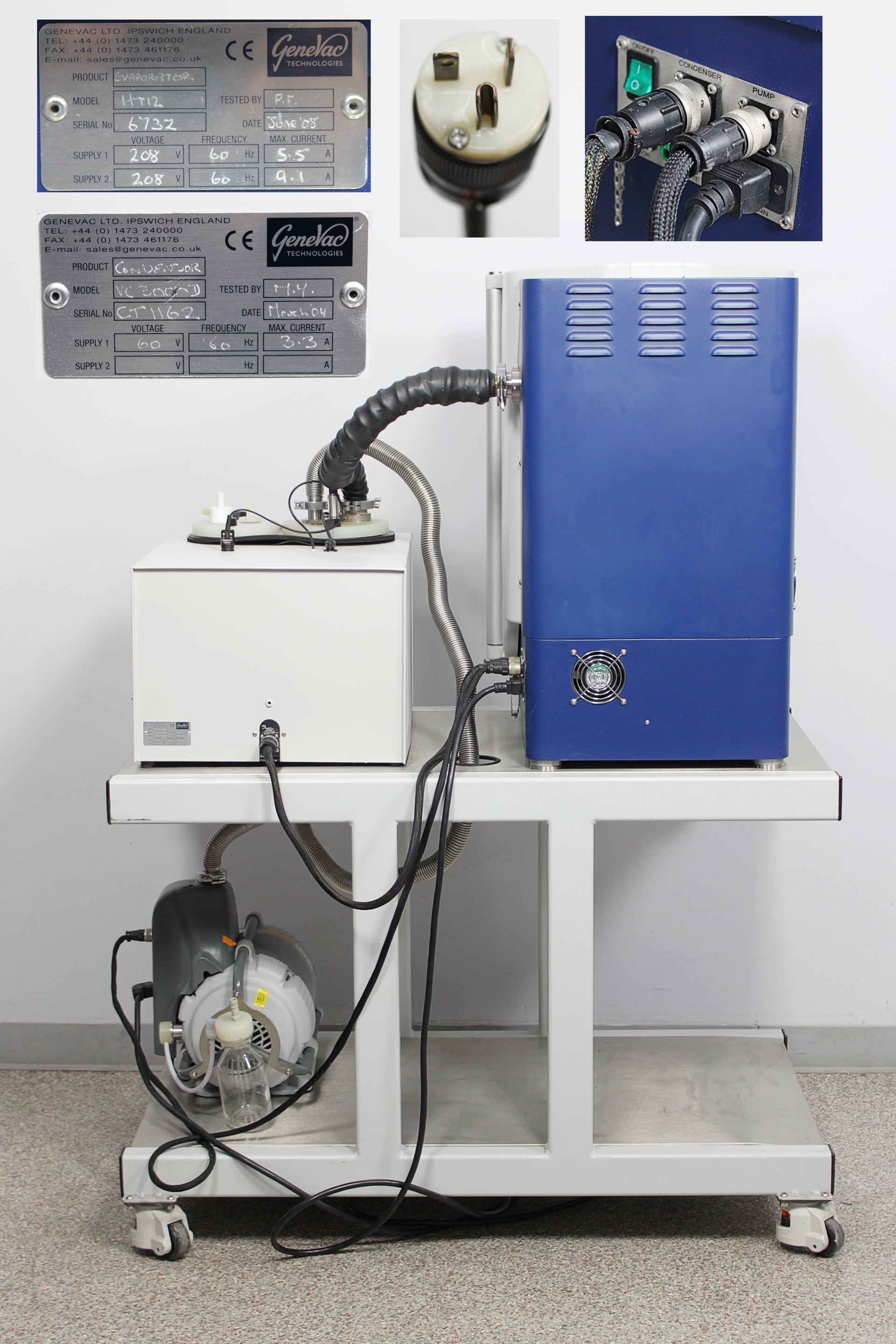

Manufacturer
|
GeneVac
|
|
Product
|
Evaporator
|
|
Model
|
HT12 Series II
|
|
Serial No.
|
6732
|
|
Mfg. date
|
June 2008
|
|
Max rotor speed
|
1300 low speed
1750 high speed
1800 Dri-Pure
|
|
Max force
|
300-500G
|
|
Drive system
|
Direct
|
|
Operation imbalance
|
85g
|
|
Max load
|
12 x 1.5kg @ 500G
|
|
IR lamps number
|
6
|
|
Weight
|
180 kg
|
|

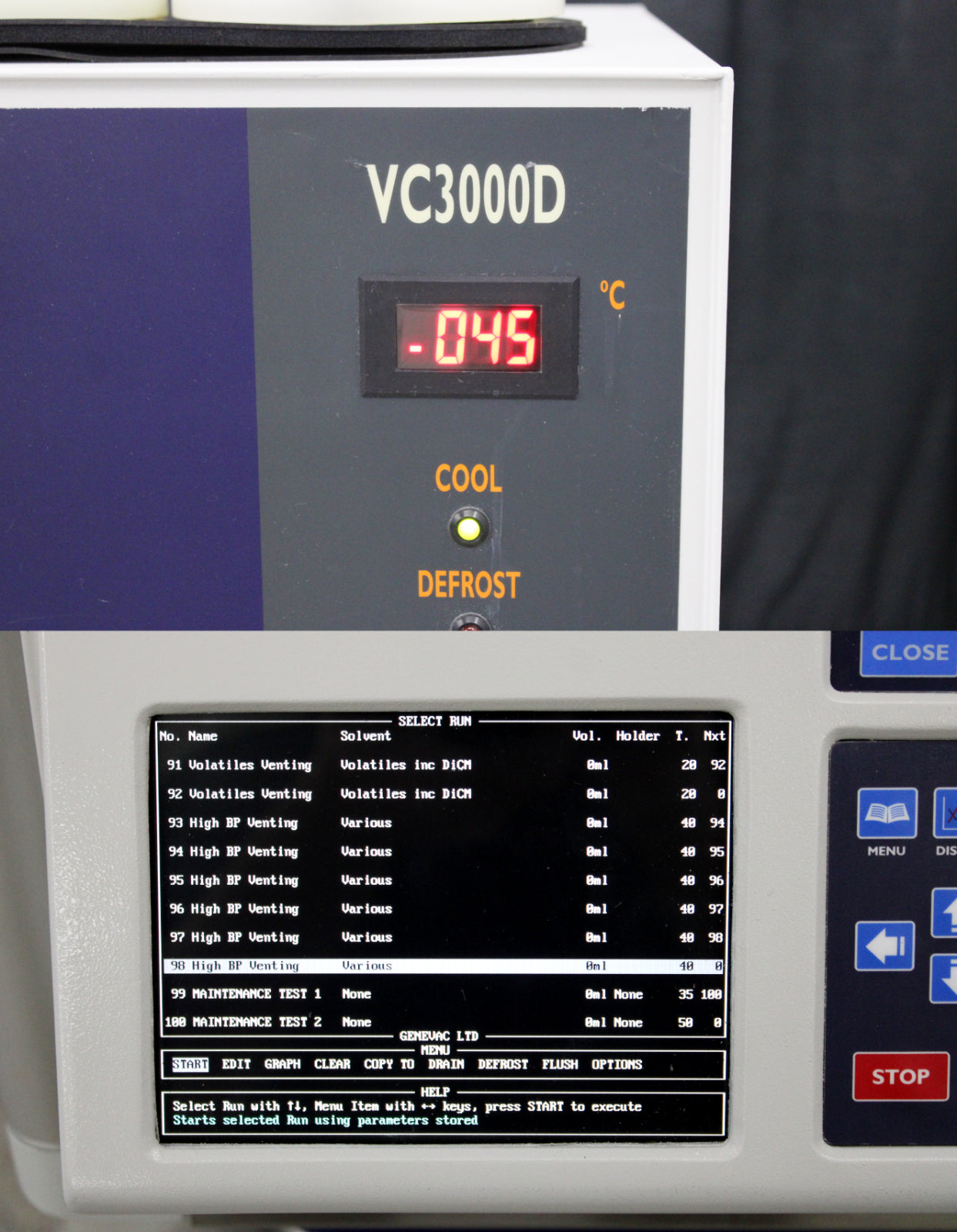

Condenser temperature
|
Minimum: -45°C
Maximum: +60°C
|
|
Vacuum condenser capacity
|
3.0 liters
|
|
Exhaust condenser capacity
|
1.5 liters
|
|
Condenser level detector
|
No
|
|
Rapid defrost
|
Yes
|
|
Condenser chamber
|
316 Stainless steel
|
|
Condenser drain valve
|
Stainless steel/PTFE
|
|
Vacuum system pressure display/resolution
|
0 - 1000 mbar
|
|
Vacuum control
|
0 - 1000 mbar
|
|
Dri-Pure
|
Yes
|
|
Auto vacuum vent valve
|
Yes
|
|
Ultimate system vacuum
|
0.4 mbar
|
|
Vacuum pump - Scroll
|
Weight: 28 kg
Maximum vacuum: 0.15 mbar (50Hz)/0.12mbar (60Hz)
Flow rate: 3.6 m^3h^-1
|
|
Vacuum pump - CVP
|
Weight: 52 kg
Maximum vacuum: 0.15 mbar
Flow rate: 3.6 m^3h^-1
|
|
Electrical requirements
|
208V/60Hz, single phase 9.1A
|
|
Dimensions (W x D x H)
|
22 x 27.5 x 32.5 in
|
|

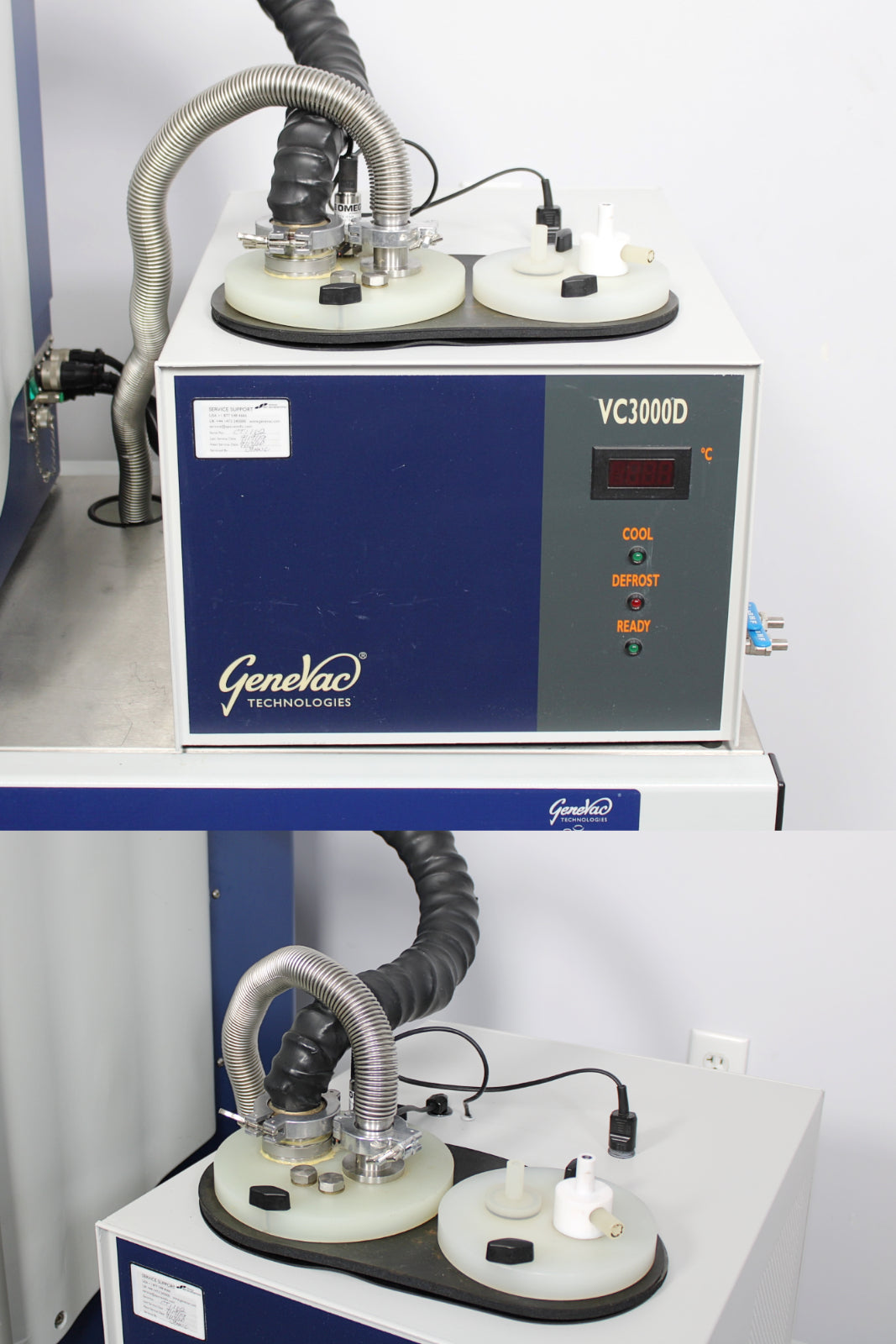

Manufacturer
|
GeneVac
|
|
Product
|
Condenser
|
|
Model
|
VC3000D
|
|
Serial No.
|
CT1162
|
|
Mfg. date
|
March 2004
|
|
Electrical requirements
|
208V, 60Hz, 3.3A
|
|
Dimensions (W x D x H)
|
18 x 23 x 14.5 in.
|
|

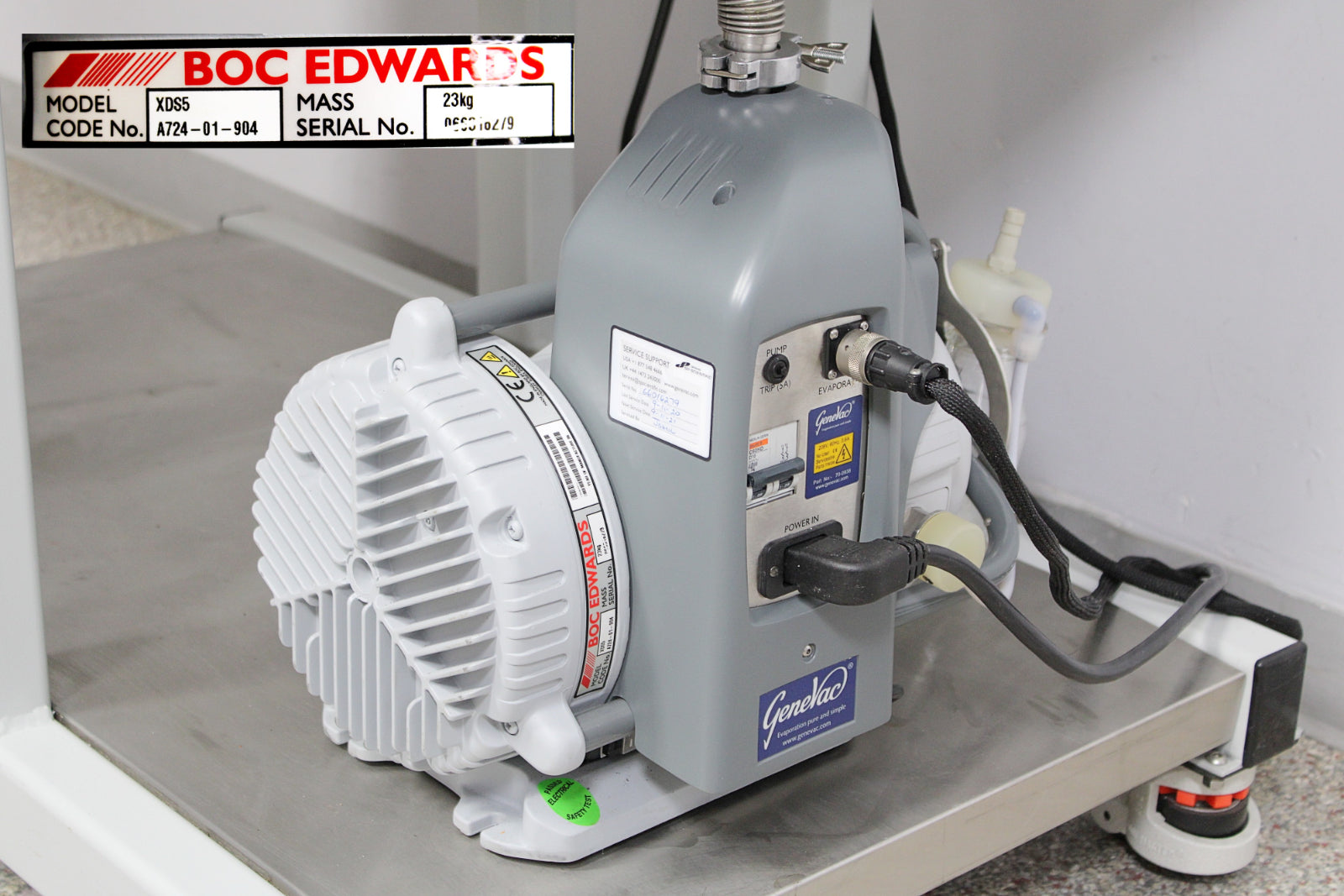

Manufacturer
|
Boc Edwards
|
|
Product
|
Vacuum pump
|
|
Model
|
XDS5
|
|
Code No.
|
A724-01-904
|
|
Serial No.
|
066016279
|
|
Mfg. date
|
2006
|
|
Mass
|
23 kg
|
