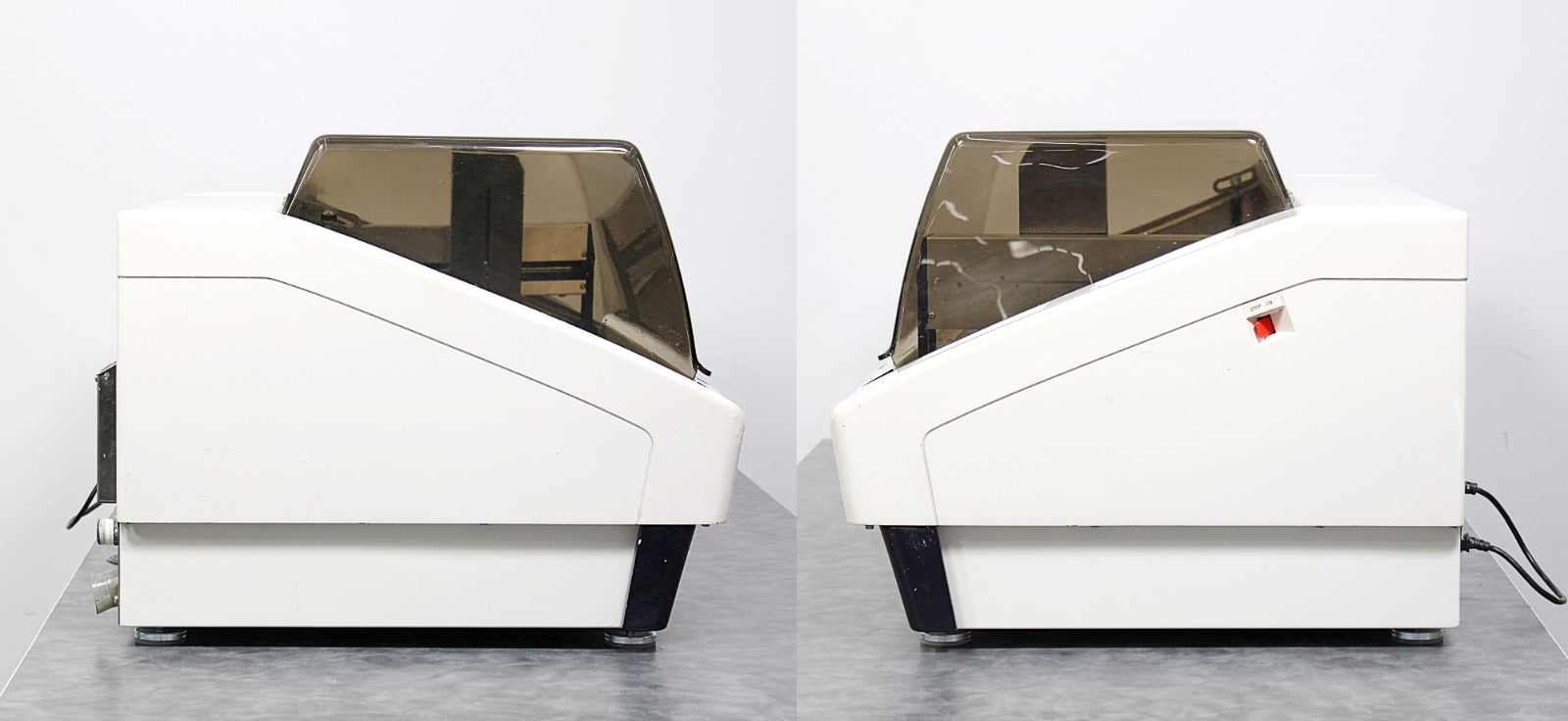

- Leica Autostainer XL slide stainer
- Eighteen (18) reagent vessels with lids
- Five (5) rinse vessels with lids
- Two (2) load/unload vessels
- Two (2) slide baskets
- Oven station
- Power cable
- 120-day warranty
- Hose and fittings to connect to a water source
- Hose and fittings to connect to a waste drain
After its initial disinfection and inspection, our technicians tested the Leica Autostainer XL slide stainer with the following results:
- Created a protocol: PASSED
- Ran protocol alongside another protocol without issue: PASSED
- Oven station: PASSED
While this is an older slide stainer and has some noticeable wear from use and age, our testing proved it still works very well.
|
Manufacturer
|
Leica Vision Instruments
|
|
Model
|
Autostainer XL
|
|
Serial No.
|
XL185800
|
|
Specimen slide throughput
|
at least 200 specimen slides/hour (depending on selected program -- up to 600 slides/hour)
|
|
Loading capacity
|
11 slide racks
|
|
Loading capacity per slide rack
|
30 specimen slides
|
|
Total processing stations
|
26
|
|
Reagent stations
|
at least 18
|
|
Reagent container volume
|
450 mL
|
|
Number of wash stations
|
max. 5
|
|
Oven
|
1
|
|
Oven chamber temperature
|
off or 30°C to 65°C
|
|
Incubation time setting
|
from 0 sec. up to 99 min, 59 sec.
|
|
Load/unload stations
|
1 each
|
|
Permanent memory capacity
|
15 programs, up to 25 steps each
|
|
Power rating
|
90-125 VAC or 180-250 VAC
650 W
49-61 Hz
|
|
Dimensions (W x D x H)
|
42.2 x 26 x 20 in (109 x 67 x 51 cm)
|
|
Weight
|
143.3 lb (65 kg)
|
