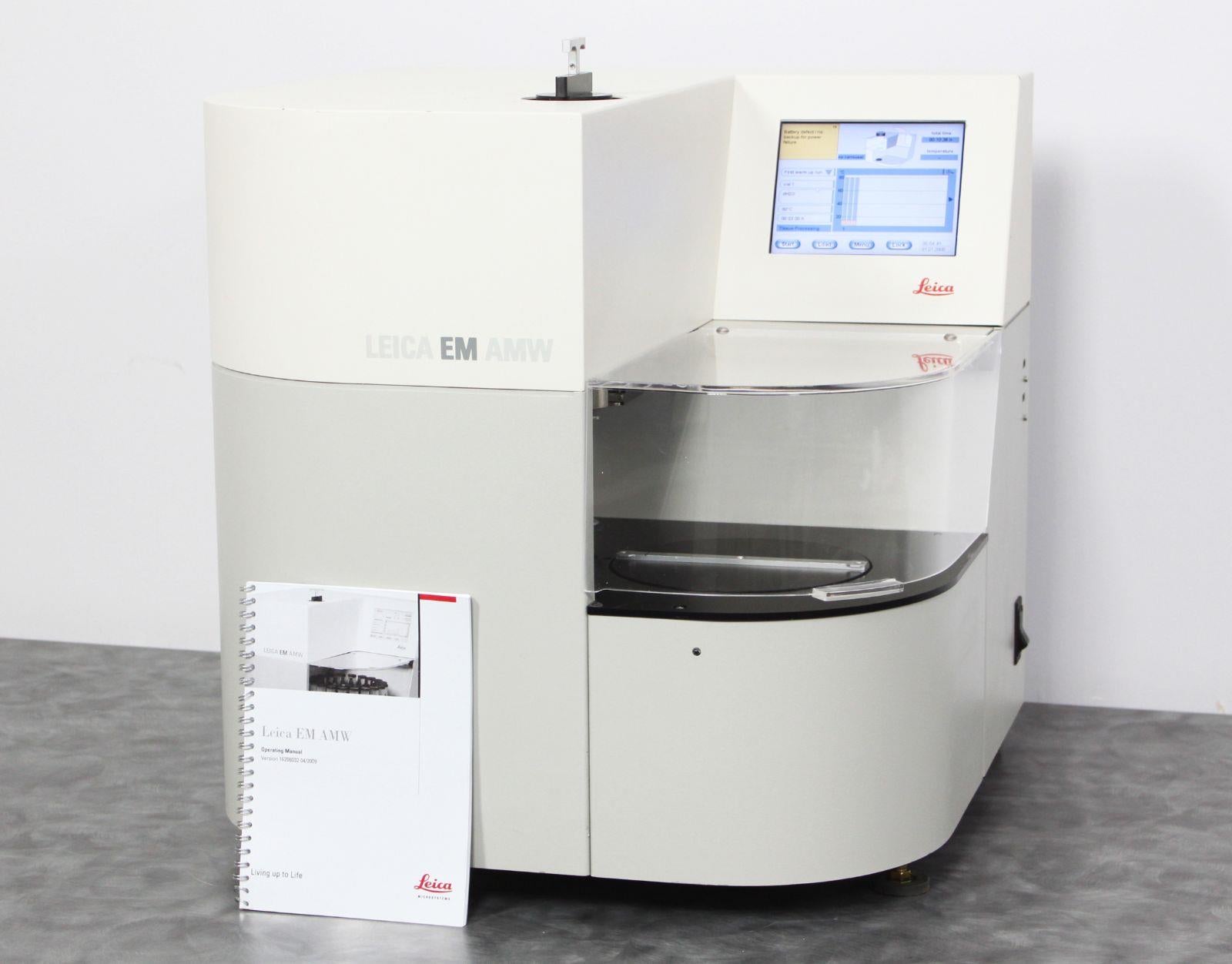

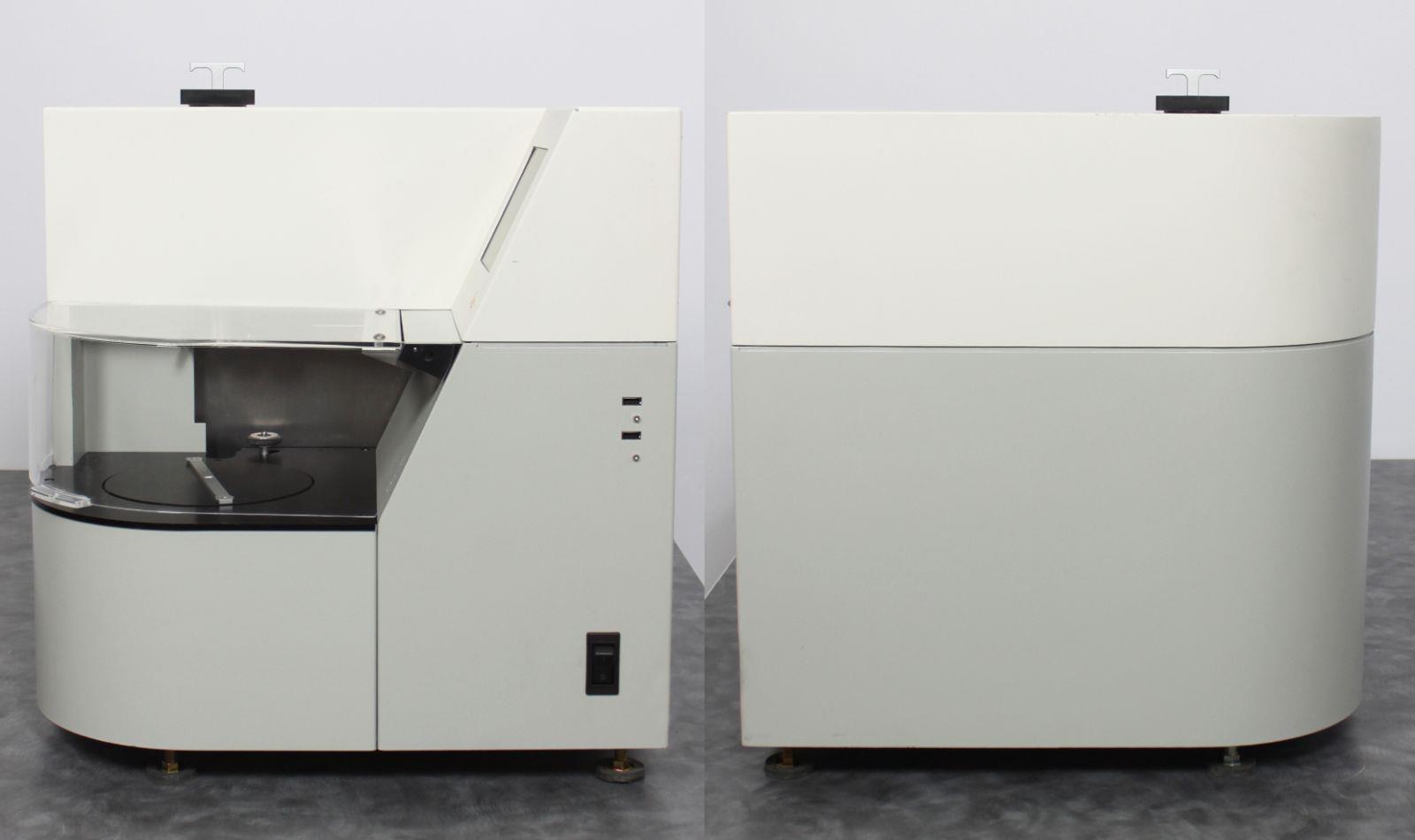

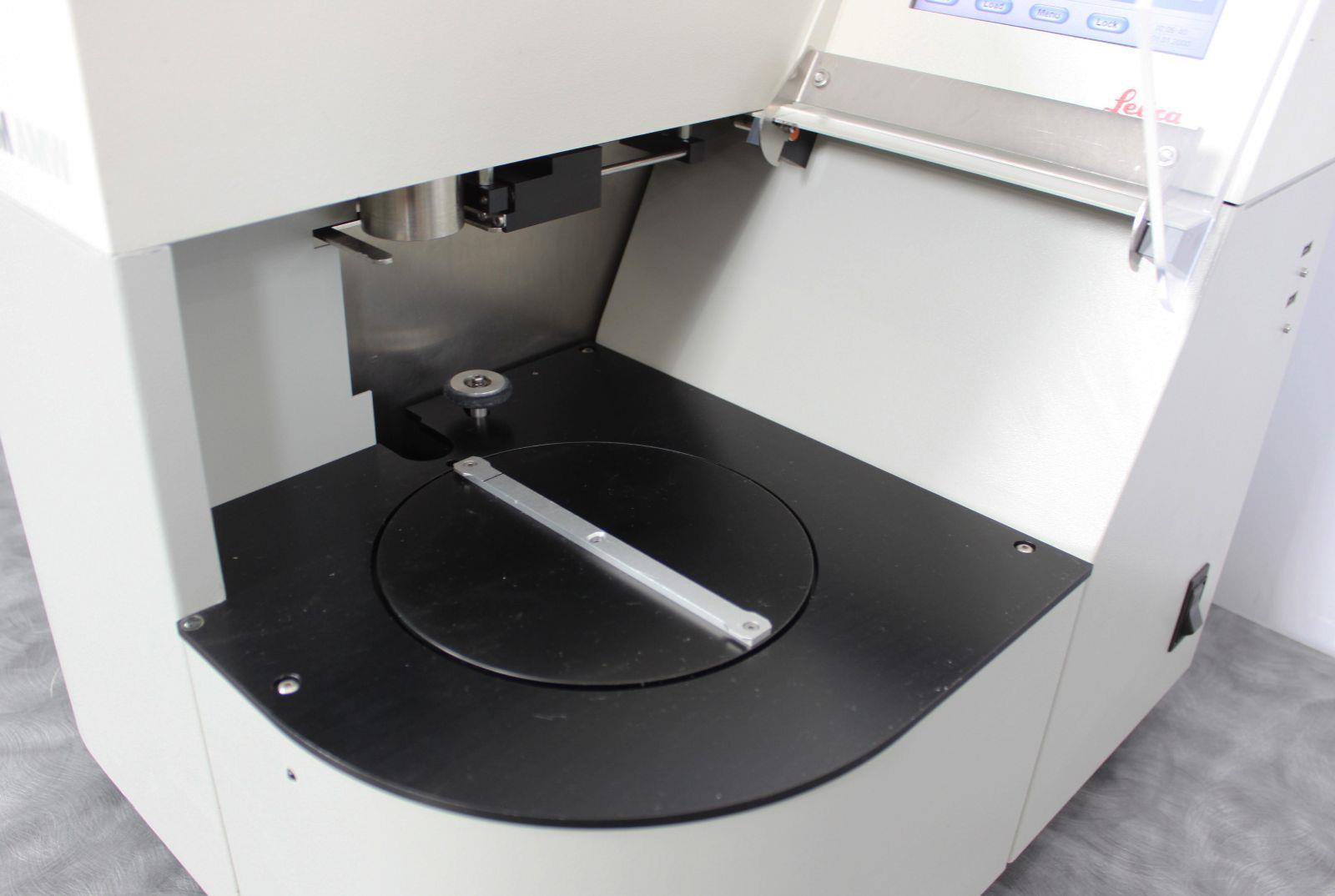

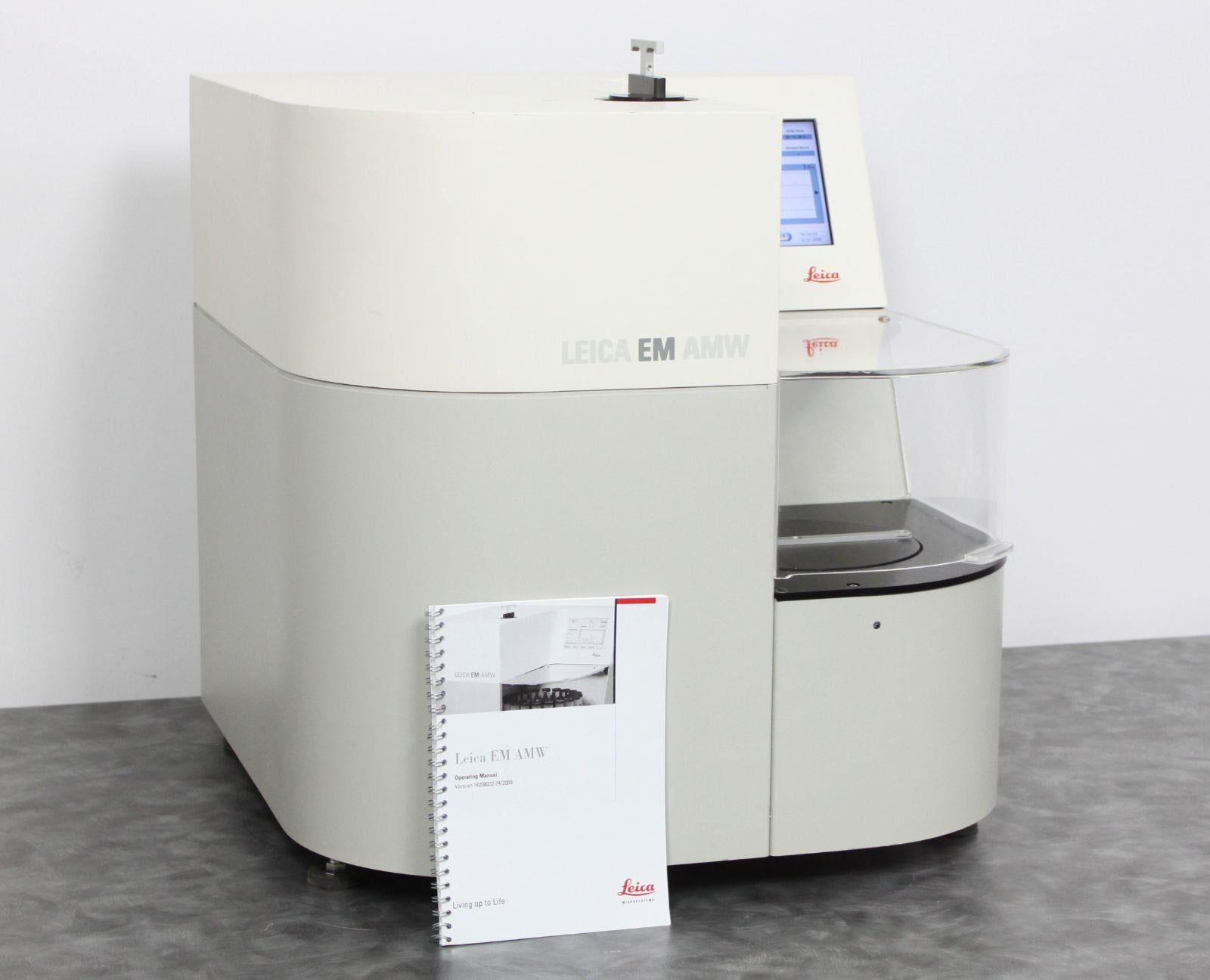

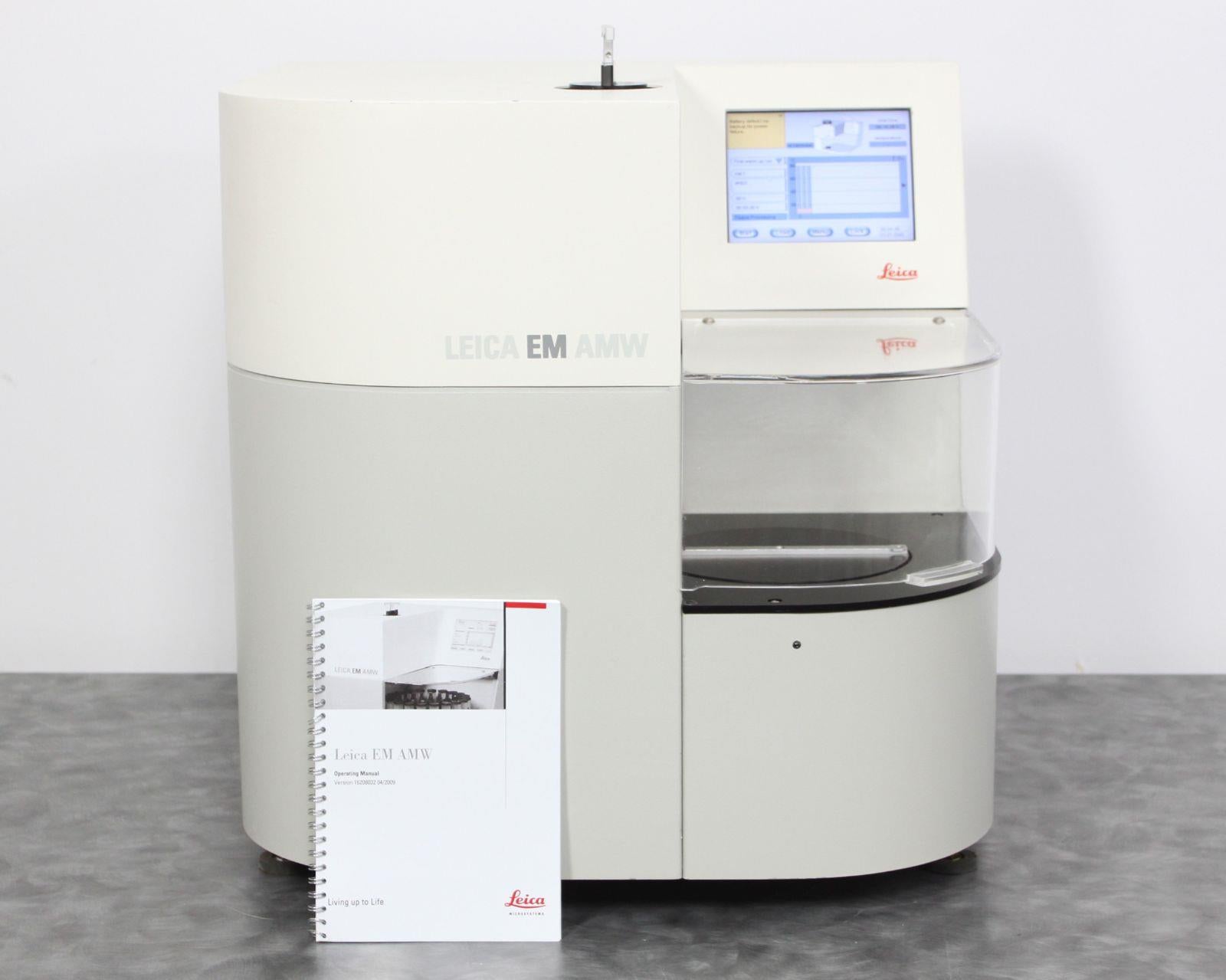

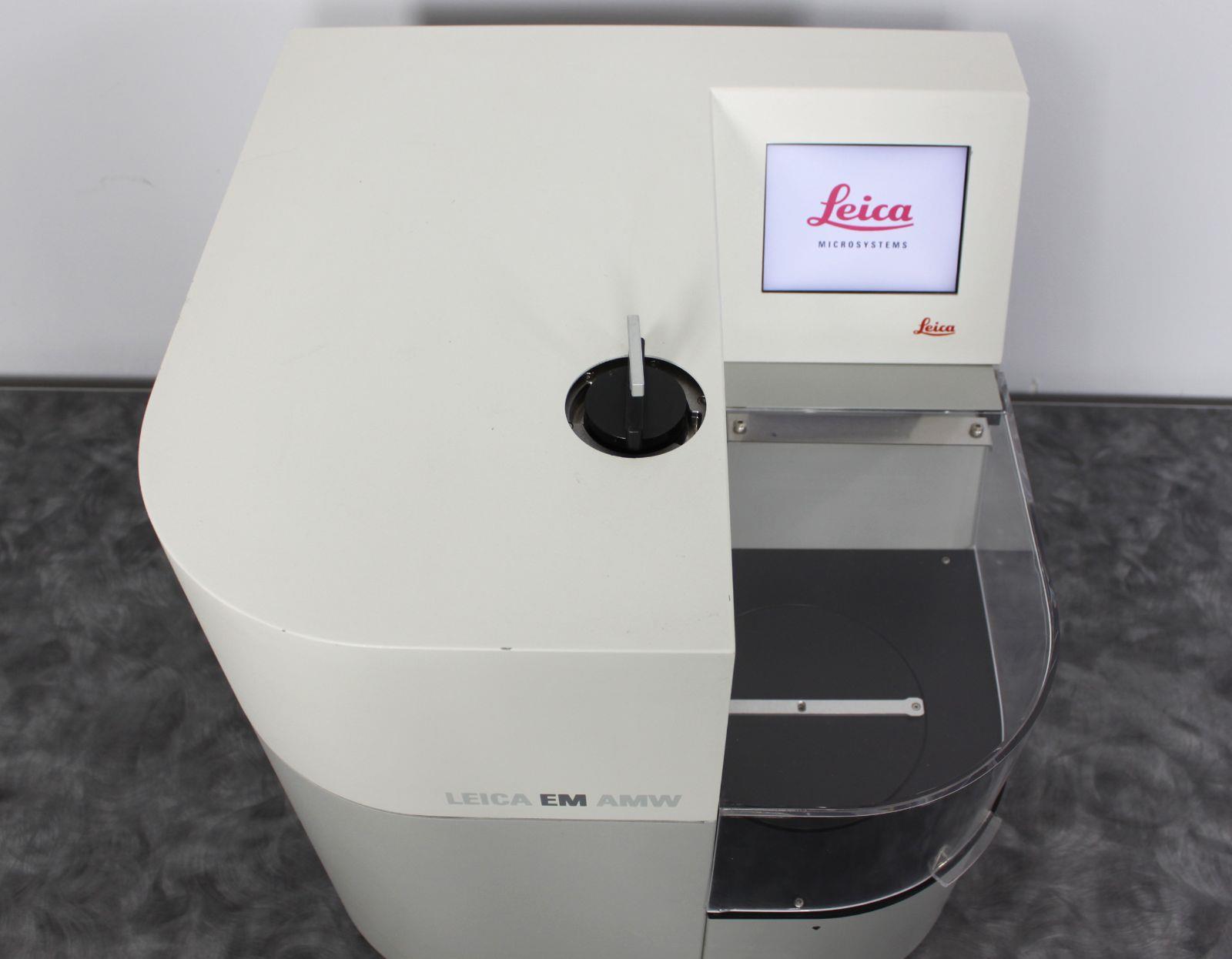

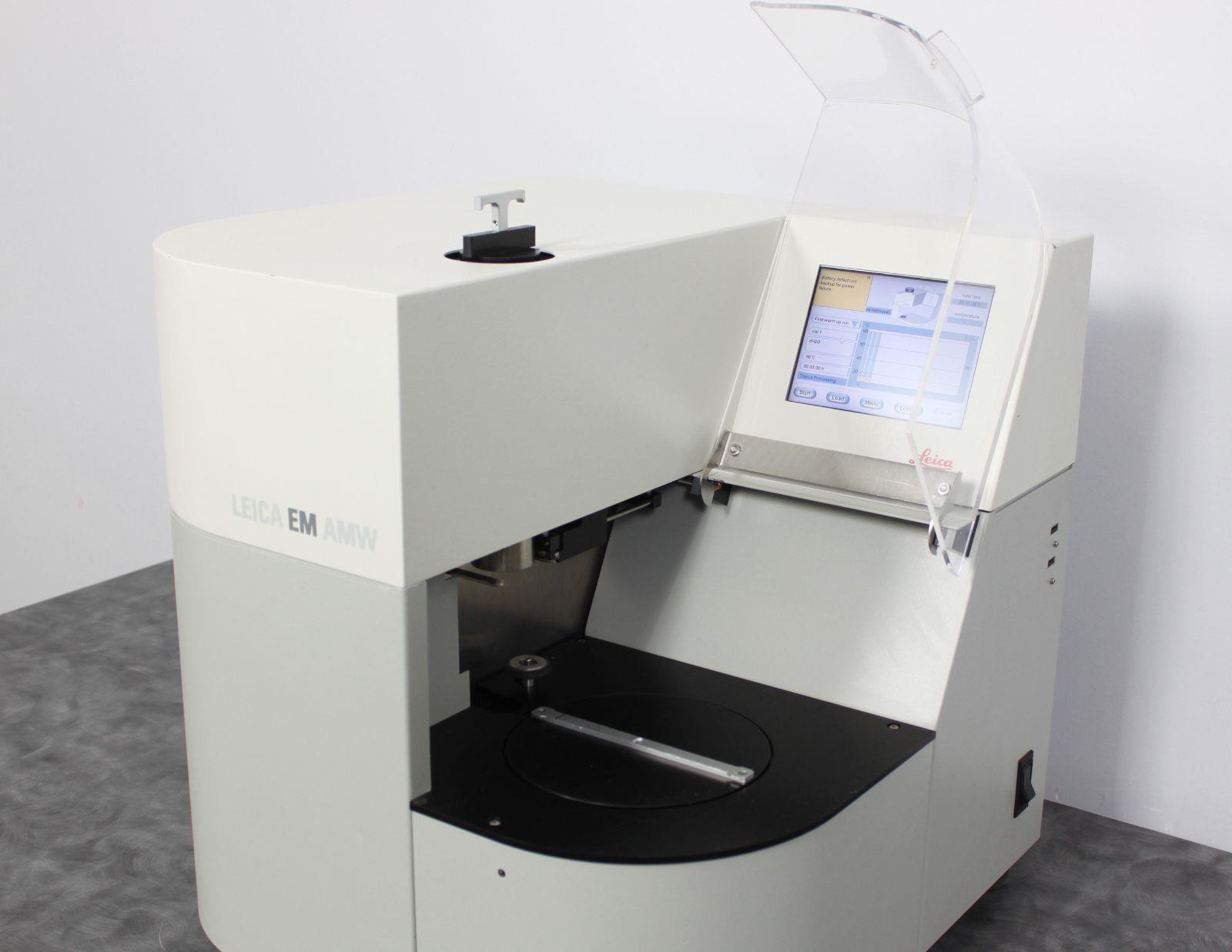

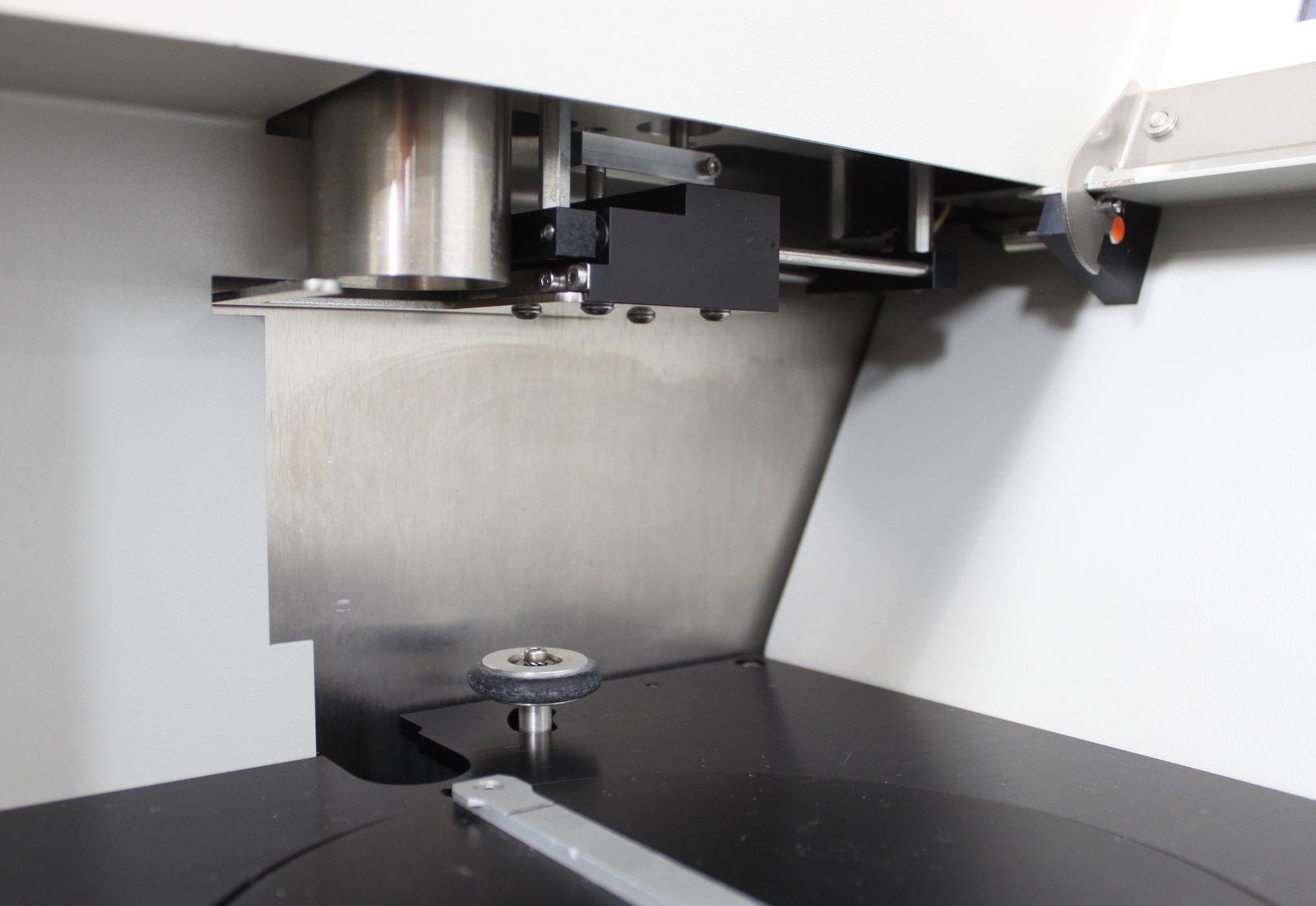

Leica EM AMW Automatic Microwave Tissue Processor for Electron Microscopy
- Leica EM AMW Automatic Microwave Tissue Processor
- Instruction Manual
- Power Cable
Notice: The carousel, vials, and consumables must be acquired separately.
|
Manufacturer
|
Leica
|
|
Model
|
EM AMW
|
|

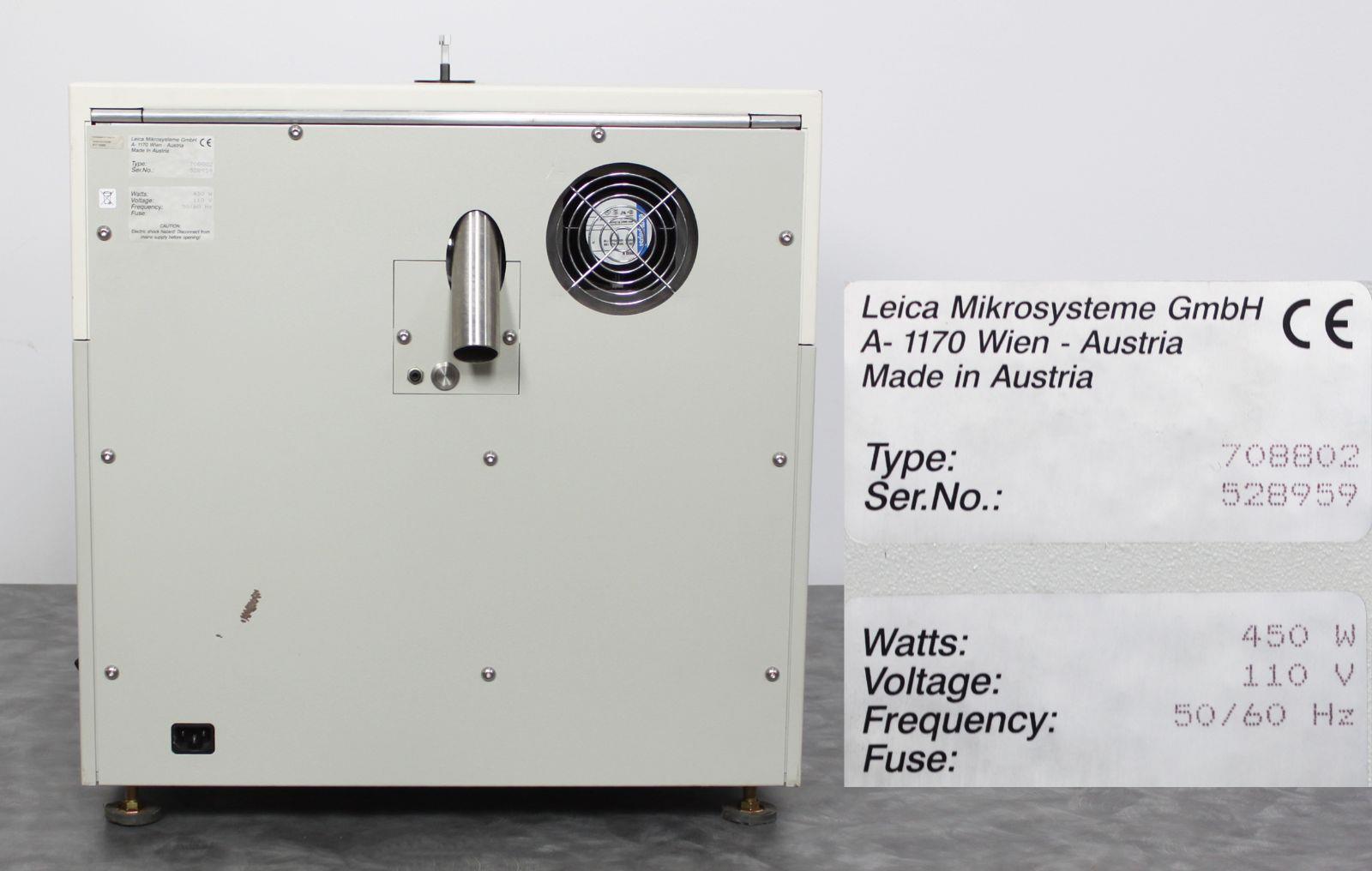

Type
|
708802
|
|
Serial No.
|
528959
|
|
Sample capacity
|
40 samples/processing run
20 samples/polymerization run
|
|
Processing capacity
|
Up to 20 x 20mL vials per cycle
|
|
Reagent consumption
|
10mL/vial
|
|
Vial agitation stroke
|
4mm
|
|
Change of vials
|
~30 seconds
|
|
Chamber geometry
|
Mono-mode chamber
|
|
Microwave frequency
|
2450 MHz
|
|
3 different MW controls
|
Selectable for each processing step
|
|
Magnetron warm-up time
|
5 seconds, automatic warm up
|
|
MW-power applied
|
0 — 30W continuous output, selectable in 1W increments
|
|
Temperature range
|
RT to +100°C
|
|
Temperature measurement
|
Non-contact infrared sensor
|
|
Temperature read out accuracy
|
1°C
|
|
Vent system
|
Twin fan system. Separate fan for microwave chamber and basic unit
|
|
Exhaust volume
|
3 liter/second, measured at the end of the tube
|
|
Timer value
|
0 — 99:59:59
|
|

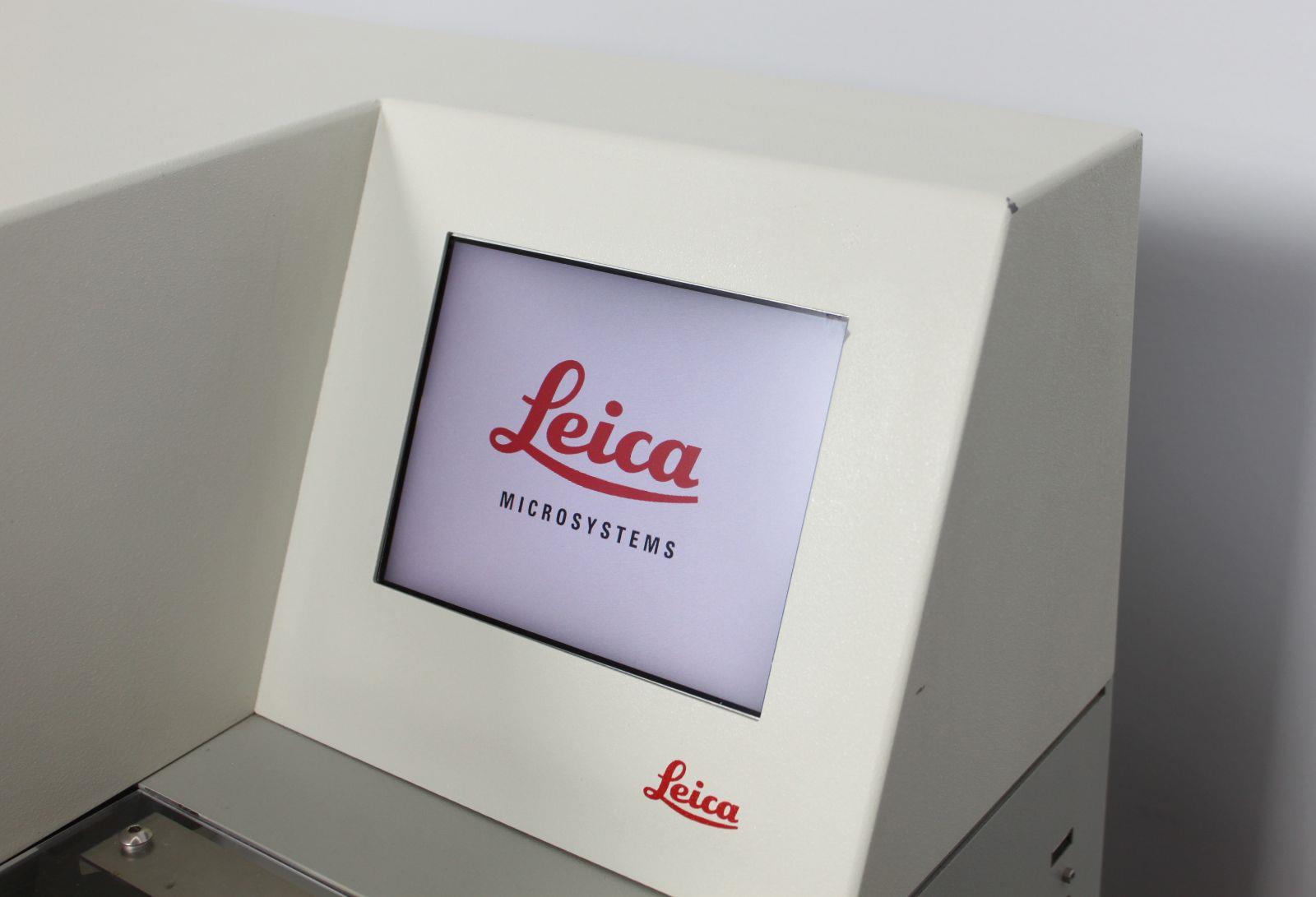

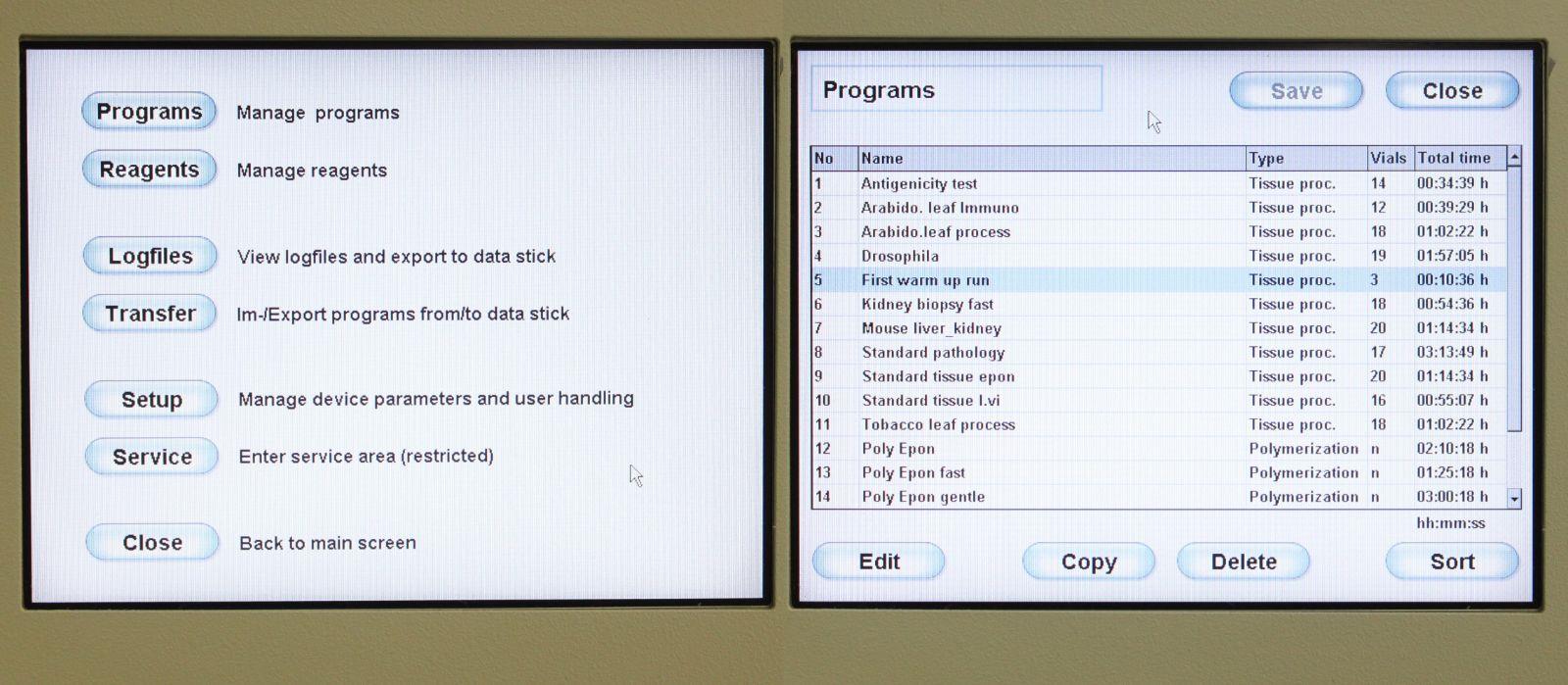

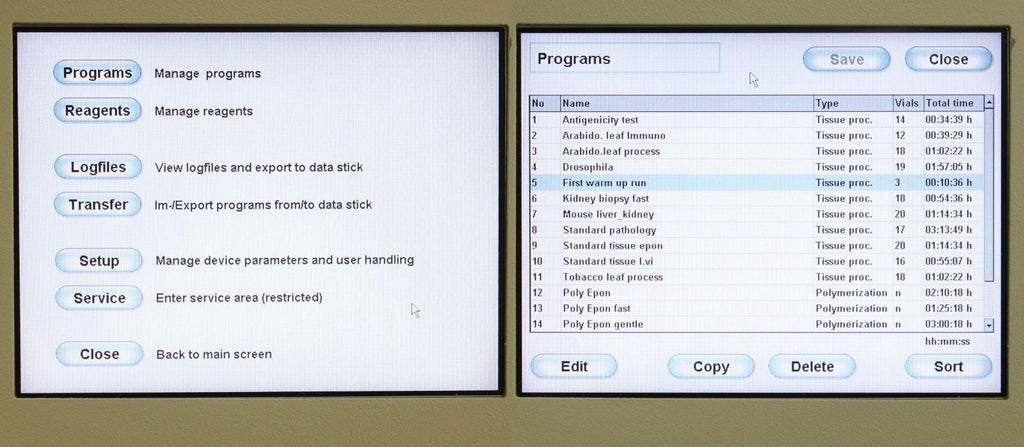

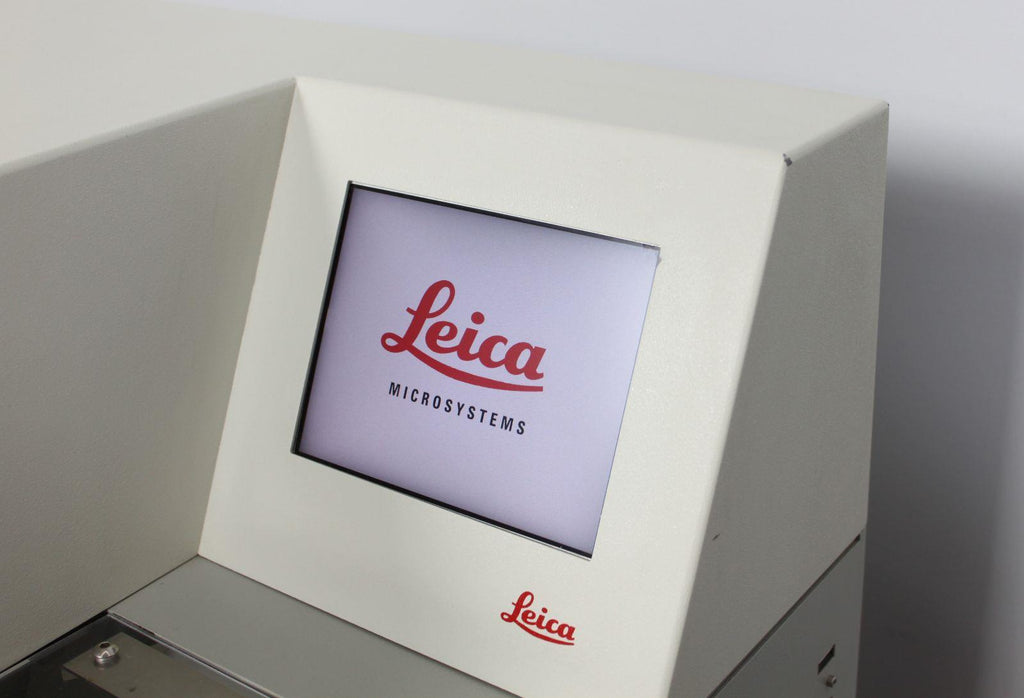

User interface
|
Mouse controlled 6.5" color screen
|
|
Programs
|
99
|
|

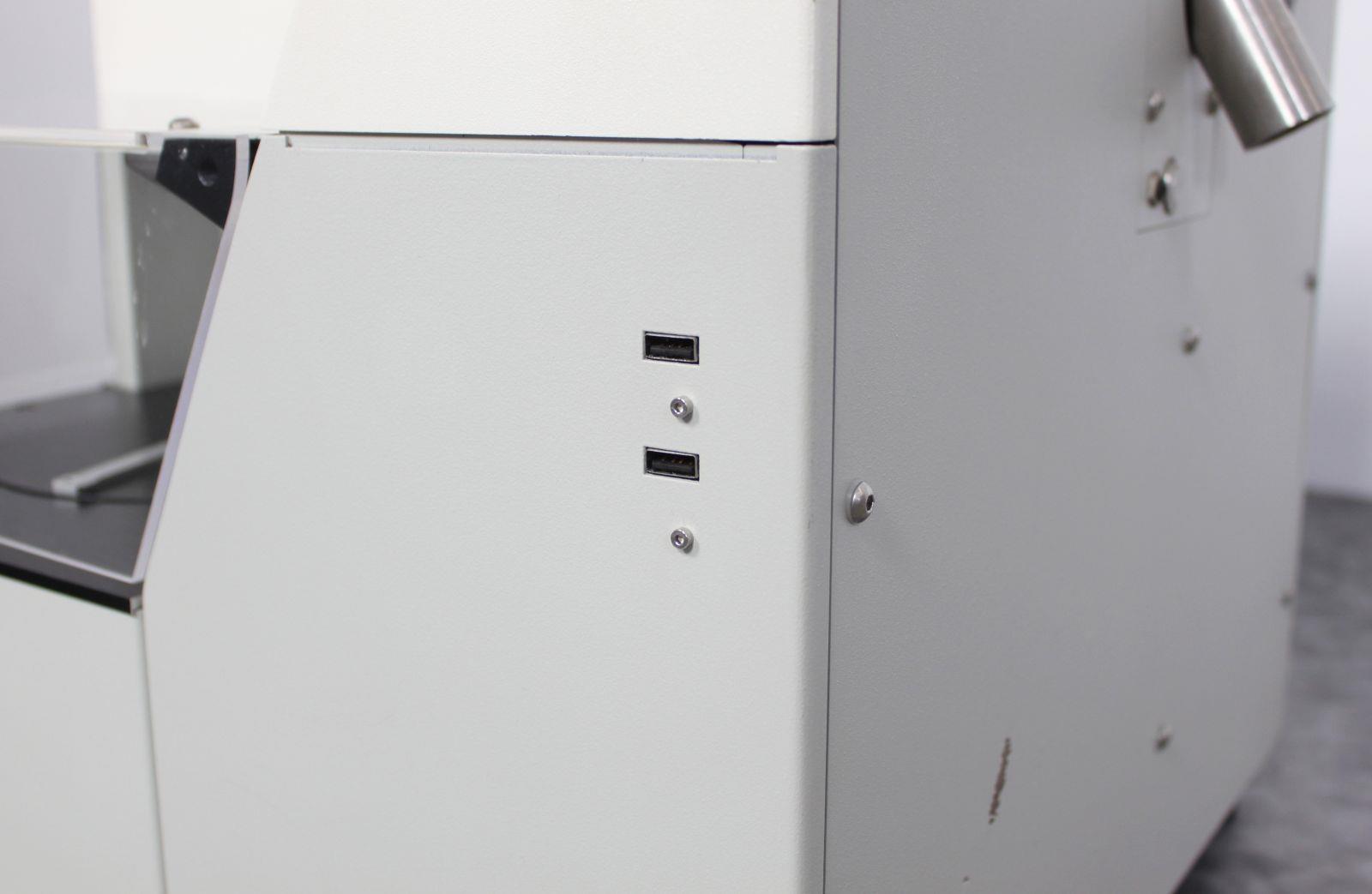

Data transfer
|
USB port
|
|
Noise level
|
50dB(A)
|
|
Certification
|
CE
|
|
Electrical Specifications
|
110V, 50/60Hz, 450W
|
|
Dimensions (W x D x H)
|
19 x 19 x 20 in.
|
