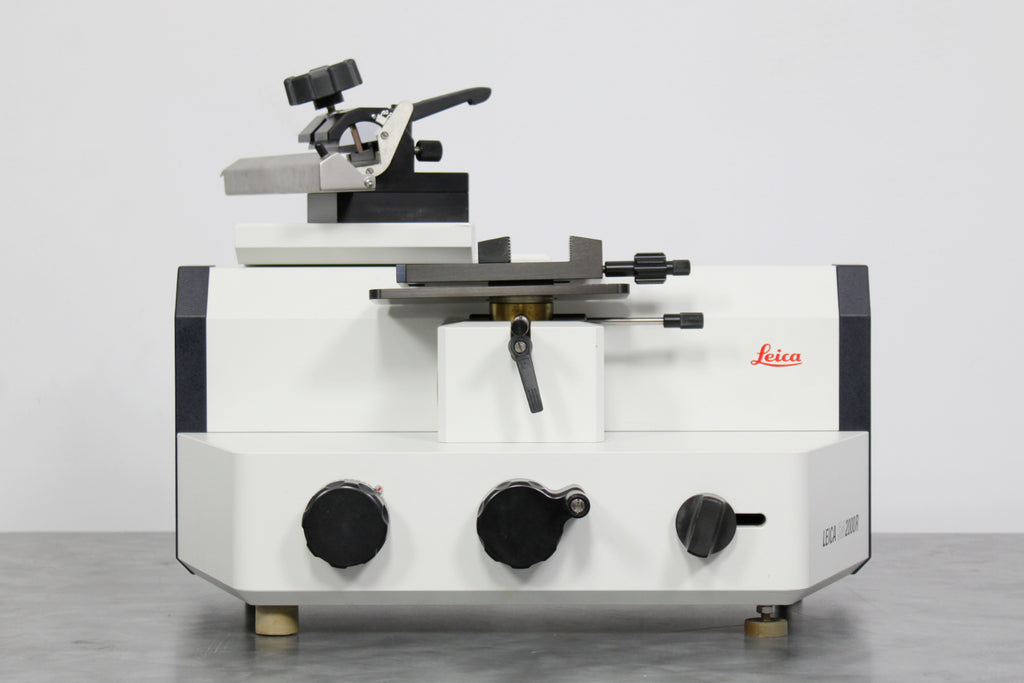

- Leica SM2000 R Sliding Benchtop Microtome
- 247mm (9.75in) Permanent Knife*
- 120-Day Warranty
*Permanent knife needs sharpened before use.
After its initial disinfection and inspection, our technicians tested the Leica SM2000 R sliding benchtop microtome with the following results:
- Advanced the knife on sliding through the full stroke: PASSED
- Knife holder adjustment: PASSED
- Inspected internal and external components for wear: PASSED
|
Manufacturer
|
Leica
|
|
Model
|
SM2000 R
|
|
Catalog No.
|
045333784
|
|
Serial No.
|
2286/10.2001
|
|
Mfg. Date
|
October 2001
|
|
Section Thickness Settings
|
1 - 60 µm Range
Intervals:
0 to 2 µm in 0.5 µm increments
2 to 10 µm in 1 µm increments
10 to 20 µm in 2 µm increments
20 to 60 µm in 5 µm increments
|
|
Automatic Specimen Feed
|
Up to 30 µm
|
|
Overall Feed
|
40 mm/1.57 in
|
|
Clearance Angle Adjustment
|
-4° to 14°
|
|
Maximum specimen size with cassette clamp
|
35 x 22 mm
|
|
Maximum specimen size with UCC
|
80 x 60 mm
|
|
Specimen Orientation
|
approx. 10°
|
|
Dimensions (W x D x H)
|
17.5 x 11 x 13.5 in
|
