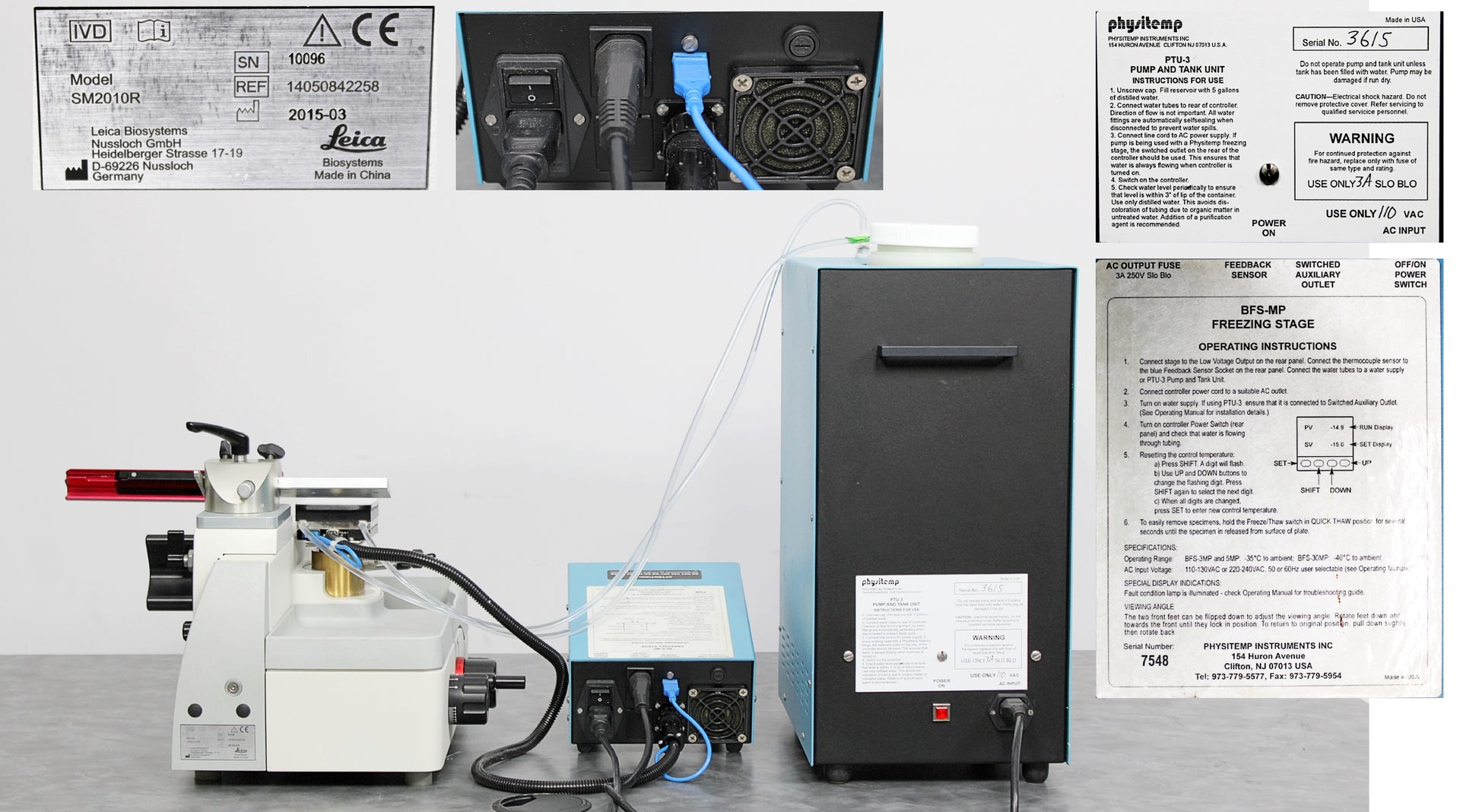

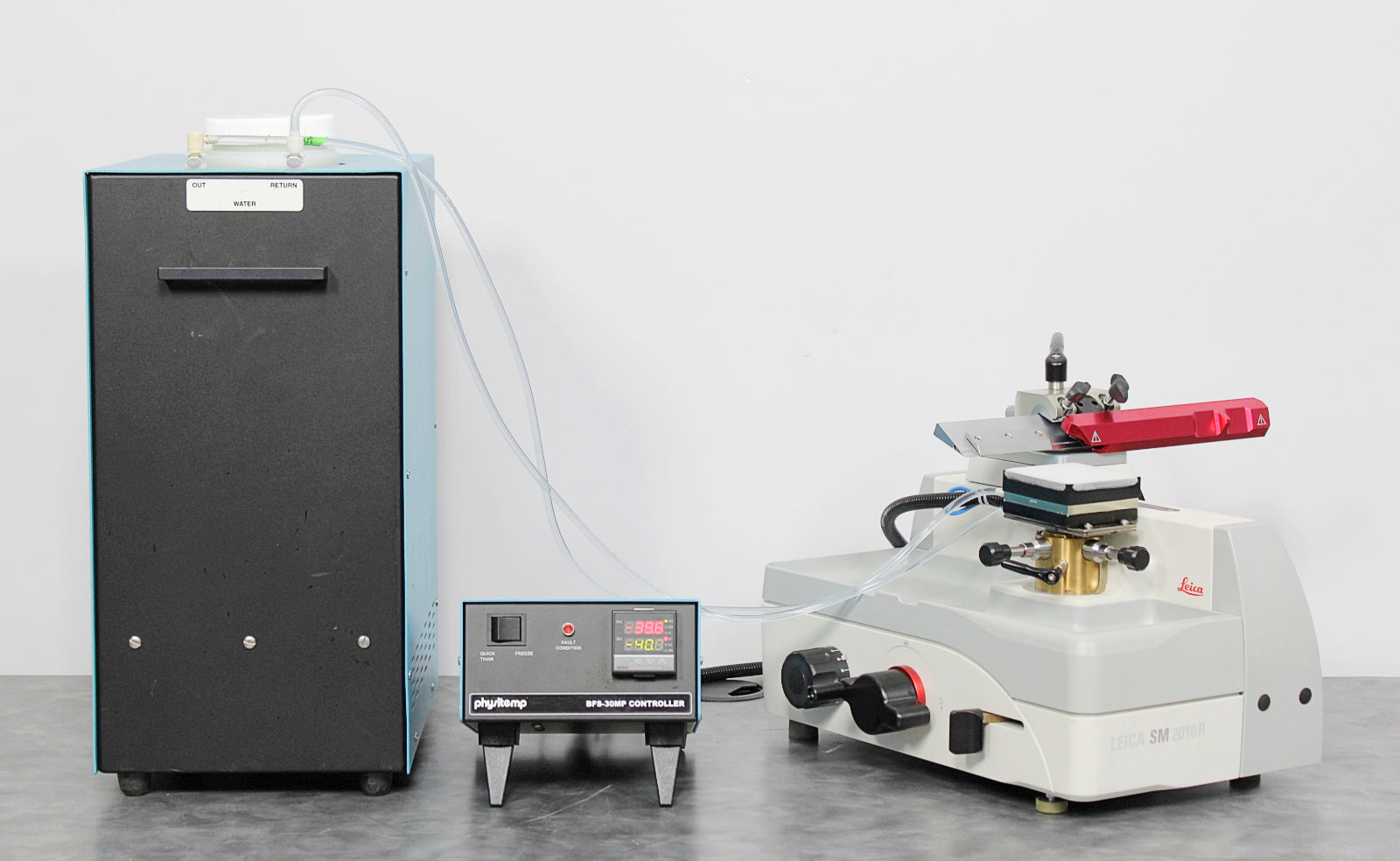

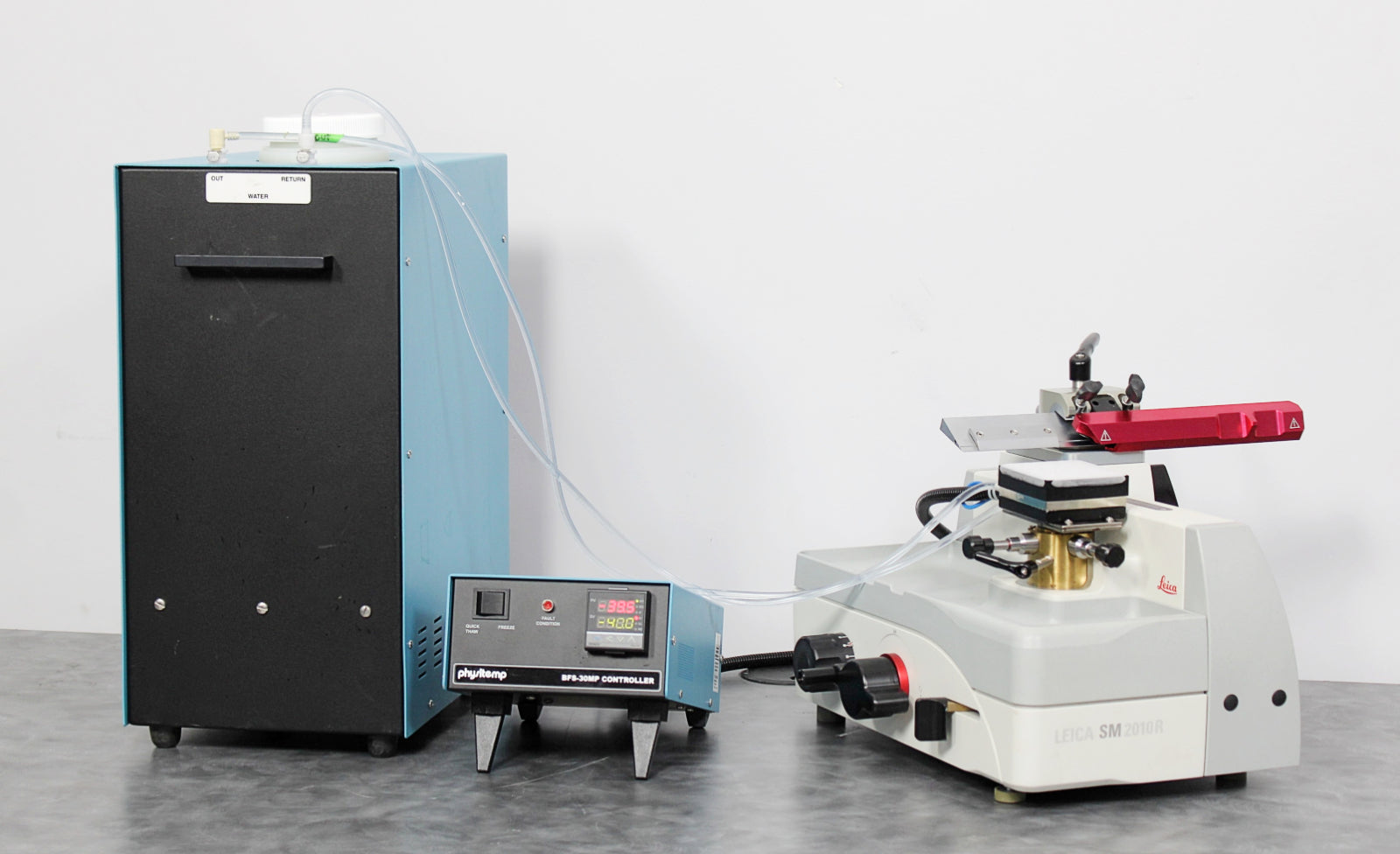

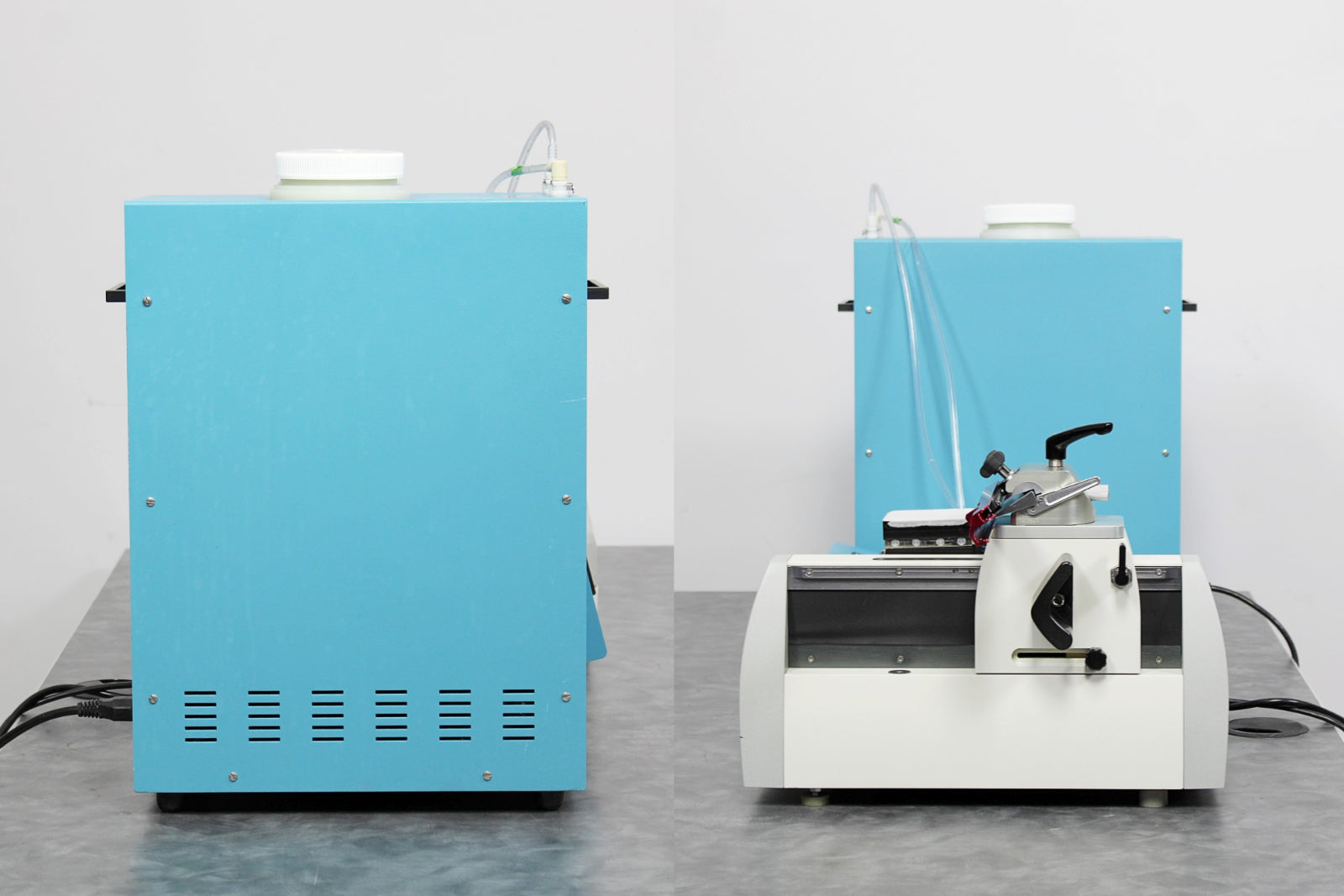

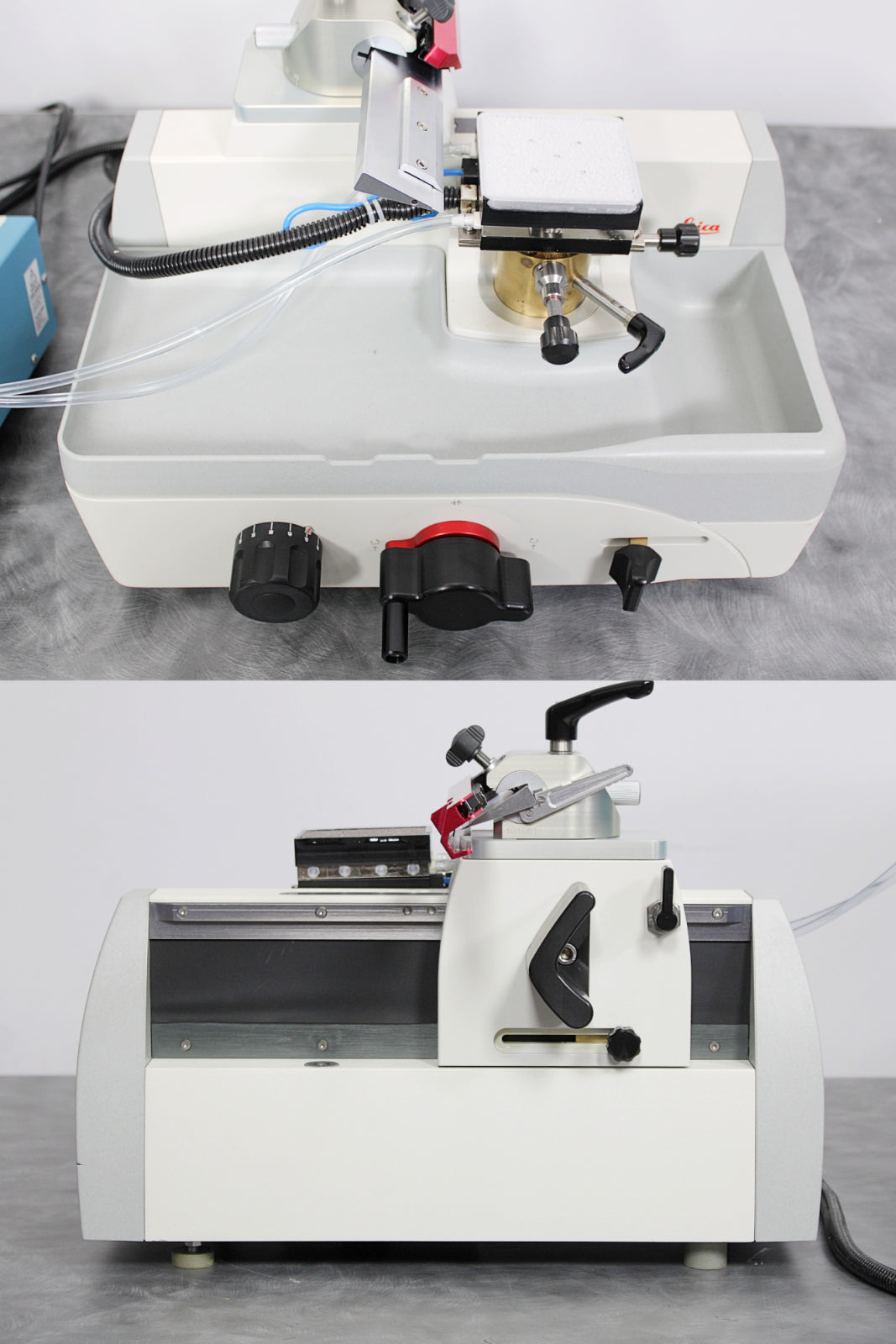

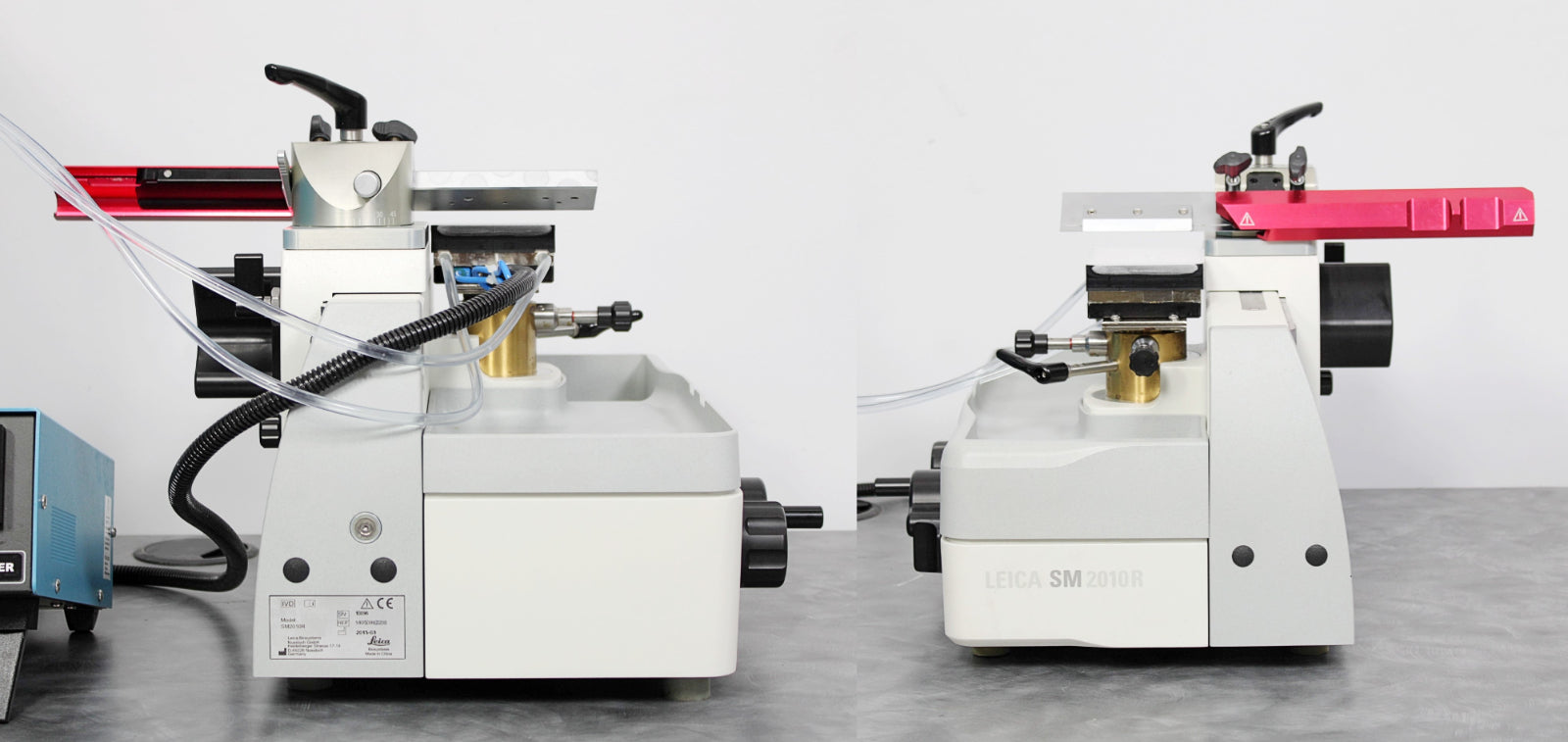

- Leica Biosystems SM2010R sliding microtome

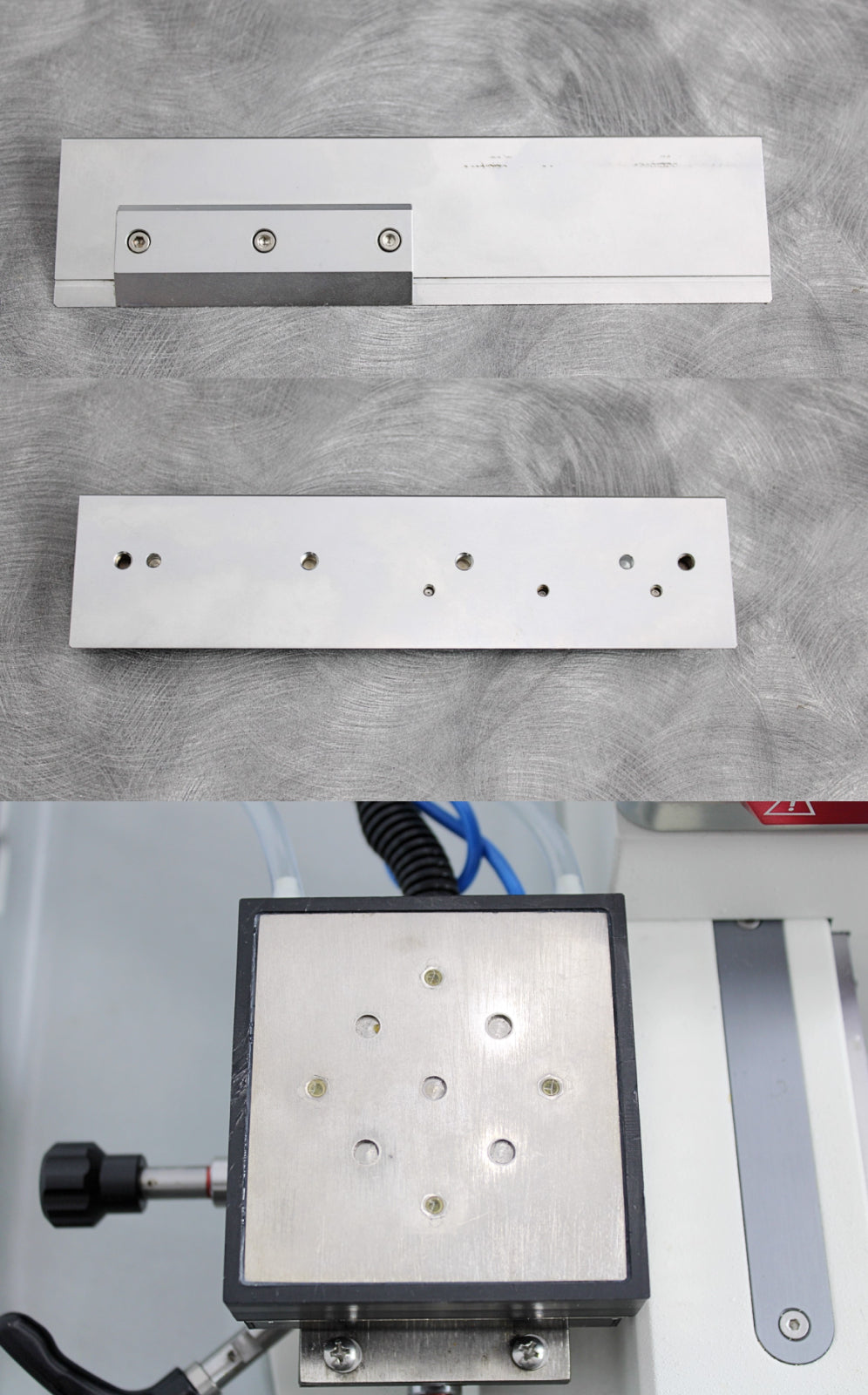

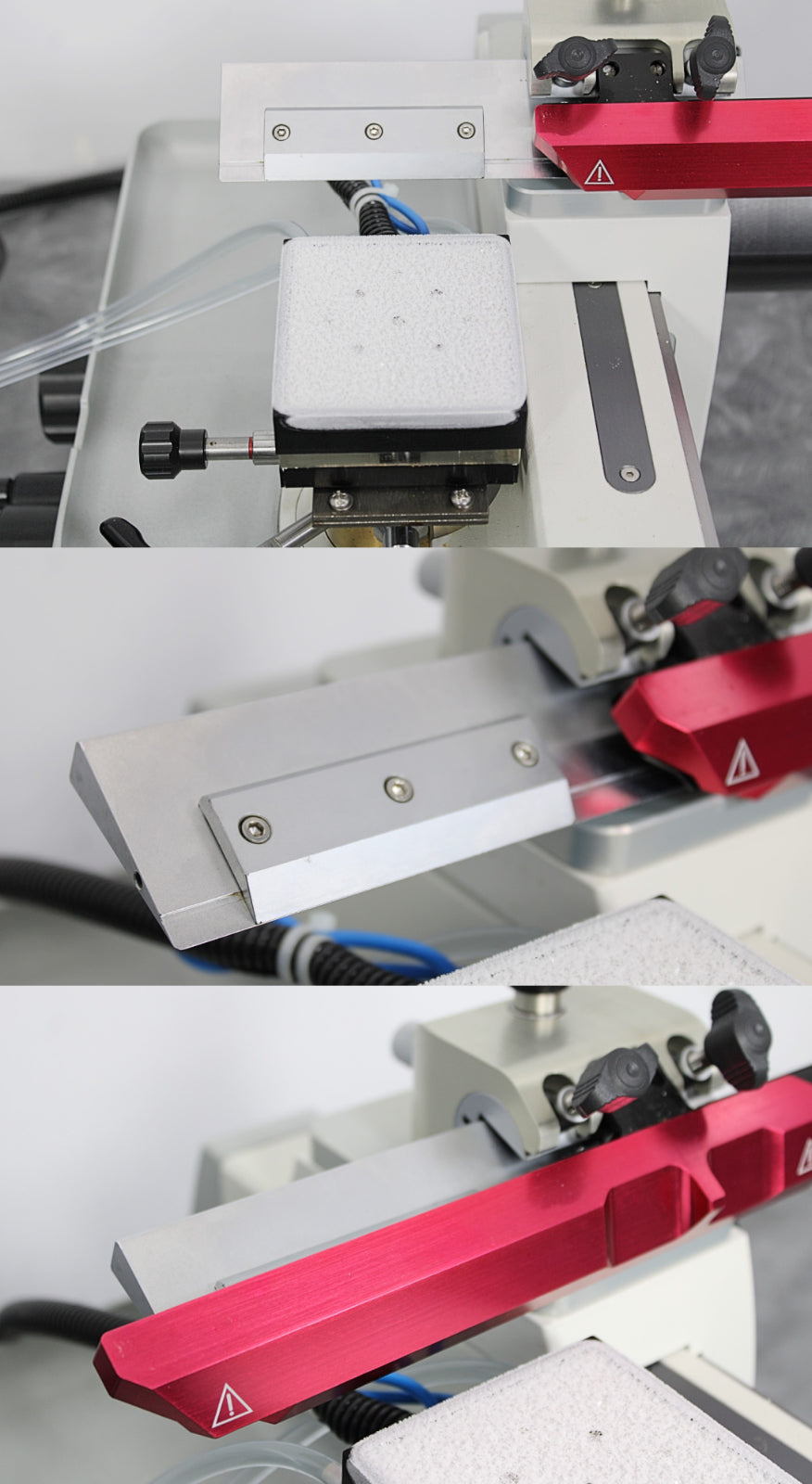

- Low-profile disposable blade adapter

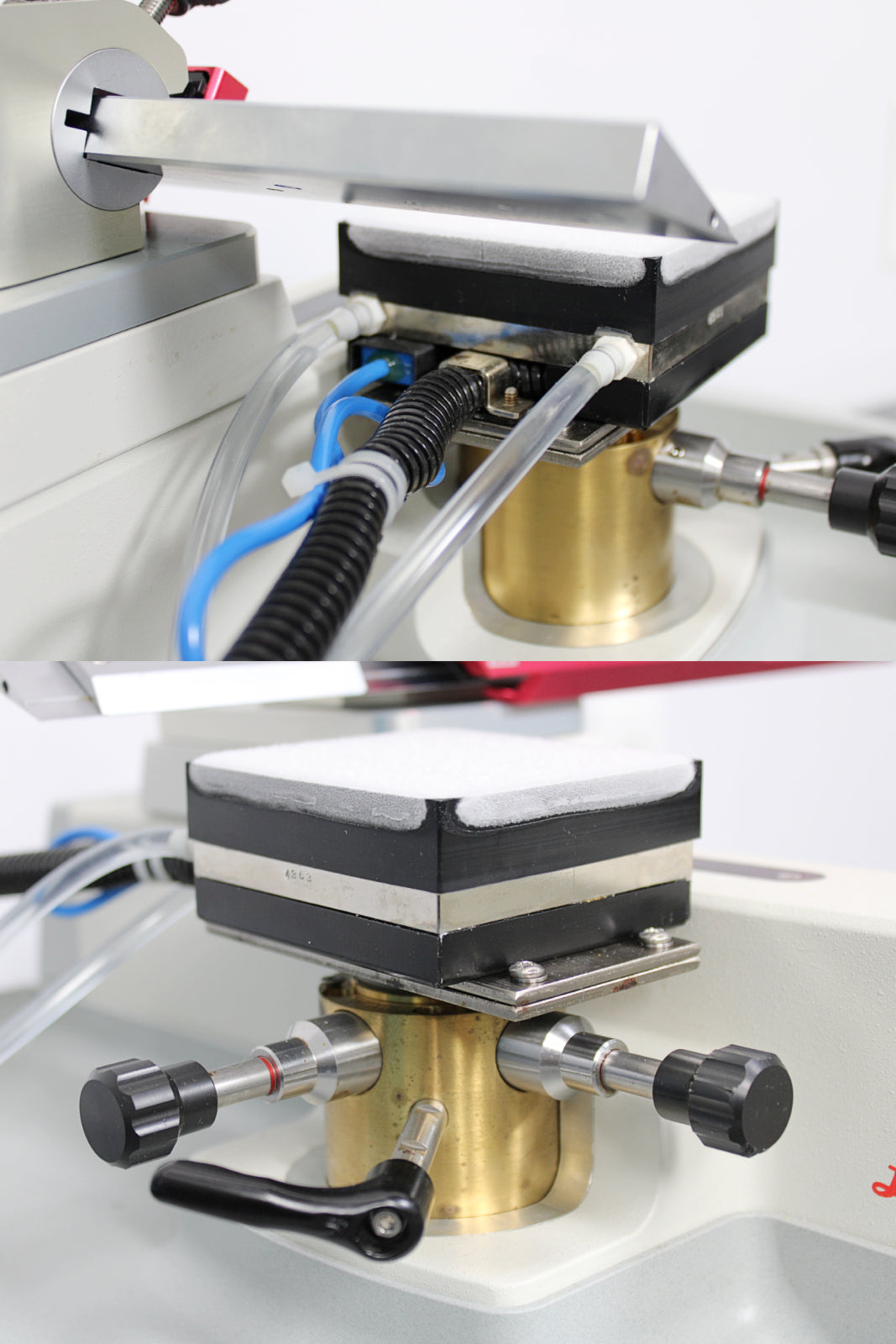

- Physitemp freezing stage

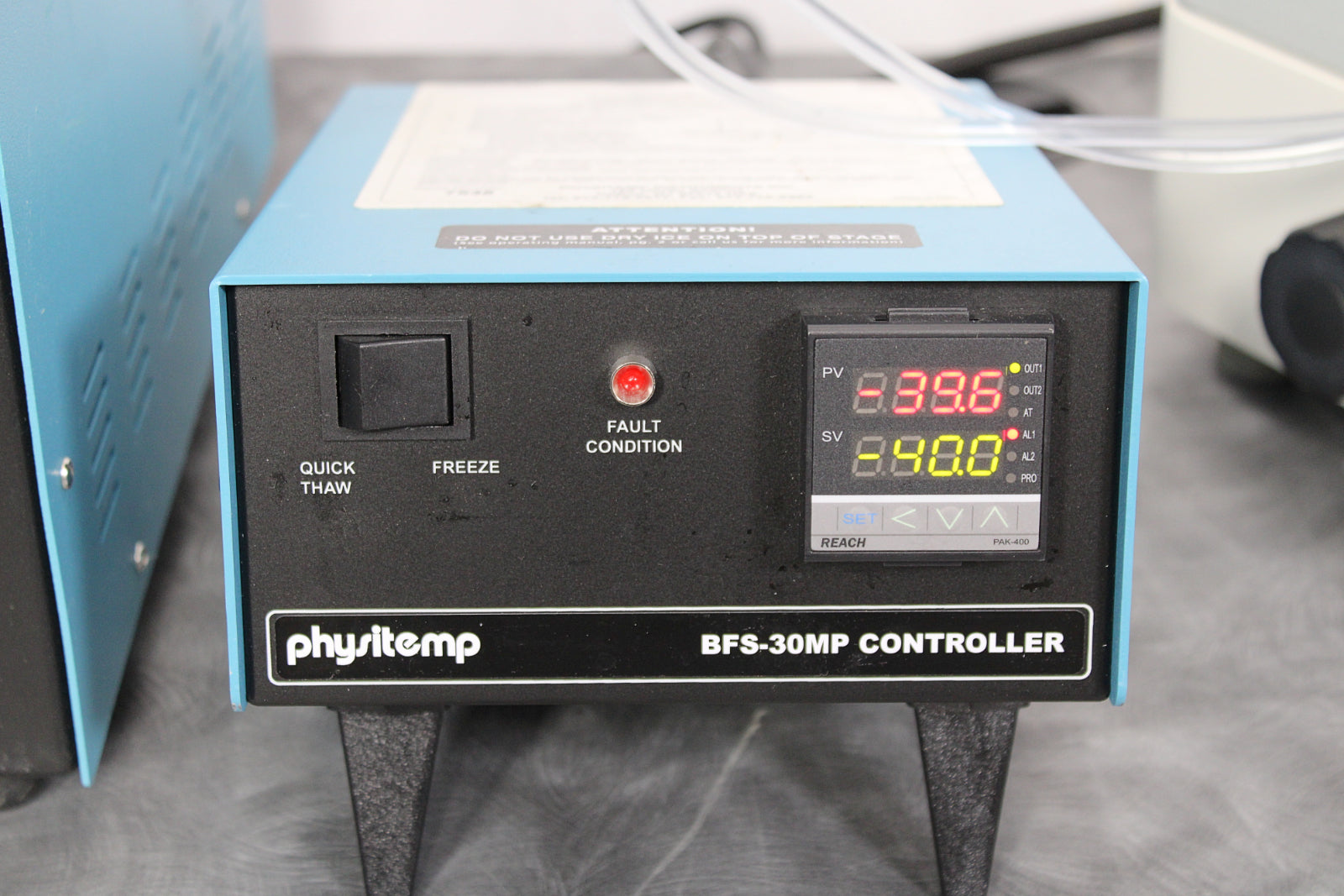

- Physitemp BFS-30MP controller
- Physitemp PTU-3 pump and tank unit
- Physitemp 3 feet extension water tube set WT-3
- Leica microtome dust cover
- Leica SM2010R physical manual
- Lecia SM2010R manual on disc

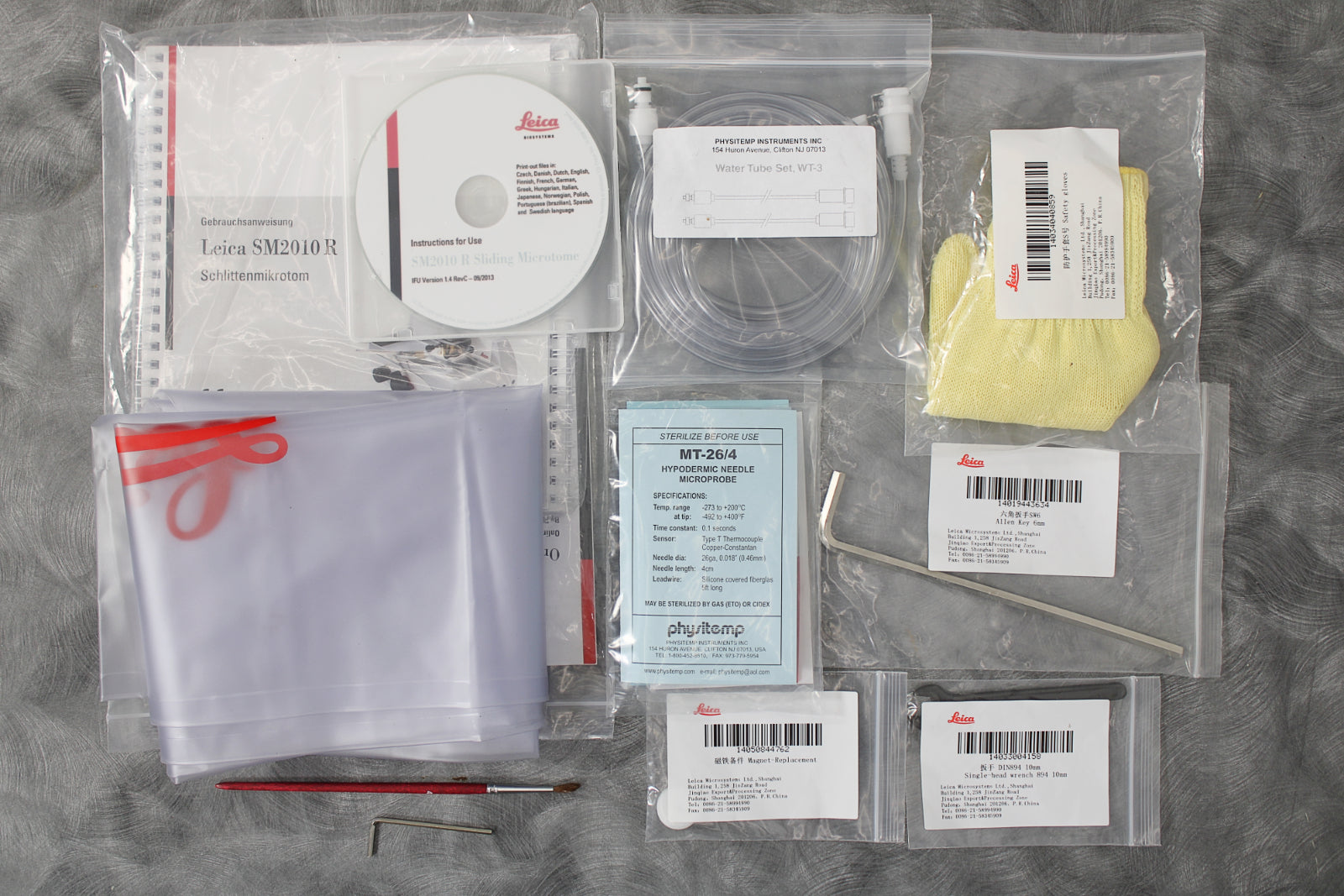

- Other assorted accessories as shown in photo
- Power cables
- 120-day warranty
After its initial disinfection and inspection, our technicians tested the Leica SM2010R sliding microtome and Physitemp freezing stage system with the following results:
- Controls and slides move smoothly in all directions: PASSED
- Stage raises and lowers properly at all section thickness settings: PASSED
- Manual advance or raise/lower crank: PASSED
- Filled tank with distilled water and stage quickly reached -19°C: PASSED
- Pressing quick thaw switch quickly raises stage temperature: PASSED
- Freezing stage ran for several hours without issue: PASSED
- Pump was quiet throughout testing for several hours: PASSED
- Cleaned and lubricated the microtome and articulating stage
|
Manufacturer
|
Leica Biosystems
|
|
Model
|
SM2010R
|
|
Catalog No.
|
14050842258
|
|
Serial No.
|
10096
|
|
Mfg. date
|
2015-03
|
|
Max. specimen size with standard clamp
|
50 x 60 mm (L x W)
|
|
Max. specimen size with universal cassette clamp
|
40 x 29 mm (L x W)
|
|
Max. specimen size with Supermega cassette clamp
|
75 x 52 mm (L x W)
|
|
Max. specimen size with HN40 clamp
|
59 x 45 mm (L x W)
|
|
Max. specimen size with dry ice tray
|
77 x 52 mm (L x W)
|
|
Specimen feed
|
Approx. 50 mm
|
|
Clearance angle adjustment
|
-3° to +10°
|
|
Section thickness range
|
0.5 - 60 µm
|
|
Section thickness settings
|
From 0.5 to 5 µm in 0.5 µm increments
From 5 to 10 µm in 1 µm increments
From 10 to 20 µm in 2 µm increments
From 20 to 60 µm in 5 µm increments
|
|
Specimen orientation
|
±8°
|
|
Declination
|
0° to 45° in sectioning direction
|
|
Dimensions (W x D x H)
|
12 x 17 x 13 in
|
|
Weight (without accessories)
|
Approx. 20 kg (44.1 lbs)
|
