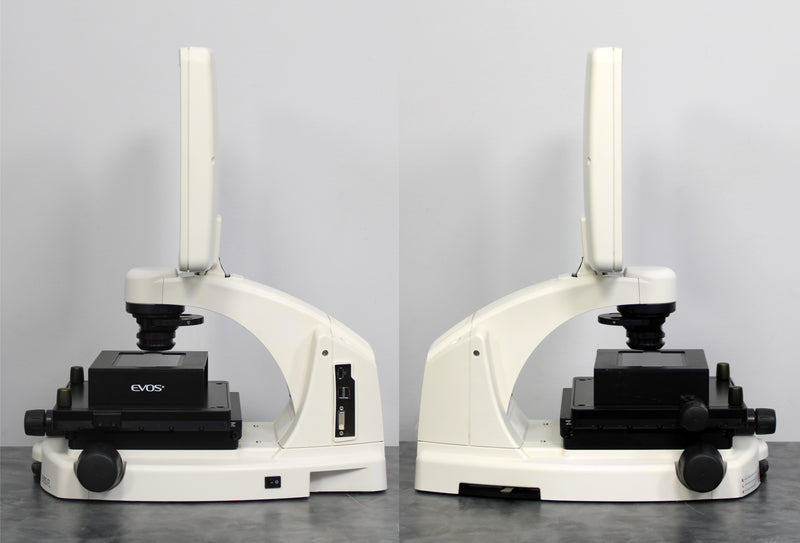

- Life Technologies EVOS FL Digital Inverted Fluorescence Microscope (AMF4300)
- TX Red Light Cube (AMEP4655) Installed
- DAPI Light Cube (AMEP4650) Installed
- GFP Light Cube (AMEP4651) Installed
- Olympus PlanAPO N 1.25x/0.04 Objective
- EVOS LPlan 2x/0.06 Objective (AMEP 4631)
- EVOS LPlanFL PH2 4x/0.13 Objective (AMEP 4680)
- EVOS LPlanFL PH2 10x/0.30 Objective (AMEP 4681)
- Stage Adapter for T-75 Flask (AMEP-VH006)
- Computer Mouse
- AC Power Adapter
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Life Technologies EVOS FL Digital Inverted Fluorescence Microscope with the following results:
- Light cubes: PASSED
- Objectives: PASSED
- Stage adjustment: PASSED
|
Manufacturer
|
Life Technologies
|
|
Model
|
EVOS FL
|
|
Ref. No.
|
AMF4300
|
|
Serial No.
|
J0815-155G-388
|
|
Mfg. date
|
October 2015
|
|
Optics
|
Infinity-corrected optical system; RMS-threaded objectives with 45 mm parfocal distance
|
|
Light cubes
|
Light cubes included vary per order. Specifications for the most popular light cubes are
listed below.
DAPI: 360 nm excitation, 447 nm emission
GFP: 470 nm excitation, 525 nm emission
RFP: 530 nm excitation, 593 nm emission
|
|
Objective turret
|
5-position; front-mounted control
|
|
Illumination
|
LED (50,000-hour life); adjustable intensity
|
|
Contrast methods
|
Fluorescence and transmitted light (brightfield and phase contrast)
|
|
Condenser
|
Includes 3-position with brightfield and phase contrast annuli
|
|
Condenser working distance
|
60 mm
|
|
Mechanical “glide” stage
|
XXY axis fine-positioning controls;
28.3 mm (1.11 in) per rotation.
110 x 110 mm (4.3 x 4.3 in) range of motion
|
|
LCD display
|
15 in color, 1024 x 768 pixels; adjustable tilt
|
|
Image acquisition
|
Onboard microprocessor; built-in software for image acquisition via mouse control
|
|
Camera
|
Sony ICX445 monochrome CCD, ⅓ in 1280 x 960, 1.3 Megapixels
|
|
Captured images
|
16-bit monochrome TIFF or PNG (12-bit dynamic range);
24-bit color TIFF or PNG; jpeg, bmp (1280 x 960 pixels)
|
|
Output ports
|
3 USB and 1 DVI (digital output)
|
|
Power rating
|
AC Adapter; Input 100-240V, 50-60Hz; Output 12 VDC/4.15 A
|
|
Dimensions (W x D x H)
|
14 x 18.5 x 22.75 in (35.5 x 47 x 57.8 cm)
|
|
Weight
|
33.7 lb (15.3 kg)
|
