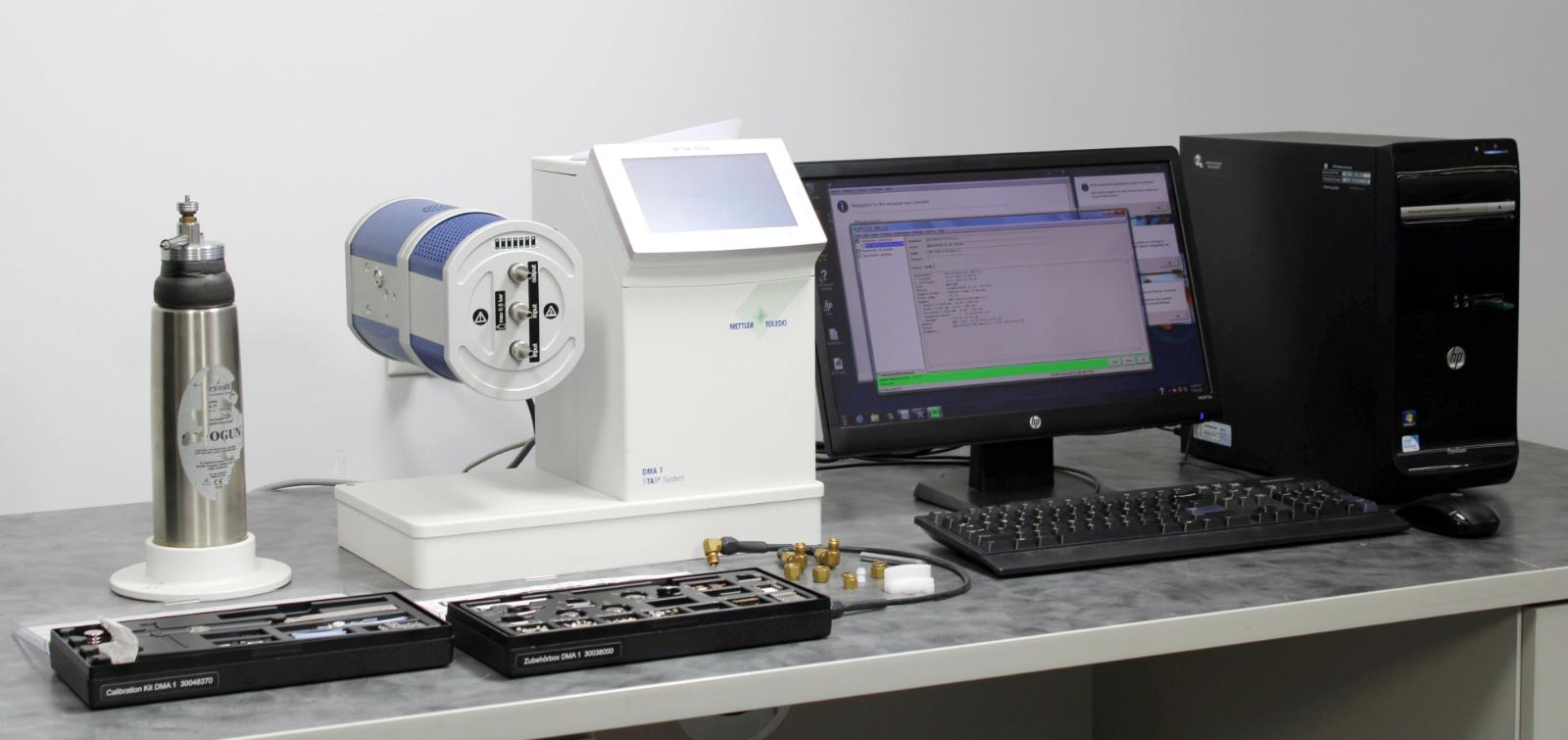

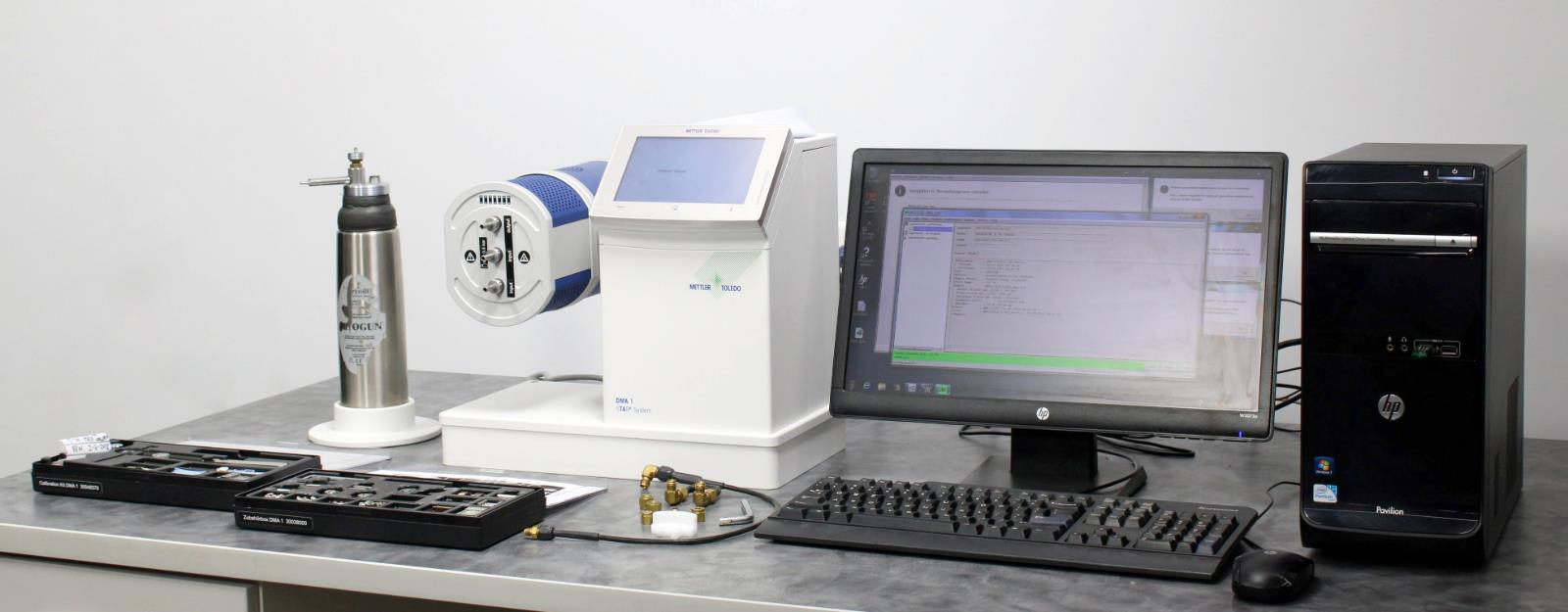

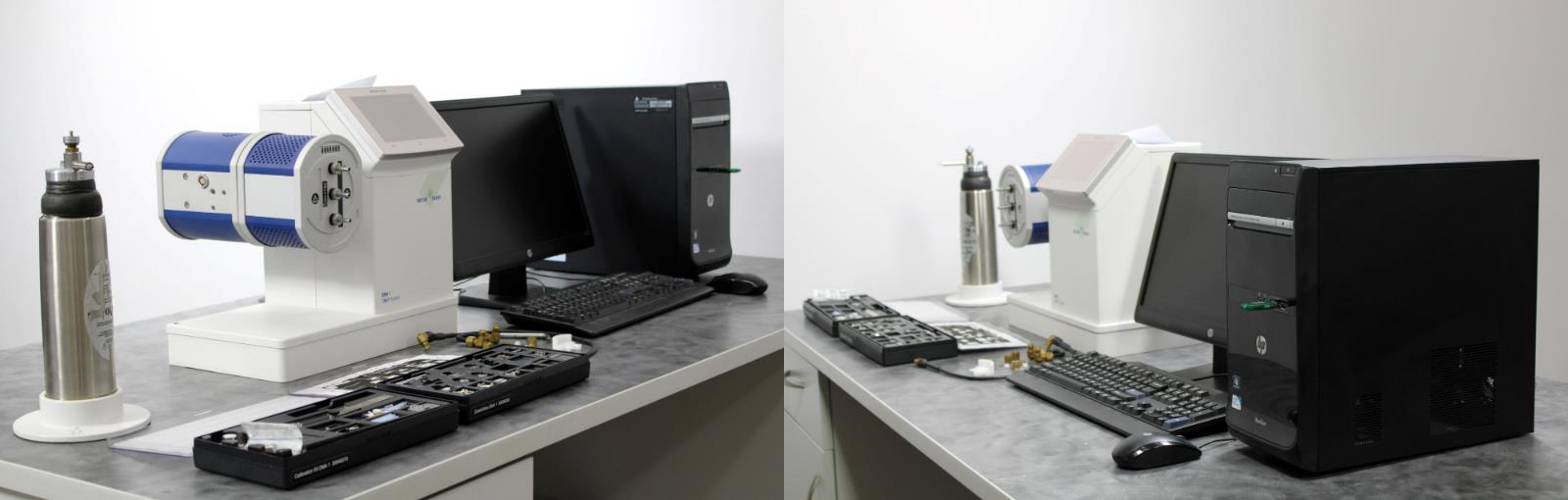

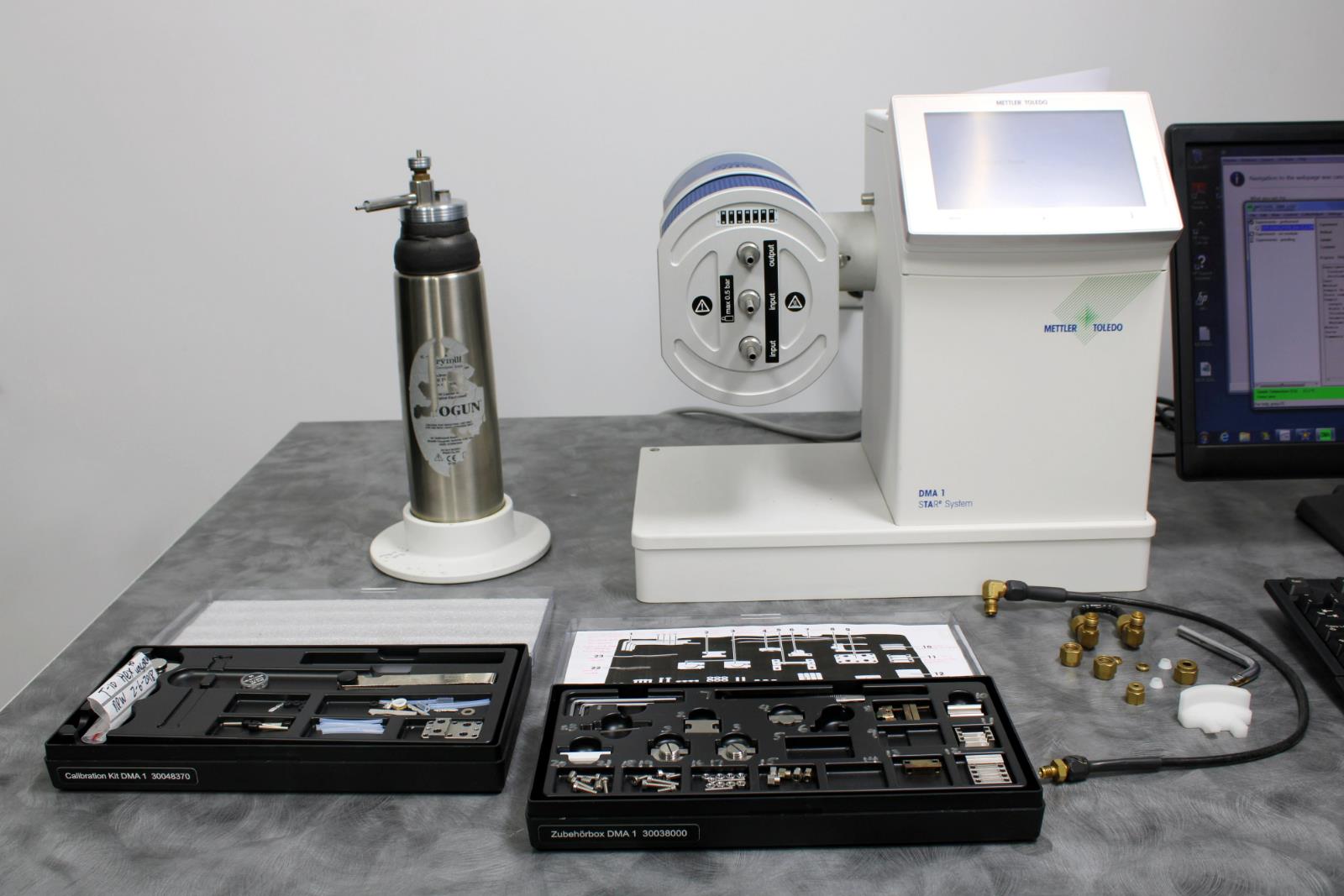

- Mettler Toledo DMA 1 Dynamic Mechanical Analyzer

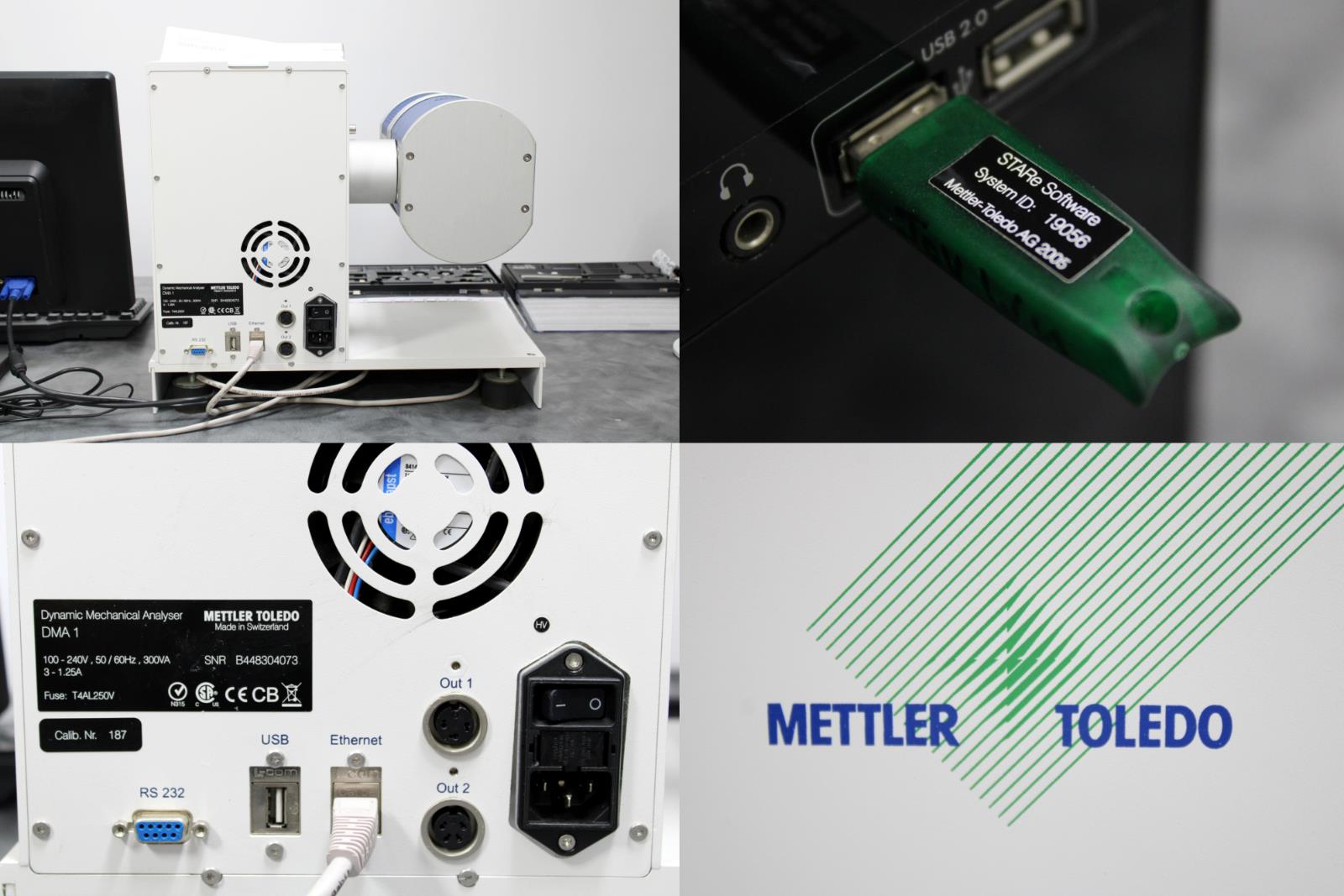

- PC with Software Dongle
After its initial disinfection and inspection, our technicians tested this DMA 1 with the following results:
- Powers on successfully: PASSED

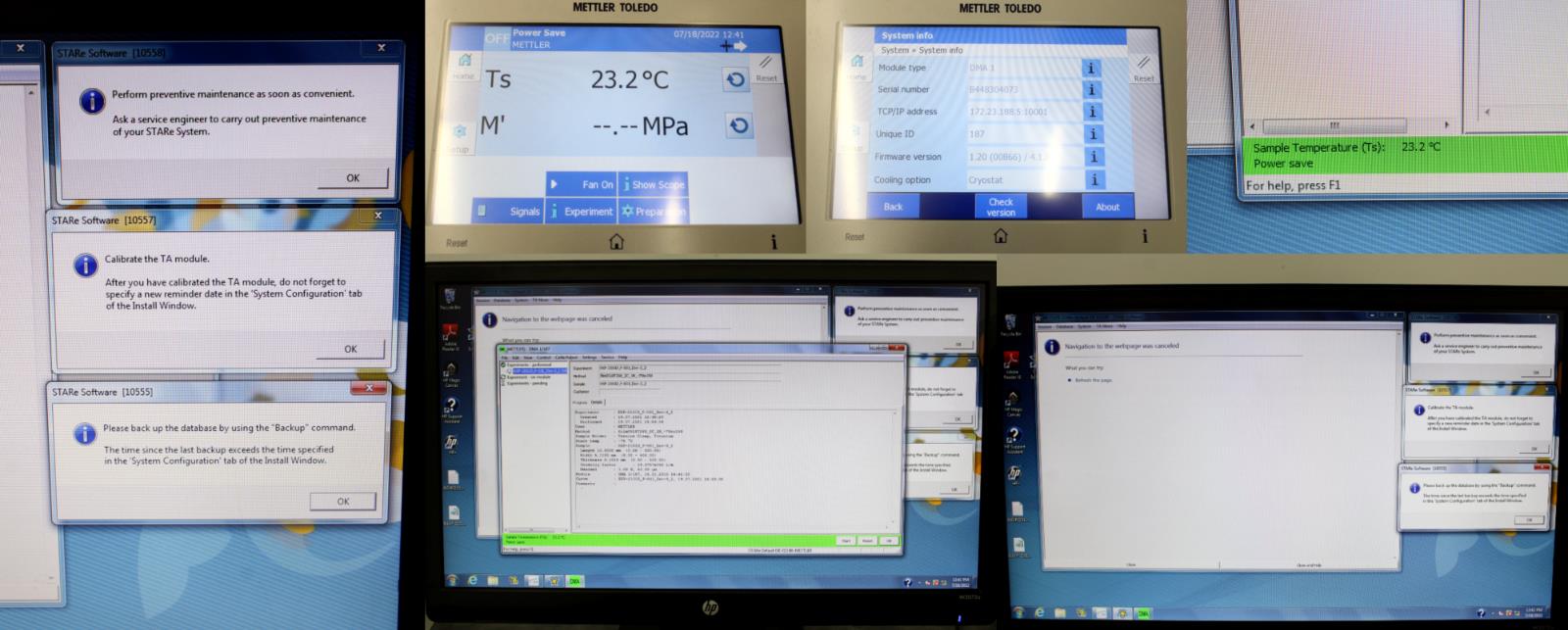

- Software initializes: PASSED
- DMA 1 acknowledges the software connections: PASSED
|

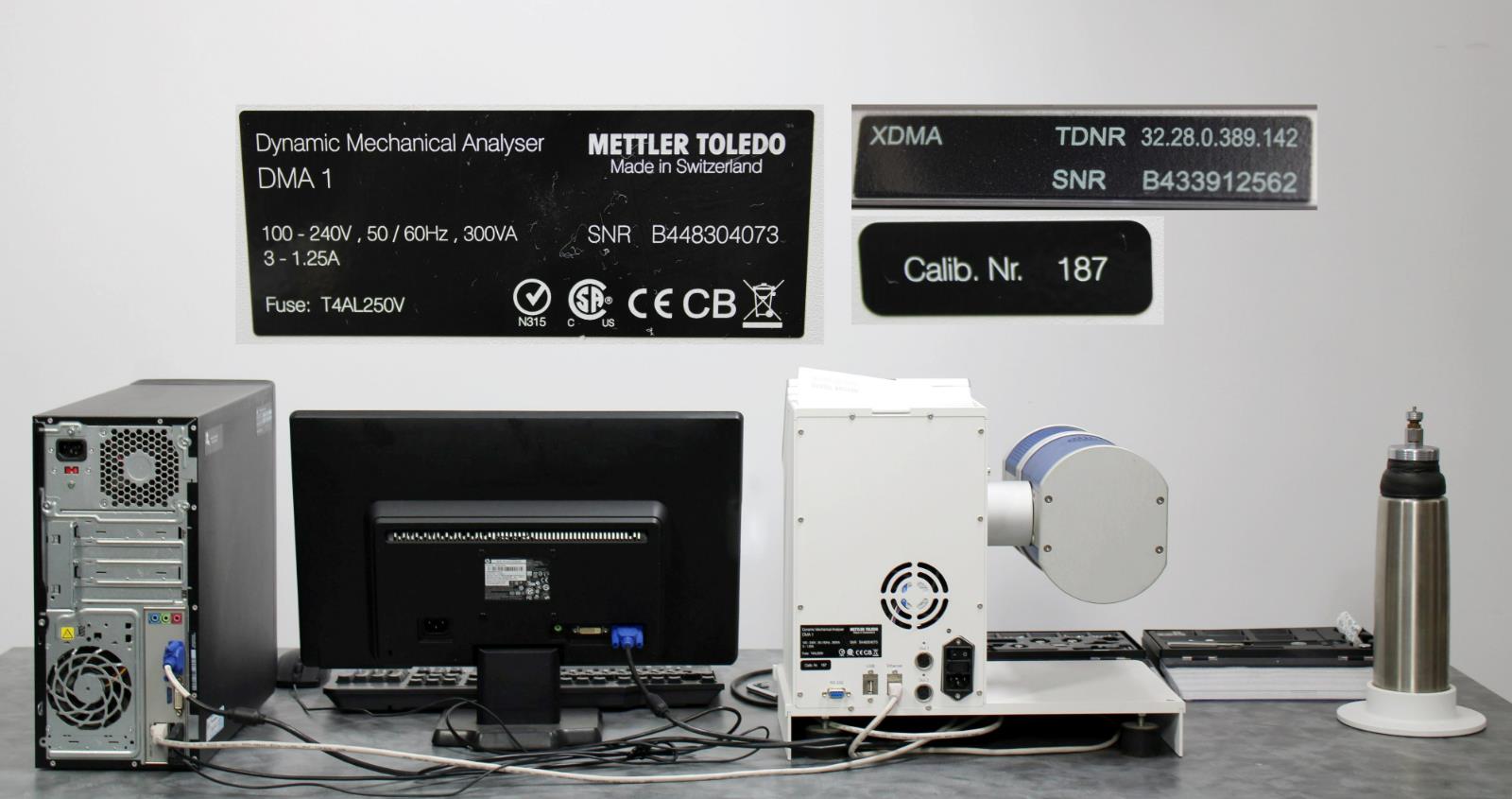

Manufacturer
|
Mettler Toledo
|
|
Model
|
DMA 1
|
|
Serial No.
|
B448304073
|
|
Calib. No.
|
187
|
|
Place of Mfg.
|
Made in Switzerland
|
|
Temperature range
|
-190 to 600°C
|
|
Temperature technical resolution
|
0.1 K
|
|
Temperature accuracy
|
0.75 K
|
|
Heating rate
|
0.1 to 20 K/min
|
|
Cooling rate
|
0.1 to 30 K/min
|
|
Force range
|
+/-0.001 to +/-10 N
|
|
Force technical resolution
|
0.25 mN
|
|
Force sensitivity
|
1 mN
|
|
Displacement range
|
+/-1 mm
|
|
Displacement technical resolution
|
2 nm
|
|
Displacement sensitivity
|
30 nm
|
|
Stiffness range
|
50 to 105 N/m
|
|
Stiffness precision
|
0.50%
|
|
Tan delta range
|
0.0001 to 50
|
|
Tan technical resolution
|
0.00001
|
|
Tan sensitivity
|
0.0001
|
|
Frequency range
|
0.001 to 300 Hz
|
|
Frequency technical resolution
|
0.00001
|
|
Frequency accuracy
|
0.001 Hz
|
|
Frequency modes
|
Logarithmic and linear scans, multi-frequency (sequentially)
|
|
Maximum sample length
|
55 mm
|
