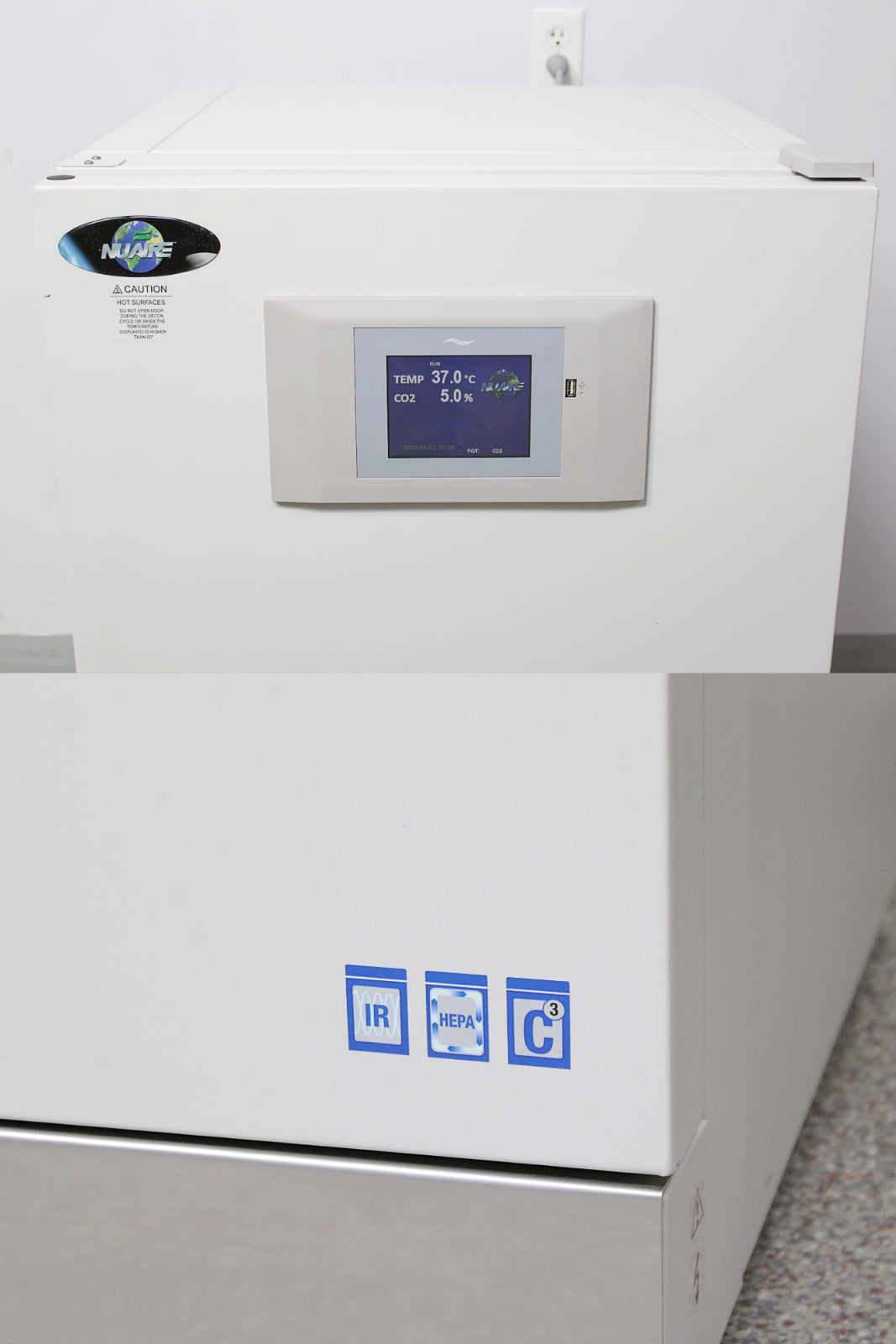

- NuAire NU-5810 In-VitroCell Direct Heat CO2 incubator
- Four (4) adjustable stainless steel shelves
- Water pan for humidity
- Power cable
- 120-day warranty
After its initial disinfection and inspection, our technicians tested the NuAire NU-5810 In-VitroCell Direct Heat CO2 incubator with the following results:
- Calibrated chamber temperature: PASSED
- Chamber temperature held steady at setpoint 37°C: PASSED
- Calibrated CO2 to zero: PASSED
- CO2 equalized at setpoint and held steady: PASSED
|
Manufacturer
|
NuAire
|
|
Model No.
|
NU-5810
|
|
Series
|
11
|
|
Serial No.
|
189041111418
|
|
Mfg. date
|
2018
|
|
Mfg. location
|
USA
|
|
Temperature control
|
Direct Heat
|
|
Temperature control range
|
5°C above ambient (to a 30°C max ambient) to 55°C
|
|
Temperature setpoint range
|
5°C to 55°C (37°C default)
|
|
Temperature uniformity
|
±0.35°C @ 37°C
|
|
Temperature recovery
|
0.12°C/min. average
|
|
Temperature accuracy
|
±0.1%
|
|
Temperature display resolution
|
0.1°C
|
|
Temperature sensor type
|
Precision integrated circuit
|
|
CO2 range
|
0.1 to 20%, 5% default set point
|
|
CO2 accuracy
|
±0.1%
|
|
CO2 display resolution
|
0.1%
|
|
CO2 recovery
|
Up to 5% ±0.2% / -0.5 in 5 min. average
|
|
CO2 sensor type
|
Infrared (NDIR)
|
|
Chamber jacket technology
|
Air jacket via two axial fans drawing air into shell
|
|
Chamber heater(s) location
|
Sides, bottom, top and back of chamber
|
|
Chamber air filter
|
99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
|
|
Chamber air circulation
|
Air pump
|
|
Air cleanliness (ISO 14644)
|
ISO-Class-5
|
|
Sample port location
|
Inner glass door
|
|
RH control method
|
Water pan, convection
|
|
Remote alarm terminals
|
Standard
|
|
Inner material
|
Highly polished type 304L 15 gauge stainless steel
|
|
Exterior material
|
Cold rolled 16 & 18 gauge steel, finished in powder coated polyurethane finish
|
|
Interior volume
|
7.06 cu. ft. (200 liters)
|
|
In-line gas filters
|
99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
|
|
Data output features
|
RS-485, USB- 4-20mA
|
|
Electrical requirements
|
115V, 50/60Hz, 10A, 1Ph
|
|
Interior dimensions (W x D x H)
|
21.2 x 20 x 28.5 in
|
|
Exterior dimensions (W x D x H)
|
26.7 x 28.5 x 41 in
|
|
Weight
|
235 lbs (106 kg)
|
