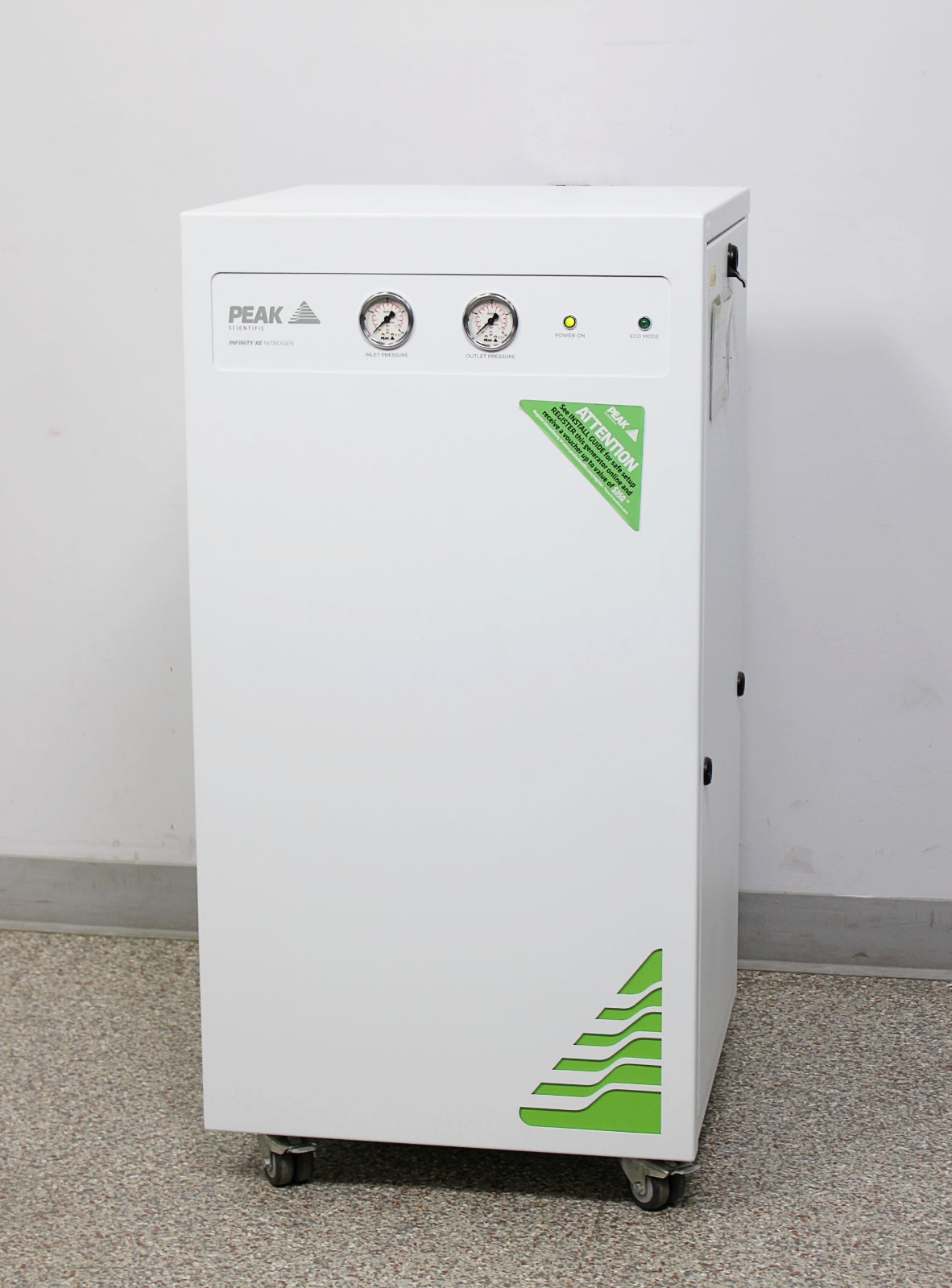

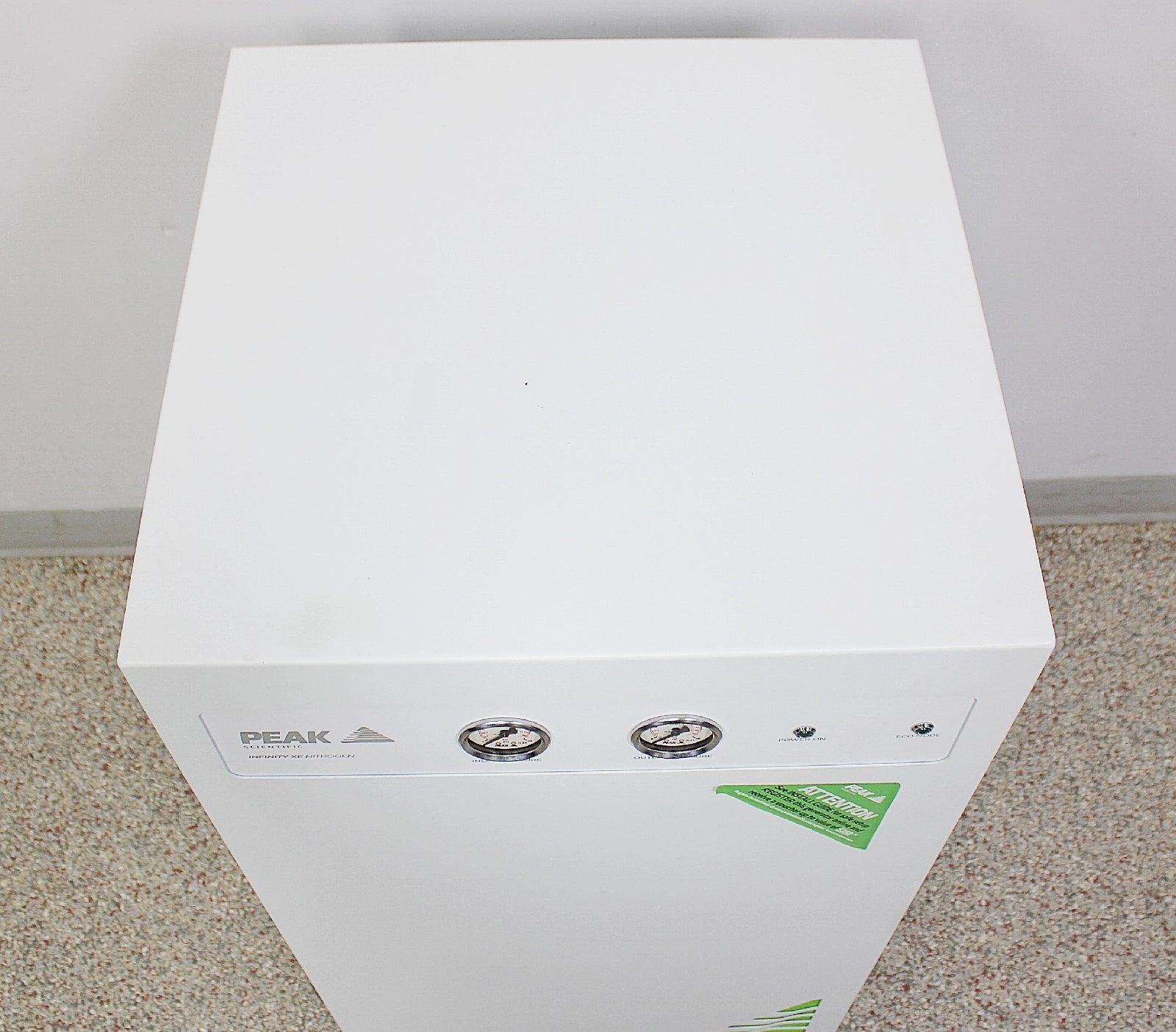

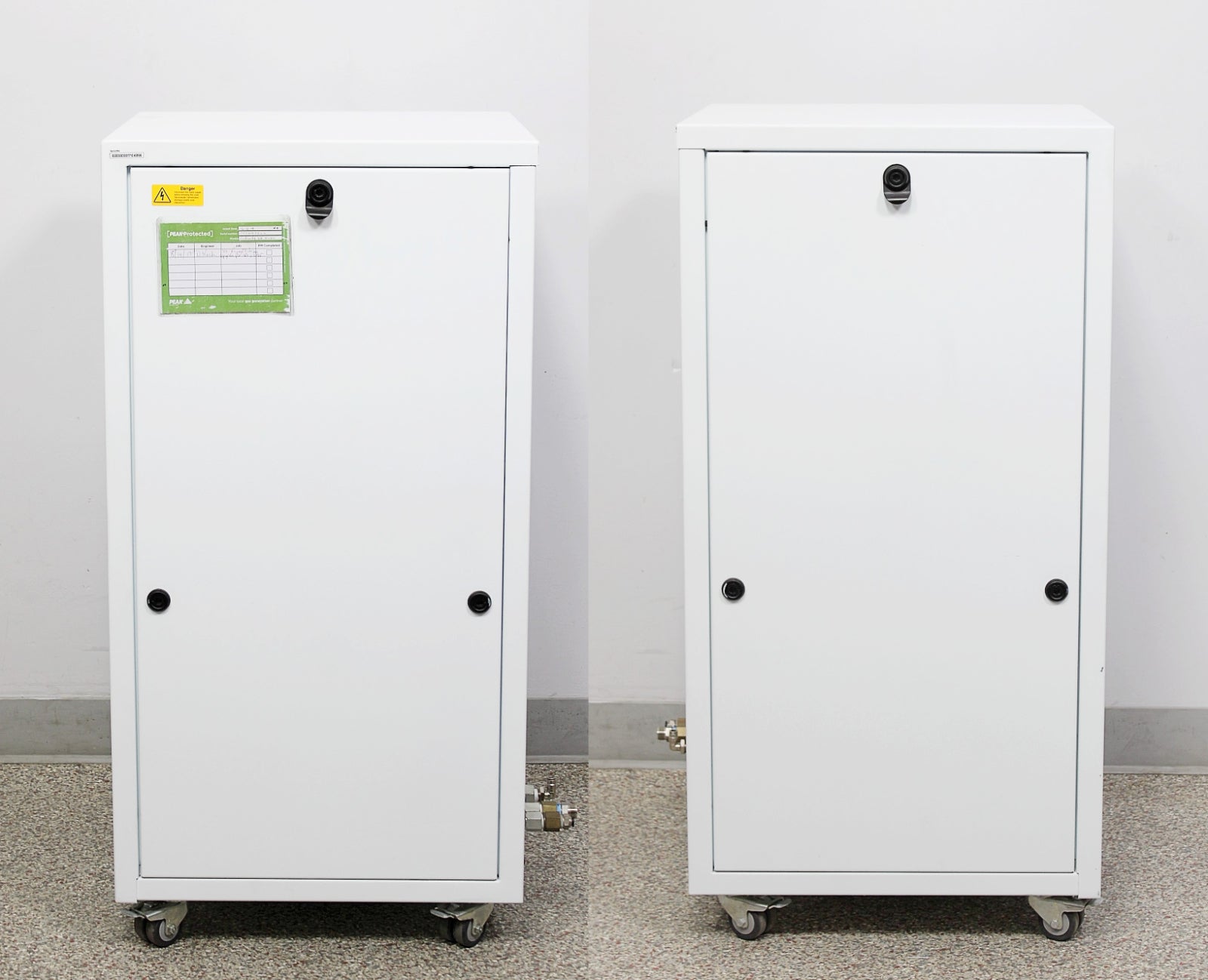

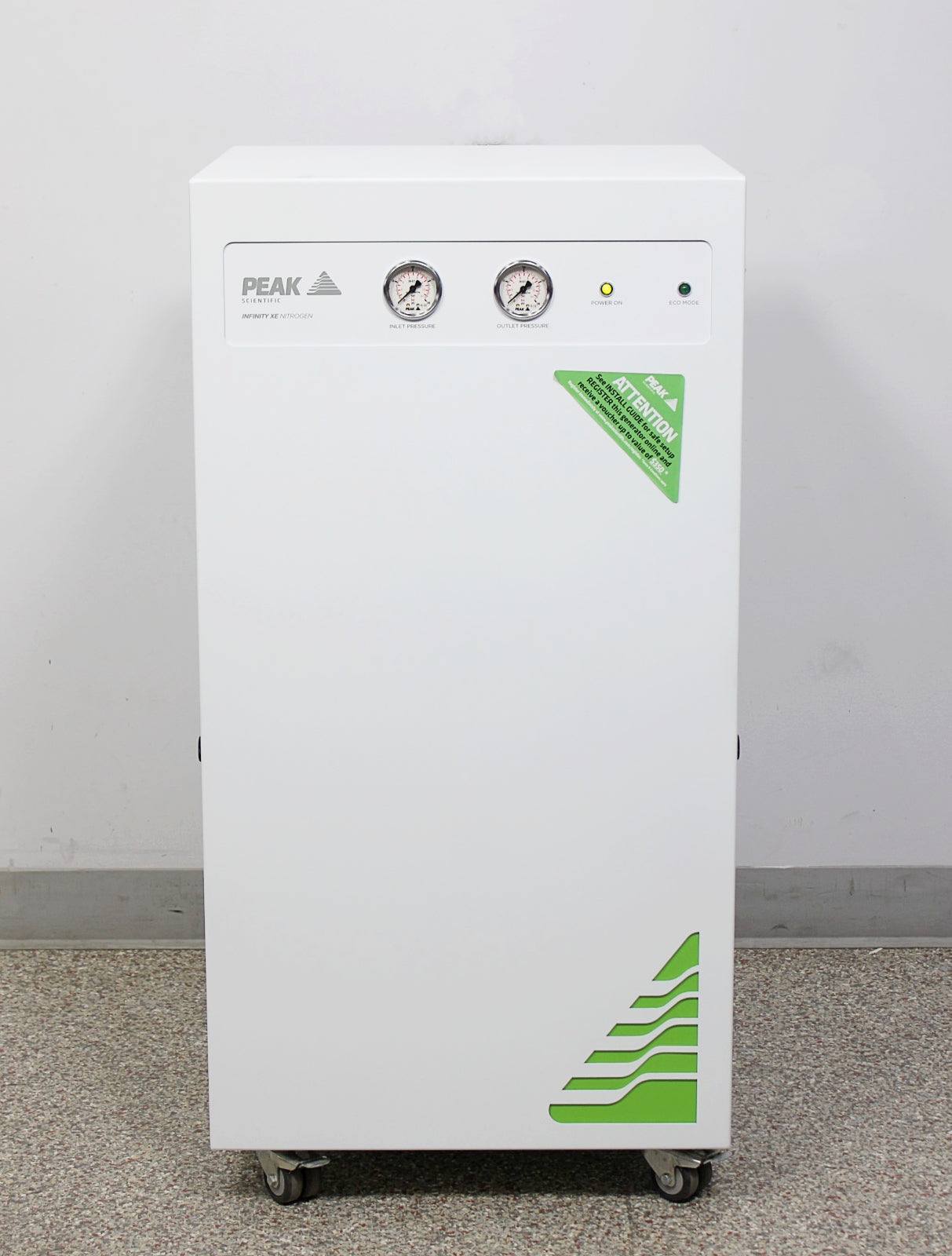

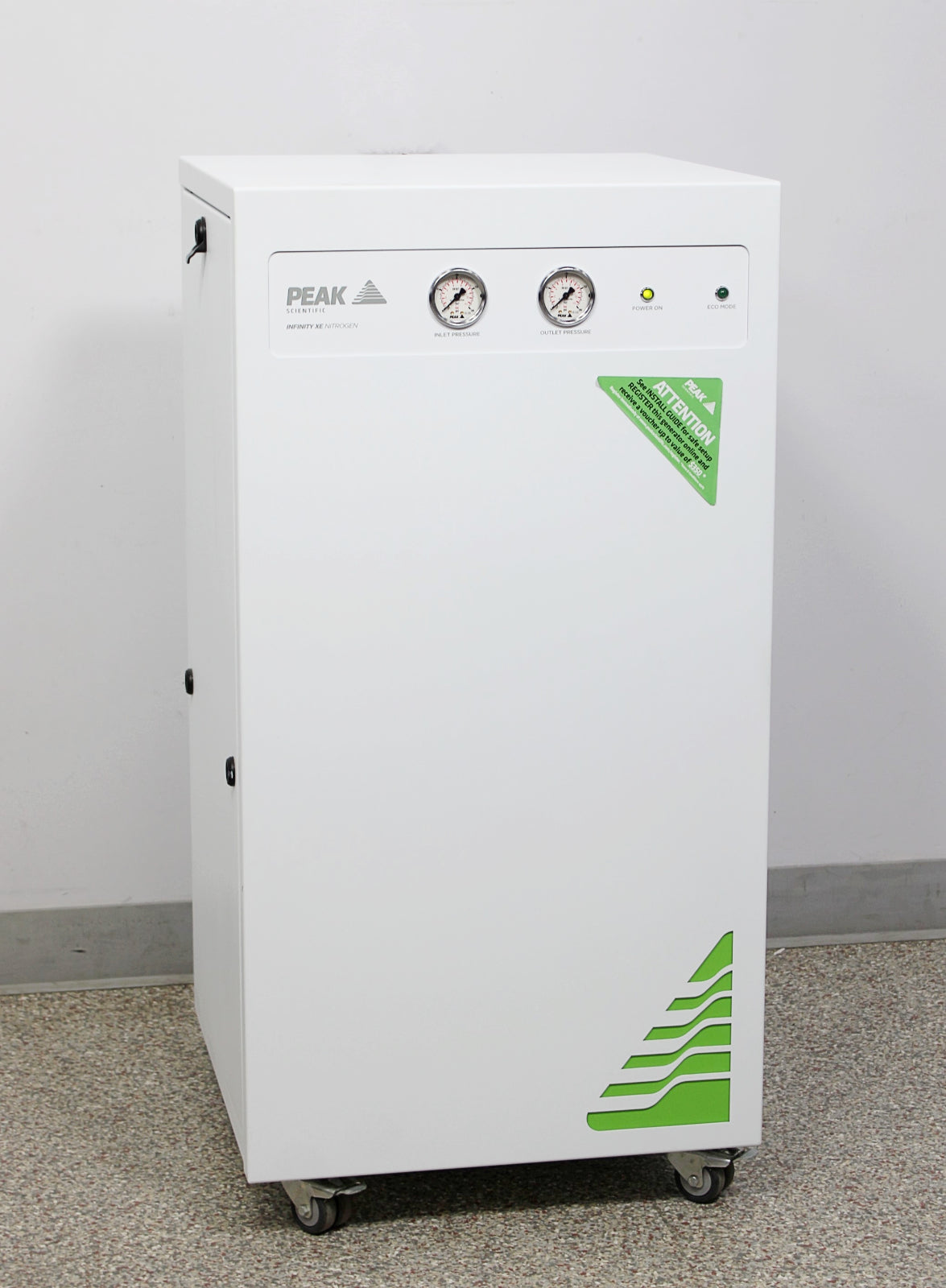

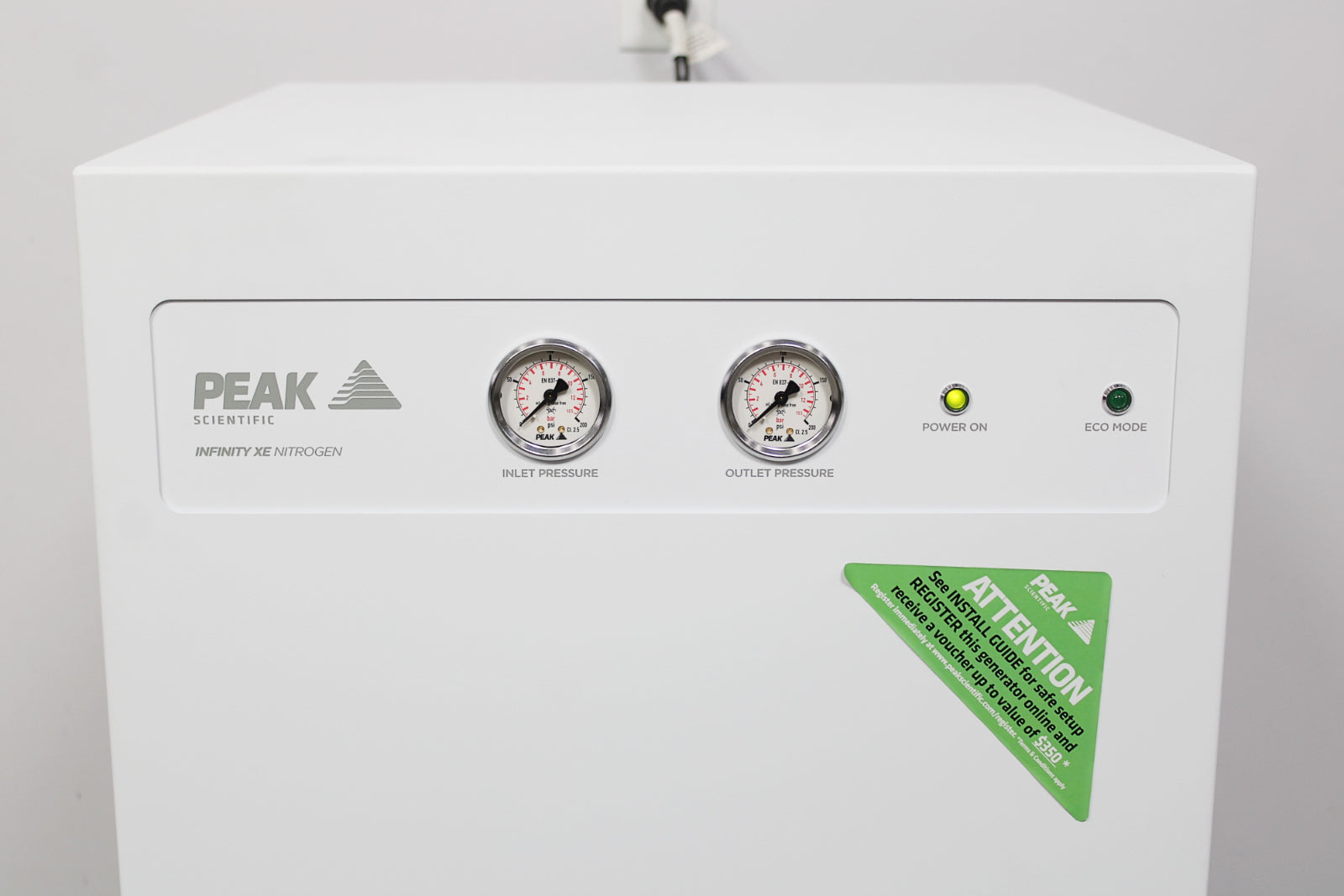

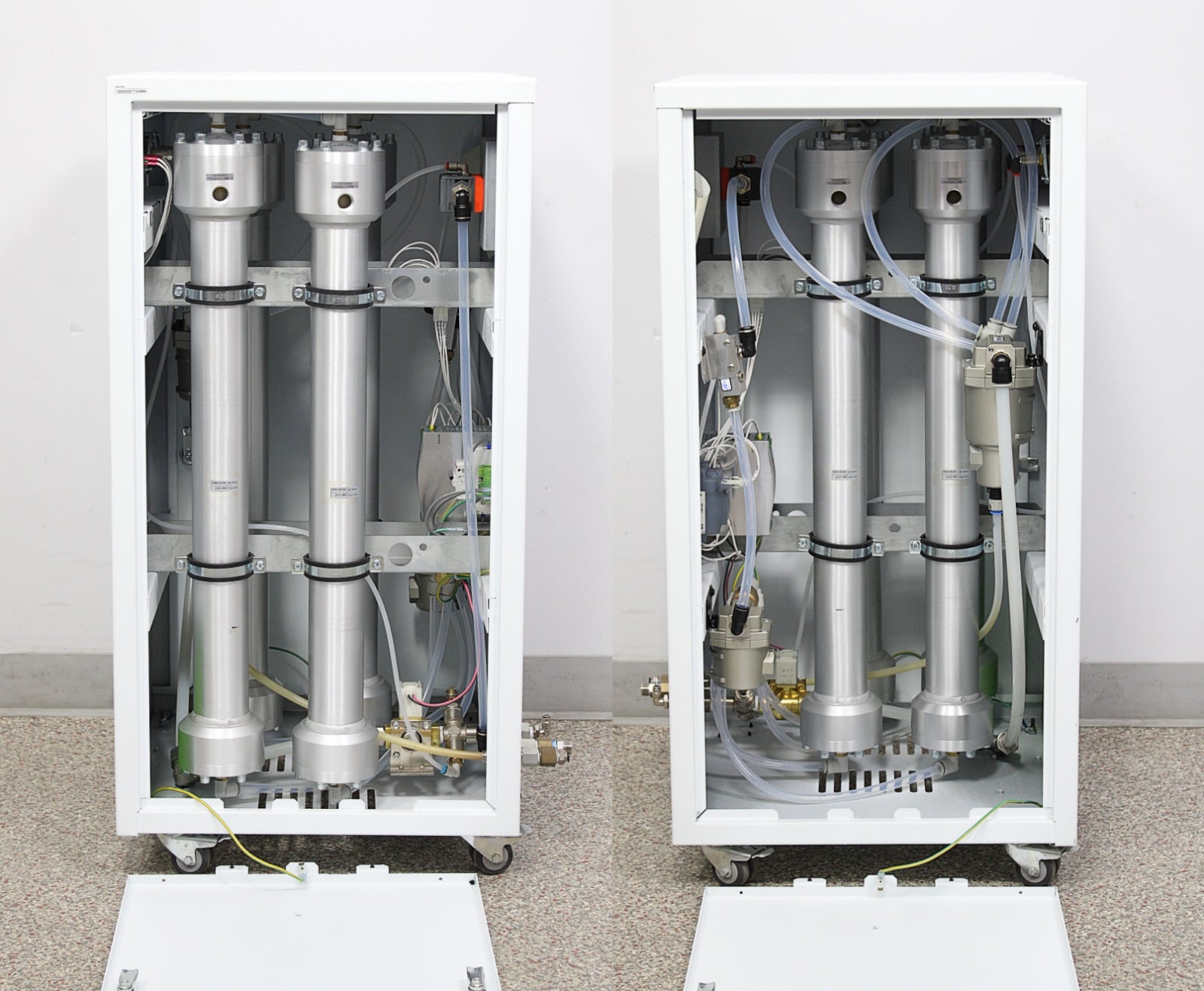

- Peak Scientific Infinity XE 5040 membrane nitrogen generator
- Power cable
- 120-day warranty
After its initial disinfection and inspection, our technicians tested the Peak Scientific Infinity XE 5040 membrane nitrogen generator with the following results:

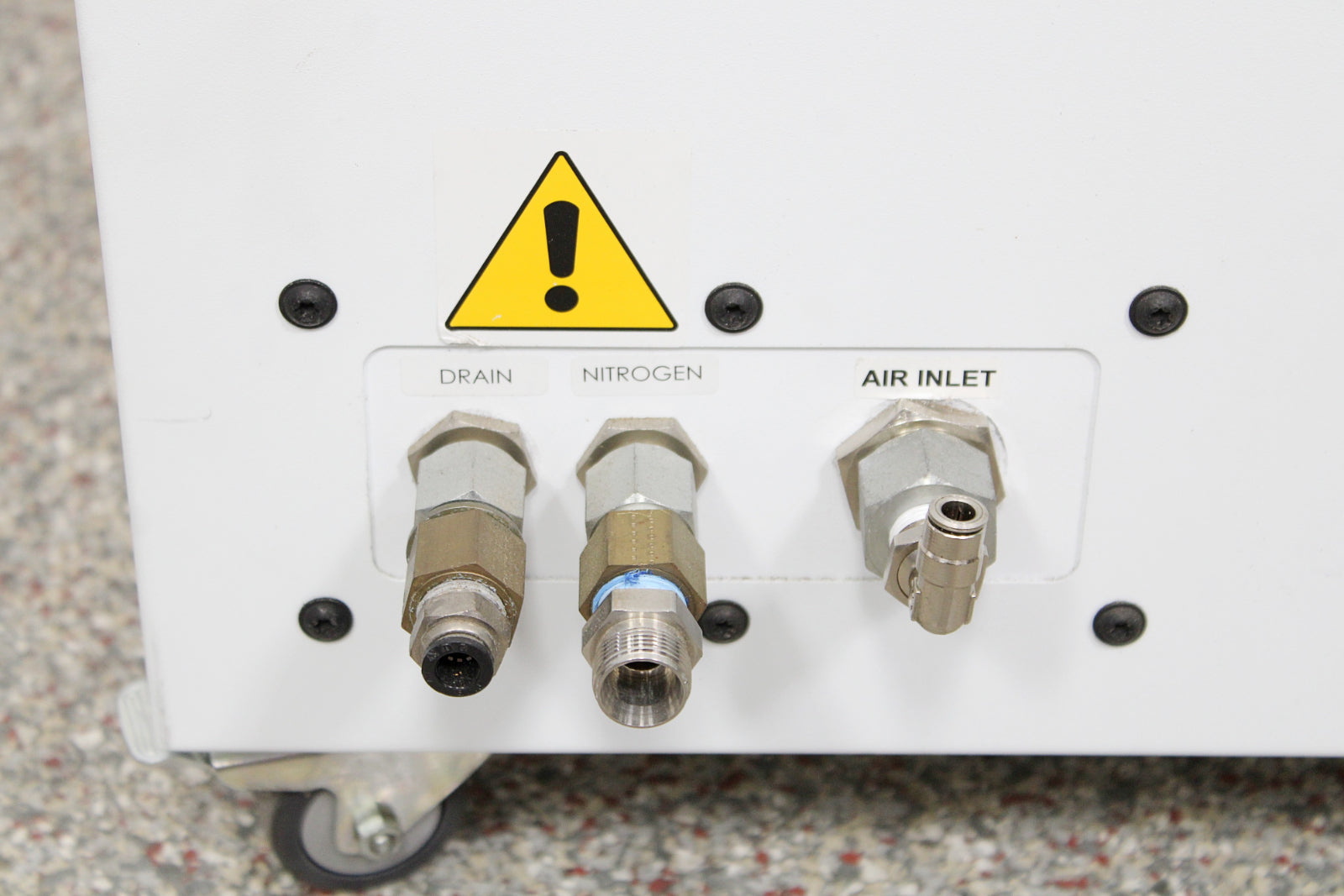

- Connected air supply and tested nitrogen outlet pressure: PASSED
|

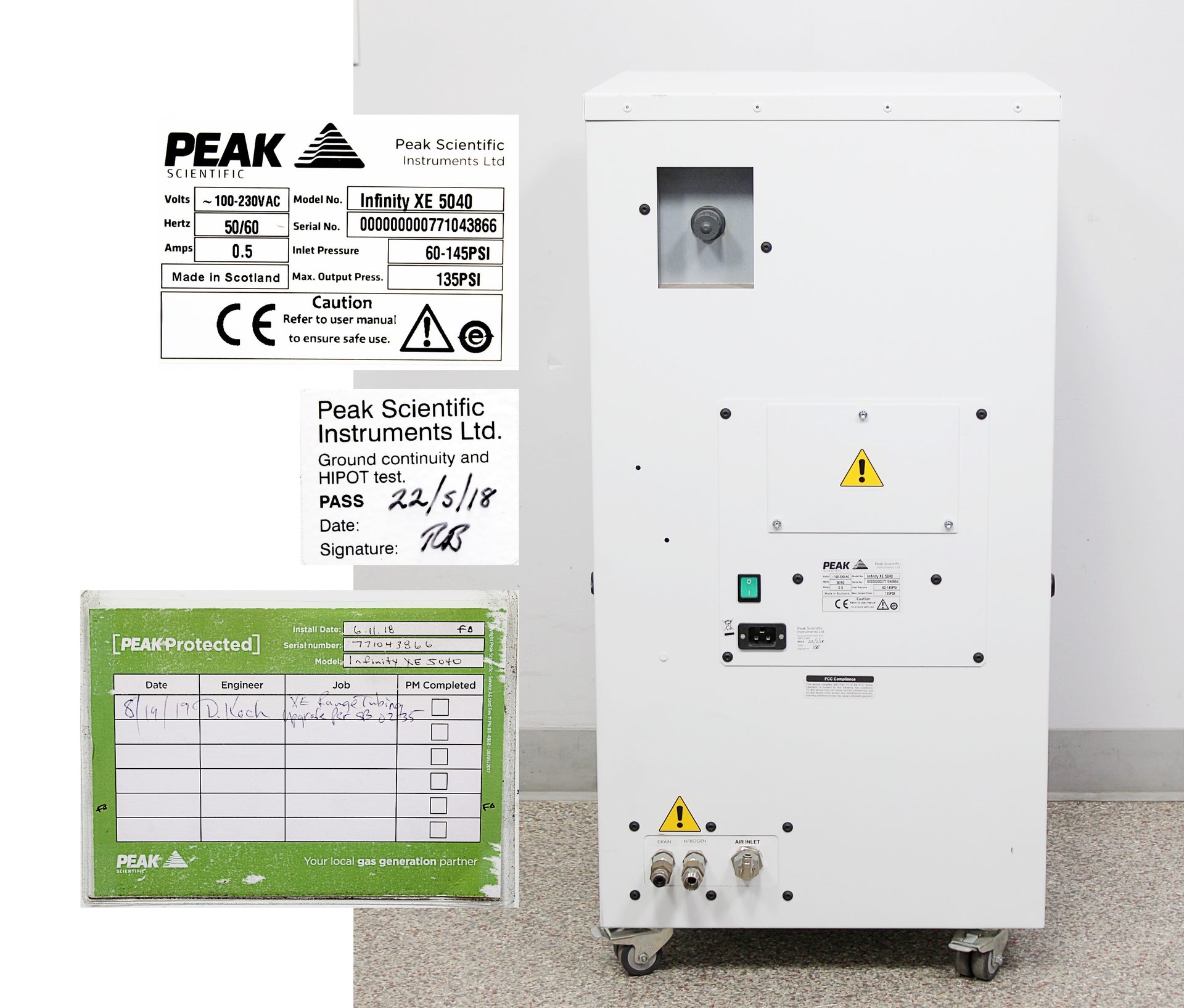

Manufacturer
|
Peak Scientific
|
|
Model
|
Infinity XE 5040
|
|
Part No.
|
3300575
|
|
Serial No.
|
000000000771043866
|
|
Mfg. date
|
2018
|
|
Gas type
|
Nitrogen
|
|
Integrated compressor
|
No
|
|
Min. gas flow
|
40L/min
|
|
Max. gas flow
|
520L/min
|
|
Inlet pressure
|
60-145 psi (4.1-10 bar)
|
|
Min. air inlet flow
|
Dependent on required output flow rate and purity
|
|
Min. inlet air quality
|
ISO8573 - 1:2010 Class 1.4.1
|
|
Max. outlet pressure
|
135 psi (9.3 bar)
|
|
Nitrogen purity
|
95-99.5% (dependent on flow rate)
|
|
Start up time
|
30 minutes
|
|
Application types
|
LC-MS, Sample preparation, CAD, ELSD
|
|
Max operating temperature
|
30°C (86°F)
|
|
Particles
|
<0.01µm
|
|
Accreditations
|
CE, FCC
|
|
Power consumption
|
40 Watts
|
|
Electrical requirements
|
~100-230V, 50/60Hz, 0.5A
|
|
Dimensions (W x D x H)
|
19.7 x 19.7 x 39.2 in (500 x 500 x 995 mm)
|
|
Weight
|
198 lbs (90 kg)
|
