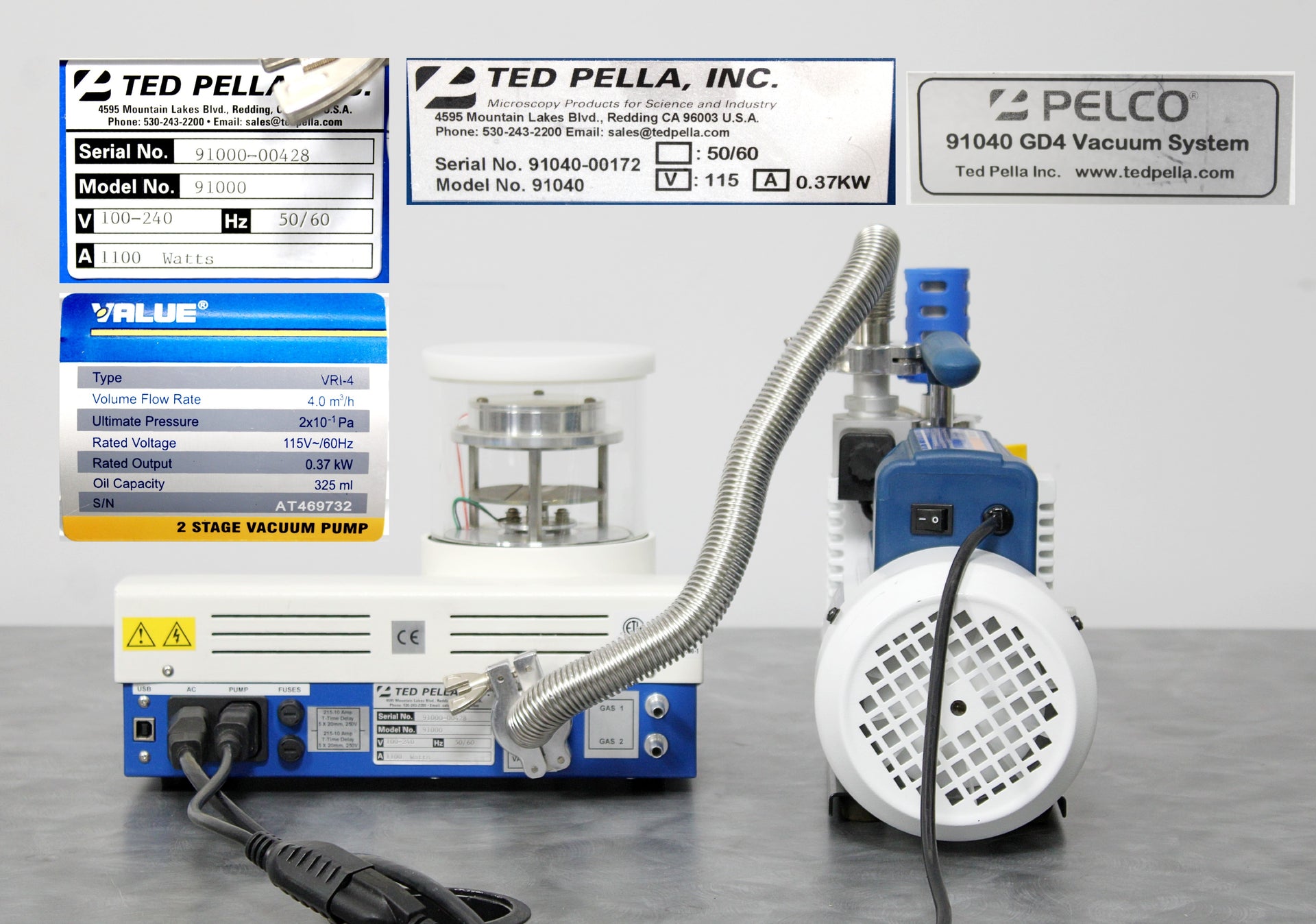

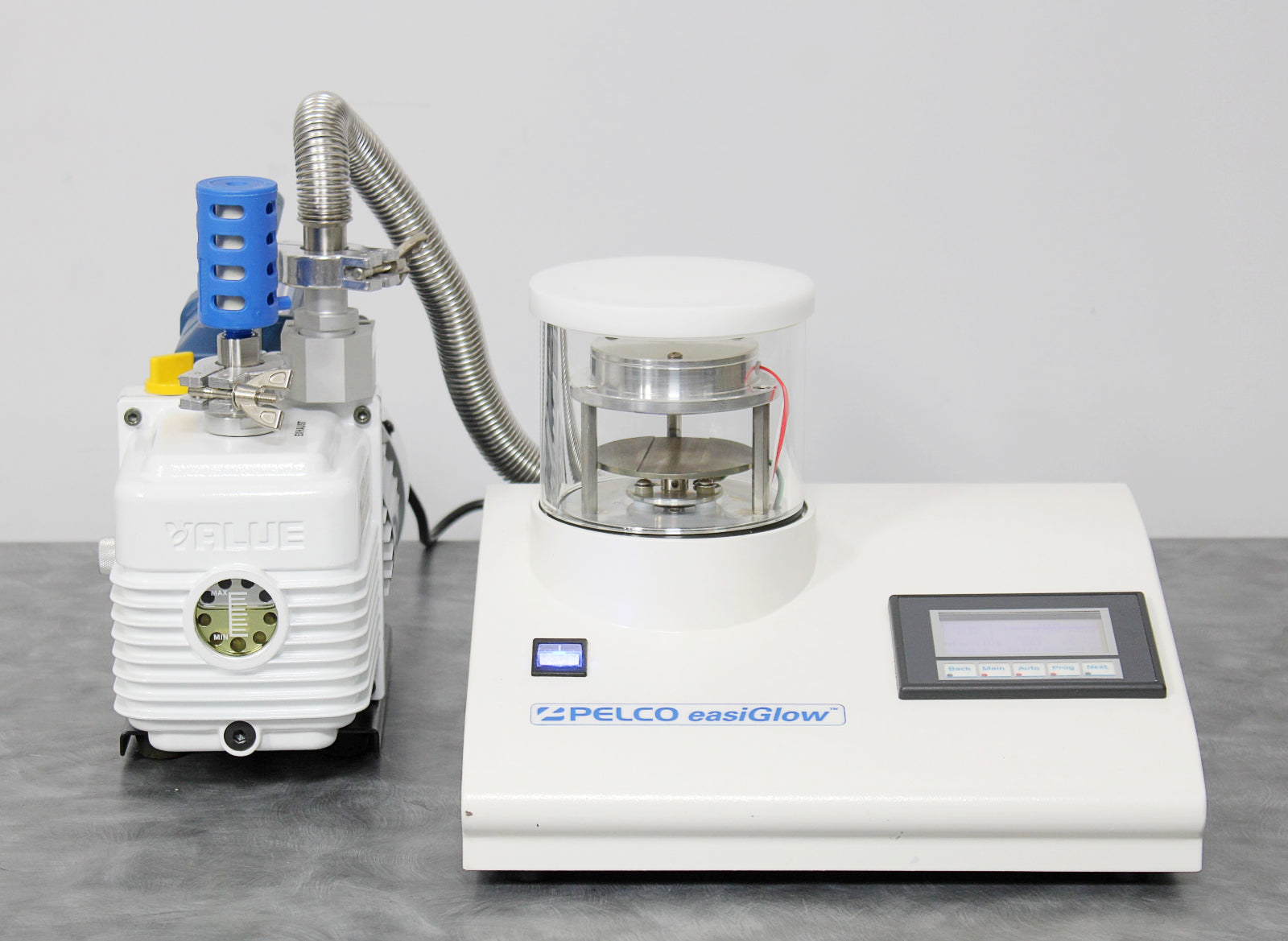

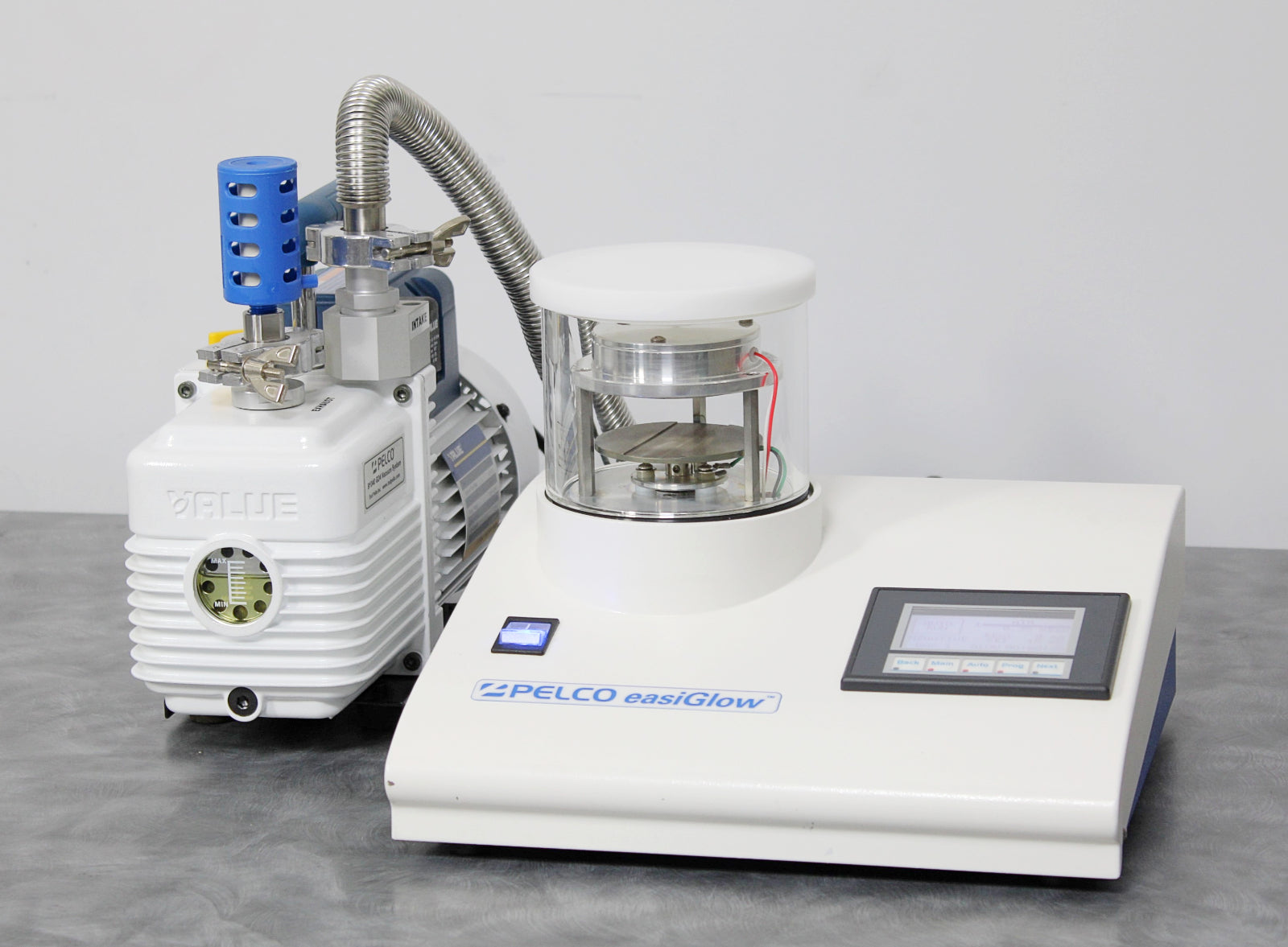

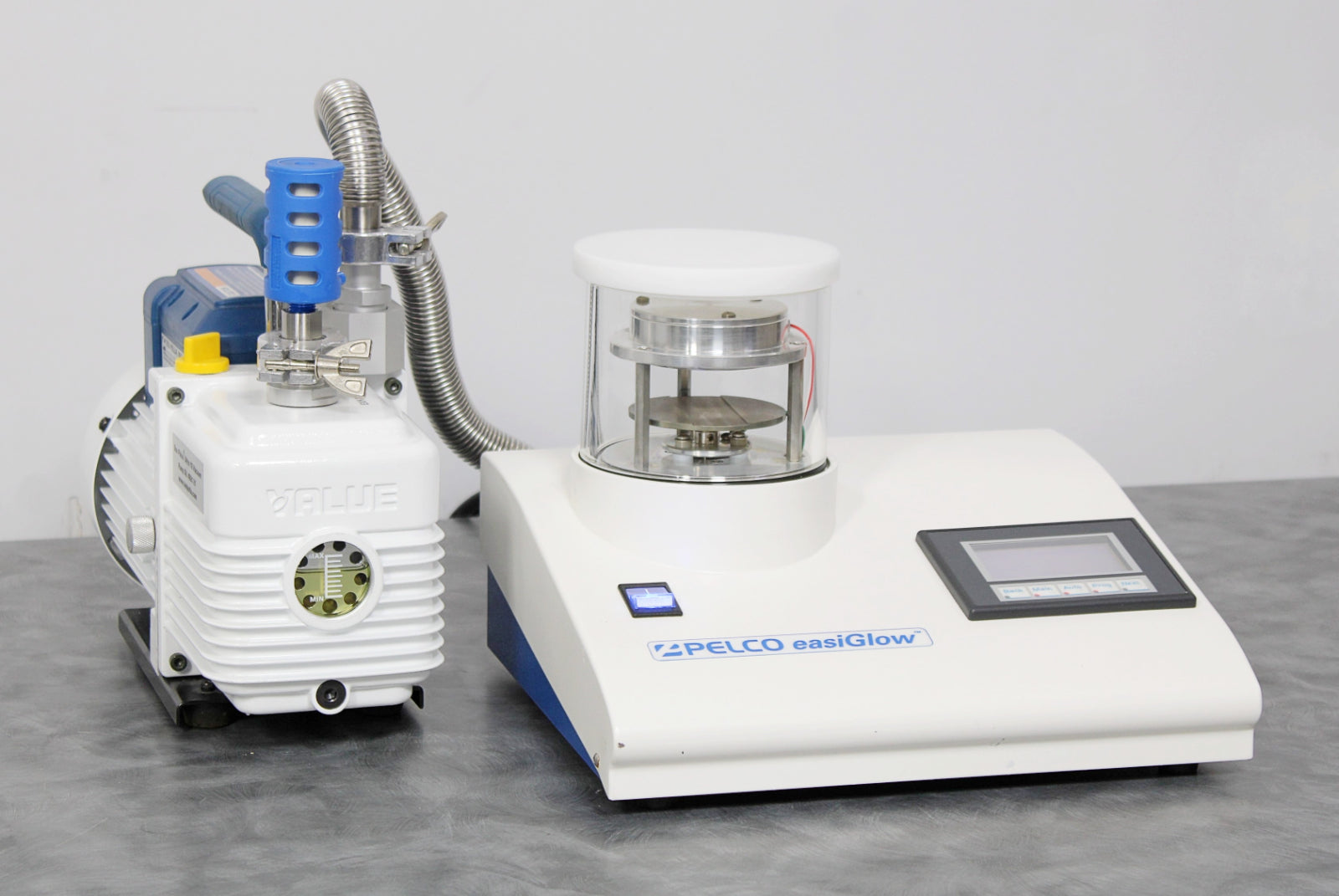

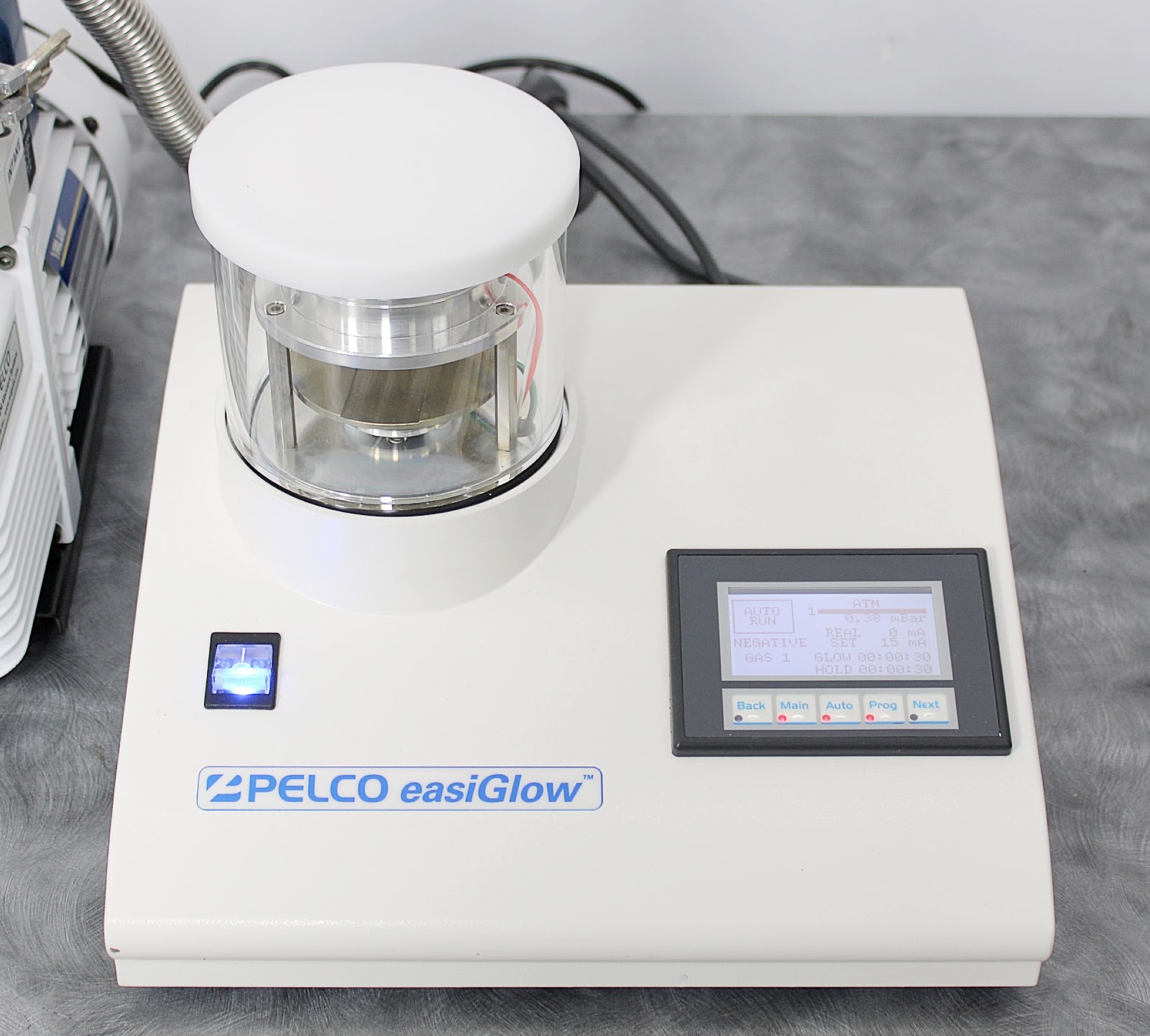

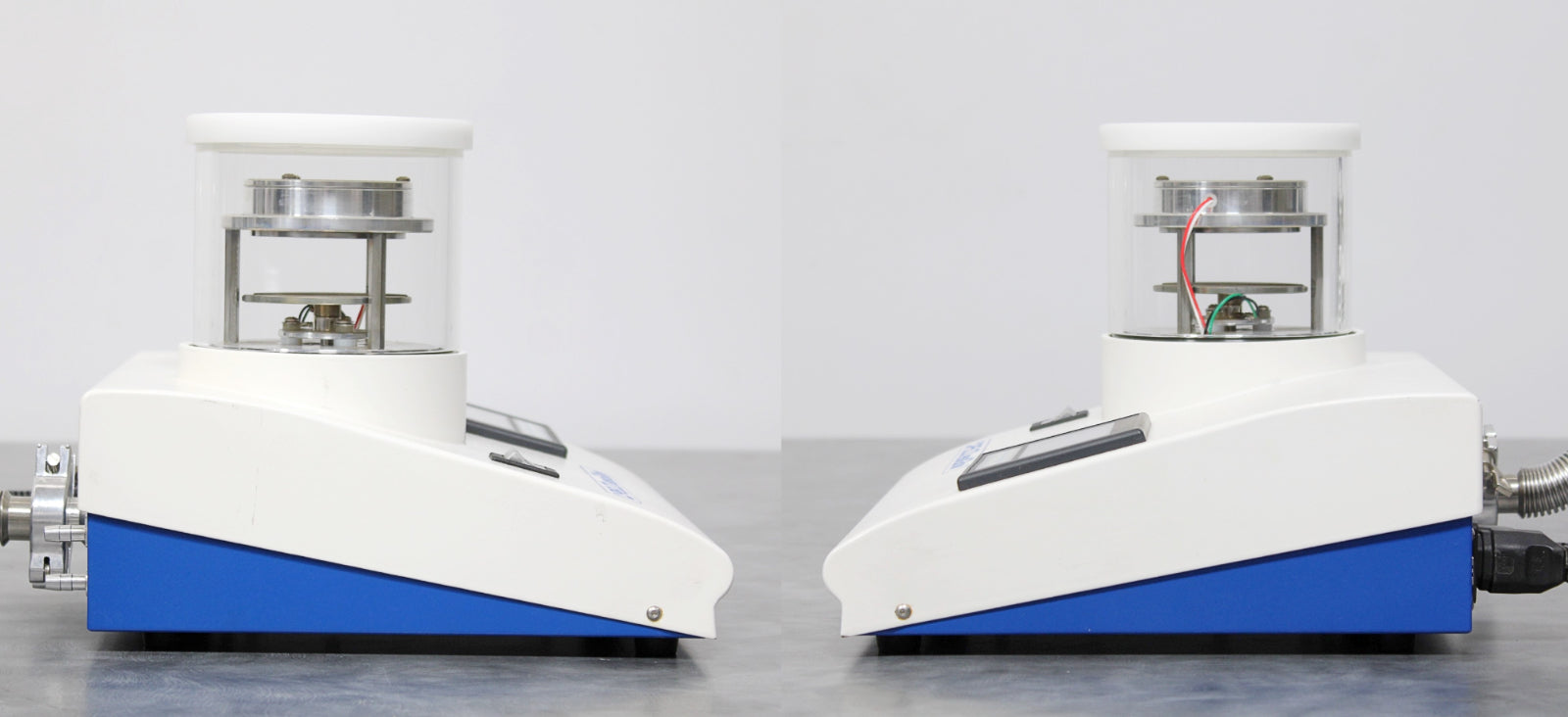

- PELCO easiGlow 91000 Glow Discharge Cleaning system
- PELCO vacuum system 91040 GD4 pump
- Vacuum hose
- Power cables
- 120-day warranty
After its initial disinfection and inspection, our technicians tested the PELCO easiGlow Glow Discharge Cleaning system with the following results:
- Powers on and initializes: PASSED
- Ran several auto cleaning without issue: PASSED
- Replaced vacuum seal o-ring
- Installed new glass vacuum chamber
|
Manufacturer
|
Ted Pella, Inc.
|
|
Model
|
PELCO easiGlow
|
|
Model No.
|
91000
|
|
Serial No.
|
91000-00428
|
|
Plasma current
|
0 - 30 mA
|
|
HV power supply
|
30W continuous rating
|
|
Glow discharge head polarity
|
User selectable positive or negative
|
|

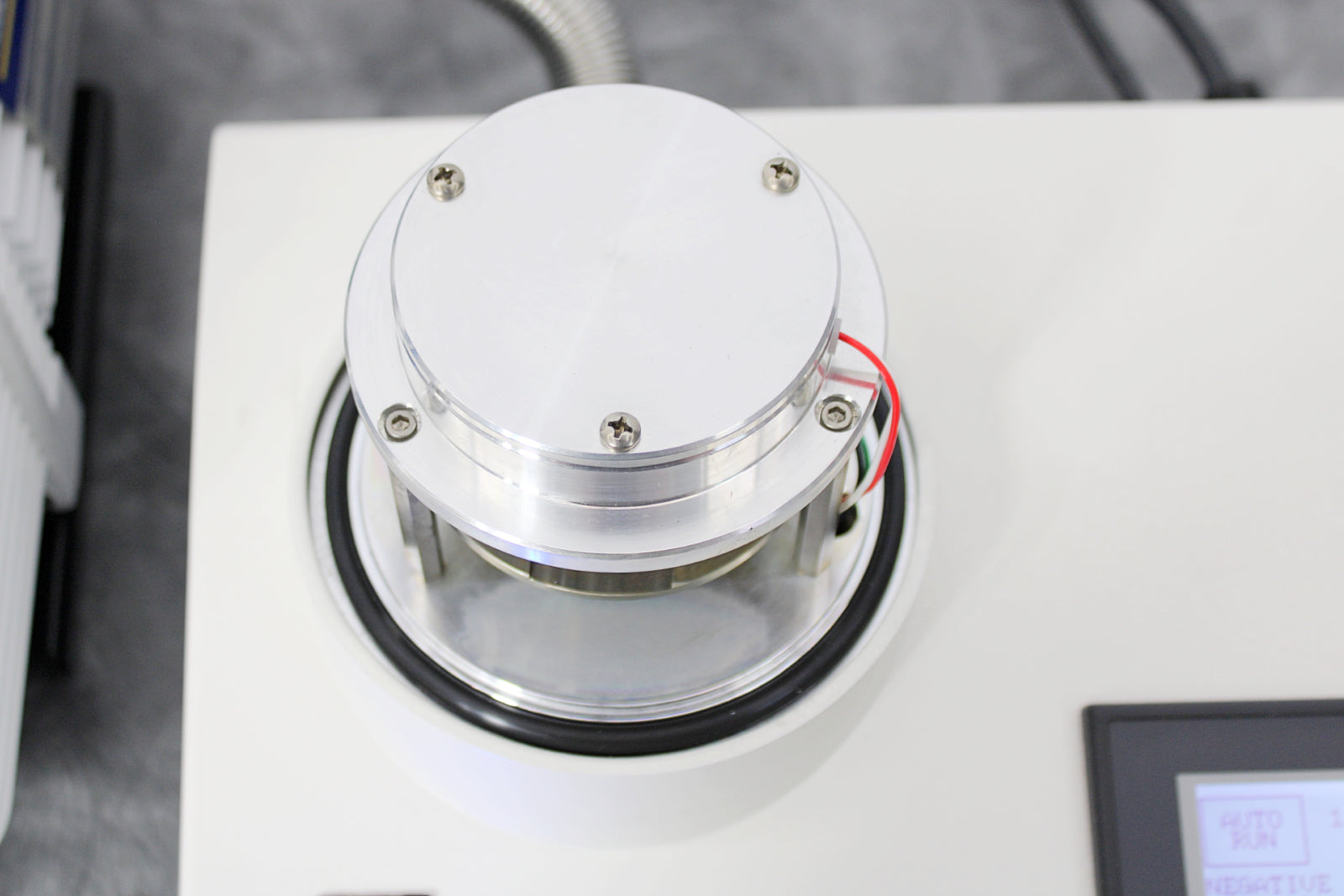

Process platform
|
Ø75mm with recess for 25 x 75mm slide
|
|
Glow discharge platform height control
|
1- 25 mm
|
|
Preprocess hold timer
|
0 - 14411 sec.
|
|
Process timer
|
0 - 900 sec.
|
|

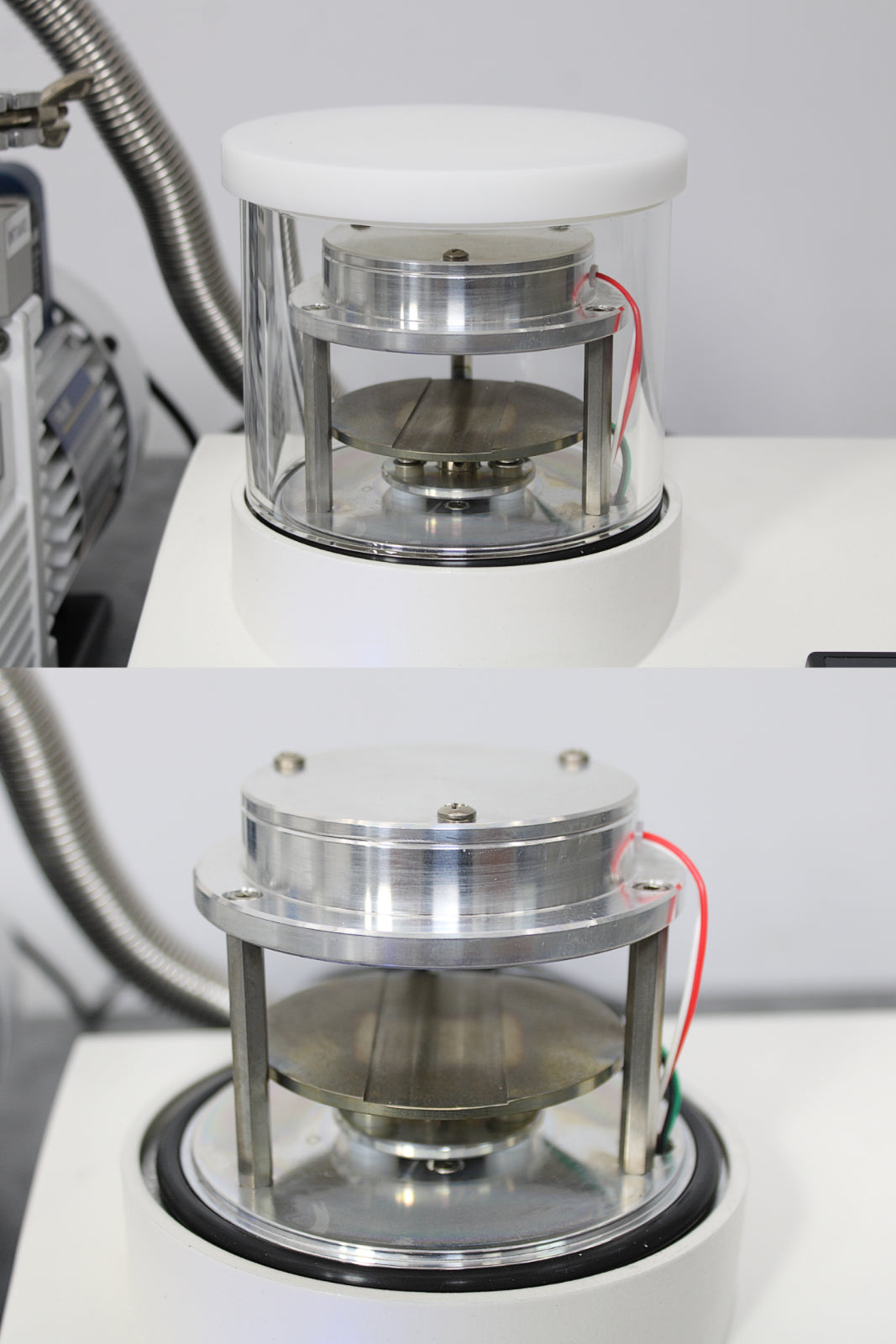

Chamber size
|
Ø120 x 100mm H with sealed Delrin top plate (inside Ø106 x 90mm)
|
|
Process/Vent gas inlets
|
2 each Ø6 mm barbed, individually user selectable for process, purge or vent
|
|
High voltage vacuum interlocks
|
Dual hardware and software interlocked
|
|
Vacuum control
|
Pirani Gauge, ranging from atmosphere to 0.01 mbar
|
|
Working vacuum range
|
1.1-0.20 mbar for optimal glow
|
|

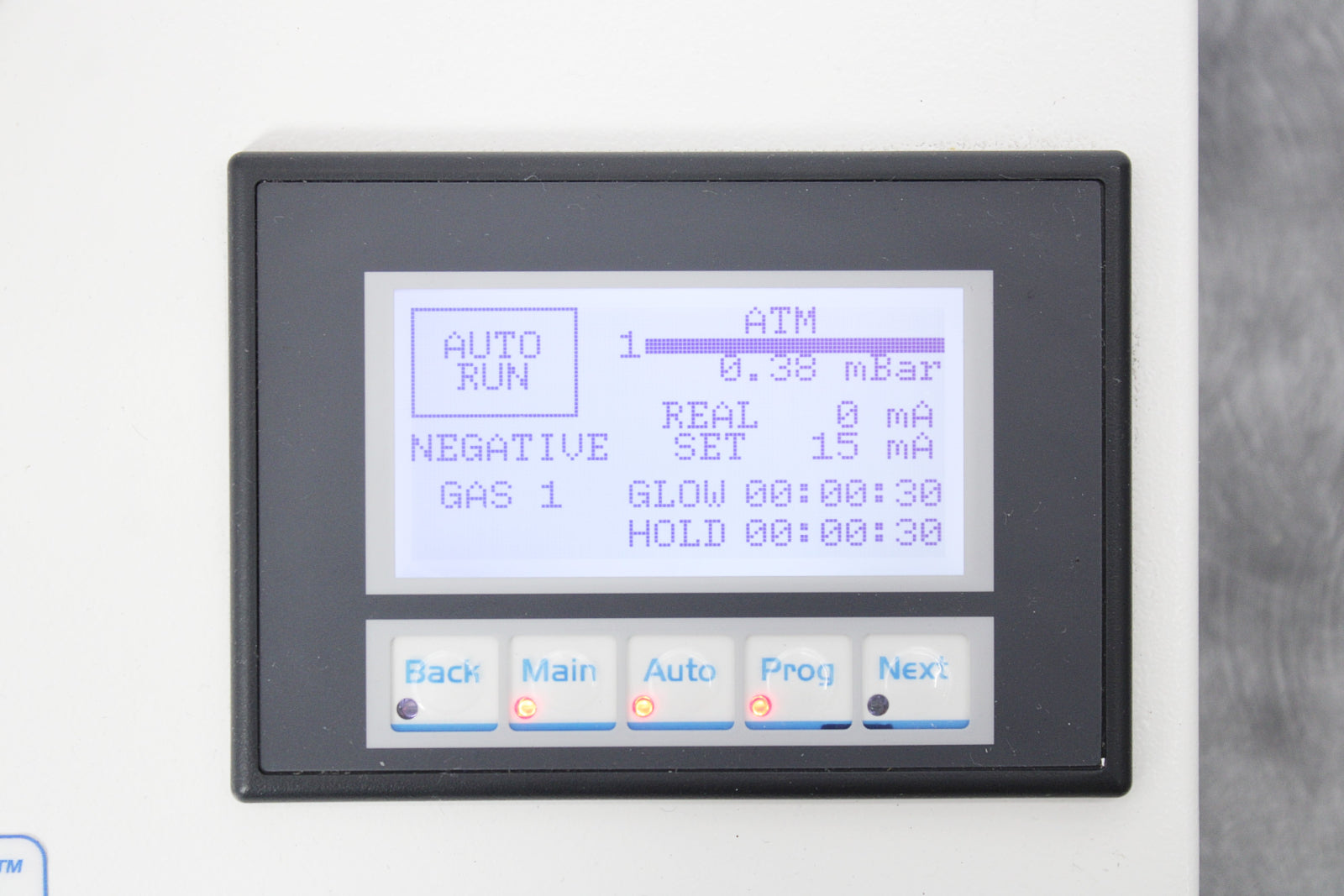

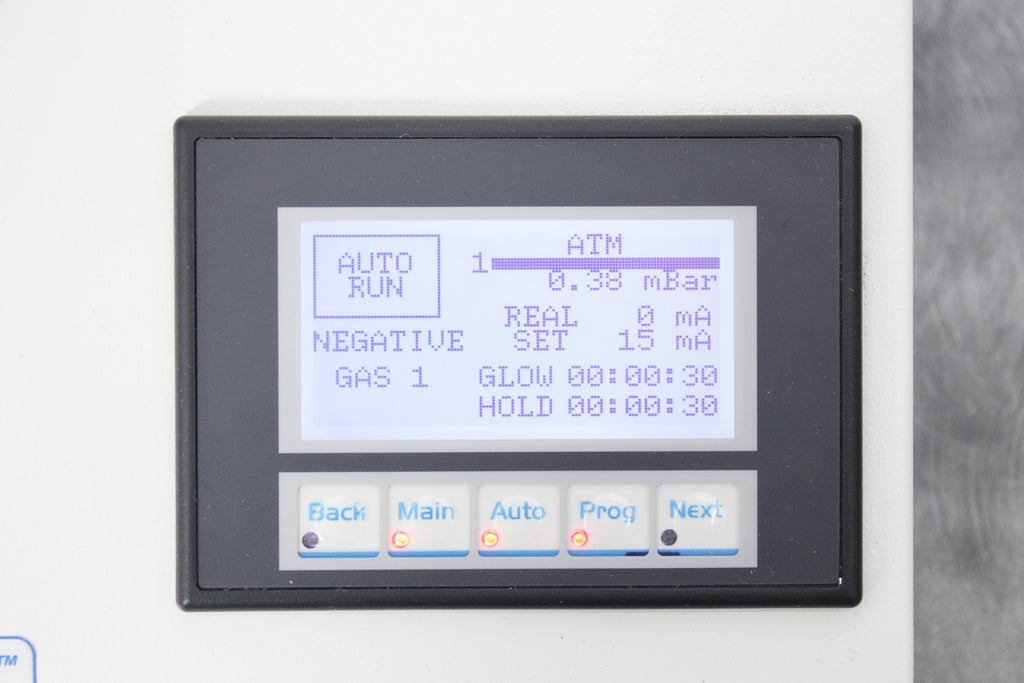

System control/display
|
3” touch panel with LED backlight and 5 function keys
|
|
Operation modes
|
Auto programmed (4 user programmed protocols) Manual/diagnostics
|
|
Data logging capabilities
|
Step #, Vacuum (mbar), Current (mA), Voltage (V), and polarity, once per second
|
|
Power requirements
|
120V 60Hz, 15A or 230V 50Hz, 10A Service
|
|
Instrument power rating
|
100-240VAC 60/50Hz 60W Plus Pump, IEC Inlet
|
|
Optional pump power rating
|
120/230V 60/50Hz 370 W (1/2 hp)
|
|
Vacuum pump minimum requirements
|
2.5 m3/hr, 41 l/m, 1.65 CFM
0.03 mbar Ultimate Vacuum
|
|

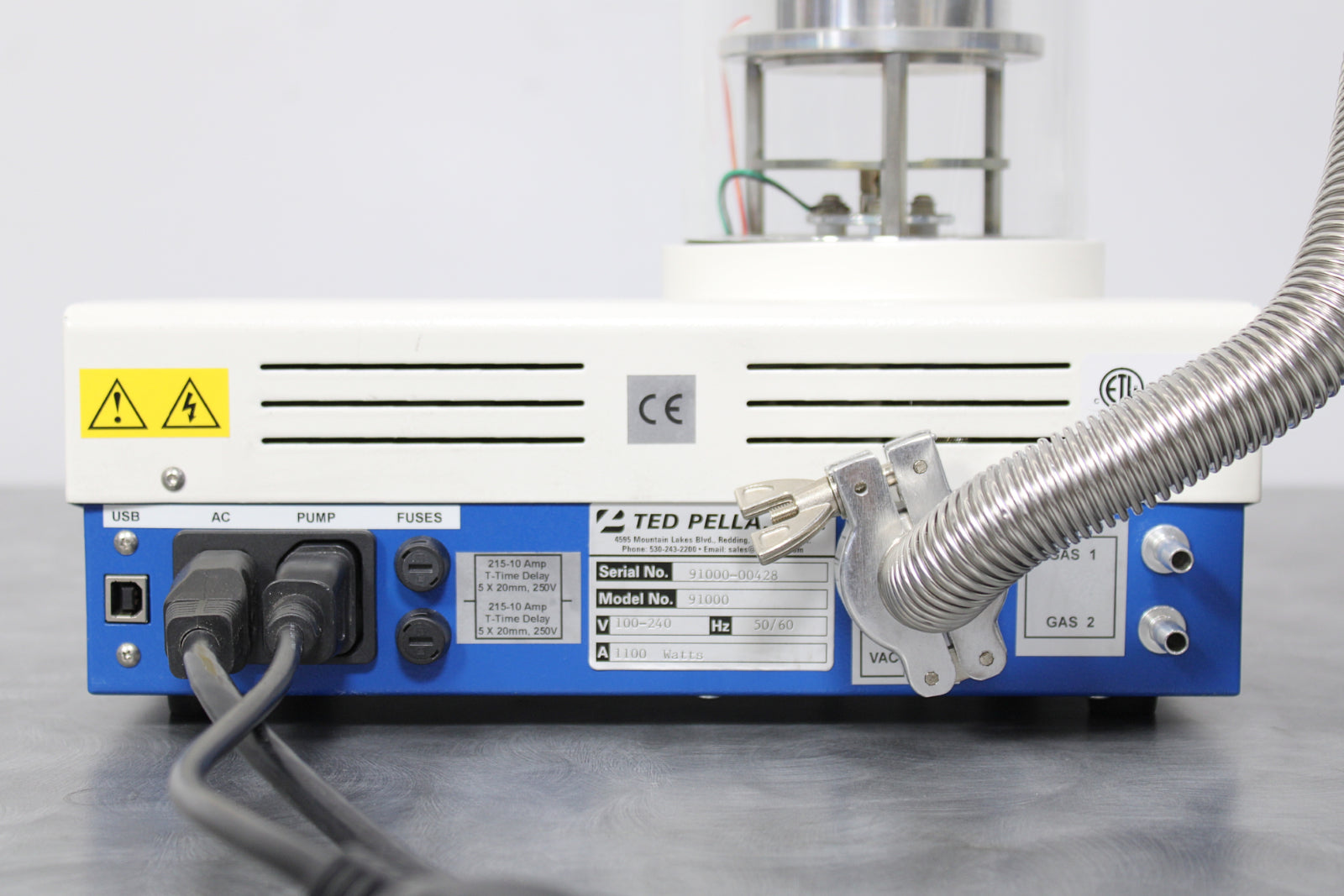

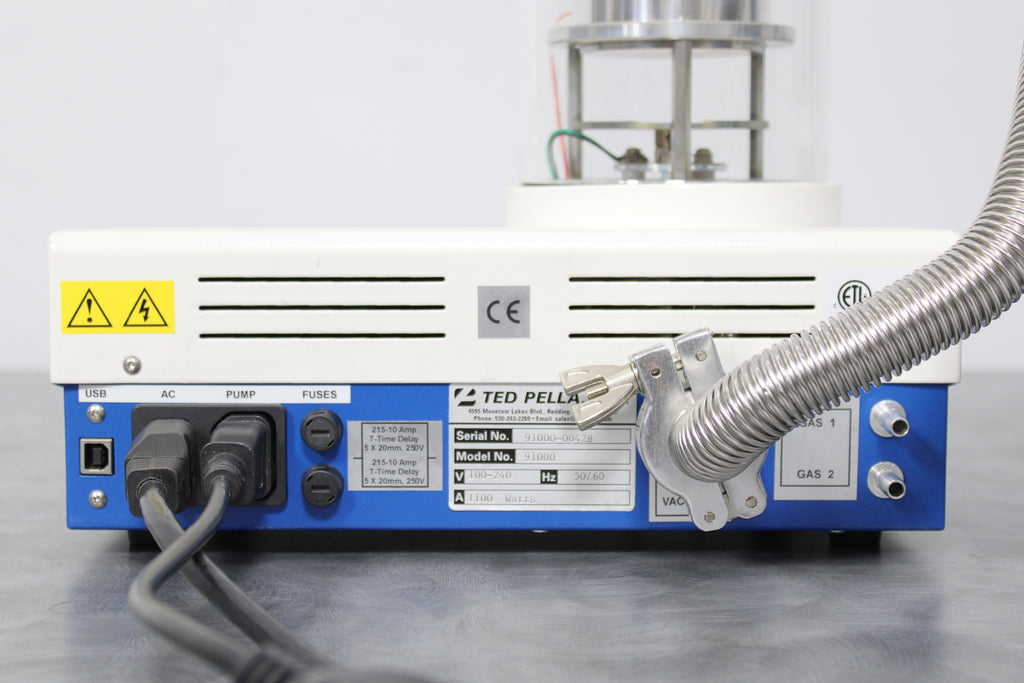

Vacuum pump power outlet on instrument
|
8A max IEC outlet
|
|
Vacuum inlet
|
KF 16 flange
|
|
Communication port
|
USB outlet
|
|
Dimensions (W x D x H)
|
12 x 11.5 x 9 in (30.5 x 29.2 x 23 cm)
|
|
Weight instrument
|
13.8 lbs (6.26 kg)
|
|

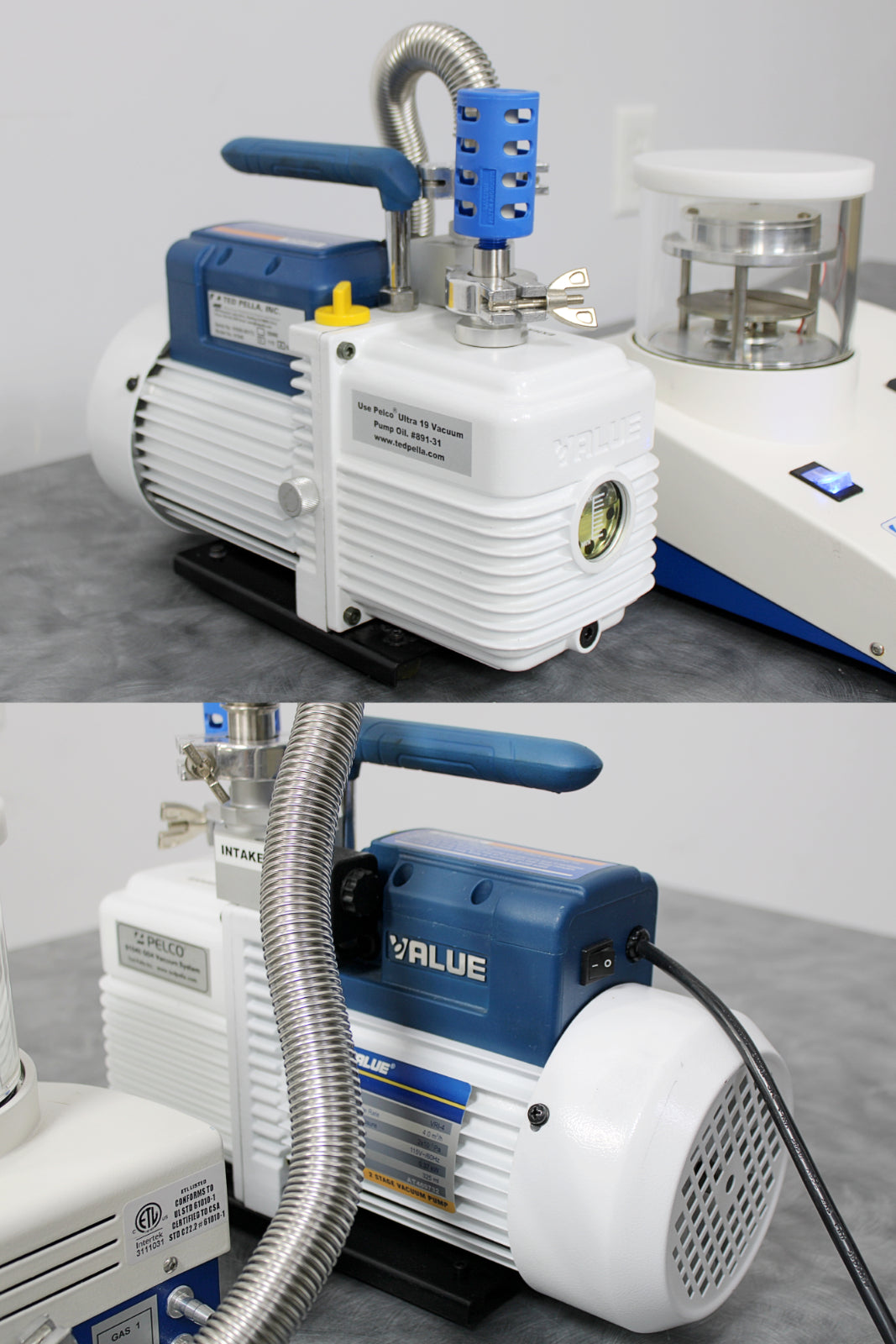

Manufacturer
|
Ted Pella, Inc.
|
|
Model
|
GD4 rotary vacuum pump
|
|
Model No.
|
91040
|
|
Serial No.
|
91040-00172
|
|
Pumping speed
|
4.3m3/hr, 72 l/min, 2.5 CFM @ 60Hz
3.6m3/hr, 60 l/min, 2.1 CFM @ 50Hz
|
|
Ultimate vacuum
|
1 x 10-2 mbar
|
|
Vacuum connection
|
KF/NW 16
|
|
Exhaust connection
|
KF/NW 16
|
|
Oil capacity
|
300cc
|
|
Operating temperature
|
5 - 40°C (41 - 104°F)
|
|
Power rating
|
110 - 115V 60 Hz, 3.2A, 0.37kW
|
|
Dimensions (W x D x H)
|
5.4 x 13.3 x 9.6 in (13.8 x 33.7 x 24.4 cm)
|
|
Weight
|
24 lbs (11 kg)
|
