- Sakura Tissue-Tek TEC 6 Embedding Module
- Sakura Tissue-Tek TEC 6 Cryo Module

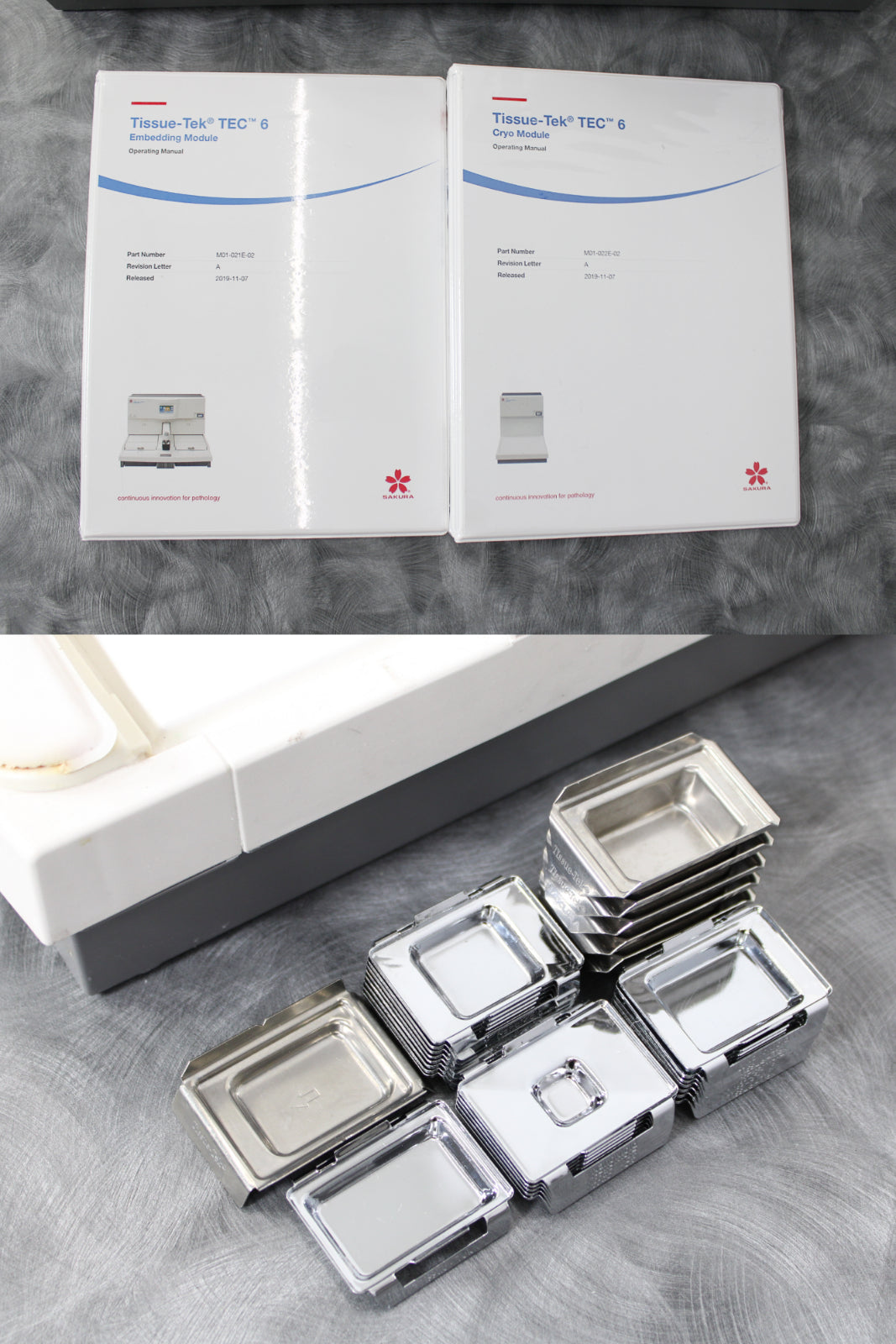

- Mold trays & tweezers
- 120-Day Warranty
After its initial disinfection and inspection, our technicians tested the Sakura Tissue-Tek TEC 6 Embedding Console System with the following results:
- Cold plate sets as low as -10°C: PASSED
- Tested all the hot and cold zones: PASSED
- Tested the auto power on and off function: PASSED

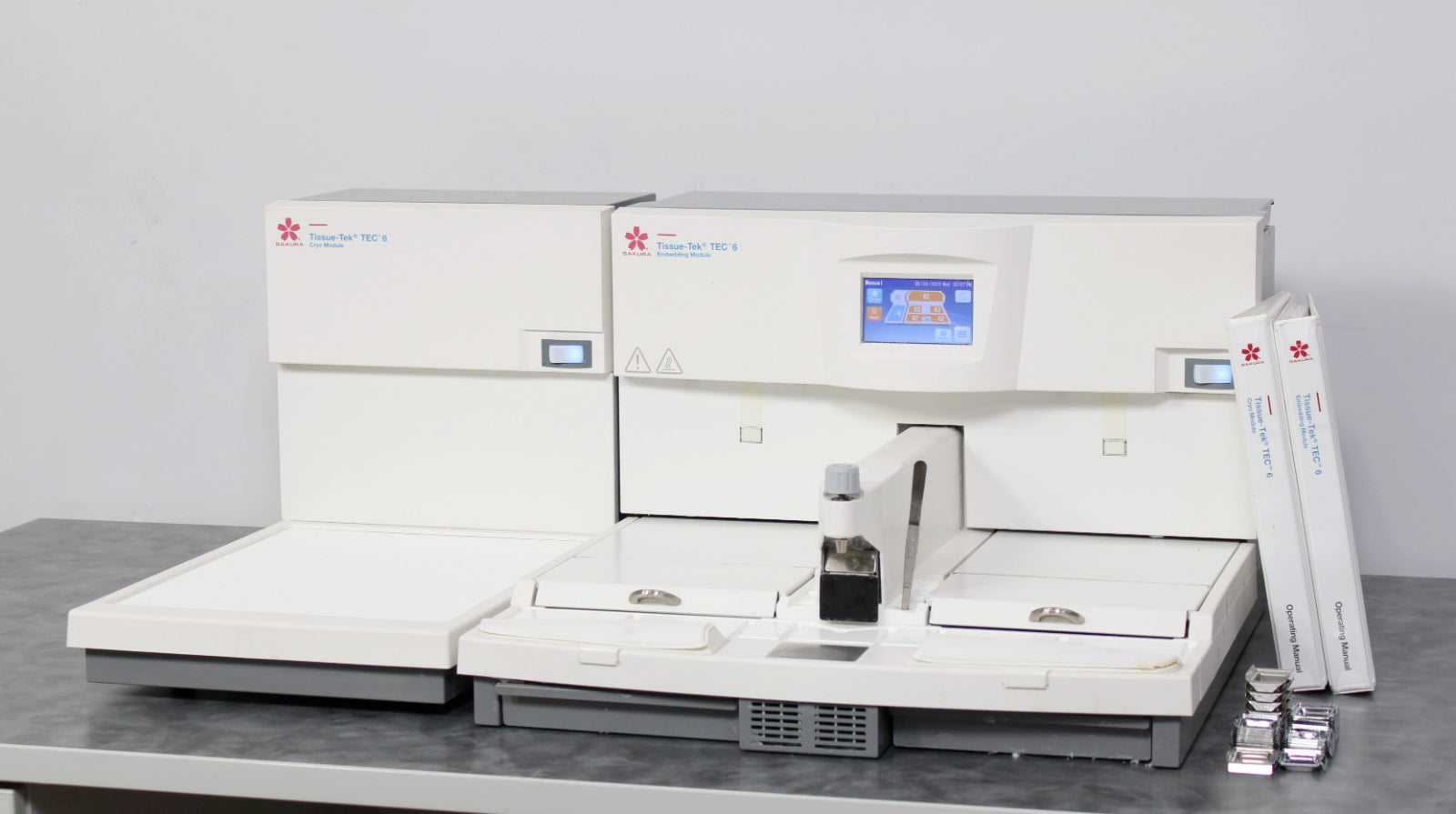

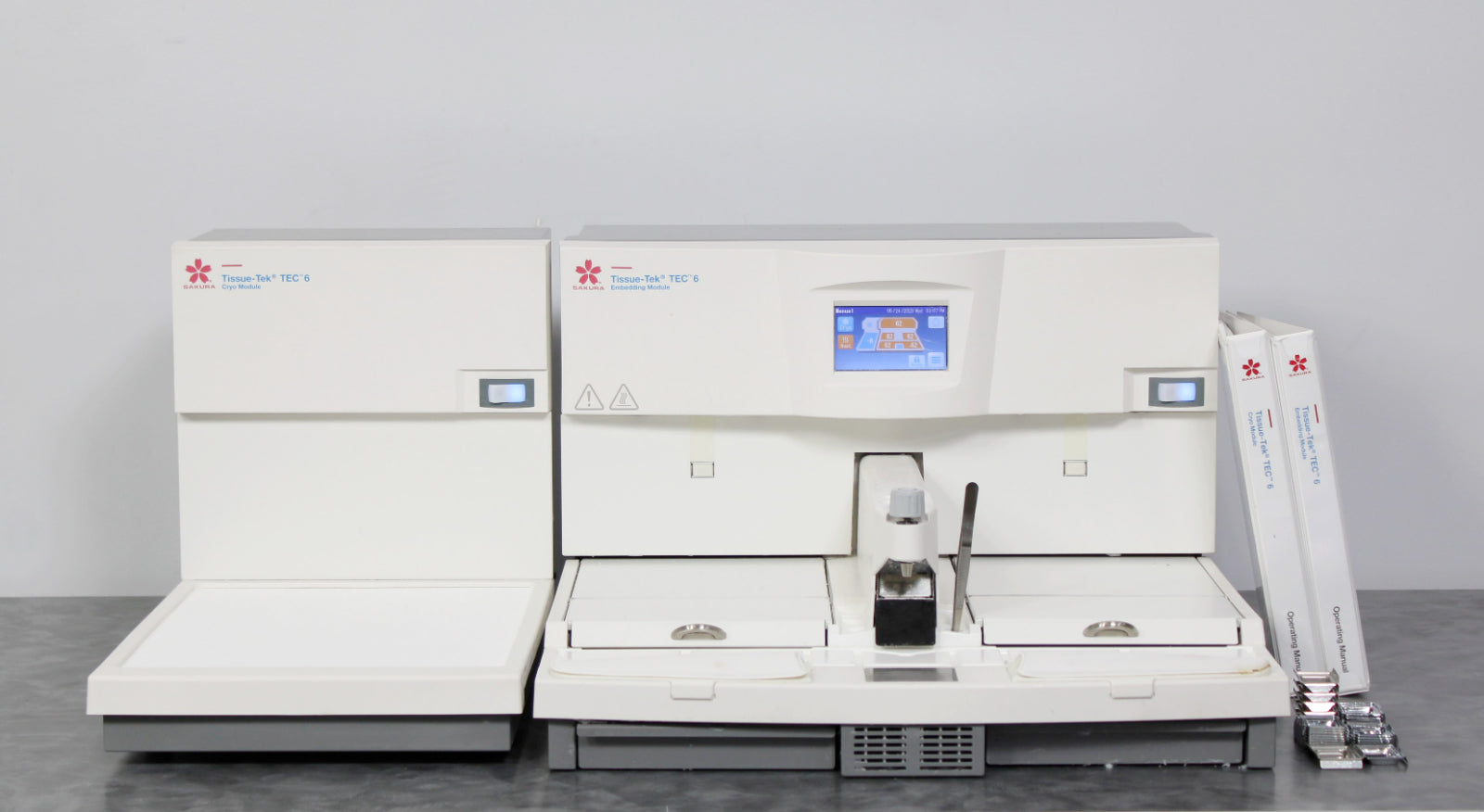

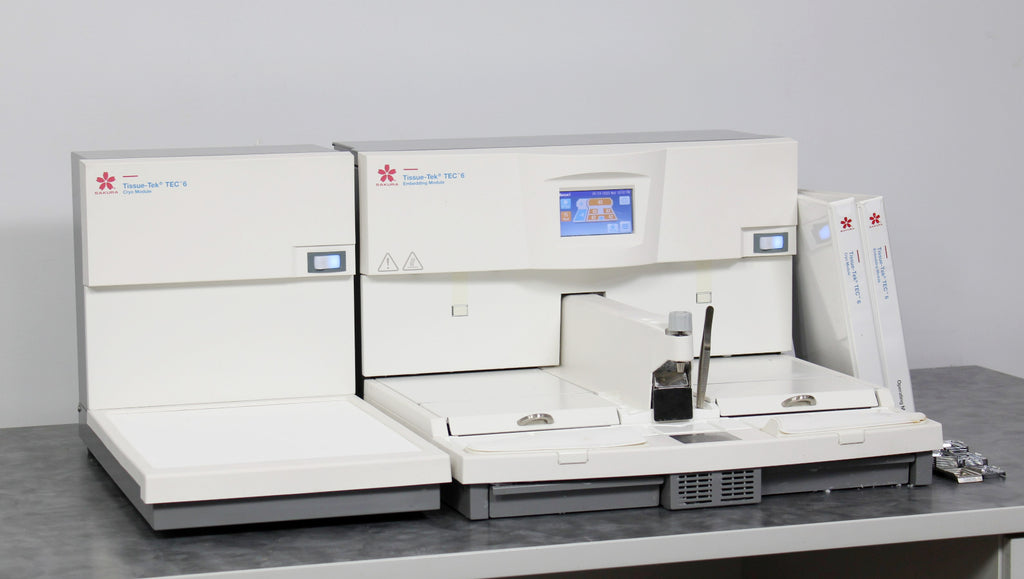

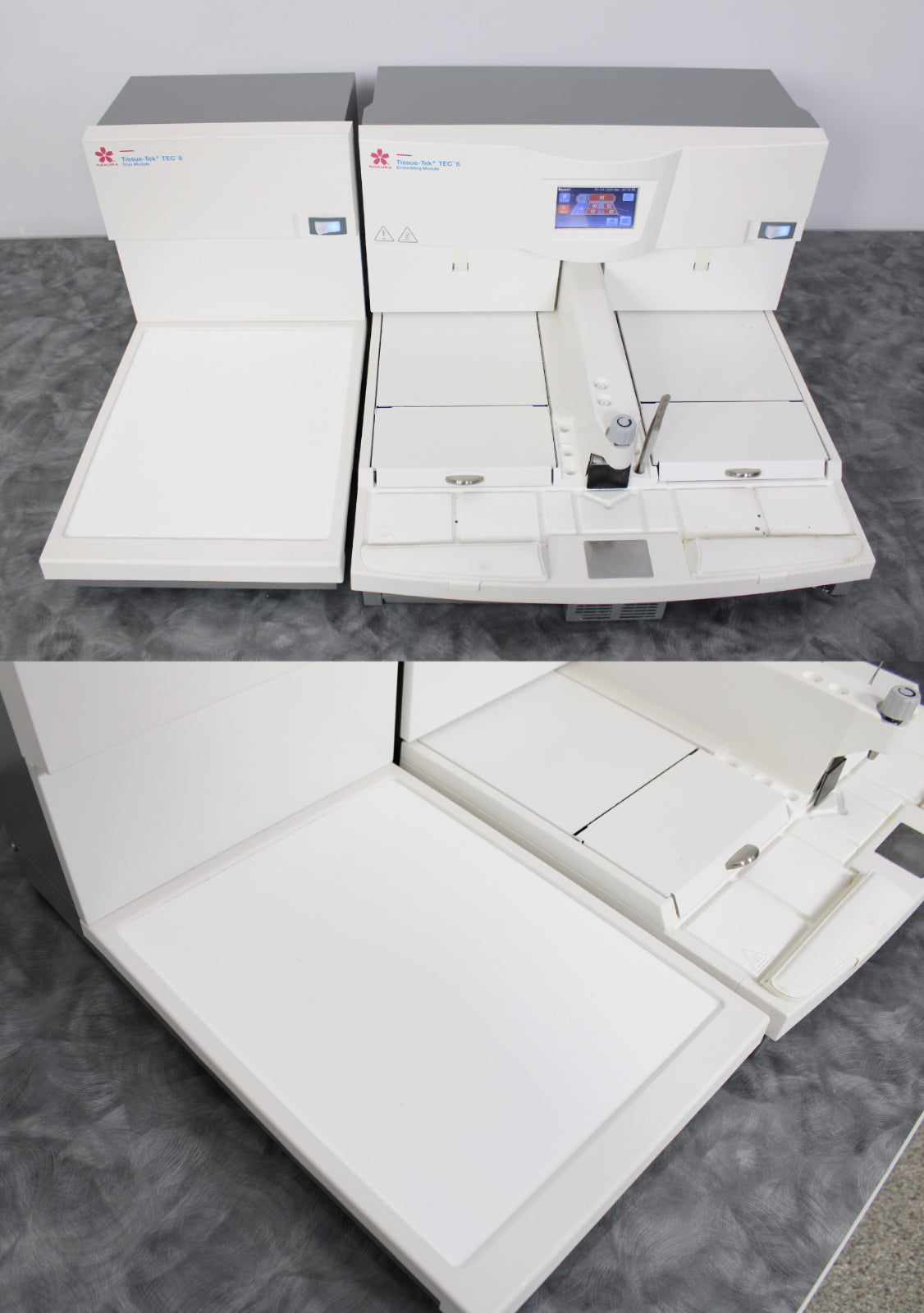

The Sakura Tissue-Tek TEC 6 Embedding System is a device used in histology laboratories for the embedding of tissue samples in paraffin wax. The system typically includes a heated paraffin dispenser, a cold plate for cooling and solidifying the wax, and a mechanism for orienting and embedding tissue samples. This system is commonly used in histology laboratories in hospitals, research institutions, and diagnostic centers to prepare tissue specimens for pathological examination.
|
Manufacturer
|
Sakura
|
|
Model
|
Cryo Module: Tissue-Tek TEC 6 (TEC-6-CM-A1)
Embedding Module: Tissue-Tek TEC 6 (TEC-6-EM-A1)
|
|

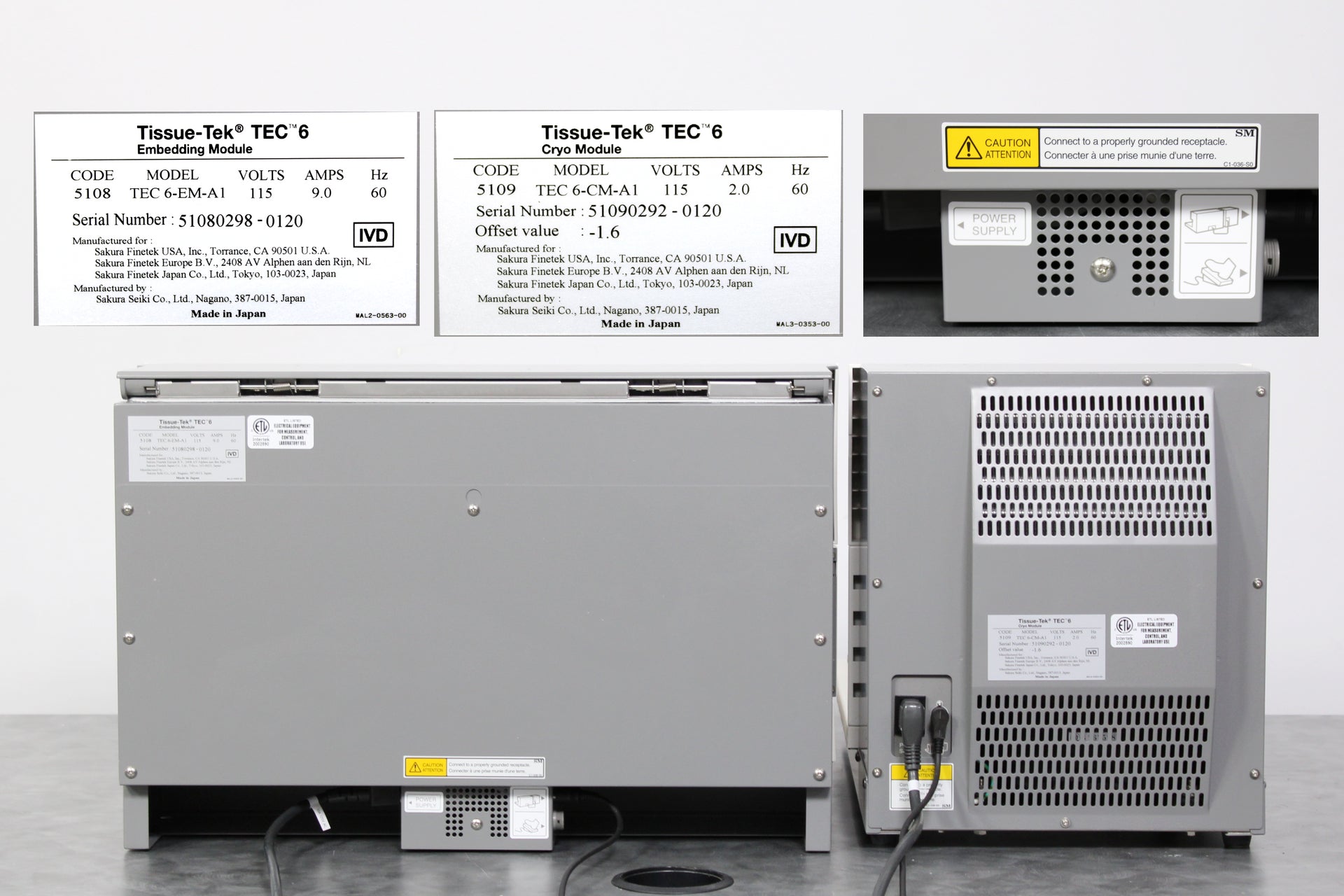

Serial Number
|
Cryo Module: 51090292-0120
Embedding Module: 51080298-0120
|
|
Configuration
|
Modular, can be configured for right- or left-handed use
|
|
Capacity
|

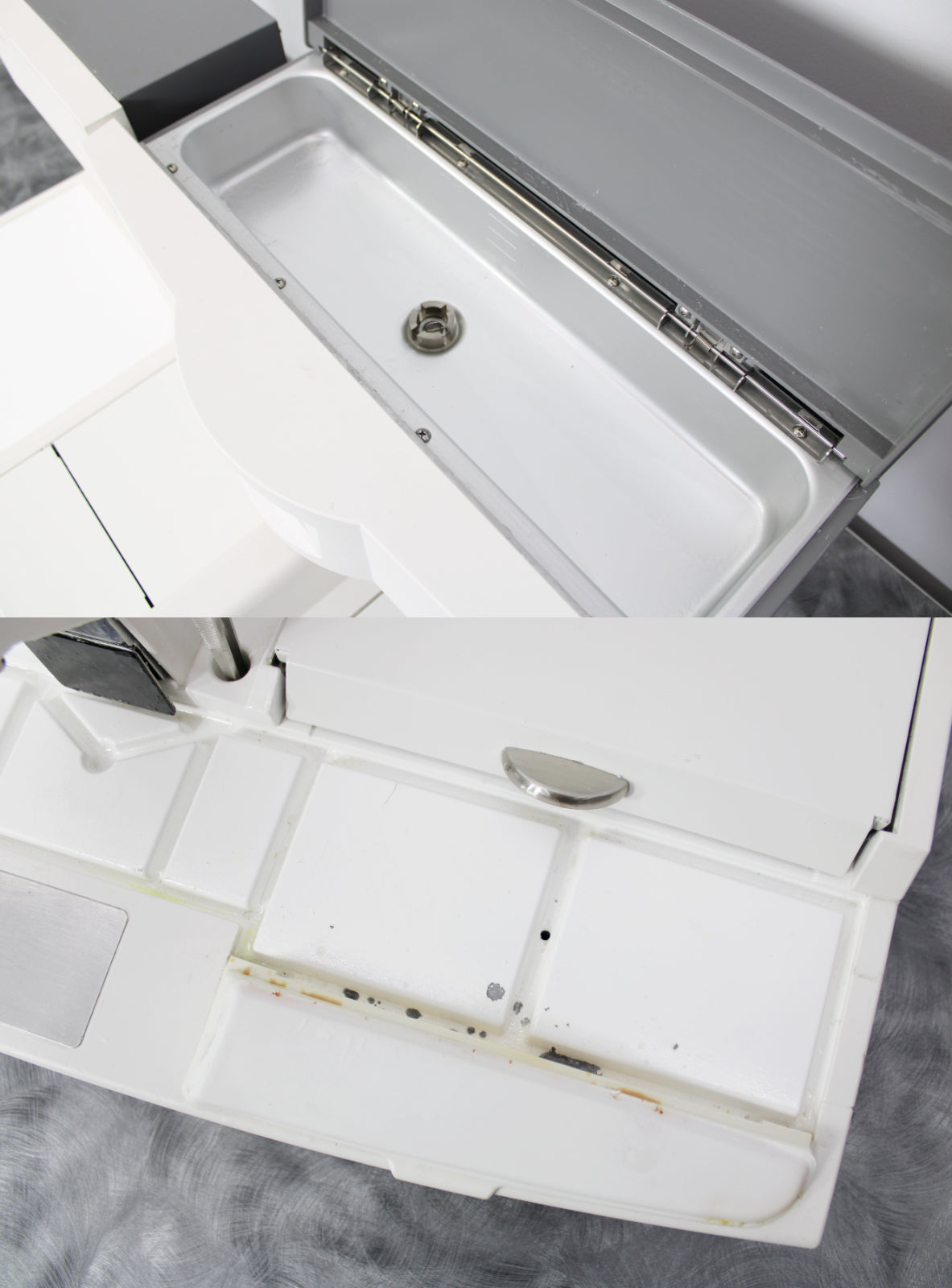

Paraffin chamber: 4 liters

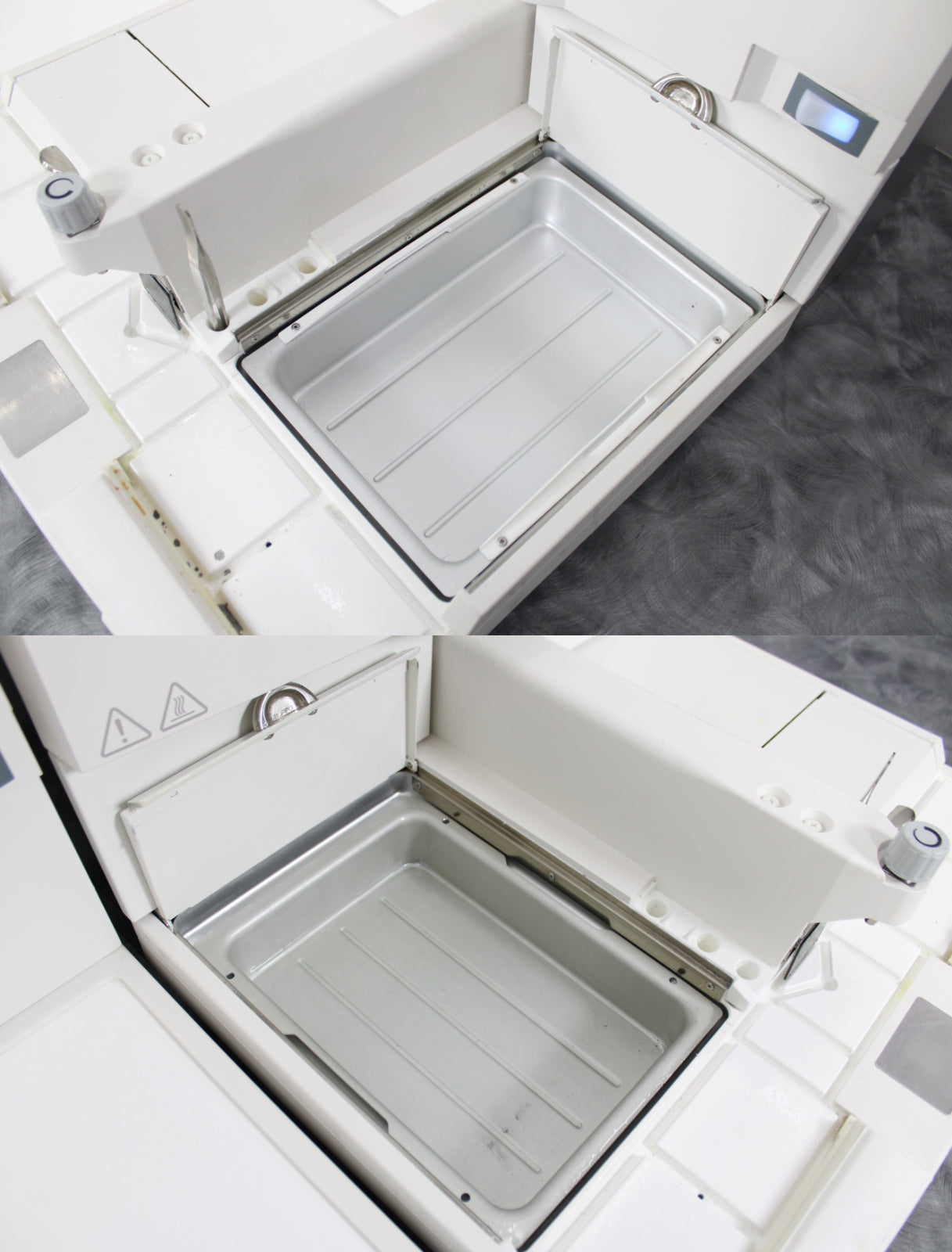

Left and right thermal chambers: 1.5 liters or up to 150 cassettes

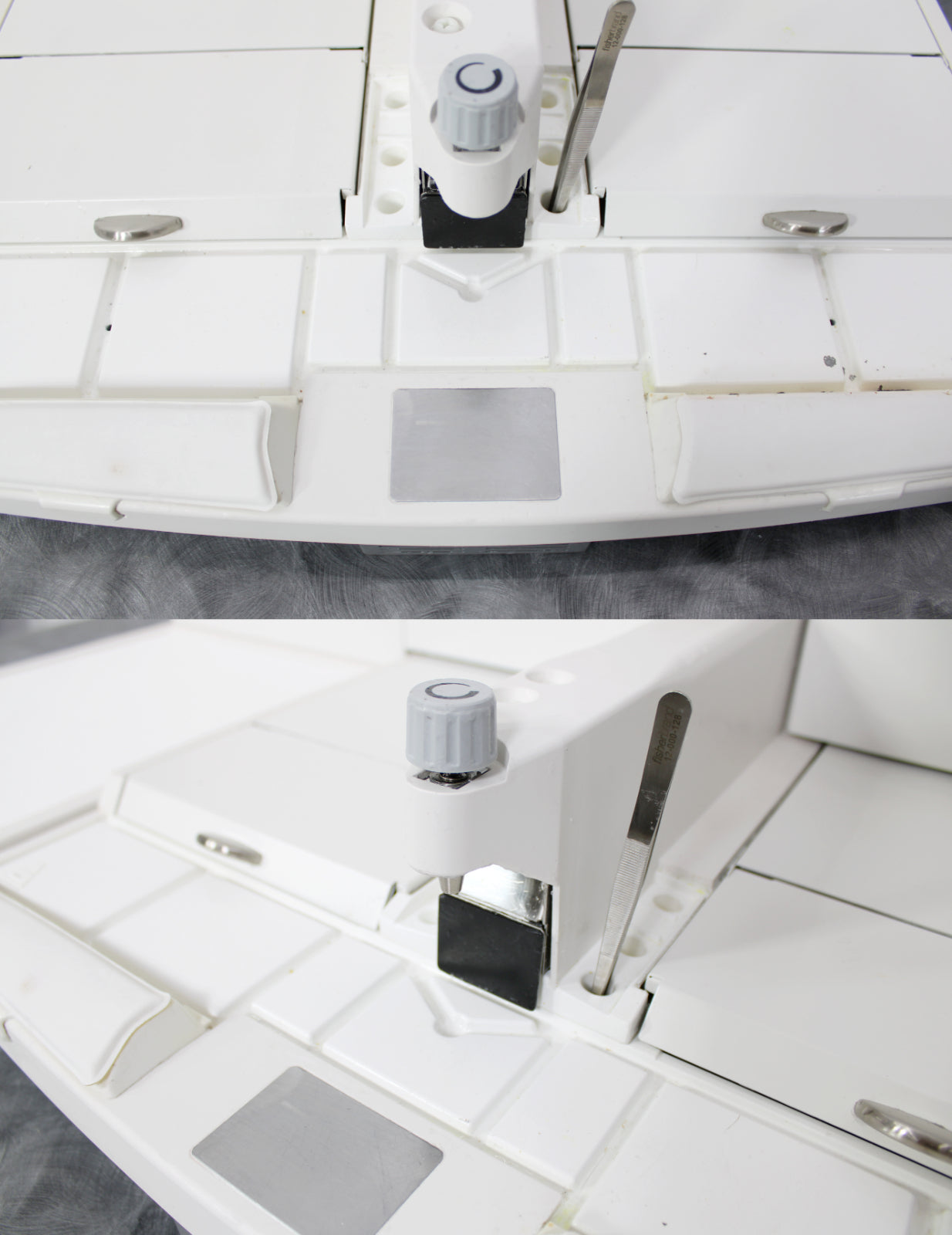

Working area: up to 20 cassettes
Cryo plate: up to 60 blocks
|
|
Heating Time (Embedding Module)
|
Paraffin and left/right chambers: 4 hours from room temperature start
|
|
Cooling Time (Cryo Module)
|
30 minutes from room temperature start
|
|
Temperature Range
|
Paraffin and thermal chambers: 122 to 167oF (50 to 75oC)
Hot plate: 122 to 167oF (50 to 75oC)
Cryo plate: 14 to 32oF (-10 to 0oC)
|
|

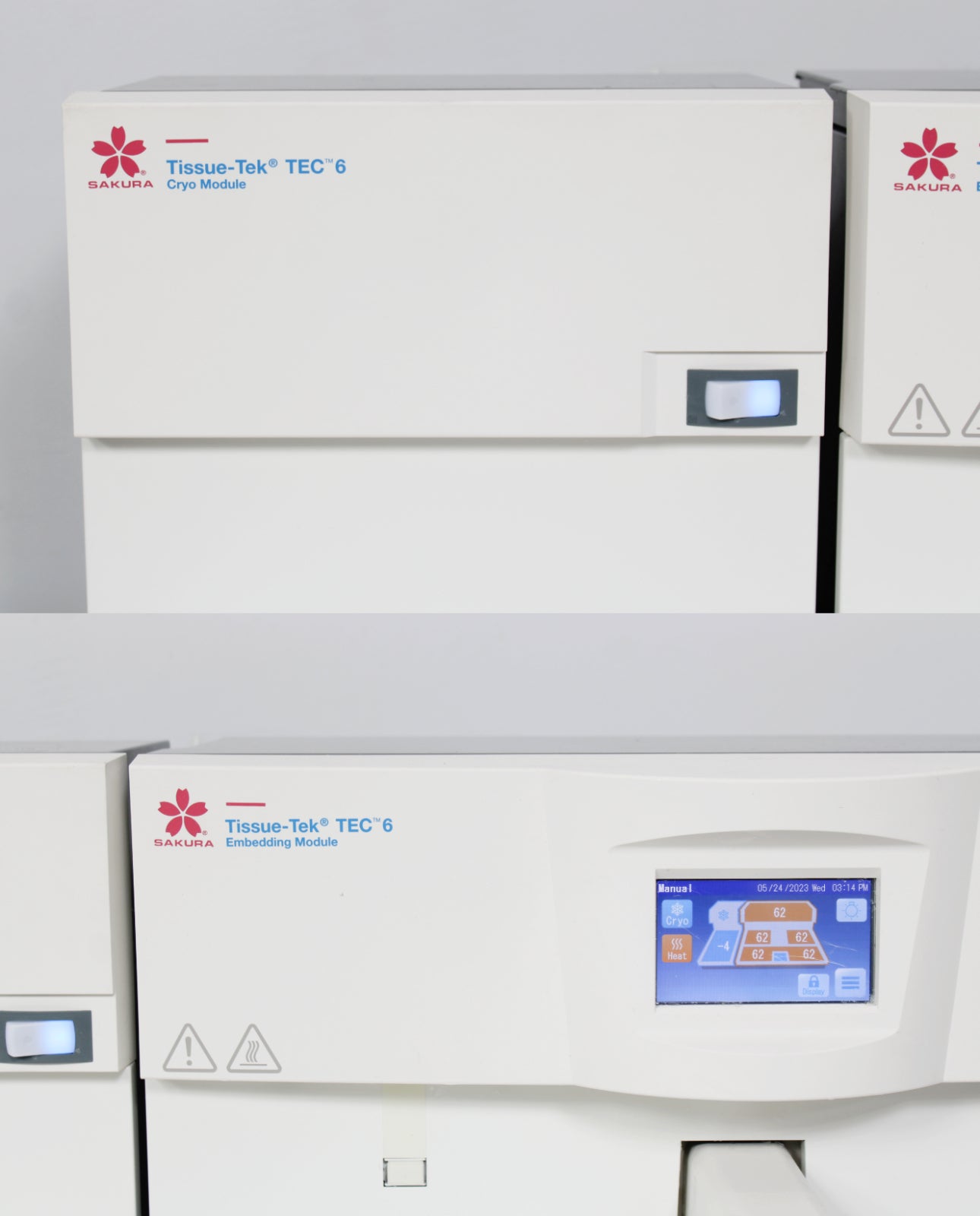

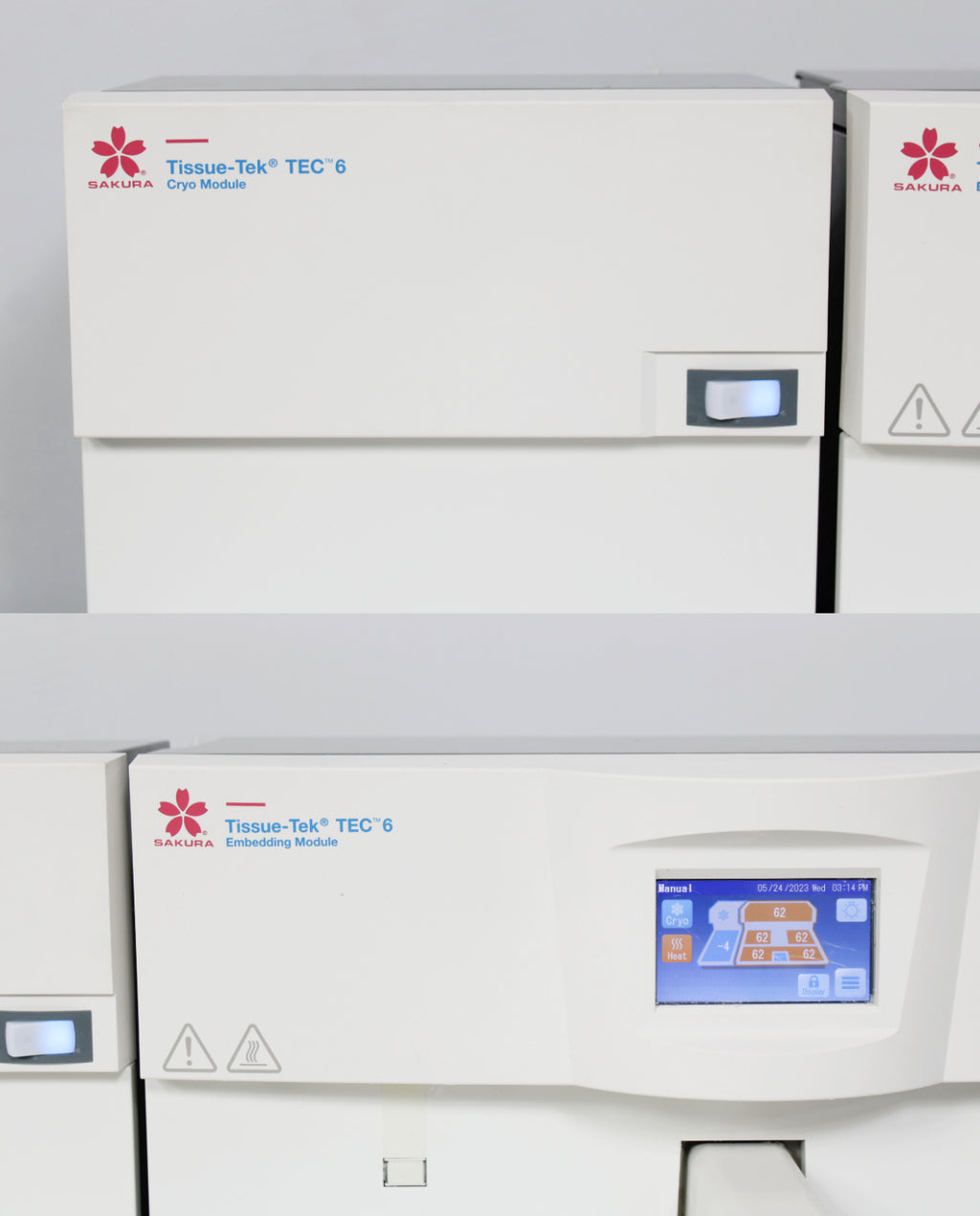

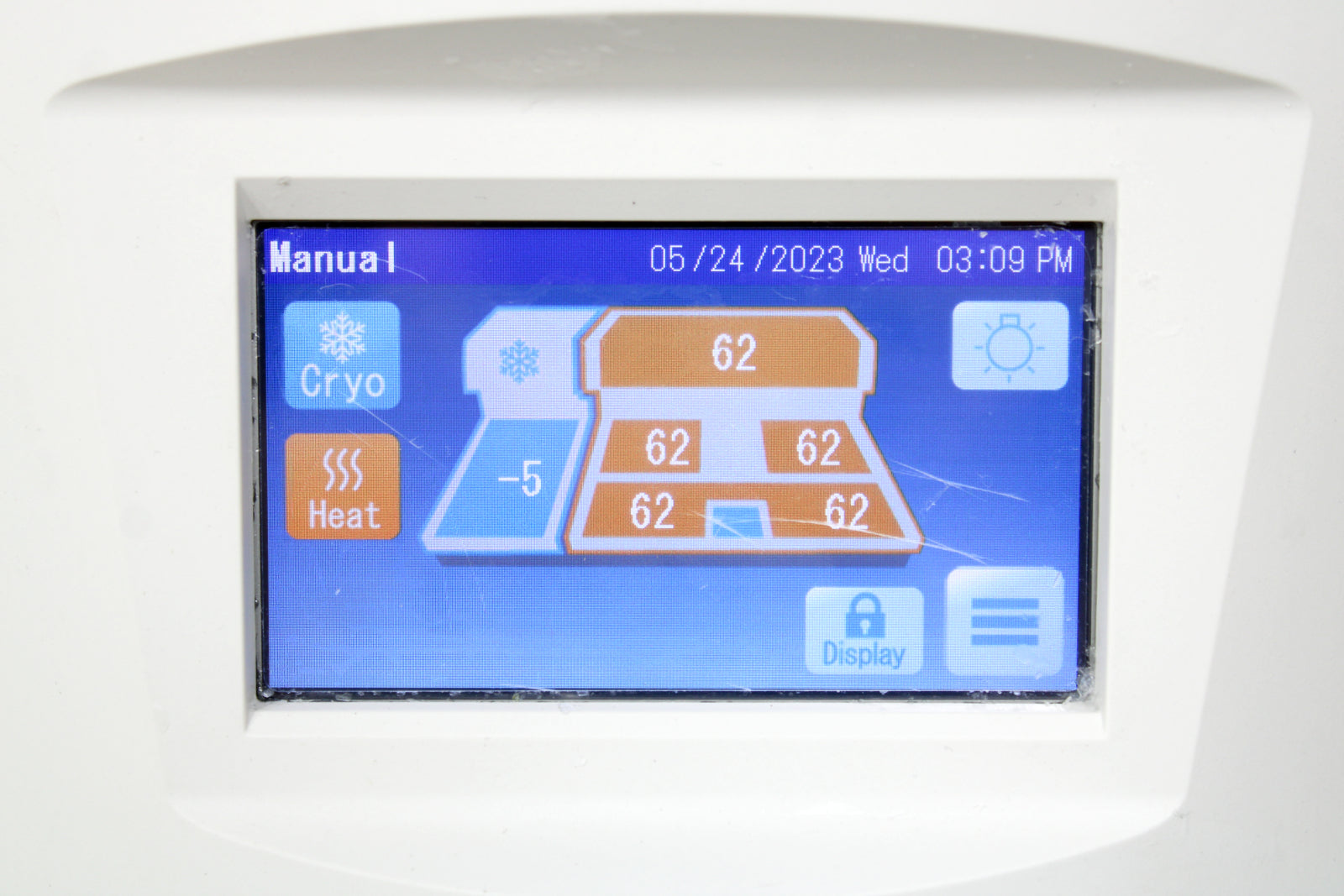

User Interface Display
|
4.3 inch TFT color LCD touchscreen
|
|
Rated voltage and current
|
Embedding Module: 115 VAC ± 10%, 60 Hz, 9A
Cryo Module: 115 VAC ± 10%, 60 Hz, 2A
|
|
Dimensions (W x D x H)
|
Embedding Module: 22.5 x 25 x 15 in
Cryo Module: 13 x 24 x 15 in
Combined: 35.6 x 25.3 x 14.8 in
|
|
Weight
|
Embedding Module: 55 lbs (25 kg)
Cryo Module: 48 lbs (22 kg)
Combined: 104 lbs (47 kg)
|
