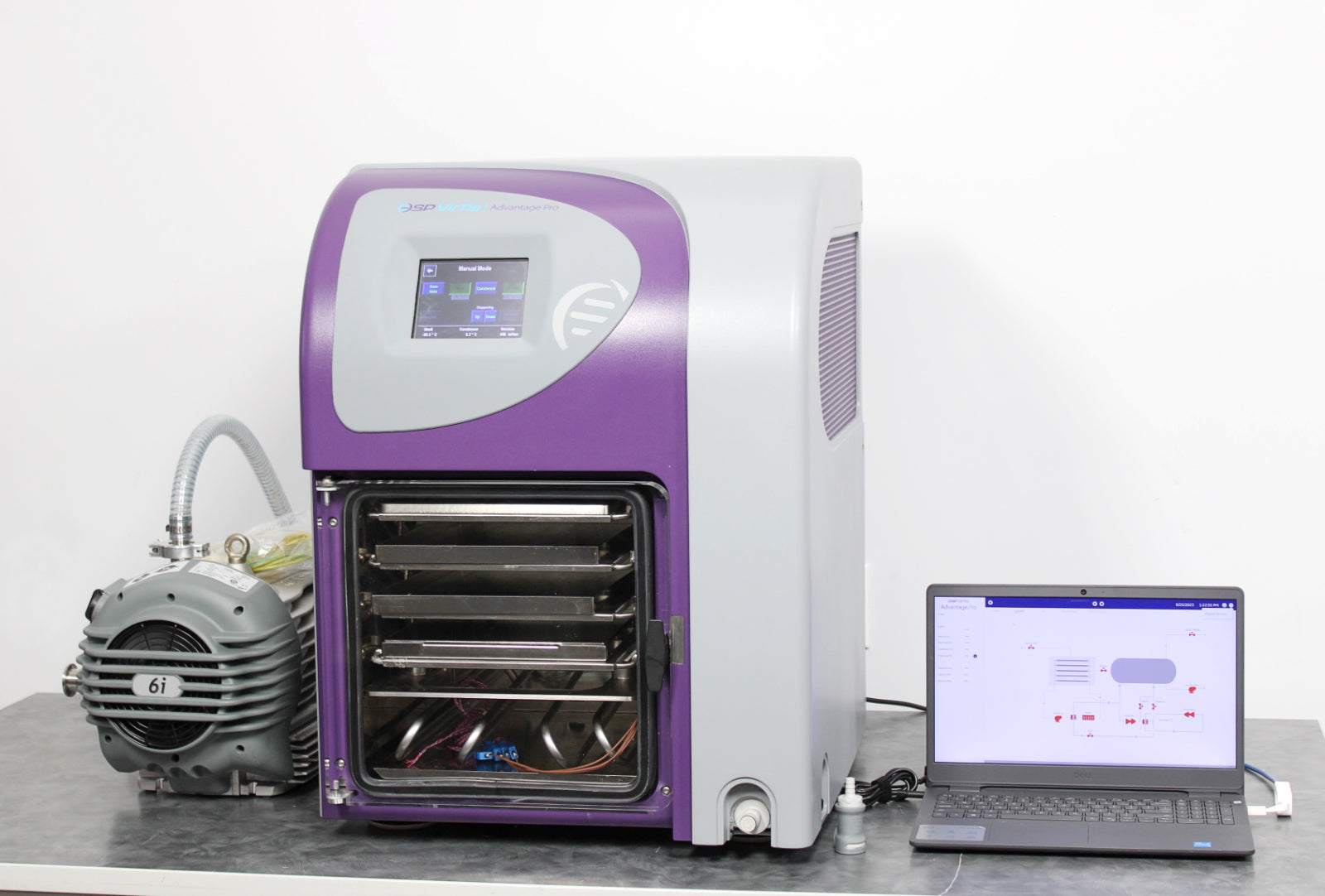

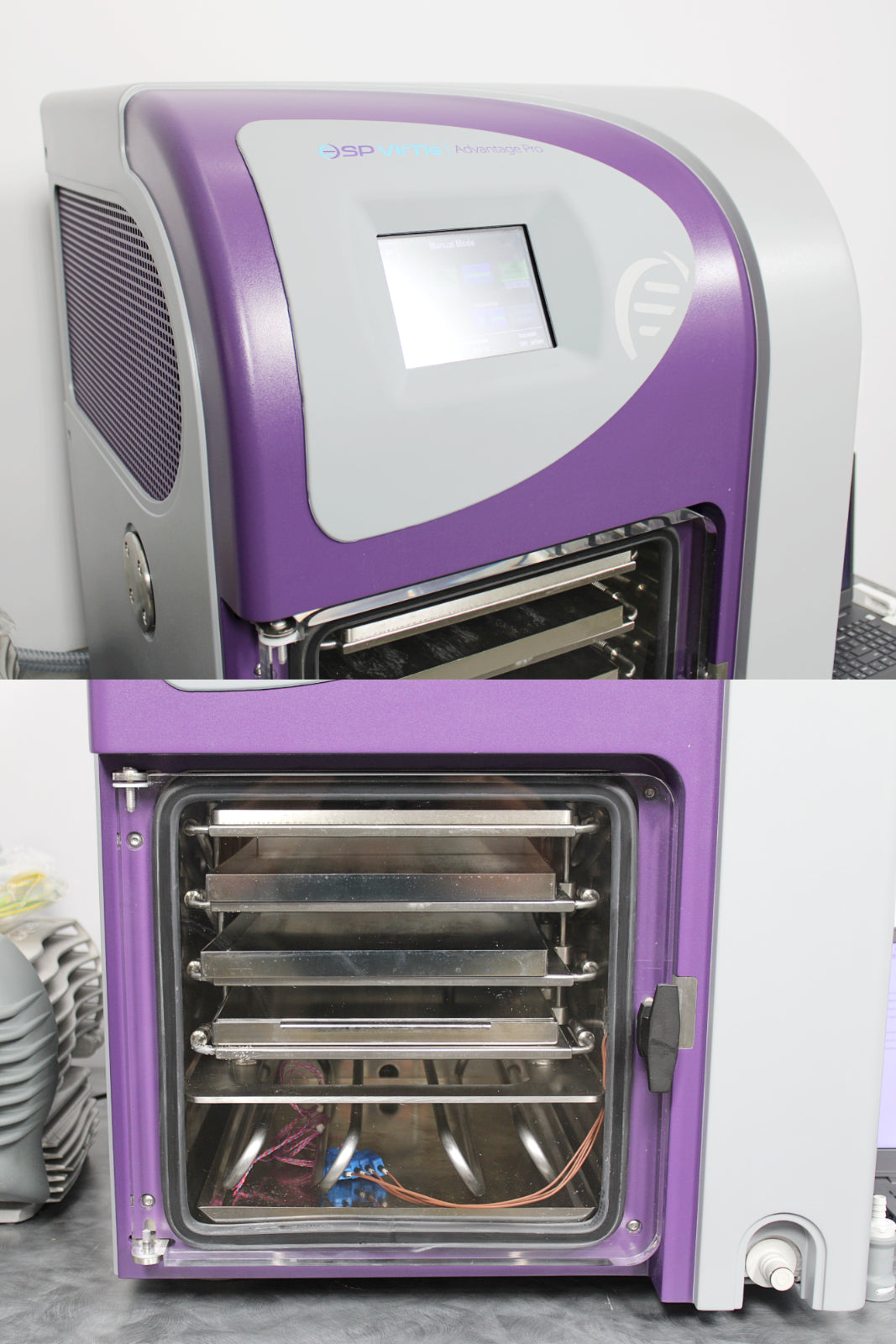

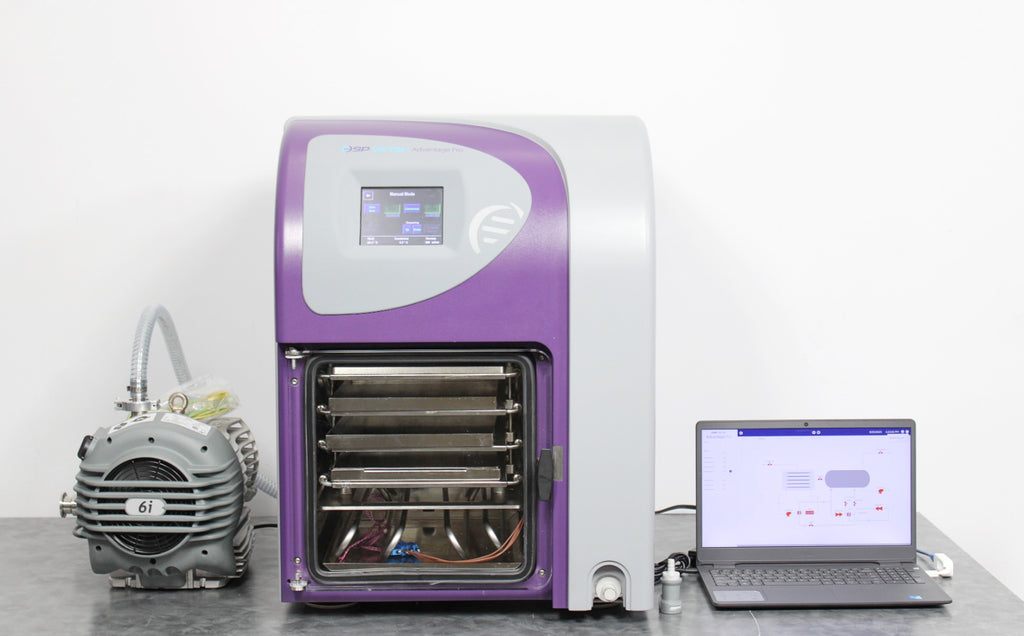

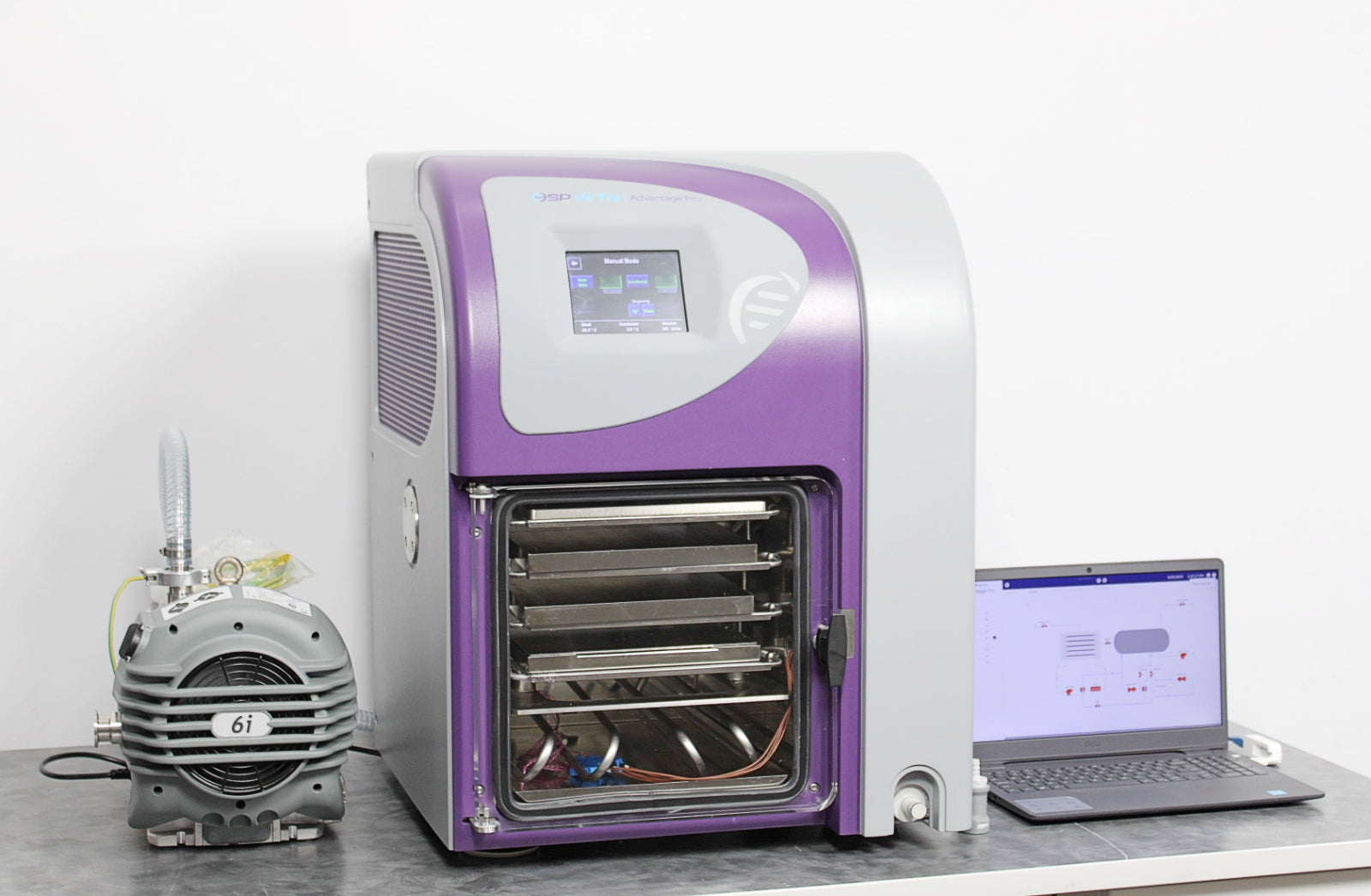

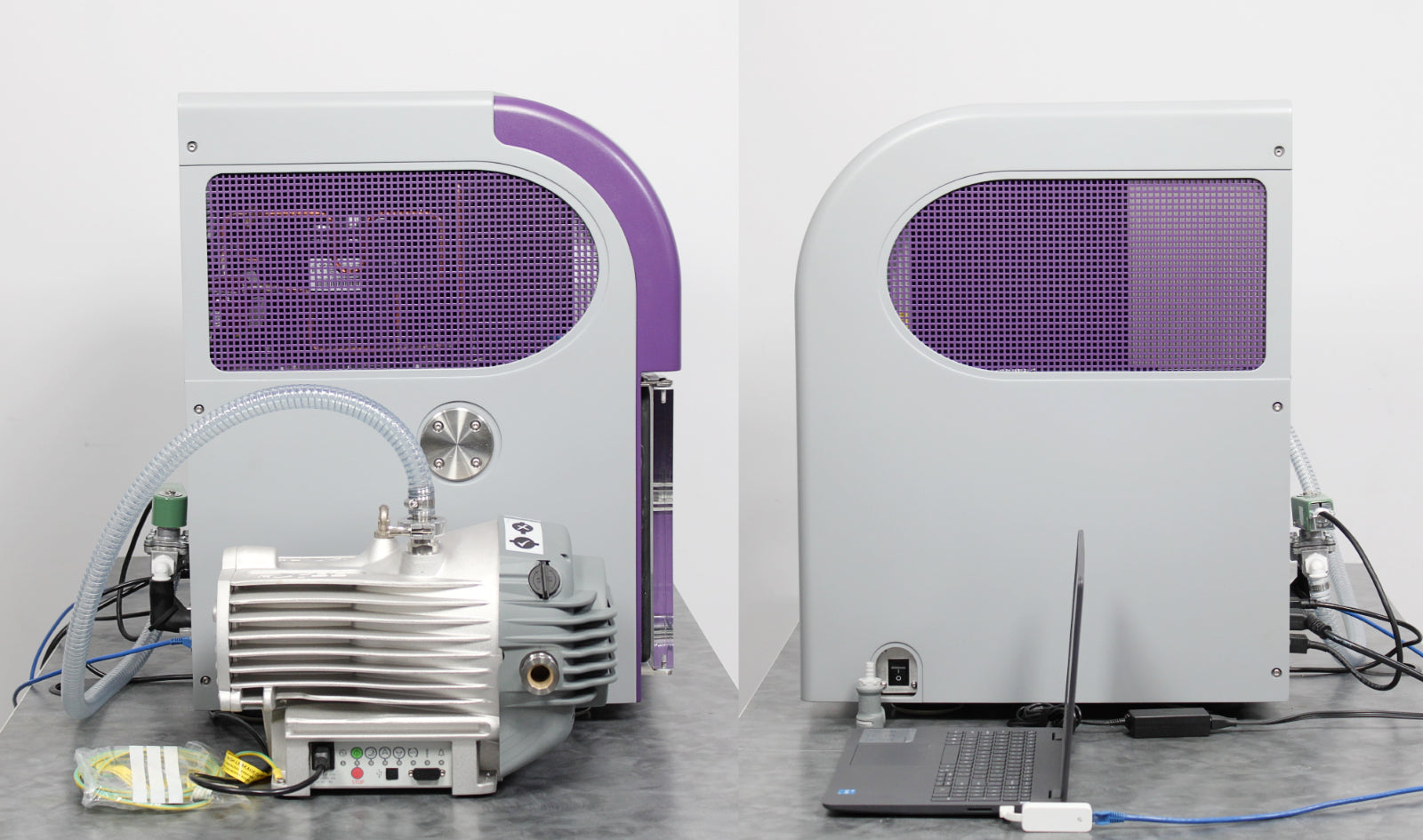

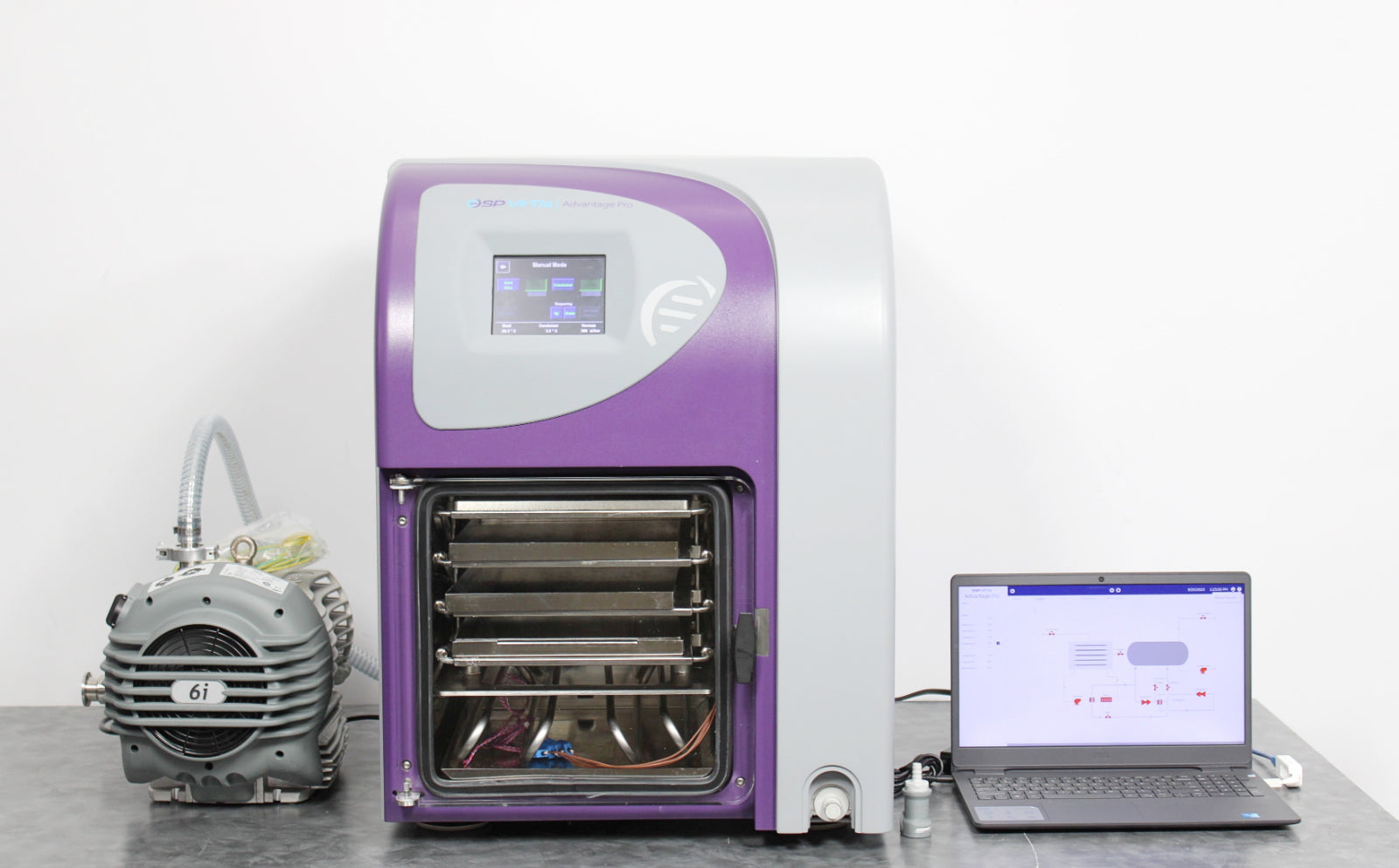

- SP Scientific VirTis AdVantage Pro stoppering tray freeze dryer

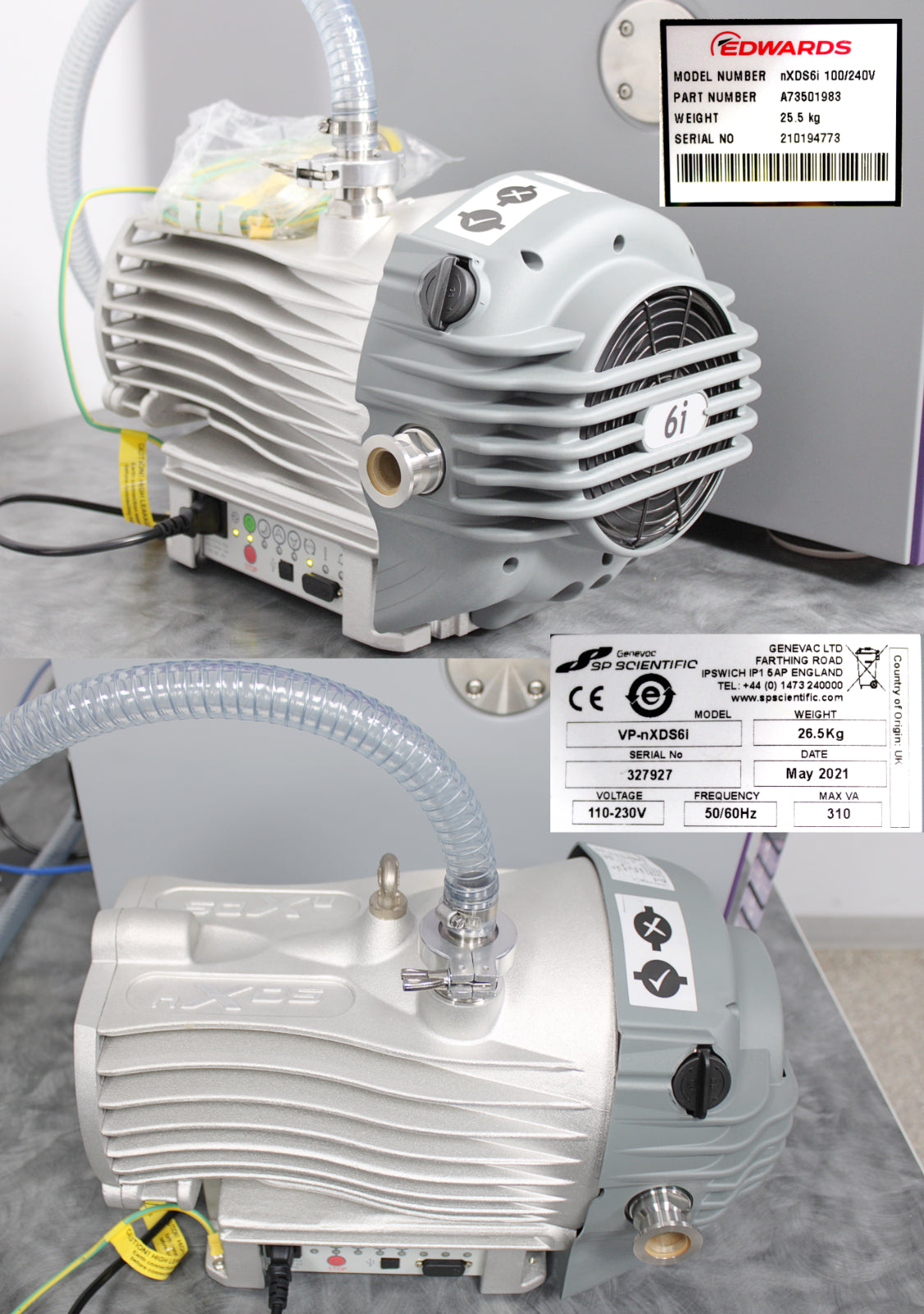

- Edwards nXDS6i scroll vacuum pump

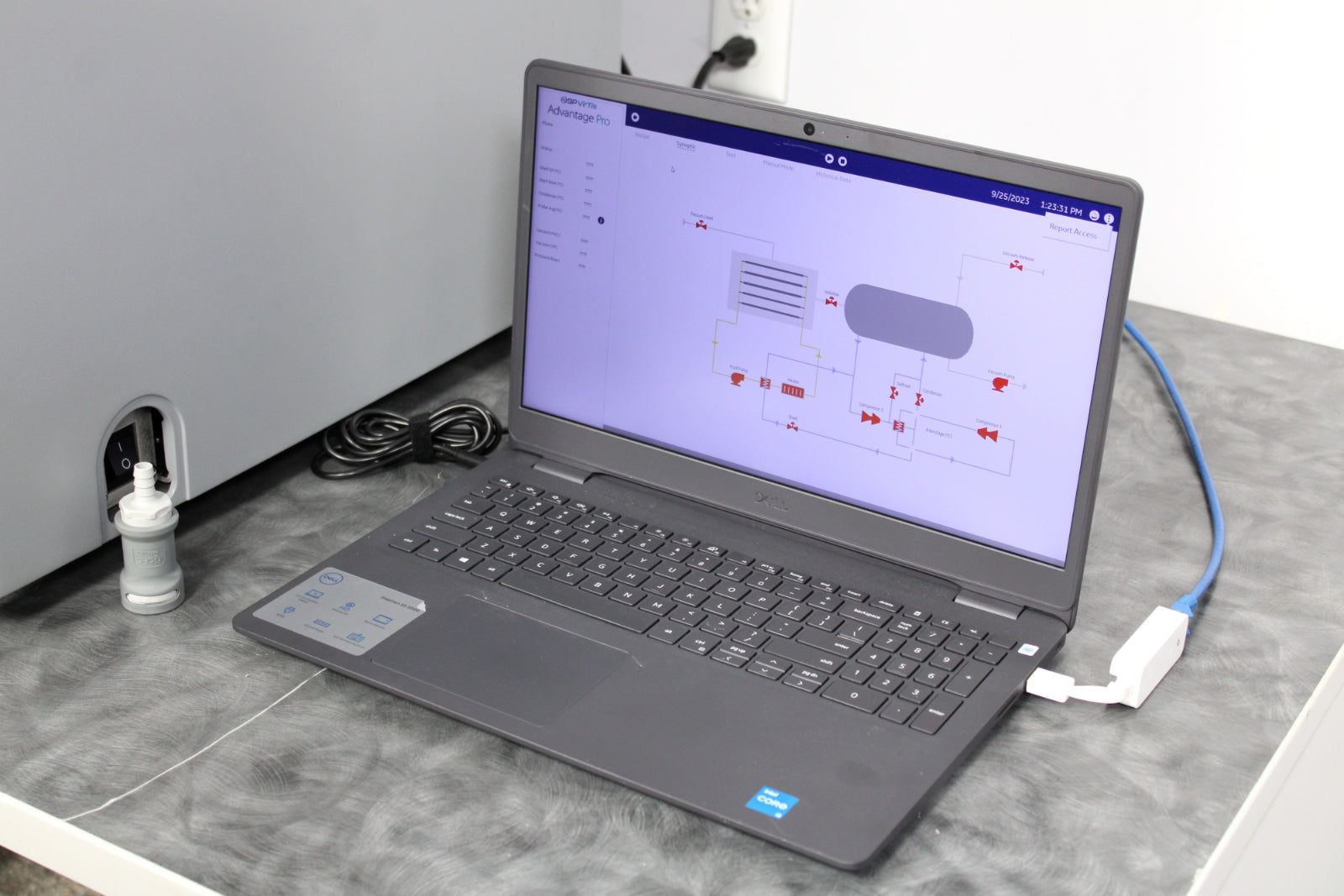

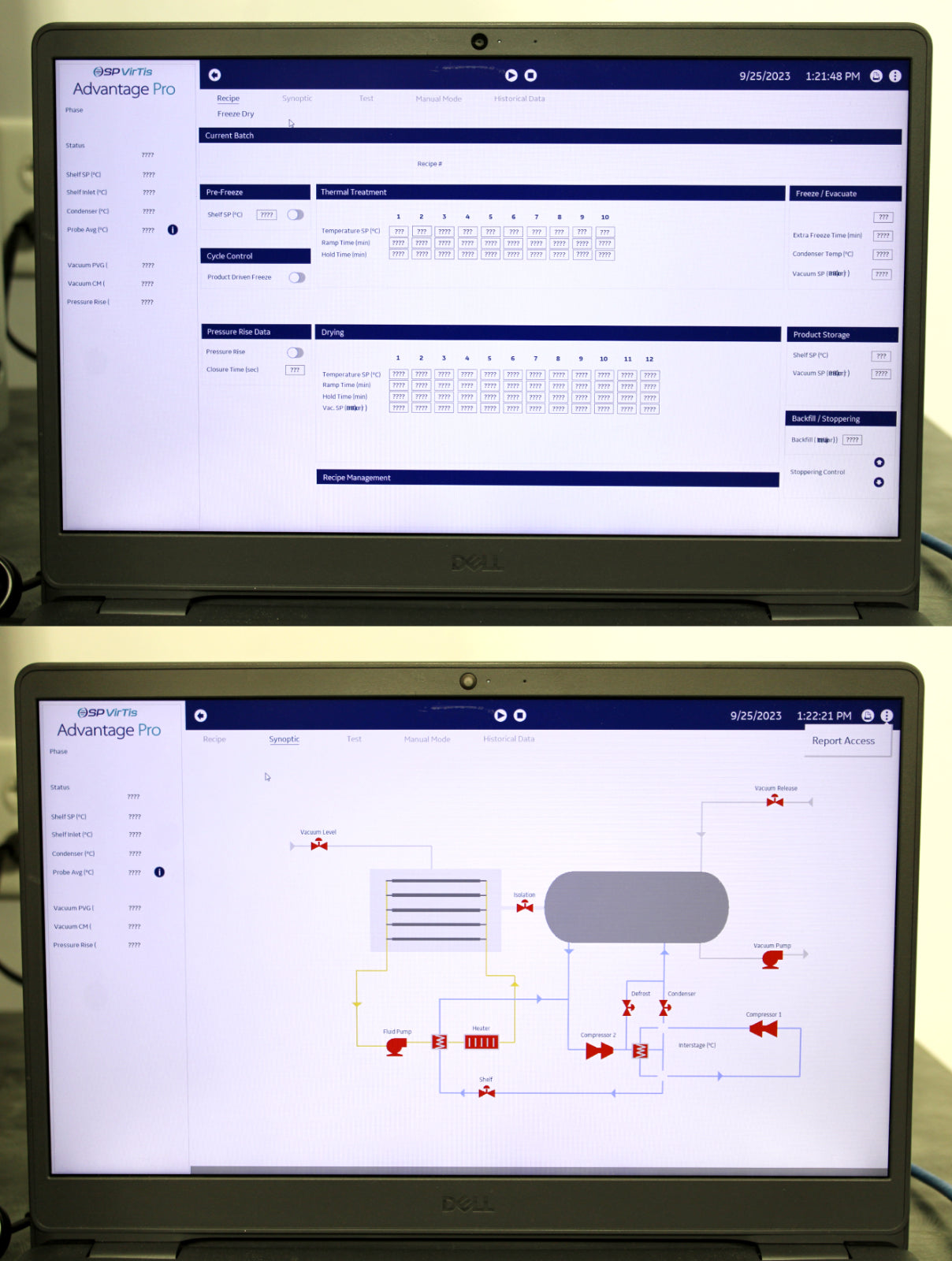

- Dell laptop with recipe builder software installed (not activated)*
- Vacuum hose
- Network cable
- Power cables
- 120-Day warranty
*Notice: This software is not activated. You will need to contact SP VirTis to purchase a key to activate the recipe builder software.

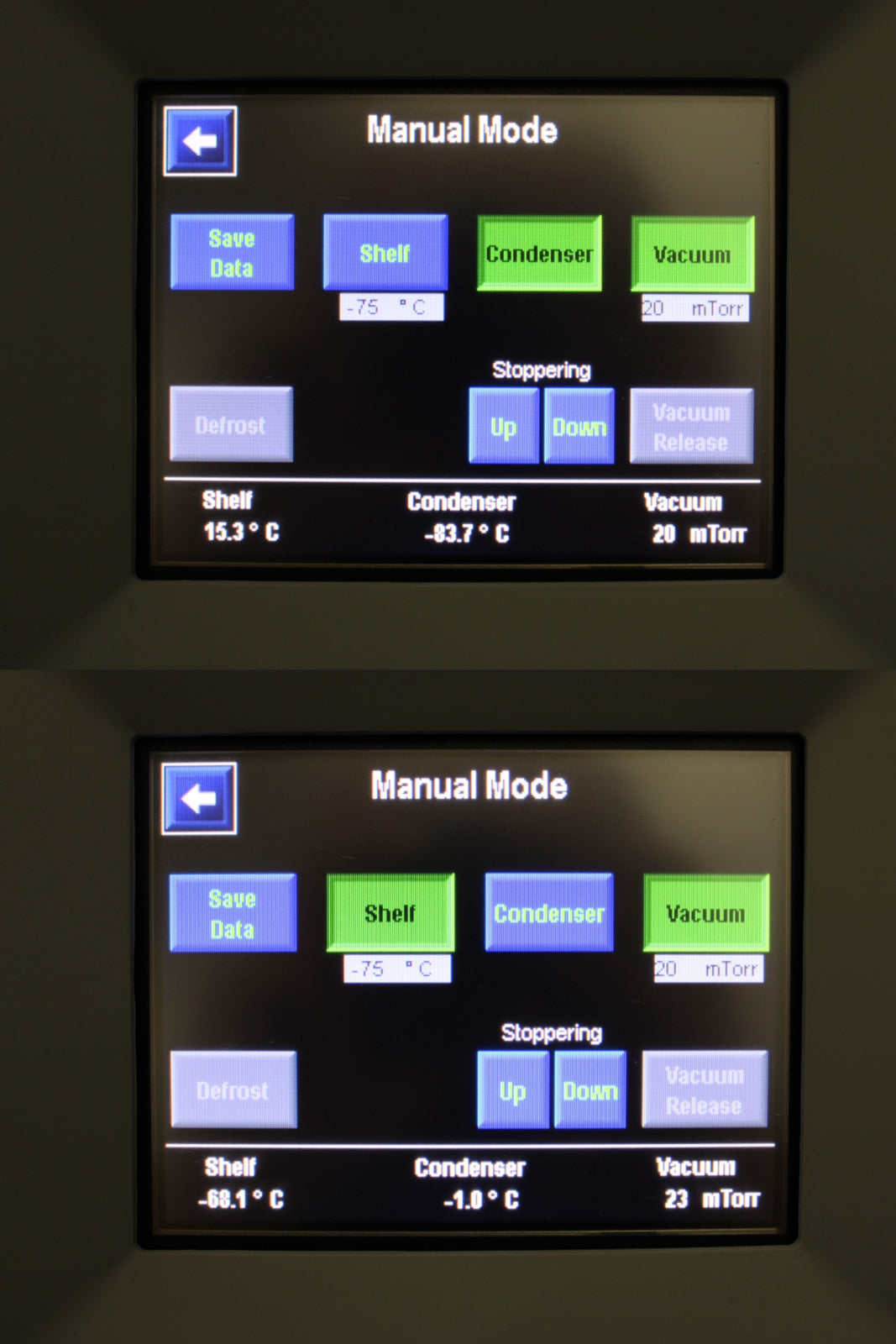

After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis AdVantage Pro stoppering tray freeze dryer with the following results:
- Shelf temperature achieved -71°C: PASSED
- Condenser temperature achieved -87°C: PASSED
- Vacuum achieved 20mT: PASSED

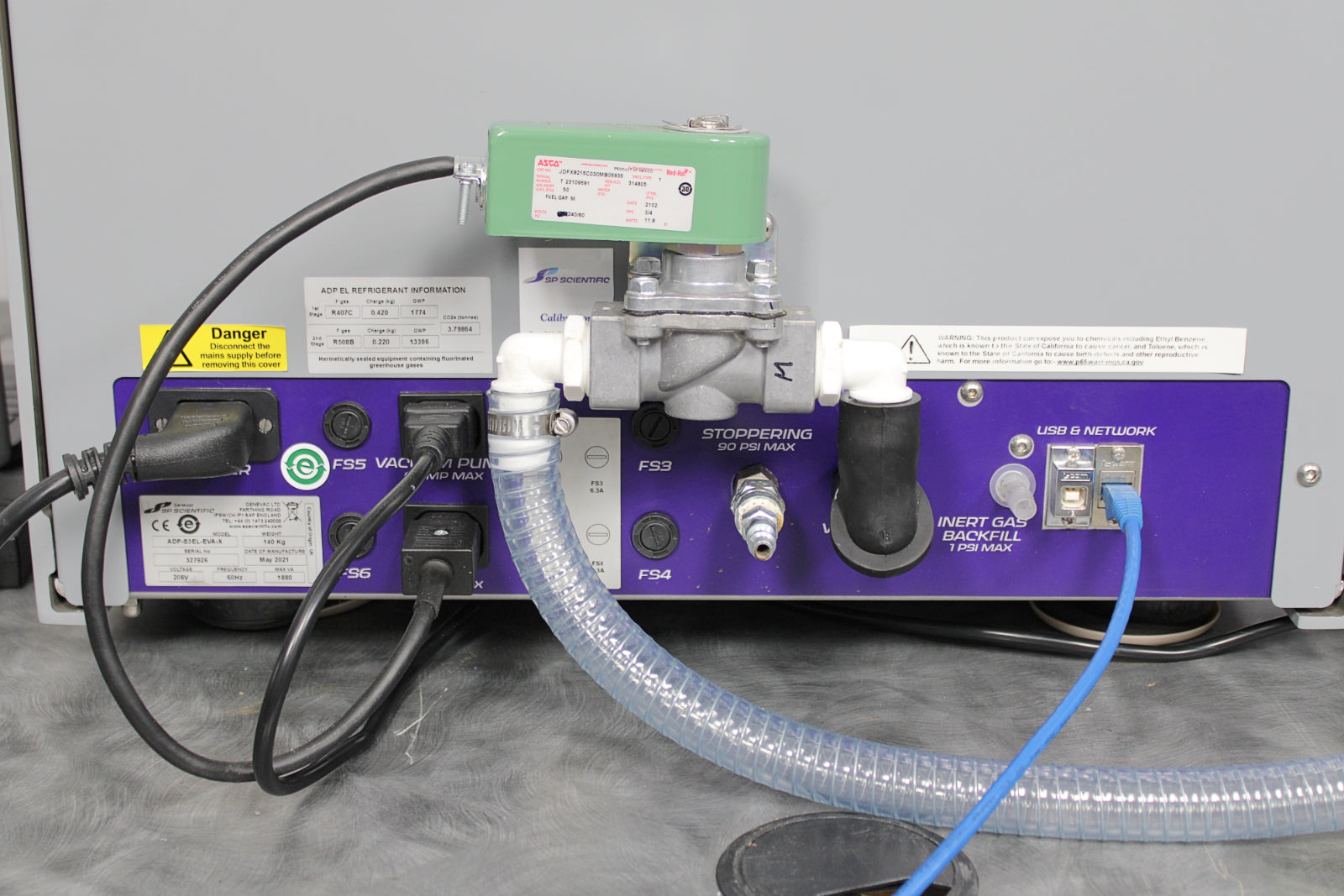

This freeze dryer has the stoppering option. To use the stoppering option you will need to have an air source connected to the back of the dryer.
|

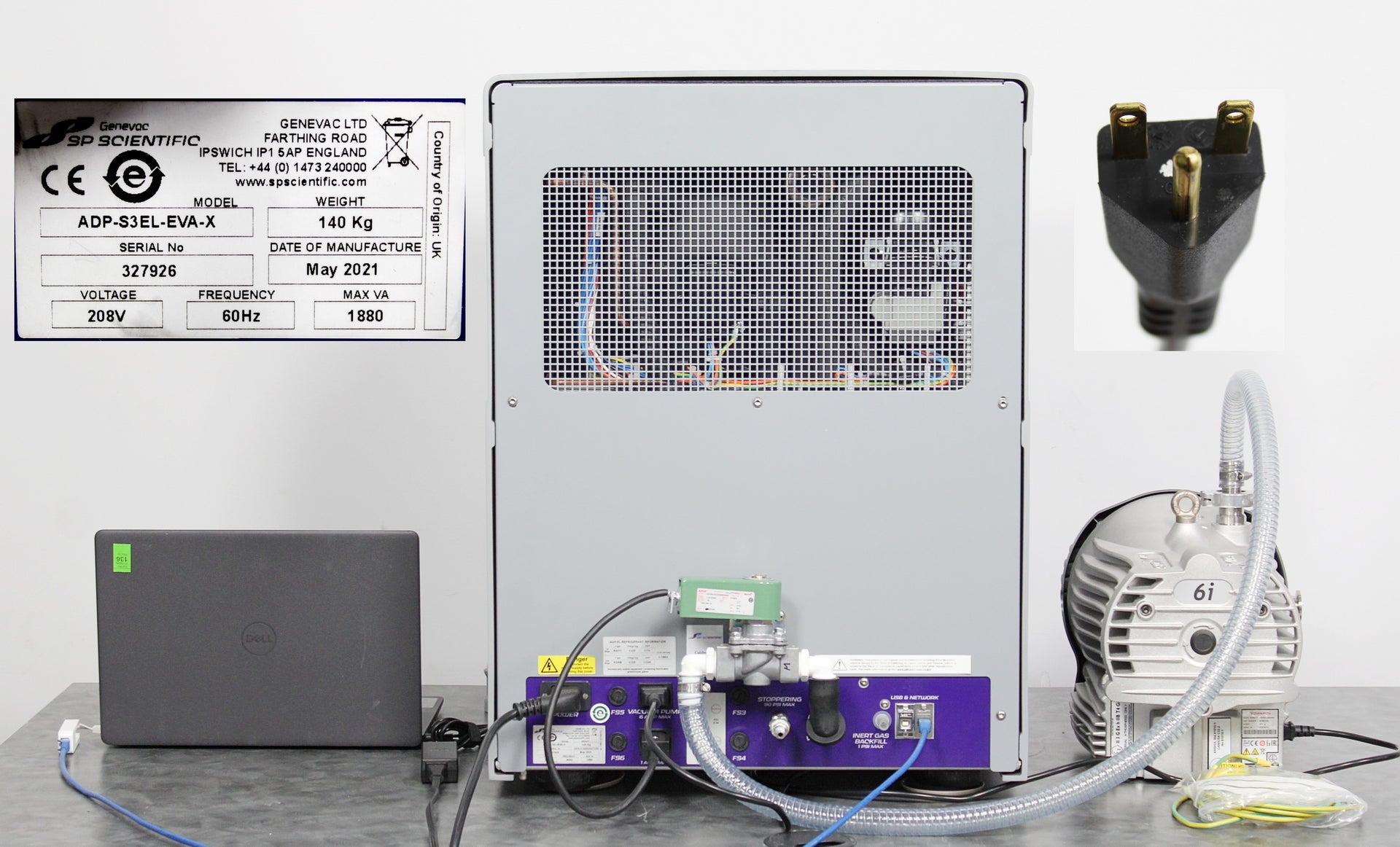

Manufacturer
|
SP Scientific/VirTis
|
|
Model
|
AdVantage Pro
|
|
Model No.
|
ADP-S3EL-EVA-X
|
|
Serial No.
|
327926
|
|
Mfg. date
|
May 2021
|
|
Shelf Temperature Control Range
|
-55 to 60°C
|
|
Lowest Shelf Temperature† (50 Hz / 60 Hz)
|
-62 °C / -65 °C
|
|
Shelf Pull-Down from 20 °C to -40 °C‡
|
≤ 30 minutes
|
|
Temperature Uniformity
|
± 1.0 °C
|
|
Lowest Condenser Temp. (50 Hz / 60Hz)
|
-82°C / -85°C
|
|
Max. Condenser Capacity
|
6 L
|
|
Maximum Ice Condensing Capacity in 24 hours
|
4 L
|
|
Number of Compressors
|
2
|
|
Compressor Horsepower
|
1/3, 3/4
|
|
System Refrigerant
|
R508B, R407C
|
|
Refrigerant Type
|
CFC-free
|
|
Construction
|
AISI Type 316L SS
|
|
Electrical requirements
|
200-240/208-230V, 50/60Hz, 15A, 1Ph, 1880 Max VA
|
|
Dimensions (W x D x H)
|
22.2 x 25.7 x 29.7 in
|
|
Weight
|
310 lbs (140 kg)
|
