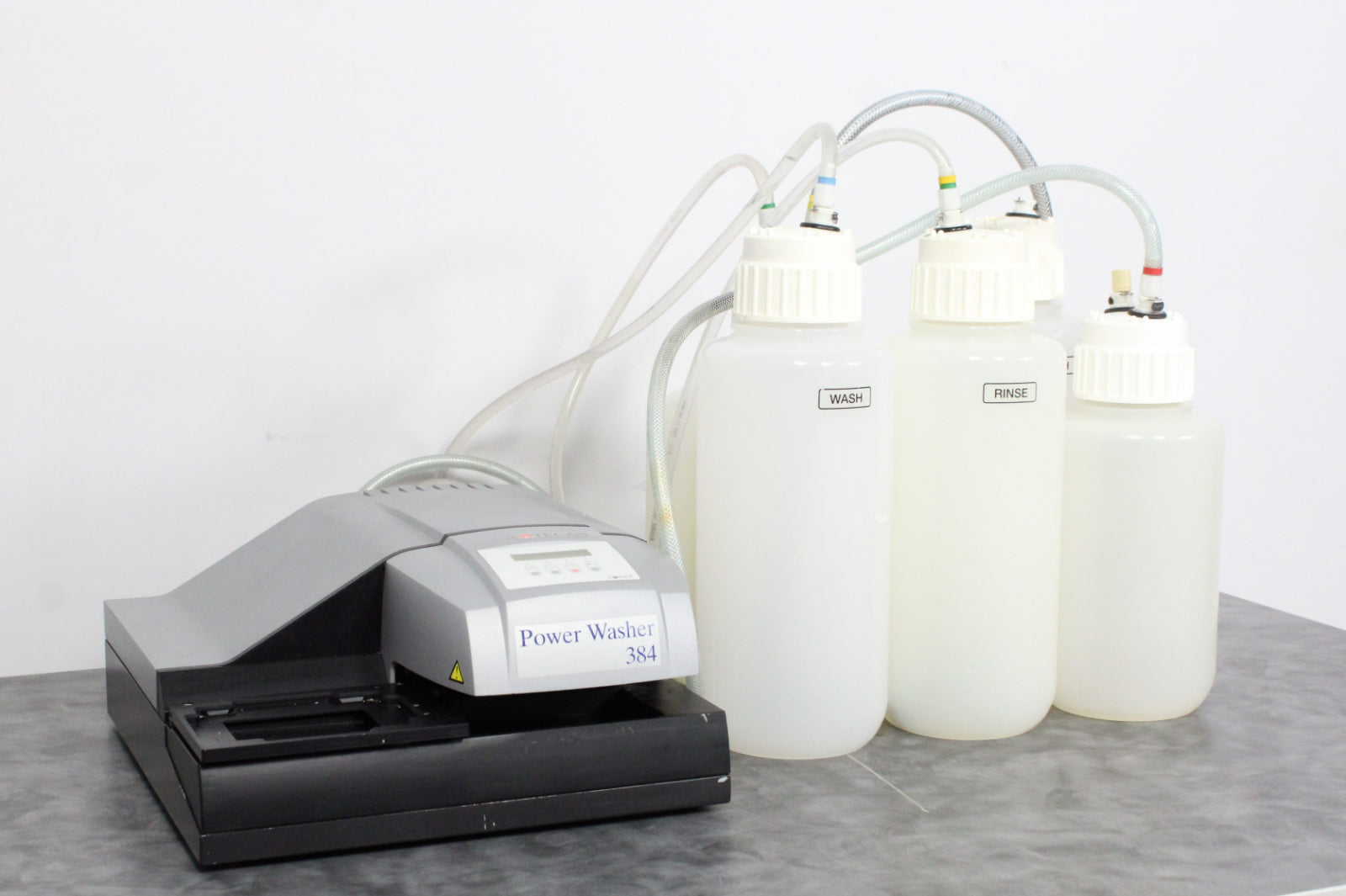

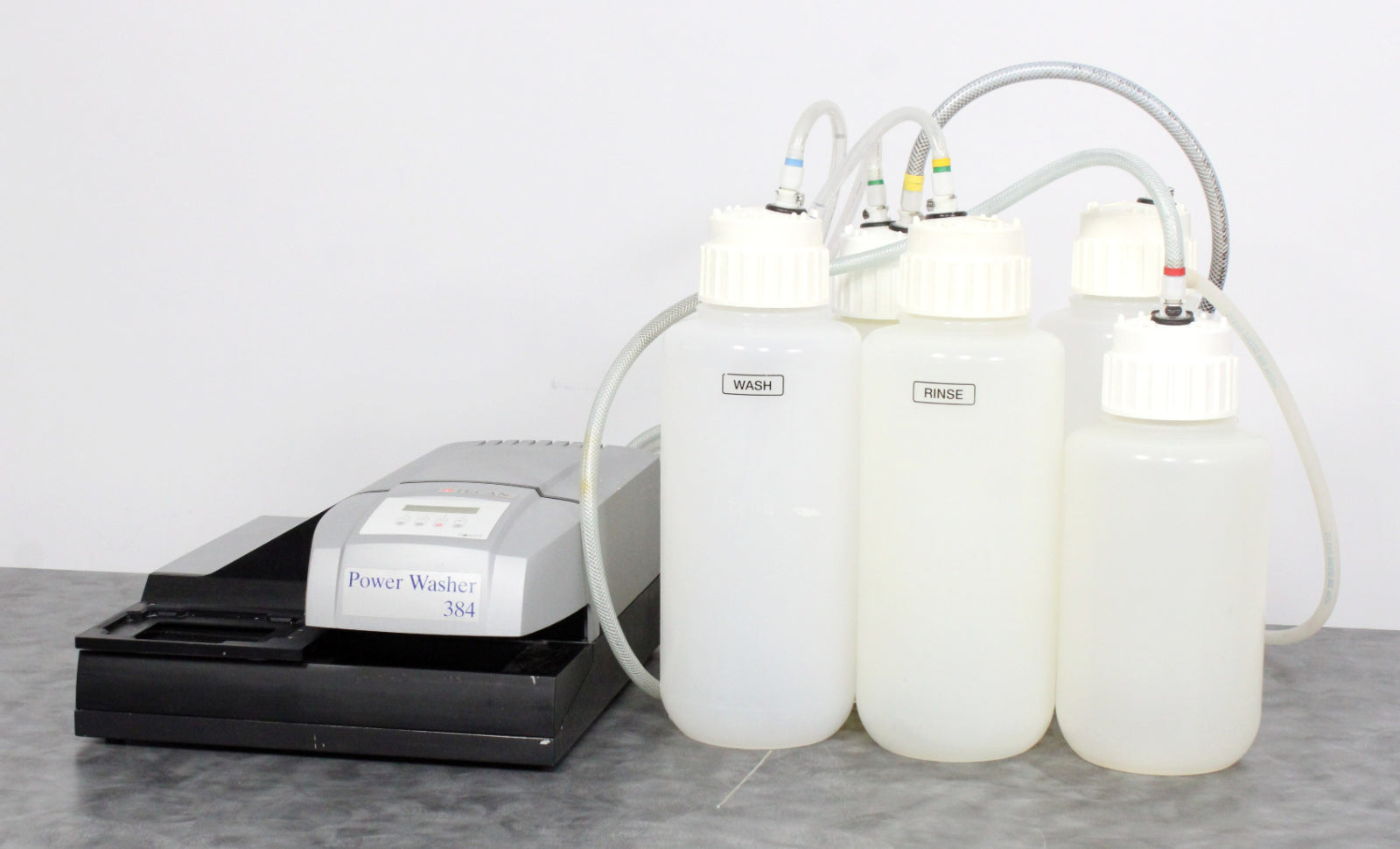

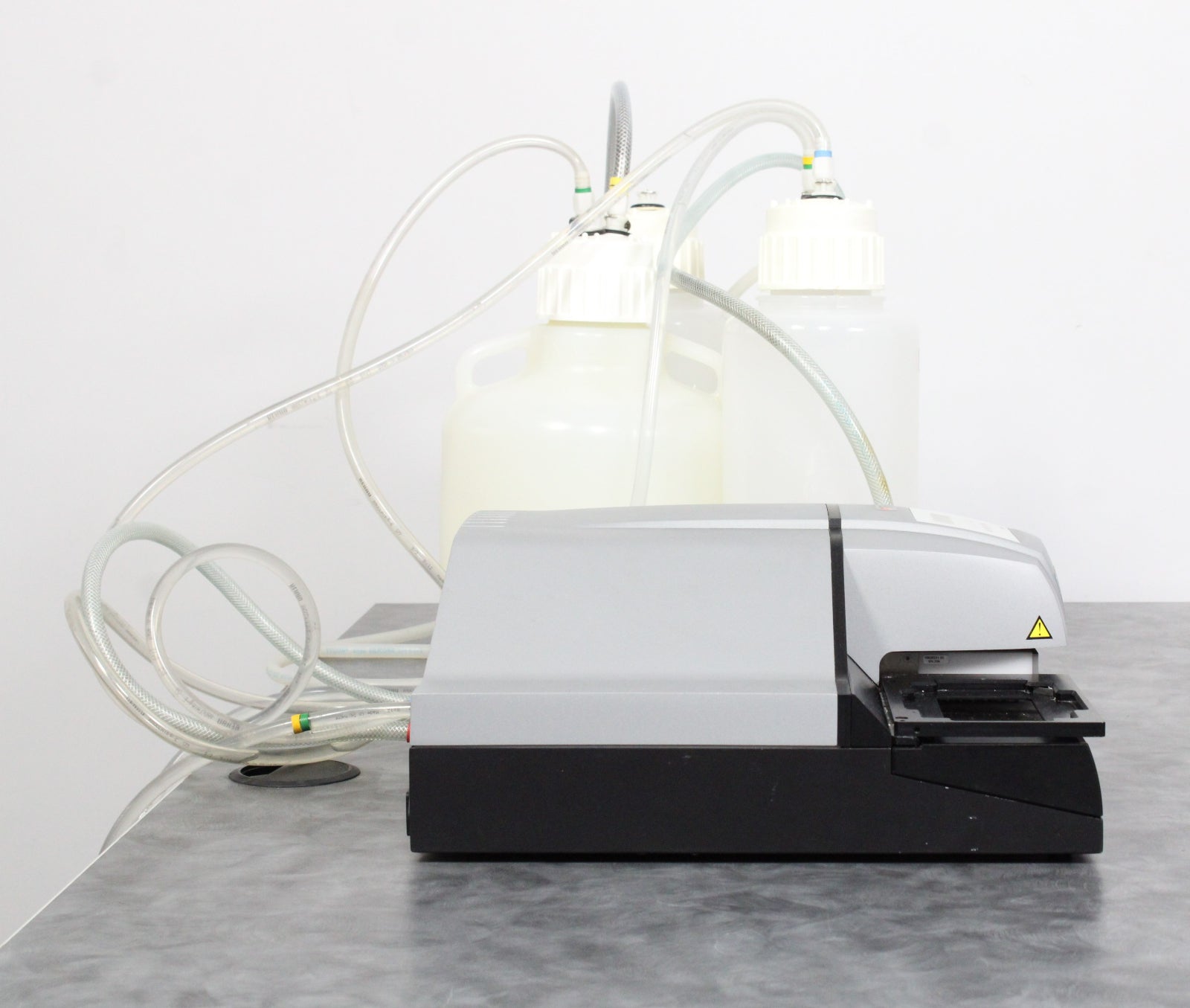

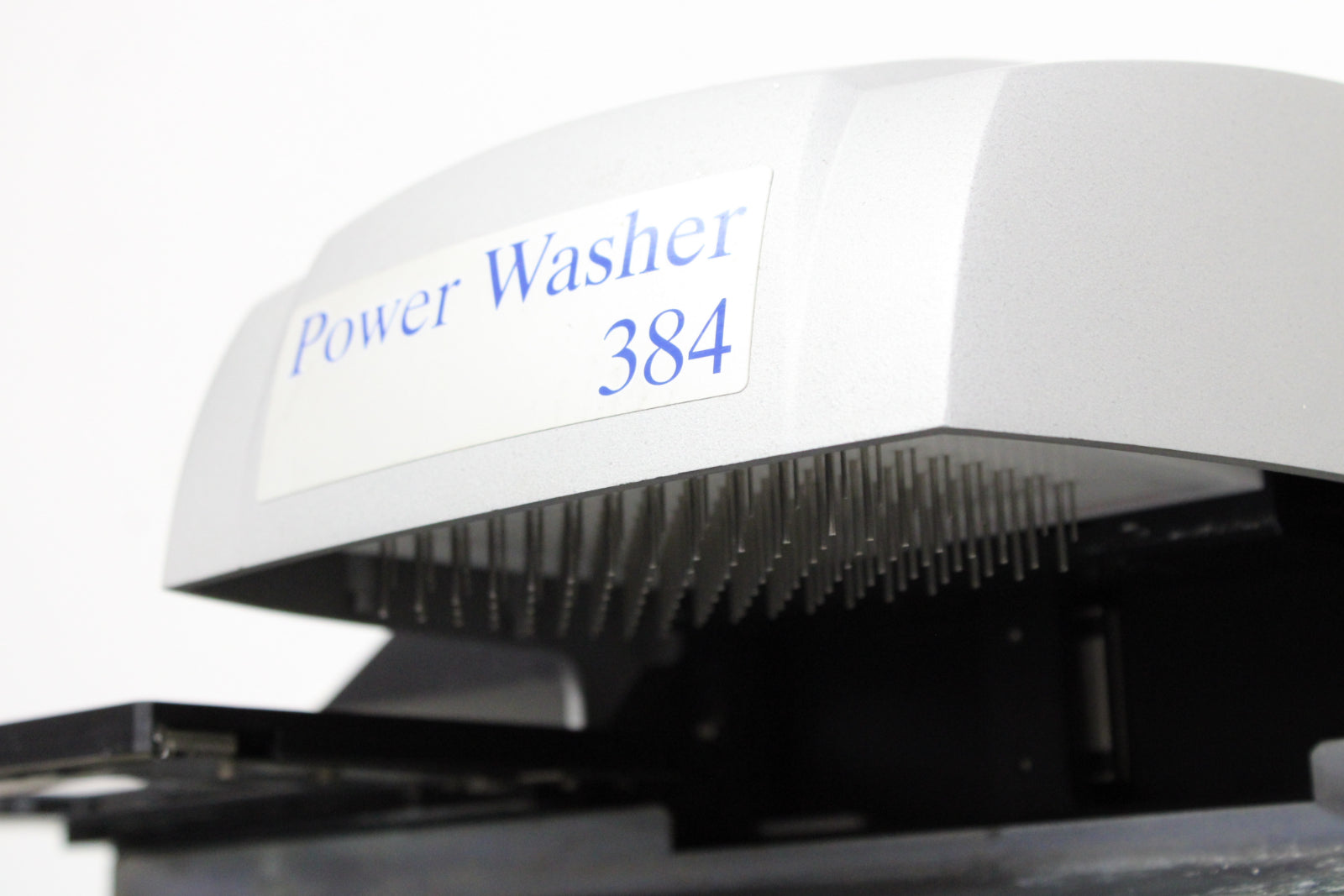

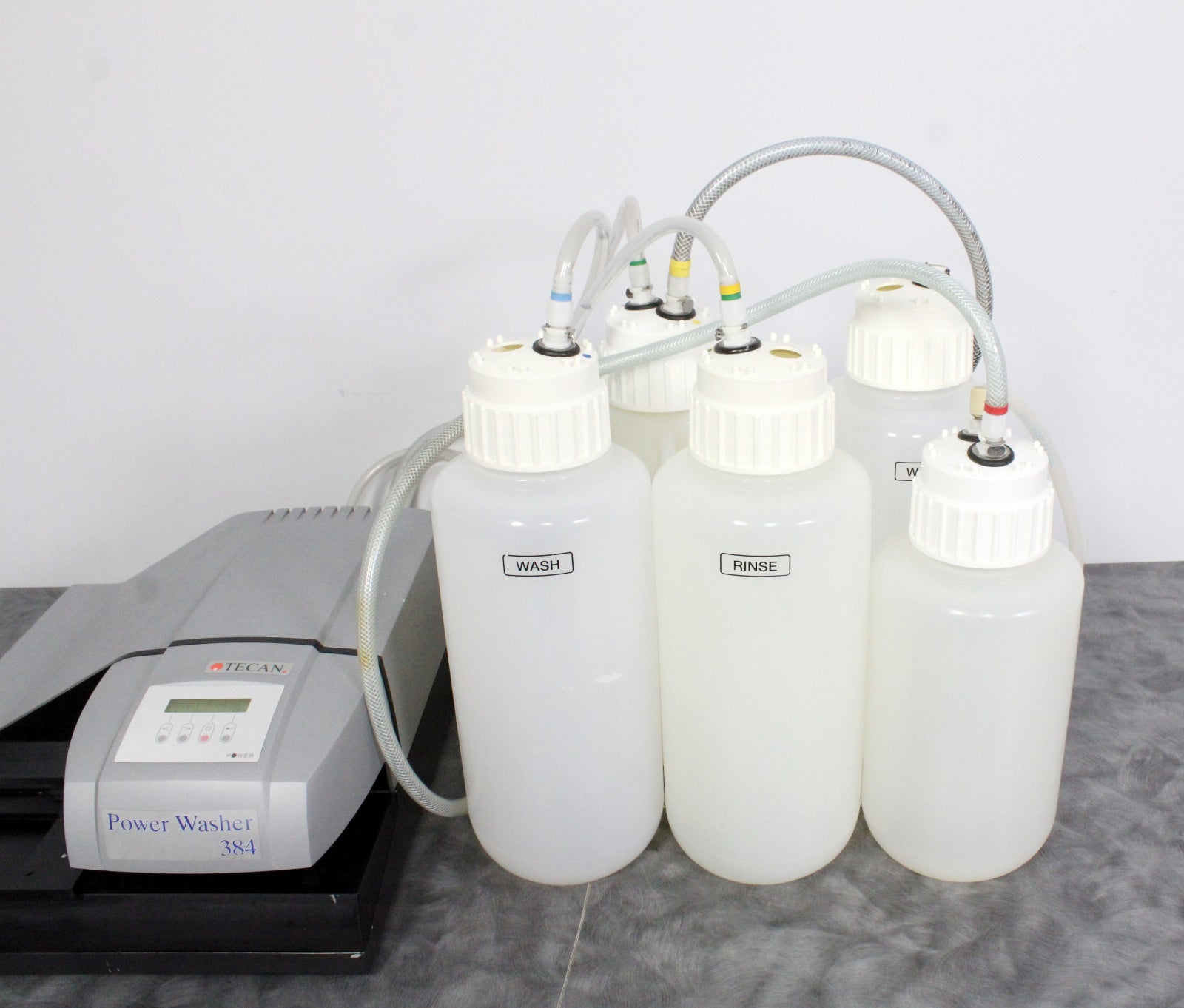

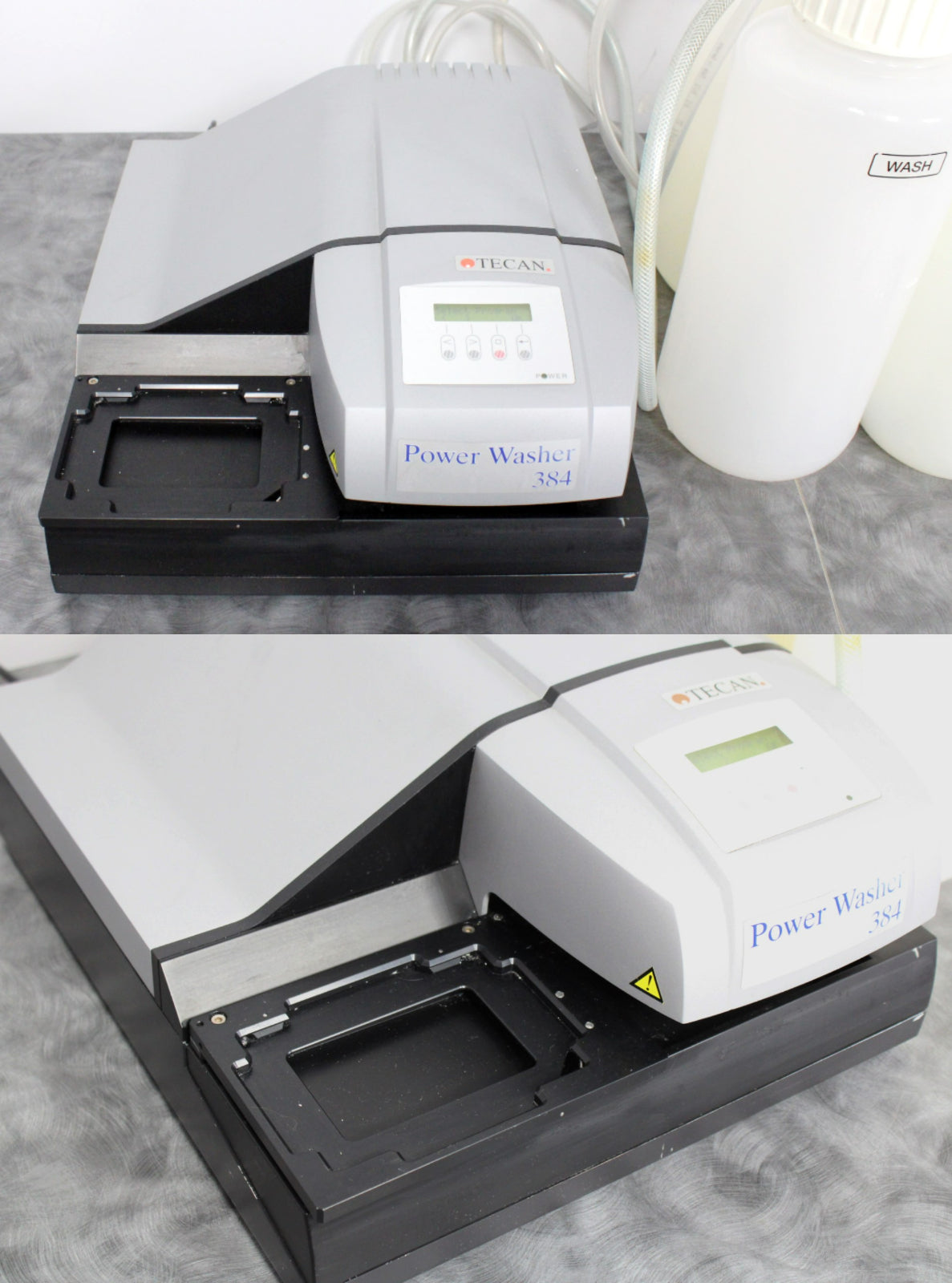

- Tecan Power Washer 384 Microplate Washer
- Jugs and necessary tubing
After its initial disinfection and inspection, our technicians tested the Power Washer 384 with the following results:

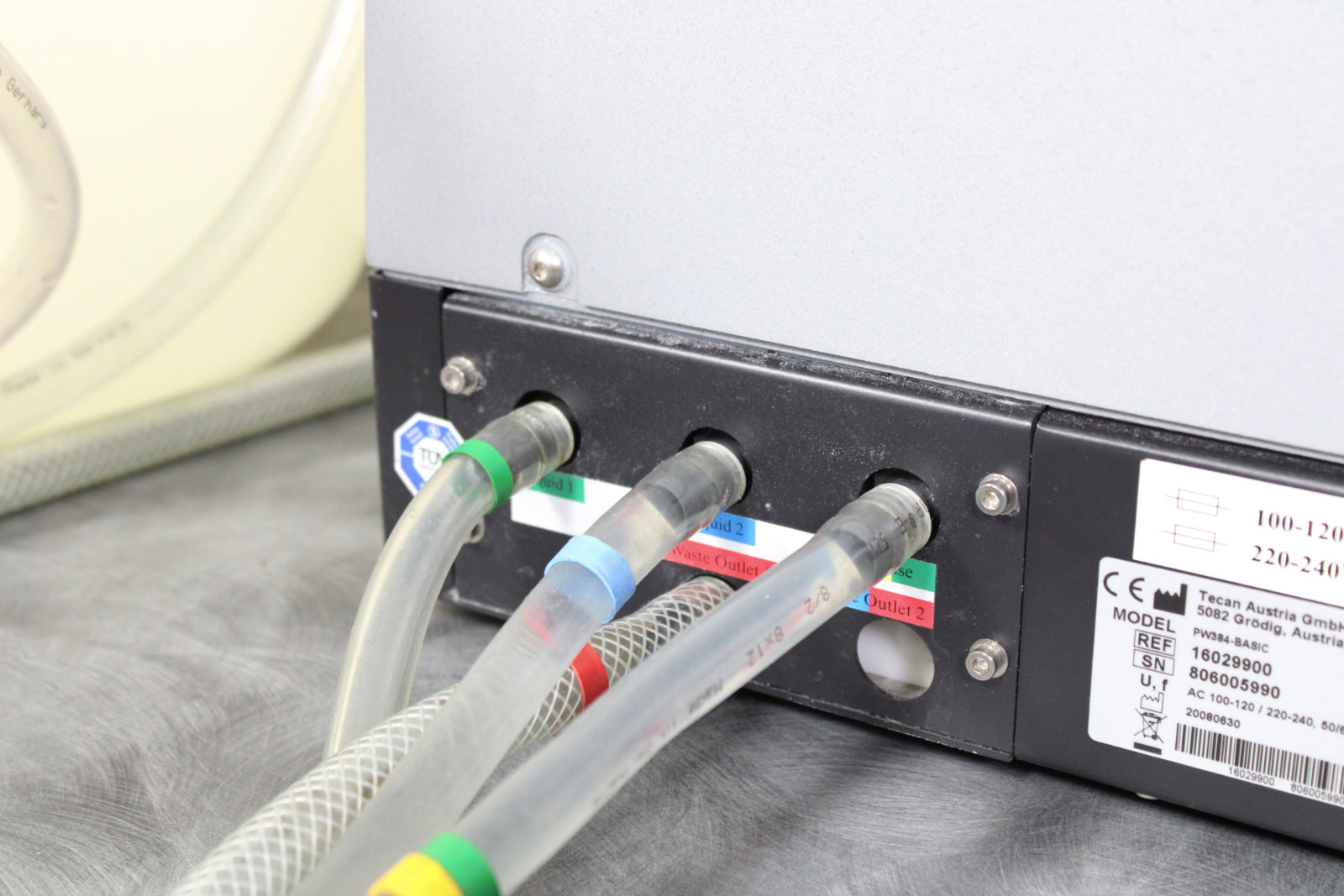

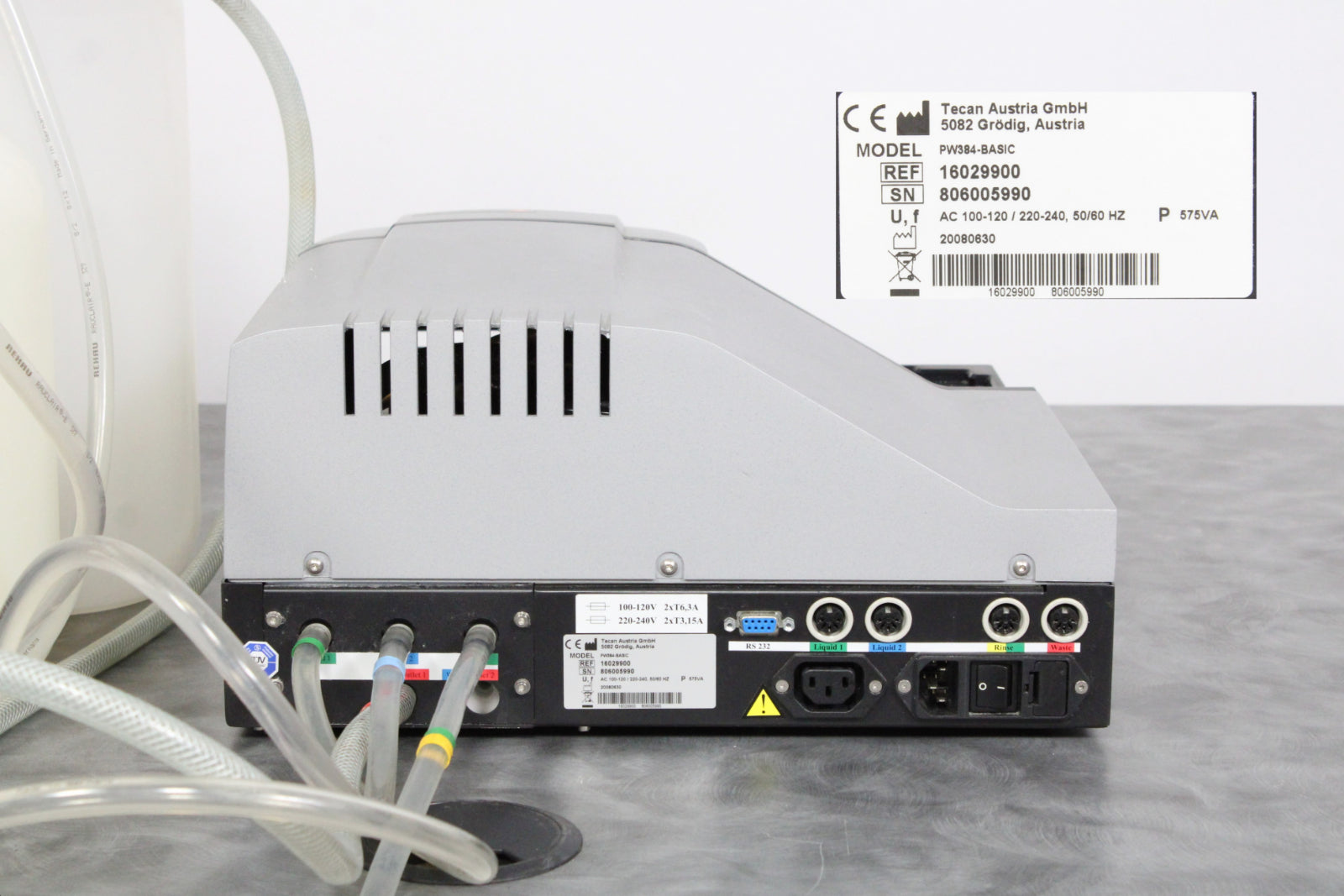

- Runs a few wash cycles and rinse cycles as well as priming. Was able to verify fluid moved through each port on the back, no vacuum leaks: PASSED

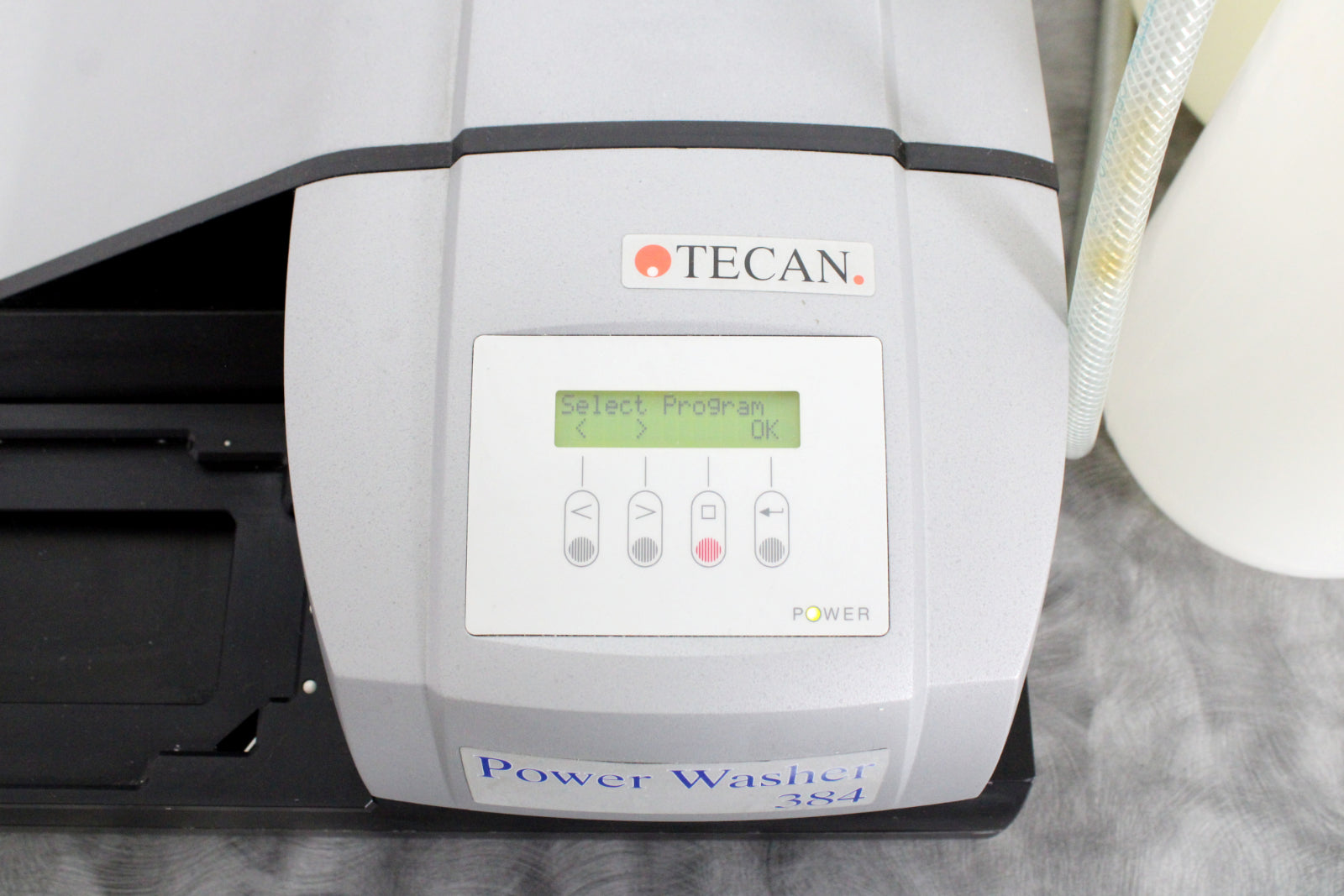

- Motors moved without issue. Software is working just fine: PASSED
- Had a loss of step error that was fixed by bending the bracket for the sensor backup. Looks like now it was sagging, possibly from age and it caused the sensor to not see the notches on the wheel it was reading.
|
Manufacturer
|
Tecan
|
|
Model
|
Power Washer 384
|
|
Ref. no.
|
16029900
|
|
Serial no.
|
806005990
|
|
Applications
|
EIA and Cell based assays
|
|
Microplate formats
|
96- and 384- wells
|
|
Mode of plate processing
|
all wells simultaneously
|
|
Wash-liquid channels
|
Up to 3
|
|
Wash program storage
|
Up to 20
|
|
Dispensing volume range
|
50-3000 μl in 96 format
10-1000 μl in 384 format
|
|
Dispensing accuracy
|
CV = 2% over 96-well plate
CV = 3% over 384-well plate
|
|
Residual volume
|
= 2 μl in 96 plate
= 2 μl in 384 plate
|
|
Weight
|
33 lbs.
|
