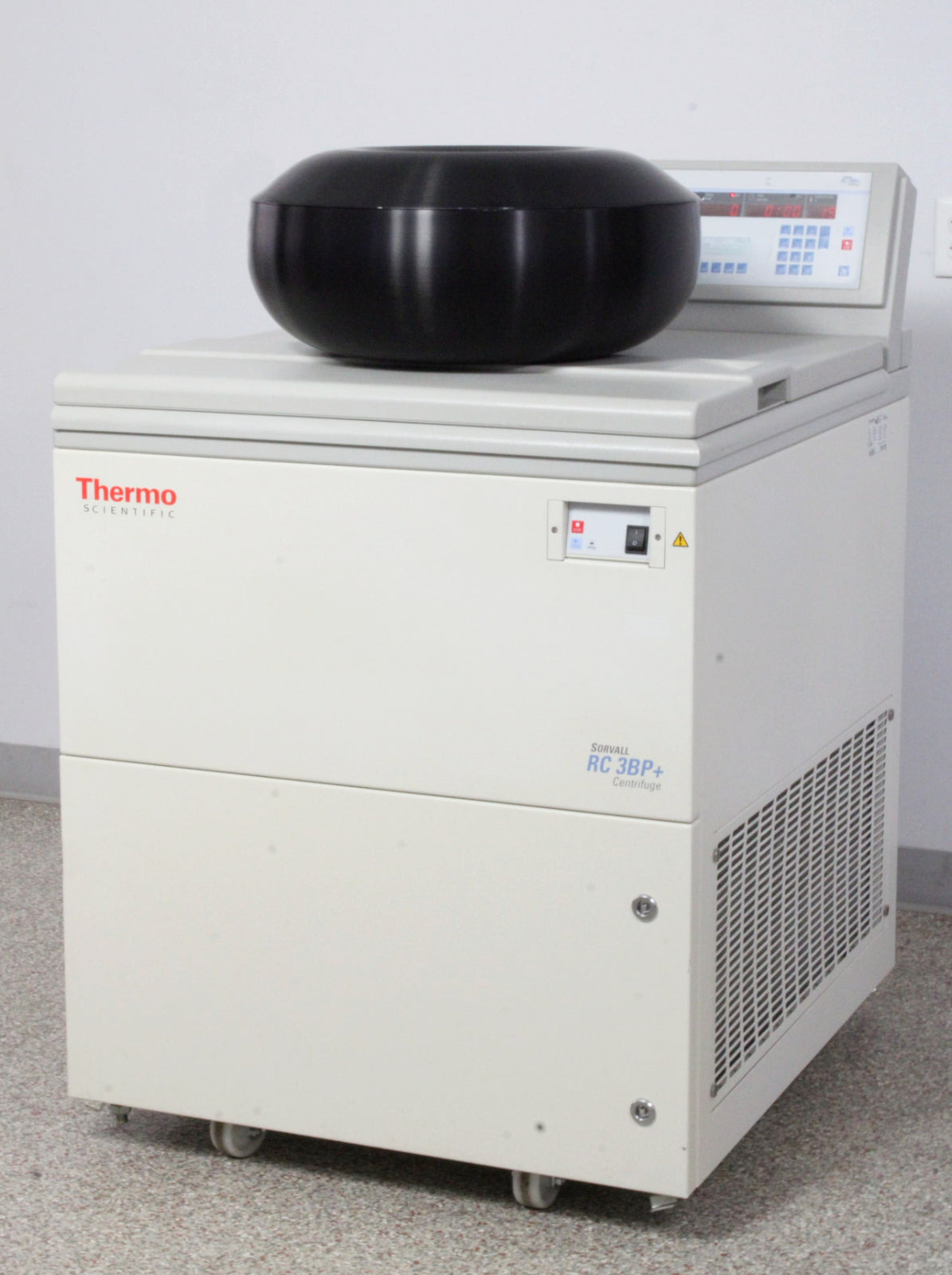

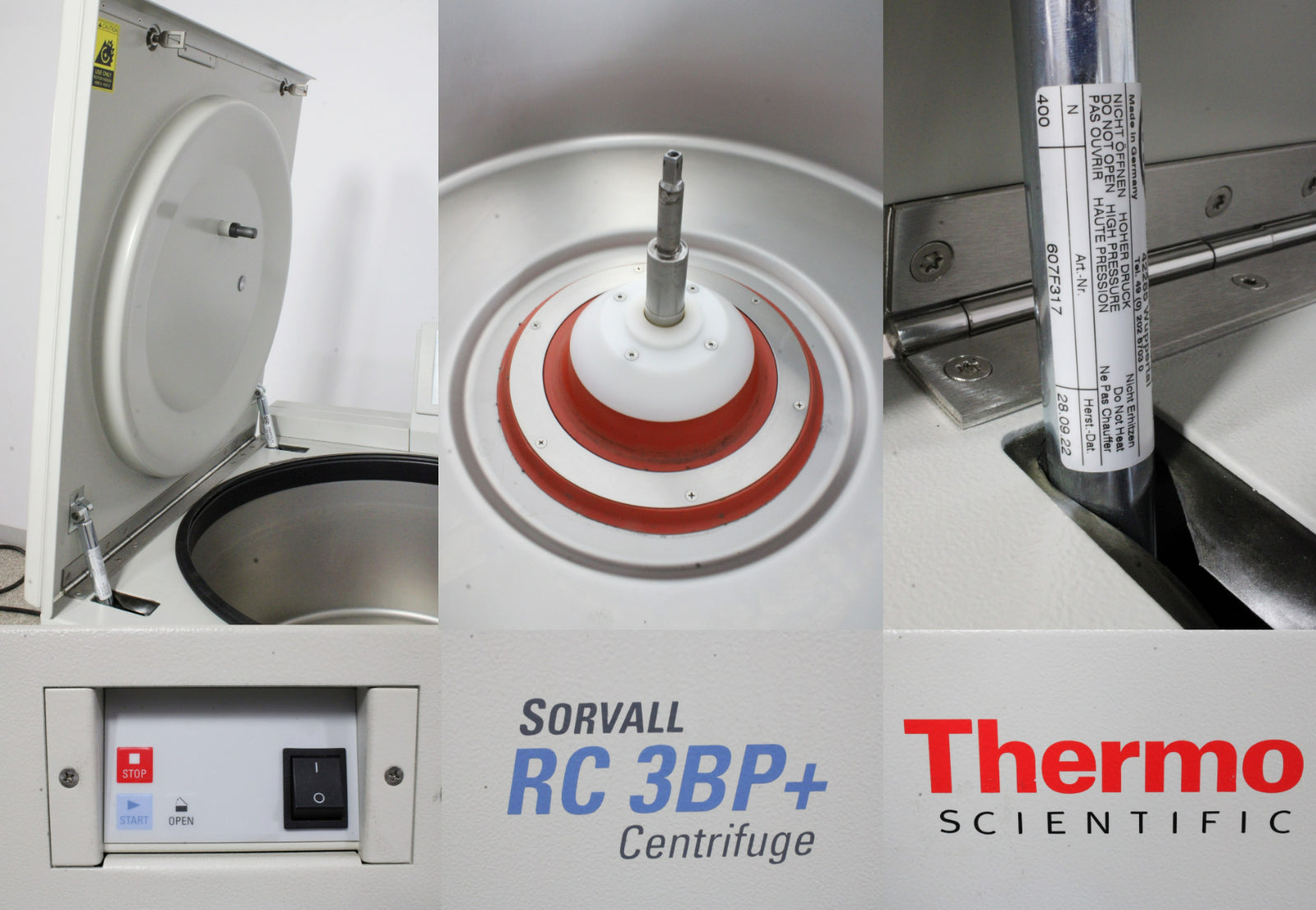

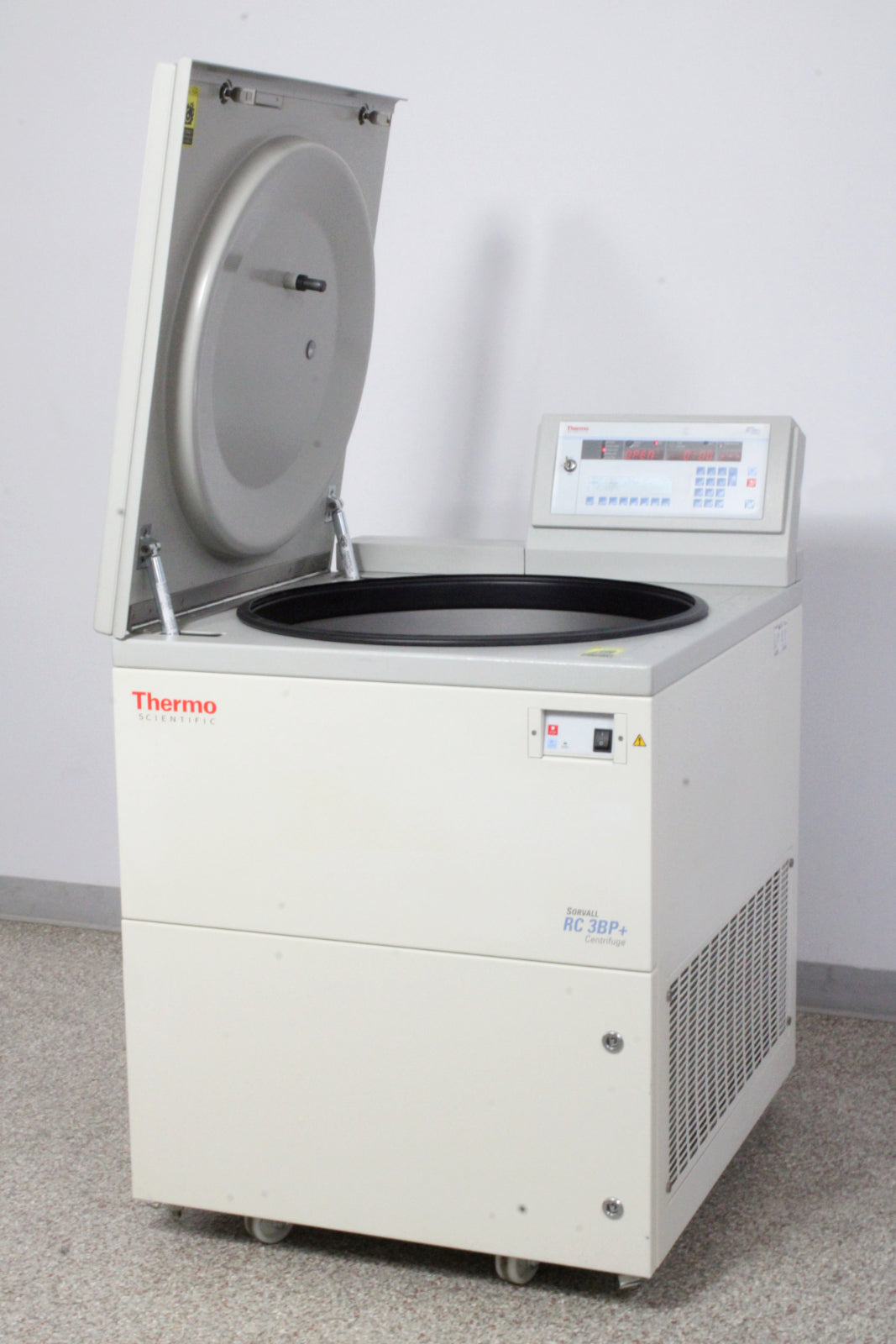

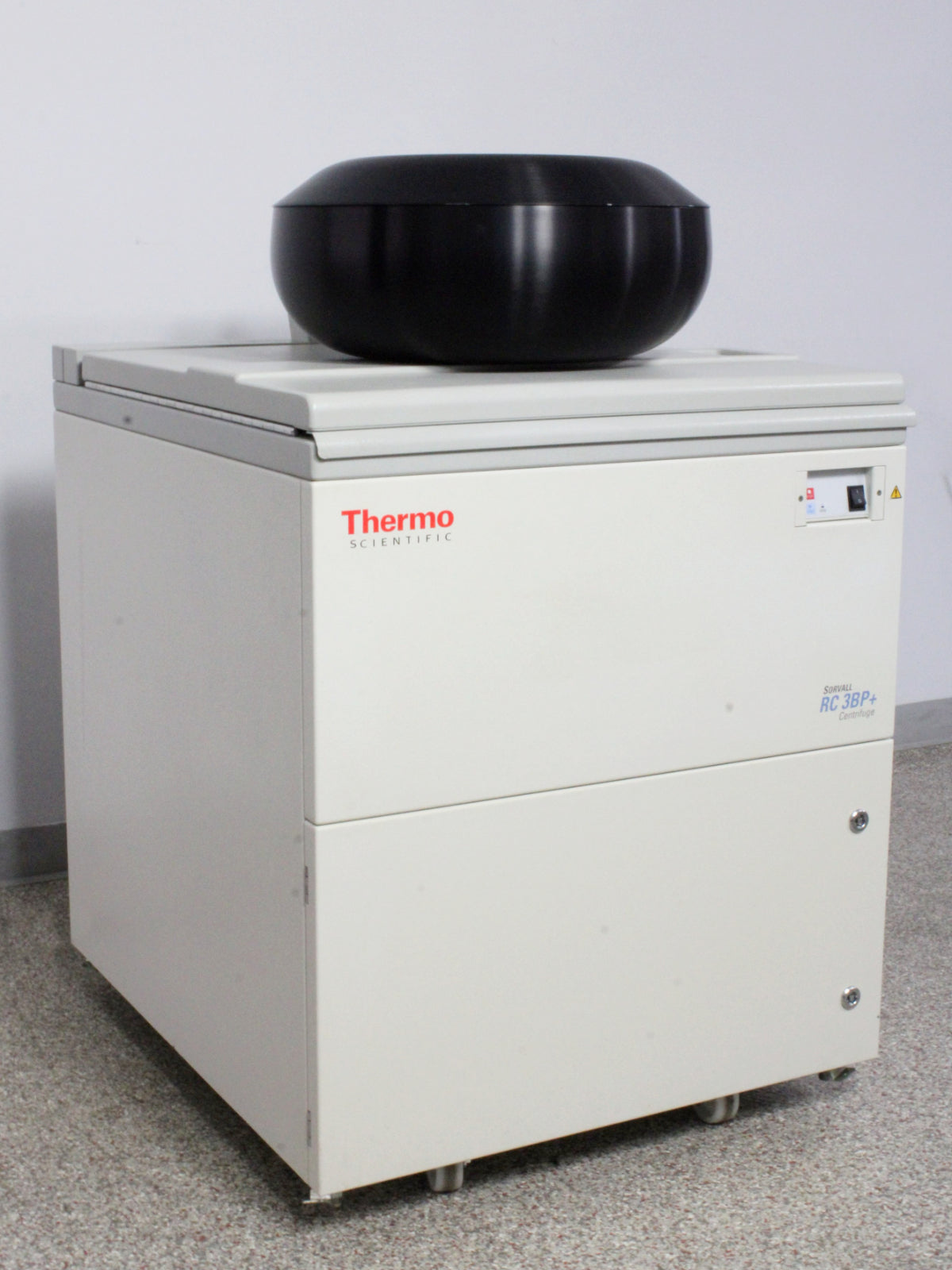

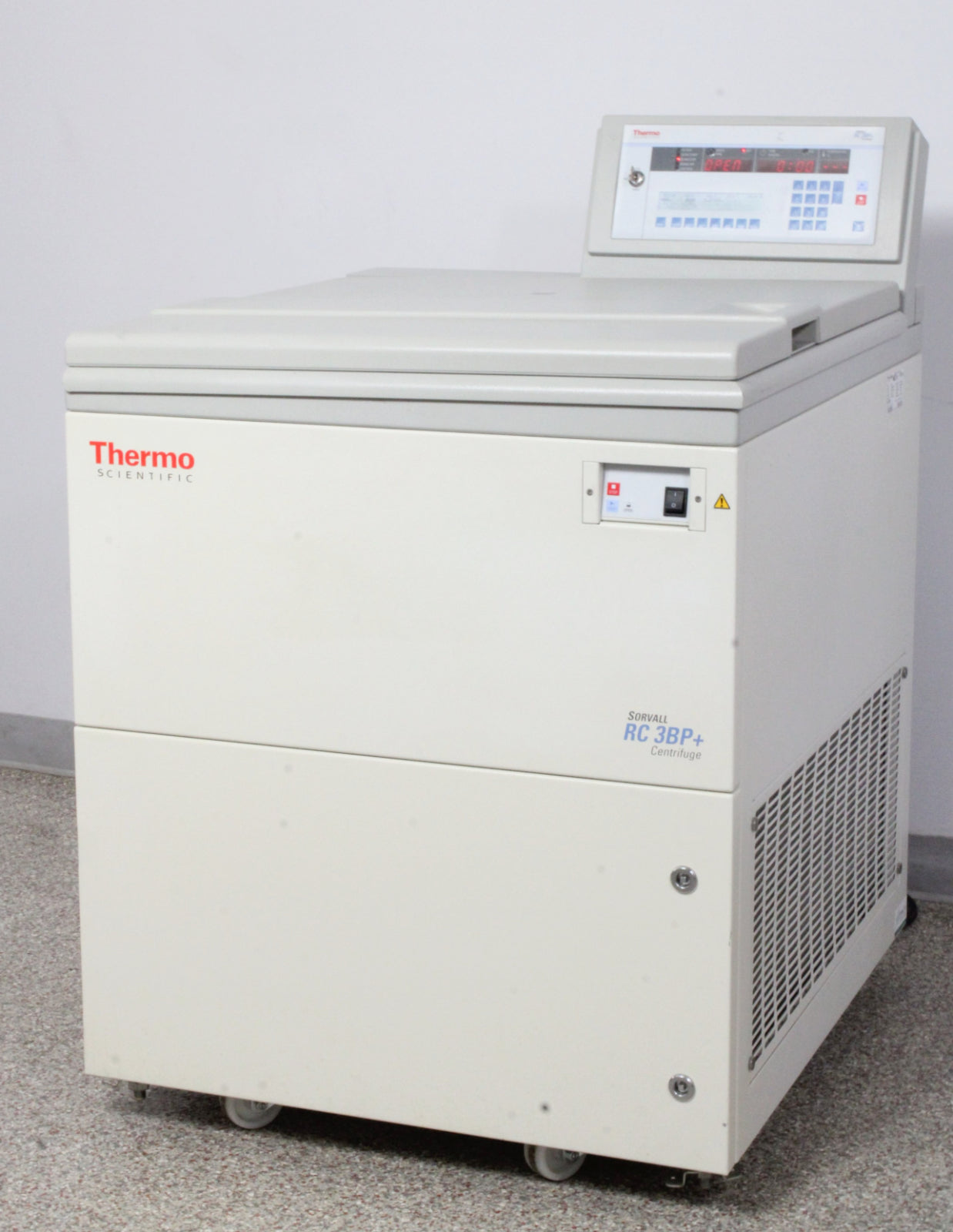

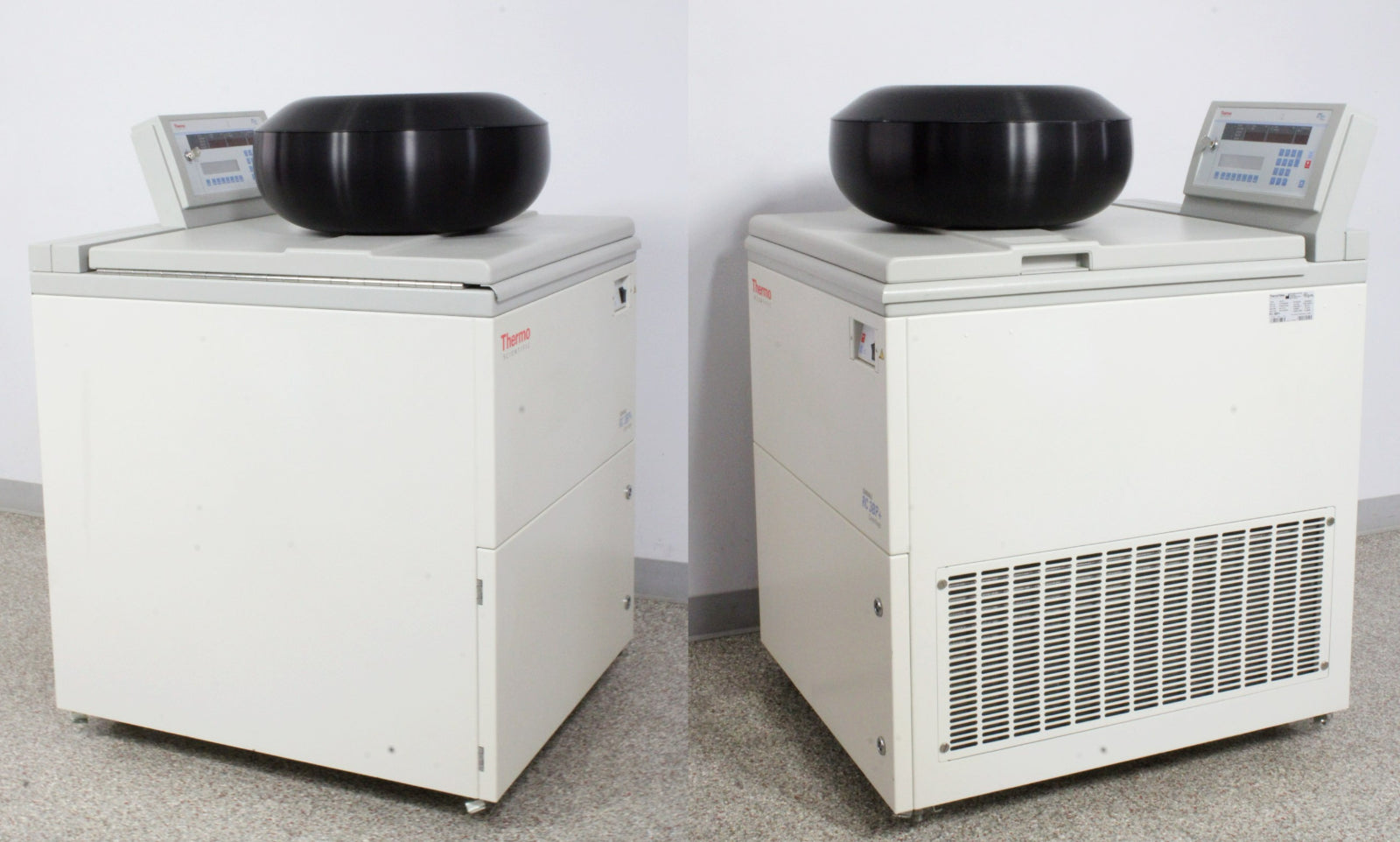

- Sorvall RC 3BP Plus Refrigerated Centrifuge

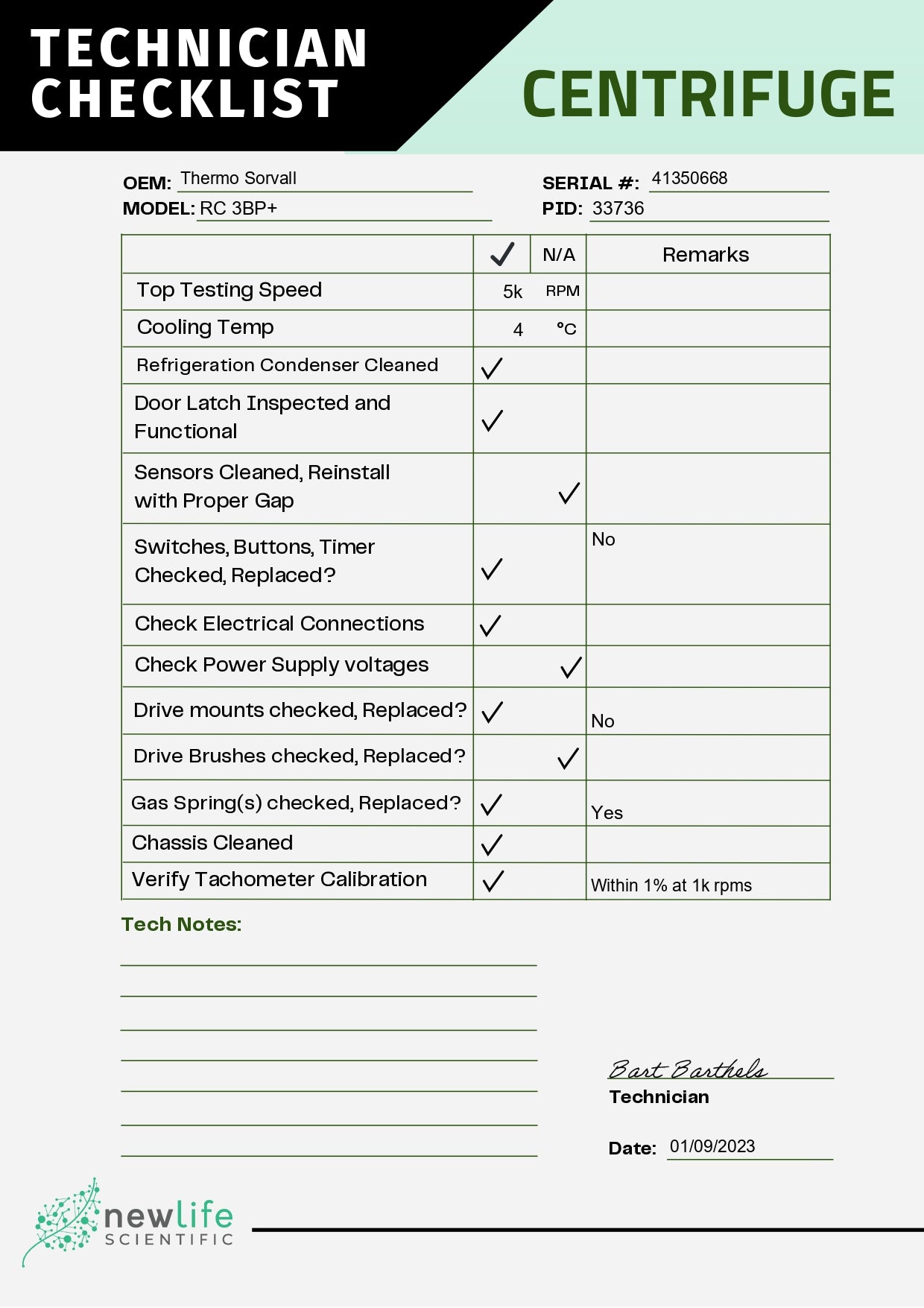

After its initial disinfection and inspection, our technicians tested the Sorvall RC 3BP+ with the following results:
- Runs to 5000 rpms: PASSED
- Refrigeration holds at 4 degrees as set: PASSED
- No excessive noise or imbalance: PASSED
- Spins down properly: PASSED

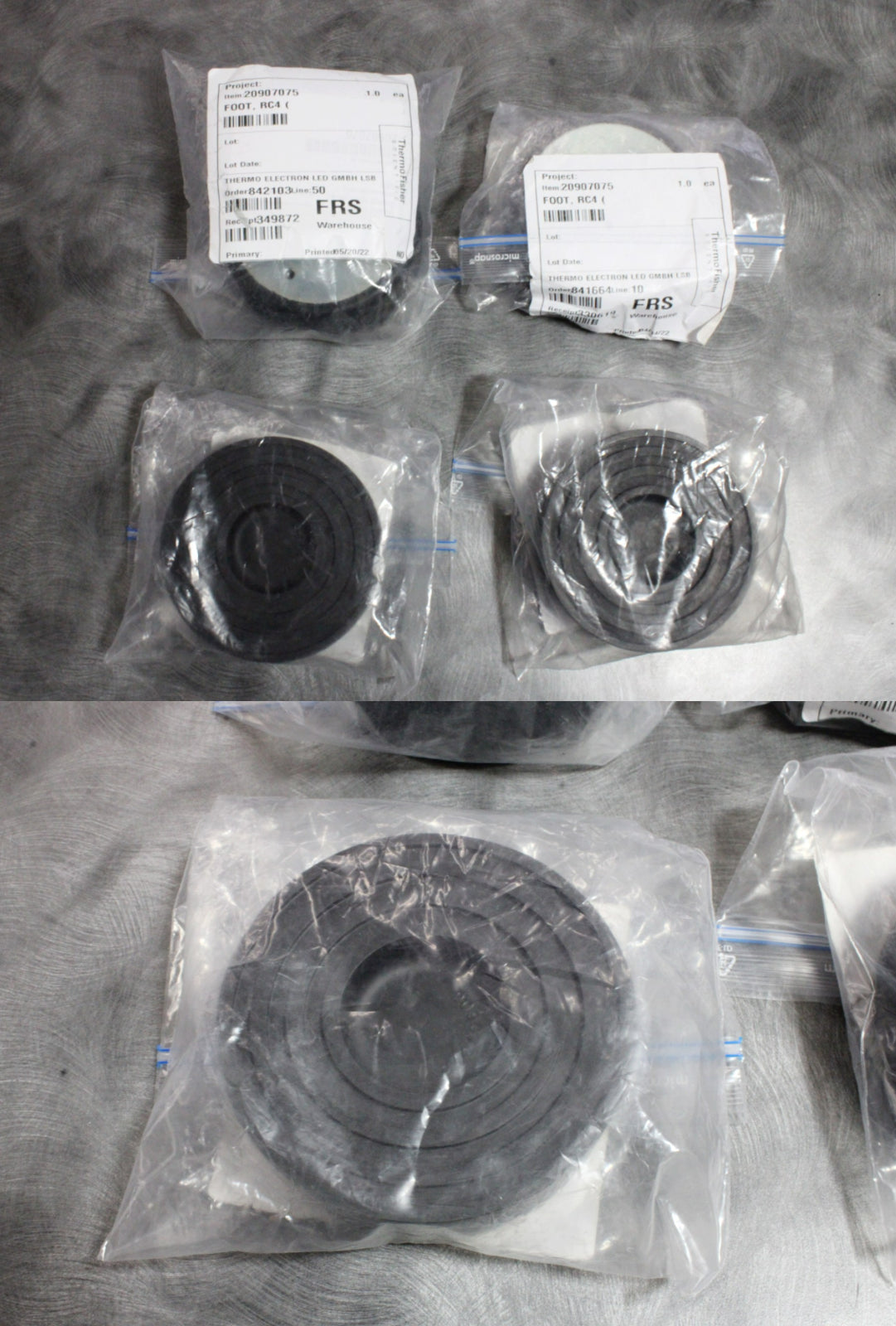

- Acquired feet and key for the keyswitch
|

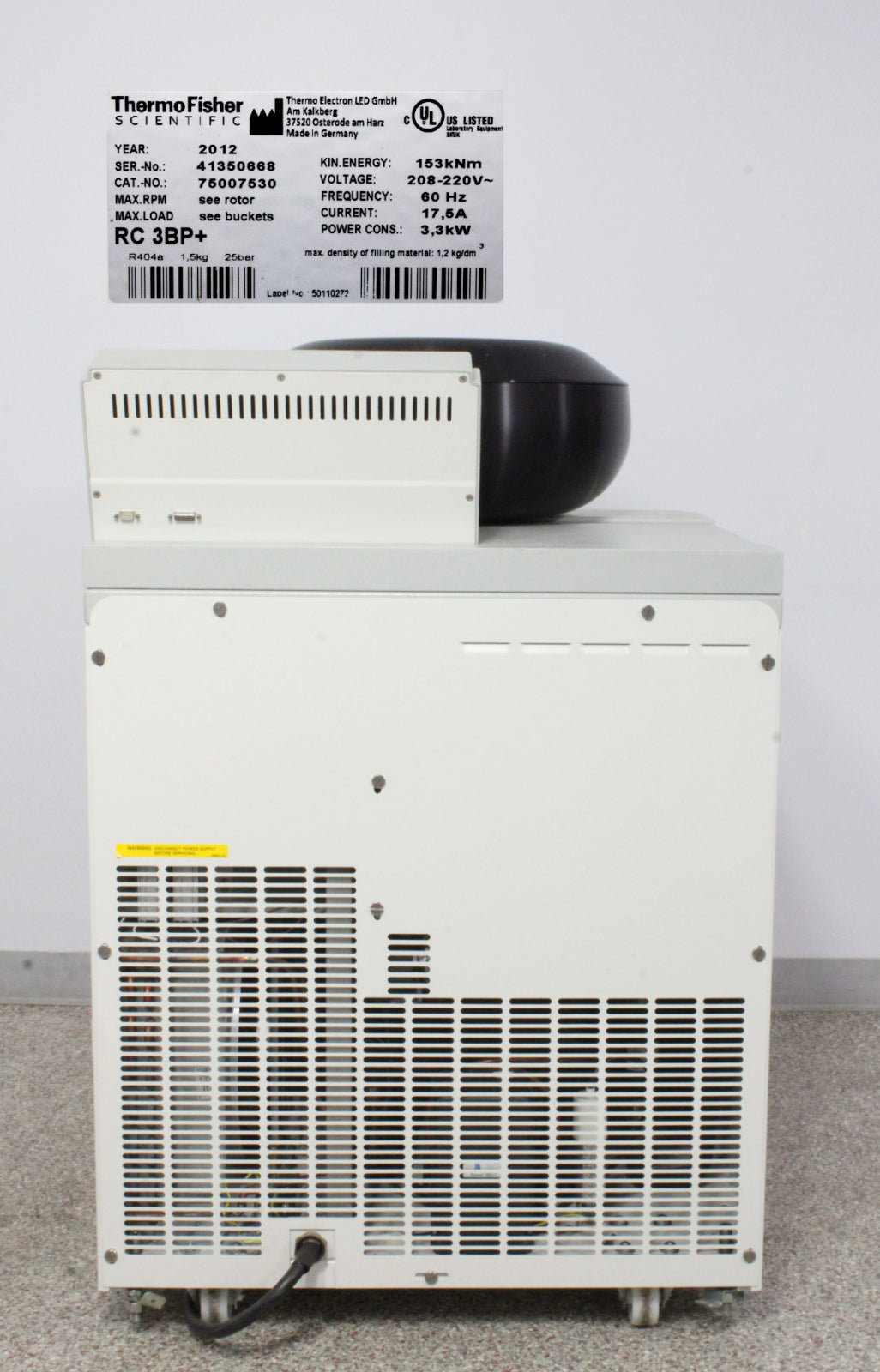

Manufacturer
|
Thermo Scientific
|
|
Model
|
Sorvall RC 3BP+
|
|
Serial No.
|
413530668
|
|
Catalog No.
|
75007530
|
|
Mfg. Year
|
2012
|
|
Place of Mfg.
|
Made in Germany
|
|
Maximum speed
|
5000 rpm
|
|
Minimum speed
|
300 rpm
|
|
Minimum sample temperature
|
4°C at 4700 rpm
4°C at 4550 rpm
4°C at 4700 rpm
|
|
Maximum RCF value at nmax
|
7277x g
|
|
Maximum kinetic energy
|
<153 kJ
|
|
Noise level at maximum speed
|
< 58 dB (A)
|
|
Temperature setting range
|
10 °C to +40 °C
|
|
Electrical Specifications
|
208-220V, 60 Hz, 17 ,5 A
|
|
Dimensions (W x D x H)
|
31.5 in x 35.6 in x 46.3 in.
|
|
Weight
|
1047 lbs (475 kg)
|
