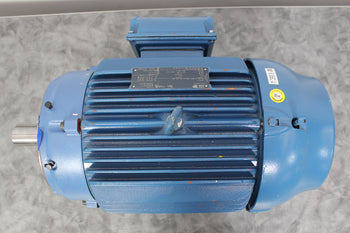

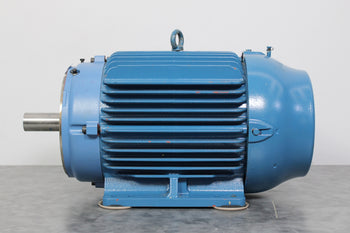

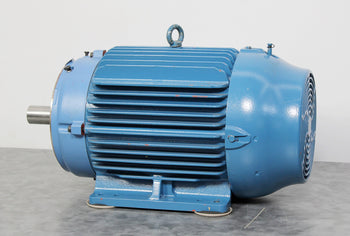

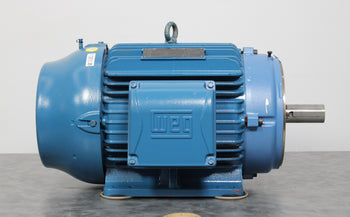

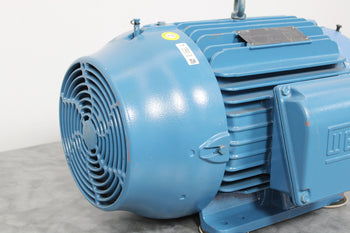

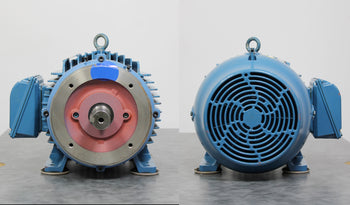

WEG 01509ET3E286T-W22 NEMA Premium W22 General Purpose Motor 15HP TEFC Cast Iron

Manufacturer

WEG

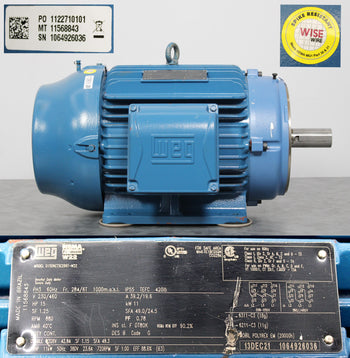

Cat. No.

01509ET3E286T-W22

Product No.

11568843

Serial No.

1064926036

Mfg. date

13DEC21

Frame

284/6T

Output

15 HP (11 kW)

Number of poles

8

Frequency

60 Hz

Rated speed

880 rpm

Slip

2.22 %

Rated voltage

230/460 V (3Ph)

Rated current

39.2/19.6 A

L. R. Amperes

216/108 A

LRC

5.5x(Code G)

No load current

19.6/9.80 A

Rated torque

89.5 ft.lb

Locked rotor torque

200 %

Breakdown torque

229 %

Locked rotor time

45s (cold) 25s (hot)

Moment of inertia (J)

8.18 sq.ft.lb

Design

B

Insulation class

F

Service factor

1.25

Temperature rise

80 K

Duty cycle

Cont.(S1)

Starting method

Direct On Line

Ambient temperature

-20°C to +40°C

Altitude

1000 m.a.s.l.

Degree of protection

IP55

Enclosure

IC411 - TEFC

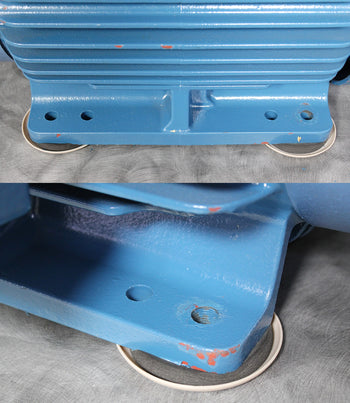

Mounting

F-1

Rotation

Both (CW and CCW)

Noise level

54.0 dB(A)

Dimensions (W x D x H)

27.5 x 17 x 16 in

Weight

420 lbs (190.5 kg)
