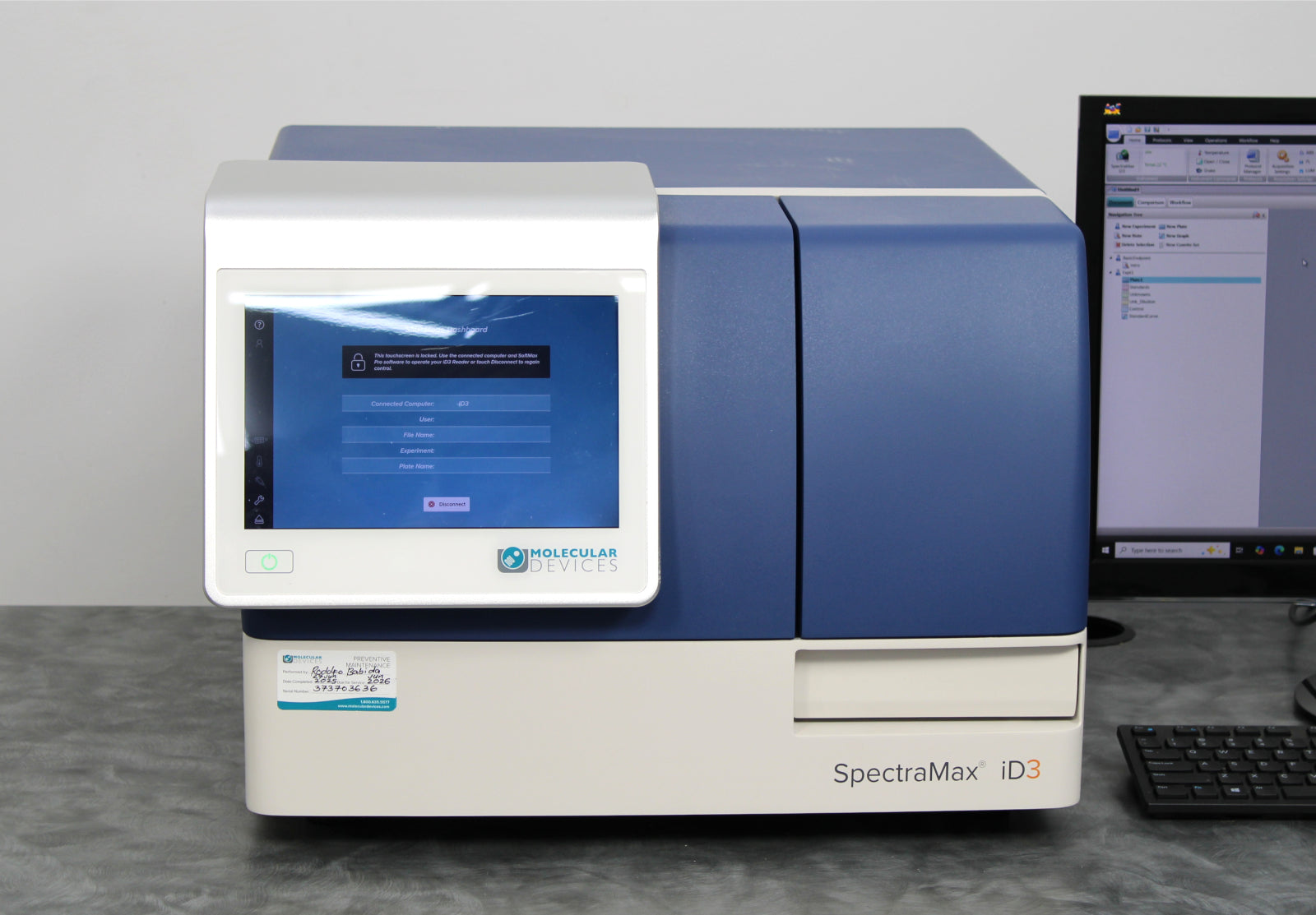

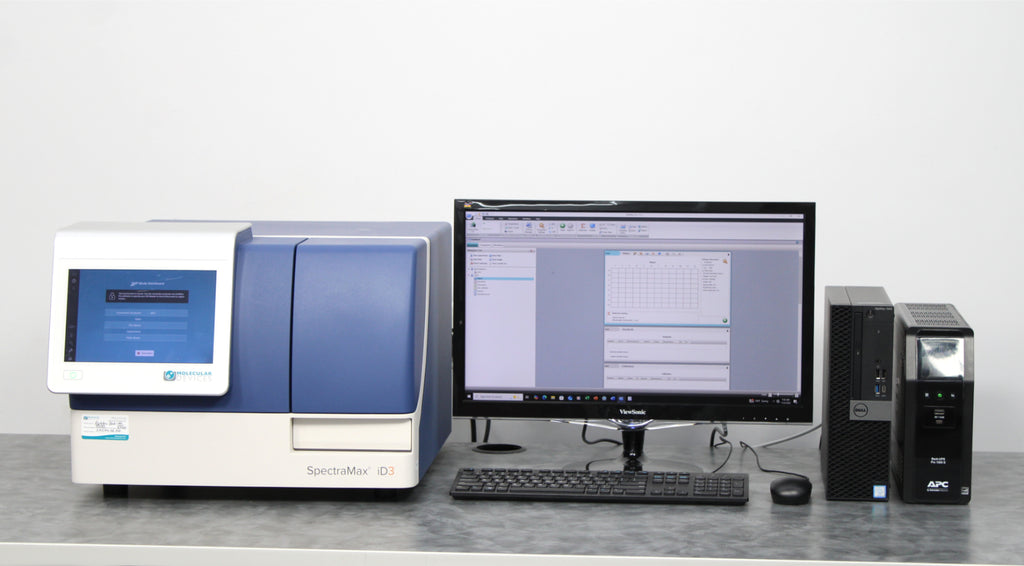

- Molecular Devices SpectraMax iD3 Multi-Mode Microplate Reader

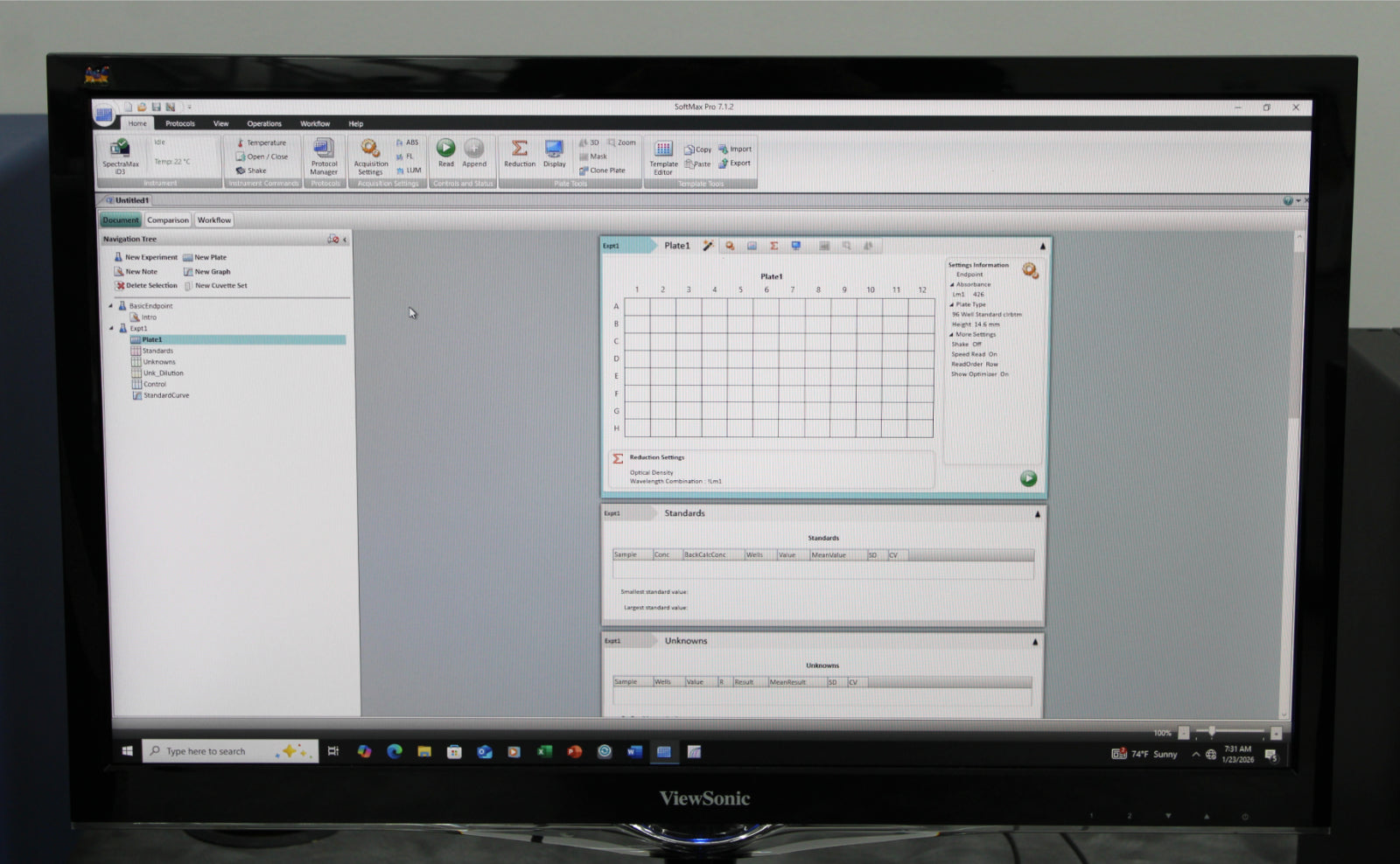

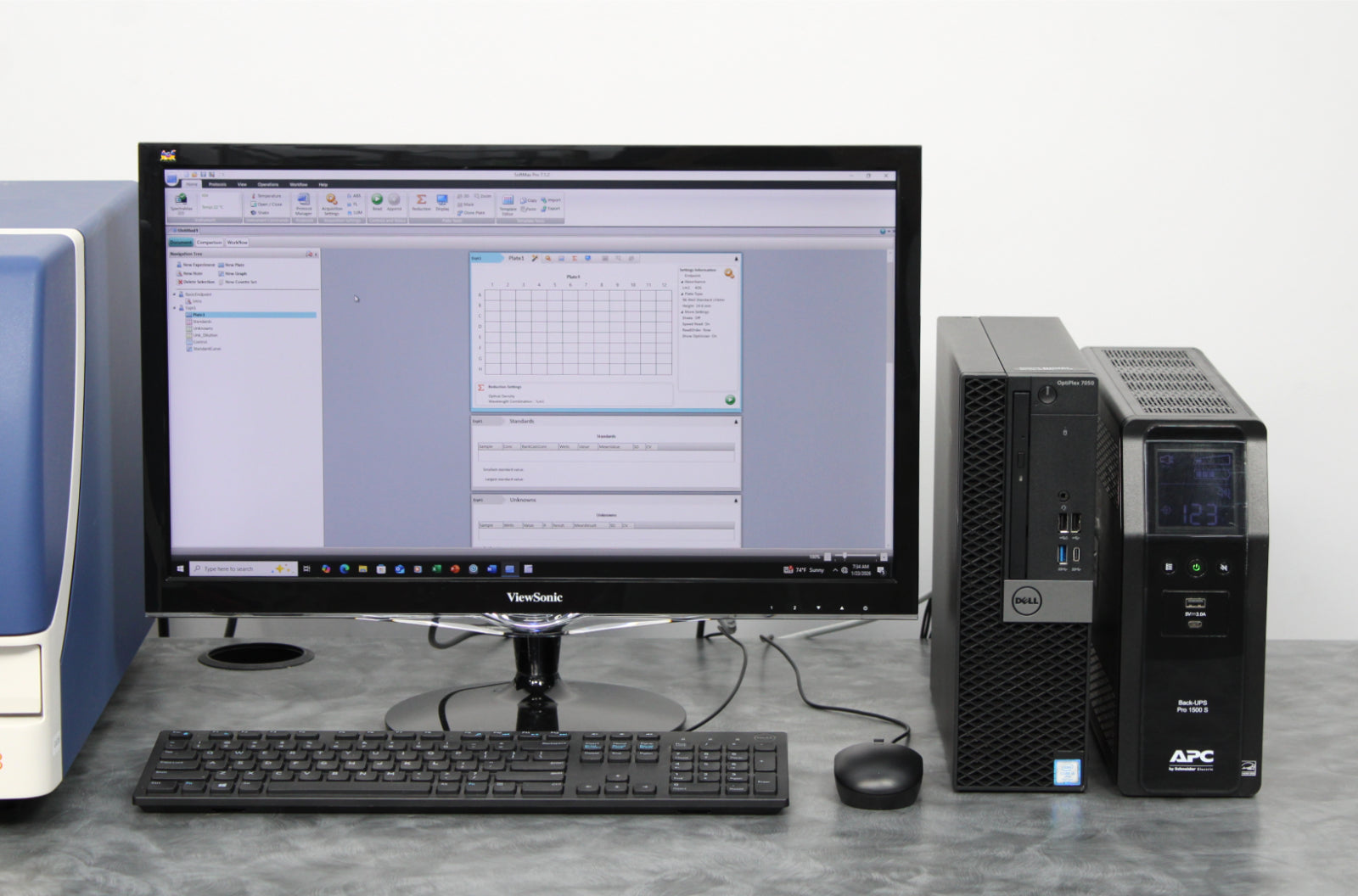

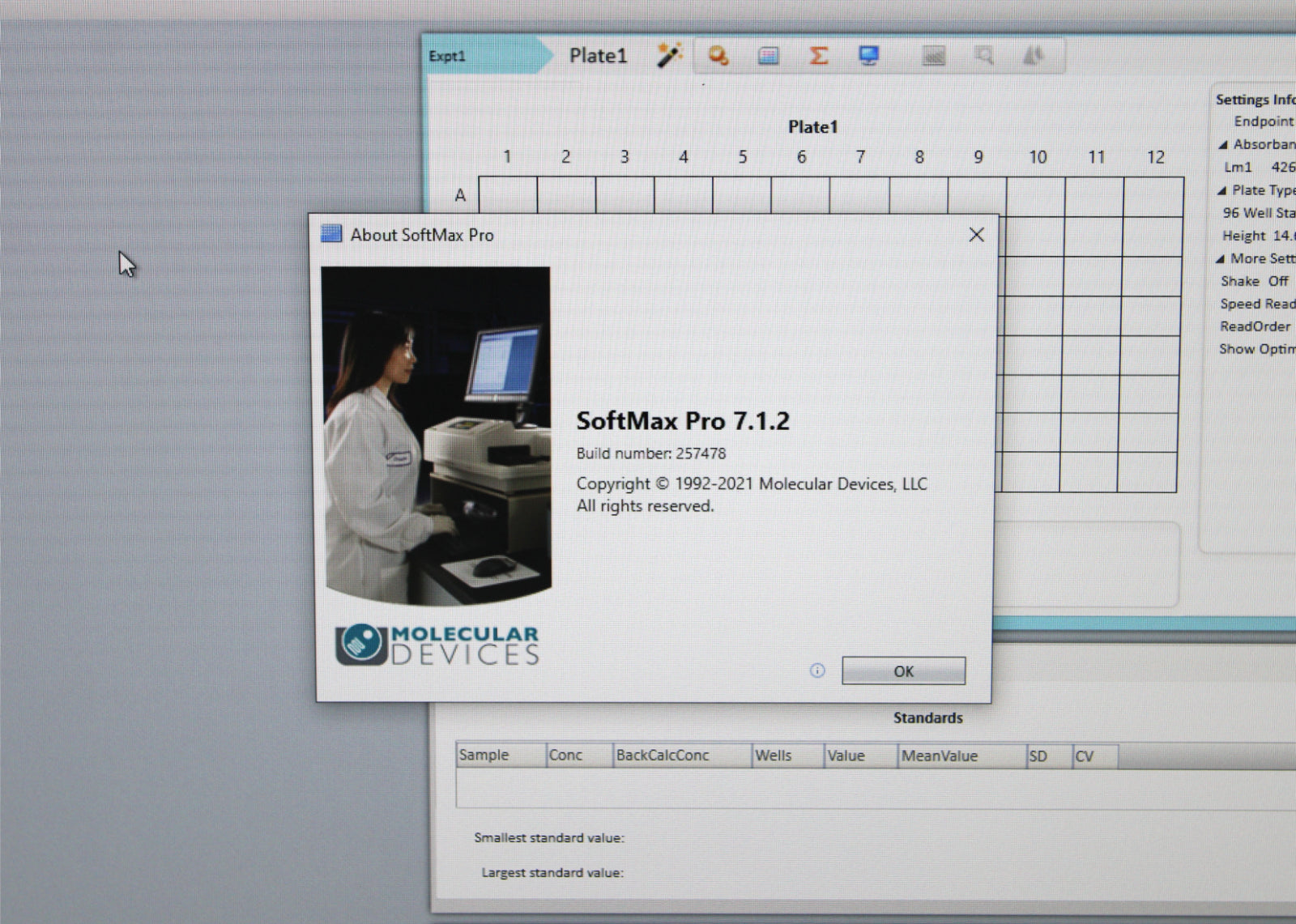

- Computer with SoftMax Pro 7 Software Installed
- Monitor, Keyboard, and Mouse

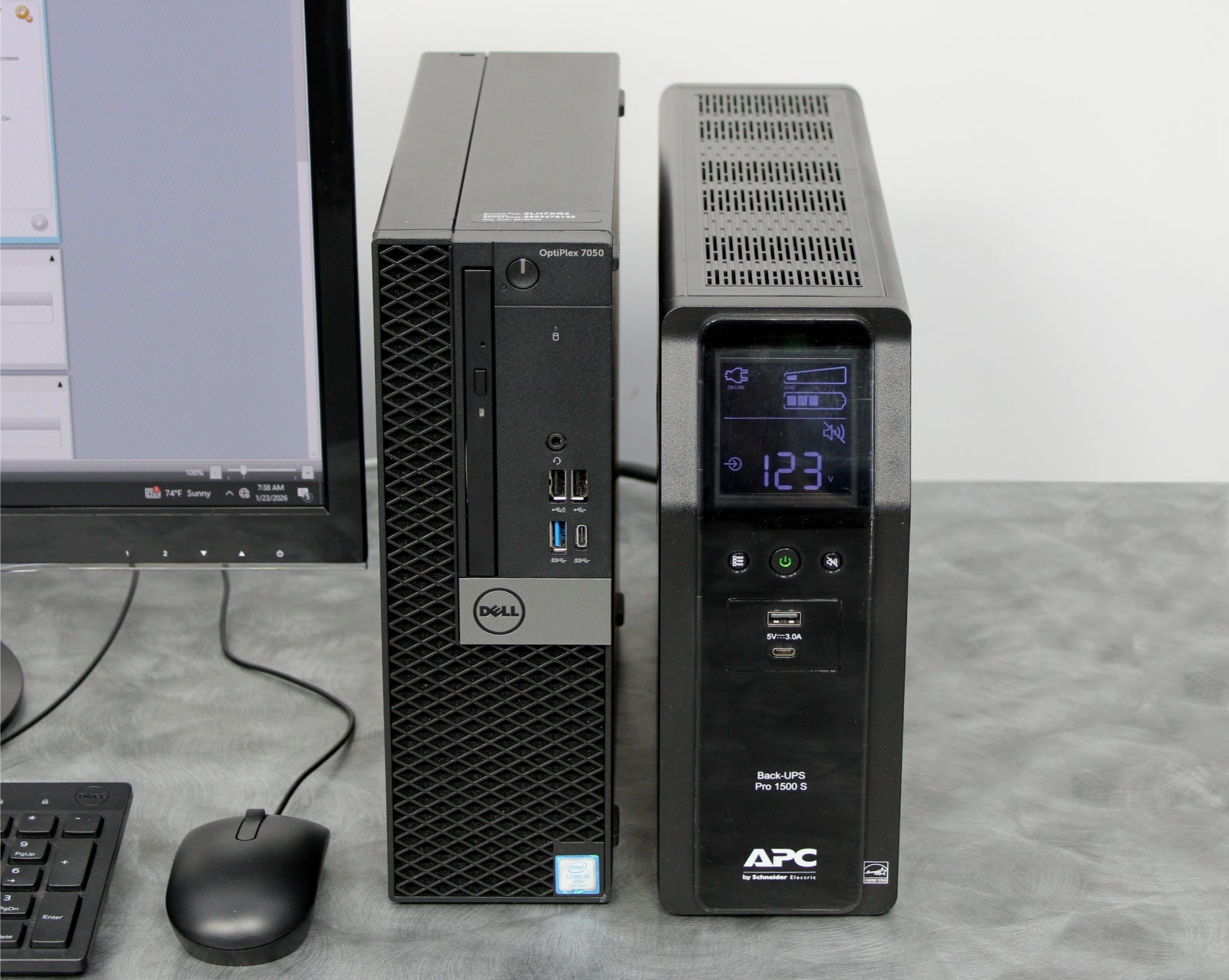

- Battery Backup
- Tools and Transport Locks
- Communication Cables
- Power Cables
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Molecular Devices SpectraMax iD3 multi-mode microplate reader with the following results:
- Reader power and initialization: PASSED
- Reader and computer connection: PASSED
- Ran SpectraMax standard plate; results within specification: PASSED

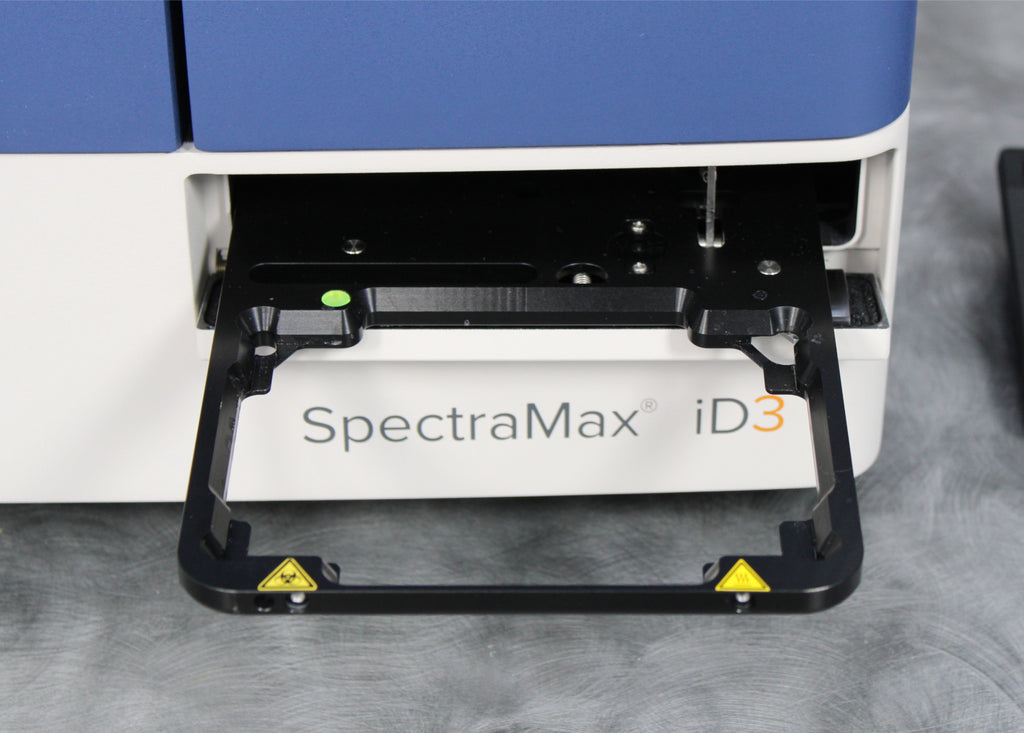

- Plate loading and unloading: PASSED
- Shaking: PASSED
- Temperature control: PASSED
Notice: Transport locks will be installed when this instrument arrives at your location.
|
Manufacturer
|
Molecular Devices
|
|
Model
|
SpectraMax iD3
|
|

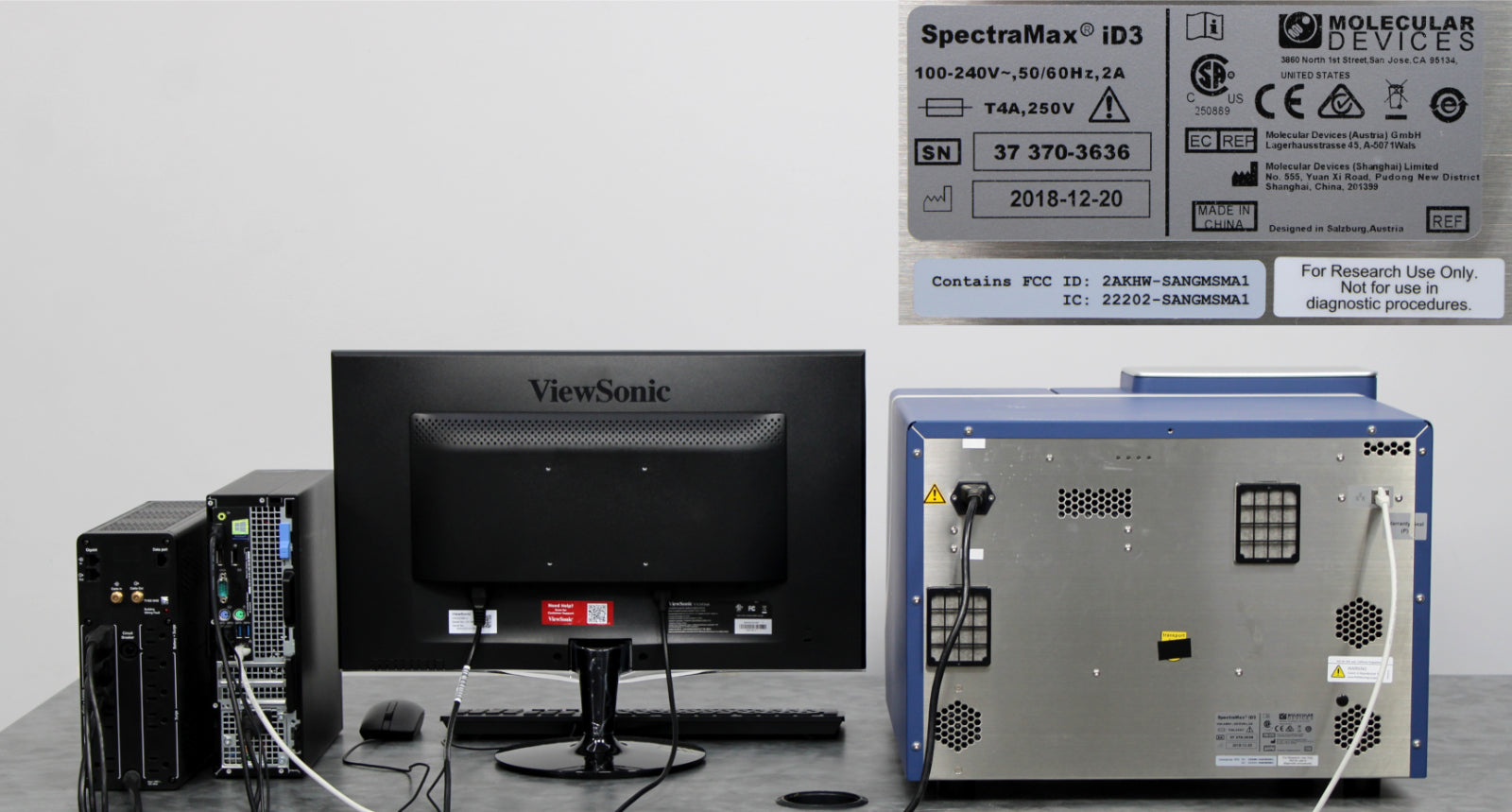

Serial No.
|
37 370-3636
|
|
Mfg. date
|
2018-12-20
|
|
Plate formats
|
6, 12, 24, 48, 96, 384-well plates ANSI/SLAS conformant
Maximum height: 22 mm
|
|
Reading capability
|
Plates and cuvettes (with adapter) SpectraCuvette Adapters without a sticker have a plate height of 24 mm and cannot be used in the SpectraMax iD3 or SpectraMax iD5.
|
|
Robotic compatible
|
Yes
|
|
Shake
|
Orbital, double orbital, and linear
|
|
Temperature control
|
5°C (7.2°F) above ambient up to 66°C (150.8°F)
At temperatures ranging from 55°C (131°F) up to 66°C (150.8°F) ambient temperature of 25°C (77°F) is required.
|
|
Chamber temperature
|
<5°C ambient 25°C, under DutyCycle of: FL Top, 400ms/well, complete 384-wells, pause to achieve 10 min cycle time, eject, wait 30 sec, load.
|
|
Temperature uniformity
|
±0.75°C (1.35°F)
|
|
Temperature accuracy
|
±1°C (1.8°F) at 37°C (98.6°F) Set Point
|
|
Wavelength selection
|
1.0 nm increments
|
|
Ambient operating temperature
|
15°C to 40°C (59°F to 104°F)
|
|
Ambient storage temperature
|
-5°C to 40°C (23°F to 104°F) continuous;
-20°C to 50°C (-4°F to 122°F) transient (up to 10 hours)
|
|
Humidity restrictions
|
15% to 75% (non-condensing) at 30°C (86°F)
|
|
Altitude restrictions
|
Up to 2000 m (6562 ft)
|
|
Air pressure restrictions
|
54 kPa to 106 kPa (7.8 PSI to 15.4 PSI)
|
|
Sound pressure level
|
Maximum sound pressure: 73 dBA
Maximum sound pressure at one meter: 68 dBA
|
|
Installation category
|
II
|
|
Pollution degree
|
2
|
|
Data connection
|
One ethernet port
|
|
NFC antenna reader/writer
|
SANGOMA-MSMA 2V5 13.56 Mhz Multi Standard - Multi Antenna Reader/Writer
Contains FCC ID: 2AKHW-SANGMSMA4 Contains IC: 22202-SANGMSMA4
Changes or modifications made to this equipment not expressly approved by the party responsible for compliance may void the FCC authorization to operate this equipment.
|
|
Front clearance
|
4.33 in (11 cm) for plate drawer
|
|
Rear clearance
|
7.9 to 11.8 in (20 to 30 cm) between the rear of the instrument and the wall for ventilation and cable disconnects
|
|
Power rating
|
100-240V~, 50-60Hz, 2A
|
|
Dimensions (W x D x H)
|
20.94 x 23.54 x 15.79 in (53.2 x 59.8 x 40.1 cm)
|
|
Weight
|
88.1 lb (40 kg)
|
|
Read Mode
|
96-Wells
|
384-Well
|
|
Absorbance
|
0:25
|
1:25
|
|
Fluorescence Intensity* (10 msec integration time)
|
0:17
|
0:53
|
|
Luminescence (100 msec integration time 96-well, 40 msec integration time 384-well plate)
|
0:26
|
1:01
|
*For >65°C, minimum 25°C ambient temperature is required
|
Item
|
Description
|
|
Wavelength range
|
230 - 1000 nm
|
|
Wavelength selection
|
Monochromator tunable in 1 nm increments
|
|
Wavelength bandwidth
|
4.0 nm full width half maximum
|
|
Wavelength accuracy
|
±2.0 nm across wavelength range
|
|
Wavelength repeatability
|
±1.0 nm
|
|
Photometric range
|
0 - 4.0 OD
|
|
Photometric resolution
|
0.001 OD
|
|
Photometric accuracy
|
< ±0.010 OD ±1.0%, 0 - 3 OD VIS 0 - 3 OD UV
|
|
Photometric precision (repeatability)
|
< ±0.003 OD ±1.0%, 0 - 3 OD VIS 0 - 3 OD UV
|
|
Stray light
|
≤ 0.05% at 230 nm, 280 nm
|
|
Photometric stabilization
|
Instantaneous
|
|
Photometric drift
|
None (continuous referencing of monochromatic input)
|
|
Calibration
|
Automatic before every endpoint read and before the first kinetic read
|
|
Optical alignment
|
None required
|
|
Photodetectors
|
Silicon Photodiode
|
|
Item
|
Description
|
|
Wavelength range
|
EX 250 - 830 nm
EM 270 - 850 nm
|
|
Wavelength selection
|
Monochromators tunable in 1.0 nm increments
|
|
Wavelength accuracy
|
±2.0 nm
|
|
Wavelength repeatability
|
±1.0 nm
|
|
Bandwidth (EX/EM)
|
EX: 15 nm
EM: 25 nm
|
|
Number of excitation/emission pairs per plate
|
4
|
|
Dynamic range
|
>6 logs
|
|
Sensitivity top read mono*
|
Fluorescein
|
|
96-wells
|
4 pM - Guaranteed
1 pM - Optimized
|
|
384-wells
|
6 pM - Guaranteed
1 pM - Optimized
|
|
Sensitivity bottom read mono*
|
Fluorescein using glass bottom Greiner Sensoplate glass bottom multiwell plates
|
|
96-wells
|
10 pM - Guaranteed
2 pM - Optimized
|
|
384-wells
|
10 pM - Guaranteed
2.5 pM - Optimized
|
|
System validation
|
Self-calibrating with built-in fluorescence calibrators
|
|
Light source
|
High power xenon flash lamp
|
|
Average lamp lifetime
|
1 billion flashes or 2 years normal operation
|
|
Item
|
Description
|
|
Wavelength selection
|
Choice of simultaneous detection of All Wavelengths or selection in 1.0 nm increments
|
|
Wavelength range
|
300 - 850 nm
300 - 650 nm for “All Wavelengths” setting
|
|
Wavelength accuracy
|
±2.0 nm
|
|
Wavelength repeatability
|
±1.0 nm
|
|
Dynamic range
|
>7 decades
|
|
Sensitivity top read*
|
Perkin Elmer ATPlite 1step Luminescence Assay System
|
|
96-well
|
10 pM - Guaranteed
2 pM - Optimized
|
|
384-well
|
20 pM - Guaranteed
4 pM - Optimized
|
|
Crosstalk
|
<0.1% in white 96-well half area plate
<0.2% in white 384-well Costar small volume
|
*For properly functioning, operating, and maintained equipment.
