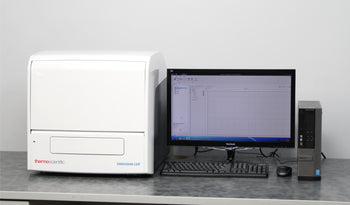

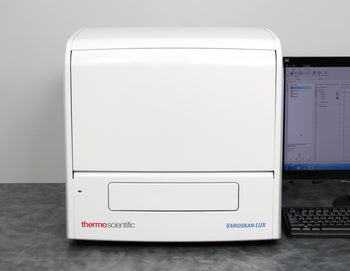

- Thermo Scientific Varioskan LUX Multimode Microplate Reader Spectrophotometer (VLB000D1)

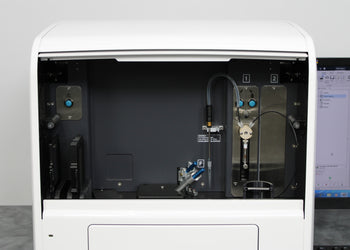

- Dispenser

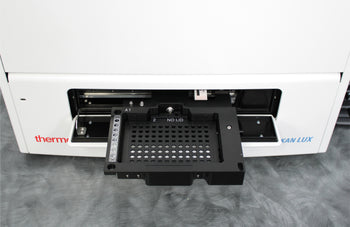

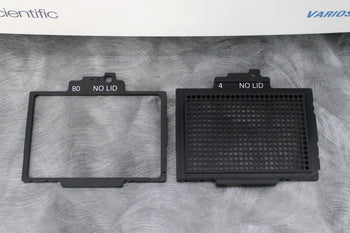

- x3 Plate Adapters

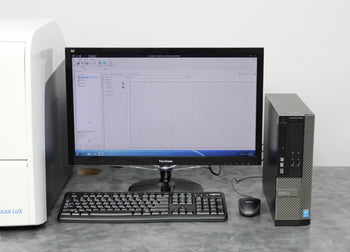

- PC with SkanIt Software Installed
- Monitor, Keyboard, and Mouse (New)
- USB Cable
- x3 Power Cables
- 90-Day Warranty
- Absorbance
- Fluorescence intensity
After its initial disinfection and inspection, our technicians tested the Thermo Scientific Varioskan LUX multimode microplate reader with the following results:
- Powers on and initializes: PASSED

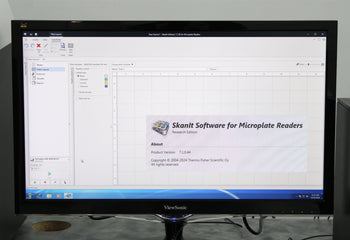

- Reader connects to SkanIt software: PASSED
- Repeatable absorbance scan results: PASSED
- Prime dispenser: PASSED
|

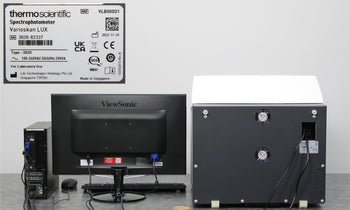

Manufacturer
|
Thermo Scientific
|
|
Model
|
Varioskan LUX
|
|
Type
|
3020
|
|
Ref. No.
|
VLB000D1
|
|
Serial No.
|
3020-82337
|
|
Mfg. date
|
2022-11-29
|
|
Detector type
|
Photomultiplier tube (PMT)
|
|
Incubator temperature
|
45°C
|
|
Interface
|
PC software (Thermo Scientific SkanIt software)
|
|
Light source
|
Xenon flash lamp
|
|
Measurement speed
|
15s for 96-well plate
45s for 384-well plate
135s for 1536-well plate (minimum times)
|
|
Measurement technology
|
Absorbance, Fluorescence intensity
|
|
Plate type
|
6 to 1536-well plates (Absorbance 6 to 384-well plates)
|
|
Reading options
|
Top and Bottom
|
|
Read-out range
|
0 to 6 Abs
|
|
Shaking
|
Orbital
|
|
Spectral scanning speed
|
<2.2s/well 400 to 500 nm, 1 flash, 2 nm step
|
|
Wavelength selection
|
Double monochromator (absorbance and spectral scanning)
Double excitation and emission monochromator (fluorescence intensity)
|
|
Accuracy
|
0.003 Abs or ±2%, at 200 to 399 nm (0 to 2 Abs)
0.003 Abs or ±1%, at 400 to 1000 nm (0 to 3 Abs)
|
|
Dynamic range
|
Fluorescence intensity: top reading > 6 decades
|
|
Linearity
|
96-well plate: ±2% (0 to 4 Abs at 450 nm)
384-well plate: ±2% (0 to 3 Abs at 450 nm)
|
|
Power rating
|
100-240V, 50/60Hz
|
|
Power consumption
|
200VA
|
|
Dimensions (W x D x H)
|
21 x 23 x 20 in (53 x 58 x 51 cm)
|
|
Weight
|
119 lb (54 kg)
|
