Freeze-drying has become an essential preservation method in laboratories across research, clinical and industrial settings. Whether you're preserving biological samples, developing pharmaceutical formulations or conducting food science research, selecting appropriate equipment directly impacts your results and efficiency.
But choosing the right equipment can be overwhelming. With dozens of models offering different capacities, temperature ranges and features, how do you know which one fits your lab's needs?
This comprehensive freeze dryer guide by New Life Scientific breaks down the technology, explores your options and provides a clear framework for selecting the right freeze dryer for your lab application.
What Is Freeze-Drying?
Freeze-drying, or lyophilization, is a dehydration process that removes water from materials through sublimation under controlled temperature and pressure conditions. Unlike other drying methods that use heat, this process preserves the structure and biological activity of sensitive materials.
How Does Freeze-Drying Work?
The freeze-drying process occurs in three key phases:
- Freezing: The process begins with the complete freezing of your samples, typically reaching temperatures between negative 40 and negative 80 degrees Celsius. During this freezing stage, ice crystal formation patterns determine how easily your final product reconstitutes. Rapid freezing creates small ice crystals and fine product structure, while slower freezing produces larger crystals and more porous materials.
- Sublimation: Primary drying, or sublimation, begins when chamber pressure reduces below the vapor pressure of ice, typically reaching 0.01 to 0.5 millibars (mbar). During this phase, controlled heat application provides the energy necessary for sublimation. This stage removes approximately 95% of water content and can take hours to days, depending on sample characteristics, thickness and thermal properties. The sublimation rate depends on the temperature difference between the product and the condenser and the resistance to vapor flow through the dried layer.
- Desorption: The second drying step removes the remaining bound water molecules that didn't sublimate during primary drying. Temperature increases while maintaining low pressure, allowing product temperatures to reach 20 to 40 degrees Celsius. This final stage achieves the low moisture content needed for long-term stability, typically below 5% for most applications.
Why Is Freeze-Drying Used for Sensitive Samples?
Freeze-drying is preferred for sensitive samples because it combines low-temperature processing with gentle water removal. Heat-sensitive proteins maintain their structure and activity, liposomes and nanoparticles preserve their size distribution, and even live bacteria and cell cultures can survive when formulated with protective agents.
Common freeze dryer applications include:
- Ensuring the stability of injectable drugs, vaccines and diagnostic reagents without refrigeration.
- Preserving enzyme libraries, antibody collections and reference standards.
- Nutritional analysis and shelf life studies.
- Preserving field samples for later analysis.
What Are the Types of Freeze Dryers?
There are five main types of freeze dryers — benchtop, floor model, manifold, bulk freeze and customized. Understanding different freeze dryer specifications helps you select equipment that matches your workflow requirements and sample characteristics. Each type serves specific purposes and offers unique advantages for various applications.

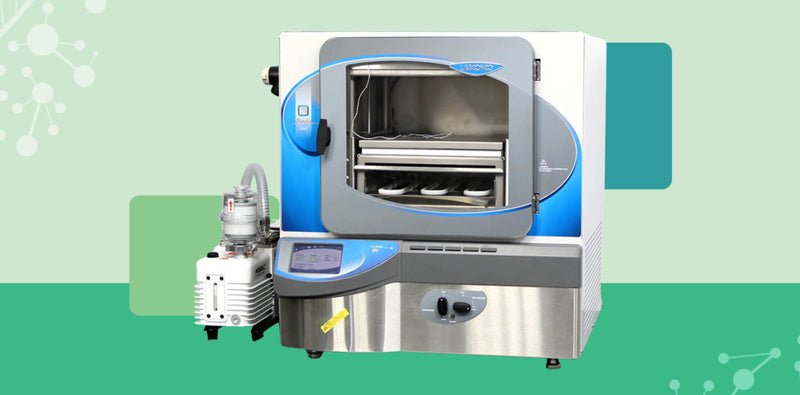

1. Benchtop Freeze Dryers
Benchtop freeze dryers are the most accessible entry point for laboratories beginning lyophilization work. They are perfect for academic research, pilot studies and diagnostic applications where sample volumes are relatively small and space is limited. Their compact design is ideal for standard laboratory benches while providing sufficient capacity for small to moderate sample volumes.
The condenser capacity of benchtop units typically ranges from 2 to 6 liters, with temperature capabilities extending from negative 50 to negative 100 degrees Celsius, depending on the model. A freeze dryer that reaches negative 50 degrees Celsius is adequate for aqueous samples. Samples in acetonitrile, methanol or other chemicals may require lower temperatures of negative 84 or negative 100 degrees Celsius.
These systems feature acrylic or stainless steel chambers, with acrylic offering visibility during the process and stainless steel providing superior chemical resistance and durability.
The control systems on benchtop freeze dryers vary from basic manual operation to semiautomatic interfaces that allow some degree of process programming. Despite their compact footprint of 60 to 80 centimeters wide, these units can accommodate various sample formats through interchangeable accessories.
2. Floor Model Freeze Dryers
Floor model freeze dryers provide increased capacity and enhanced automation features for production-scale applications. These systems stand independently, providing the automated operation and improved process control necessary for regulated environments and high-throughput laboratories.
Condenser capacities in floor models range from 10 to over 50 liters, accommodating larger batch sizes than benchtop units. Multiple shelf configurations allow simultaneous processing of hundreds of vials or flasks, with shelves that can be temperature-controlled independently in some models.
Floor model freeze dryers feature advanced control systems with recipe storage capabilities, enabling reproducible processing of different product types. They maintain temperature uniformity within ±1 degrees Celsius across shelves, ensuring consistent drying conditions throughout the chamber. Integrated data logging and monitoring systems provide comprehensive process documentation for quality assurance and regulatory compliance.
Floor model freeze dryers serve biotech companies, pharmaceutical development labs, clinical laboratories and food science research facilities. These environments typically require consistent processing of larger sample batches with documented process control for regulatory compliance.
3. Manifold Freeze Dryers
Manifold freeze dryers offer a unique approach to lyophilization by connecting multiple sample containers directly to a central condenser through individual valves. They feature a freeze-drying area of 0.18 meters squared, accommodating multiple or larger samples. This configuration provides exceptional flexibility for laboratories simultaneously processing diverse sample types or volumes.
The key feature distinguishing manifold systems is their ability to accommodate various container types without chamber constraints. Researchers can attach round-bottom flasks, serum bottles or ampules directly to ports, with each connection featuring an independent valve for sample isolation.
Like other freeze dryer types, condenser temperatures typically reach minus 50 to minus 85 degrees Celsius. However, the open architecture allows containers of unusual shapes or sizes to be processed. Some systems include heating accessories for individual vessels, providing additional control over sublimation rates.
Manifold freeze dryers are particularly valuable for research institutions, small-batch production facilities and laboratory processing for diverse sample types. The multi-port design accommodates varying container sizes and sample volumes within a single run, making these systems ideal for method development and optimization studies.
4. Bulk Freeze Dryers
Bulk freeze dryers, also known as shell freeze dryers, process large volumes of materials in bulk containers rather than individual vials or flasks. These systems accommodate products that don't require individual vial processing or when final particle size reduction is planned post-drying.
Bulk systems feature large chamber volumes with multiple shelves to hold product trays rather than individual containers. Their temperature control systems maintain uniform conditions across substantial surface areas, typically managing gradients within ±2 degrees Celsius even with full product loads.
Condenser capacities scale accordingly, often exceeding 100 liters for production units. Some designs include integrated clean-in-place systems for pharmaceutical applications, while others focus on simple loading and unloading for food or chemical applications.
Bulk freeze dryers are perfect for food science laboratories, environmental testing facilities, pharmaceutical companies and chemical research institutions.
5. Custom Freeze Dryers
While not a distinct category, specialty or custom freeze dryers are standard in many industries, as many applications require modifications or additions to standard equipment. These customizations range from simple accessories to complete system redesigns addressing unique research needs.
Custom freeze dryers are common in specialized biotechnology applications, advanced research programs, quality control laboratories and pilot plant installations. Common customizations include:
- Extended temperature changes for special applications.
- Modified chamber geometries for unusual sample configurations.
- Integrated analytical instruments for process monitoring.
- Specialized control software for complex cycling parameters.
Some systems incorporate aseptic processing capabilities for cell therapy products. Others feature explosion-proof designs for solvent-containing samples. Material compatibility modifications address corrosive samples or extreme pH conditions.
Custom systems excel when standard equipment cannot meet specific requirements. They enable the processing of unique sample types or formats, which is impossible with conventional designs. Integrated analytical capabilities can provide real-time process understanding, and specialized safety features address hazardous materials handling. Adding optimized designs for specific products can improve efficiency and quality.
How Do You Select the Right Freeze Dryer for Your Application?
Choosing the right freeze dryer requires a systematic evaluation of sample characteristics, throughput requirements, technical specifications and operational constraints. A structured approach allows you to identify equipment that balances performance requirements with practical constraints while supporting your laboratory's objectives.
1. Assess Sample and Throughput Requirements
Thoroughly characterize your sample types and processing needs. Identify types of samples that require freeze-drying treatment. Different sample types impose varying requirements for temperature ranges, drying times and container compatibility. For example, biological samples such as protein, cells or tissues require careful temperature control and may benefit from controlled nucleation capabilities.
Based on current and projected laboratory activities, estimate your average and maximum batch sizes. Consider the sample volume per batch and the frequency of freeze-drying operations. This assessment helps determine the appropriate chamber size and throughput capacity.
Sample diversity significantly influences equipment selection. Laboratories processing multiple sample types may benefit from manifold systems or units with flexible shelf configurations. Conversely, facilities focused on standardized sample processing may optimize efficiency with dedicated shelf-based systems.
Plan for future scalability by considering how easily processes can transfer to larger equipment if production needs increase. Anticipate how your focus might shift and whether equipment can adapt to new applications. This foresight can influence initial equipment selection to ensure process transferability and avoid costly protocol redevelopment.
2. Evaluate Key Specifications
With sample and throughput requirements in mind, analyze the key freeze dryer specifications:
- Capacity: Evaluate the shelf area, chamber volume, number of shelves and available sample holders. Match capacity requirements to sample throughput projections while allowing for growth and operational flexibility.
- Temperature range: The minimum condenser temperature, shelf temperature control and temperature uniformity across the chamber impact drying performance and product quality. Typically, the operational temperature of condensers in commercial freeze dryers is around minus 65 degrees Celsius.
- Vacuum performance: This specification affects drying efficiency and cycle times. Consider the pump type — oil-sealed, scroll or dry — ultimate vacuum level achievable and pumping speed. Different pump technologies offer various advantages in terms of maintenance requirements, contamination risks and performance characteristics.
- Control systems: Evaluate programmable cycle capabilities, automation features, data logging functions and remote monitoring options, as they vary across equipment types and manufacturers.
- Material compatibility: Analyze chamber and shelf materials, chemical resistance properties and sample safety considerations. Stainless steel construction provides durability and chemical compatibility for most applications, while specialized coatings may be required for certain sample types.
3. Consider Your Constraints
Space, budget and infrastructure considerations influence equipment selection. Assess available laboratory space, including ceiling height, door access and ventilation requirements. Review power requirements, including voltage phase and amperage specifications.
Freeze dryers typically require substantial electrical capacity, particularly for refrigeration and heating elements. Evaluate existing electrical infrastructure and factor upgrade costs into budget considerations.
You should also consider ventilation and utility requirements, such as air circulation for heat rejection, water supply for cooling systems and compressed air for automated systems. Some installations may require specialized exhaust systems or environmental controls to manage heat loads and noise levels.
Freeze-drying is a relatively expensive process. The equipment is about three times as expensive as the equipment used for other separation processes, and the high energy demands increase energy costs. Total cost of ownership analysis should encompass the equipment's entire operational lifespan. Compare the initial purchase price against ongoing operational costs, including utilities, maintenance, consumables and potential downtime.
Evaluate warranty coverage, service contract options and availability of replacement parts.
4. Ensure Compliance and Serviceability
Regulatory compliance requirements vary across industries and applications. Good Laboratory Practice (GLP) regulations provide the framework for ensuring the quality and integrity of nonclinical laboratory studies. Pharmaceutical and biotech laboratories must ensure equipment meets Good Manufacturing Practices (GMP), Food and Drug Administration (FDA) and GLP requirements as applicable to their operations.
Evaluate equipment design features that facilitate compliance, including documentation capabilities, manufacturer validation support and built-in quality control features. The qualification process includes tests and verifications to ensure equipment, facilities and systems are designed, installed and maintained according to GLP, good distribution practices, GMP and other industry standards.
Consider ease of cleaning, filter replacement and routine maintenance requirements. Equipment designed for easy access and cleaning reduces operational burden and supports consistent performance. Evaluate maintenance schedules, required consumables and technical expertise needed for ongoing operations.
Assess manufacturer support, including installation qualification, operational training and documentation packages. Comprehensive manufacturer support can reduce implementation time and ensure proper operation from installation through ongoing use.
FAQs
Here are the answers to the most common questions to help you make the most informed freeze dryer selection.
1. How Do Freeze Dryer Specifications Impact Results?
Freeze dryer specifications directly influence product quality, drying efficiency and process reproducibility. Condenser temperature affects sublimation driving force and drying rates, with inadequate cooling leading to incomplete moisture removal.
Shelf temperature control precision impacts product temperature uniformity and helps prevent collapse or melting during primary drying. Vacuum performance determines sublimation conditions and overall drying efficiency. Chamber design and airflow pattern affect heat and mass transfer, influencing drying uniformity across the batch.
2. What's the Difference Between Shelf and Manifold Freeze Dryers?
Shelf freeze dryers use heated shelves within a chamber to provide controlled heat input for sublimation, offering precise temperature control and uniform processing conditions across large batches. They excel in automated operations and process scaling.
Manifold freeze dryers connect multiple sample containers to a central vacuum manifold, relying primarily on ambient heat for sublimation energy. Manifold systems provide greater flexibility for different container types and sample sizes but offer less precise temperature control. Shelf systems are preferred for standardized processing and regulatory environments, while manifold systems suit research applications requiring sample diversity and smaller batch sizes.
3. How Often Should You Service Freeze Dryers?
Service frequency depends on equipment type, usage intensity and operating environment. Most manufacturers recommend annual preventive maintenance, including vacuum pump servicing, refrigeration system inspection and control system calibration. High-usage laboratories may require semiannual service intervals, particularly for oil-sealed vacuum pumps and complex automation systems.
4. Can One Freeze Dryer Serve Multiple Applications?
Freeze dryers can accommodate multiple applications through flexible design features and programmable control systems. Manifold freeze dryers inherently support diverse sample types and container configurations within single runs. Shelf-based systems with adjustable shelf spacing and multiple shelf temperature zones can process different sample types in separate batches.
Making an Informed Freeze Dryer Selection
Selecting the appropriate freeze dryer for your application requires a comprehensive evaluation of sample characteristics, throughput requirements, technical specifications and operational constraints. This freeze dryer guide has outlined the key considerations for making an informed decision that supports your laboratory's current work while providing flexibility for future growth.
By understanding the different types available and evaluating freeze dryer specifications against your needs, you can identify equipment that delivers reliable performance and value. The optimal choice balances performance, reliability and cost while supporting your laboratory's mission.
