Manufacturer
|
Agilent Technologies, Inc
|
|

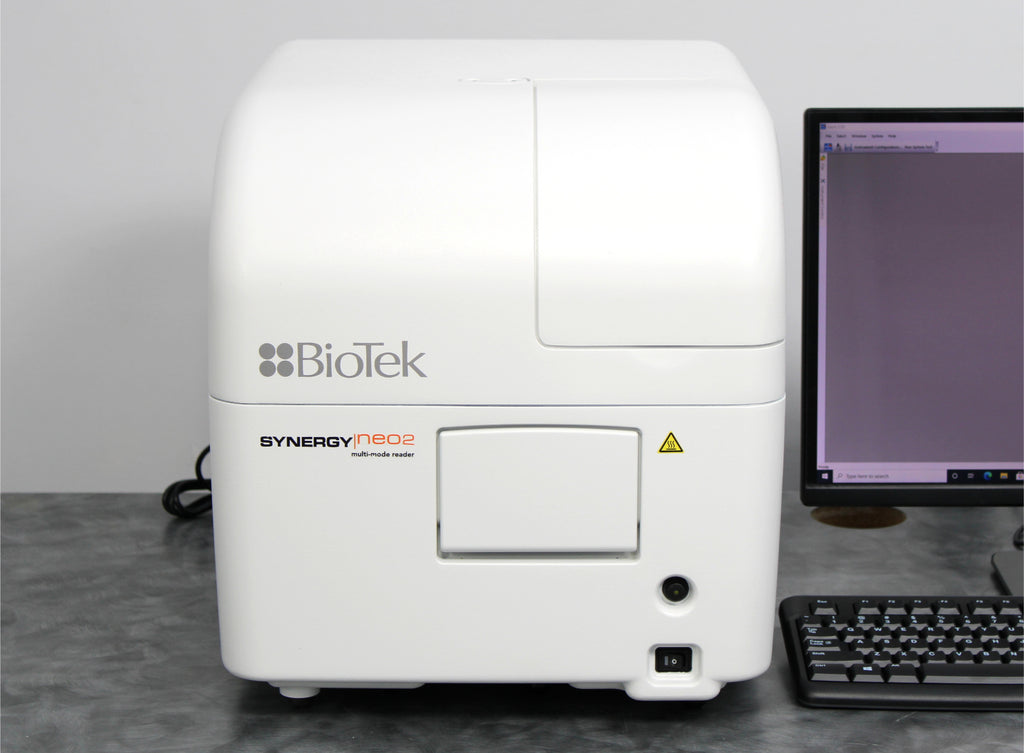

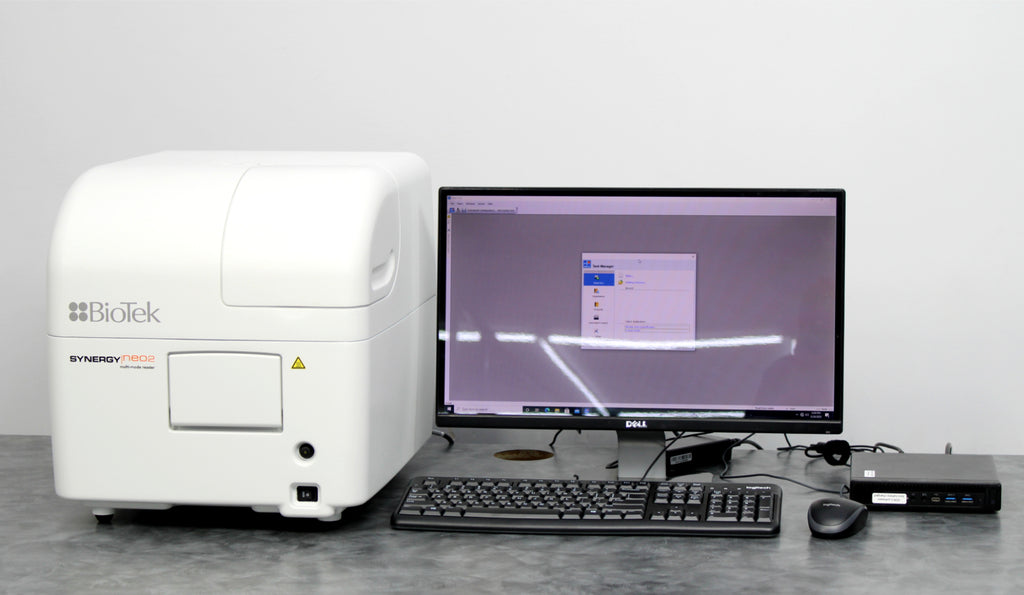

Model
|
Synergy Neo2
|
|

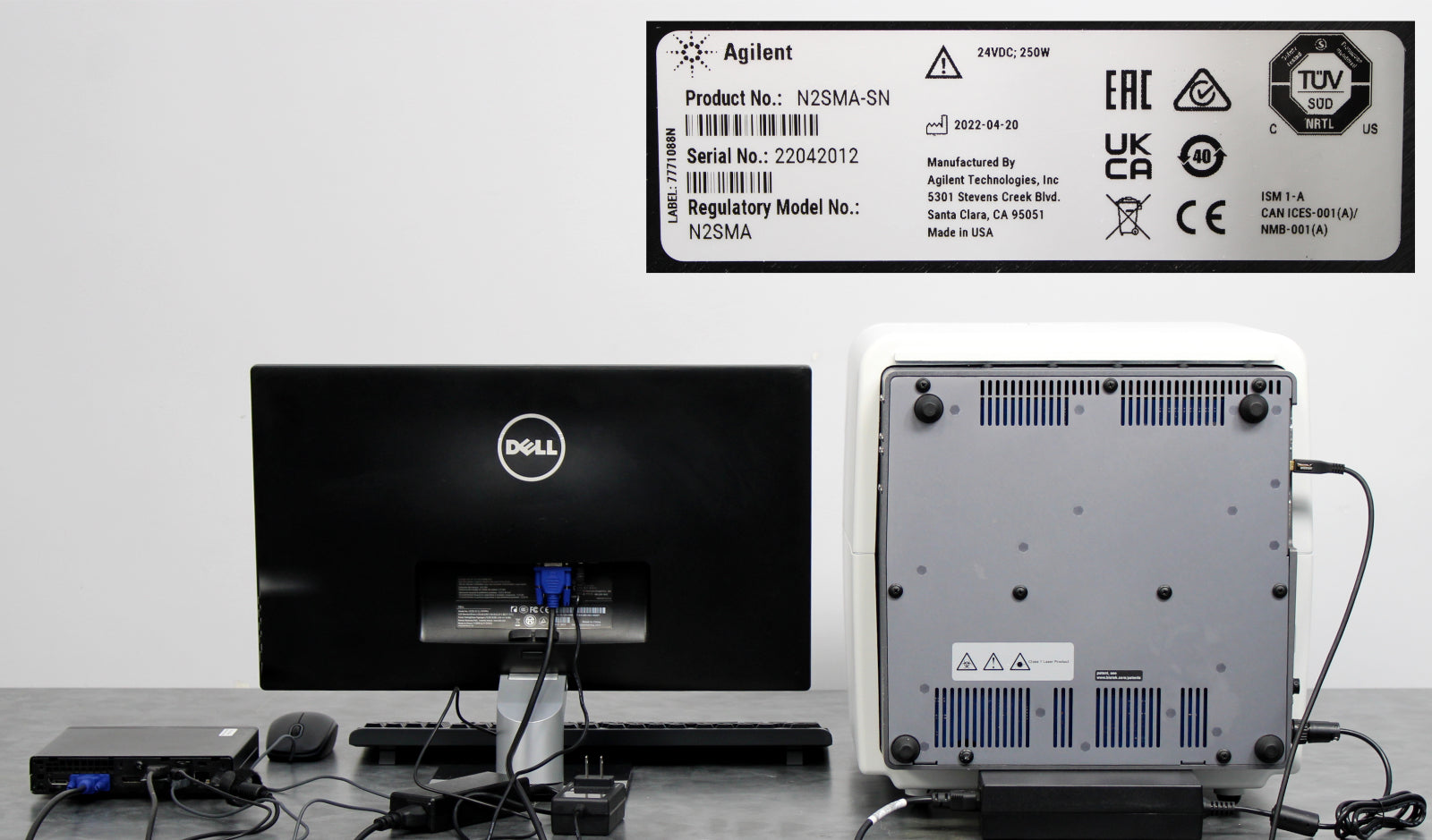

Product No.
|
N2SMA-SN
|
|
Serial No.
|
22042012
|
|
Mfg. date
|
2022-04-20
|
|
Detection modes
|
UV-Vis absorbance
Fluorescence intensity
Luminescence
Fluorescence polarization
Time-resolved fluorescence
Alpha
|
|
Read methods
|
End point, kinetic, spectral scanning, well-area scanning
|
|

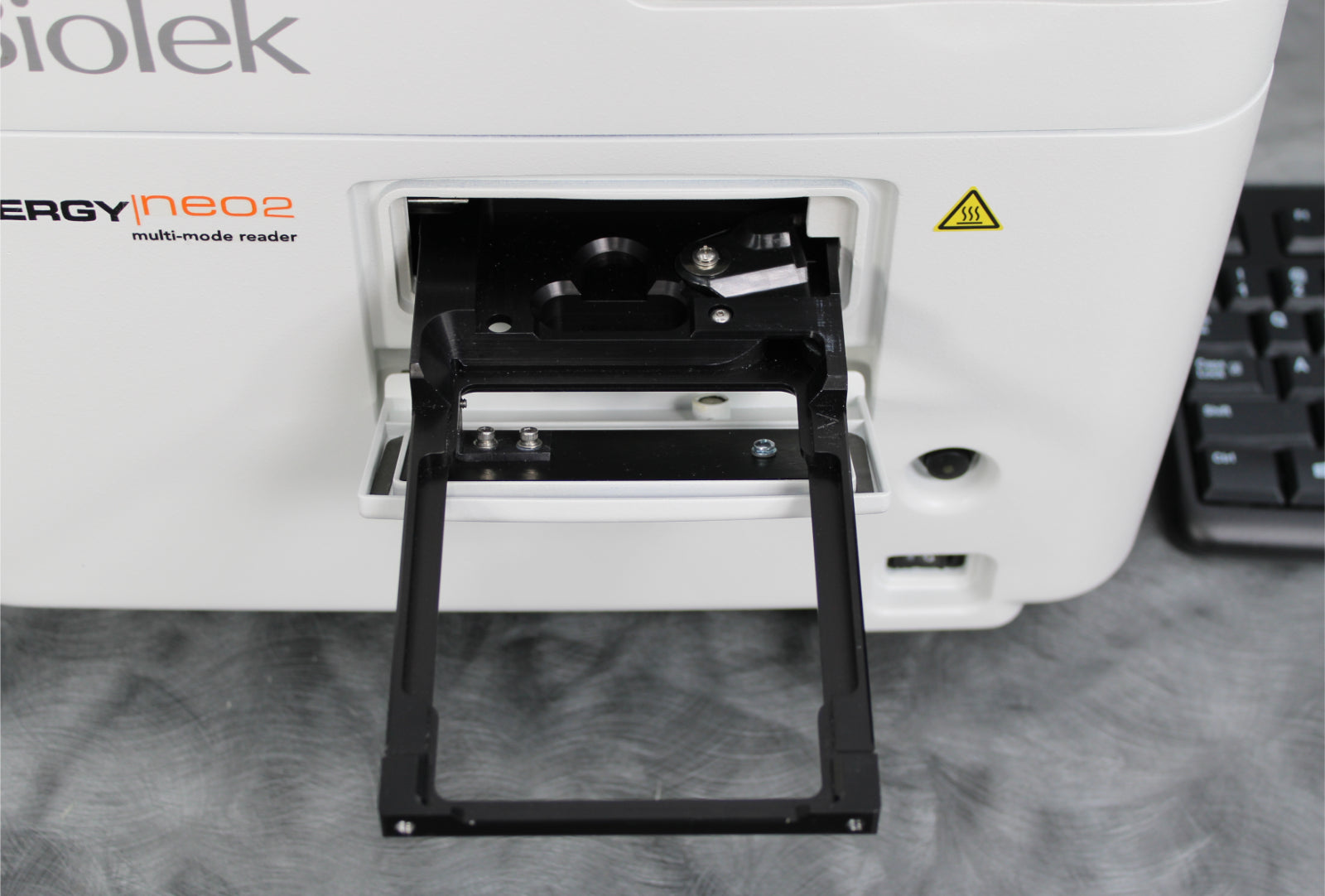

Microplate types
|
6- to 1536-well plates
|
|
Other labware supported
|
Petri and cell culture dishes
Agilent BioTek Take3 microvolume plates
|
|
Temperature control
|
4-Zone Incubation to 70°C with Condensation Control
±0.2°C at 37°C
|
|
Shaking
|
Linear, orbital, double orbital
|
|

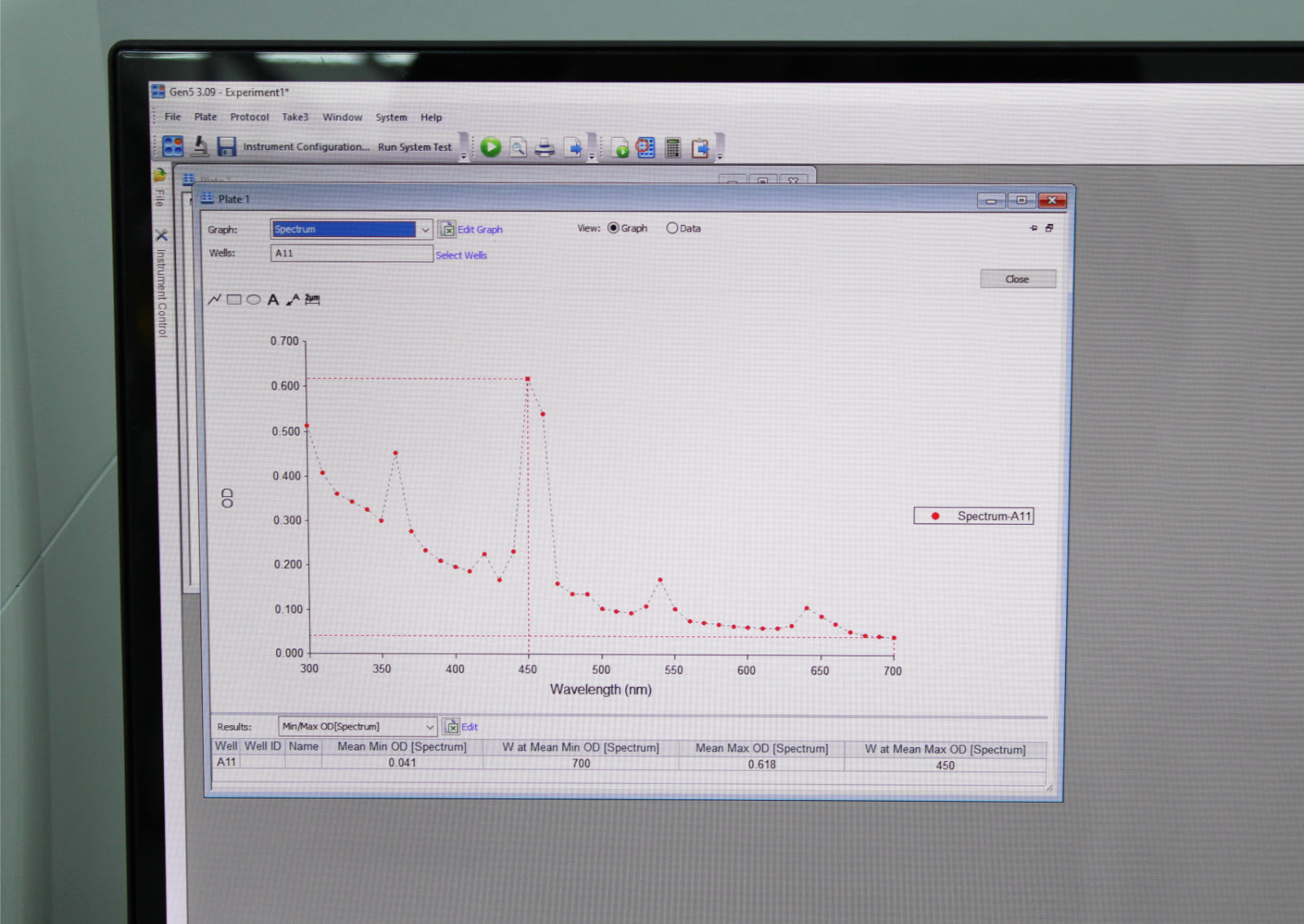

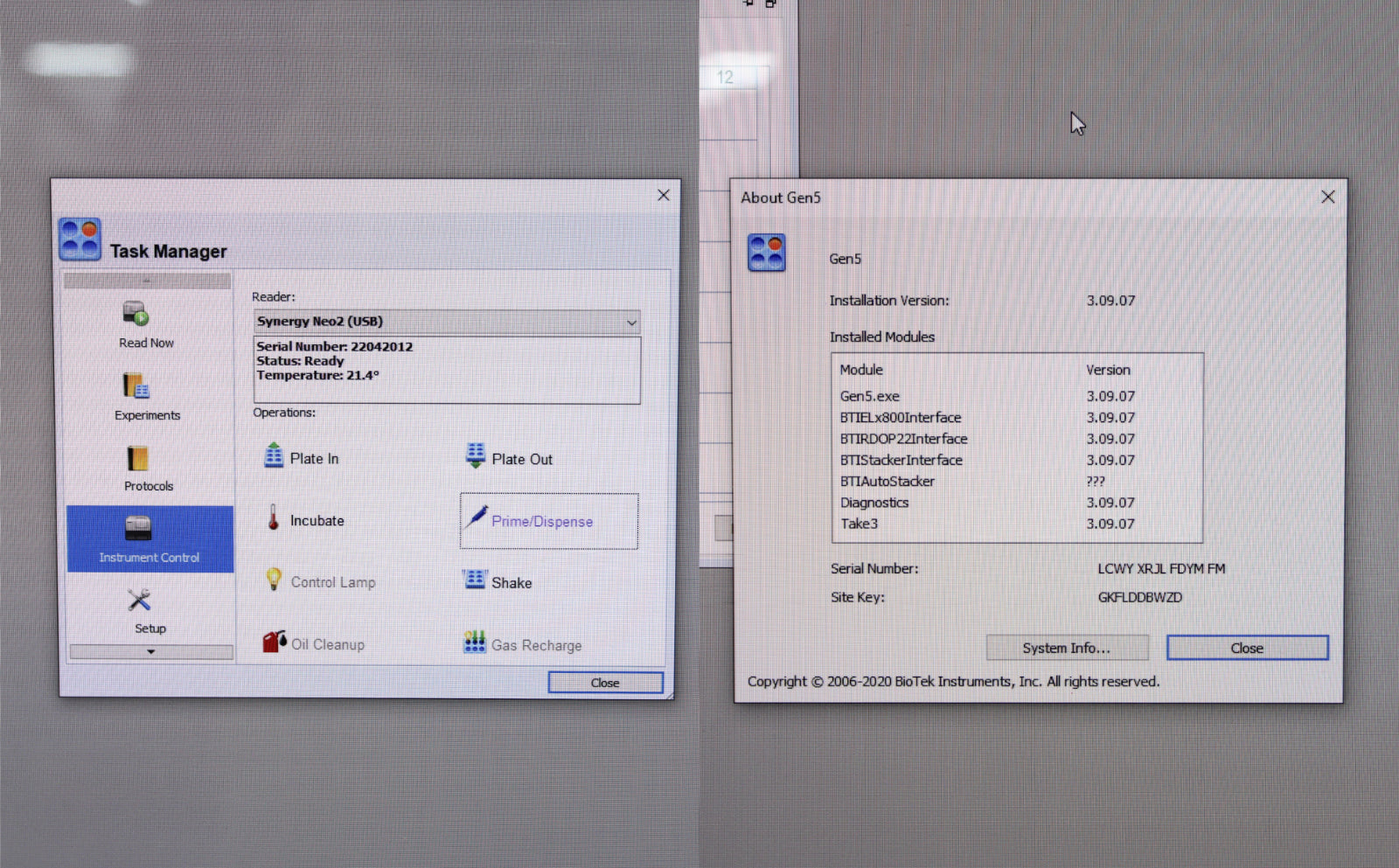

Software
|
Agilent BioTek Gen6 data analysis software
Agilent BioTek Gen5 Secure software enables 21 CFR Part 11 compliance (option)
|
|
Automation
|
Agilent BioTek BioStack microplate stacker and third-party automation compatible
Agilent BioTek BioSpa 8 automated incubator compatible
Agilent BenchCel microplate handler compatible
|
|
CO2 and O2 control (Option)
|
Range: 0-20% (CO2); 1-19% (O2)
Control resolution: ±0.1% (CO2 and O2)
Stability: ±0.2% at 5% CO2; ±0.2% at 1% O2
Models for CO2/O2, or CO2 only, are available
|
|
Barcode reader
|
1D and 2D camera-based scanner
|
|
Absorbance
|
|
|
Light source
|
Xenon flash
|
|
Detector
|
Photodiode
|
|
Wavelength selection
|
Monochromator
|
|
Wavelength range
|
230-999 nm, 1nm increments
|
|
Monochromator bandwidth
|
<3 nm (230-285 nm), <6 nm (>285 nm)
|
|
Dynamic range
|
0-0.4 OD
|
|
Resolution
|
0.0001 OD
|
|
Path length correction
|
Yes
|
|
Monochromator wavelength accuracy
|
±2 nm
|
|
Monochromator wavelength repeatability
|
±0.2 nm
|
|
OD accuracy
|
<1% at 2.0 OD
<3% at 3.0 OD
|
|
OD linearity
|
<1% from 0-3.0 OD
|
|
OD repeatability
|
<0.5% at 2.0 OD
|
|
Stray light
|
0.03% at 230 nm
|
|
Reading speed (kinetic)
|
96 wells: 6 s
|
|
Fluorescence Intensity
|
|
|
Light source
|
Xenon flash
|
|
Detector
|
PMT
|
|
Wavelength selection
|
Quad monochromators (top/bottom)
Filters (top/bottom)
|
|
Wavelength range
|
Monochromators: 250-700 nm (850 nm option)
Filters: 200-700 nm (850 nm option)
|
|
Monochromator bandwidth
|
Variable, from 3 to 50 nm in 1 nm increments
|
|
Dynamic range
|
7 decades
|
|
Sensitivity
|
Filters:
Fluorescein 0.2 pM (4 amol/well, 20 μL, 384-well low-volume plate)—top
Fluorescein 1 pM (10 amol/well, 10 μL, 1536-well plate)—top
Fluorescein 1 pM (0.1 fmol/well, 100 μL, 384-well plate)—bottom
Quad monochromator:
Fluorescein 2 pM (40 amol/well, 20 μL, 384-well low-volume plate)—top
Fluorescein 2.5 pM (0.25 fmol/well, 100 μL, 384-well plate)—bottom
|
|
Reading speed (kinetic)
|
96 wells: 6 s
384 wells: 11 s
1536 wells: 25 s
|
|
Luminescence
|
|
|
Wavelength range
|
300-700 nm
|
|
Dynamic range
|
>6 decades
|
|
Sensitivity
|
5 amol ATP typical (384-well low-volume plate)
|
|
Fluorescence Polarization
|
|
|
Light source
|
Xenon flash
|
|
Detector
|
PMT
|
|
Wavelength selection
|
Filters
|
|
Wavelength range
|
280-700 nm (850 nm option)
|
|
Sensitivity
|
1 mP standard deviation at 1 nM fluorescein
|
|
Time-Resolve Fluorescence
|
|
|
Light source
|
Xenon flash or TRF laser (option)
|
|
Detector
|
Dual PMT or single PMT (option)
|
|
Wavelength selection
|
Filters (top/bottom)
|
|
Sensitivity
|
With TRF laser: 5 fM (384-well low-volume plate)
With Xenon flash lamp: 40 fM (384-well low-volume plate)
|
|
Alpha Detection
|
|
|
Light source
|
100 mW 680 nm laser
|
|
Detector
|
PMT
|
|
Wavelength selection
|
Filters (top)
|
|
Sensitivity
|
100 amol LCK peptide (384-well low-volume plate)
|
|
Read speed
|
96 wells: 30 s
384 wells: 1 min 50 s
1536 wells: 7 min 20 s
|
|
Reagent Dispensers
|
|
|
Supported detection modes
|
All modes
|
|
Number
|
2 syringe pumps
|
|
Supported labware
|
6- to 384-well plates, Petri dishes
|
|
Dead volume
|
1.1 mL, with backflush
|
|
Dispense volume
|
5-1,000 µL in 1 µL increments
|
|
Dispense accuracy
|
±1 µL or 2%
|
|
Dispense precision
|
≤2% at 50-200 µL
|
|
Physical characteristics
|
|
|

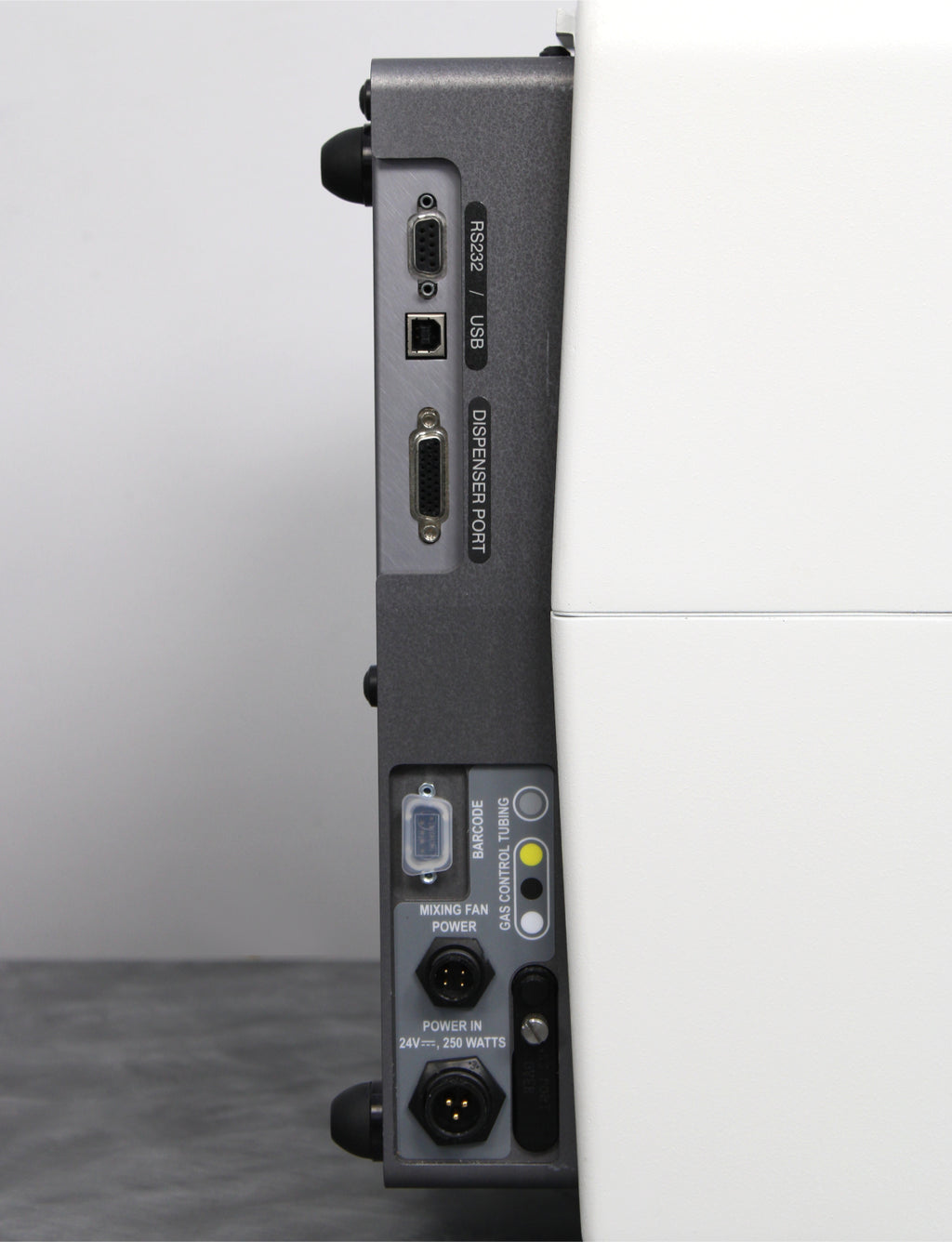

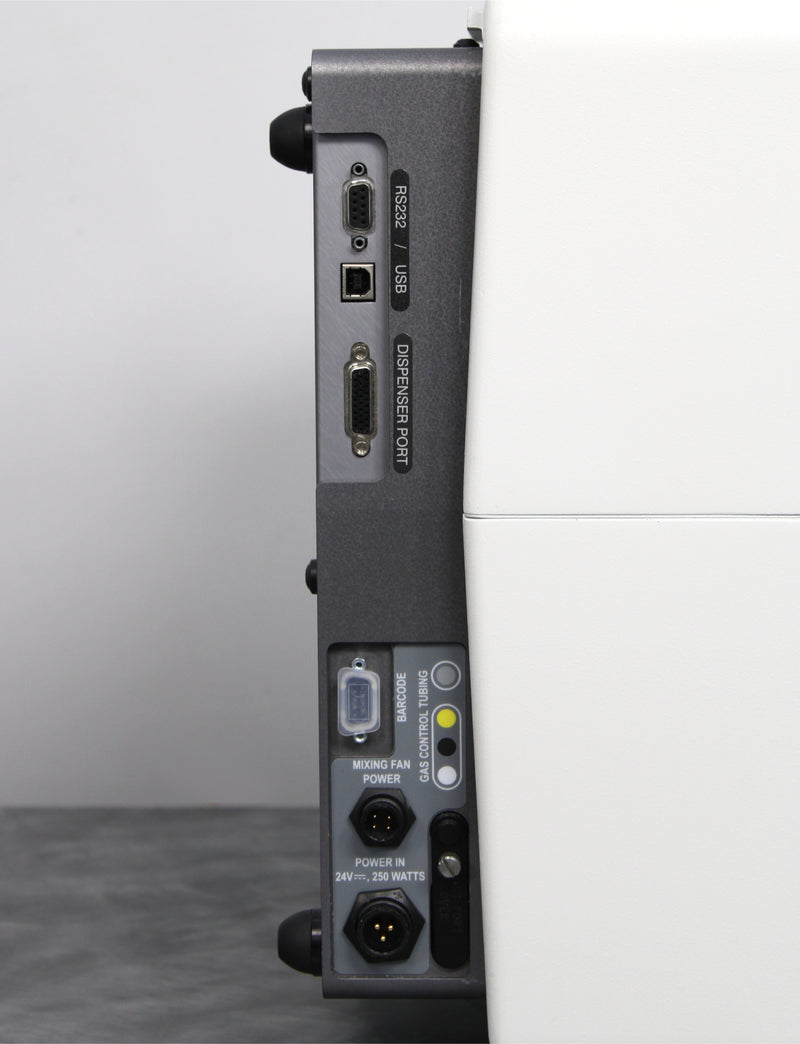

Power rating
|
24VDC
|
|
Power consumption
|
250W max.
|
|
Dimensions (W x D x H)
|
Without TRF laser:
15.4 x 20.7 x 16.1 in (39.2 x 52.5 x 40.8 cm)
With TRF laser:
15.4 x 24.2 x 16.1 in (39.2 x 61.4 x 40.8 cm)
|
|
Weight
|
Without TRF laser: 78 lb (35.4 kg)
With TRF laser: 100 lb (45.3 kg)
|
