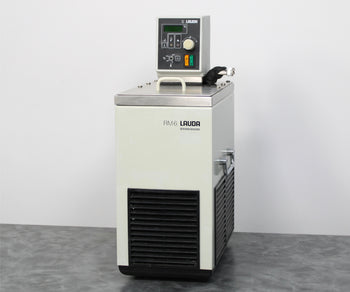

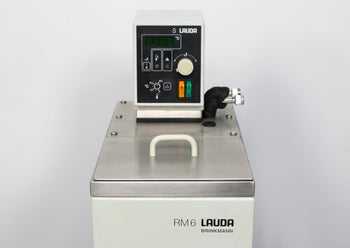

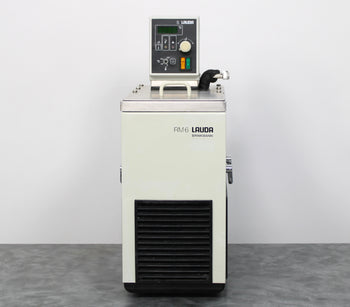

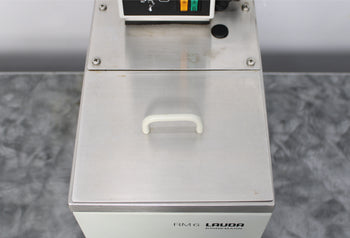

- Lauda Brinkman RM6-S Refrigerated Circulating Bath and Lid

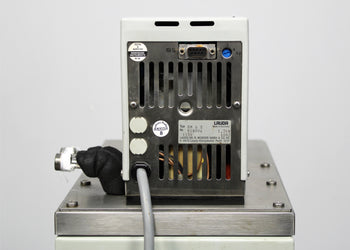

- 115V Attached Power Cable
- 90-Day Warranty

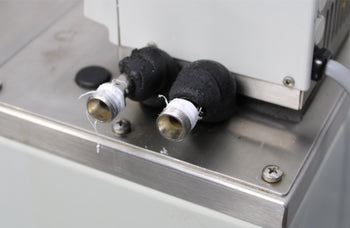

Notice: Application specific plumbing must be acquired separately.
After its initial disinfection and inspection, our technicians tested the Lauda Brinkman RM6-S refrigerated circulating bath with the following results:
- Ran to -15°C and held steady: PASSED
- Ran to +30°C and held steady: PASSED
- Flow and circulation: PASSED

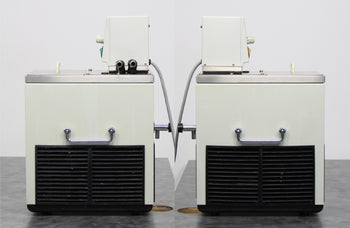

Notice: This bath has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Lauda
|
|
Model
|
RM 6 S
|
|

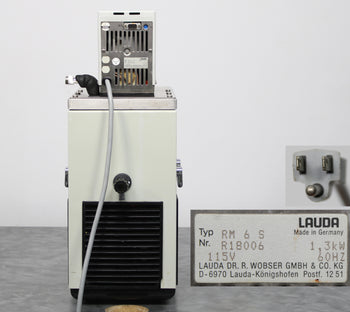

Serial No.
|
R18006
|
|
Temperature range
|
-15 to 100°C
|
|

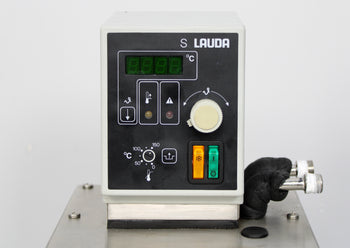

Temperature setting
|
Digital, using 10-turn potentiometer and numerical indication; resolution of indication 0.1°C, potentiometer approx. 0.03°C
|
|
Fixed temperature
|
25, 35, 37, 56°C
|
|
Indicating thermometer
|
Built-in digital thermometer (LCD display) 0.1°C resolution, absolute accuracy better than 0.3% of range
|
|
Temperature probe/control action
|
Pt 500 platinum resistance thermometer/PID
|
|
Temperature control (at -10°C)
|
±0.01°C
|
|
Heating load
|
Automatic adjustment as required 0 to 1 kW
|
|
Cooling rating (kW) eff.
|
20°C ‒ 0.2
0°C ‒ 0.14
-10°C ‒ 0.08
-15°C ‒ 0.05
|
|
Output (pump output)/output pressure
|
8 1/min against zero head/0.15 bar (1.5 m WG)
|
|
Liquid volume
|
4 ‒ 6l
|
|
Bath liquid
|
Deionised water (5 to 100°C)
Water/ethylene glycol mixture 1:1 (-30 to 100°C)
|
|
Interface suppression
|
Grade N
|
|
Power rating
|
115V, 60Hz
|
|
Power consumption
|
1.3kW
|
|

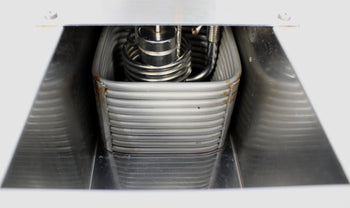

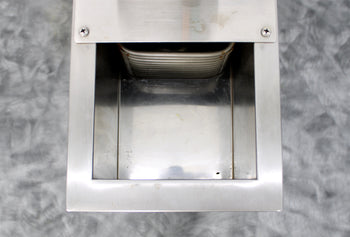

Bath opening/depth
|
5.9 x 5.2 / 6.3 in (150 x 130 / 160 mm)
|
|
Usable liquid depth
|
5.5 in (140 mm)
|
|
Dimensions (W x D x H)
|
8 x 16 x 21.5 in
|
|
Weight
|
52.9 lb (24 kg)
|
