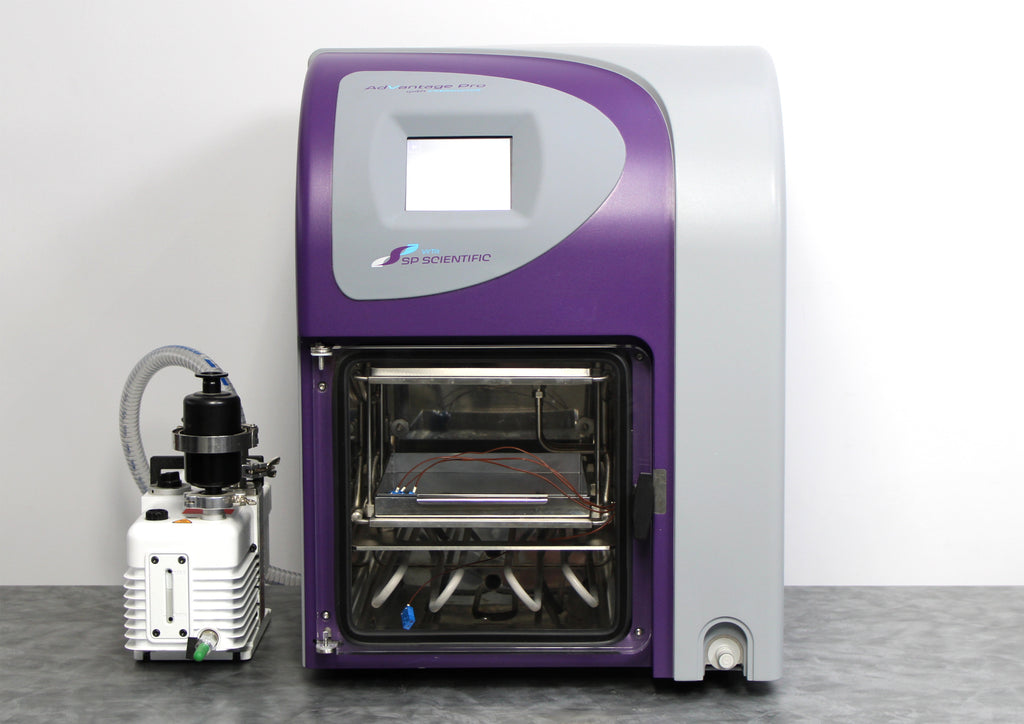

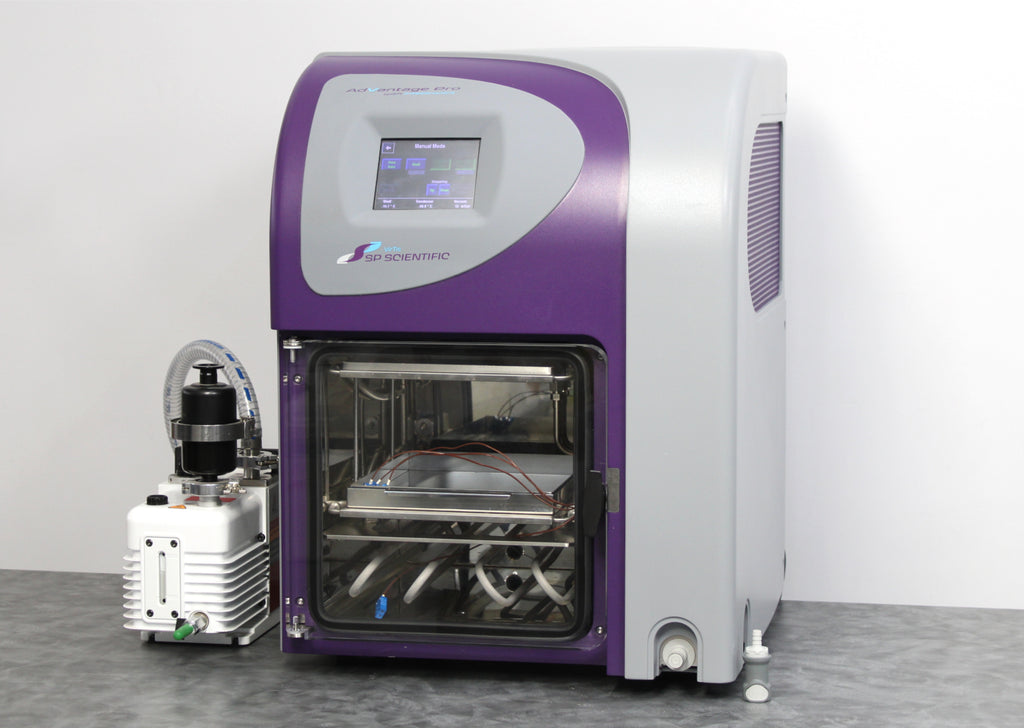

- SP Scientific VirTis AdVantage Pro Stoppering Tray Freeze Dryer (ADP-S1EL-EVA-X)

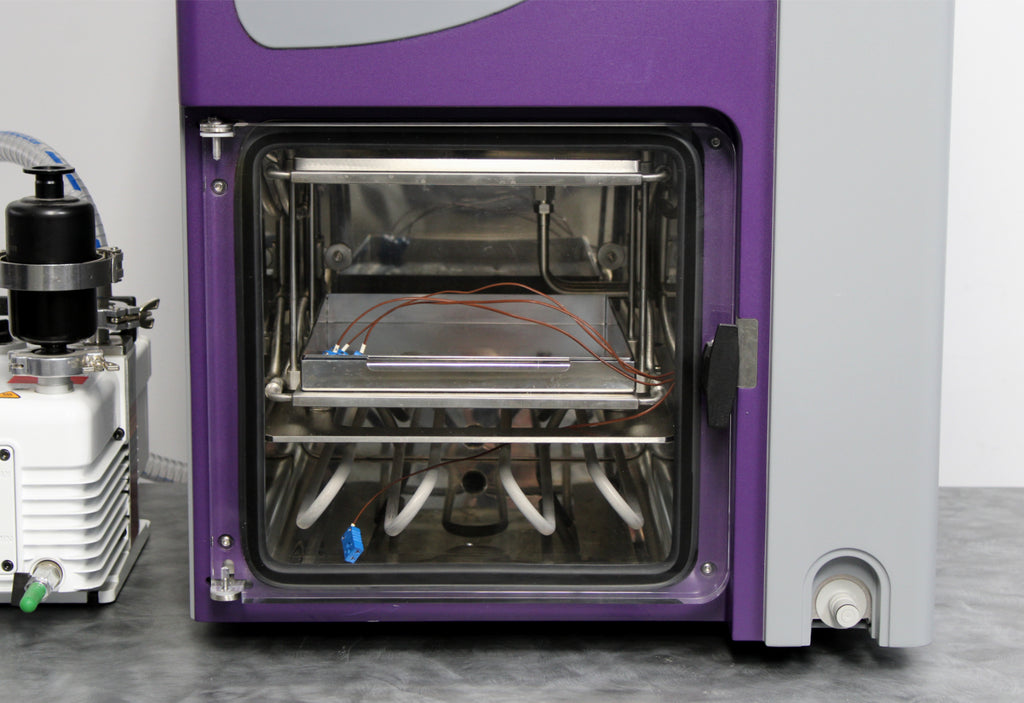

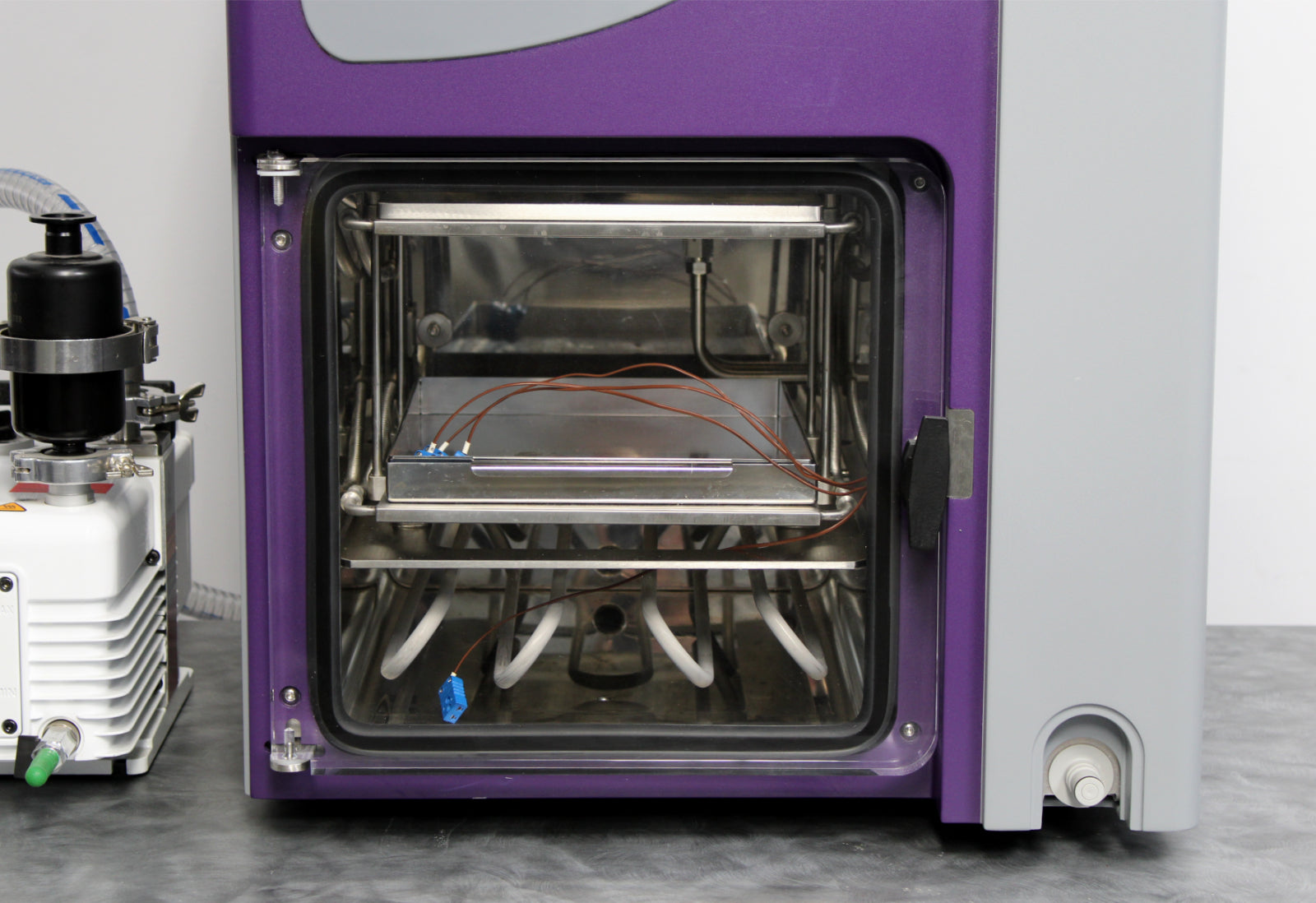

- Shelf with Stoppering
- Tray

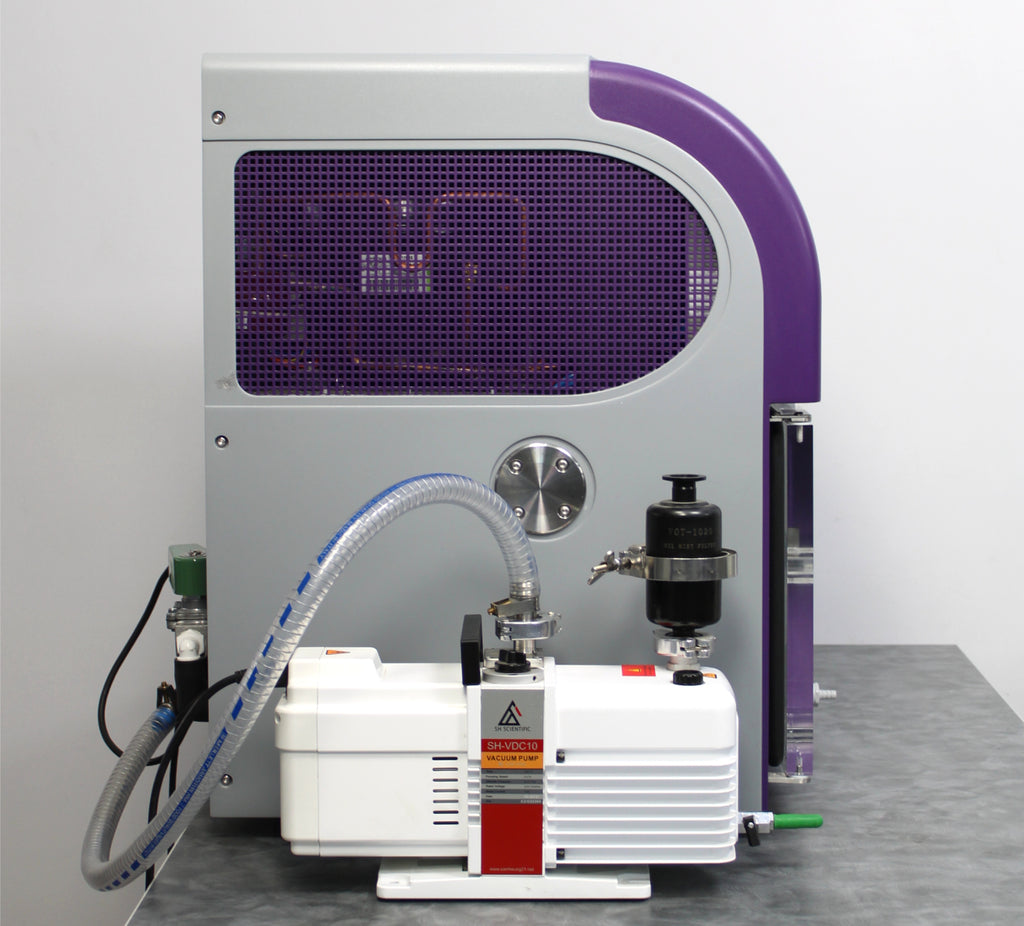

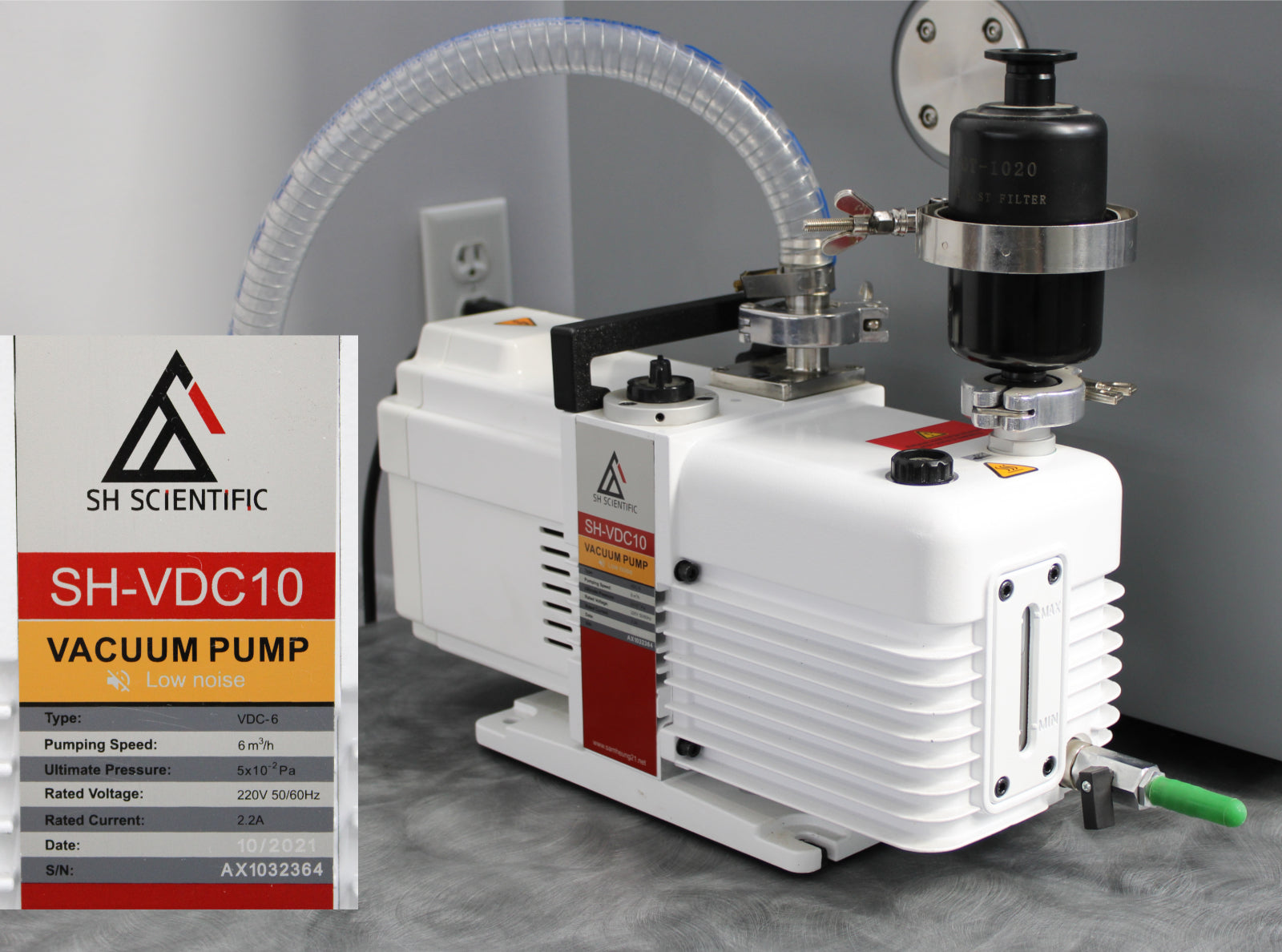

- SH Scientific SH-VDC10 Vacuum Pump
- Vacuum Pump Hose
- Vacuum Pump Power Cable
- 208V Power Cable
- 90-Day Warranty

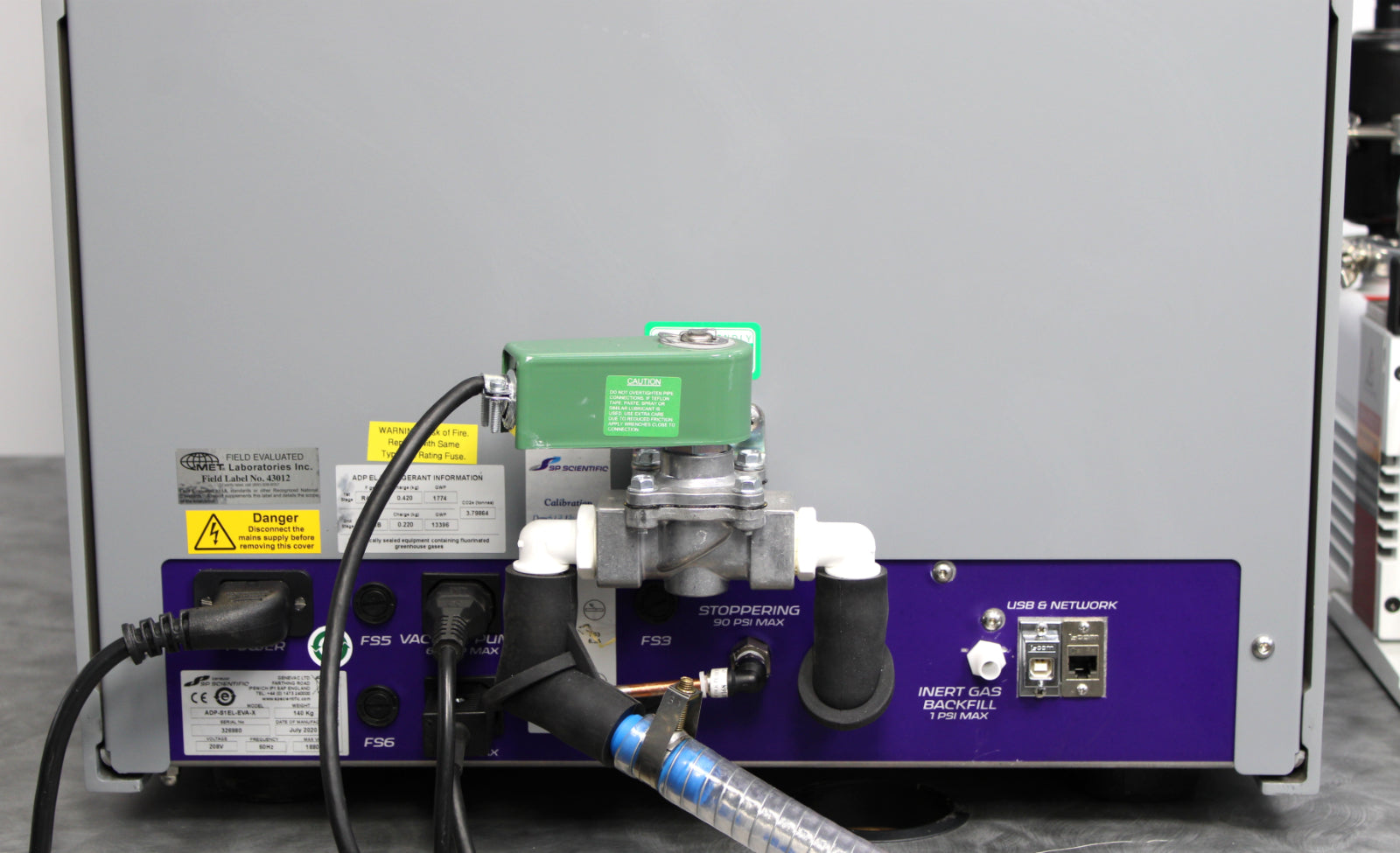

Note: This freeze dryer has the stoppering option. You will need to have an air source connected to the back of the dryer to use the stoppering option.

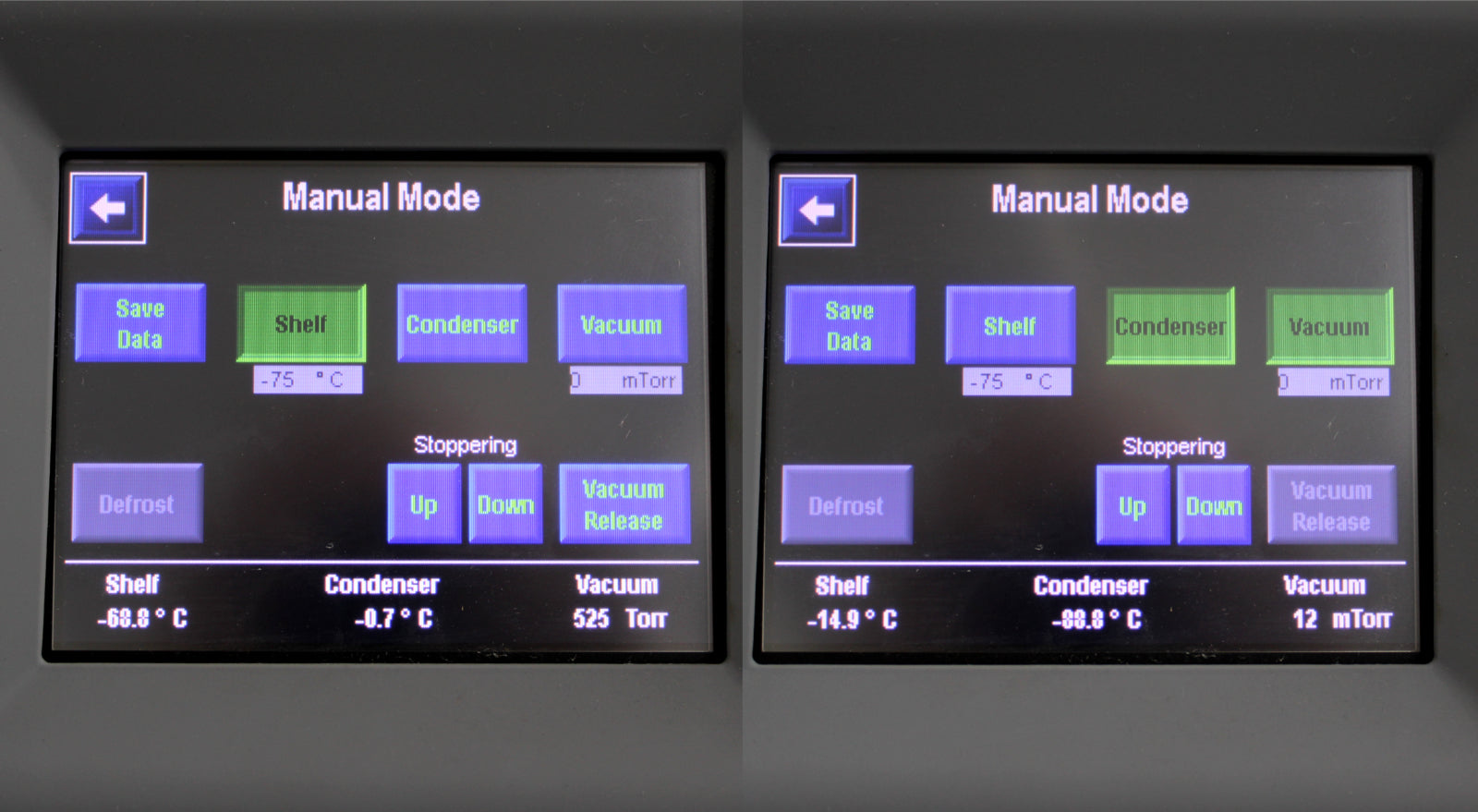

After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis AdVantage Pro stoppering tray freeze dryer with the following results:
- Shelf temperature achieved -68.8°C: PASSED
- Condenser temperature achieved -88.8°C: PASSED
- Vacuum achieved 12mT: PASSED
- Stoppering: PASSED
- Defrost: PASSED
|
Manufacturer
|
SP Scientific
|
|
Model
|
AdVantage Pro
|
|

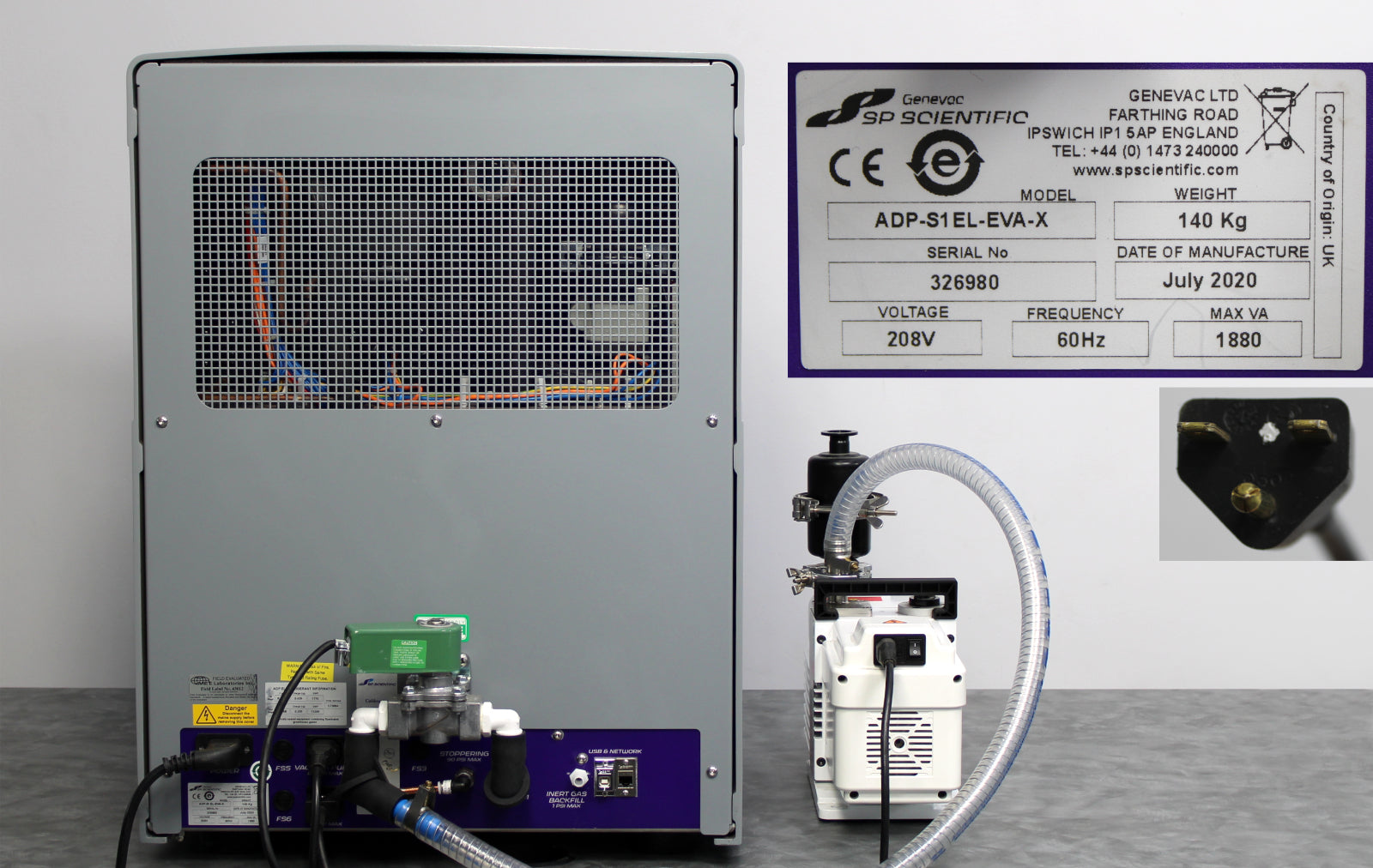

Model No.
|
ADP-S1EL-EVA-X
|
|
Serial No.
|
326980
|
|
Mfg. date
|
July 2020
|
|
Shelf temperature control range
|
-55 to 60°C
|
|
Lowest shelf temperature (50 Hz / 60 Hz)
|
-62 °C / -65 °C
|
|
Shelf pull-down from 20°C to -40°C‡
|
≤ 35 minutes
|
|
Temperature uniformity
|
± 1.0 °C
|
|
Lowest condenser temp. (50 Hz / 60Hz)
|
-82°C / -85°C
|
|
Max. condenser capacity
|
6 L
|
|
Max. ice condensing capacity in 24 hours
|
4 L
|
|
Number of compressors
|
2
|
|
Compressor horsepower
|
1/3, 3/4
|
|
System refrigerant
|
R508B, R407C
|
|
Refrigerant type
|
CFC-free
|
|
Defrost type
|
Hot gas
|
|
Construction
|
AISI Type 316L SS
|
|
Shelf dimensions (W x D x H)
|
10.2 x 14 x 0.4 in (26 x 35.5 x 1.0 cm)
|
|
Power rating
|
208V, 60Hz
|
|
Power consumption
|
1880VA max
|
|
Dimensions (W x D x H)
|
22.2 x 25.7 x 29.7 in (56.5 x 65.3 x 75.4 cm)
|
|
Weight
|
308.6 lb (140 kg)
|
