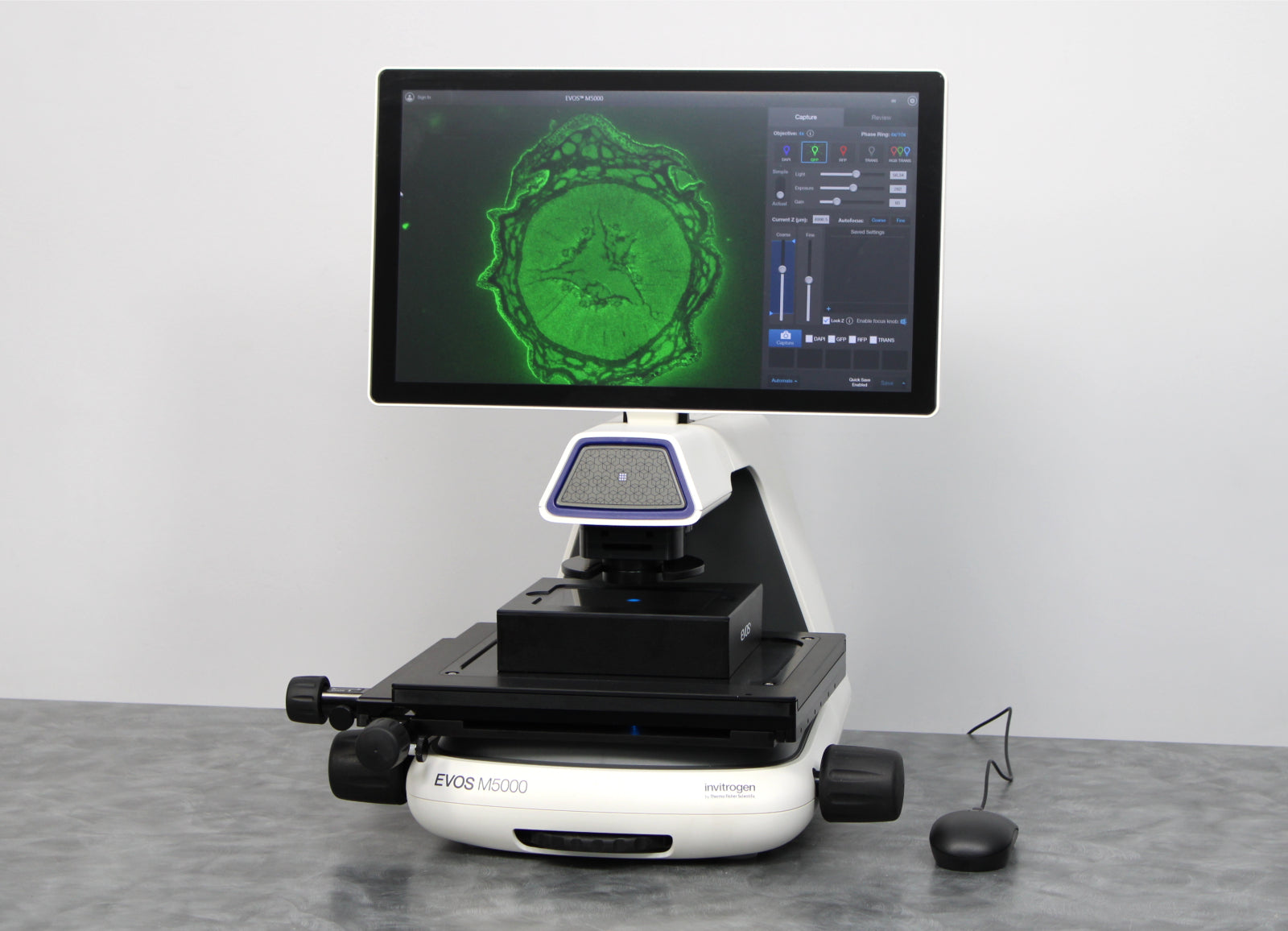

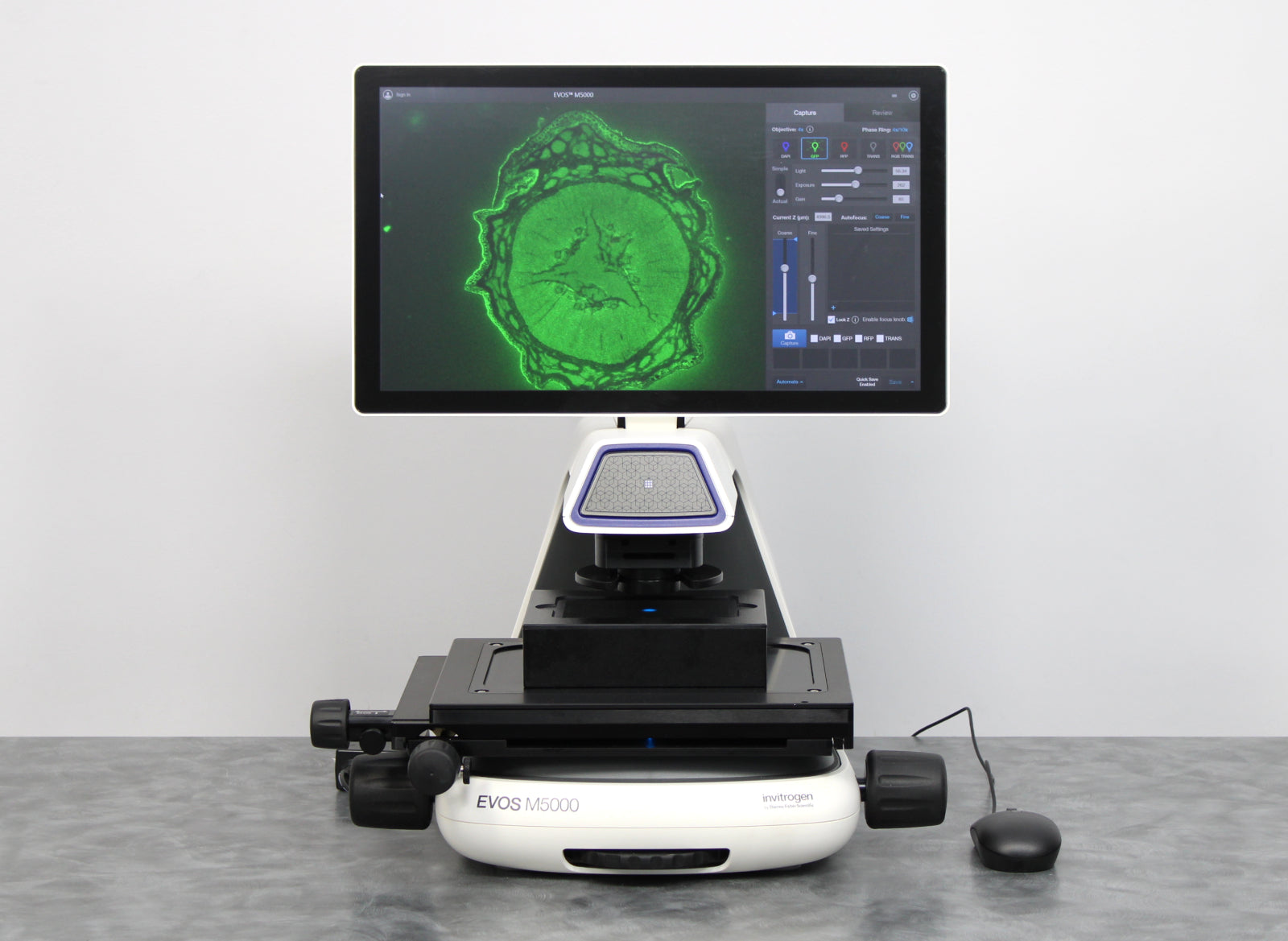

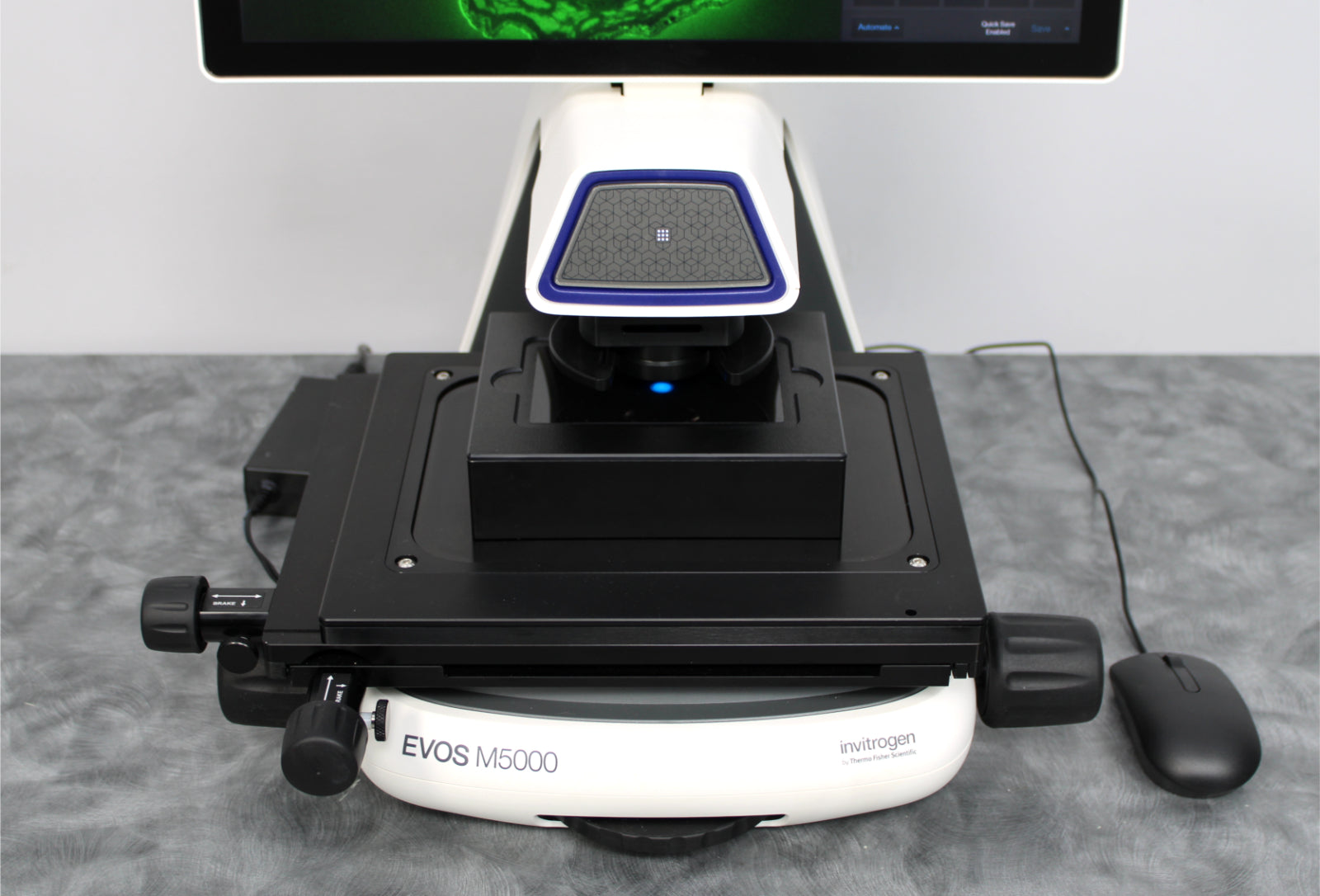

- Thermo Scientific Invitrogen EVOS M5000 Digital Inverted Benchtop Microscope (AMF5000)
- 40x EVOS 0.65 LWD non-Phase 4925 Objective
- 20x EVOS 0.45 LWD Phase 4982 Objective
- 10x EVOS 0.3 LWD Phase 4981 Objective
- 4x EVOS 0.13 LWD Phase 4980 Objective
- EVOS LED Cube DAPI 2.0 AMEP 4950 Blue
- EVOS LED Cube GFP 2.0 AMEP 4951 Green
- EVOS LED Cube RFP 2.0 AMEP 4952 Red
- Shield Holder
- Light Filter
- Mouse
- AC Power Adapter
- Power Cable
- 90-Day Warranty
Notice: The shipping block and tray locking pin must be removed for the microscope to complete initialization.
After its initial disinfection and inspection, our technicians tested the Thermo Scientific Invitrogen EVOS M5000 digital inverted benchtop microscope with the following results:
- Imaging: PASSED
- Light cubes: PASSED
- Objectives: PASSED
- Stage adjustment: PASSED
|

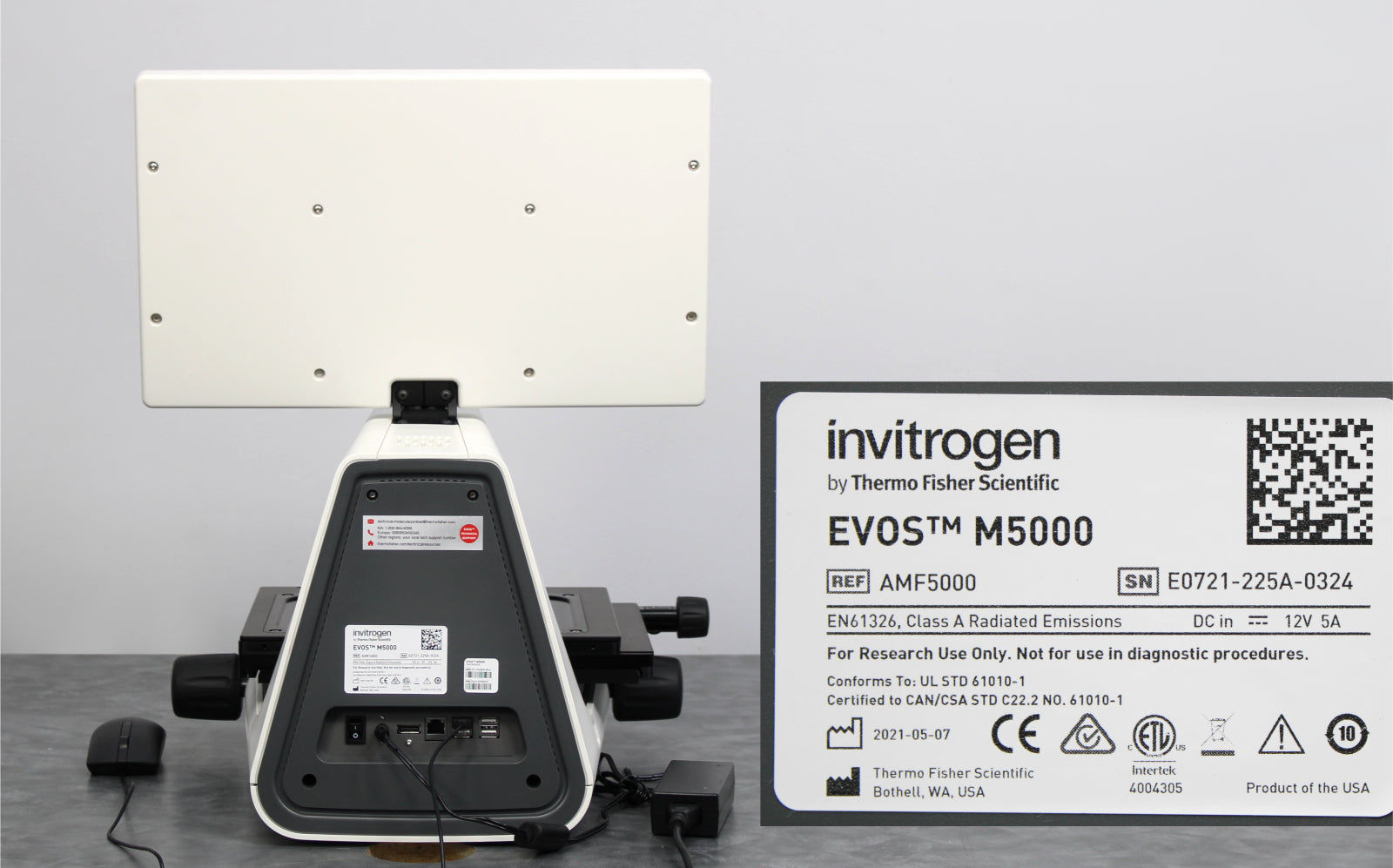

Manufacturer
|
Thermo Fisher Scientific
|
|
Model
|
EVOS M5000
|
|
Ref. No.
|
AMF5000
|
|
Serial No.
|
E0721-225A-0324
|
|
Mfg. Date
|
2021-05-07
|
|
Imaging mode
|
Fluorescence, brightfield, color brightfield, phase contrast
|
|
Imaging methods
|
Single color, multicolor, time lapse, Z-stacking, movie capture
|
|
Illumination
|
Adjustable-intensity LED light cubes with integrated hard-coated filter set and >50,000-hour life
|
|
Light cube capacity
|
4-position chamber, for 4 fluorescence cubes + brightfield
|
|
Light cubes (not included)
|
Broad selection of standard and specialty light cubes. Commonly used light cubes include (ex/em):
- DAPI (357/447 nm)
- GFP (470/525 nm)
- RFP (531/593 nm)
- Texas Red (585/624 nm)
- Cy5 (628/692 nm)
|
|

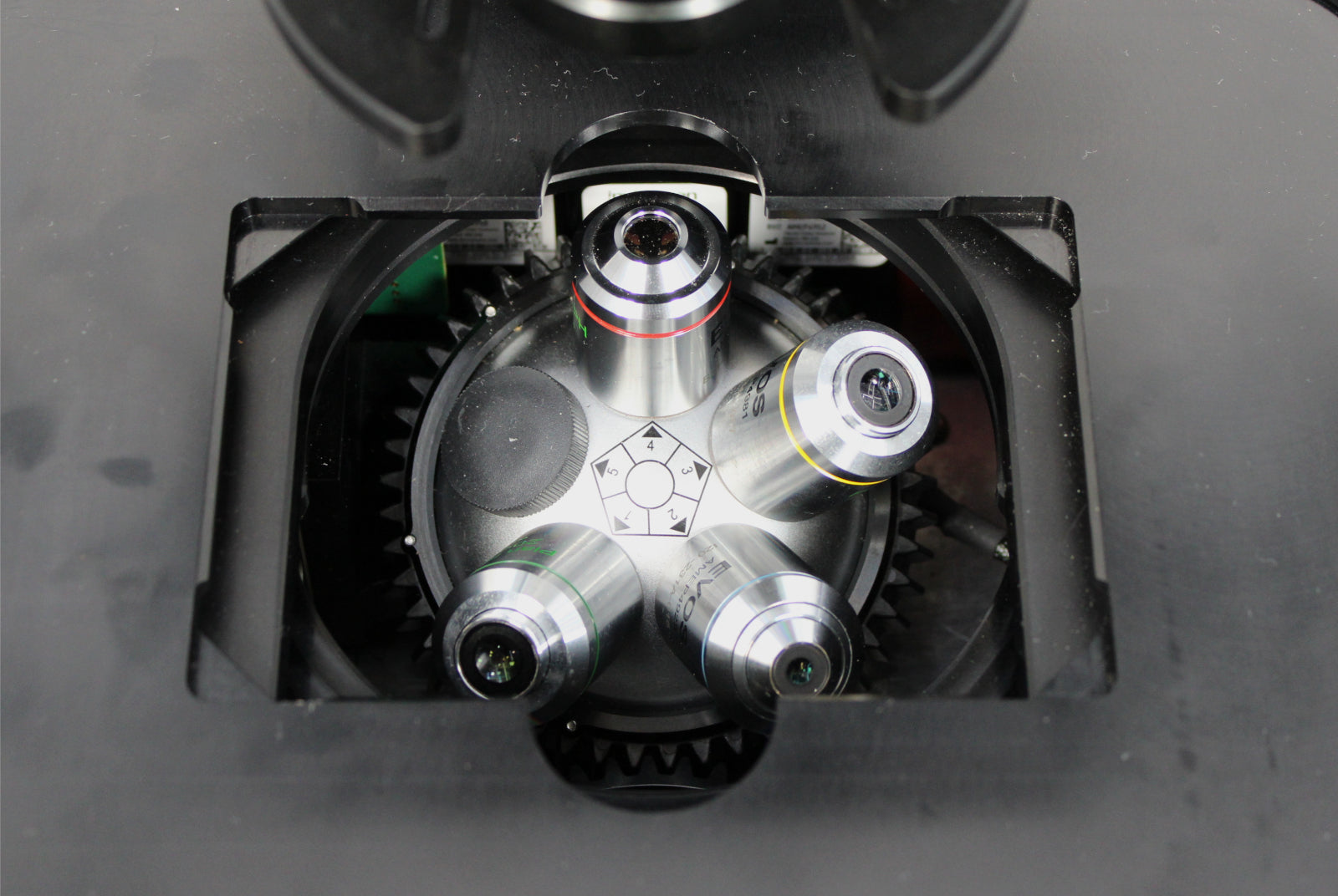

Objective capacity
|
5-position manual turret, not automated
|
|
Condenser
|
60-mm LWD condenser; 4-position turret with a clear aperture and 3 phase annuli
|
|
Focus mechanism
|
Automated focus with sub-micron (0.150um) resolution (single-step accuracy)
|
|
Monochrome camera
|
High-sensitivity 3.2 MP (2048 x 1536) CMOS sensor with 3.45 um pixel resolution
|
|
Captured images
|
16-bit RAW monochrome: TIFF, PNG (12-bit dynamic range)
8-bit color: TIFF, PNG, JPG
Movies and time-lapse: AVI, WMV
|
|

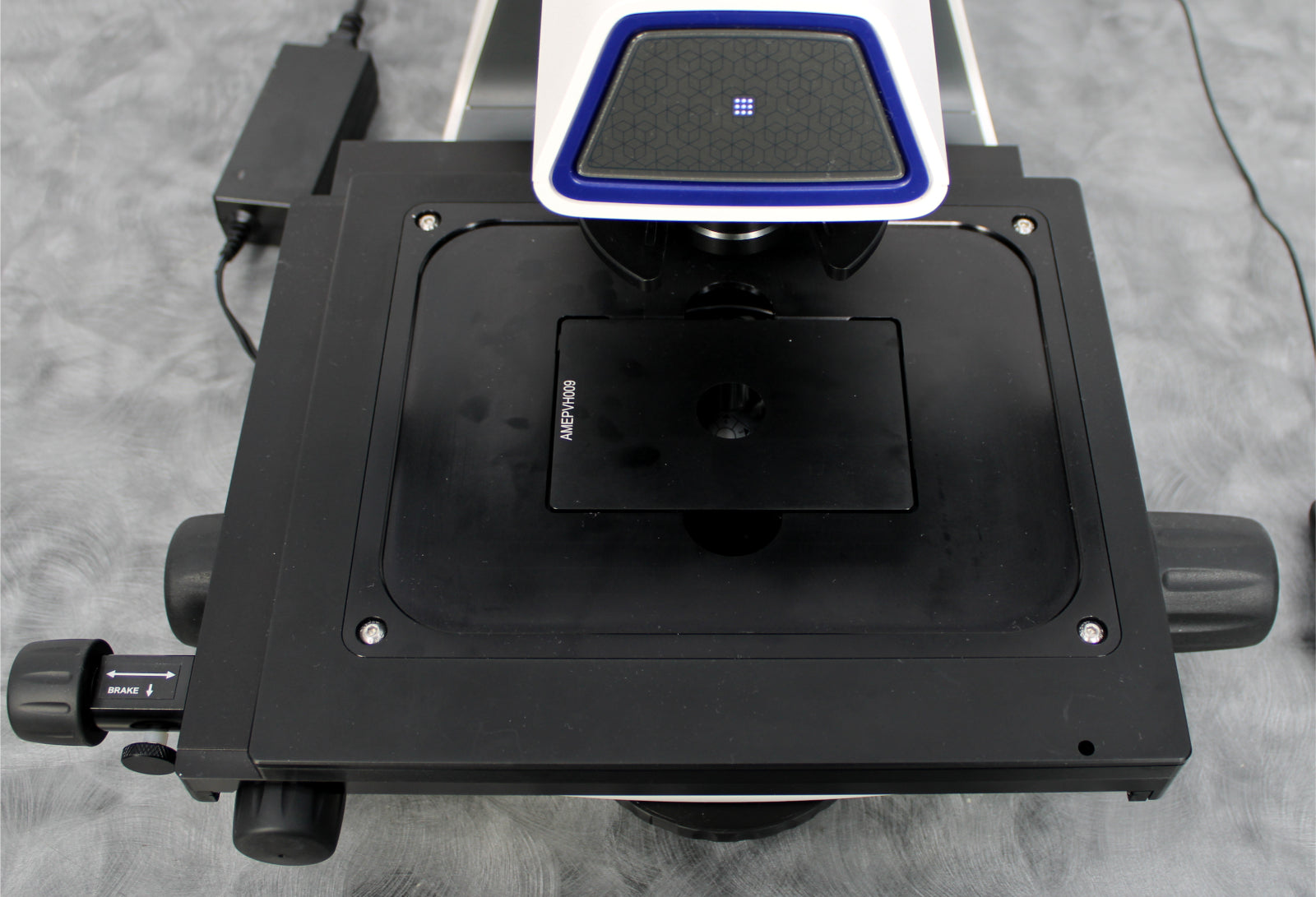

X/Y stage
|
Travel range 120mm x 80mm with sub-micron resolution
Drop-in inserts to receive vessel holders
|
|
Stage mechanism
|
Mechanical
|
|
DC voltage
|
12V, 5A
|
|
Dimensions (W x D x H)
|
18 x 18 x 23 in
|
|
Weight
|
36 lb (16.4 kg)
|
