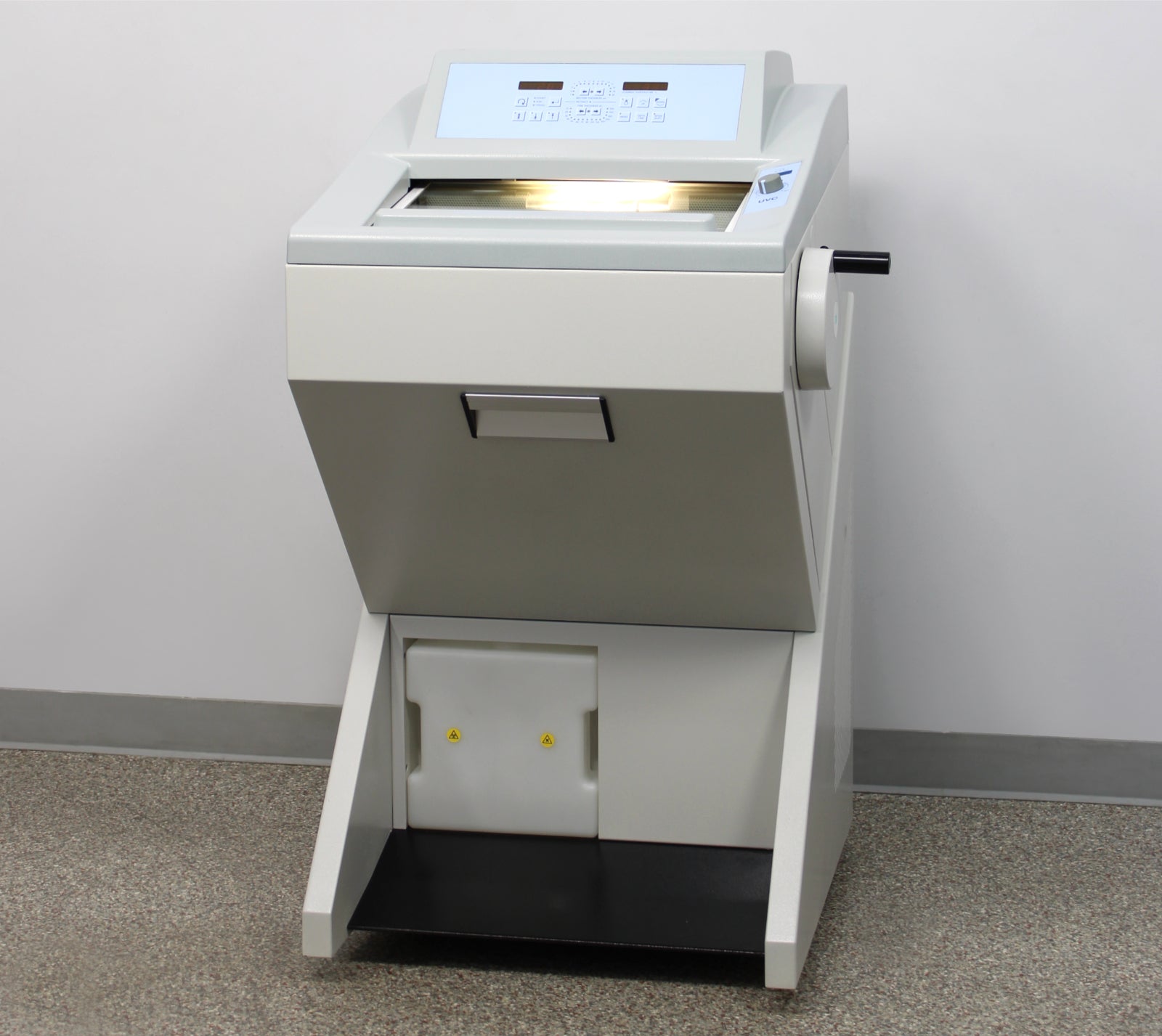

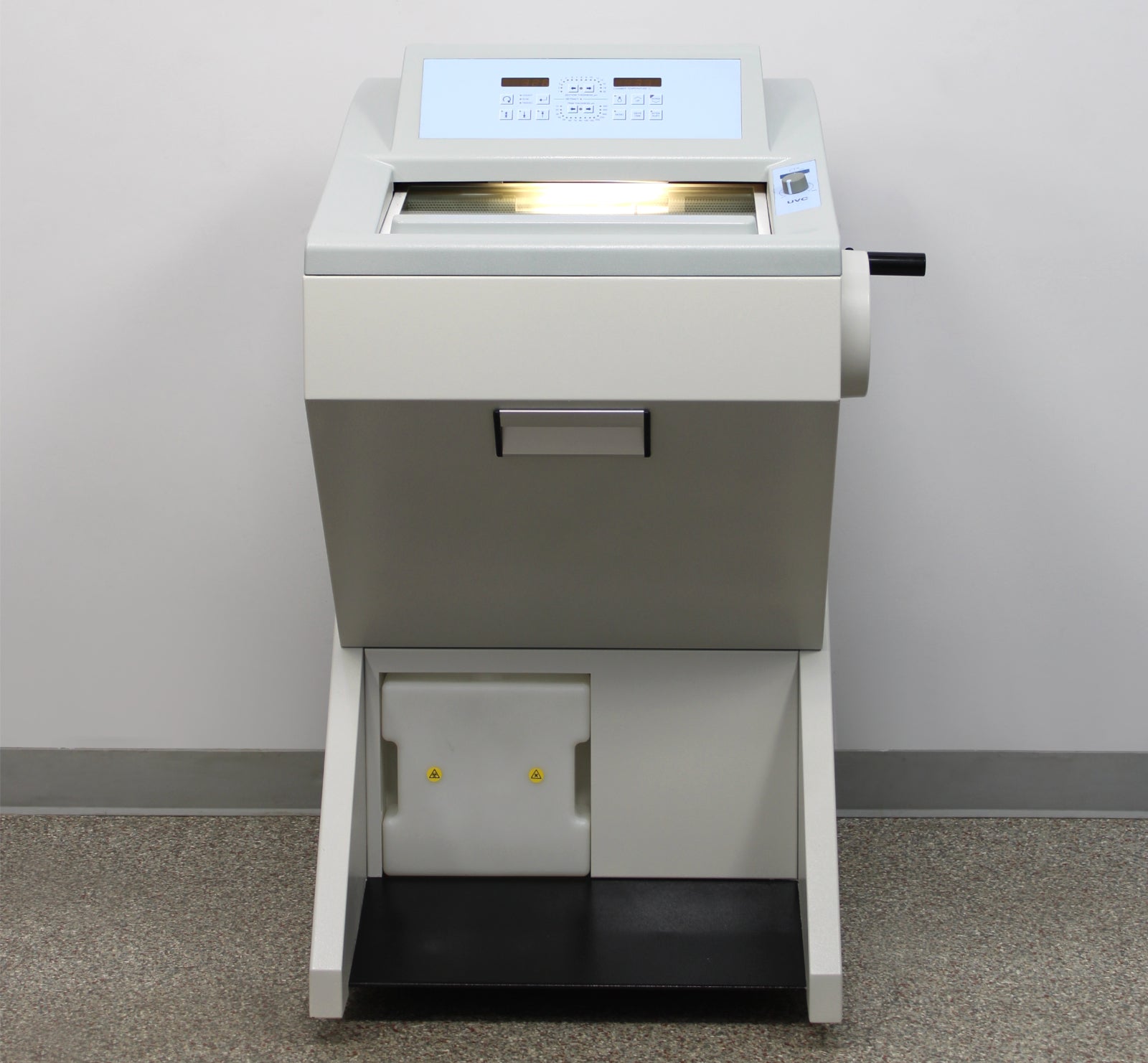

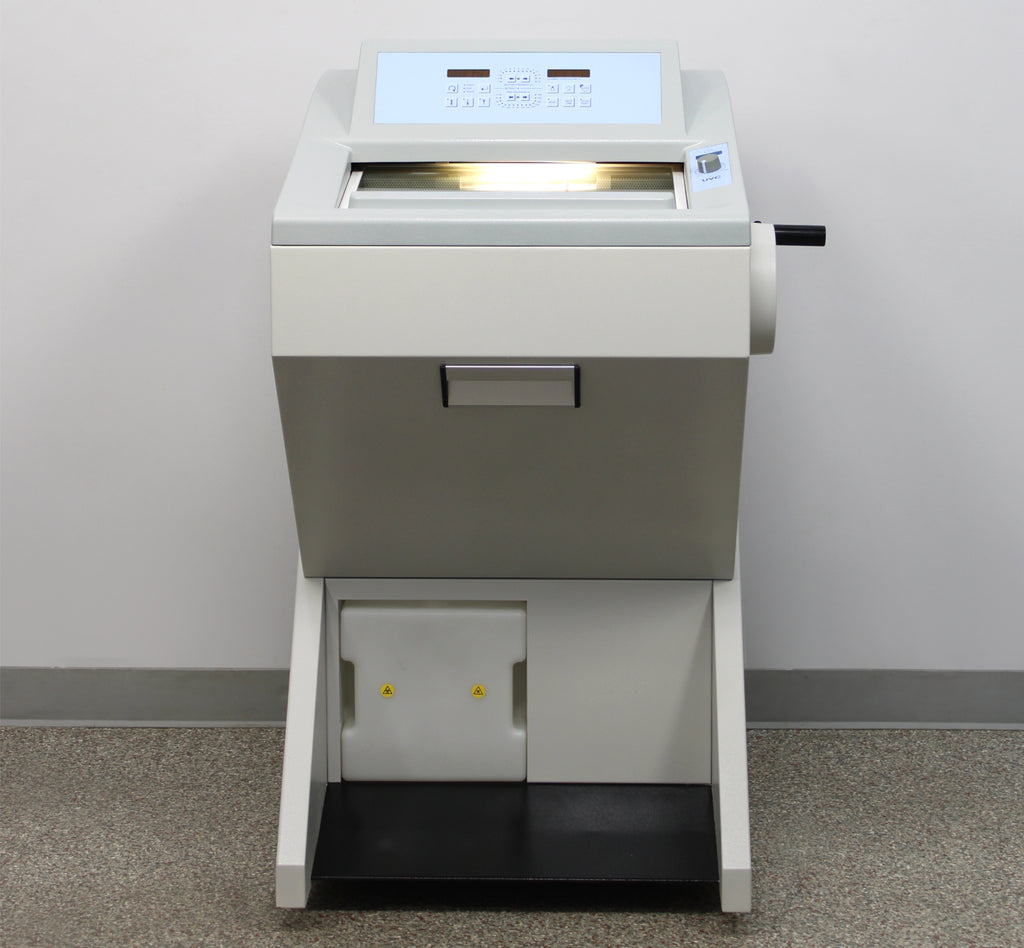

- Thermo Scientific Microm HM 525 U Microtome Cryostat with UVC (956634)

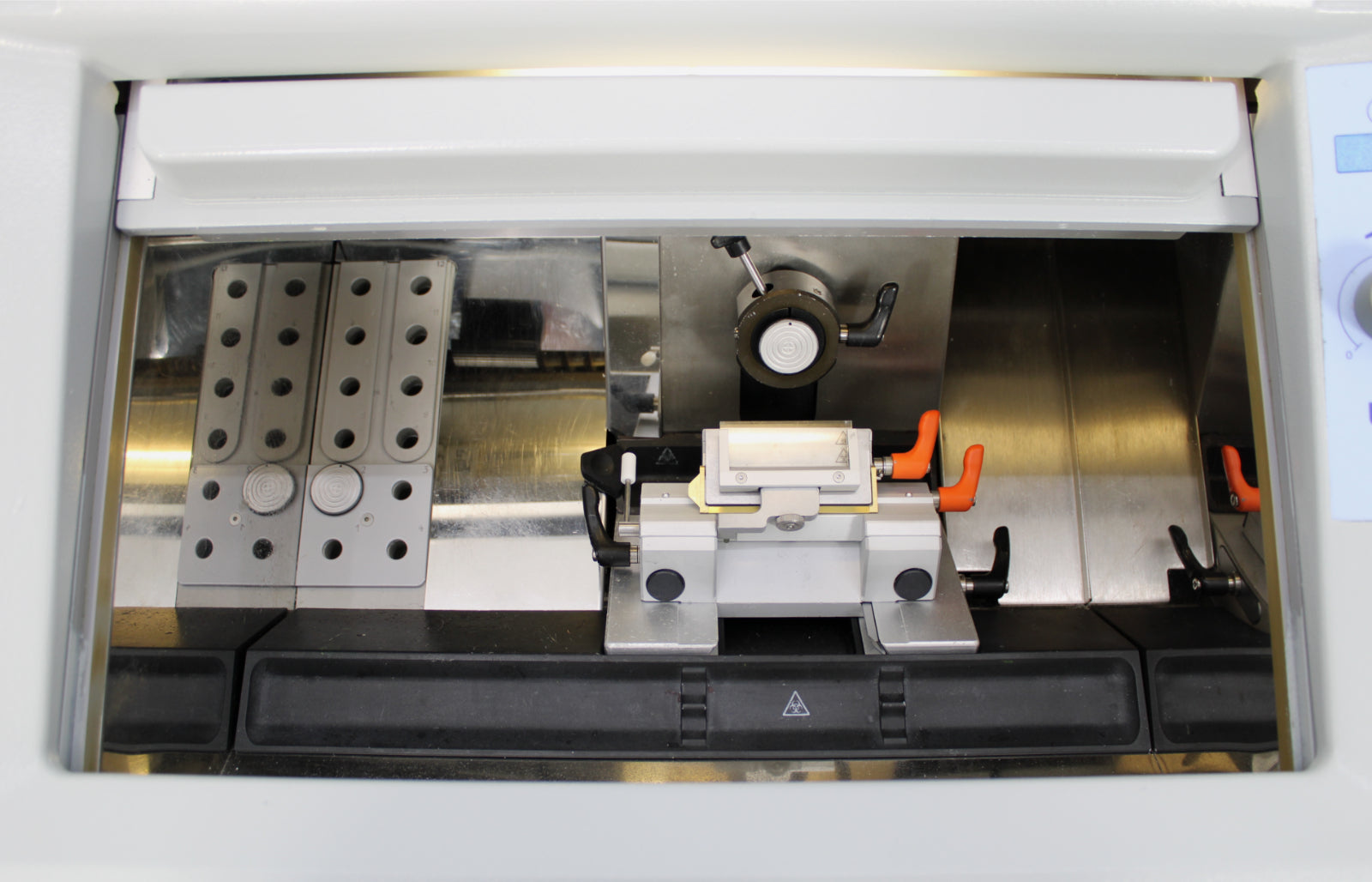

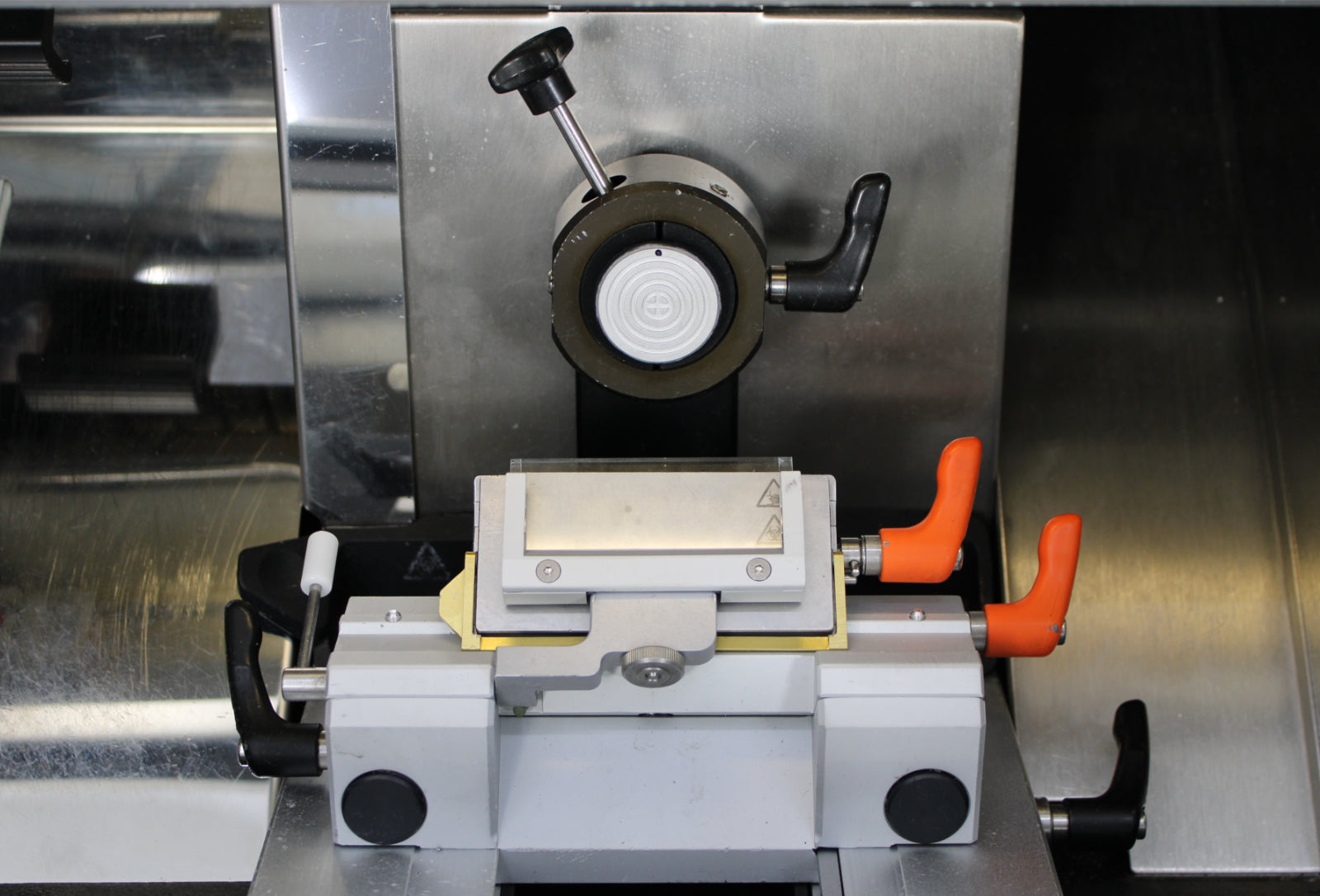

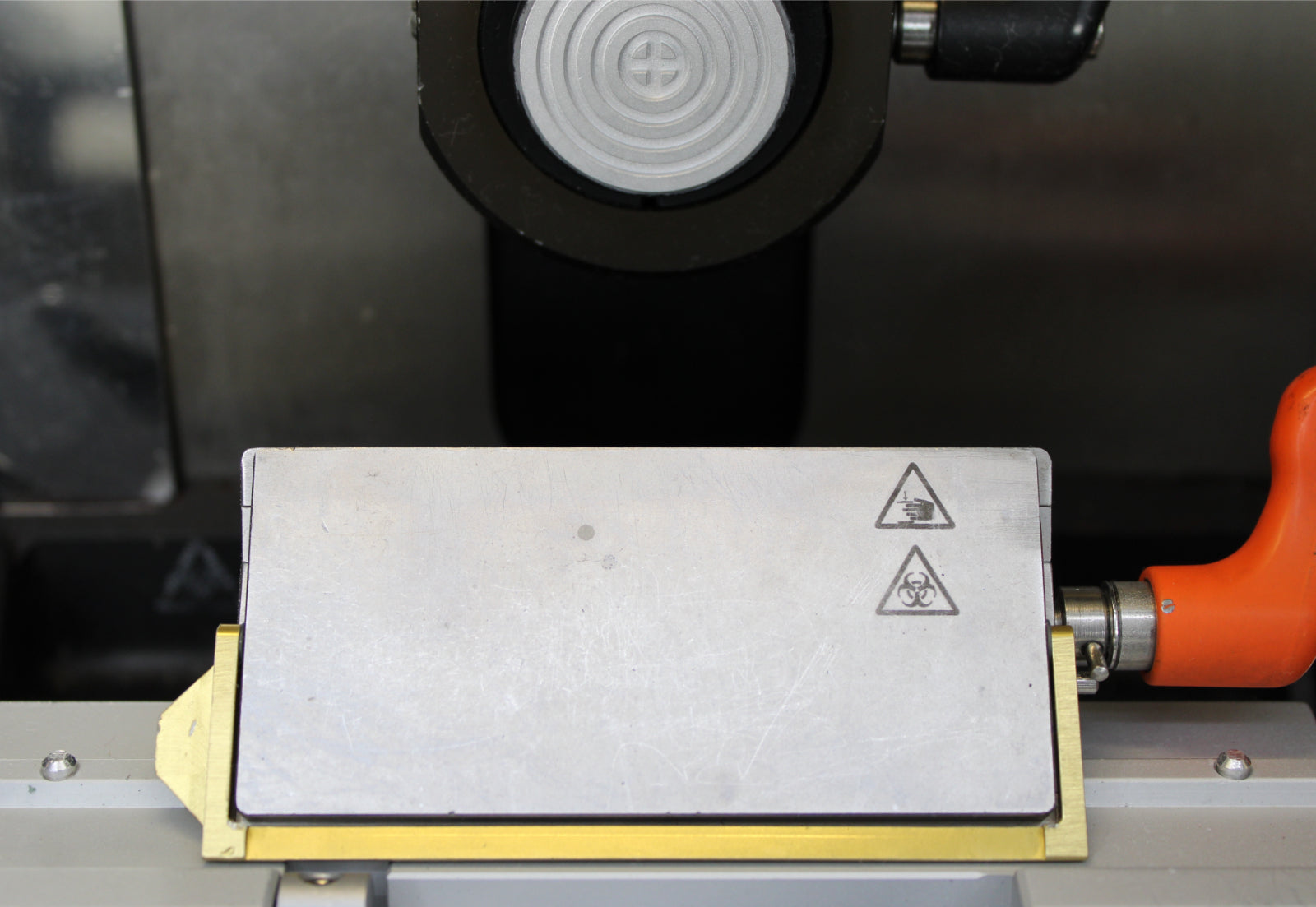

- Blade Holder Assembly with Anti-Roll Plate
- x2 Specimen Discs
- Power Cable
- 90-Day Warranty

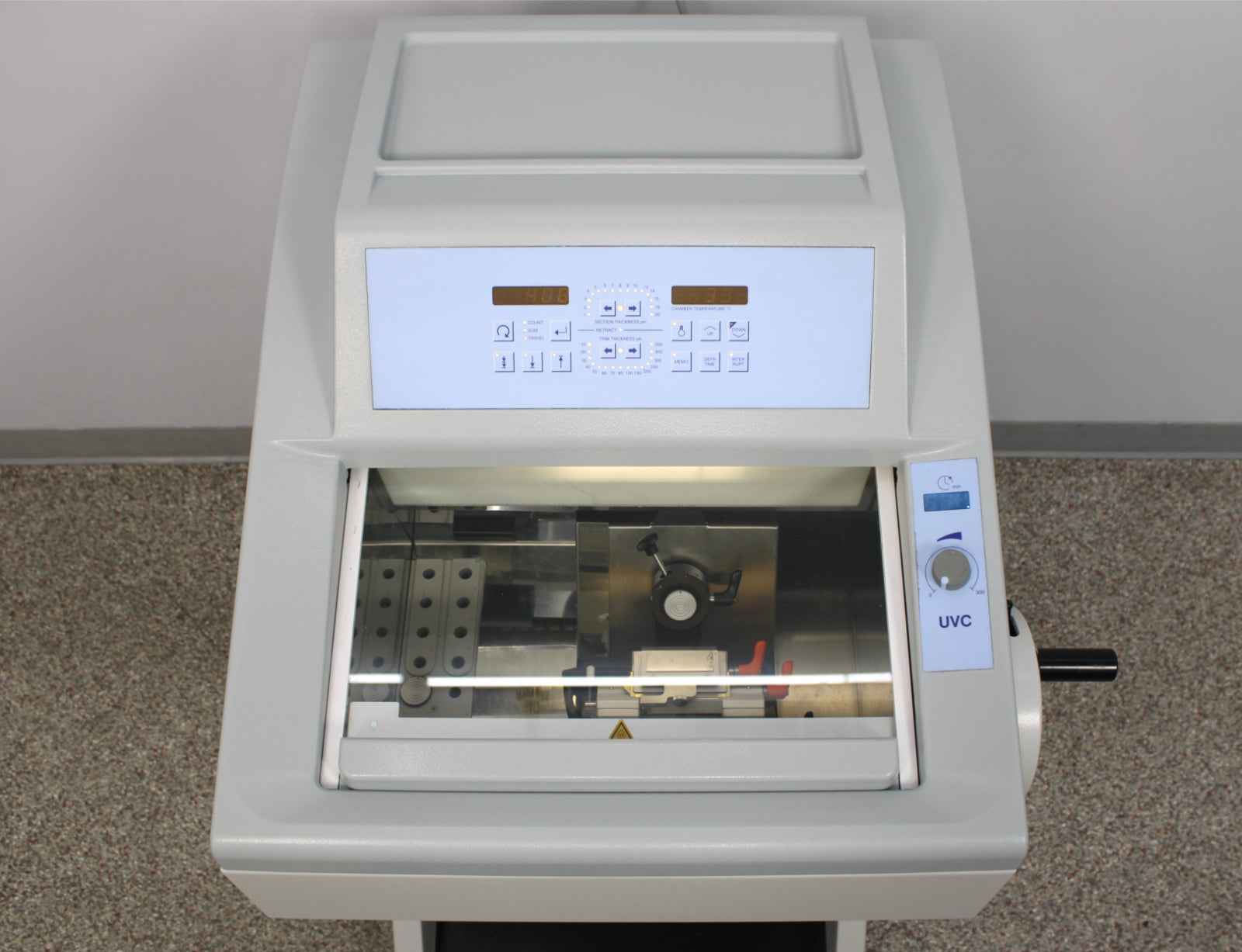

- Option U: UV option enables surface disinfection of harmful bacteria, viruses and spores.

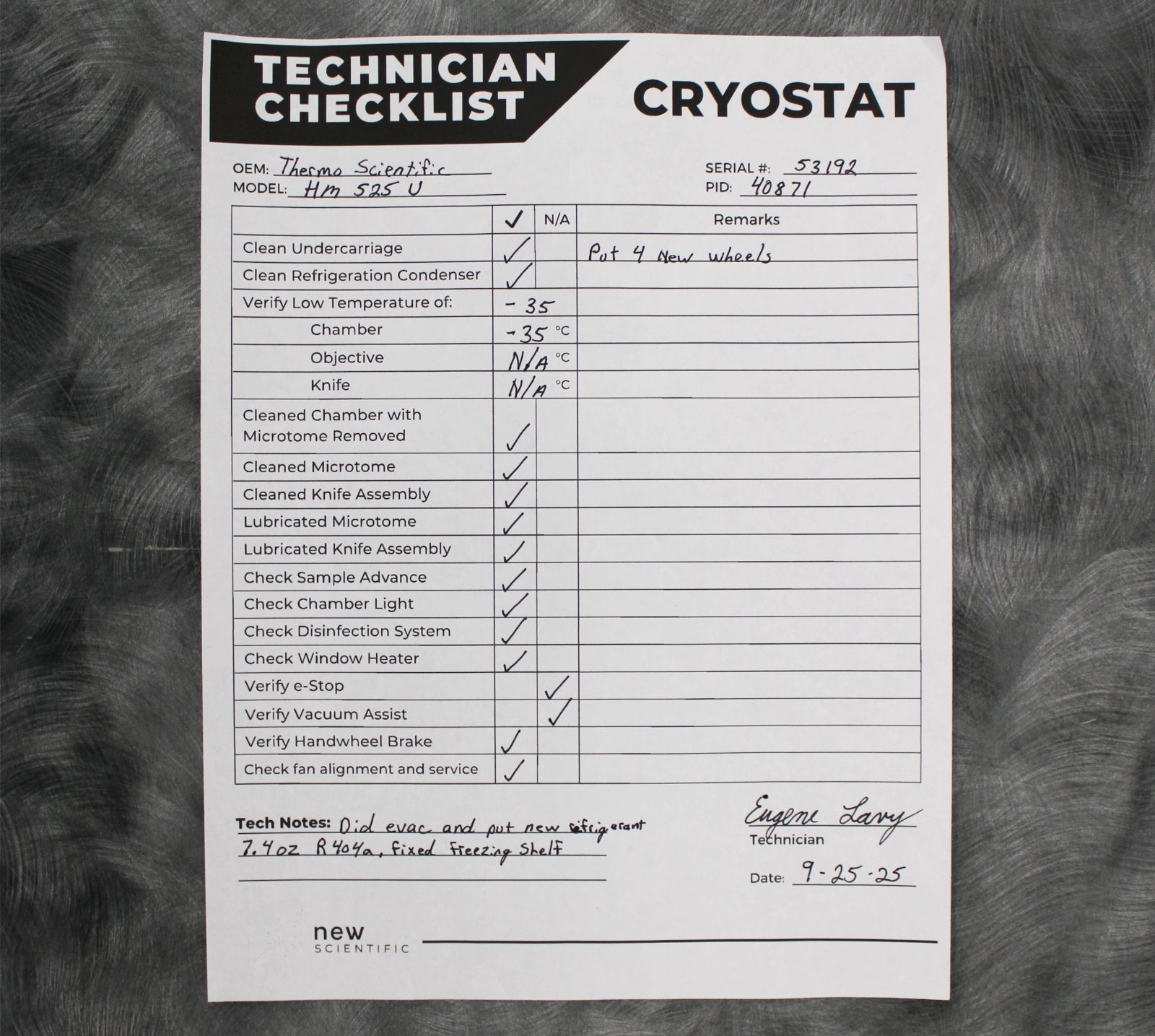

After its initial disinfection and inspection, our technicians tested the Thermo Scientific Microm HM 525 U microtome cryostat with the following results:
- Chamber temperature holds -35°C (manufacturer’s spec): PASSED
- Check disinfection system: PASSED
- Checked sample advance: PASSED
- Checked chamber light: PASSED
- Checked window heater: PASSED
- Verify handwheel brake: PASSED
- Recharged refrigeration.
- Reinsulated refrigeration lines.
- Installed 4 new wheels.
- Cleaned undercarriage.
- Cleaned refrigeration condenser.
- Cleaned chamber with microtome removed.
- Cleaned and lubricated microtome and knife assembly.

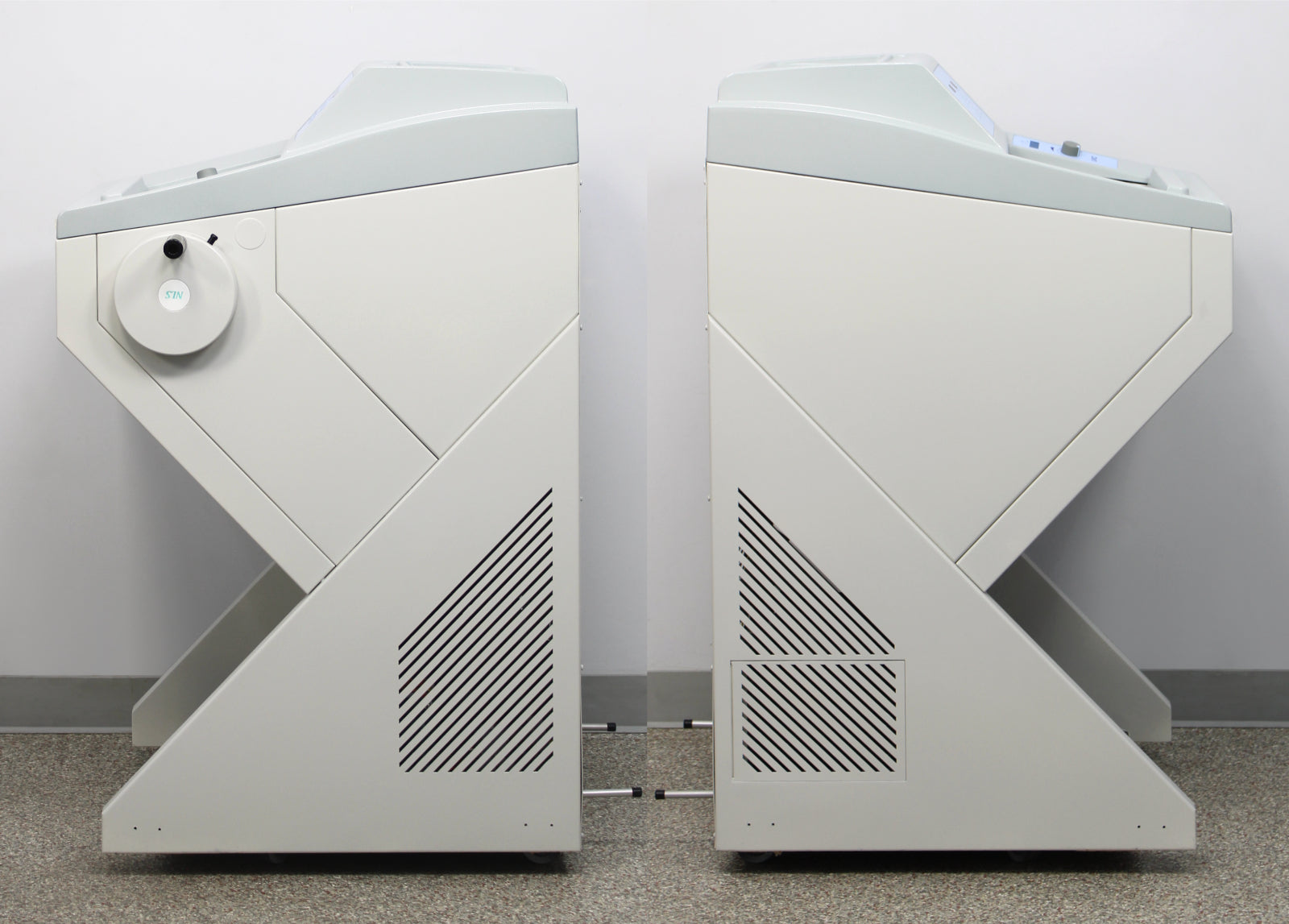

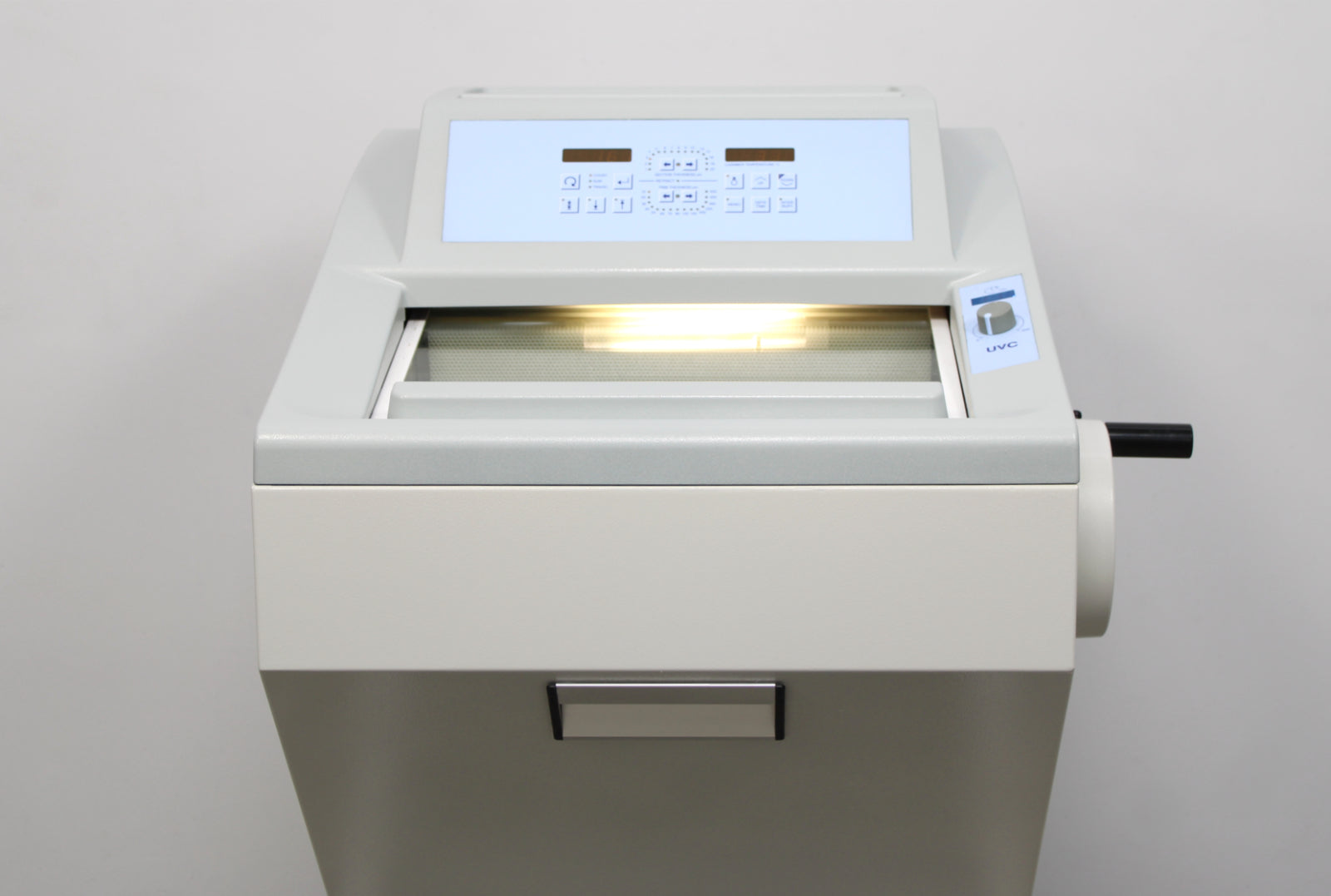

Notice: This cryostat has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

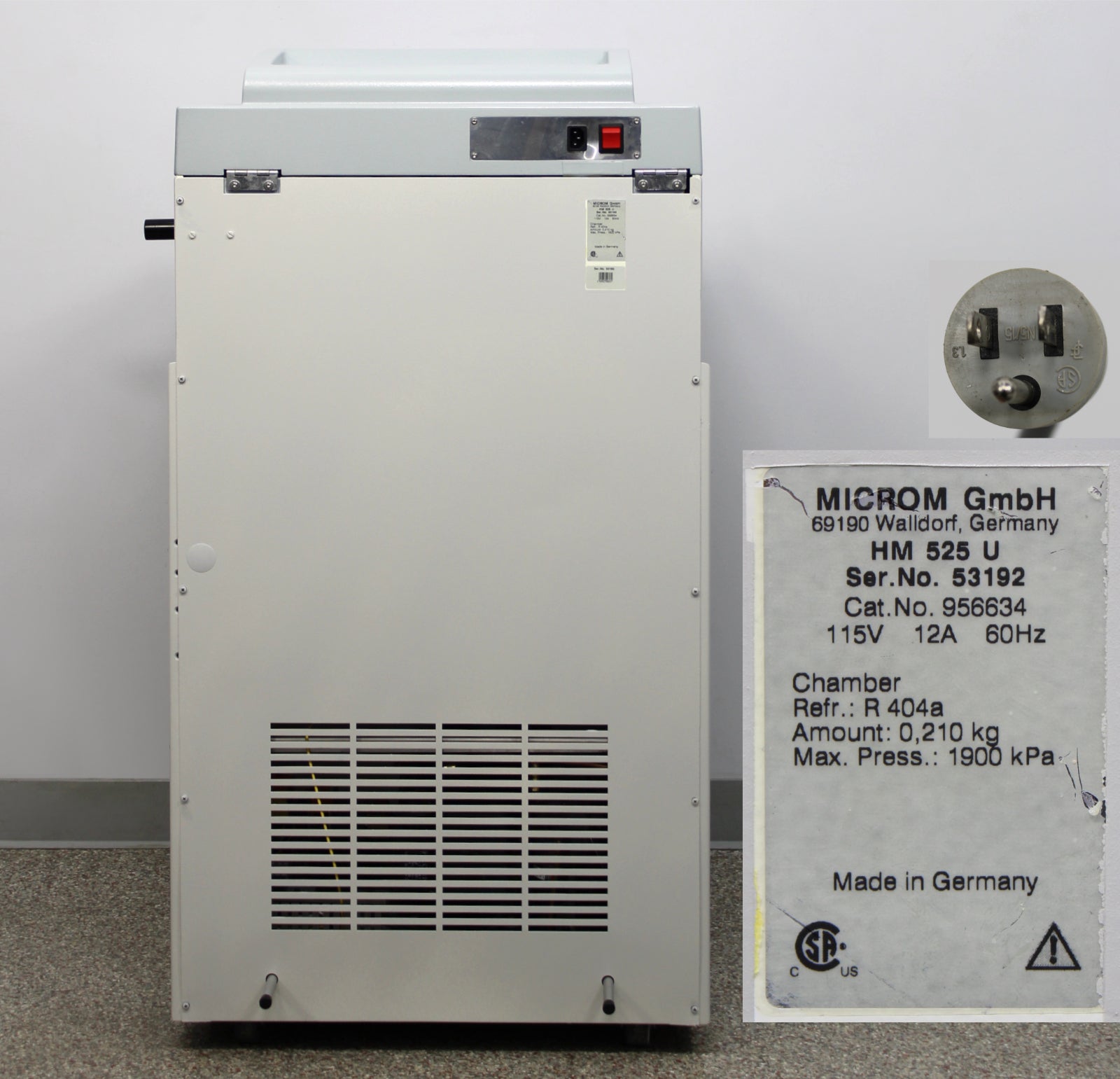

Manufacturer
|
Microm
|
|
Model
|
HM 525 U
|
|
Cat. No.
|
956634
|
|
Serial No.
|
53192
|
|
Chamber temperature control
|
+5°C to -35°C
|
|
Section thickness range
|
1 to 500 µm
|
|
Fine section thickness range
|
1 to 20 µm
|
|
Fine section thickness resolution
|
1 µm for 1 to 10 µm
2 µm for 10 to 20 µm
|
|
Trimming thickness range
|
10 to 500 µm
|
|
Trimming thickness range resolution
|
10 µm for 10 to 80 µm
20 µm for 80 to 100 µm
50 µm for 100 to 300 µm
100 µm for 300 to 500 µm
|
|
Specimen retraction during return travel
|
40 µm
|
|
Vertical specimen stroke
|
60 mm
|
|
Horizontal specimen movement
|
28 mm
|
|
Read-outs
|

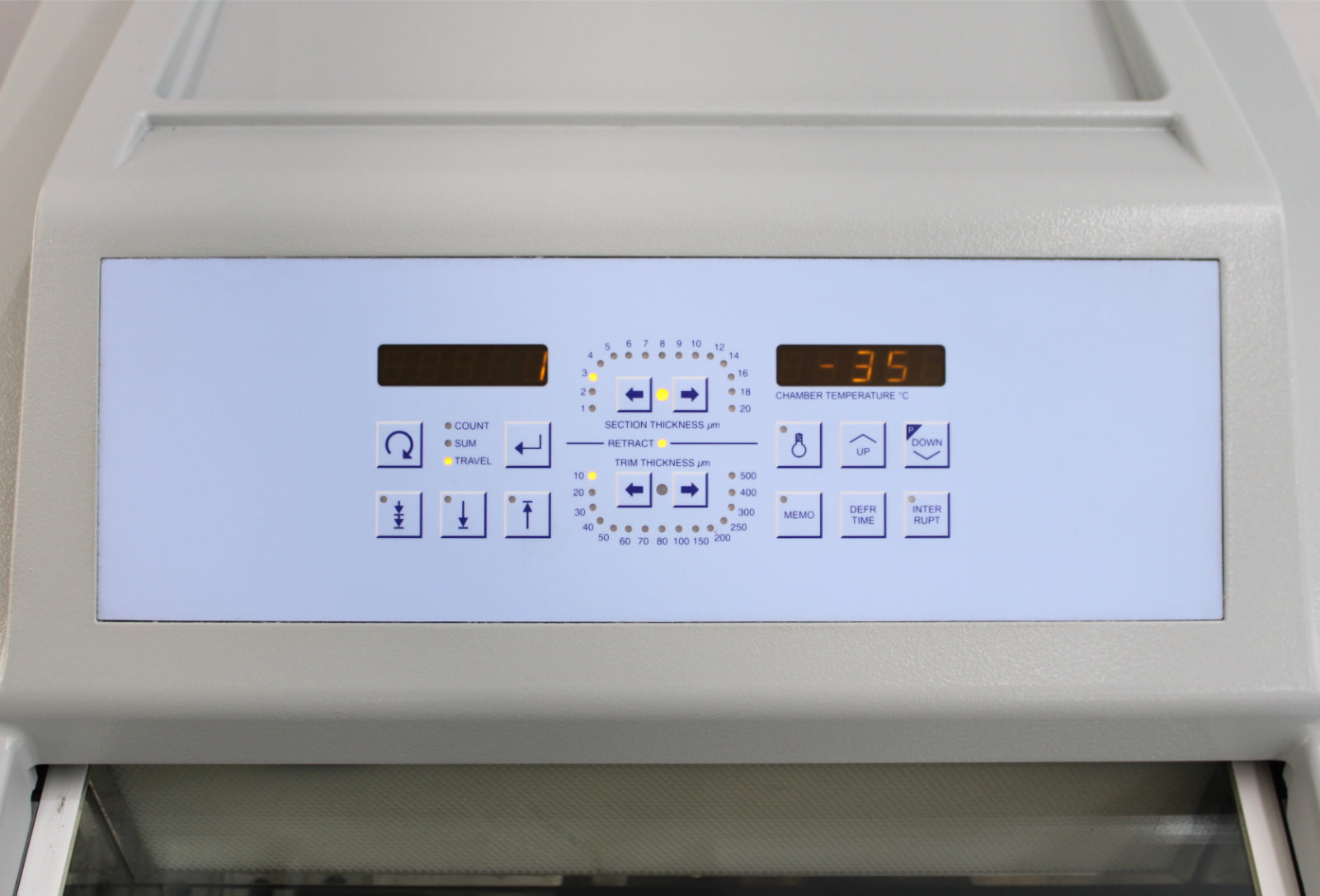

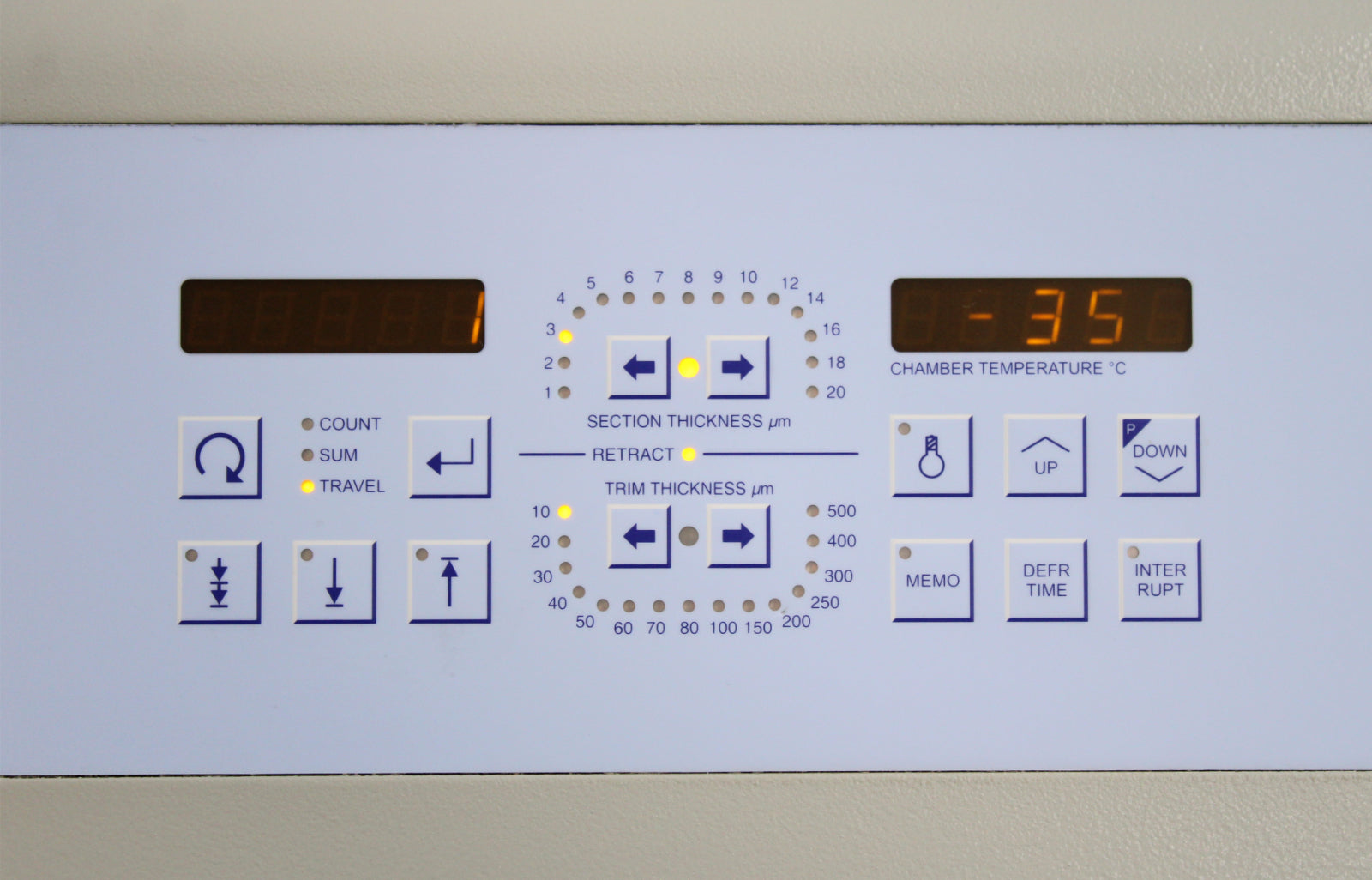

Five-digit LED-display: section thicknesses, section counter, sum of section thicknesses, remaining travel to front end position and chamber temperature
|
|
Coarse feed
|
Motorized, graduated, single and continuous
|
|
Size of chucks
|
30, 40 mm
|
|
Specimen orientation
|
X- and Y-axes: universal 8° with zero positioning
Z-axis: up to 360°
|
|
Cutting drive
|

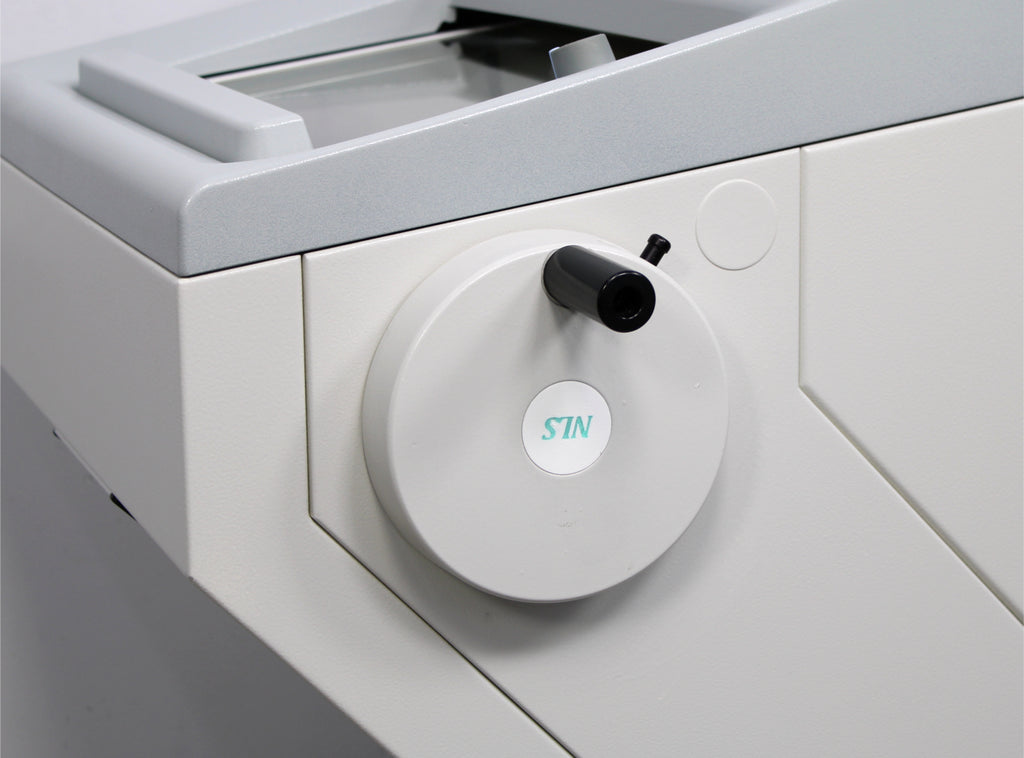

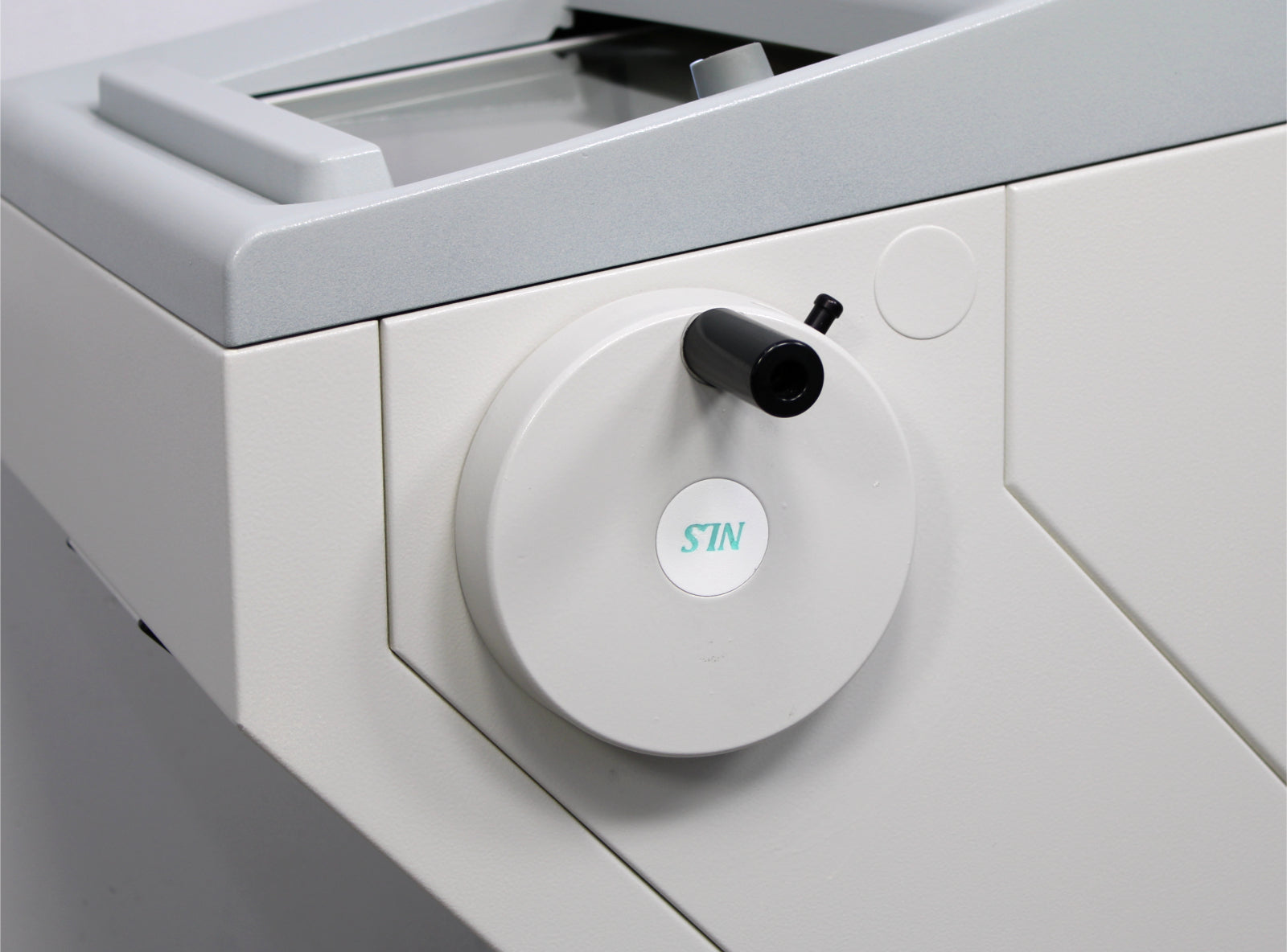

Manually via handwheel
|
|
Cutting area
|
Horizontal specimen movement 28 mm
Vertical specimen stroke 60 mm
|
|
Handwheel brake
|
mechanical
|
|

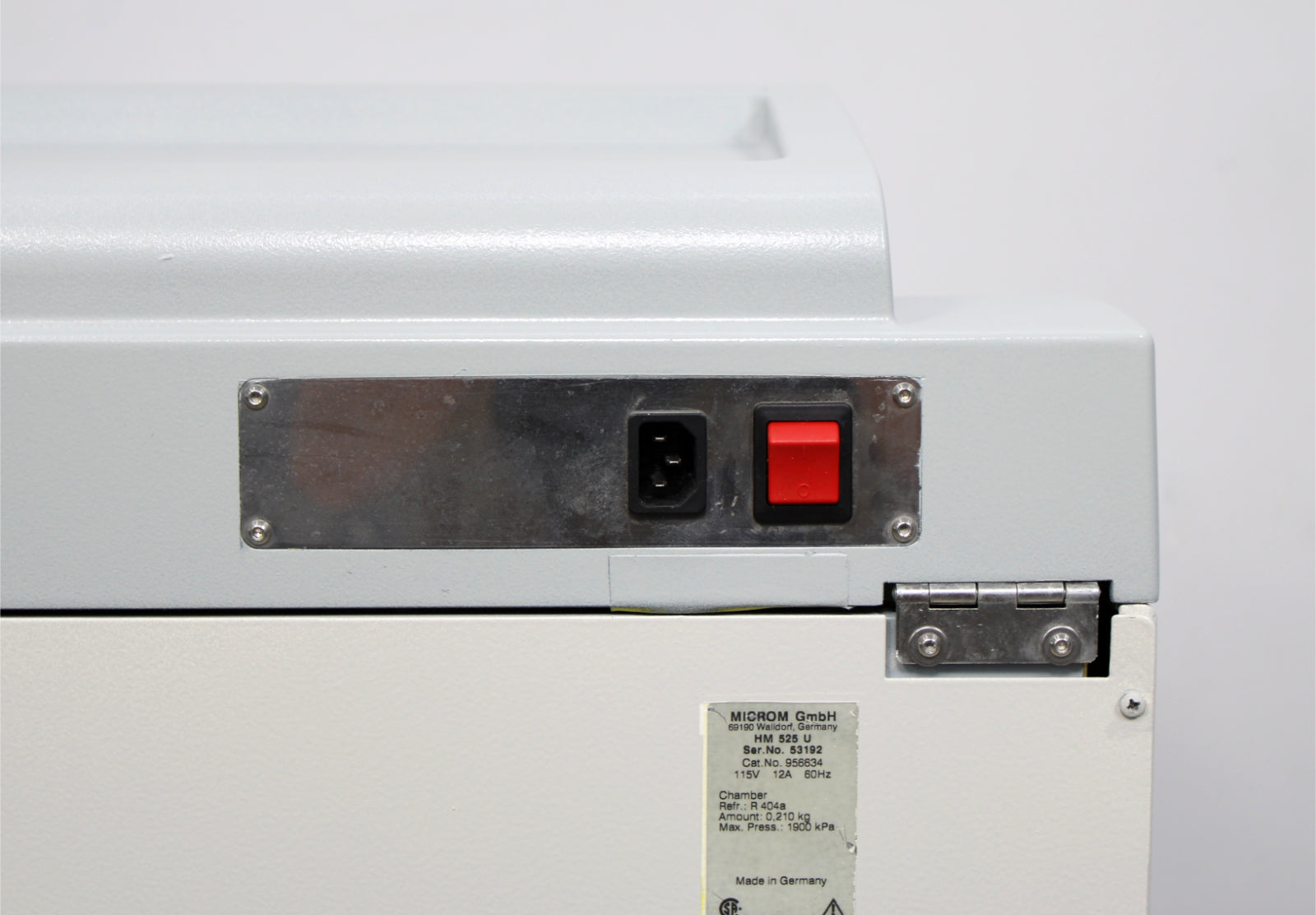

Power rating
|
115V, 60Hz, 12A
|
|
Dimensions (W x D x H)
|
28.5 x 30 x 47 in
|
|
Weight
|
143 kg (depending on the model)
|
