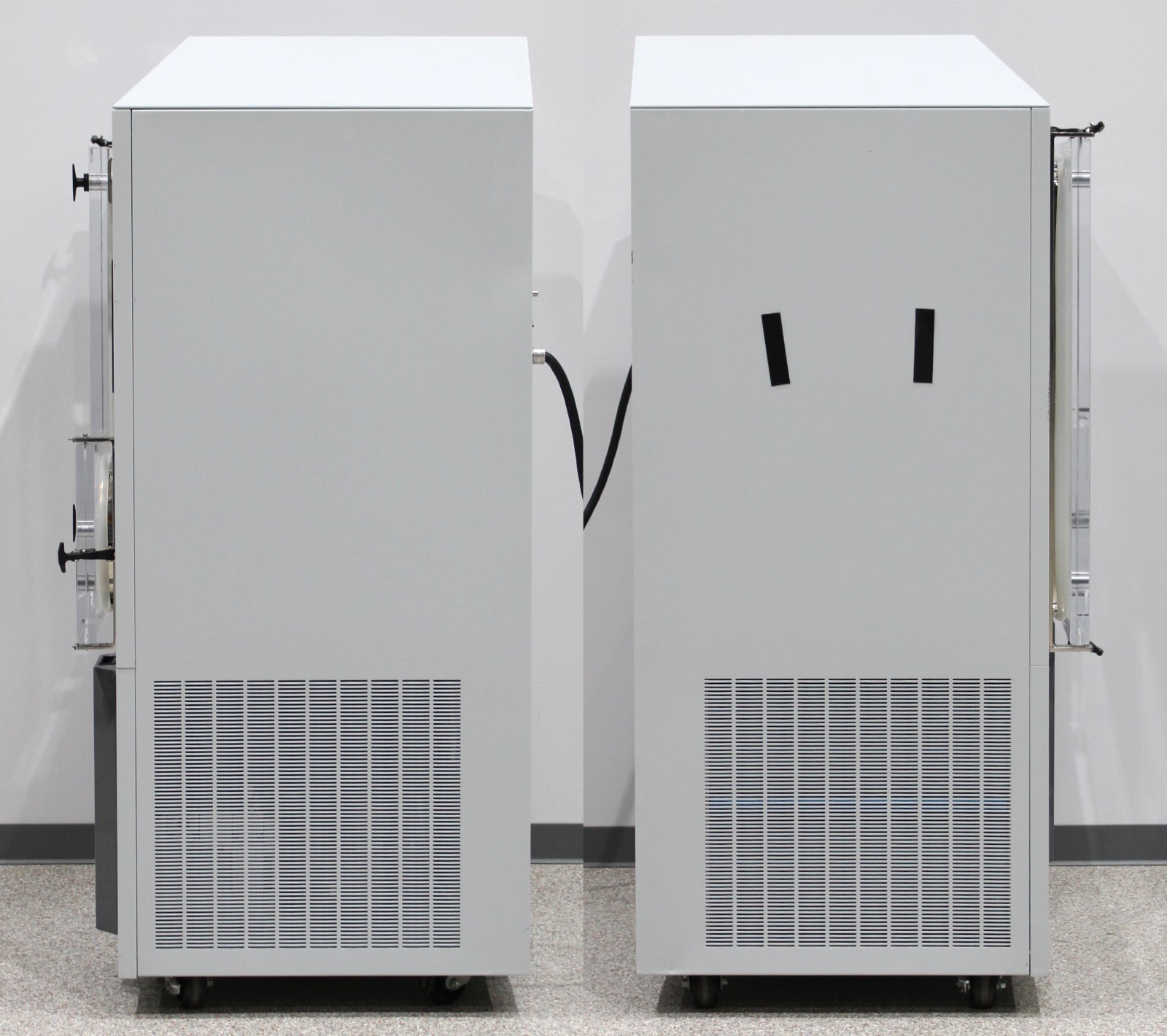

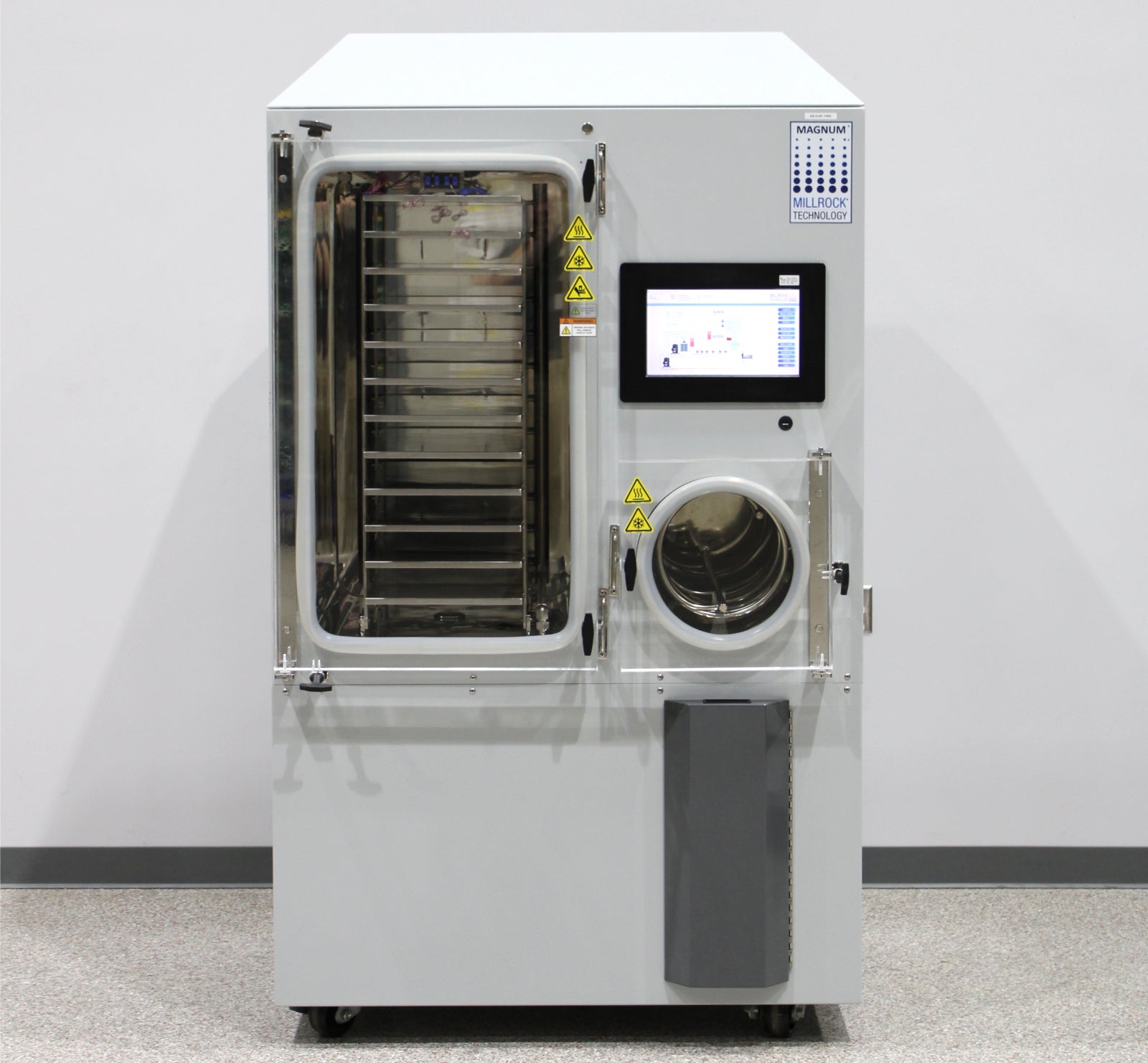

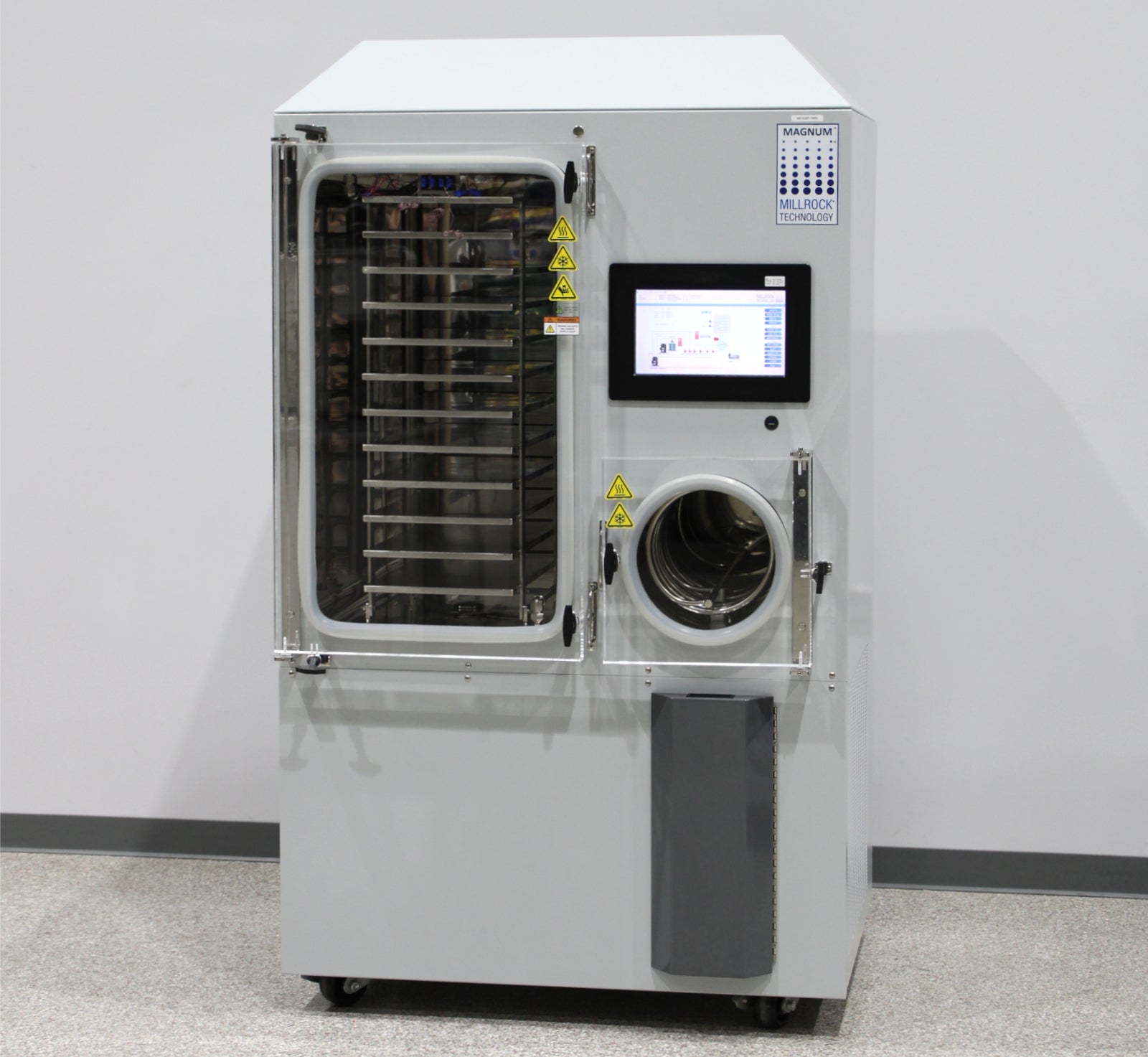

- Millrock Technology MG85B11 MAGNUM XL Pilot Freeze Dryer

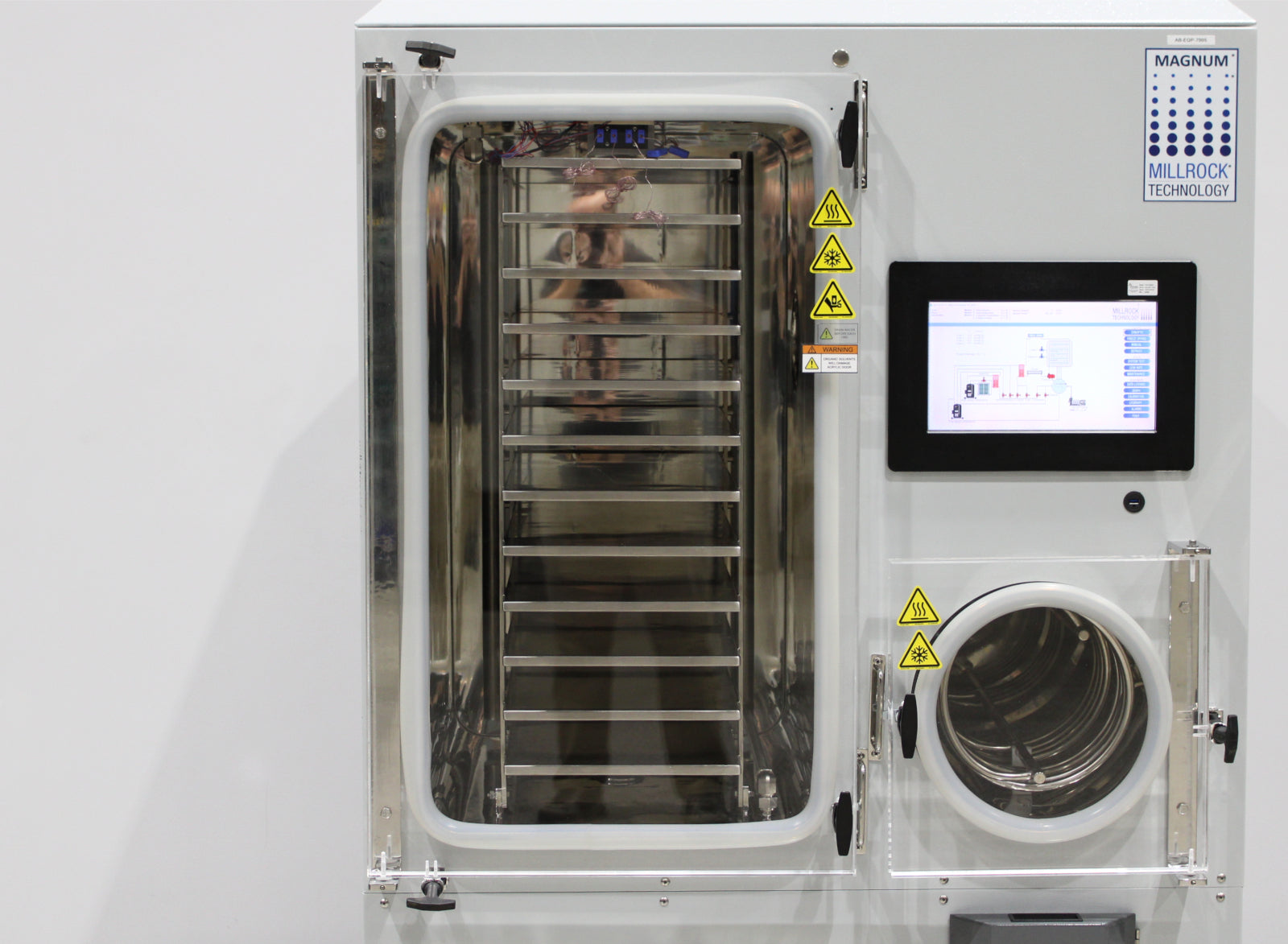

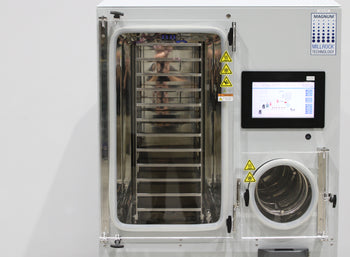

- x11 Shelves

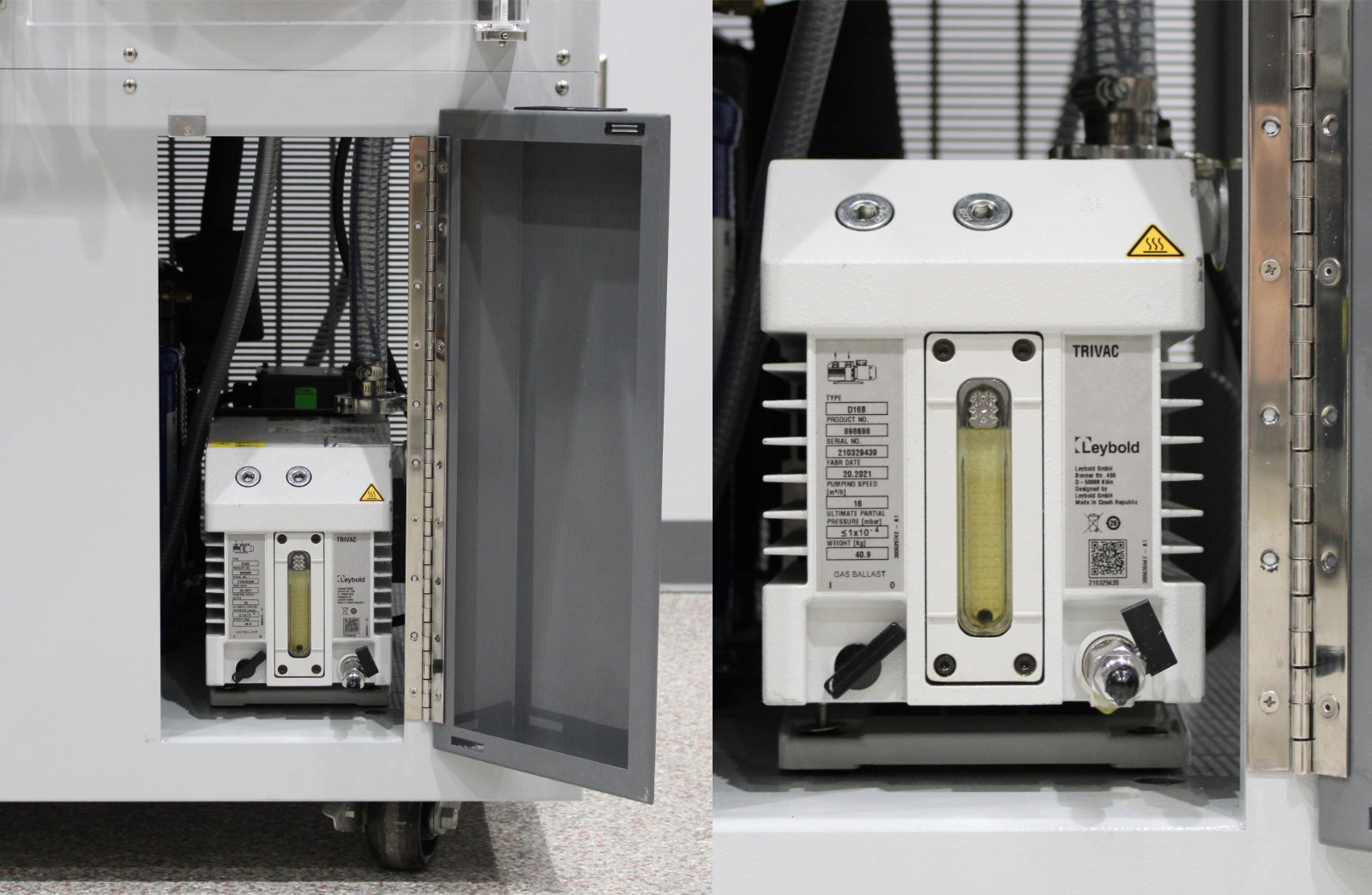

- Leybold TRIVAC D16B Vacuum Pump
- Attached Power Cable with NEMA L6-30P Plug
- 90-Day Warranty
Notice: This freeze dryer does not have the stoppering option.
After its initial disinfection and inspection, our technicians tested the Millrock Technology MG85B11 MAGNUM XL pilot freeze dryer with the following results:
- Shelf temperature achieved -40°C in 33 minutes: PASSED
- Final shelf temperature -75.7°C: PASSED
- Condenser low temperature -85°C: PASSED
- Vacuum achieved 100mT in 14 minutes: PASSED
- Drained and refilled vacuum pump oil.
- Inspected refrigeration lines.
- Inspected electrical components.
|
Manufacturer
|
Millrock Technology
|
|
Model
|
MAGNUM XL
|
|
Model No.
|
MG85B11
|
|
Serial No.
|
MG85B110910211
|
|
Ship date
|
09/10/2021
|
|
Shelf area
|
22 sq ft (2.04 sq M)
|
|
Shelf spacing
|
2.9 in (73 mm)
|
|
Shelf temperature range
|
-70° to +65°C
|
|
Shelf heat transfer
|
Hollow fluid filled
|
|
Shelf size/finish
|
12”x24”, 316L SS, 20Ra or better (305 mm to 610 mm)
|
|
Condenser temperature
|
-85°C
|
|
Condenser capacity
|
30L
|
|
Condensing rate
|
20L in 24 hours
|
|

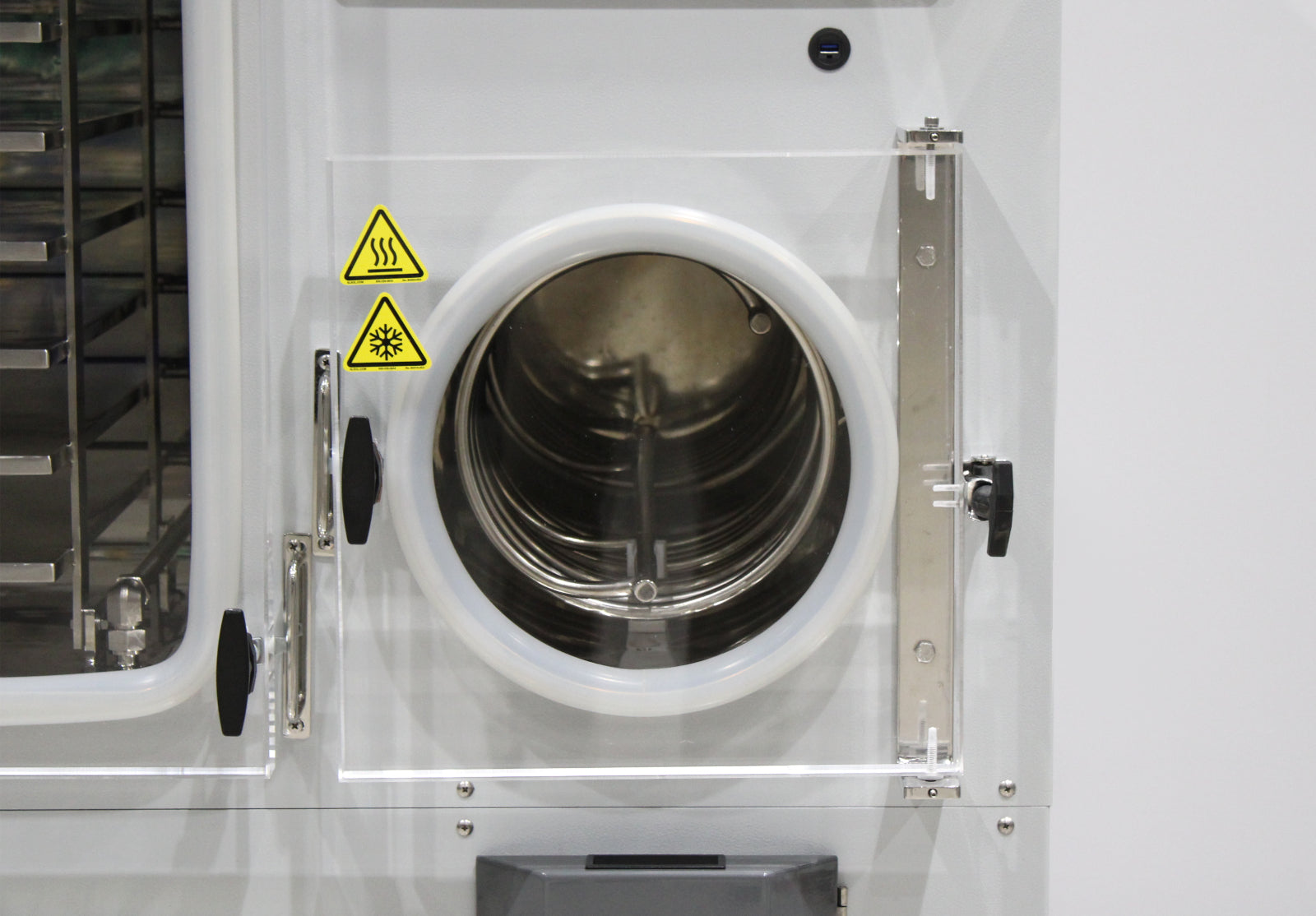

Condenser style
|
Exposed coil, 6” vapor port
|
|
Defrost
|
Hot gas
|
|
Product sensors
|
4 type T thermocouples
|
|

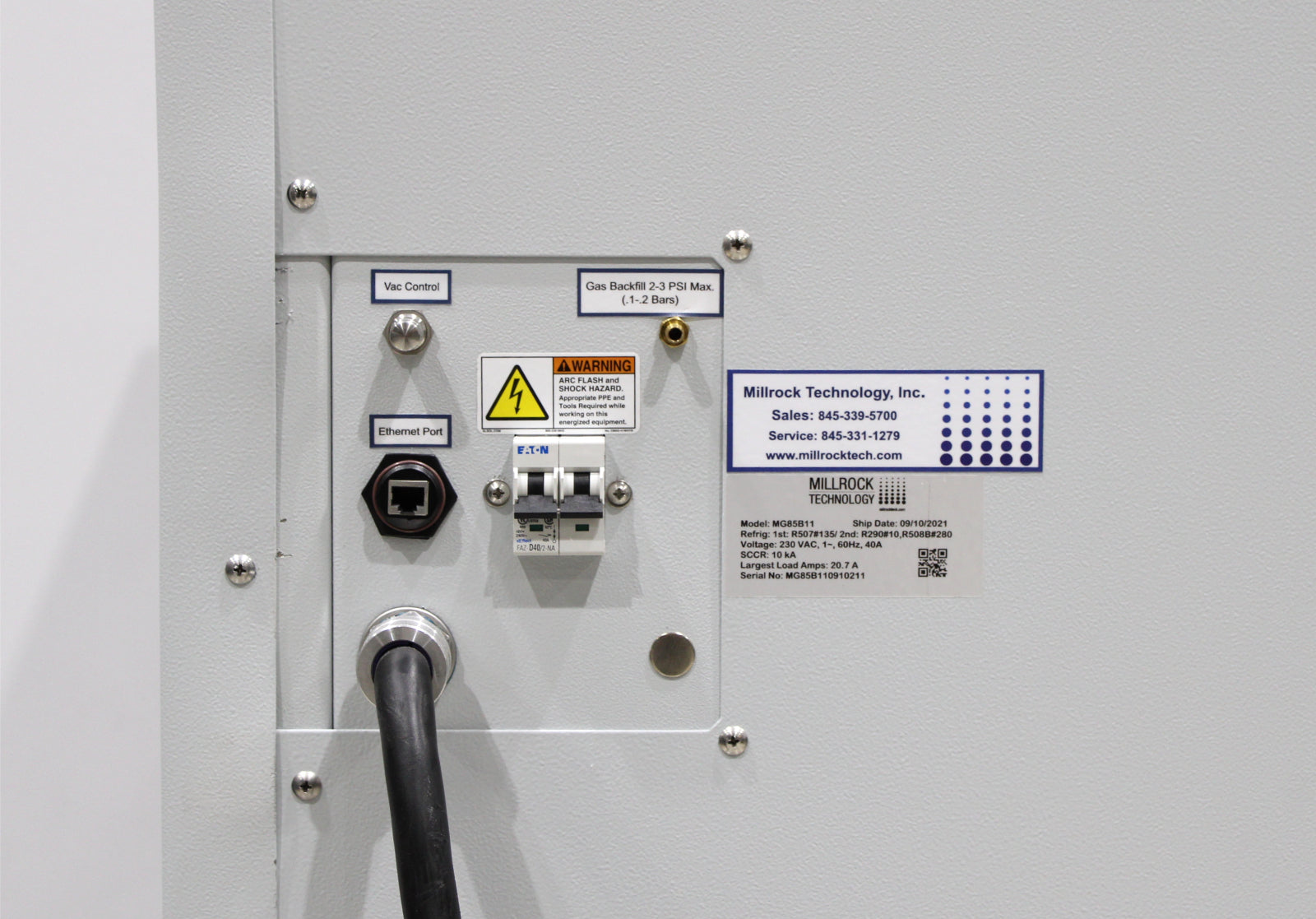

Gas backfill
|
Included
|
|

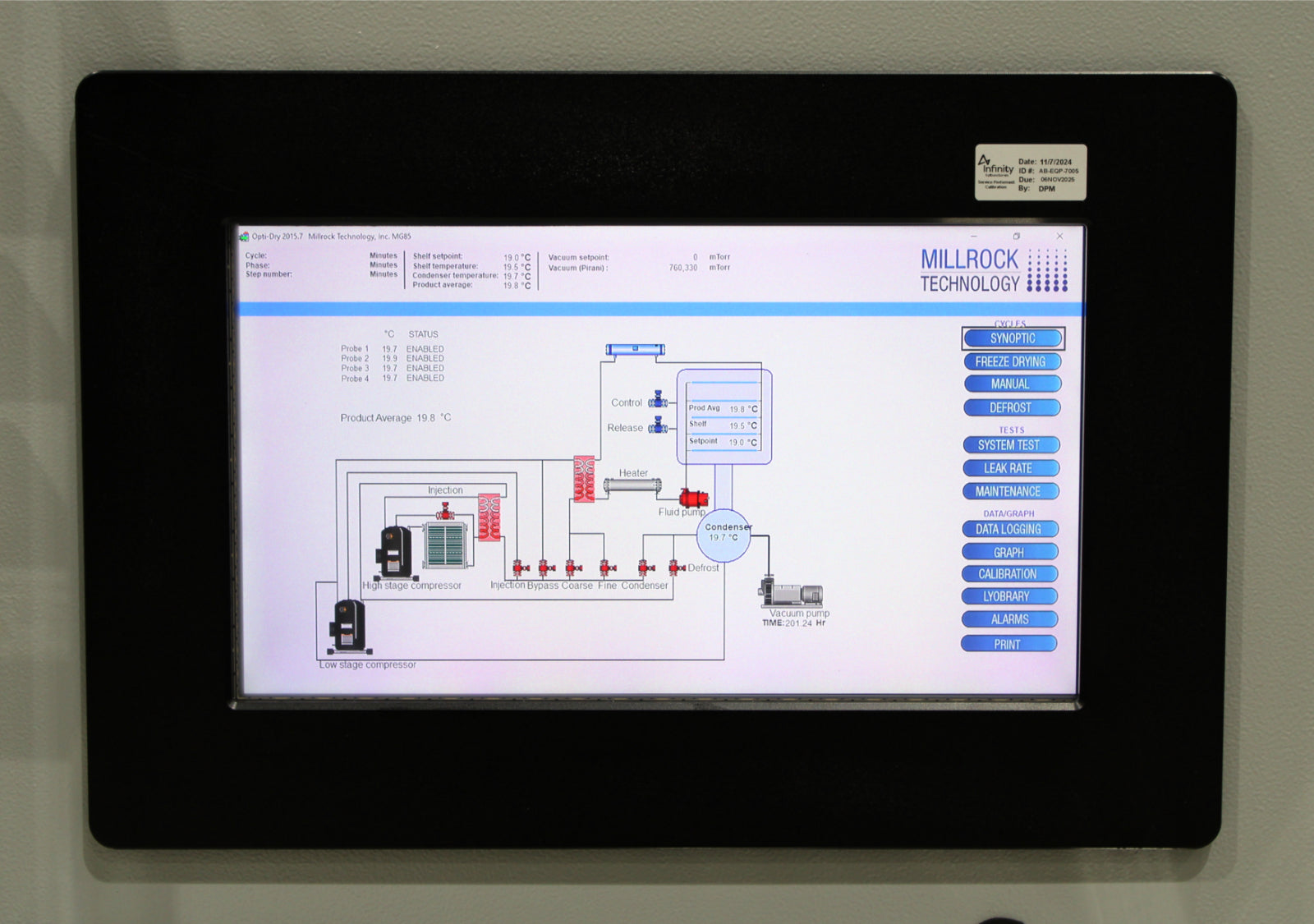

Control system
|
PC/PLC with Opti-Dry software
|
|
SCCR
|
10kA
|
|

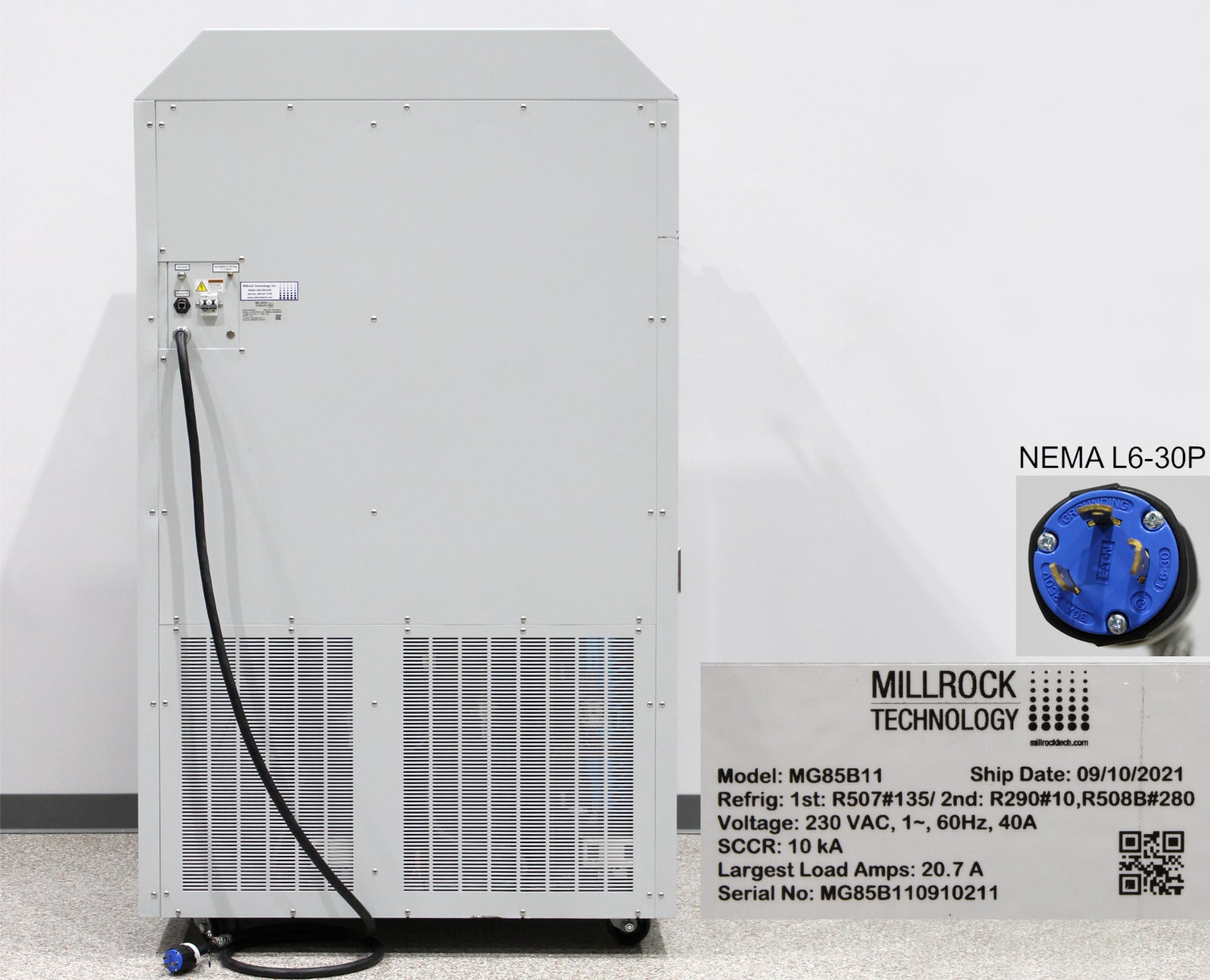

Plug
|
NEMA L6-30
|
|
Power rating
|
230VAC, 60Hz, 40A
|
|
Largest load amps
|
20.7A
|
|
Dimensions (W x D x H)
|
46 x 37 x 80 in
|
