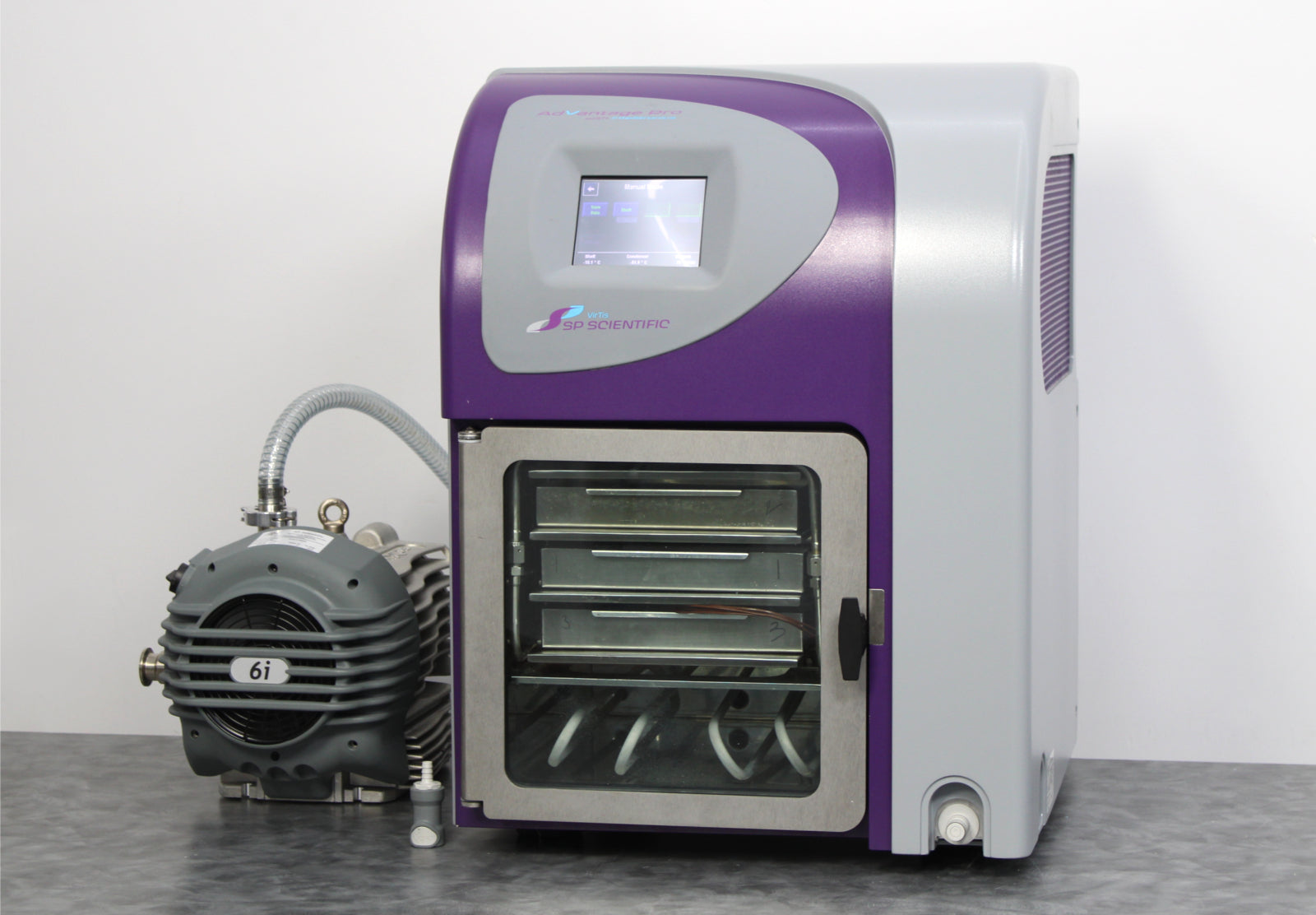

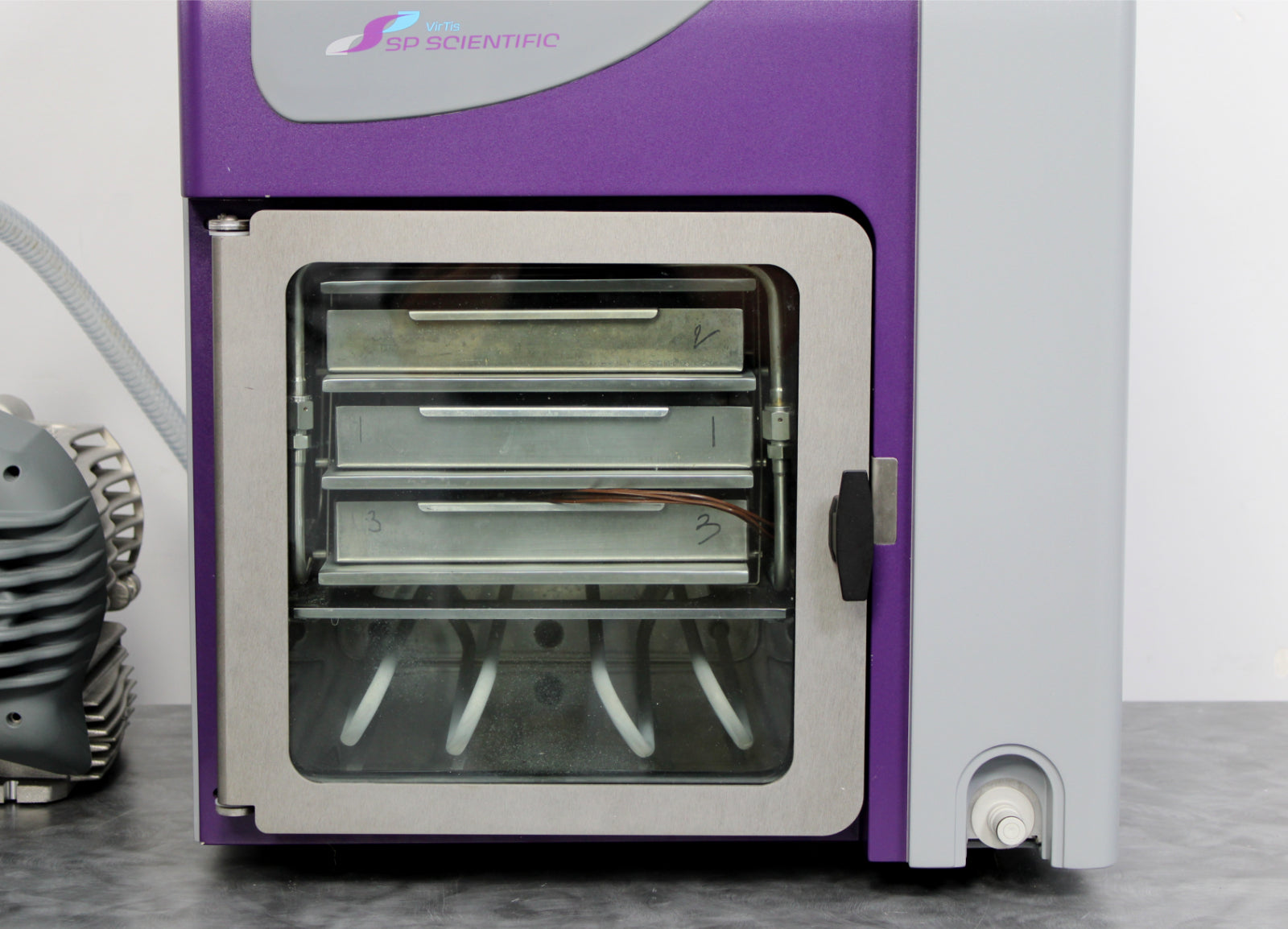

- SP Scientific VirTis AdVantage Pro Shelf Freeze Dryer (ADP-B3EL-EVG-X) with 3 Shelves

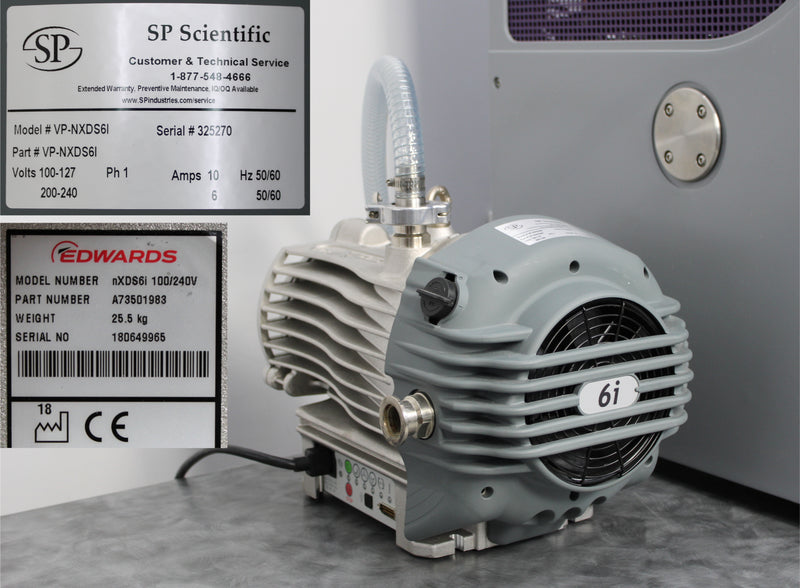

- Edwards nXDS6i Dry Scroll Pump (A73501983)
- Vacuum Hose
- Vacuum Pump Power Cable
- Main Power Cable
- 90-Day Warranty
Notice: This model does not include a manifold.

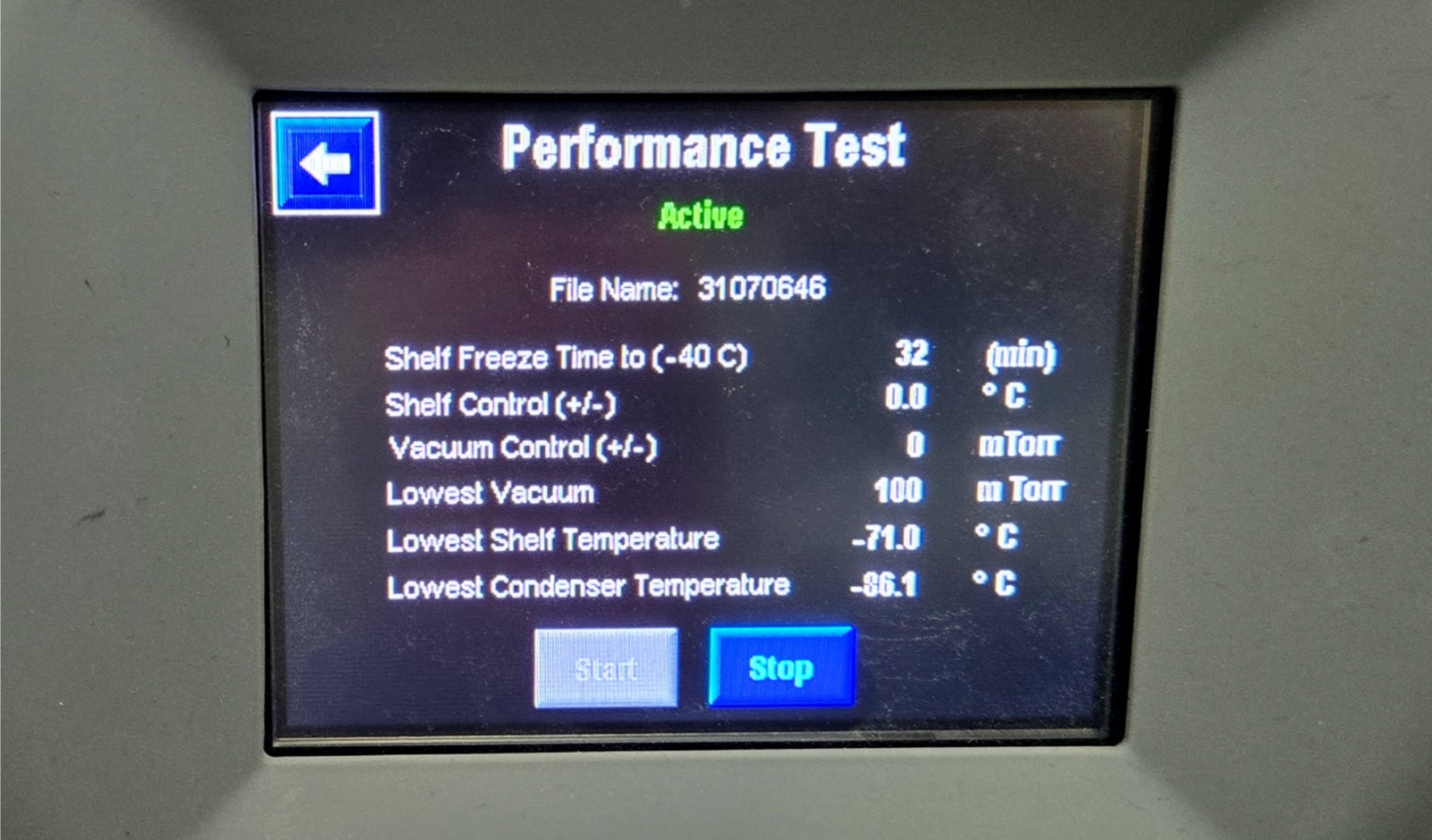

After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis AdVantage Pro shelf freeze dryer with the following results:
- Shelf temperature reaches -71°C: PASSED
- Condenser temperature reaches -86.1°C: PASSED
- Vacuum reaches 25mT: PASSED
- Reinsulated refrigeration lines.
- Replaced vacuum hoses as needed.
|
Manufacturer
|
SP Scientific
|
|
Model
|
AdVantage Pro
|
|

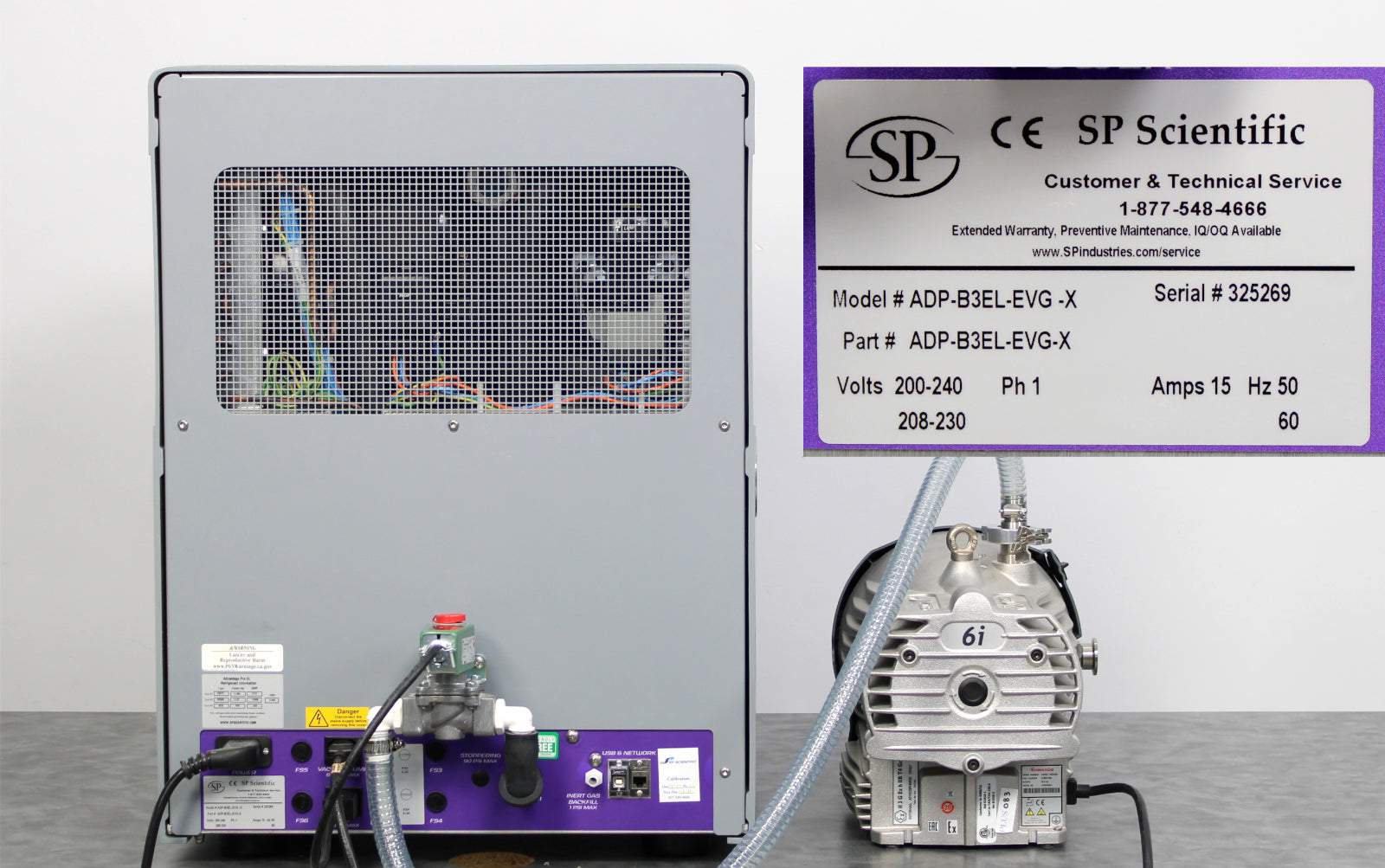

Model No.
|
ADP-B3EL-EVG-X
|
|
Serial No.
|
325269
|
|
Shelf Temperature Control Range
|
-55 to 60°C
|
|
Lowest Shelf Temperature† (50 Hz / 60 Hz)
|
-62 °C / -65 °C
|
|
Shelf Pull-Down from 20 °C to -40 °C‡
|
≤ 30 minutes
|
|
Temperature Uniformity
|
± 1.0 °C
|
|
Lowest Condenser Temp. (50 Hz / 60Hz)
|
-82°C / -85°C
|
|
Max. Condenser Capacity
|
6 L
|
|
Maximum Ice Condensing Capacity in 24 hours
|
4 L
|
|
Number of Compressors
|
2
|
|
Compressor Horsepower
|
1/3, 3/4
|
|
System Refrigerant
|
R508B, R407C
|
|
Refrigerant Type
|
CFC-free
|
|
Construction
|
AISI Type 316L SS
|
|

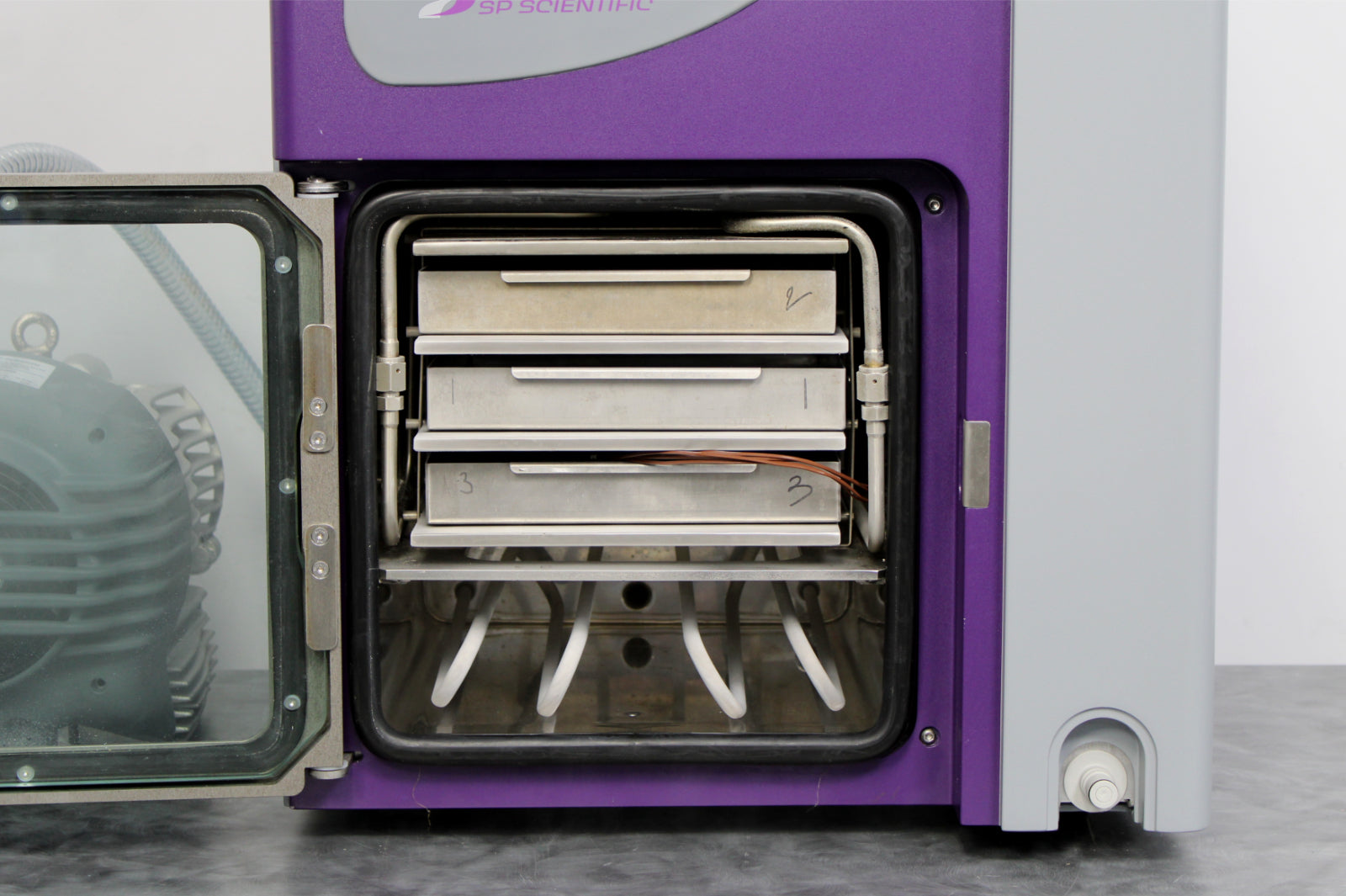

Shelf dimensions (W x D)
|
10 x 14 in
|
|
Power rating
|
200-240V, 50Hz, 15A, 1Ph
208-230V, 60Hz
|
|
Power consumption
|
1880VA max
|
|
Dimensions (W x D x H)
|
22 x 25.7 x 29.7 in
|
|
Weight
|
310 lb (140 kg)
|
