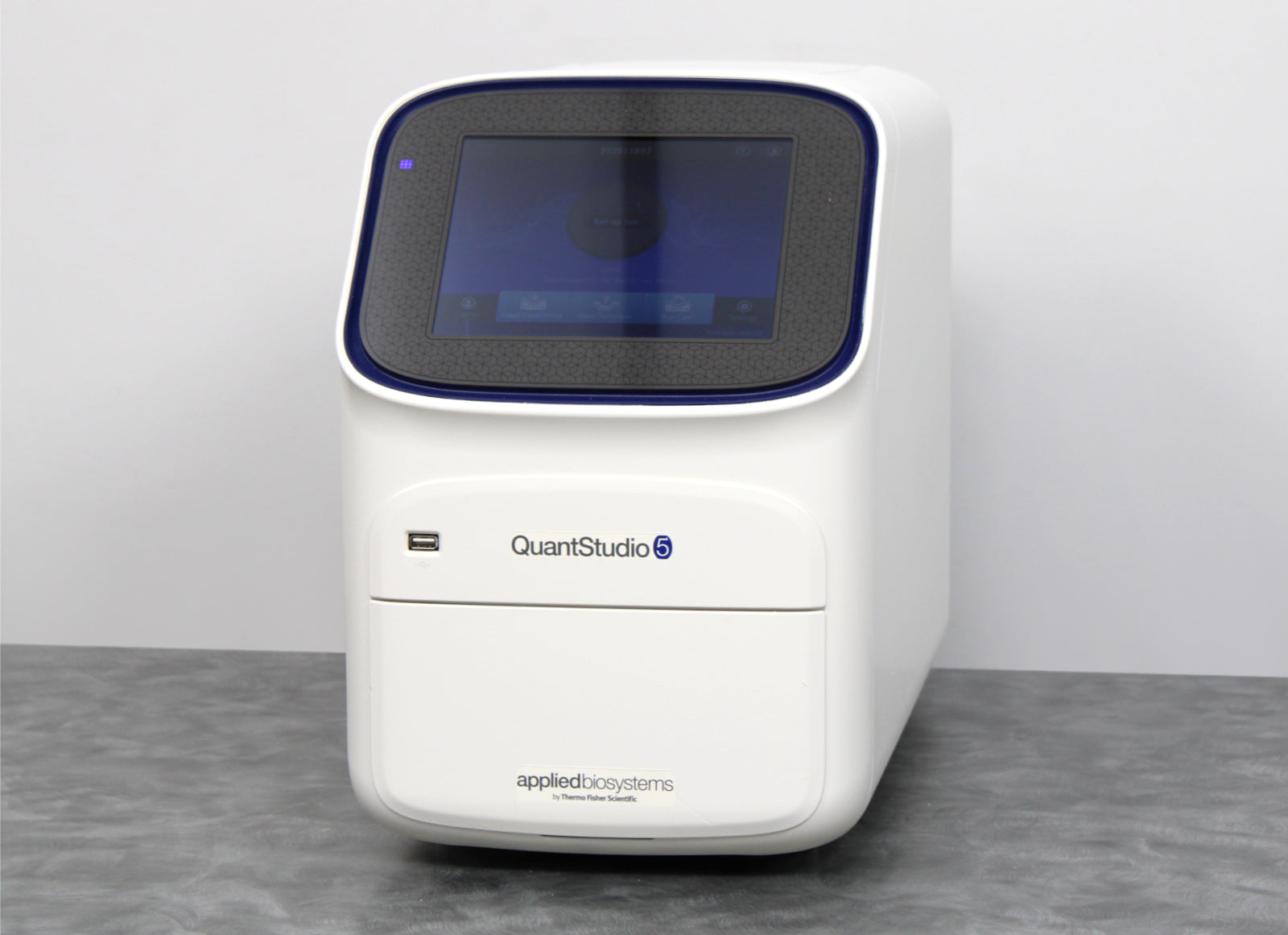

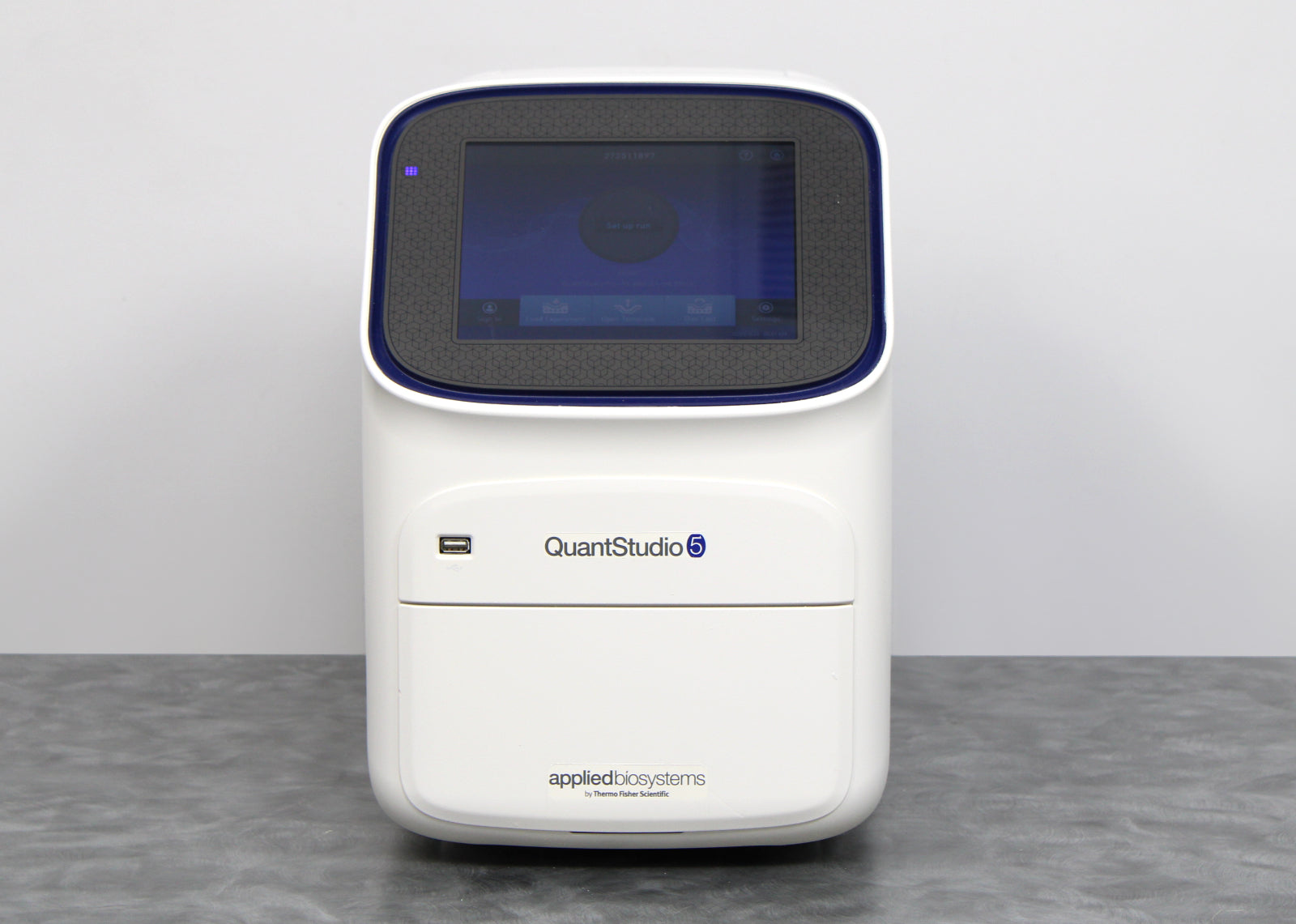

- Applied Biosystems QuantStudio 5 Real-Time PCR Instrument (96-Well 0.1ml Block) A28133
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Applied Biosystems QuantStudio 5 Real-Time PCR instrument with the following results:
- Power and initialization: PASSED

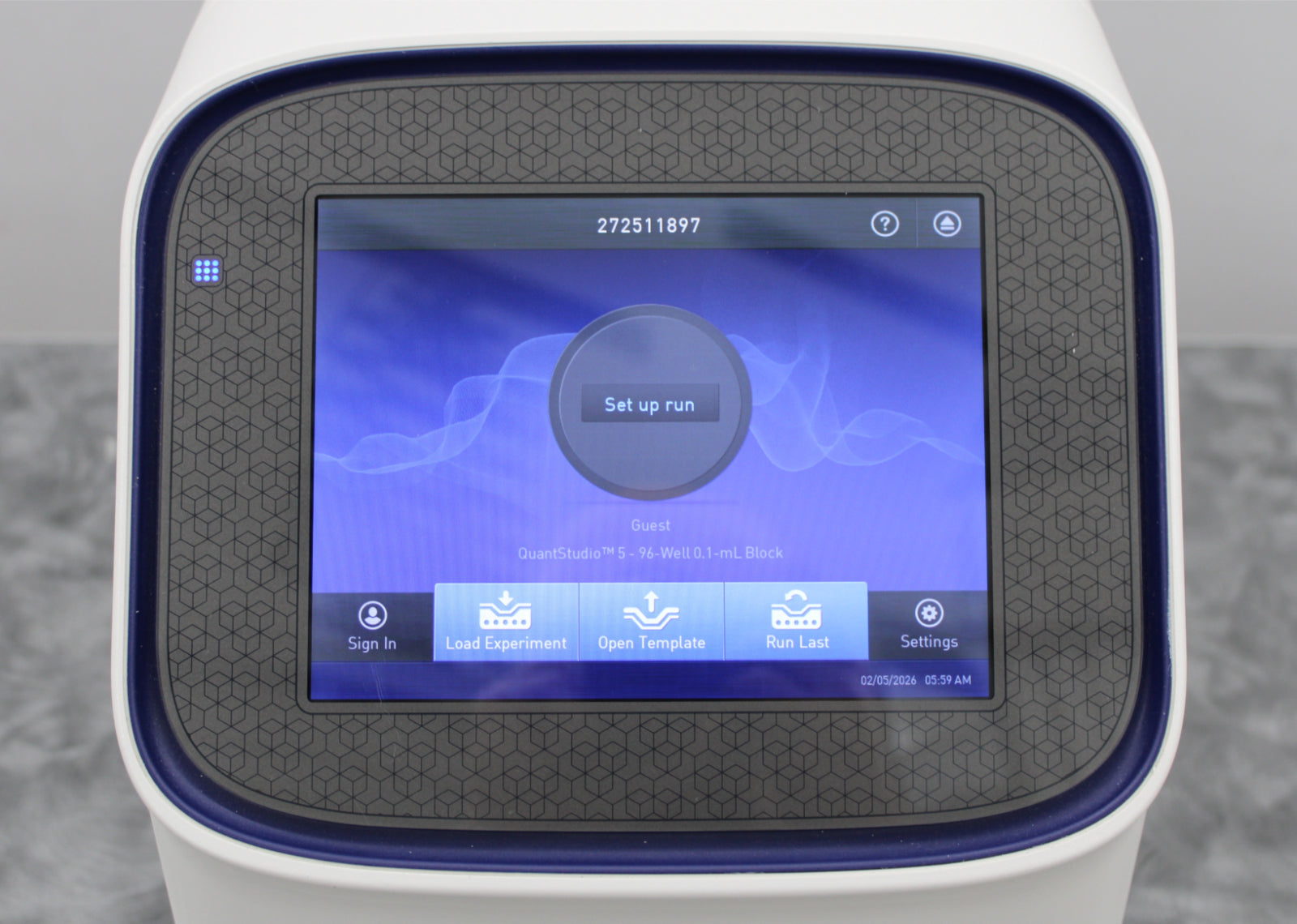

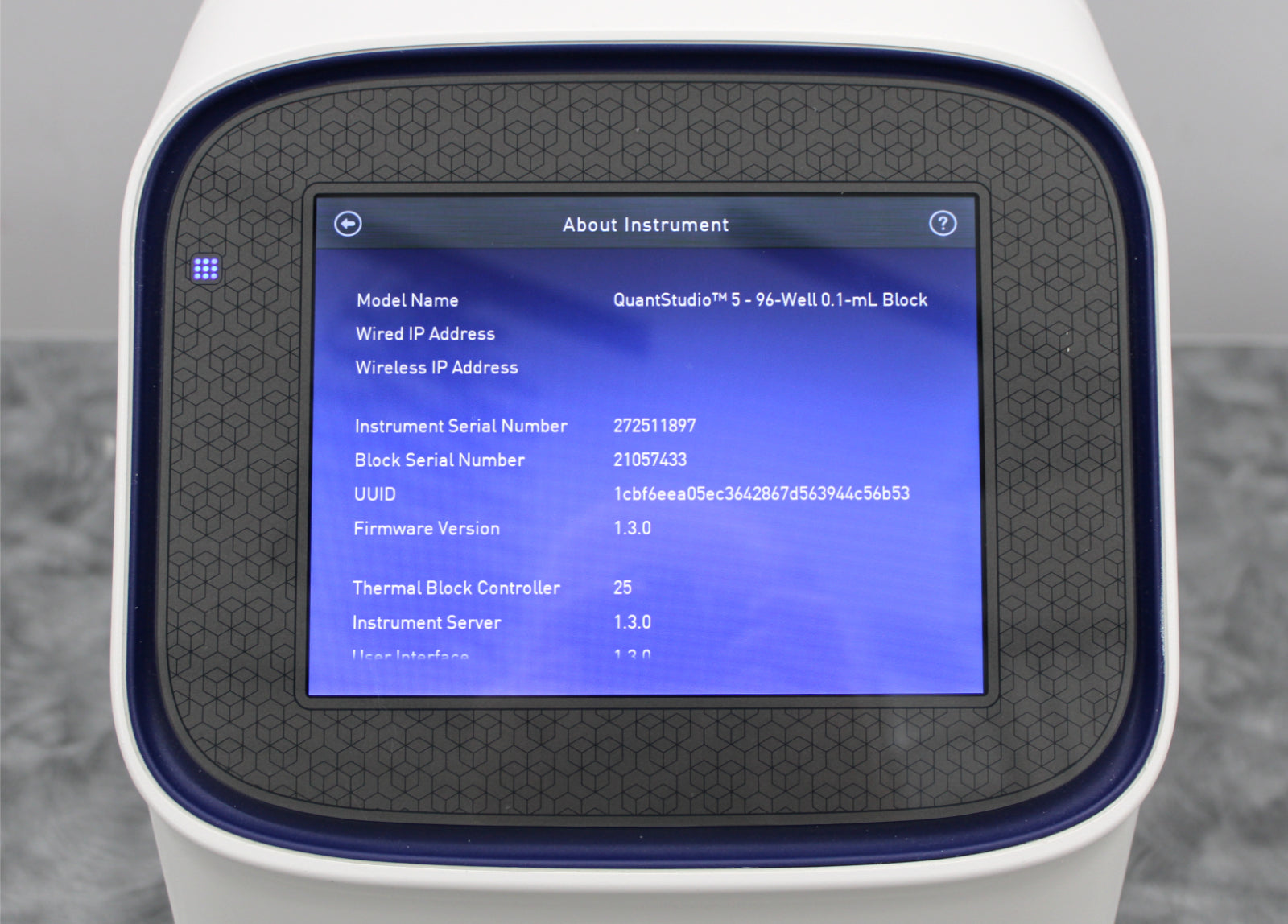

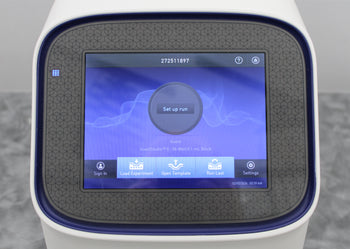

- Touchscreen: PASSED

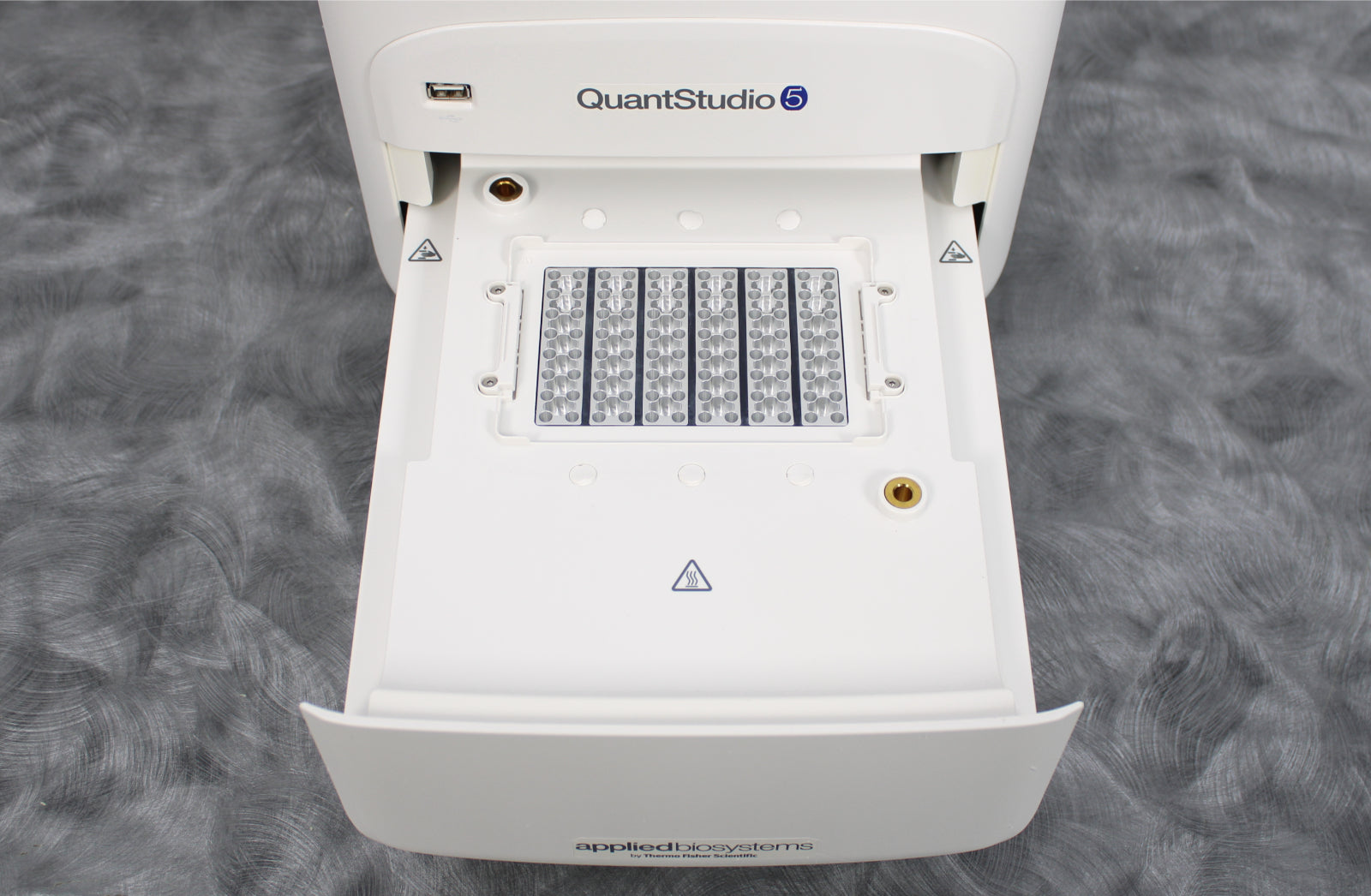

- Drawer open and close: PASSED
- Ran template run with no error: PASSED
Notice: This instrument is due for its annual calibrations.

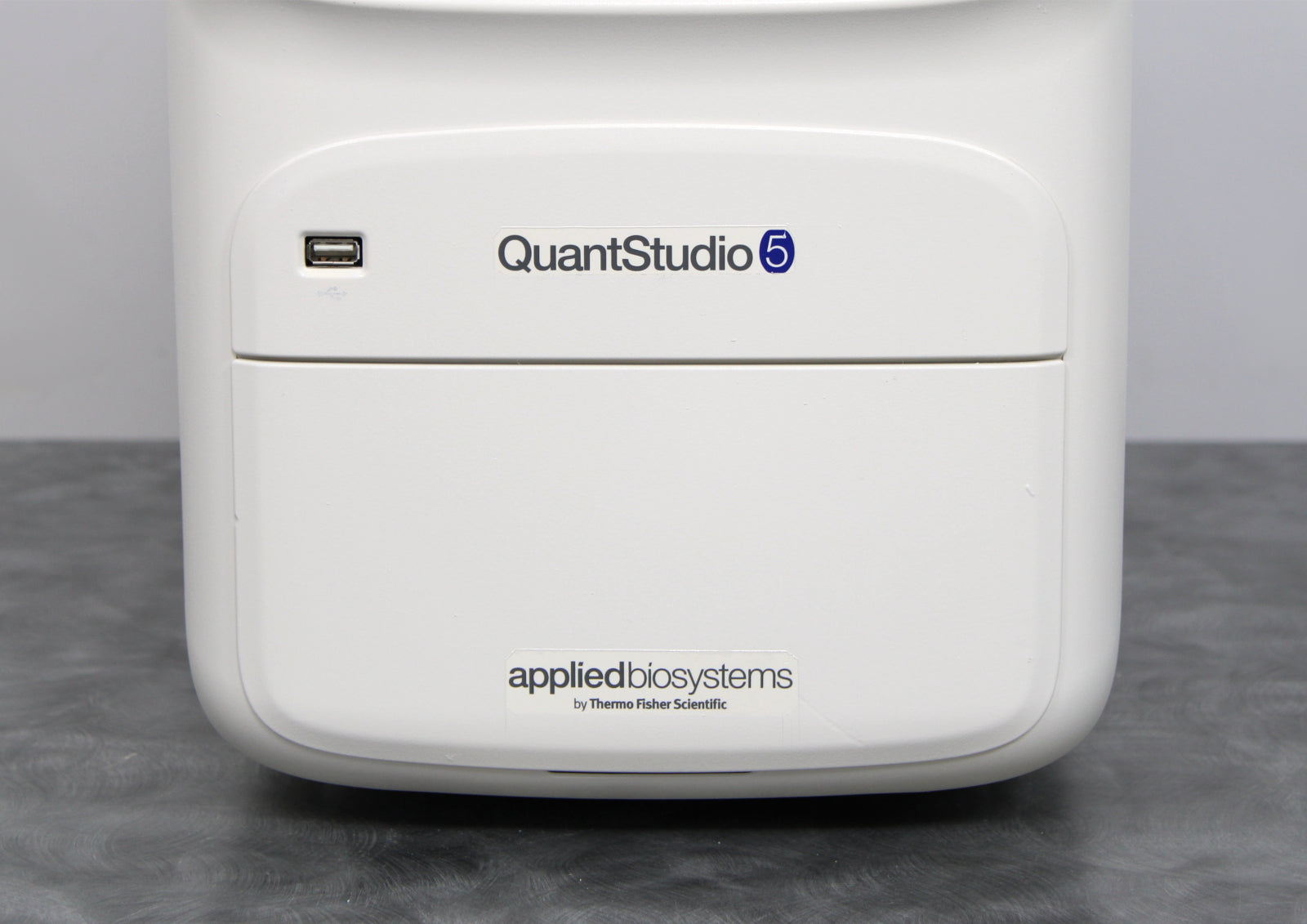

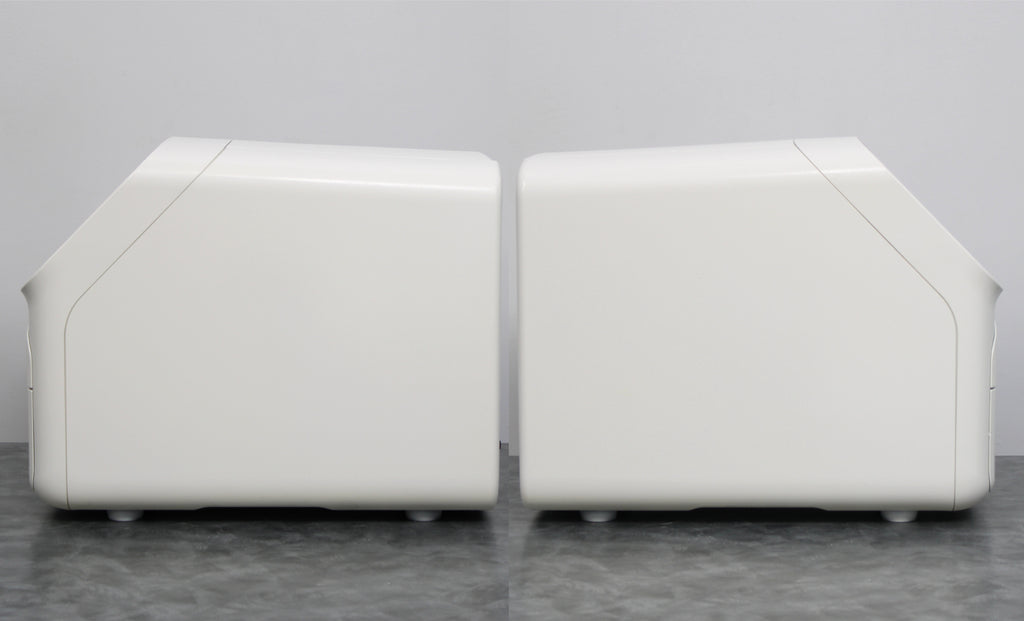

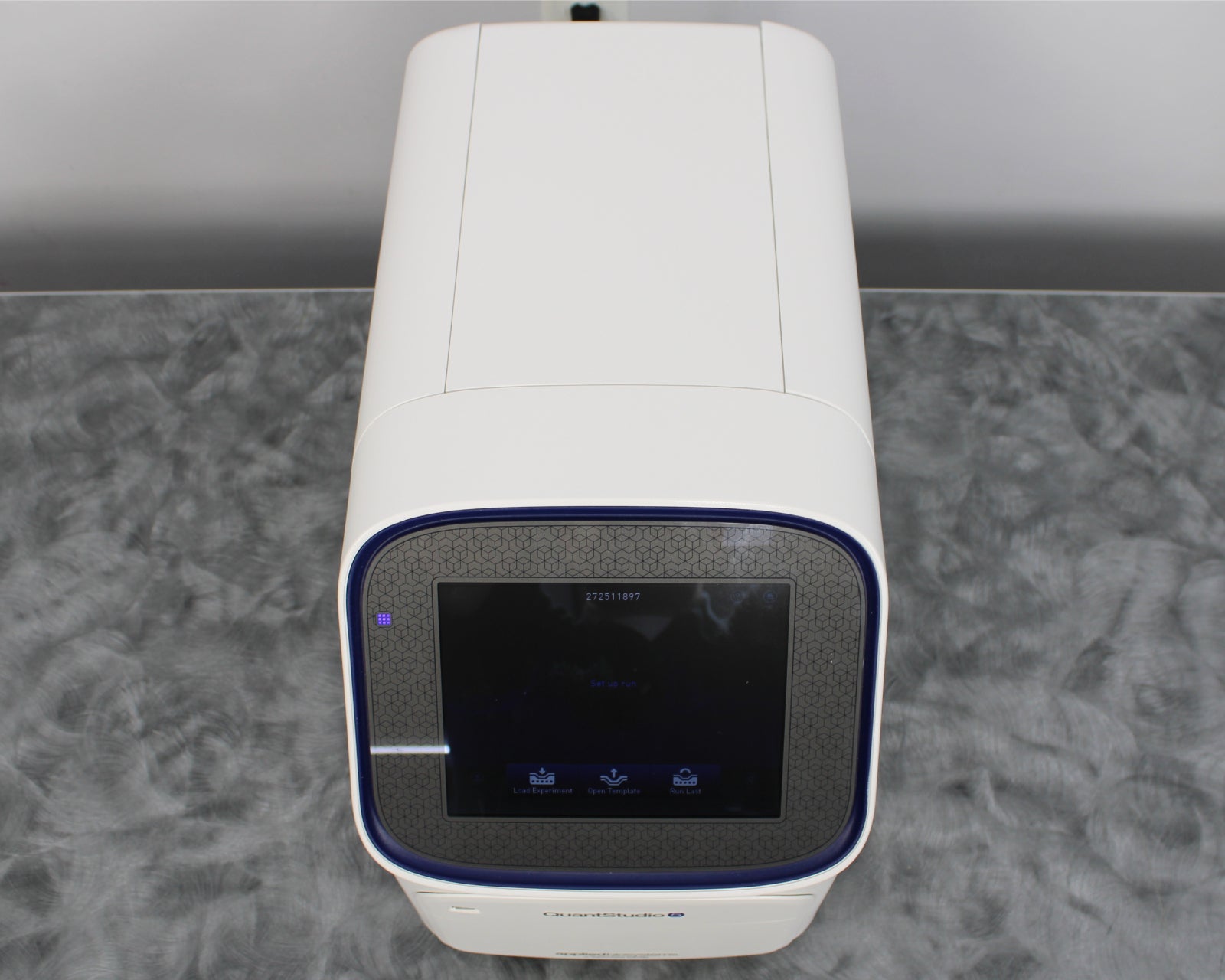

Notice: This instrument has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing. This instrument was recently painted to improve the appearance.
|
Manufacturer
|
Applied Biosystems
|
|
Product line
|
QuantStudio 5
|
|
Ref. No.
|
A28133
|
|

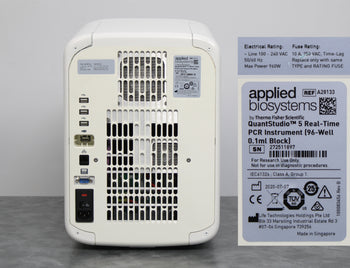

Serial No.
|
272511897
|
|
Mfg. date
|
2020-07-07
|
|

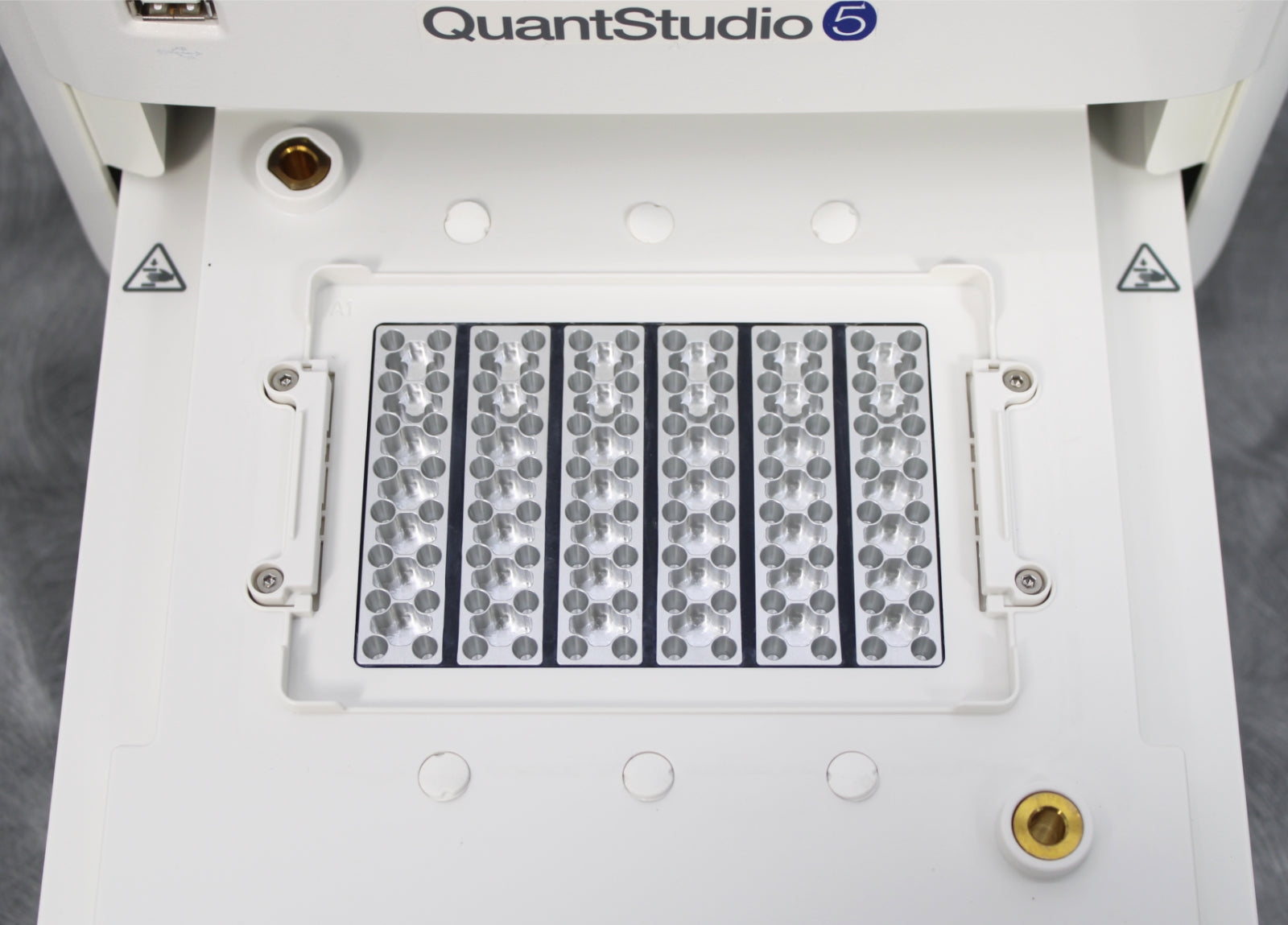

Sample capacity
|
96 wells, 0.1ml block
|
|
Reaction volume
|
10-30µL for 96-well 0.1 block
|
|
Excitation source
|
Bright white LED
|
|
Filters or Colors
|
6 decoupled filters with up to 21 combinations
|
|
Excitation/detection range
|
450-680 nm and 500-730 nm
|
|
Multiplexing
|
Up to 6 targets with 21 filter combinations
|
|
Heating/cooling method
|
Peltier
|
|
Max. block ramp rate
|
9.0°C/sec for 0.1 mL block
|
|
Average sample ramp rate
|
4.81°C/sec for 0.1 mL block
|
|
Temperature uniformity
|
0.4°C
|
|
Temperature accuracy
|
0.25°C
|
|
Run time
|
<35 minutes
|
|
Dye compatibility (name)
|
FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy 5/LIZ, Cy 5.5
|
|
Chemistry capabilities
|
Fast/Standard
|
|
Detection sensitivity
|
1 copy
|
|
Sensitivity
|
Detect differences as small as 1.5-fold in target quantities in singleplex reactions
|
|

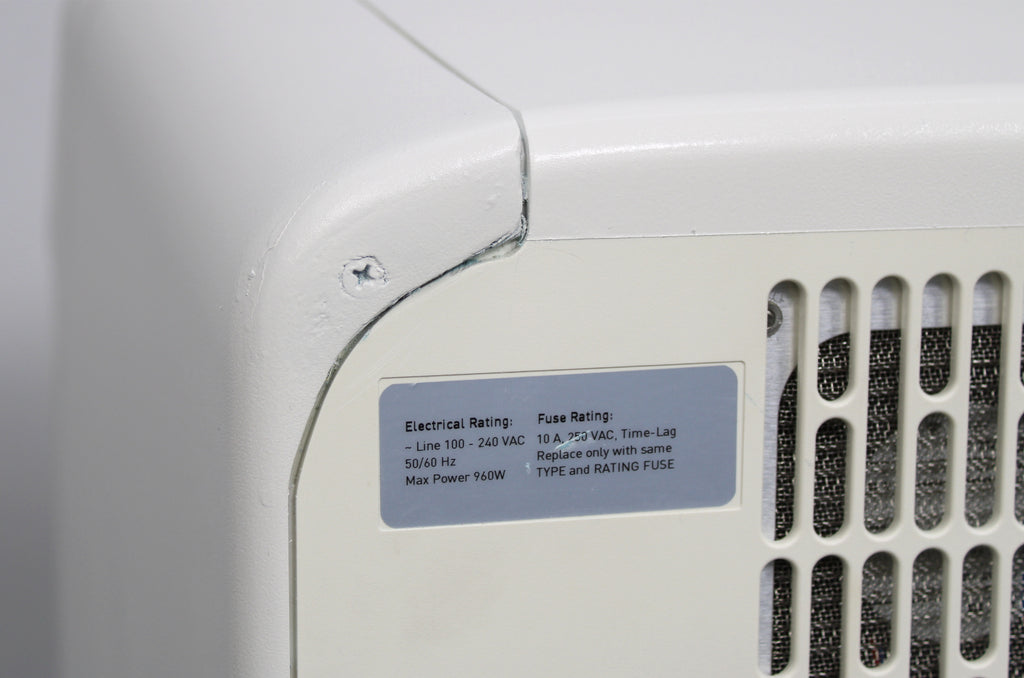

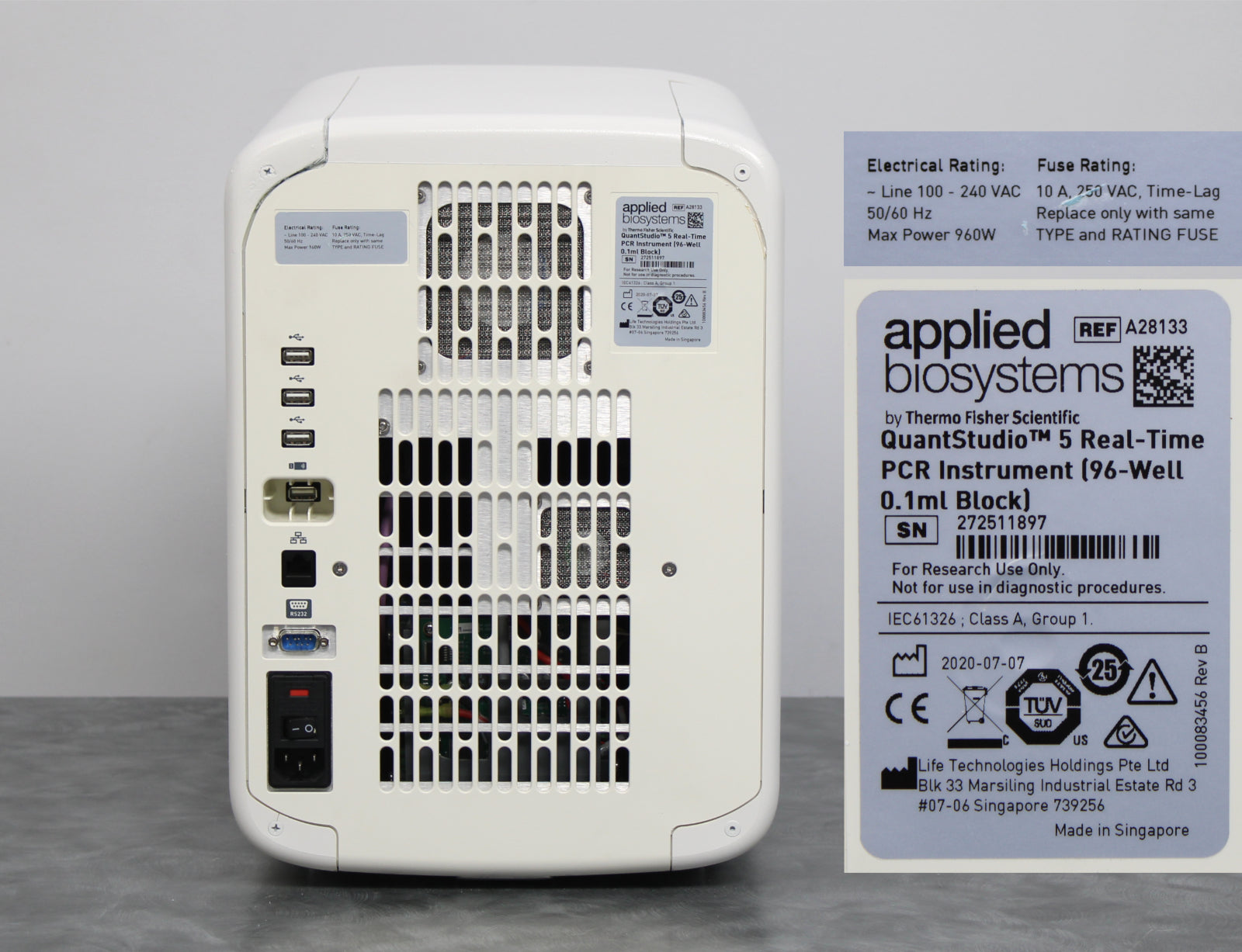

Power rating
|
100-240VAC, 50/60Hz, Max Power 960W
|
|
Dimensions (W x D x H)
|
10.5 x 19.5 x 15.5 in
|
|
Weight
|
70 lb (31.75 kg)
|
