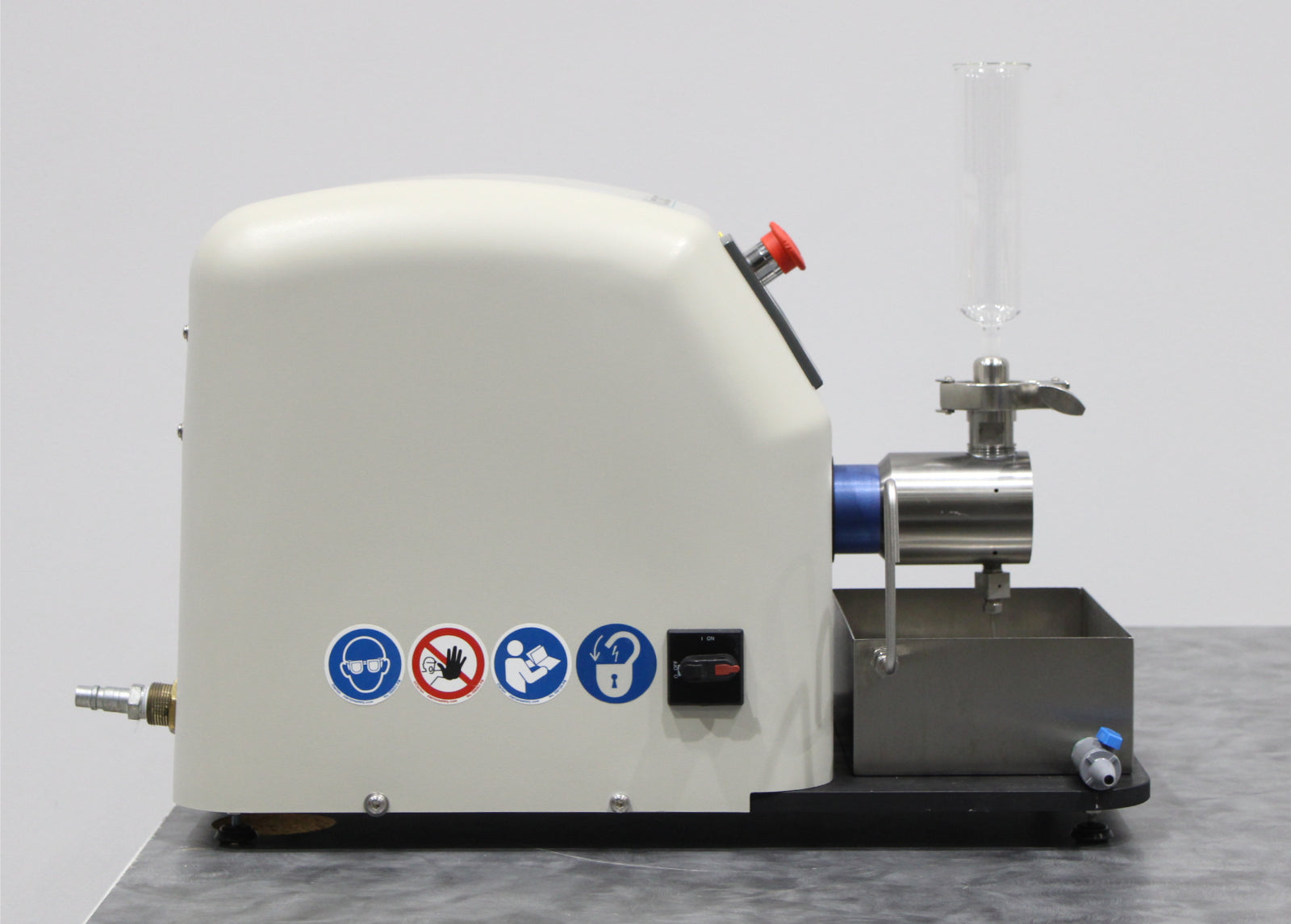

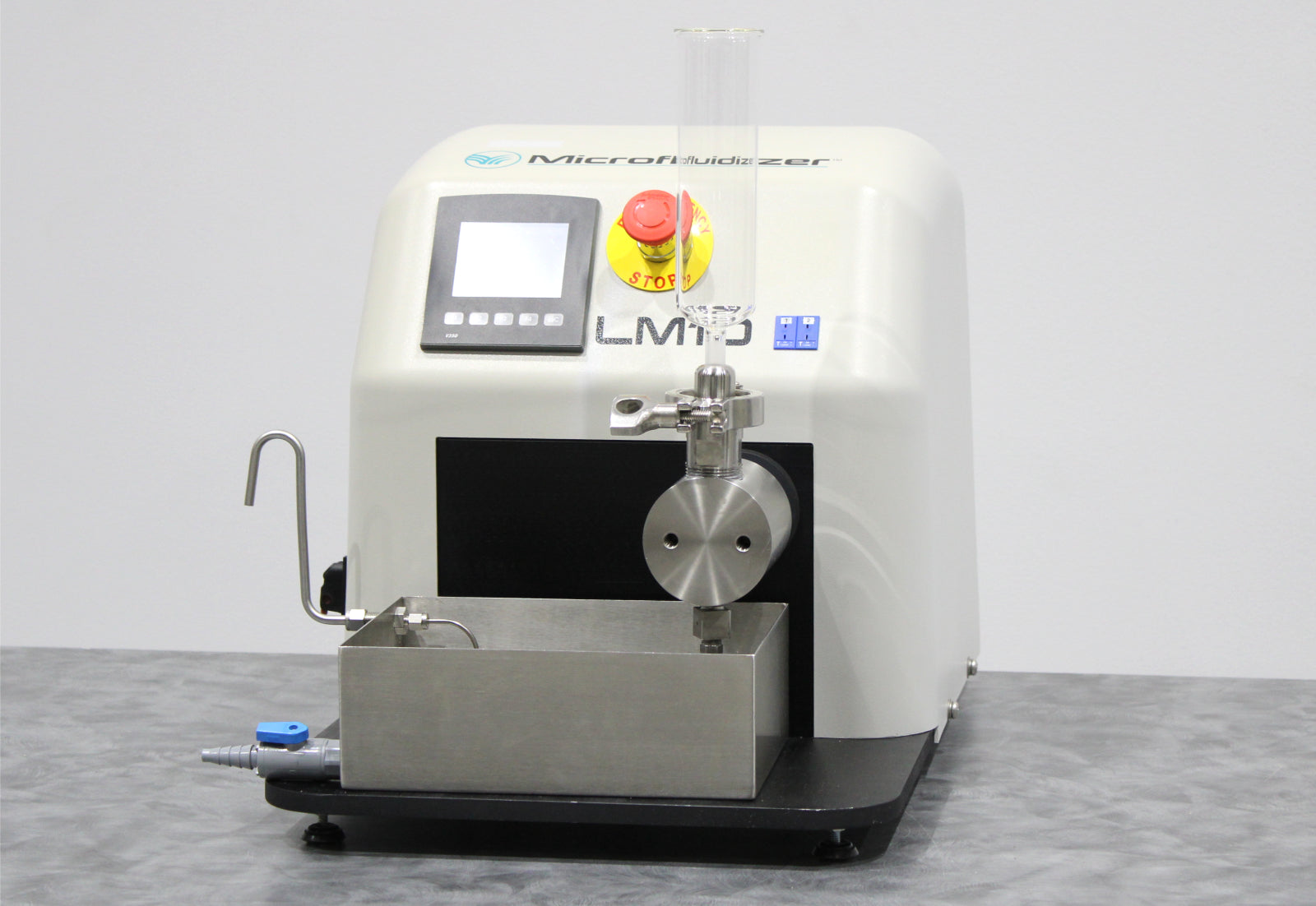

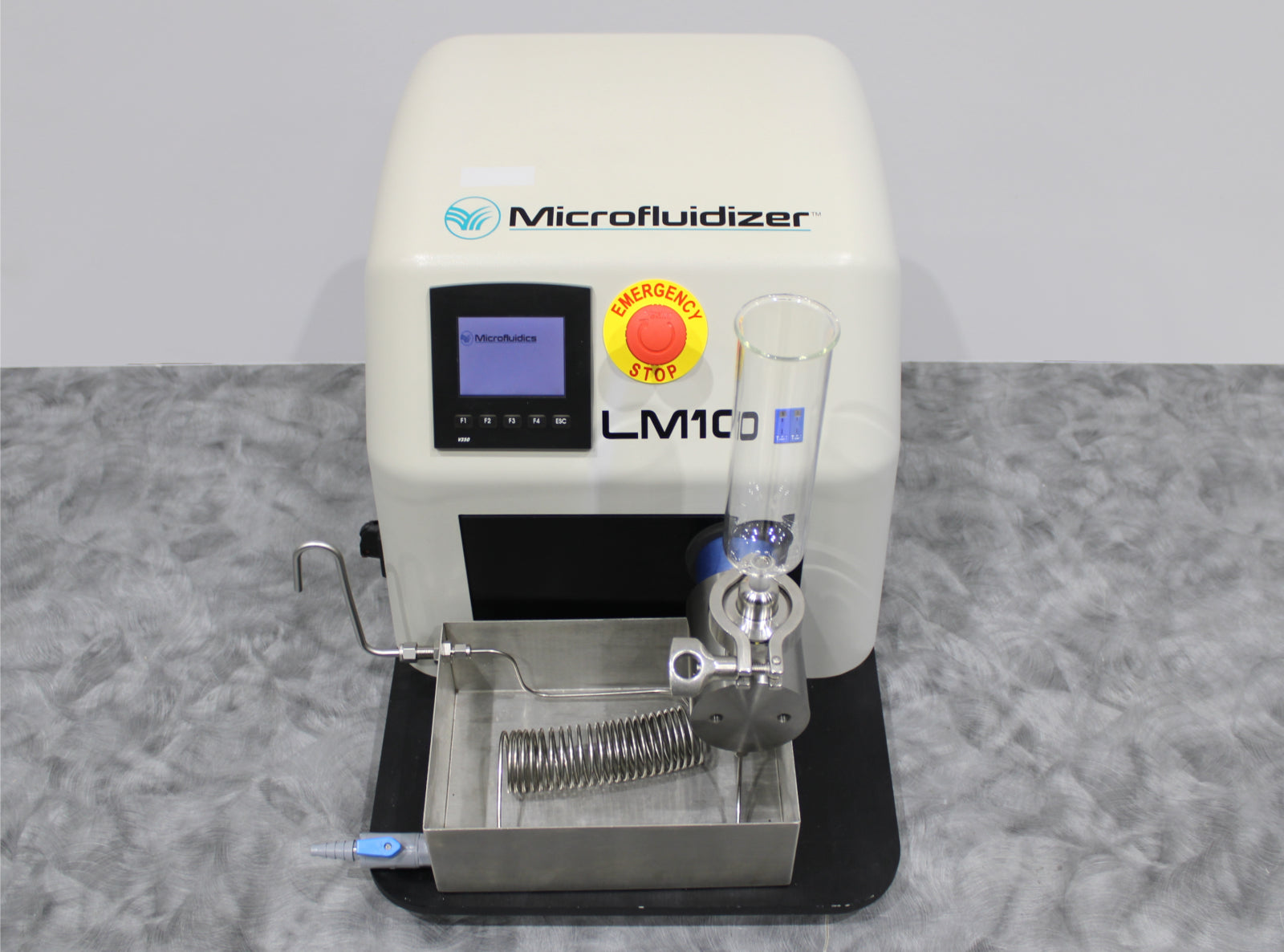

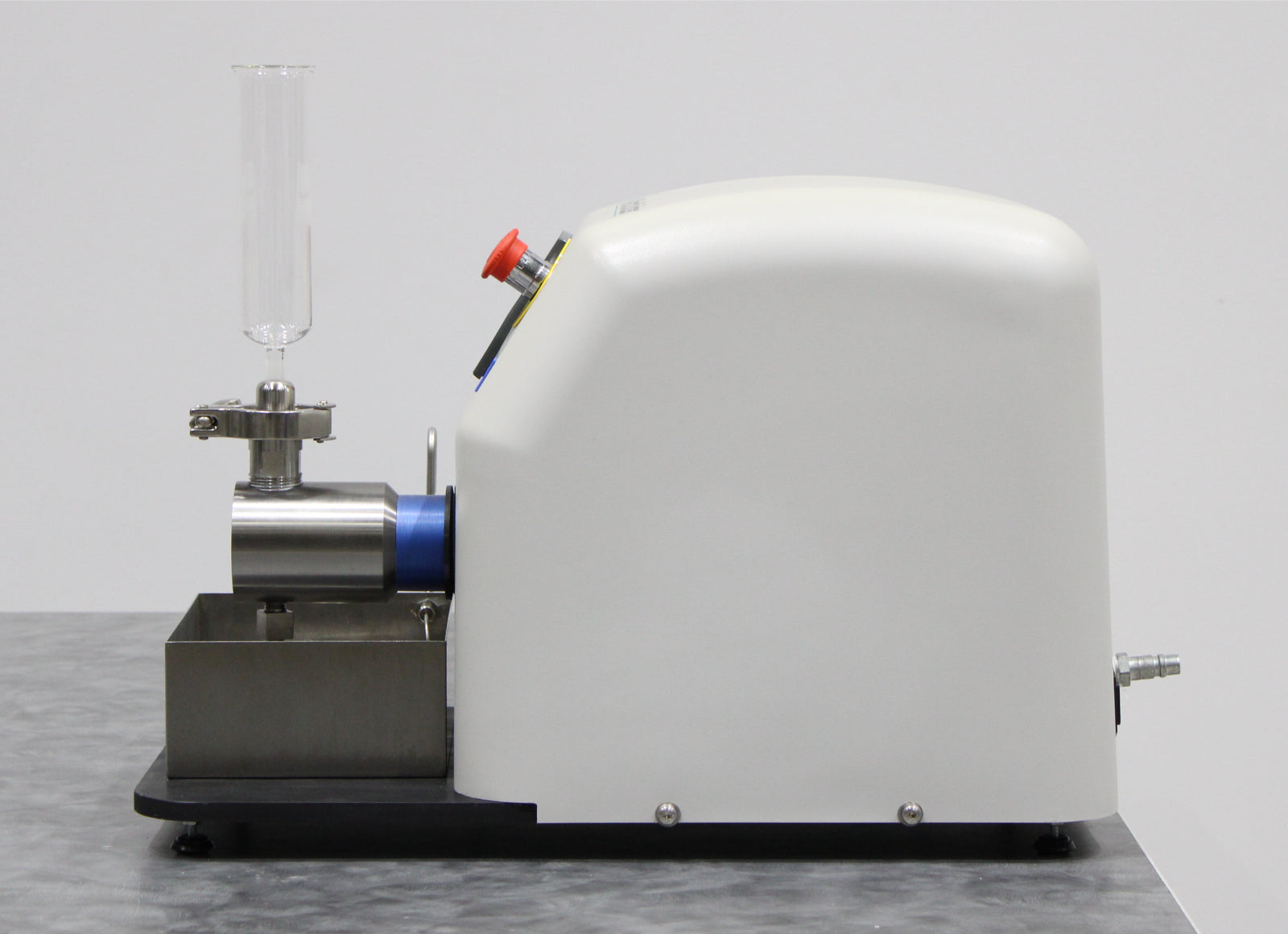

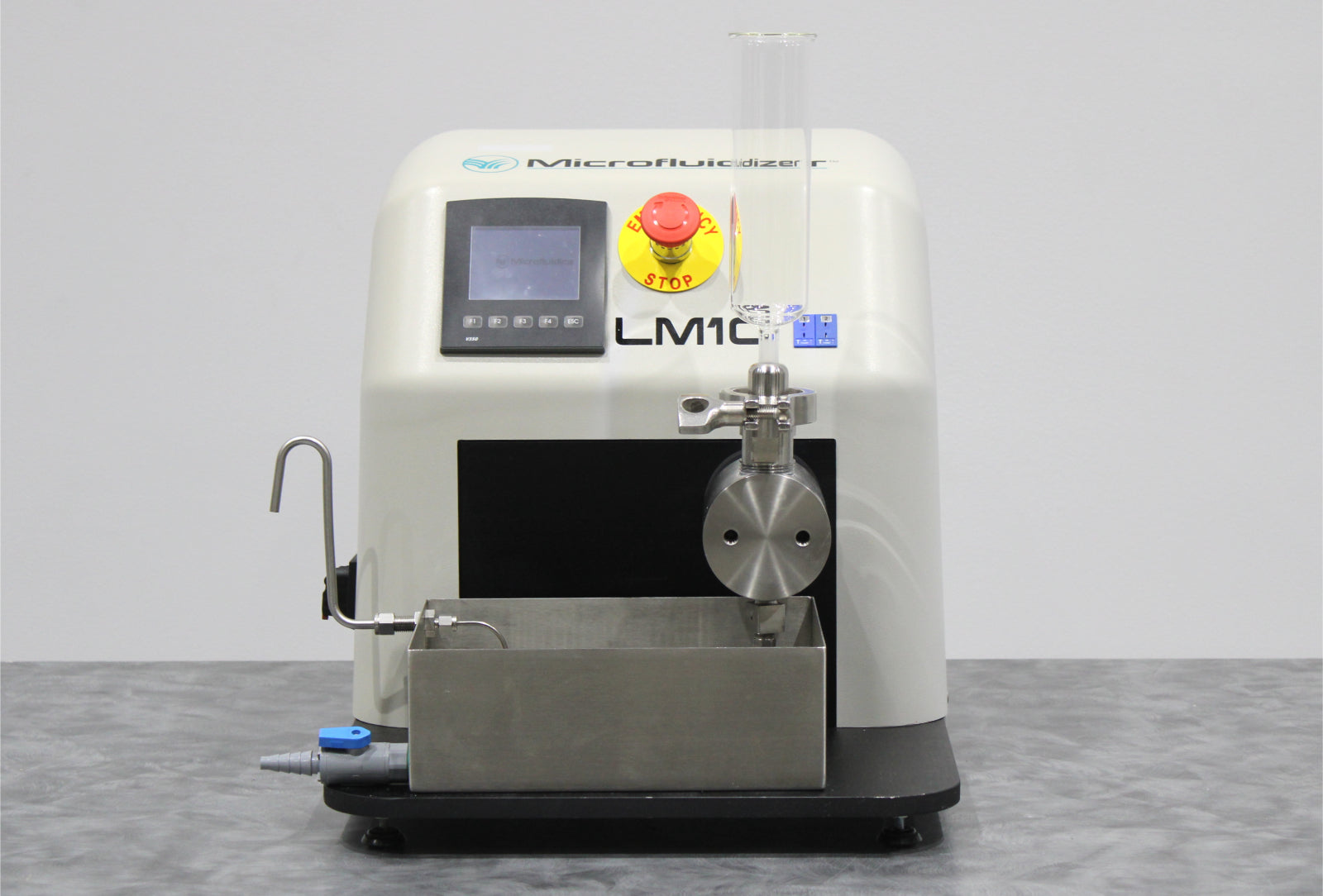

- Microfluidics LM10 Microfluidizer High-Shear Fluid Processor

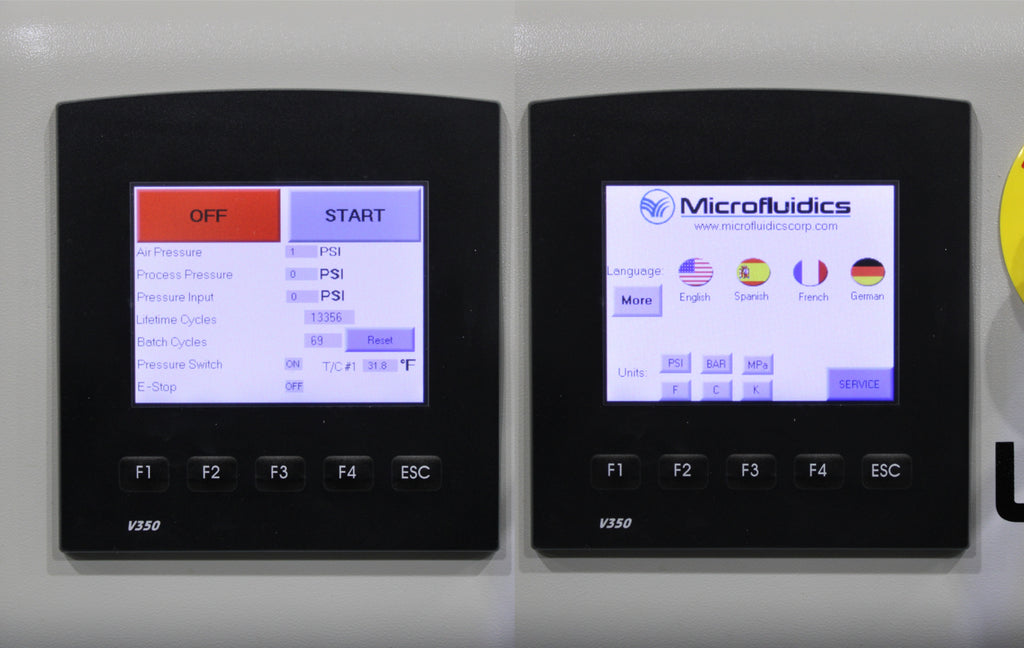

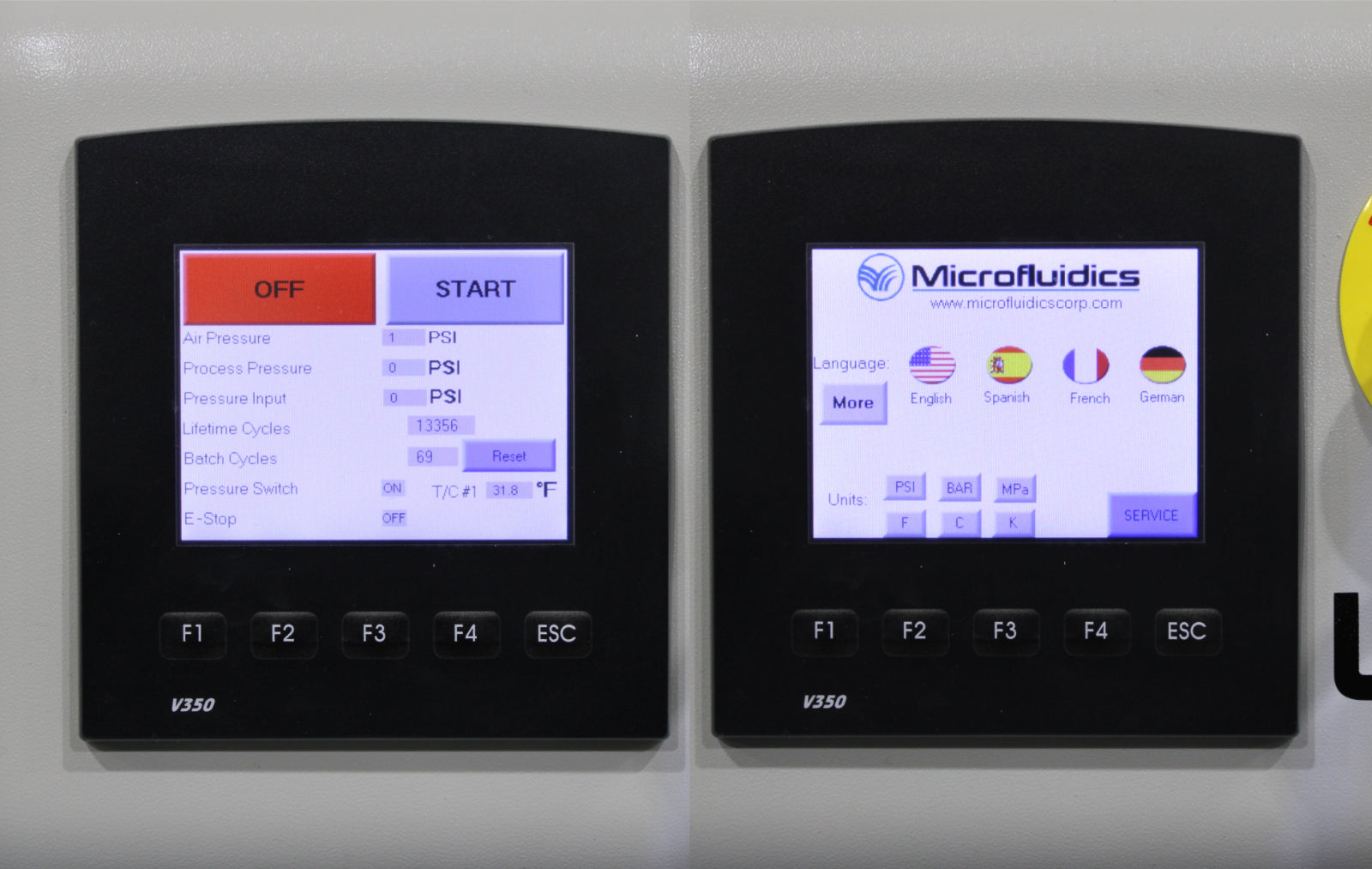

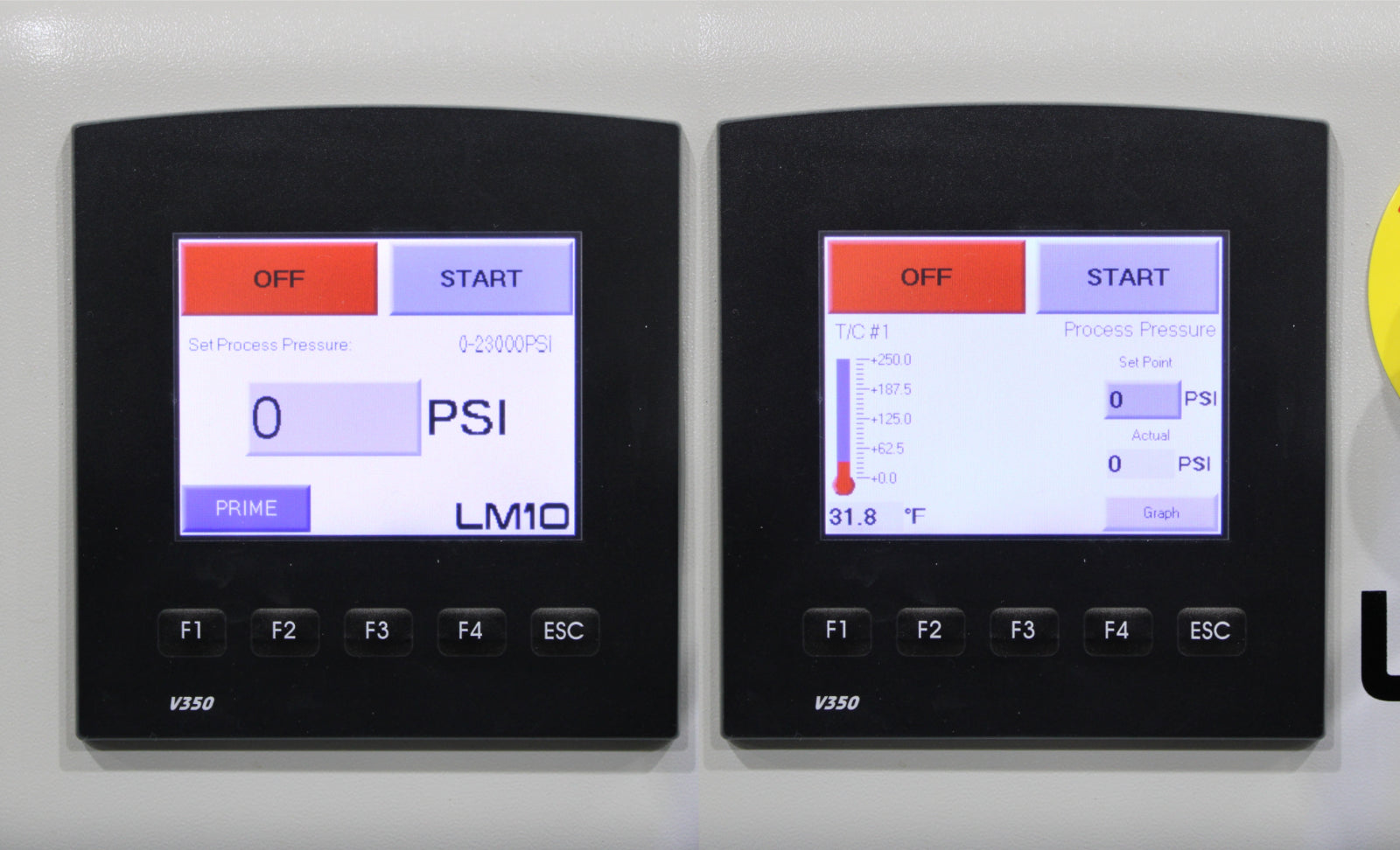

- Touchscreen Control Interface

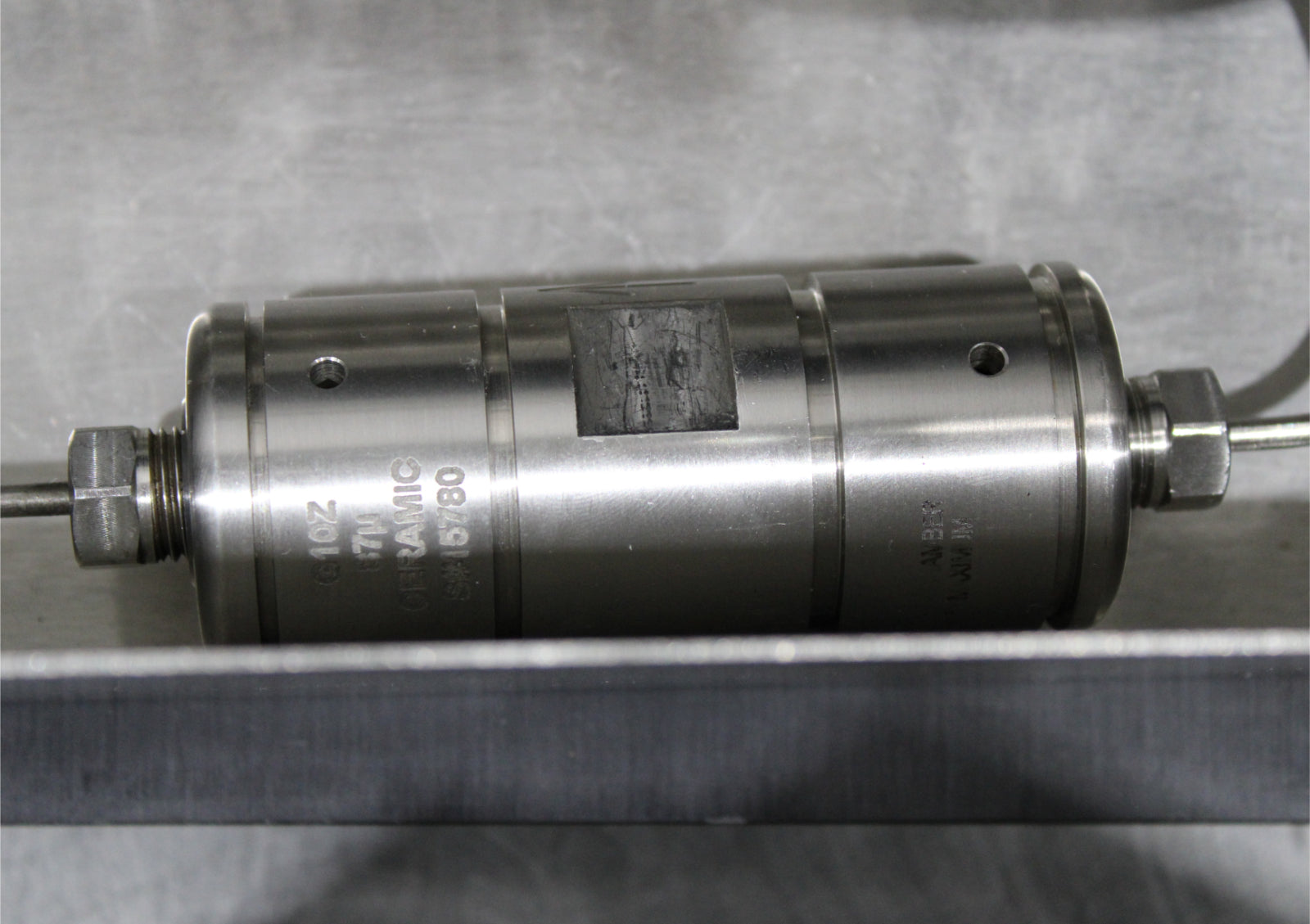

- G10Z 87 Micron Ceramic Interaction Chamber (IXC)
- 300 mL Glass Reservoir

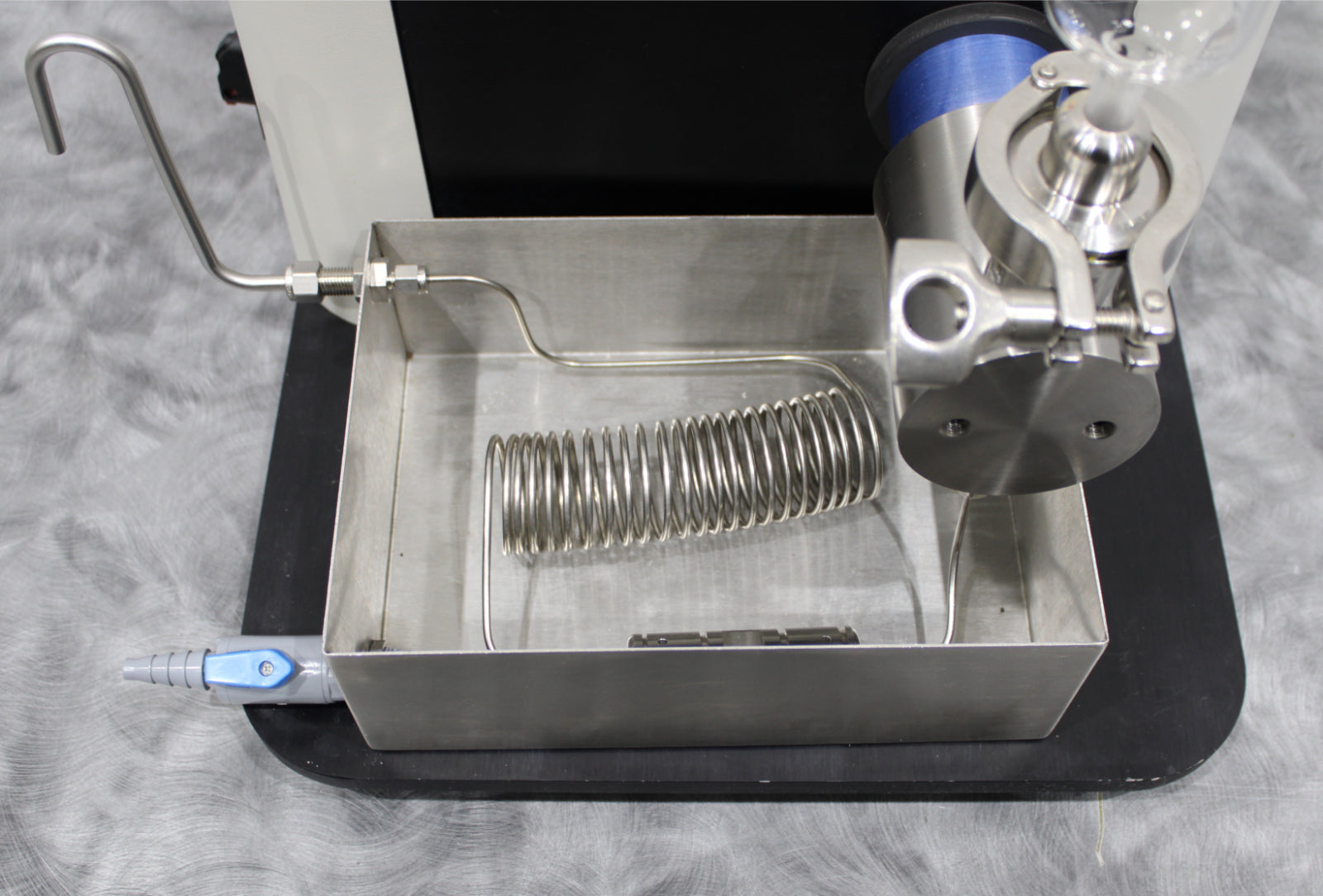

- Product Cooling Coil and Bath Assembly
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Microfluidics LM10 microfluidizer high-shear fluid processor with the following results:
- Ran/sterilized with 2 liters of isopropyl alcohol: PASSED
- Verify maximum operating pressure of 23,000 psi: PASSED
- Check process pressure control valve: PASSED
- Check motor start/stop control: PASSED
- Check pressurized air inlet assembly: PASSED
- Check/replace plunger seal assembly: PASSED
- Clean and inspect plunger: PASSED
- Clean and inspect/replace high pressure fittings: PASSED
- Clean and inspect/replace inlet check valve: PASSED
- Inspect/replace pneumatic switches: PASSED
- Backflush the interaction chamber: PASSED
- Replaced plunger seal.
- Replaced the high pressure elbow nipple.

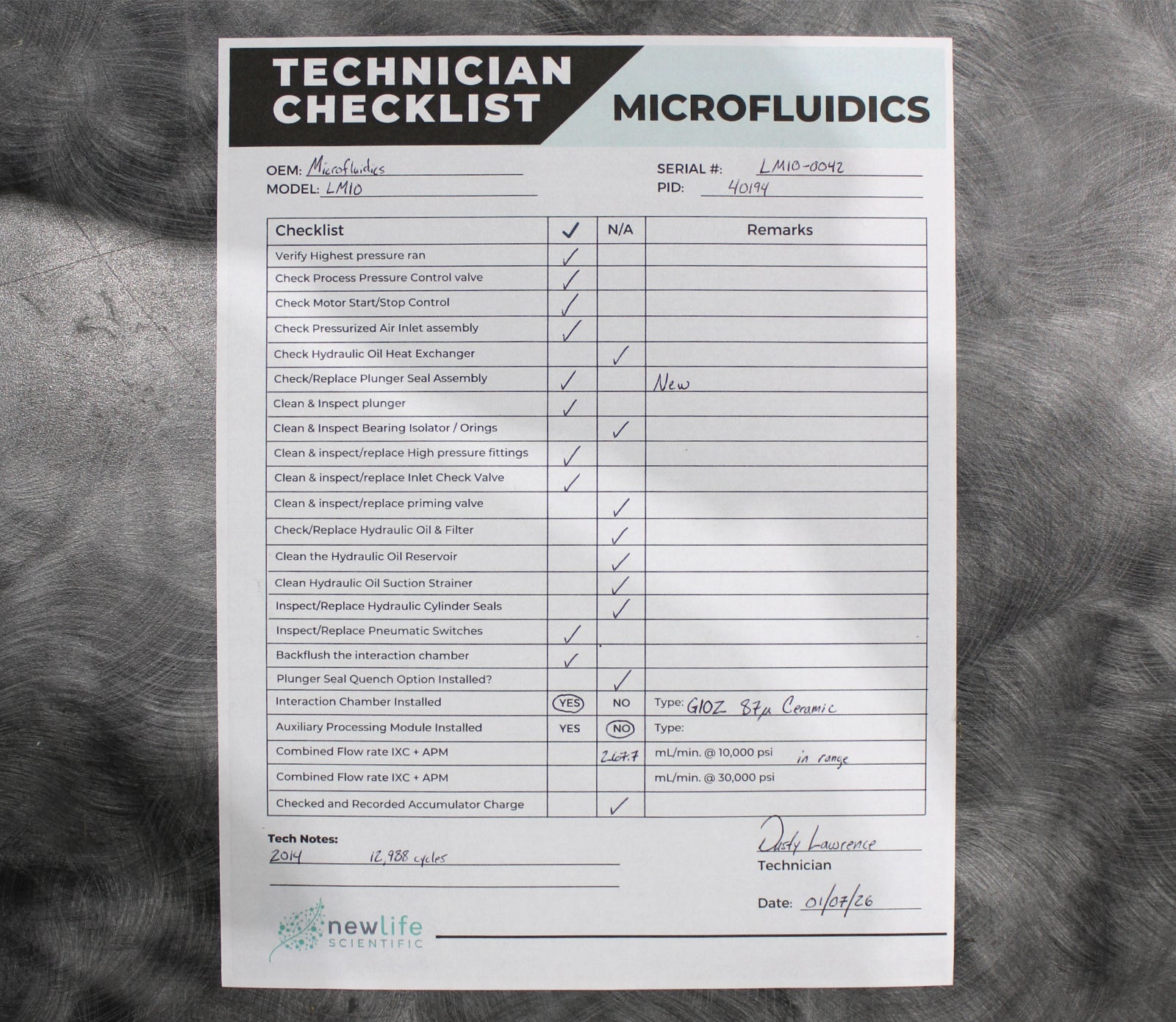

Notice: Please review the technician checklist in the product images to see more details of the inspection and testing performed.
Notice: This processor has very little use with less than 14,000 cycles recorded and about 1 hour of operating time.
Notice: This homogenizer has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

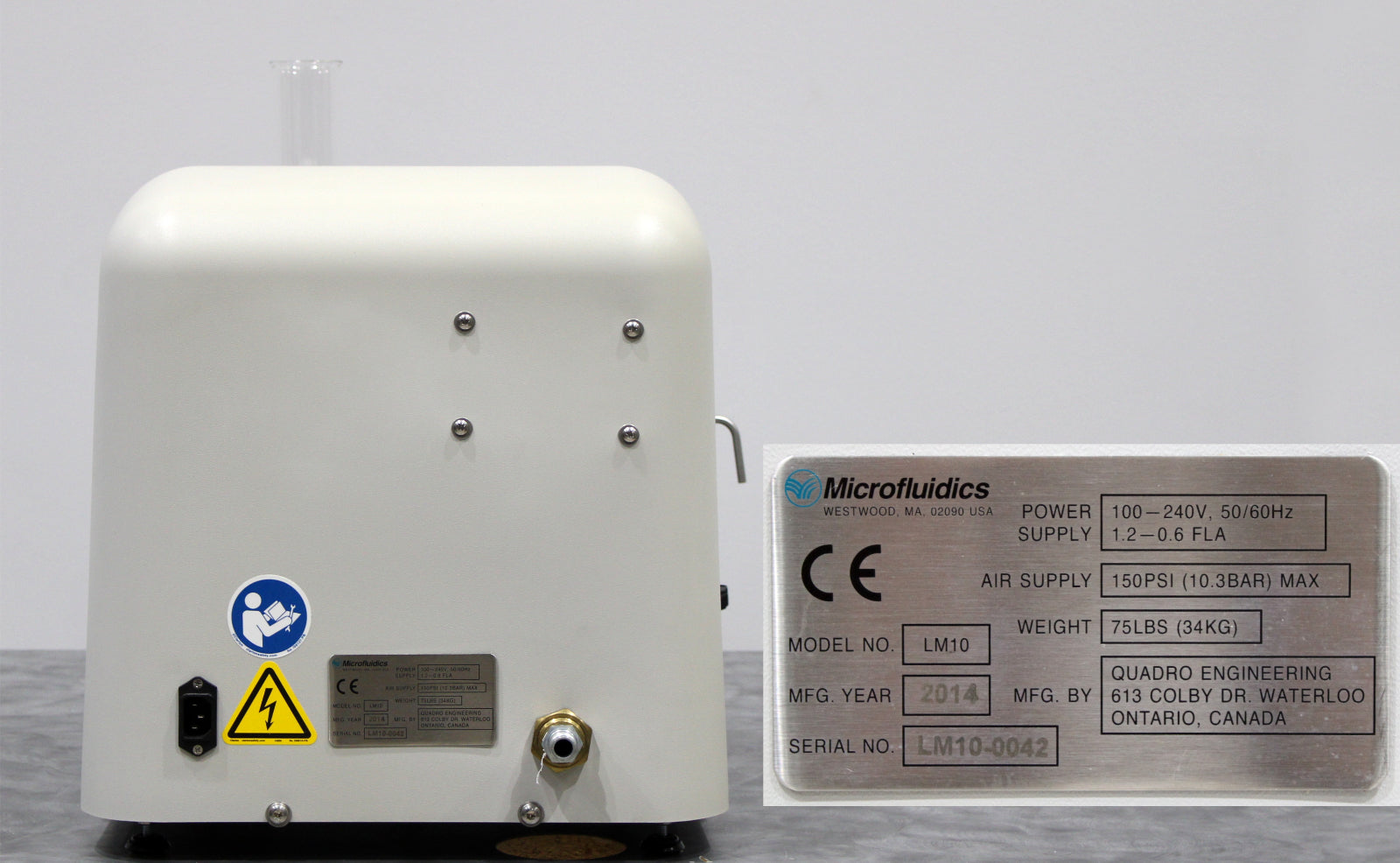

Manufacturer
|
Microfluidics
|
|
Model No.
|
LM10
|
|
Serial No.
|
LM10-0042
|
|
Mfg. date
|
2014
|
|
Pressure range
|
Up to 23,000 psi (1,546 bar)
|
|
Minimum sample size
|
30 ml
|
|
Flow rate range
|
Up to 600 ml/min
|
|
Pump actuator
|
Pneumatically driven
|
|
Air utility requirement
|
Free mode = 57 scfm @ 120 psi (27 l/s @ 8.3 bar)
|
|
Air supply max
|
150 psi (10.3 bar) max
|
|
Noise level
|
<80dB TWA
|
|
Power rating
|
100-240V, 50/60Hz, 5A
|
|
Dimensions
|
17.25 x 26.58 x 18.87 in (43.8 x 67.5 x 47.9 cm)
|
|
Weight
|
75 lb (34 kg)
|
