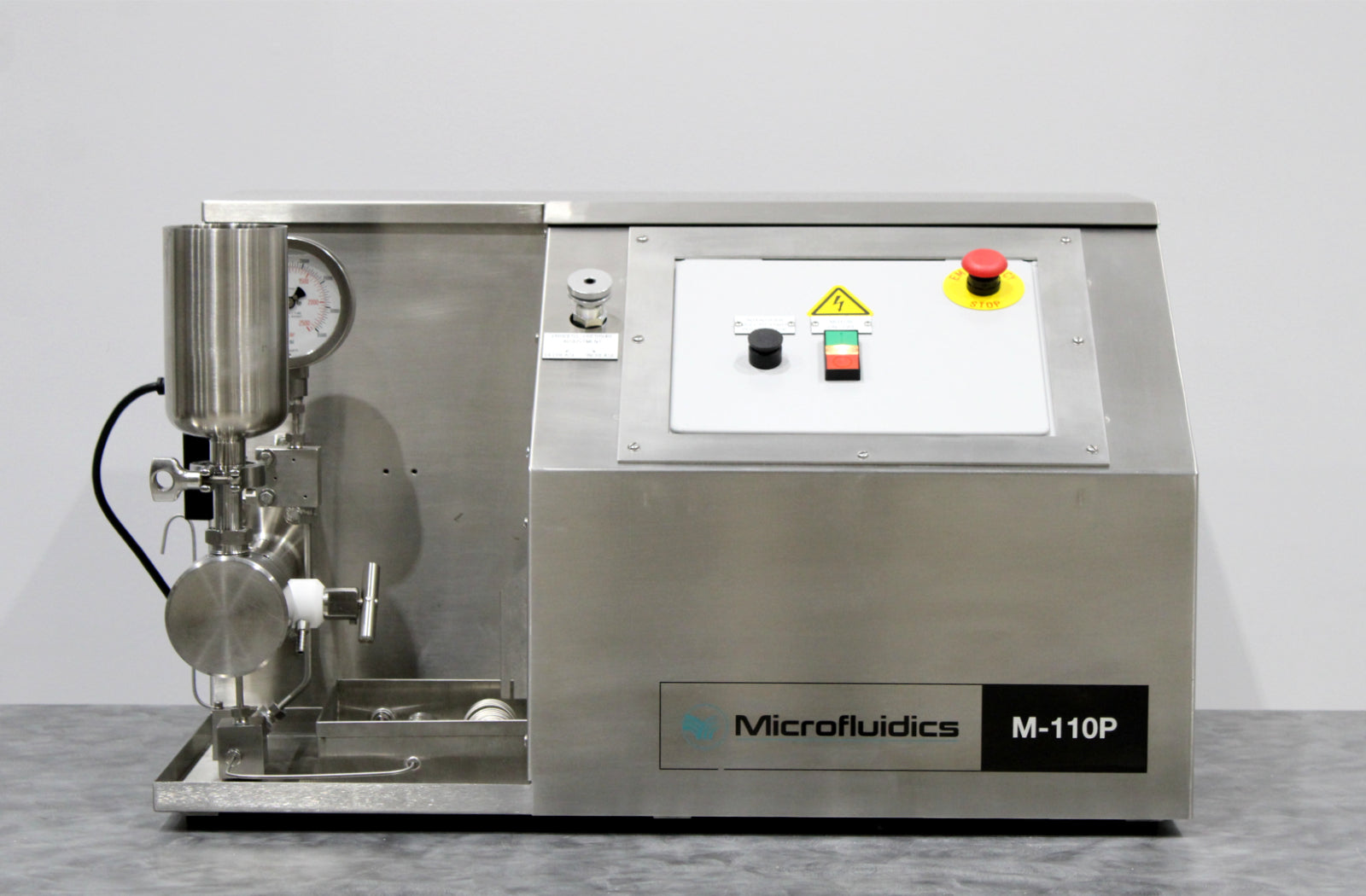

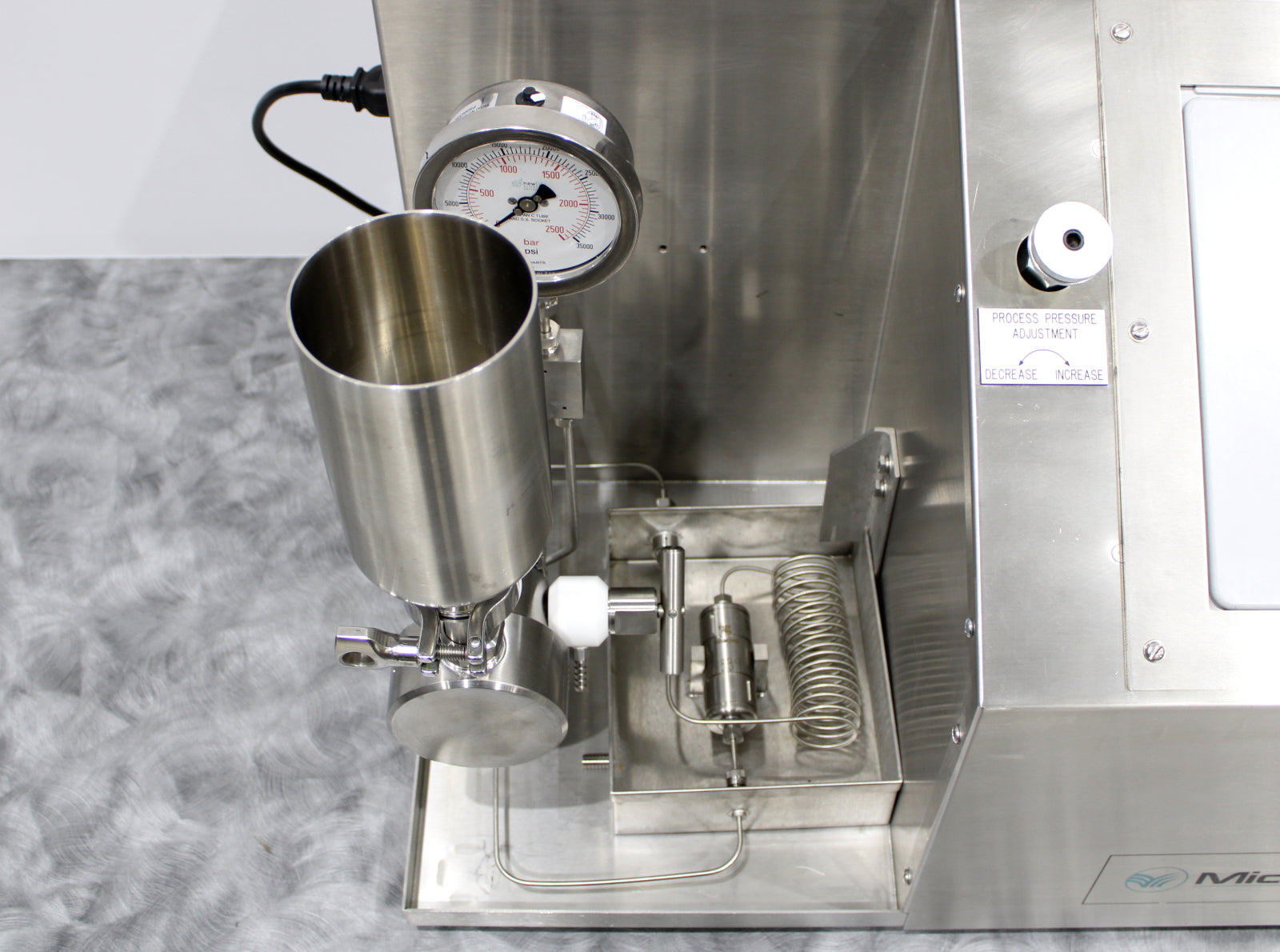

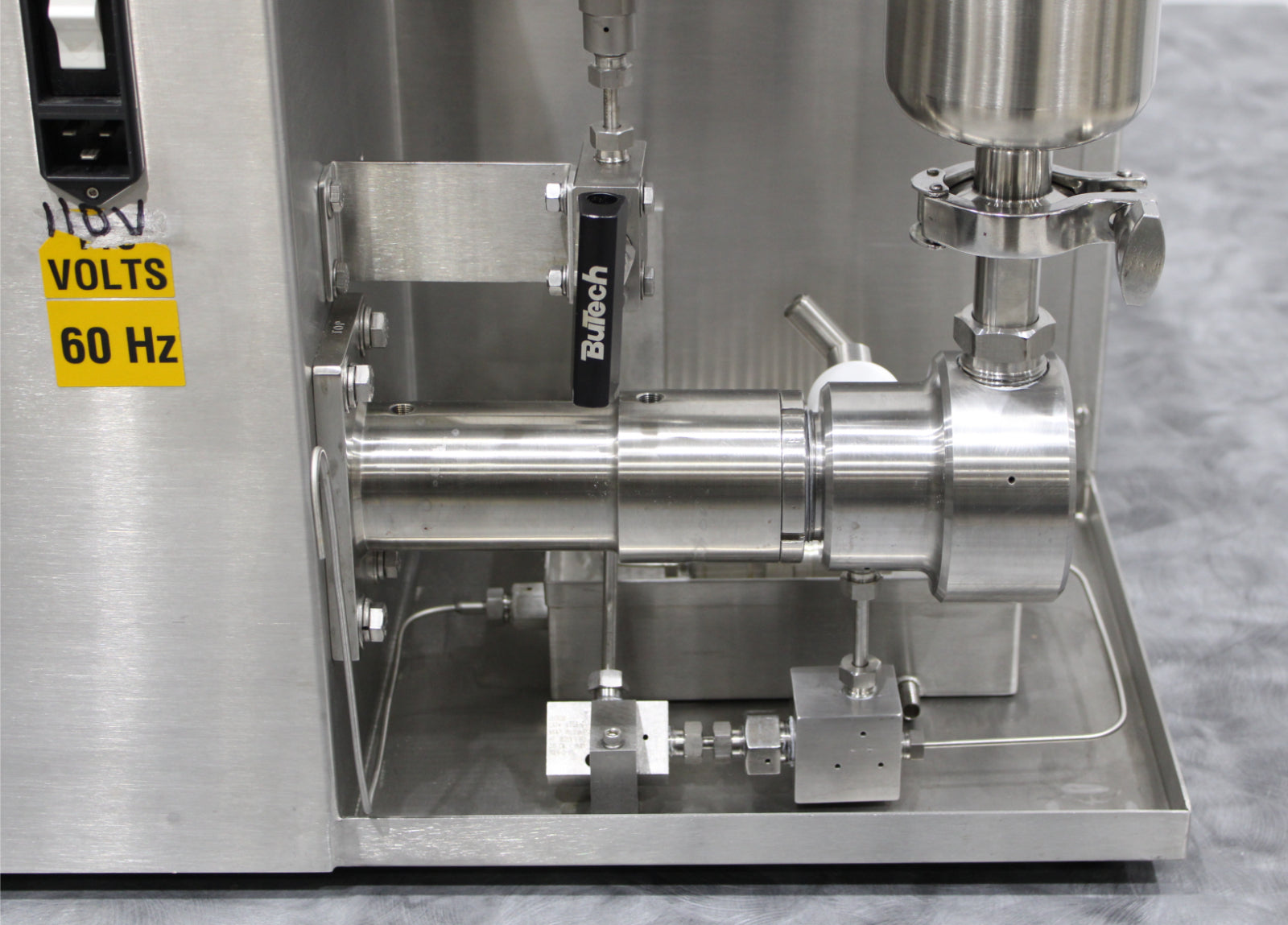

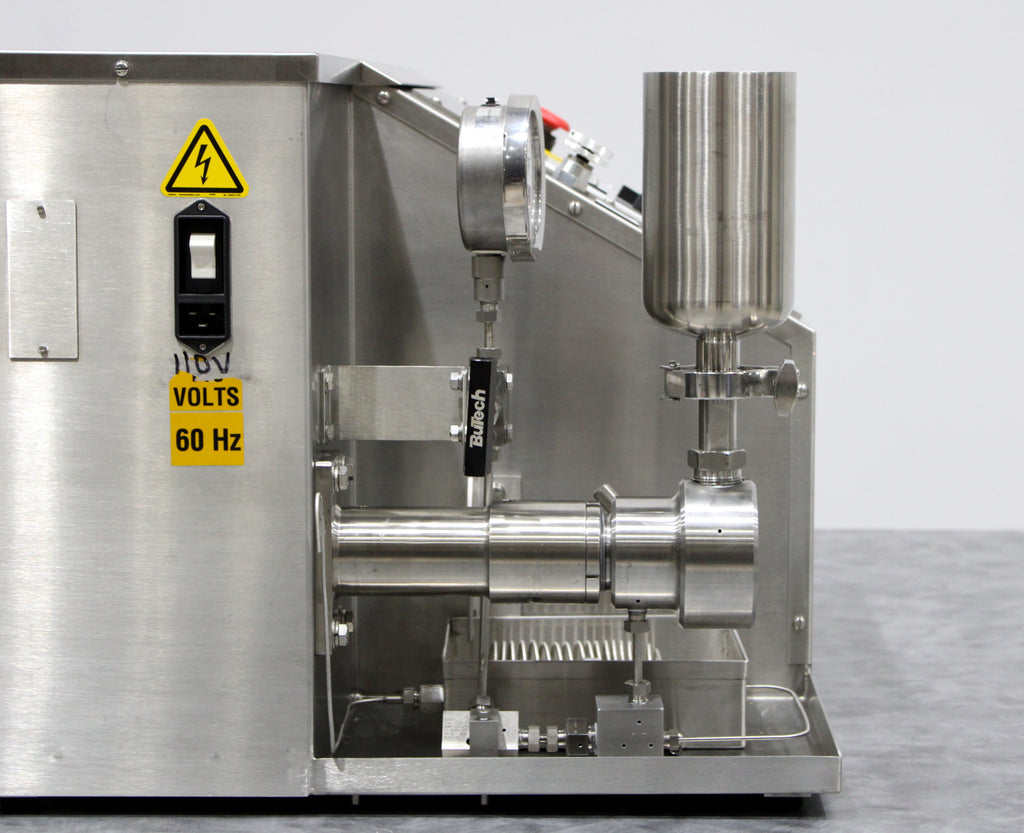

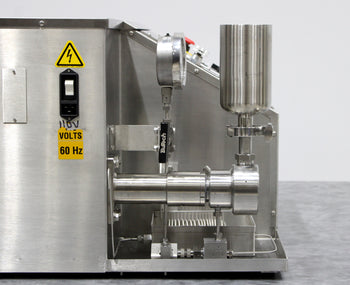

- Microfluidics M-110P Electric-Hydraulic High-Shear Benchtop Microfluidizer Processor (M110P_11)
- F12Y 75 Micron Diamond Interaction Chamber (IXC)

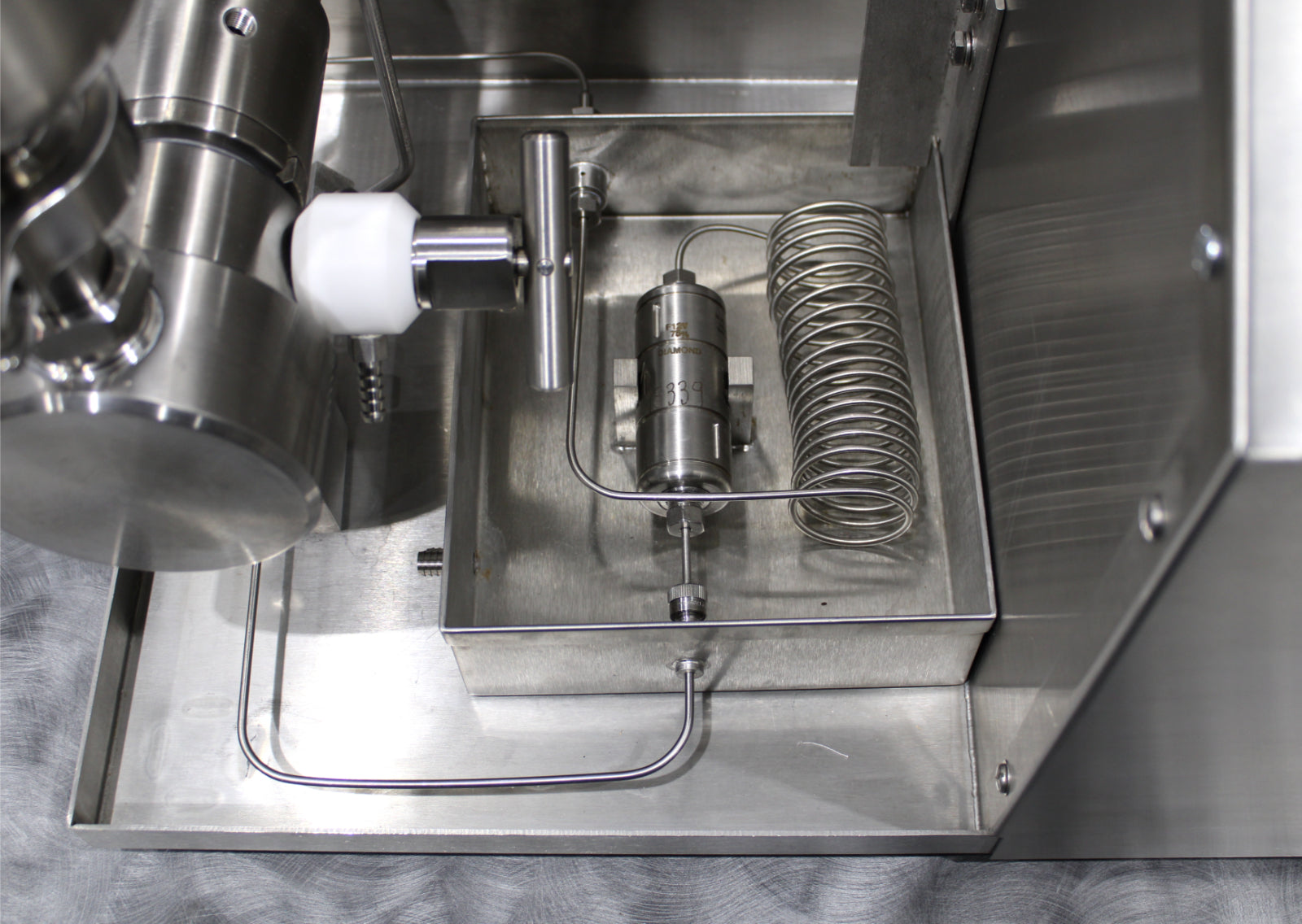

- Product Cooling Coil Assembly

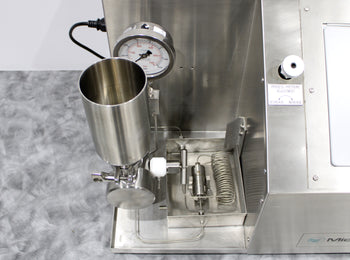

- 1 Liter Stainless Steel Reservoir

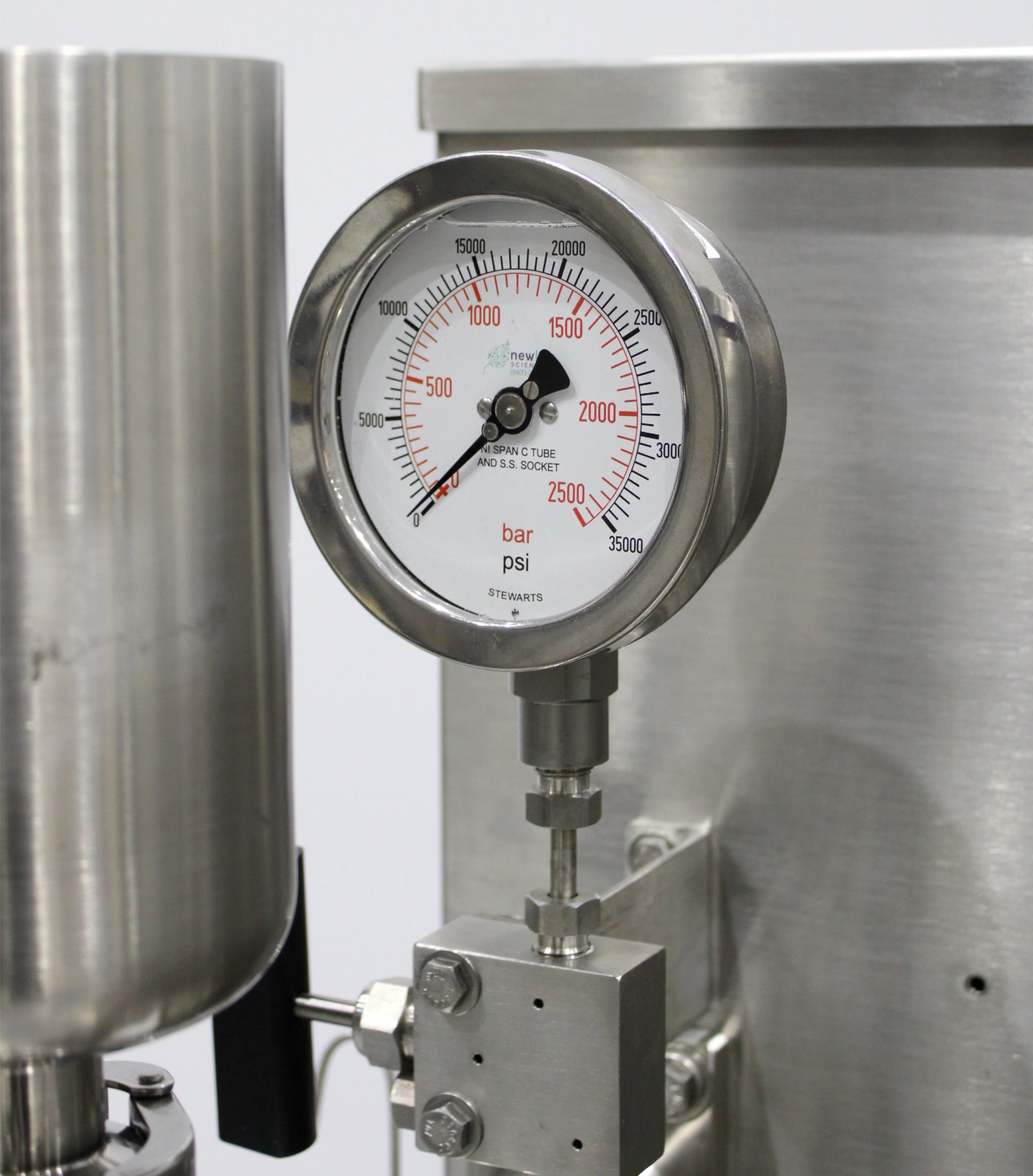

- Product Pressure Gauge with Shutoff Valve

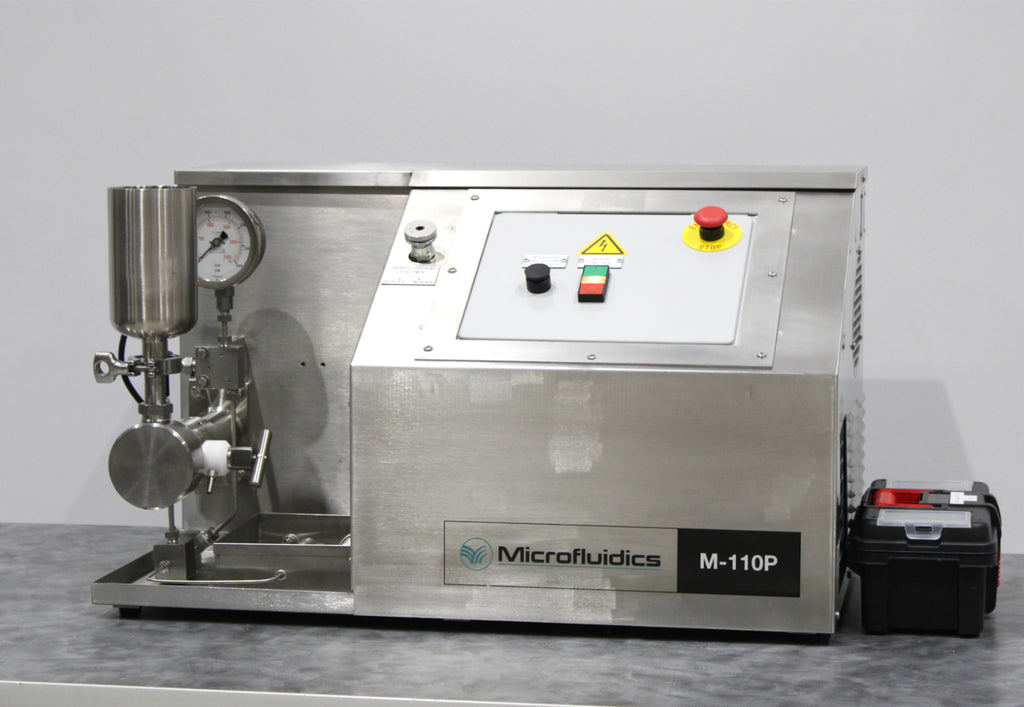

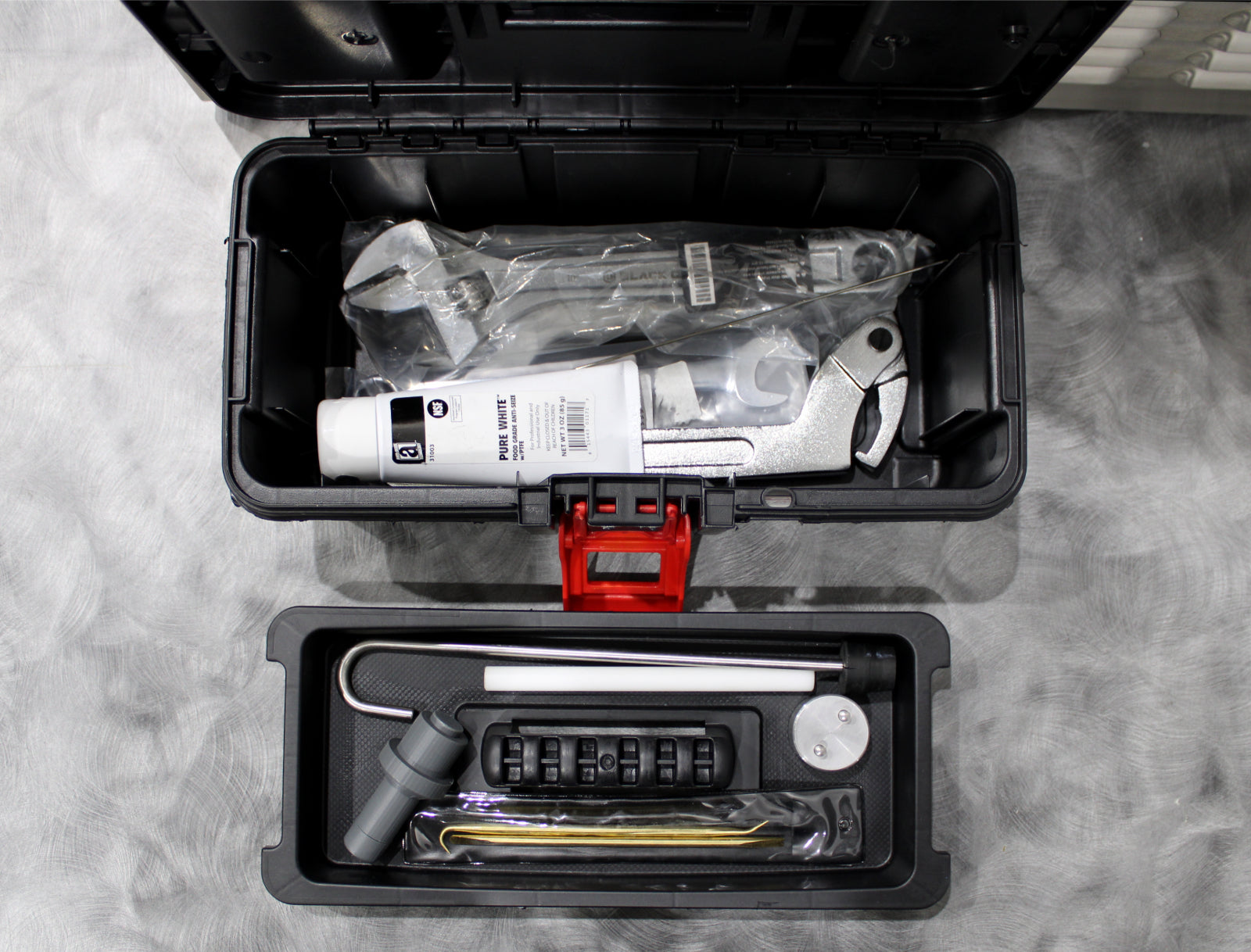

- Preventative Maintenance Toolbox
- 110V Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Microfluidics M-110P electric-hydraulic benchtop microfluidizer processor with the following results:
- Verify maximum operating pressure of 30,000 psi: PASSED
- Ran/sterilized with 1 liter of isopropyl alcohol: PASSED
- Check process pressure control valve: PASSED

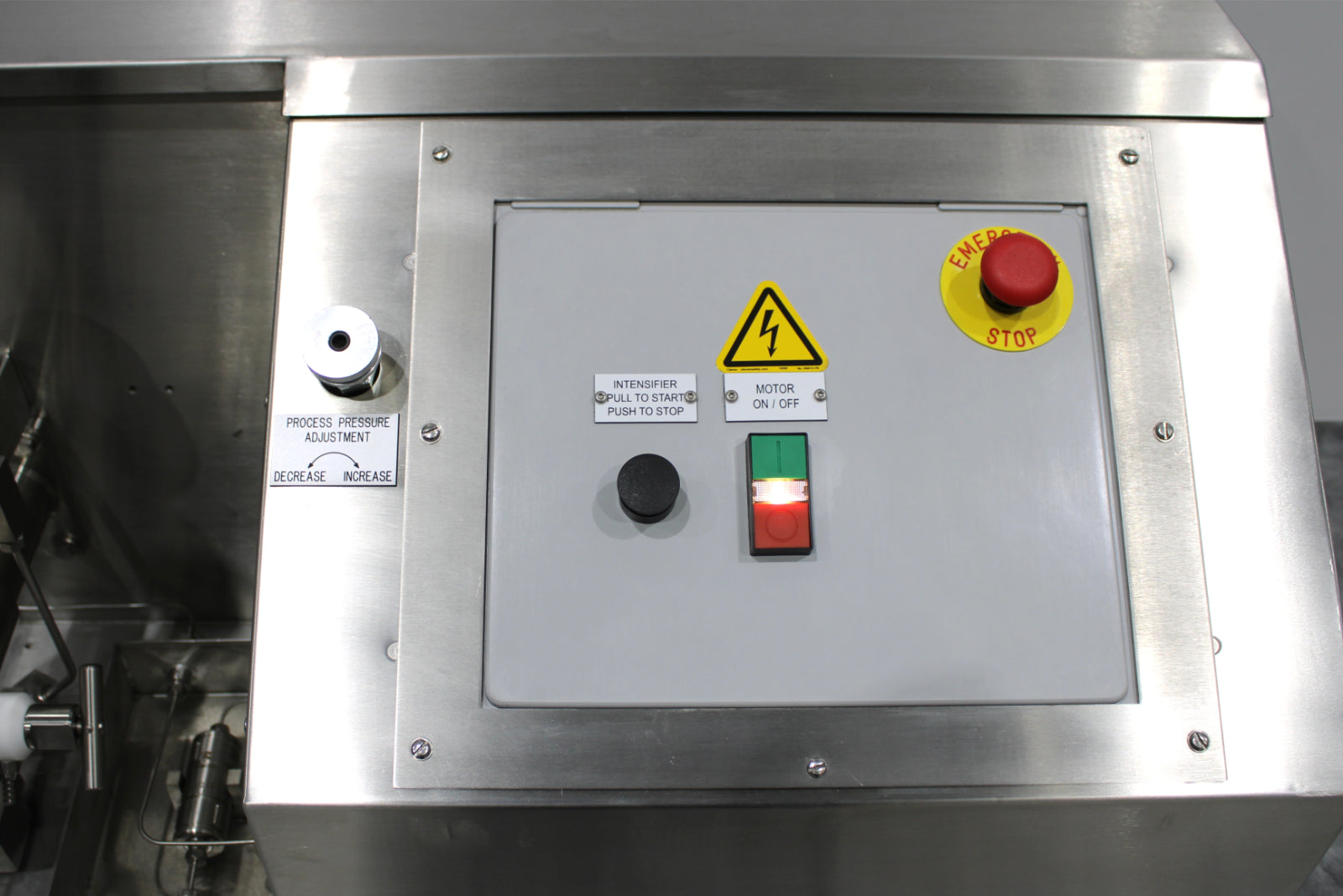

- Check motor start/stop control: PASSED
- Check/replace plunger seal assembly: PASSED
- Clean and inspect plunger: PASSED
- Clean and inspect bearing isolator/o-rings: PASSED
- Clean and inspect/replace high pressure fittings: PASSED
- Clean and inspect/replace inlet check valve: PASSED
- Clean and inspect/replace priming valve: PASSED
- Check/replace hydraulic oil and filter: PASSED
- Clean hydraulic oil reservoir: PASSED
- Inspect/replace hydraulic cylinder seals: PASSED
- Backflush the interaction chamber: PASSED

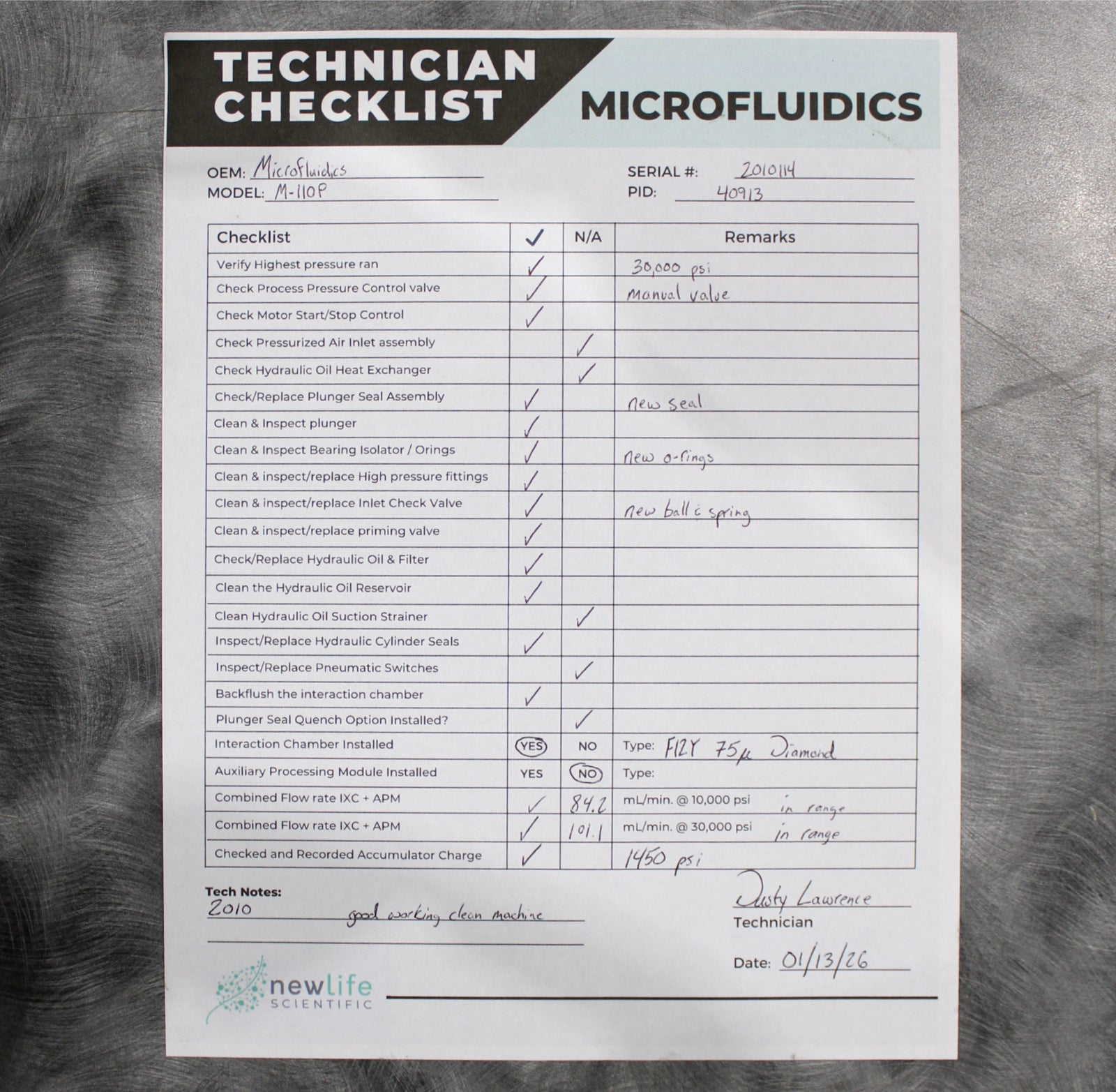

Notice: Please review the technician checklist in the product images to see more details of the inspection and testing performed.
- Replaced plunger seal and shutoff valve.
|

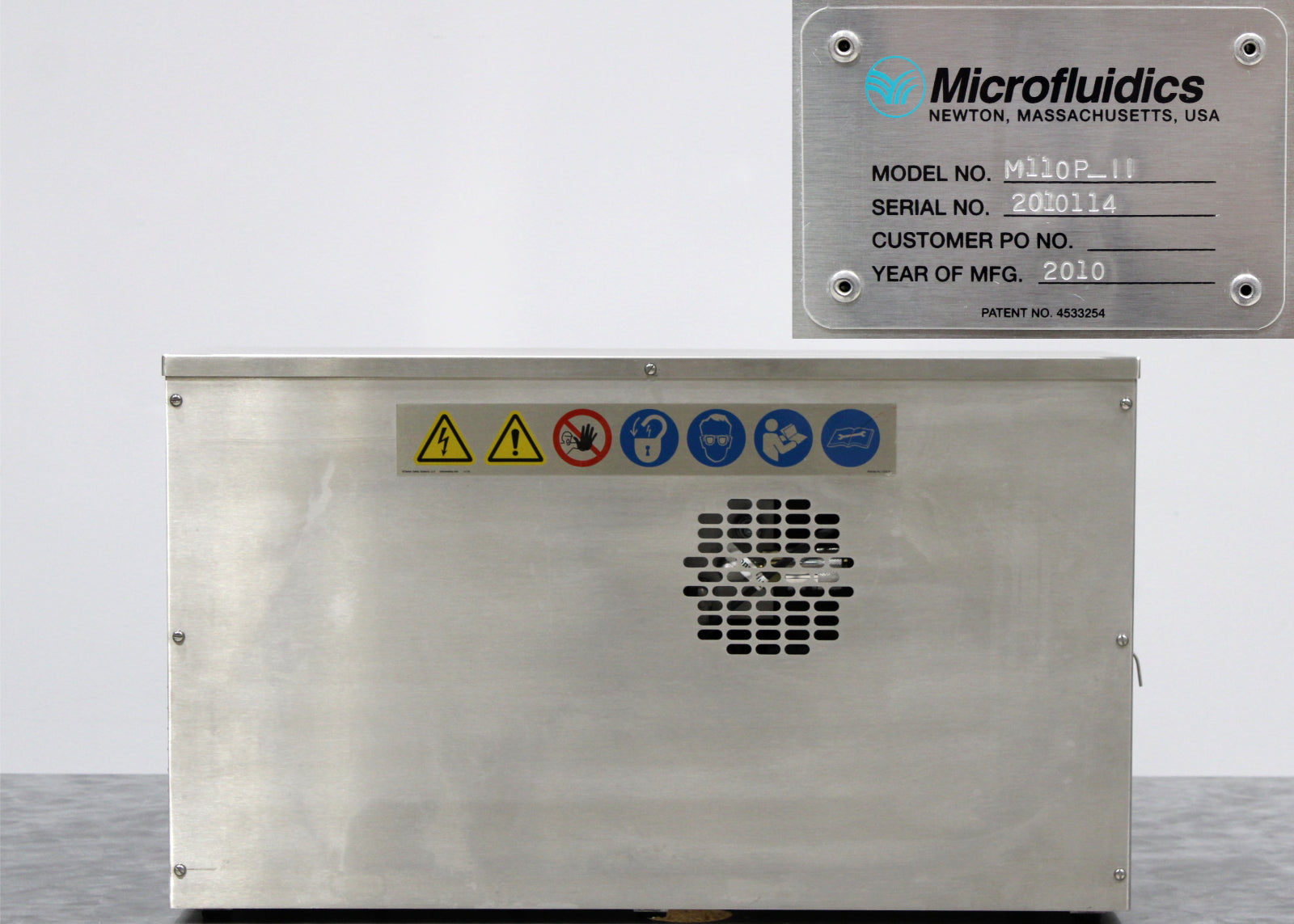

Manufacturer
|
Microfluidics
|
|
Model No.
|
M110P_II
|
|
Serial No.
|
2010114
|
|
Mfg. year
|
2010
|
|
Maximum operating pressure
|
up to 30,000 psi (2068 bar)
|
|
Minimum sample size
|
50 ml
|
|
Flow rate
|
up to 120 mL/min
|
|
Product temperature limit
|
158°F (70°C)
|
|
Noise level
|
80 dB TWA
|
|
Power rating
|
110V, 60Hz, 1Ph
|
|
Dimensions (W x D x H)
|
35 x 27 x 20 in
|
|
Weight
|
300 lb (136 kg)
|
