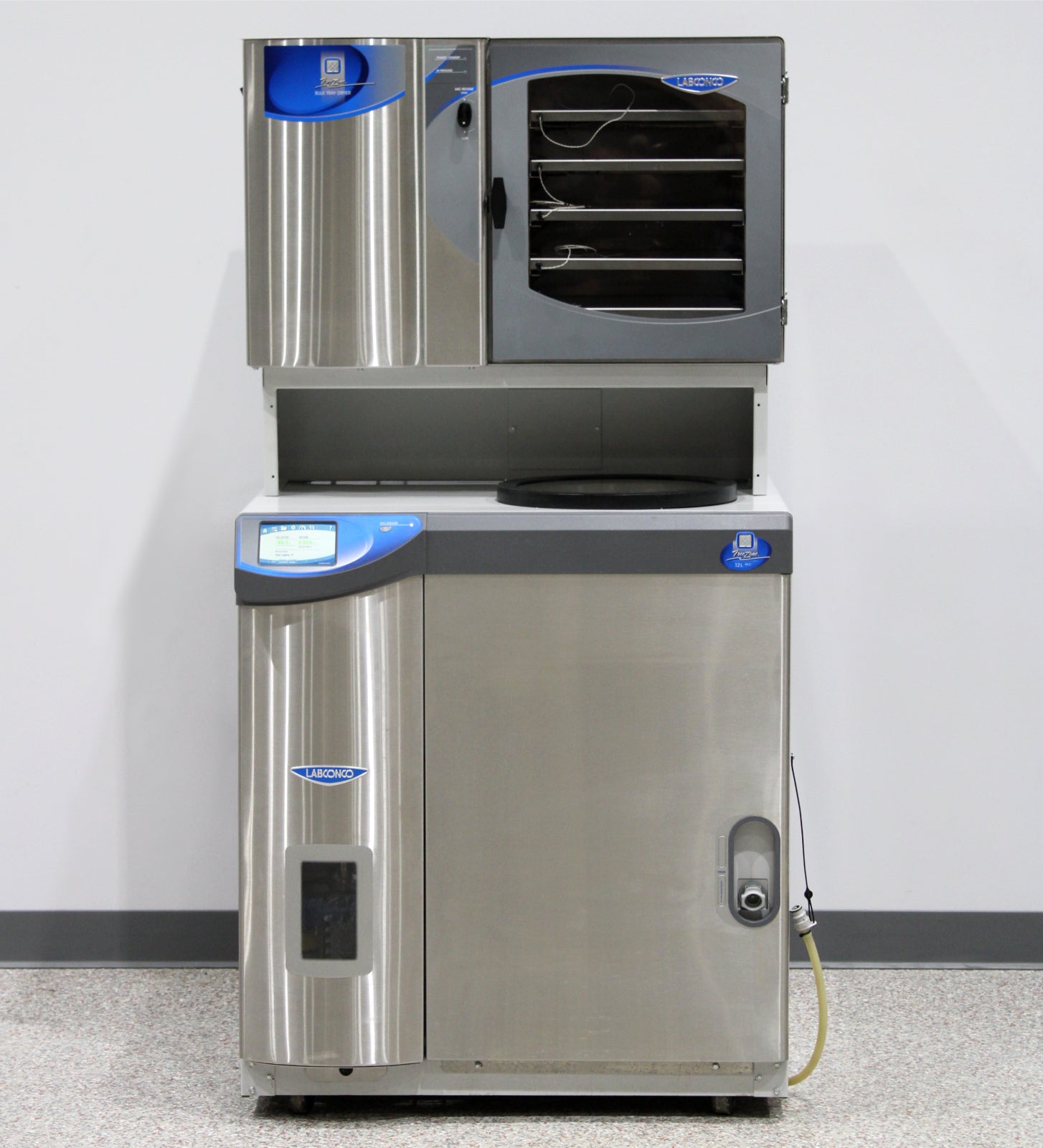

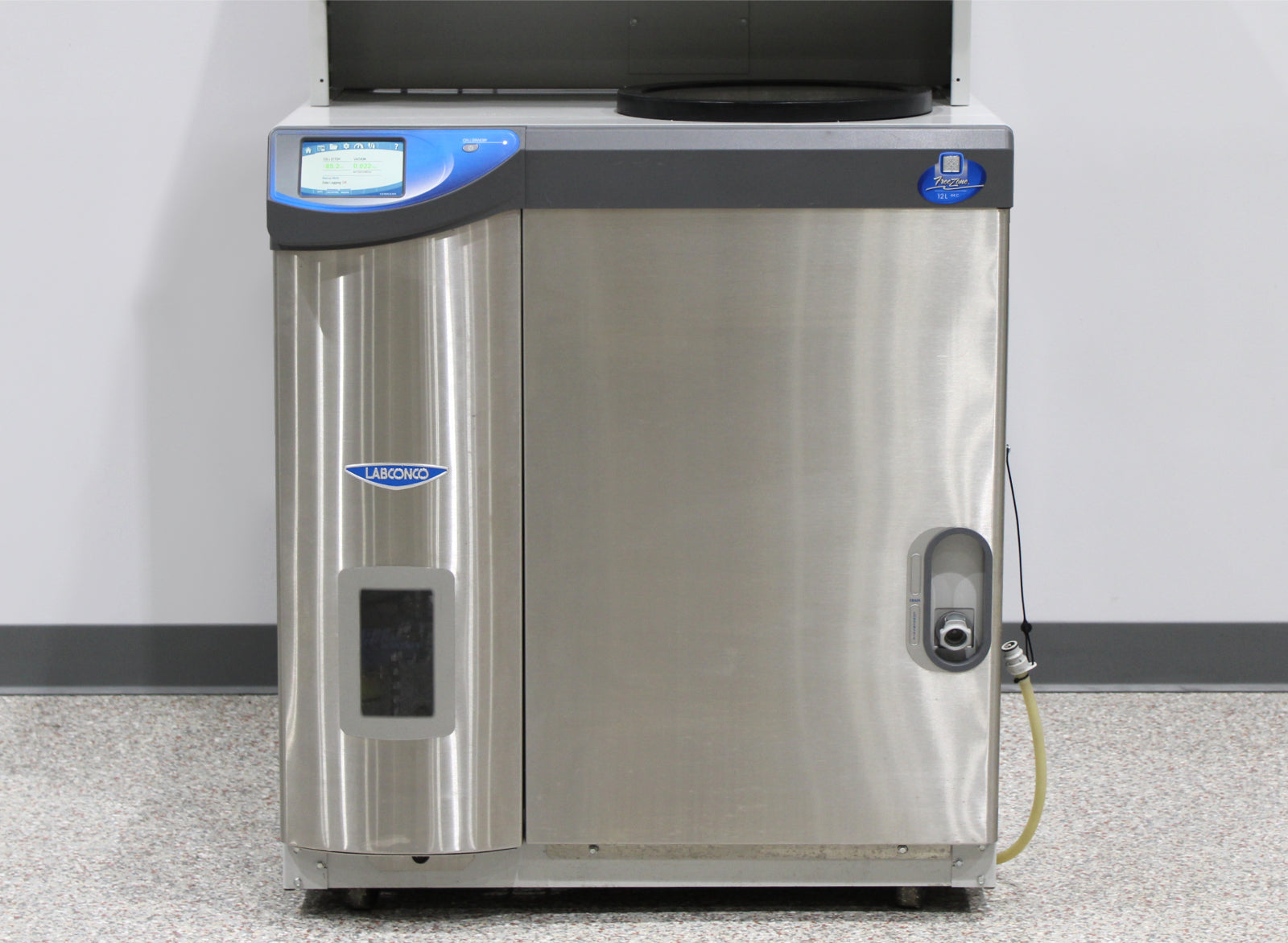

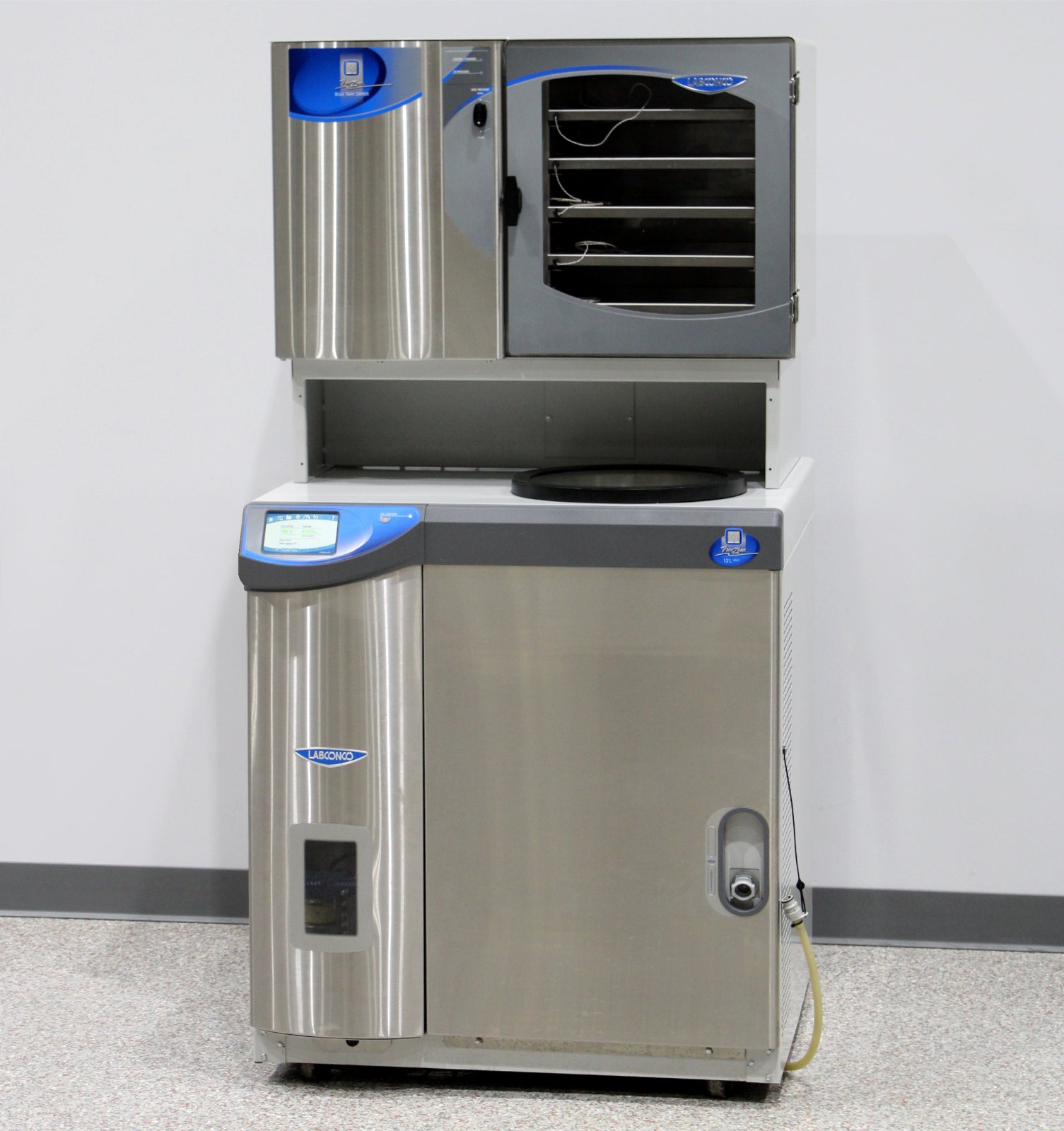

- Labconco FreeZone 12L -84°C Console Freeze Dryer 230V (711212010)

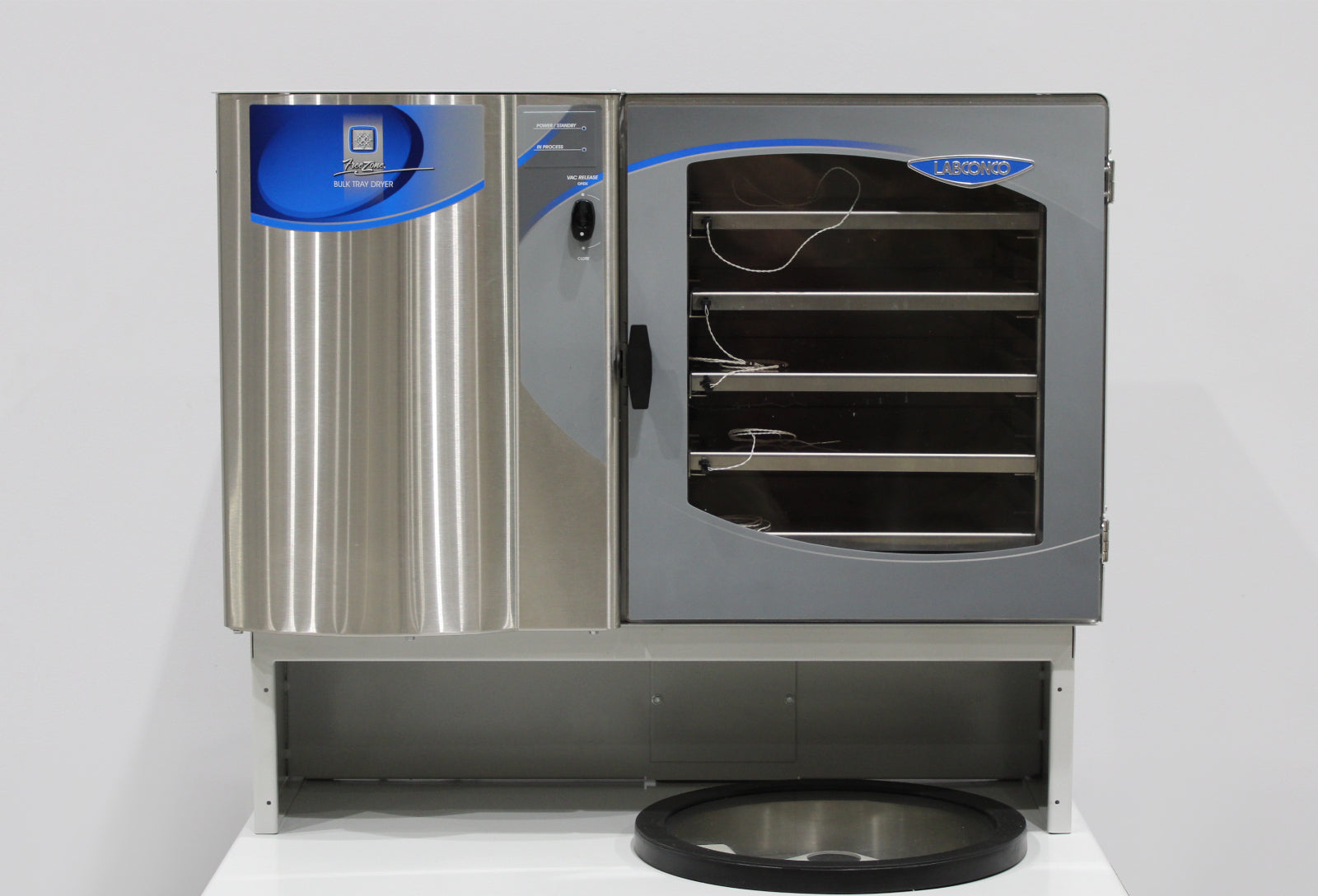

- Labconco Bulk Tray Dryer with 5 Shelves 230V (780601010)
- Vacuum Pump

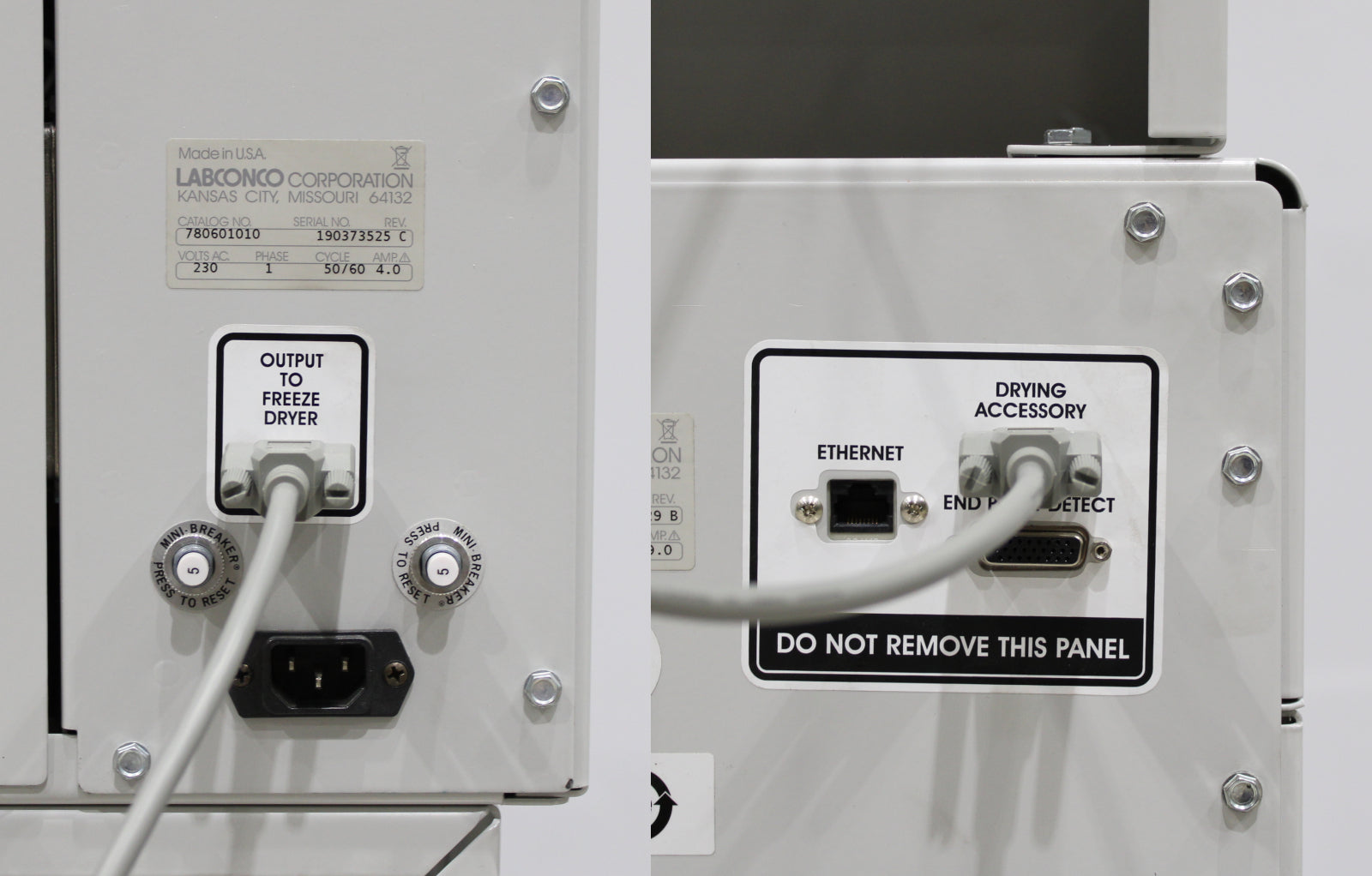

- Communication Cable

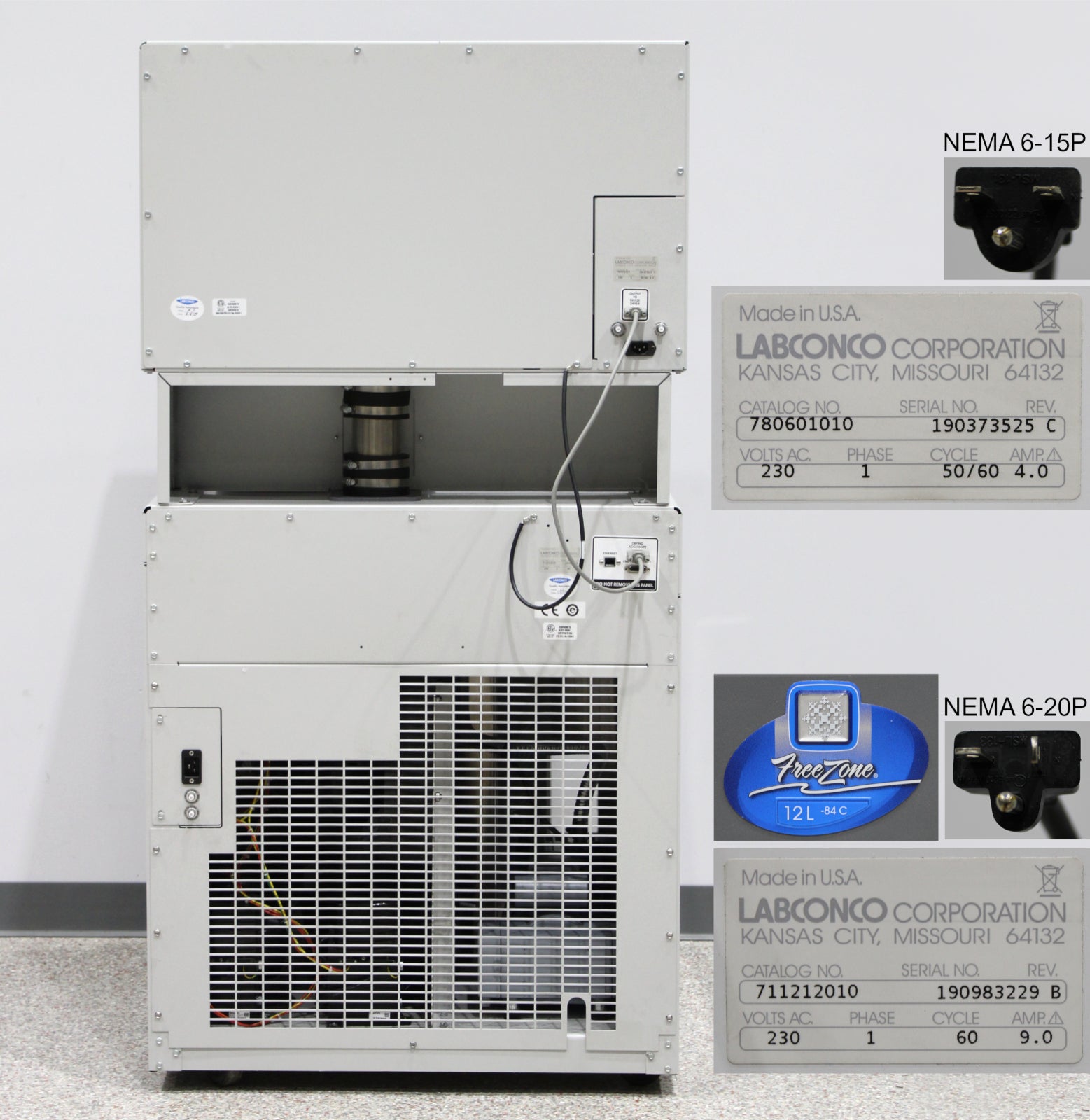

- Power Cable with NEMA 6-15P Plug
- Power Cable with NEMA 6-20P Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Labconco FreeZone 12L -84°C console freeze dryer and bulk tray dryer with the following results:

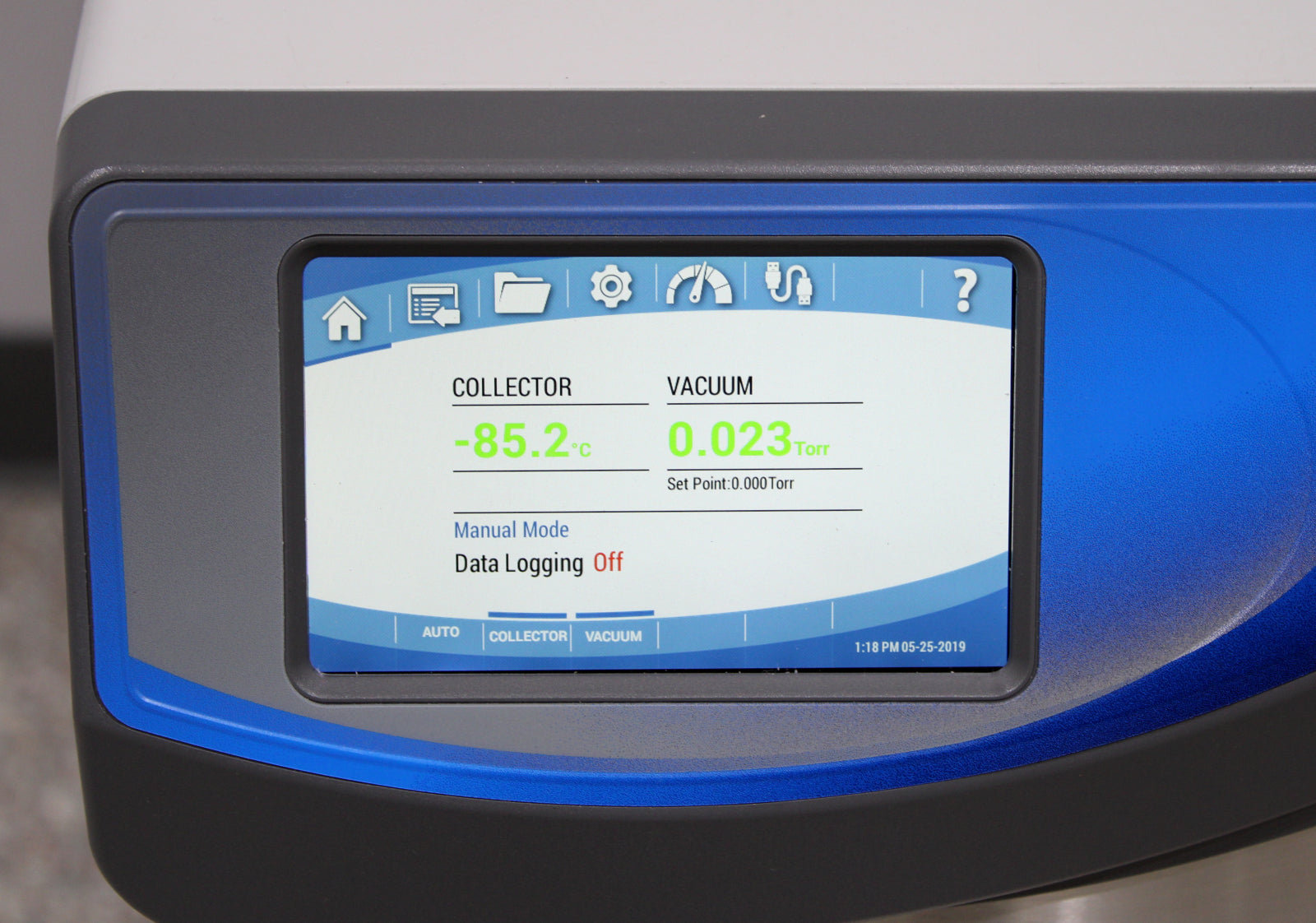

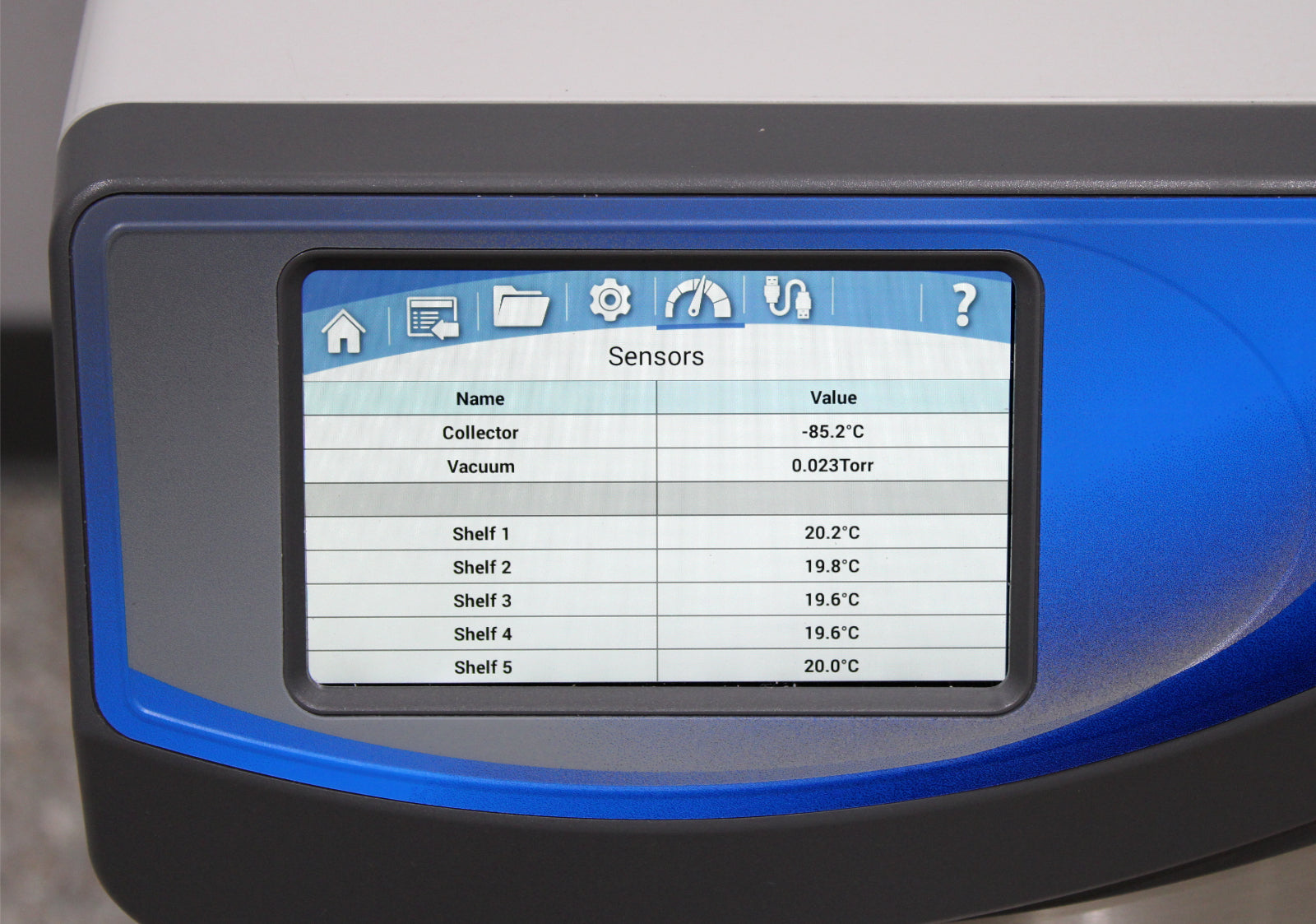

- Collector temperature achieves -85.2°C: PASSED
- Vacuum achieves 23mT: PASSED
- Heated shelves performance to specification: PASSED
- Inspected and replaced vacuum hoses as needed.
- Inspected and reinsulated refrigeration lines as needed.
- Flushed and filled vacuum pump.
|
Manufacturer
|
Labconco
|
|
Model
|
FreeZone 12
|
|
Catalog No.
|
711212010
|
|
Serial No.
|
190983229 B
|
|
Mfg. date
|
2019
|
|
Ice holding capacity
|
12 liters
|
|

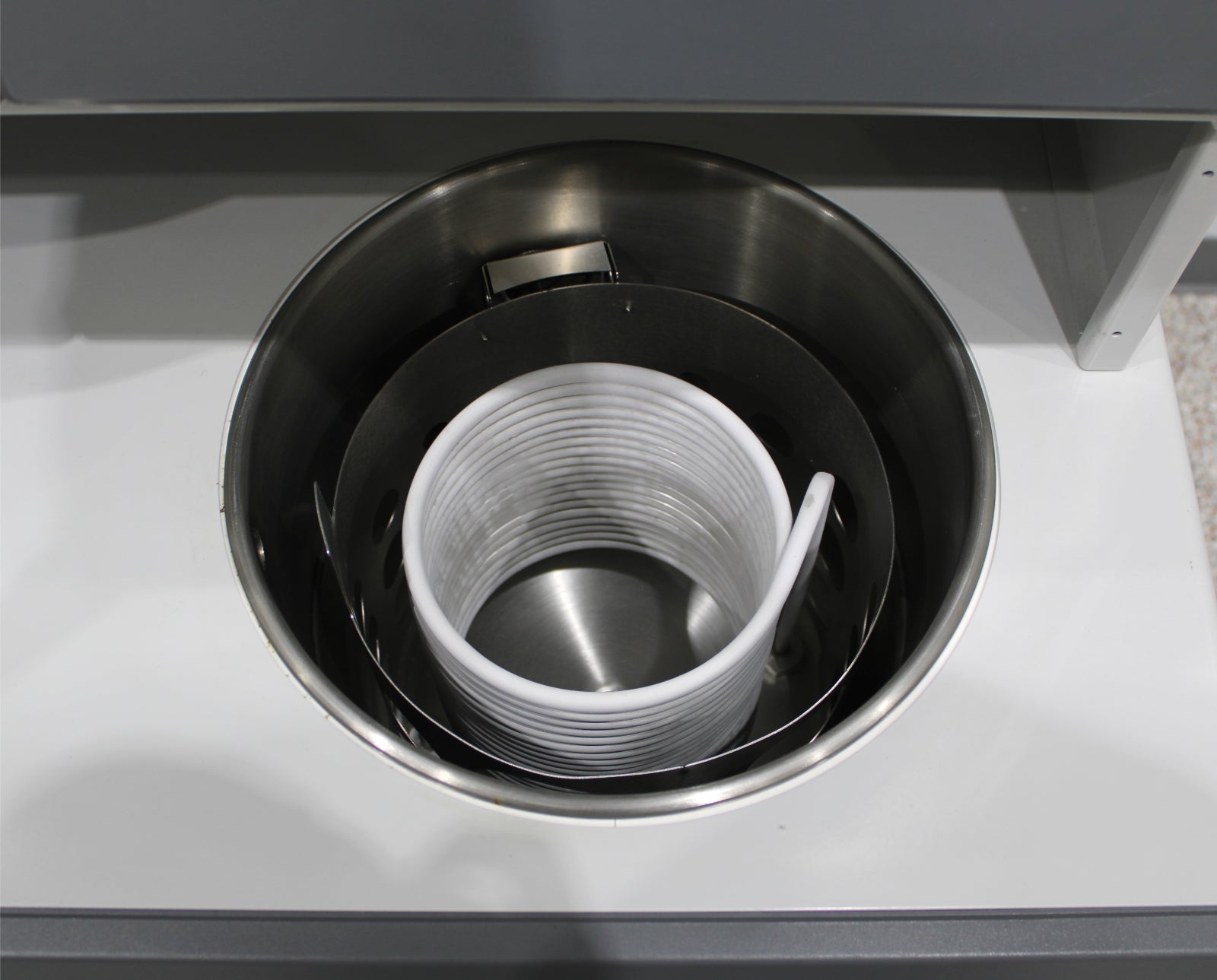

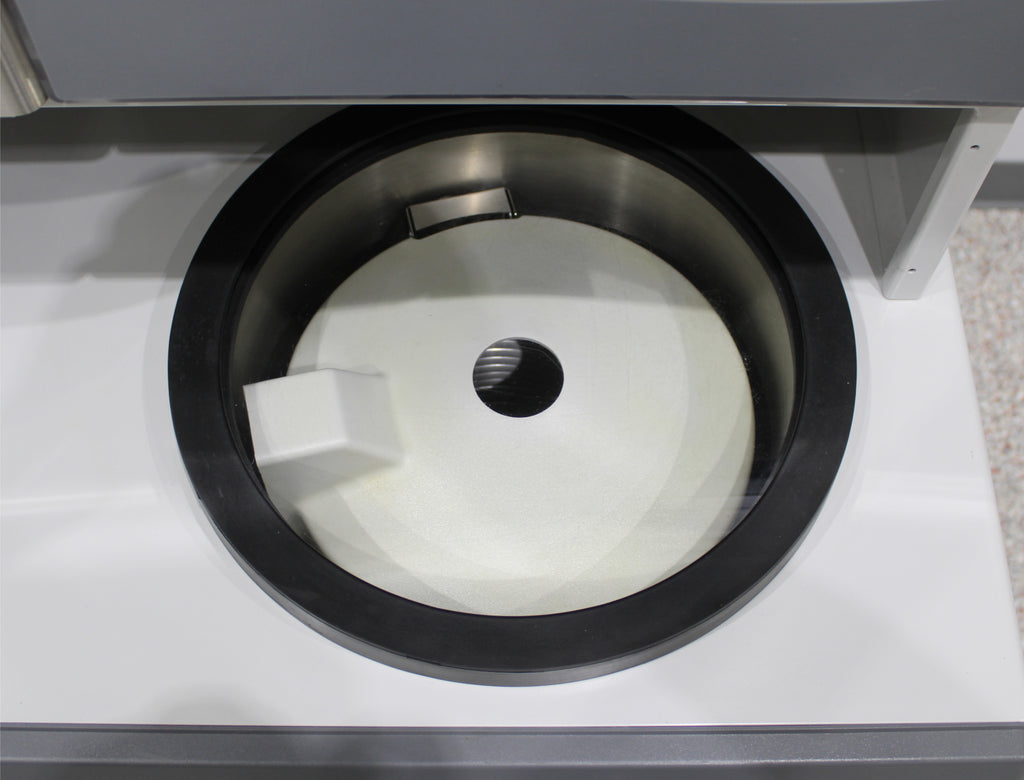

Collector temperature
|
-84°C (-119°F)
|
|
Vacuum pump displacement required
|
98L/min or larger displacement
|
|
Style
|
Console
|
|
Conformance
|
CAN/CSA C22.2, UL
|
|
Built-in options
|
None
|
|
Plug type
|
North America, 230V
|
|
Region
|
U.S. and Canada
|
|
Power rating
|
230V, 60Hz, 9.0A, 1Ph
|
|
Dimensions (W x D x H)
|
32.2 x 28 x 36.3 in (81.8 x 71.1 x 92.2 cm)
|
|
Weight
|
~250 lb (113.4 kg)
|
|
Manufacturer
|
Labconco
|
|
Model
|
Bulk Tray Dryer
|
|
Catalog No.
|
780601010
|
|
Serial No.
|
190373525
|
|
Mfg. date
|
2019
|
|

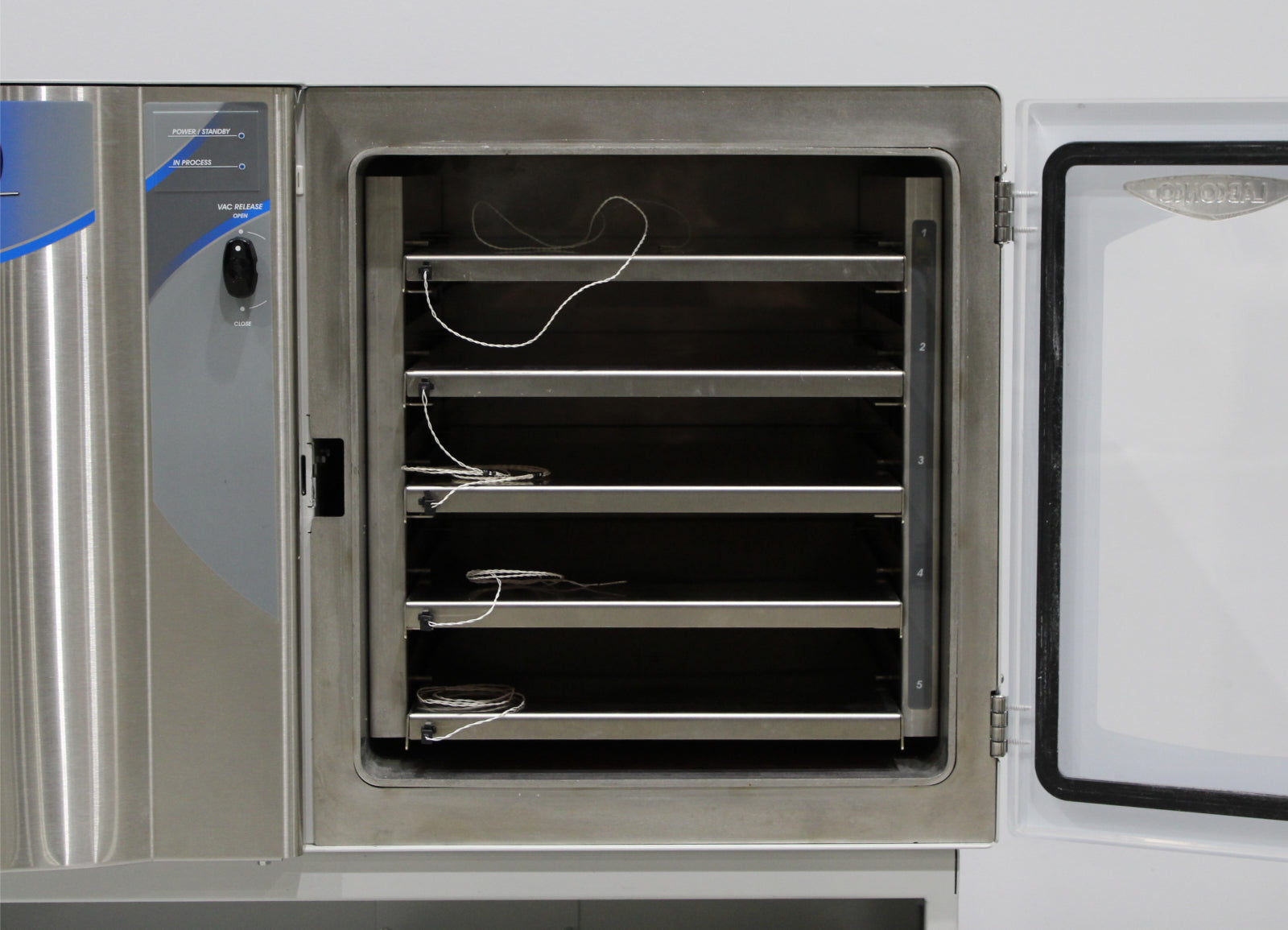

Shelves
|
3 heated stainless steel shelves (expandable to 5)
|
|
Shelf dimensions
|
12.7 x 16.6 in (32.2 x 42.2 cm) each
|
|
Temperature range
|
Up to +60°C (+140°F)
|
|
Shelf heating
|
200-watt heater per shelf
|
|
Sensors
|
3 sample temperature probes (expandable to 5)
|
|
Power rating
|
230V, 50/60Hz, 4.0A, 1Ph
|
|
Dimensions (W x D x H)
|
32.2 x 21.5 x 27.1 in (81.8 x 54.6 x 68.8 cm)
|
|
Weight
|
~230 lb (104.3 kg)
|
