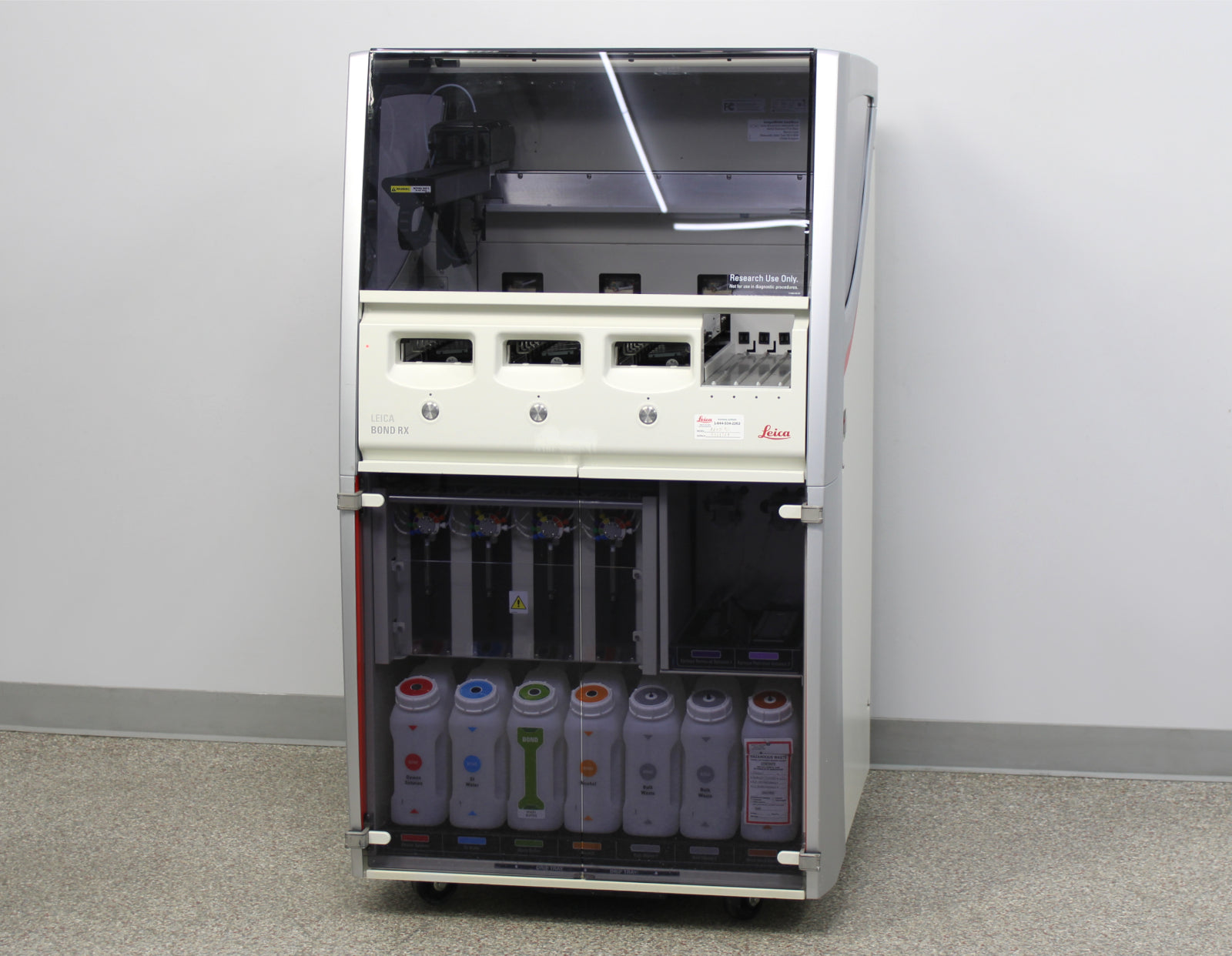

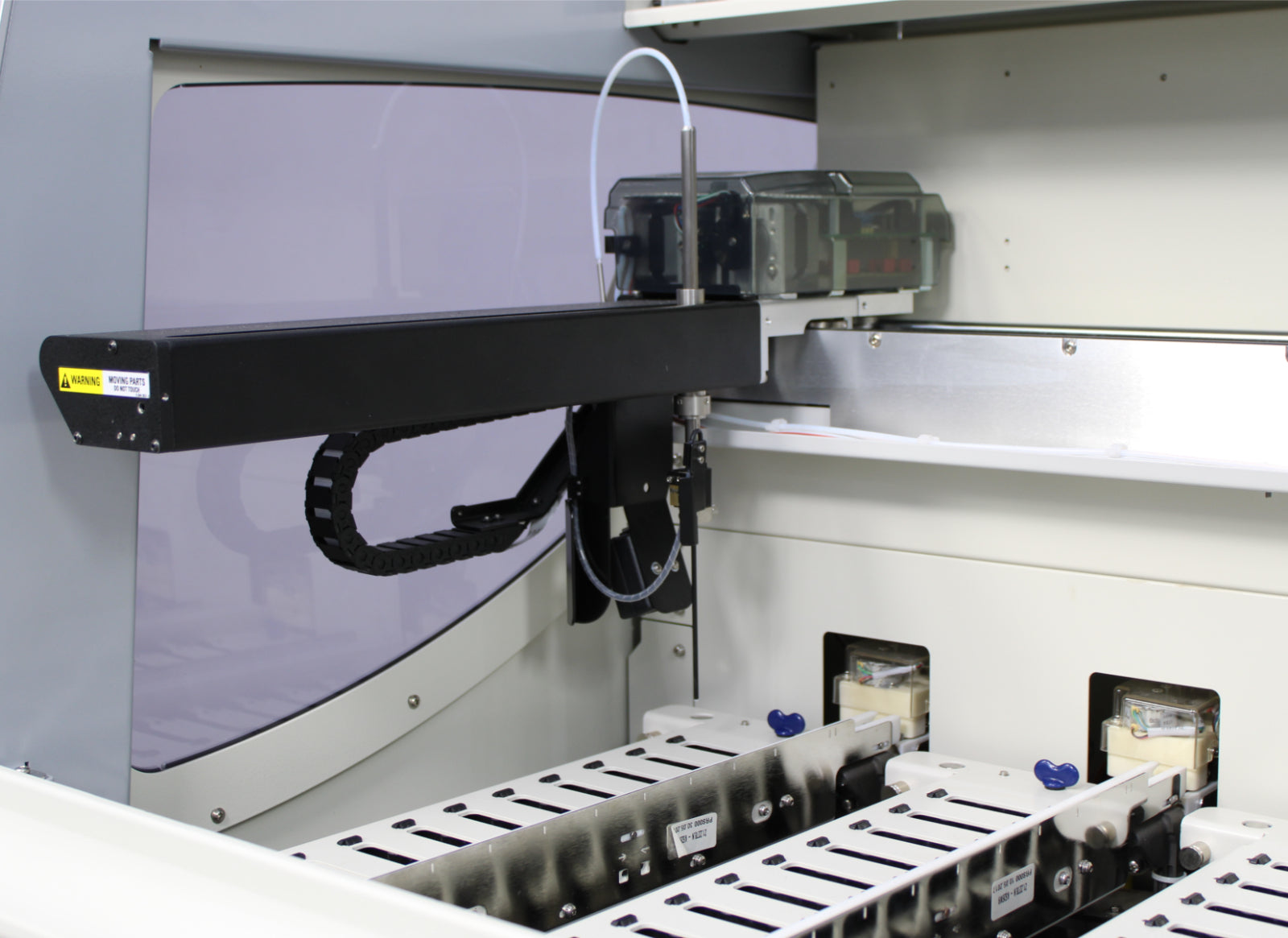

- Leica Biosystems BOND RX Fully Automated Research Slide Stainer

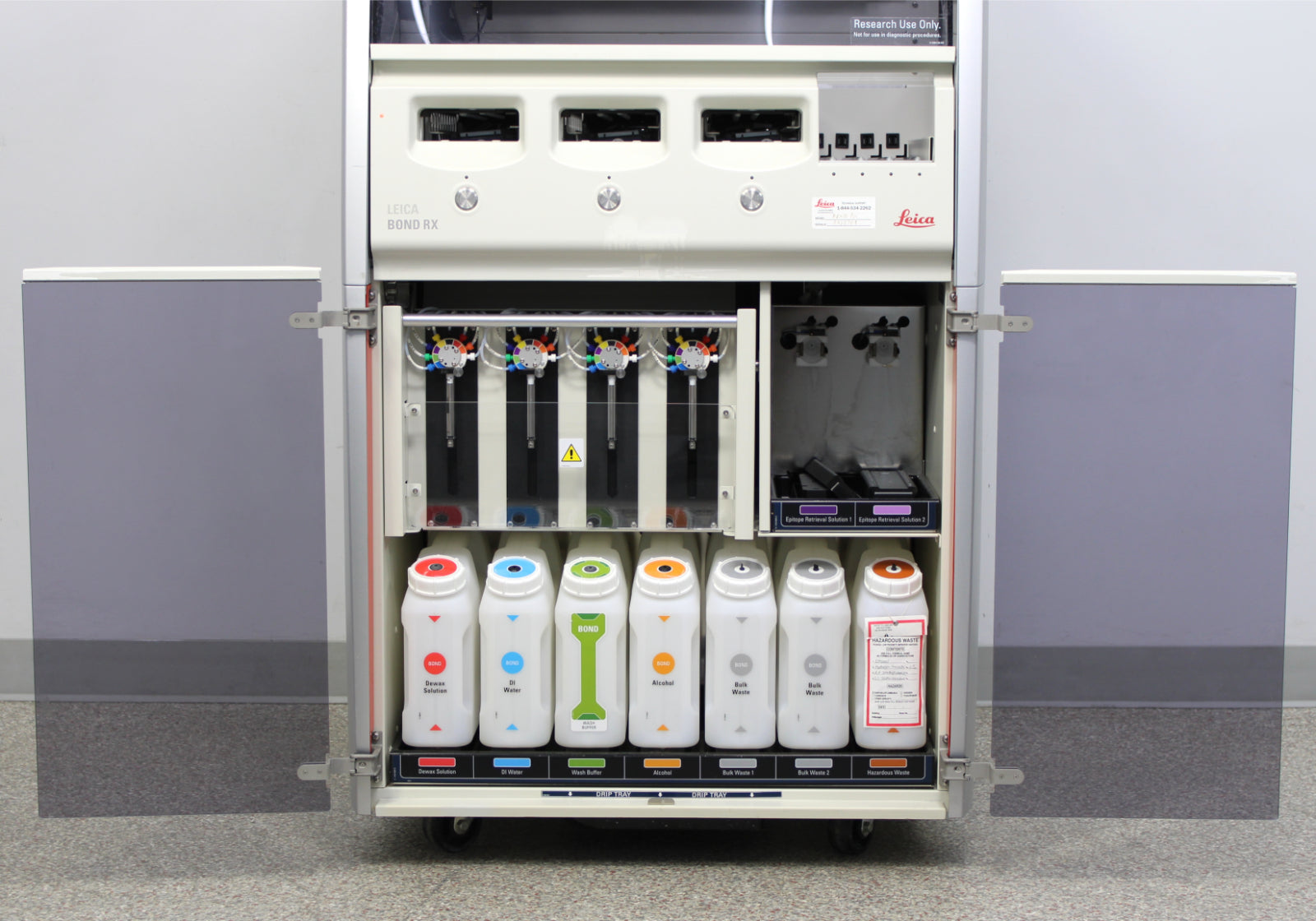

- Reagent Vessels
- Power Cable
- 90-Day Warranty
- Computer with Control Software
- Slide Trays
- Reagents and other Consumables
Notice: A computer and control software must be acquired separately to operate this system.
We powered on this BOND RX and observed the status light illuminate as red. We then connected it to a computer with control software and observed the status light turn green. No further testing could be performed without a username and password to access the software.

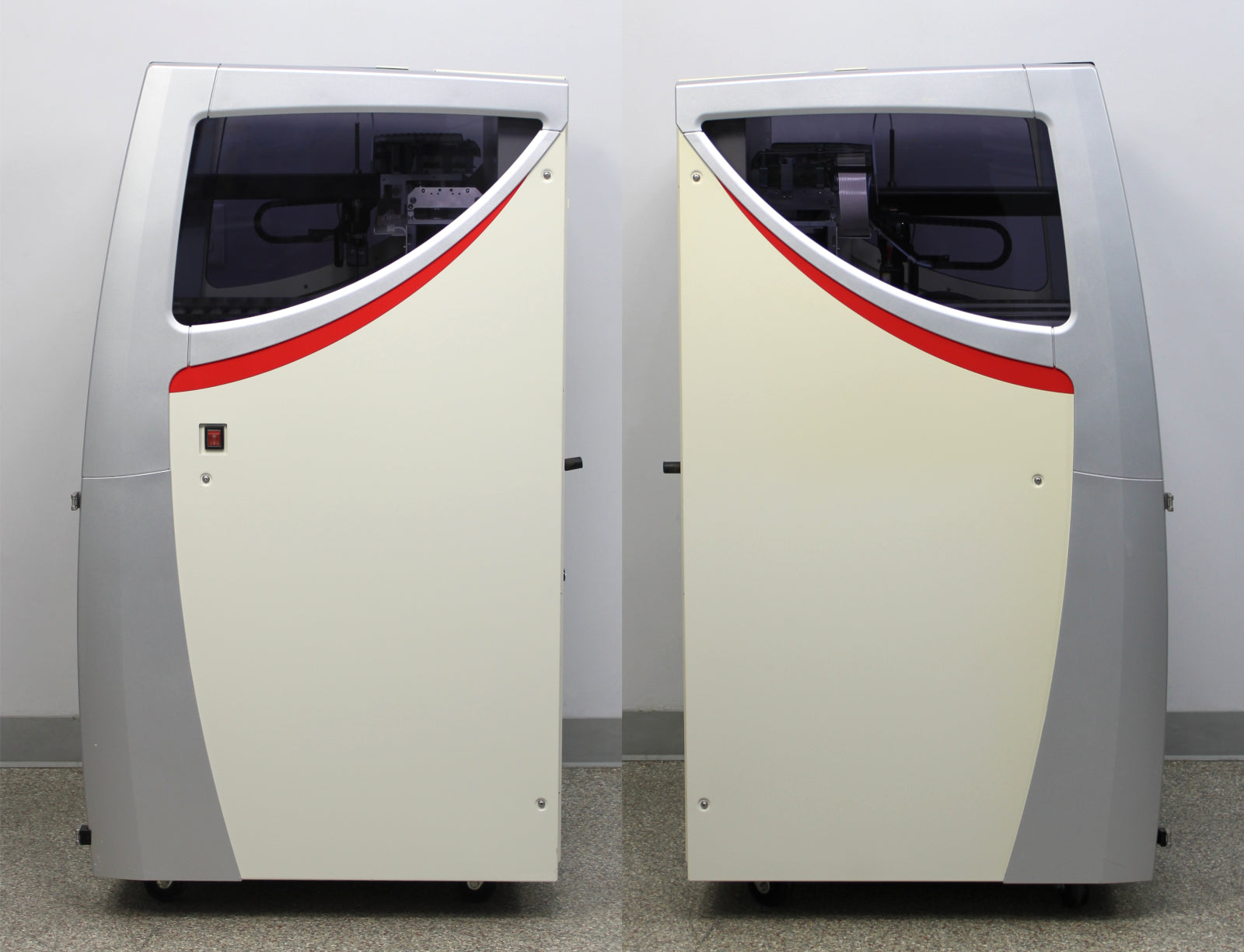

Notice: This instrument has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Leica Biosystems
|
|
Model No.
|
BOND RX
|
|

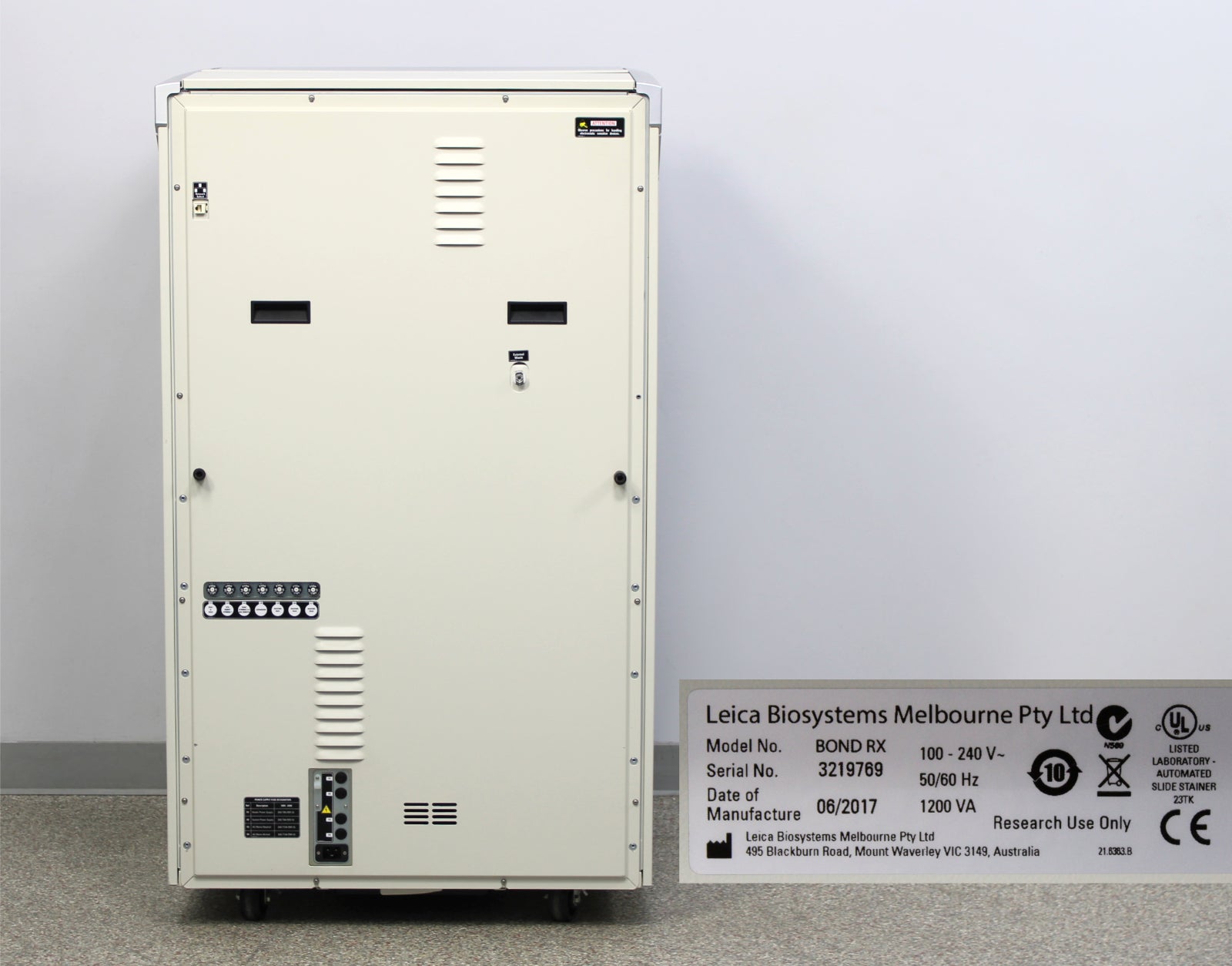

Serial No.
|
3219769
|
|
Mfg. date
|
06/2017
|
|

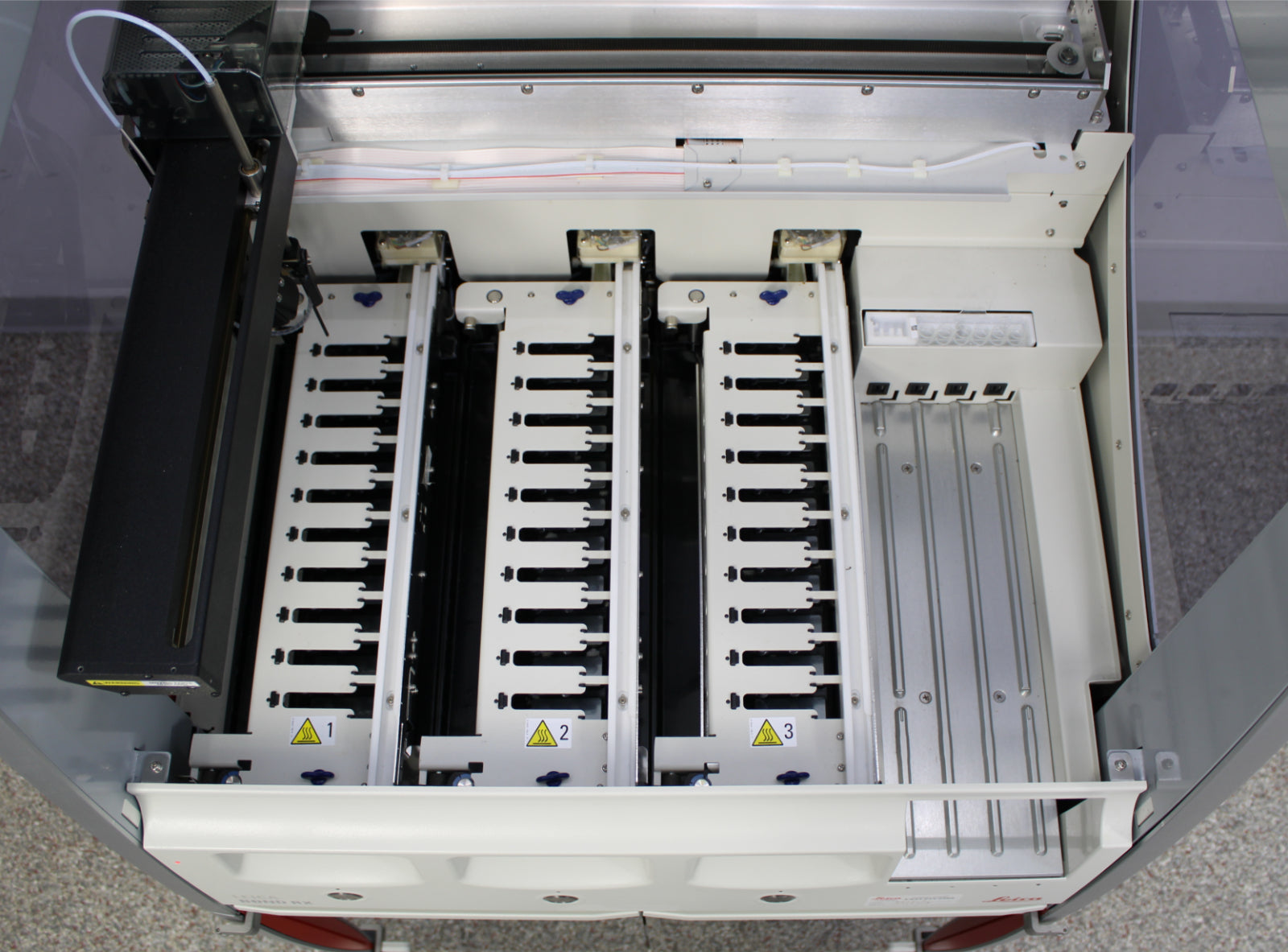

Slide capacity
|
30
Finished trays (10 slides) may be replaced continuously
|
|
Number of reagent containers
|
36
|
|
Reagent container capacity
|
7 mL and 30 mL
|
|
Titration container capacity
|
6 mL
|
|
Bulk reagent container capacity
|
2 L or 5 L
|
|
Hazardous waste container capacity
|
5 L
|
|
Standard waste container capacity
|
2 x 5 L
|
|
Chemical compatibility
|
All BOND reagents
70% alcohol solution (for cleaning purposes)
|
|
Temperature indication
|
Defaults (these can be changed by service representatives): Warm: 35°C, Hot: 80°C
|
|
Maximum permitted pressure for gas and liquid connections
|
1.0 bar
|
|
Slide width
|
24.64–26.0 mm (0.97–1.02 in)
|
|
Slide length
|
74.9–76.0 mm (2.95–2.99 in)
|
|
Slide thickness
|
0.8–1.3 mm (0.03–0.05 in)
|
|
Slide label area width
|
24.64–26.0 mm (0.97–1.02 in)
|
|
Slide label area length
|
16.9–21.0 mm (0.67–0.83 in)
|
|
Slide material
|
Glass, ISO 8037/1
|
|
Maximum operating temperature
|
35°C (95°F)
|
|
Minimum operating temperature
|
5°C (41°F)
|
|
Temperature required to meet staining performance requirements
|
18–26°C (64–79°F)
|
|
Maximum heating energy output
|
1200W/1000W
|
|
Operating humidity (non-condensing)
|
30 to 80% RH
|
|
Maximum operation altitude
|
0 to 1600 m (5250 ft.) above sea level
|
|
Sound pressure level output (at 1m)
|
<85 dBA maximum
<65 dBA normal operation
|
|
Storage temperature
|
-20 to 55°C (-04 to 131°F)
|
|
Storage humidity (non-condensing)
|
<80% RH
|
|
Power rating
|
100-240V~, 50/60Hz
|
|
Power consumption
|
1200VA
|
|
Dimensions (W x D x H)
|
31.1 x 31.73 x 54.25 in (79 x 80.6 x 137.8 cm)
|
|
Weight (dry)
|
525 lb (238 kg)
|
