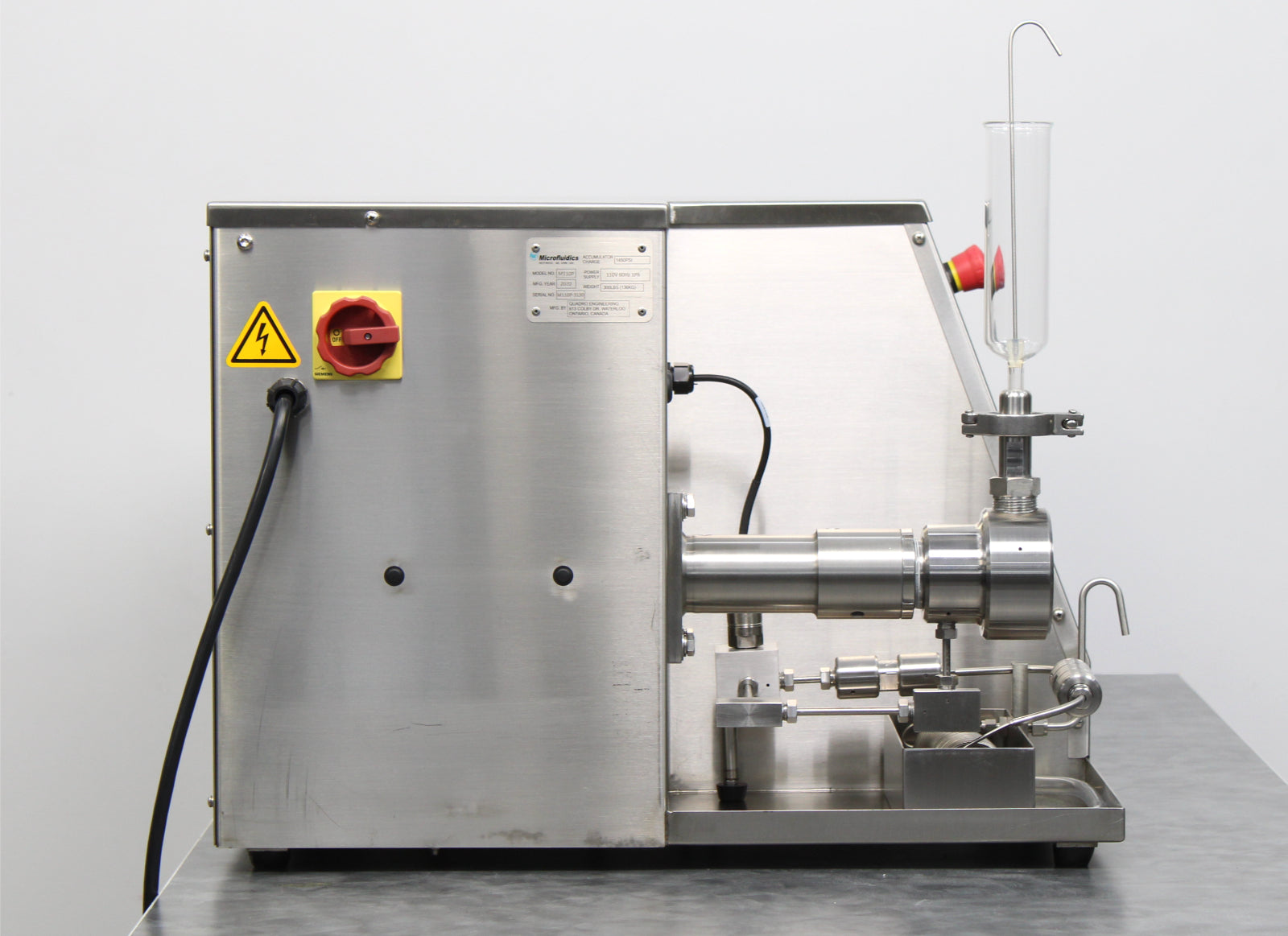

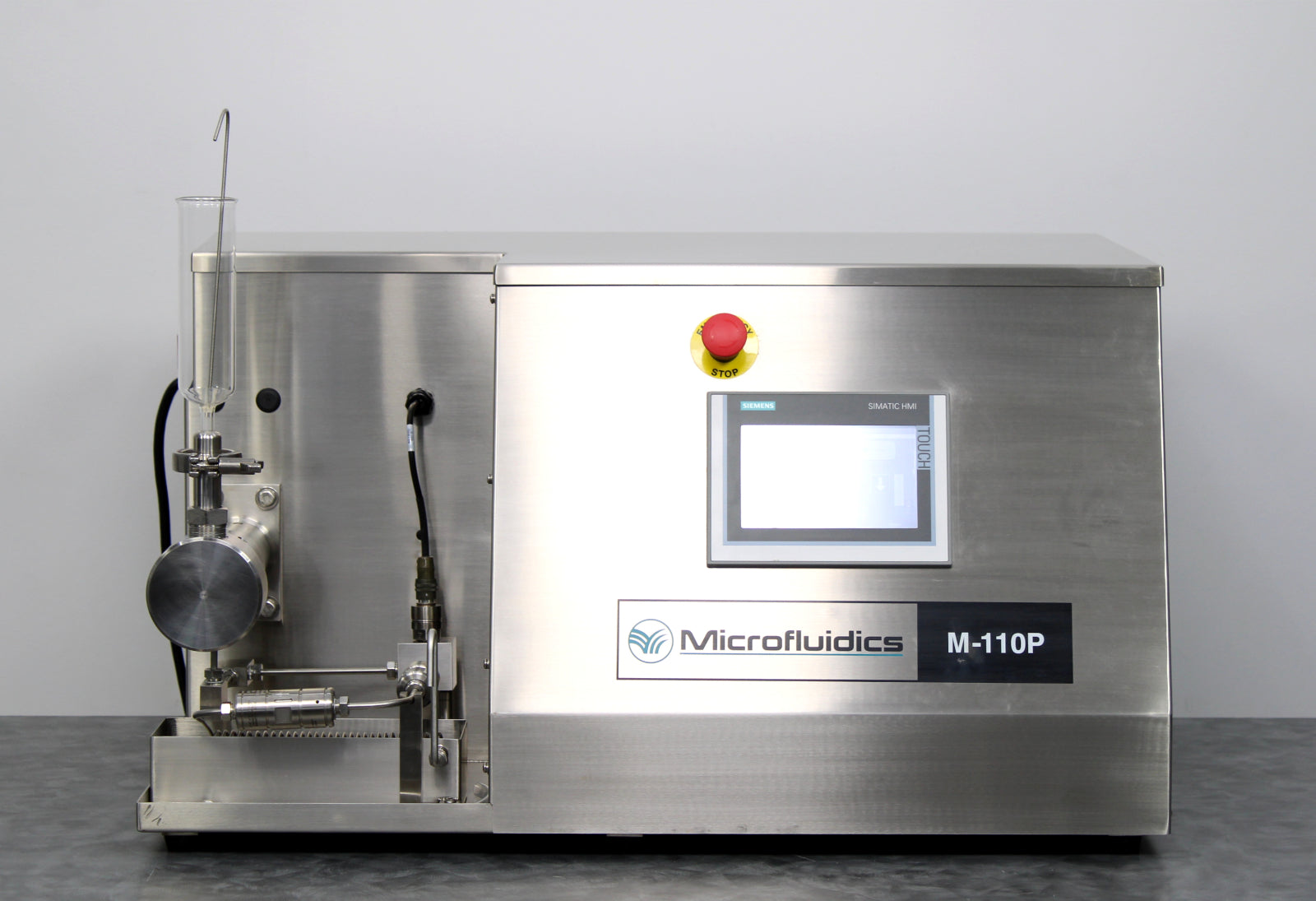

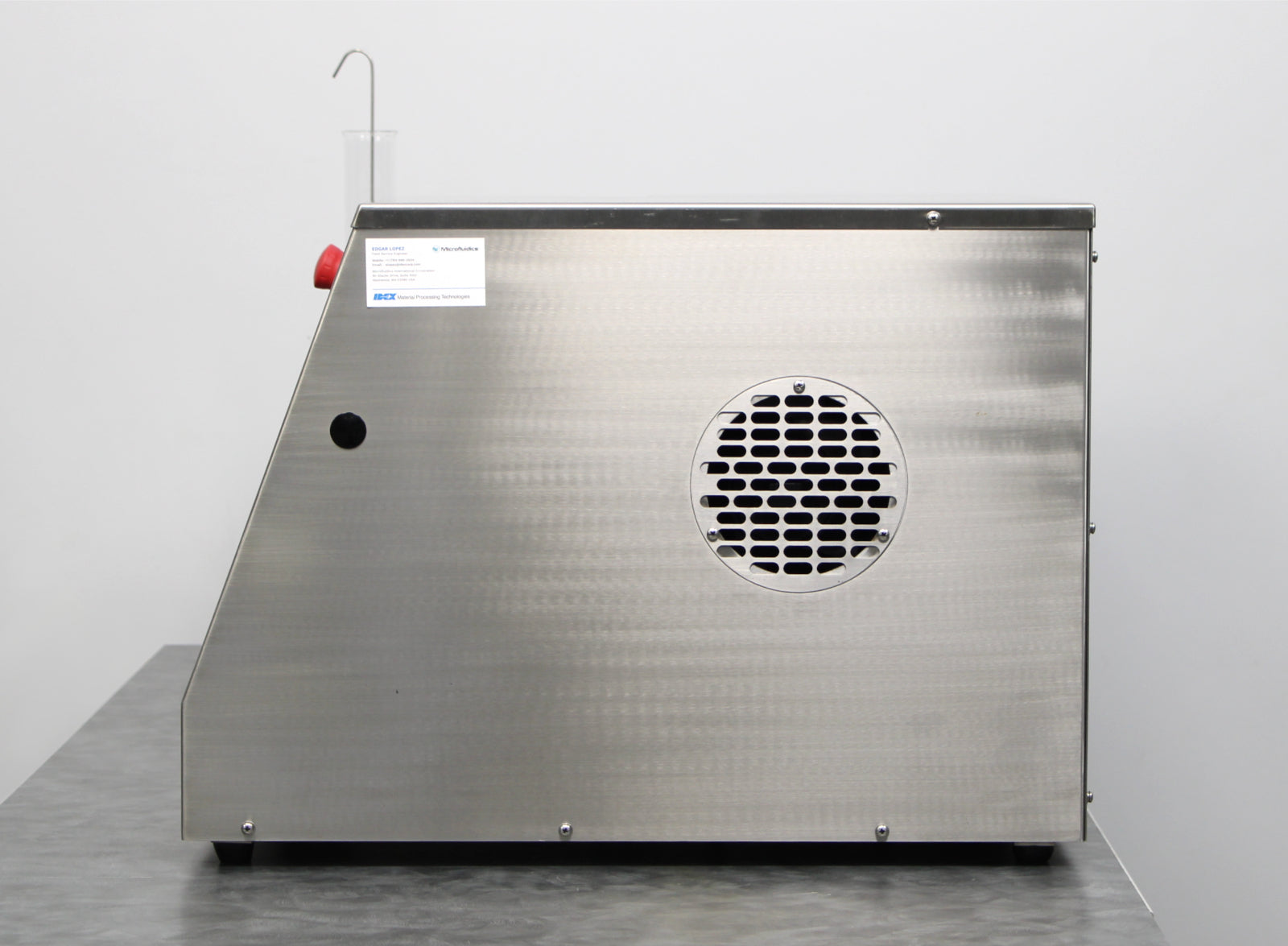

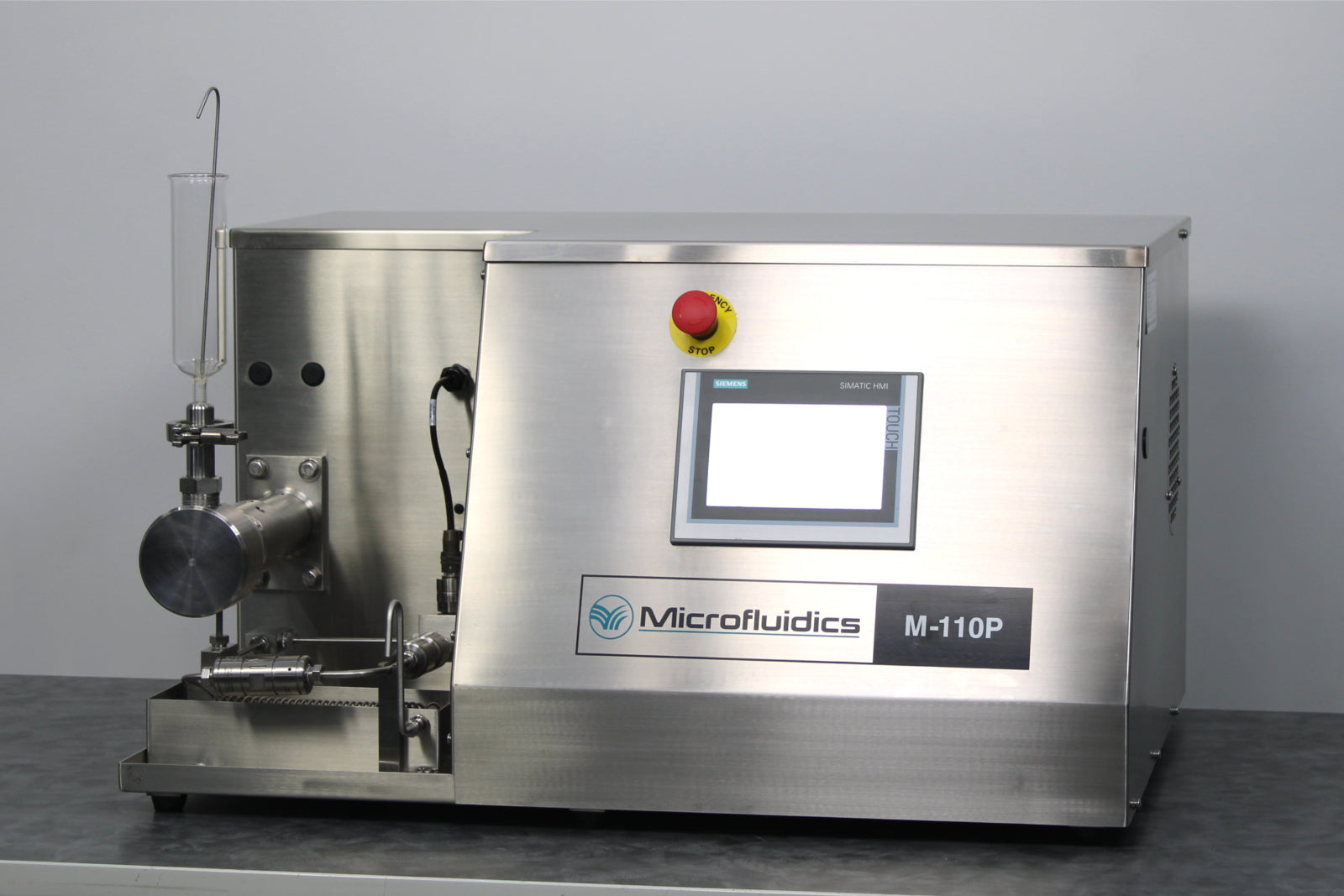

- Microfluidics M-110P Electric-Hydraulic High Shear Benchtop Microfluidizer Processor

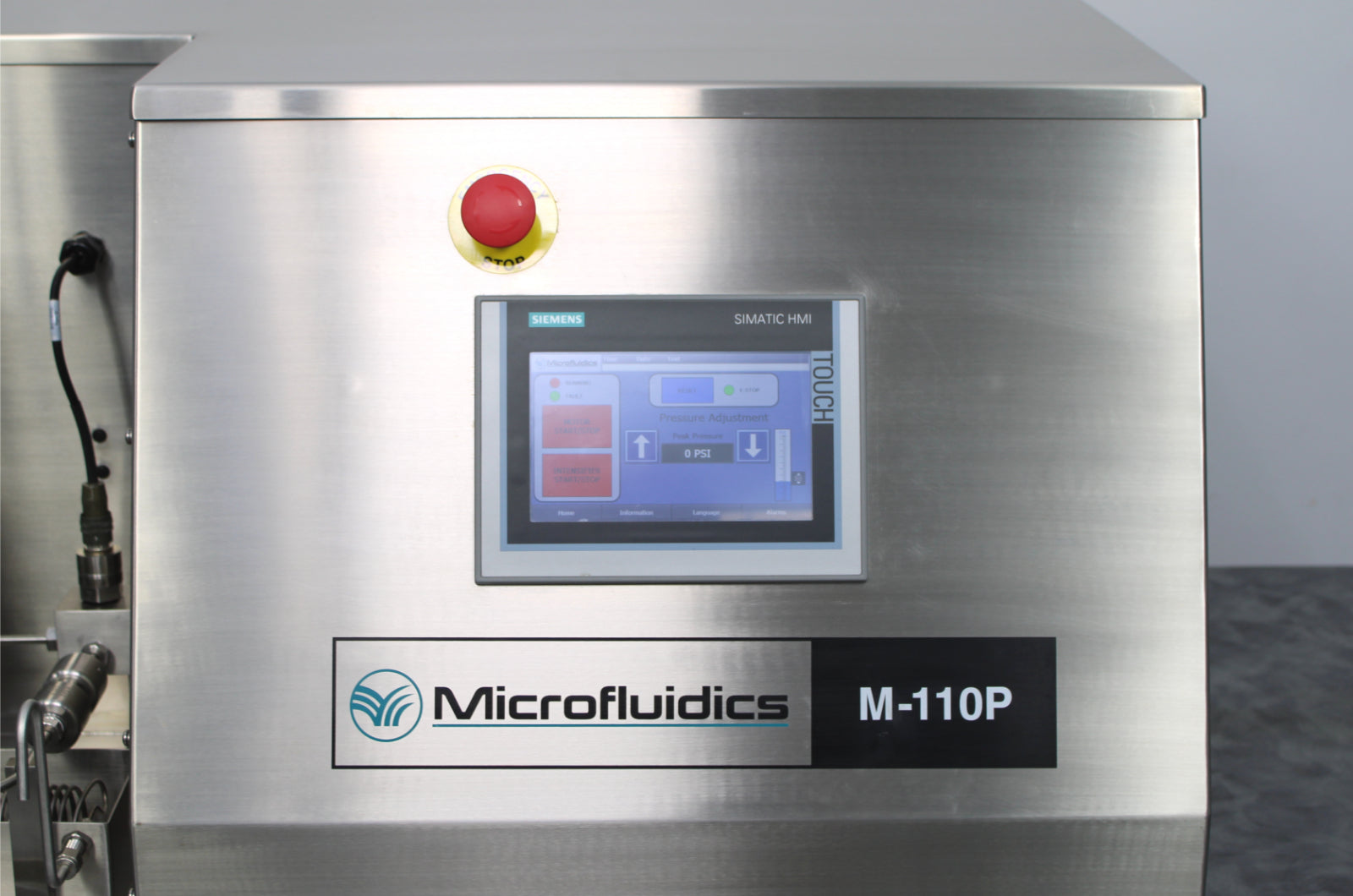

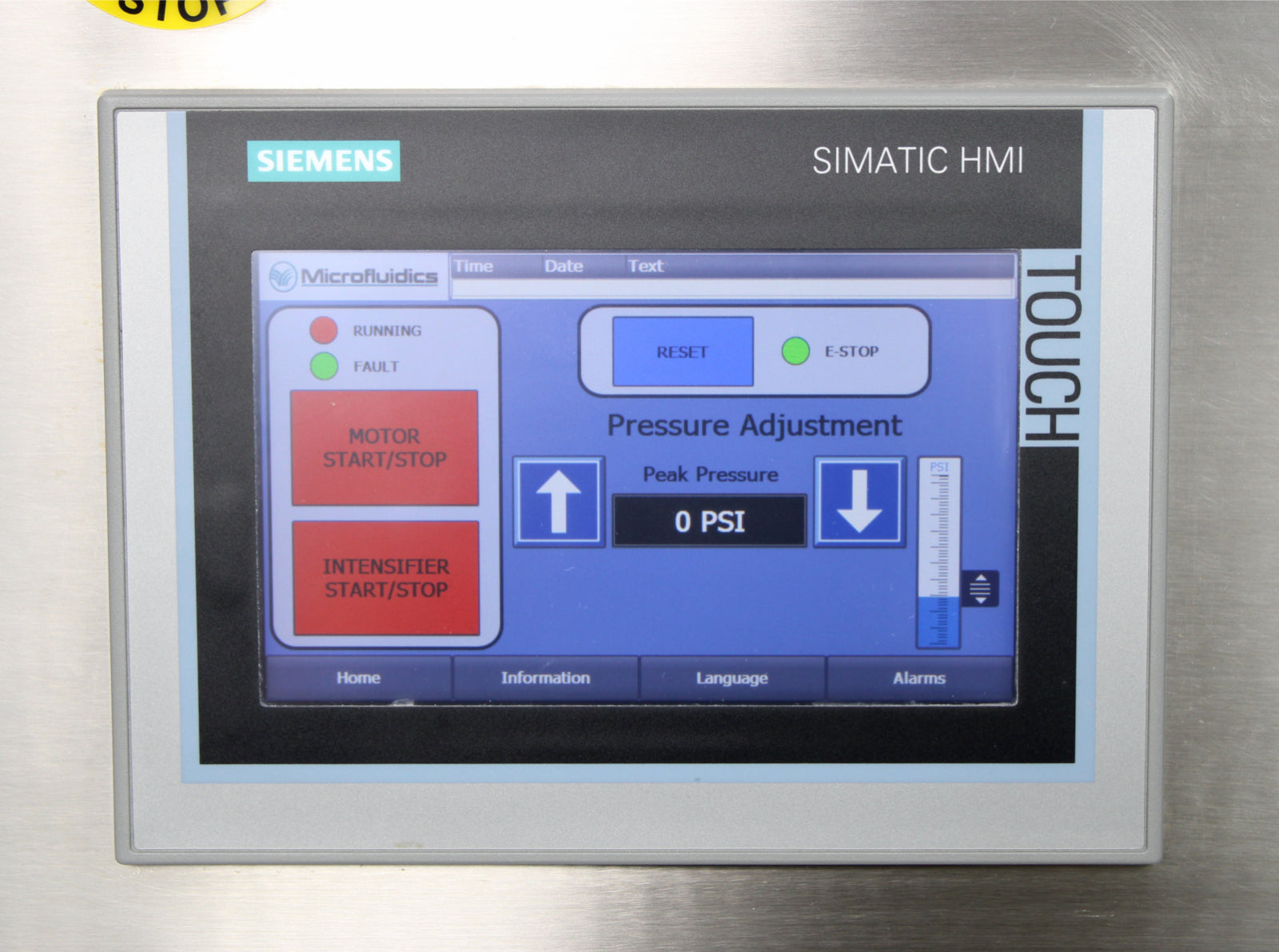

- 7” Touchscreen Process Control Panel
- H30Z 100 Micron Diamond Interaction Chamber (IXC)
- H30Z 200 Micron Ceramic Auxiliary Processing Module (APM)
- Electronic Product Pressure Gauge

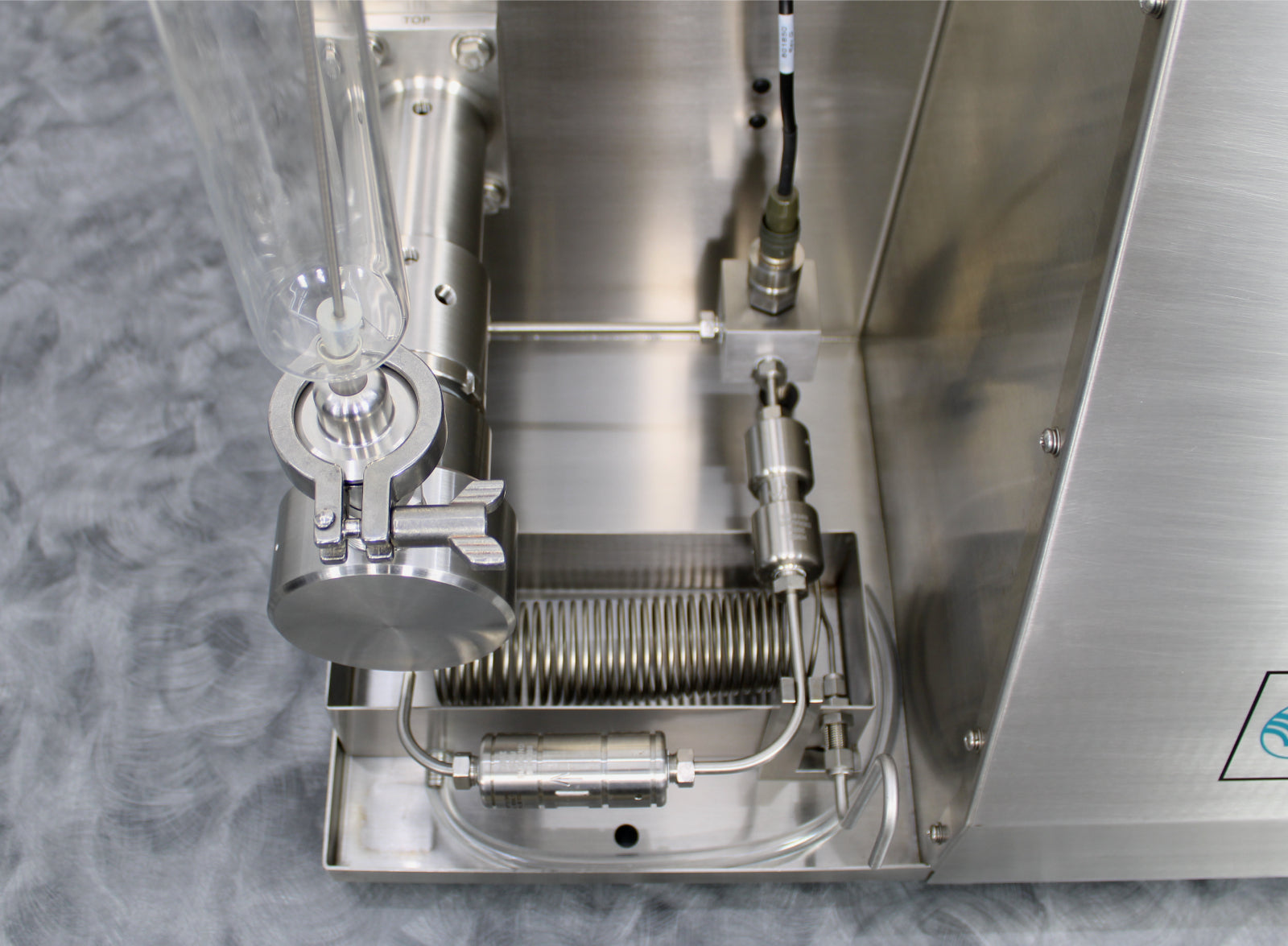

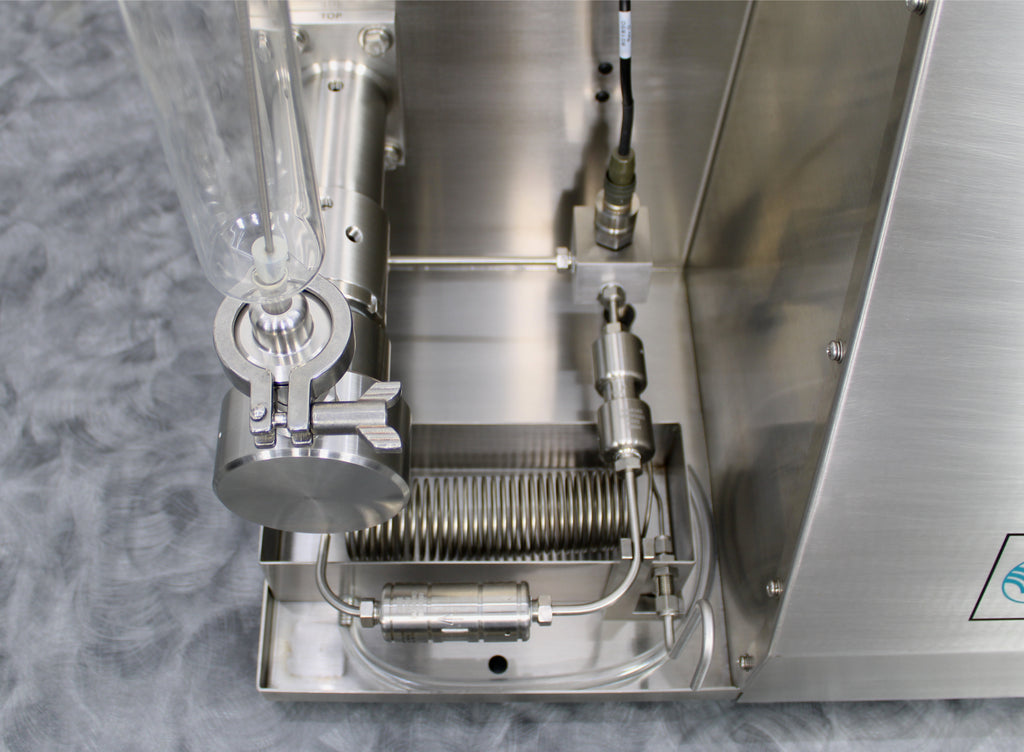

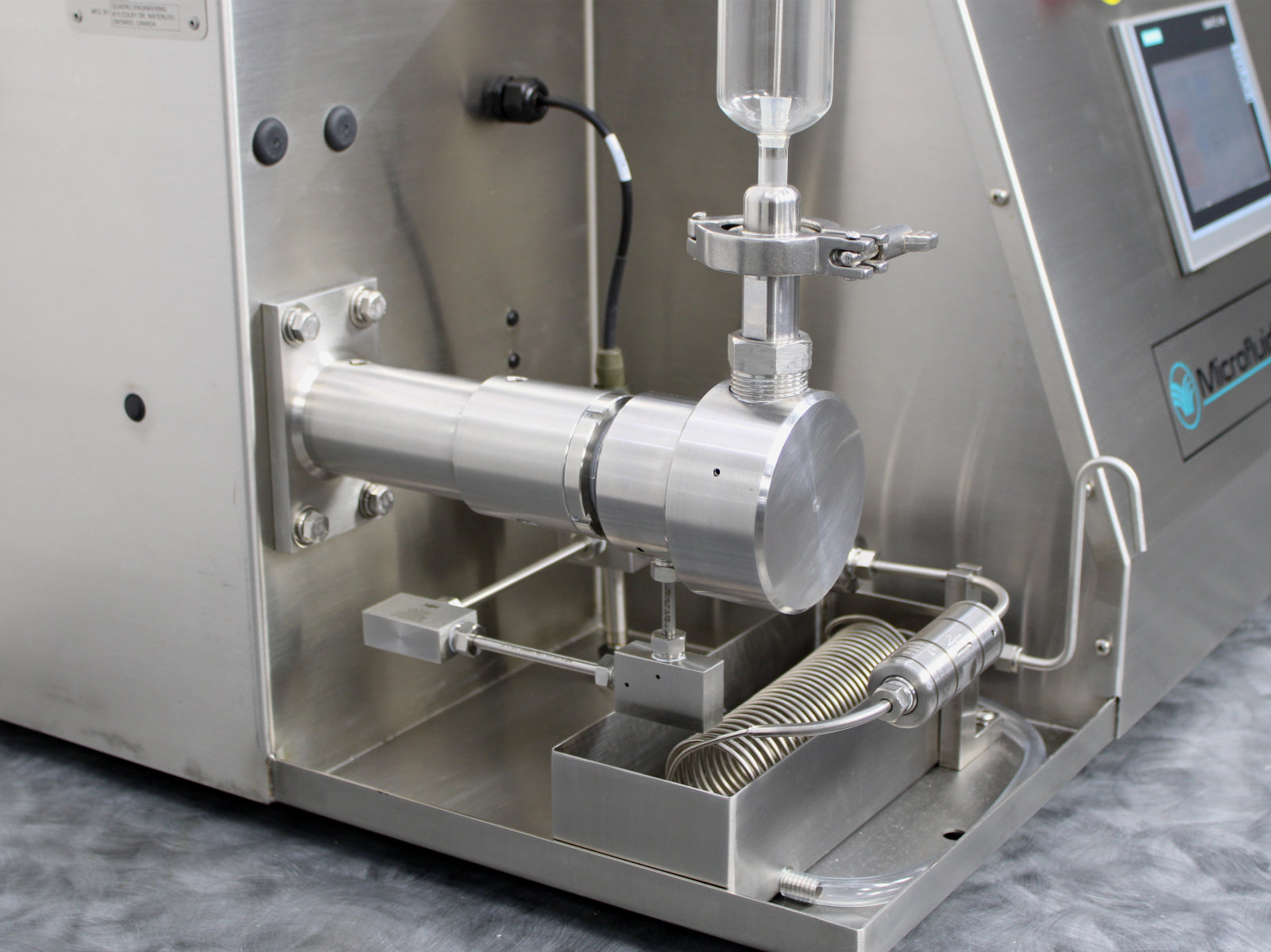

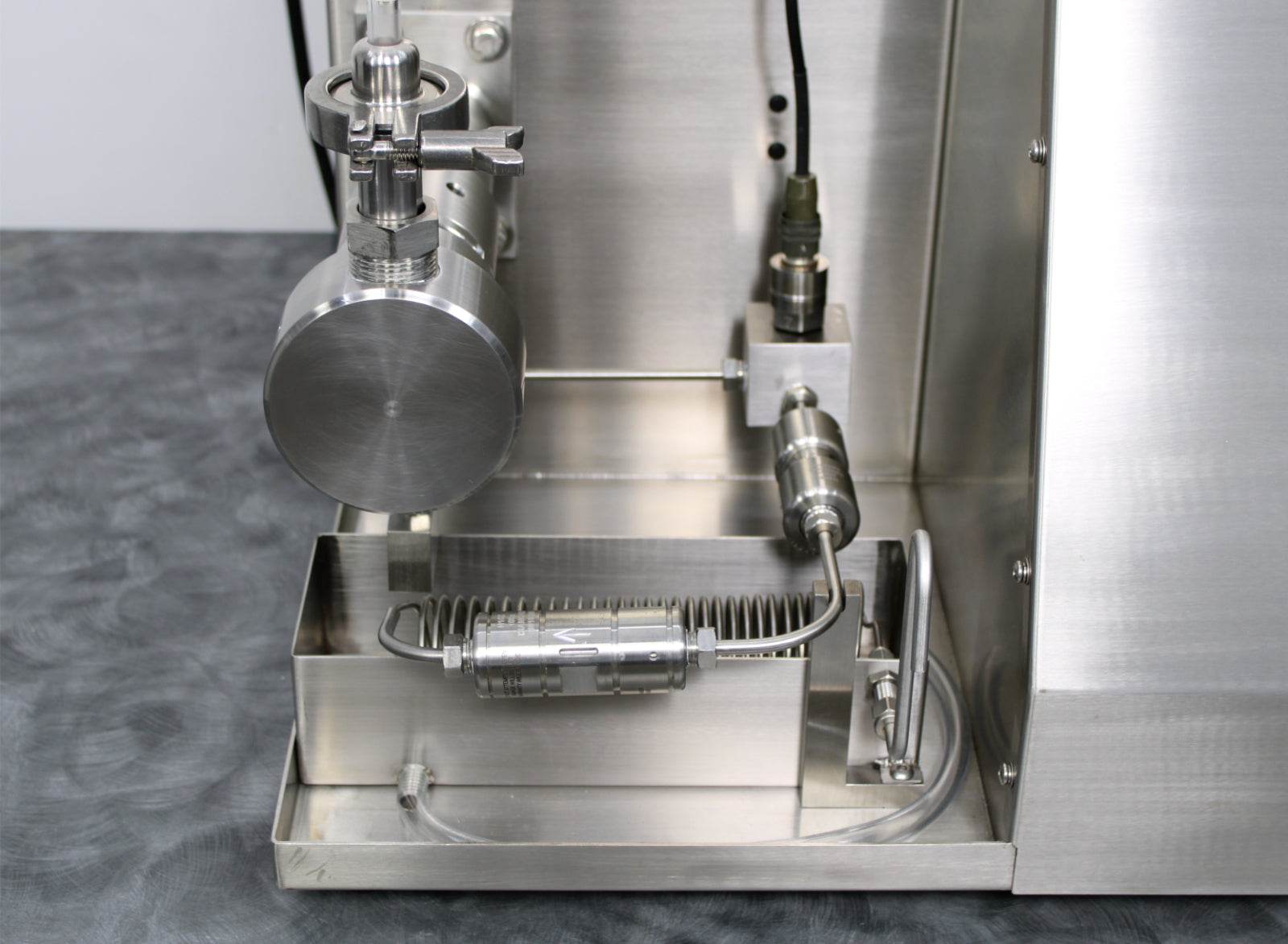

- Product Cooling Coil Assembly

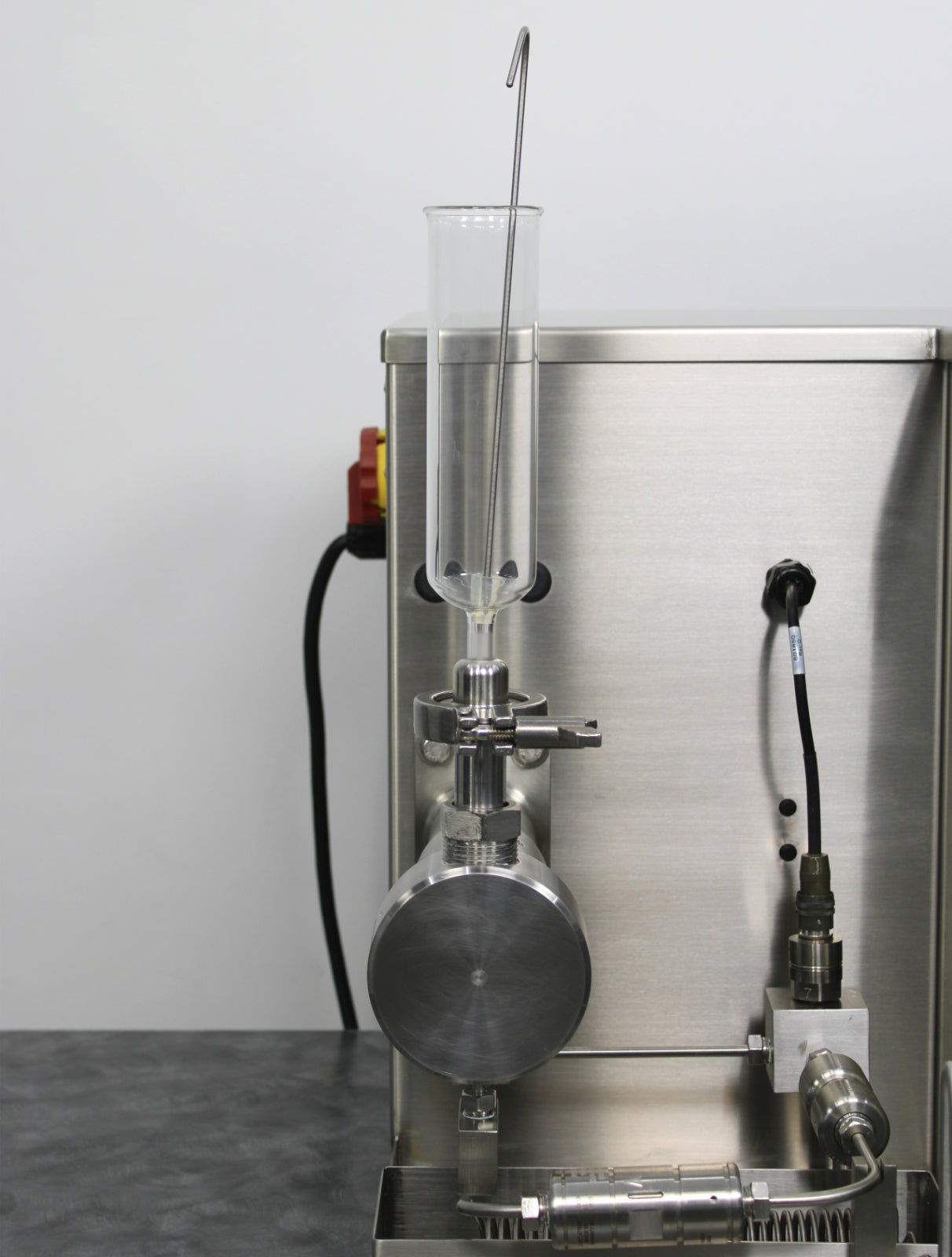

- 300 ml Glass Feed Reservoir
- Attached 110V Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Microfluidics M-110P electric-hydraulic benchtop microfluidizer processor with the following results:
- Ran/sanitized with 1 liter of isopropyl alcohol: PASSED
- Verify maximum operating pressure of 30,000 psi: PASSED
- Check process pressure control valve: PASSED
- Check motor start/stop control: PASSED
- Check hydraulic oil heat exchanger: PASSED
- Check/replace plunger seal assembly: PASSED
- Clean and inspect plunger: PASSED
- Clean and inspect bearing isolator/o-rings: PASSED
- Clean and inspect high pressure fittings: PASSED
- Clean and inspect inlet check valve: PASSED
- Check hydraulic oil and filter: PASSED
- Inspect hydraulic cylinder seals: PASSED
- Backflush the interaction chamber: PASSED

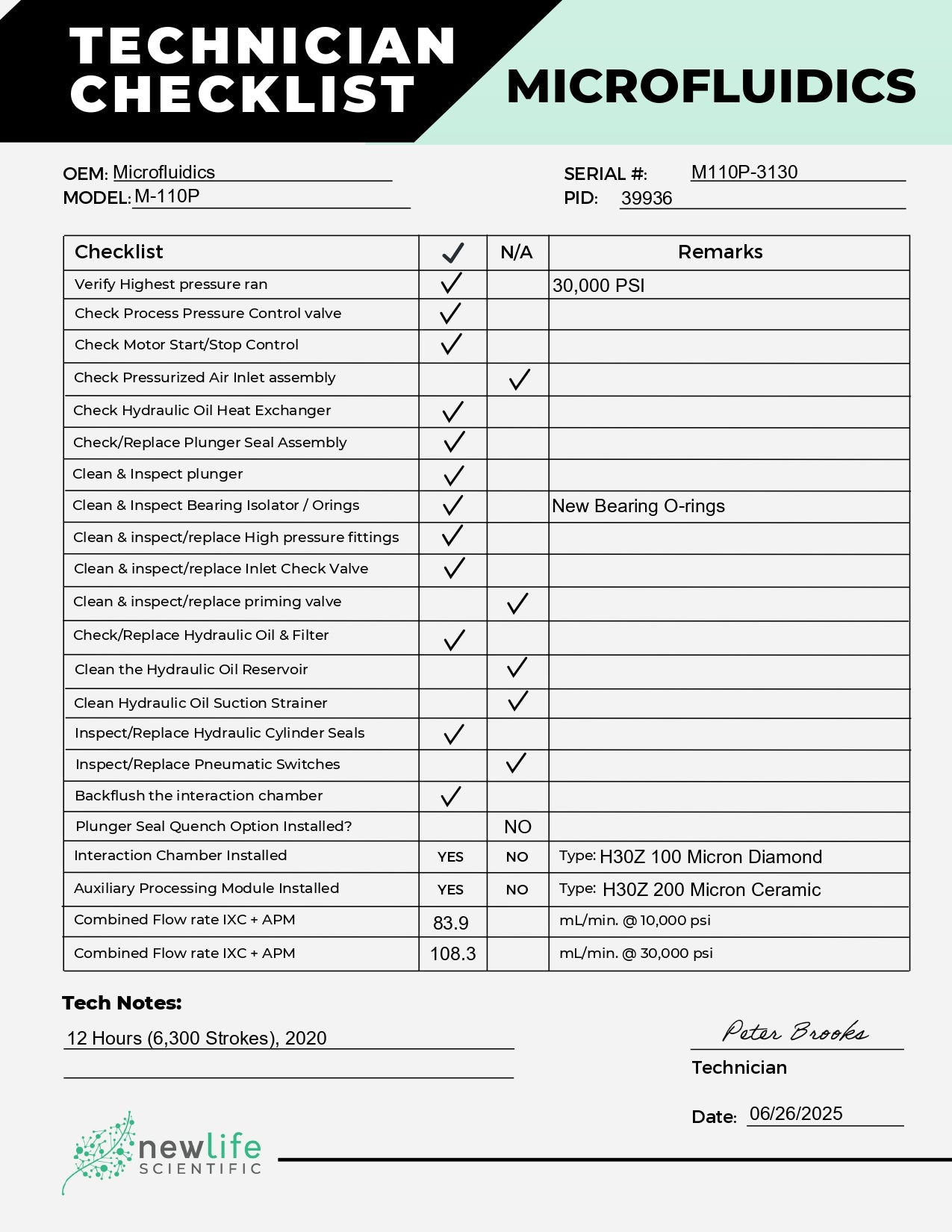

Notice: Please review the technician checklist in the product images to see more details of the inspection and testing performed.

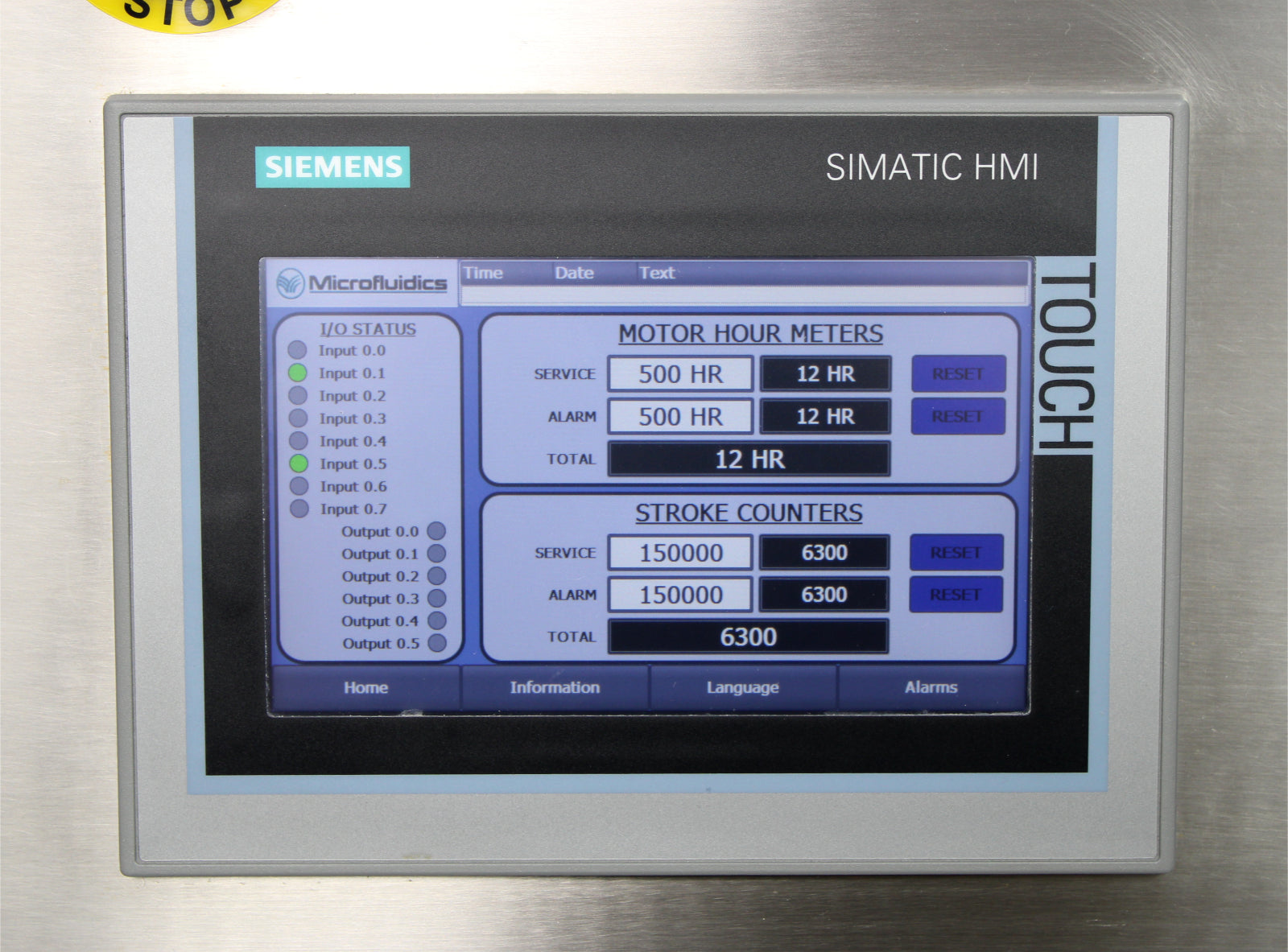

Notice: This processor has only 12 motor hours on it and a stroke counter of about 6,300. This indicates the processor has seen very little use and is in excellent condition.
Manufacturer
|
Microfluidics
|
Model No.
|
M110P
|

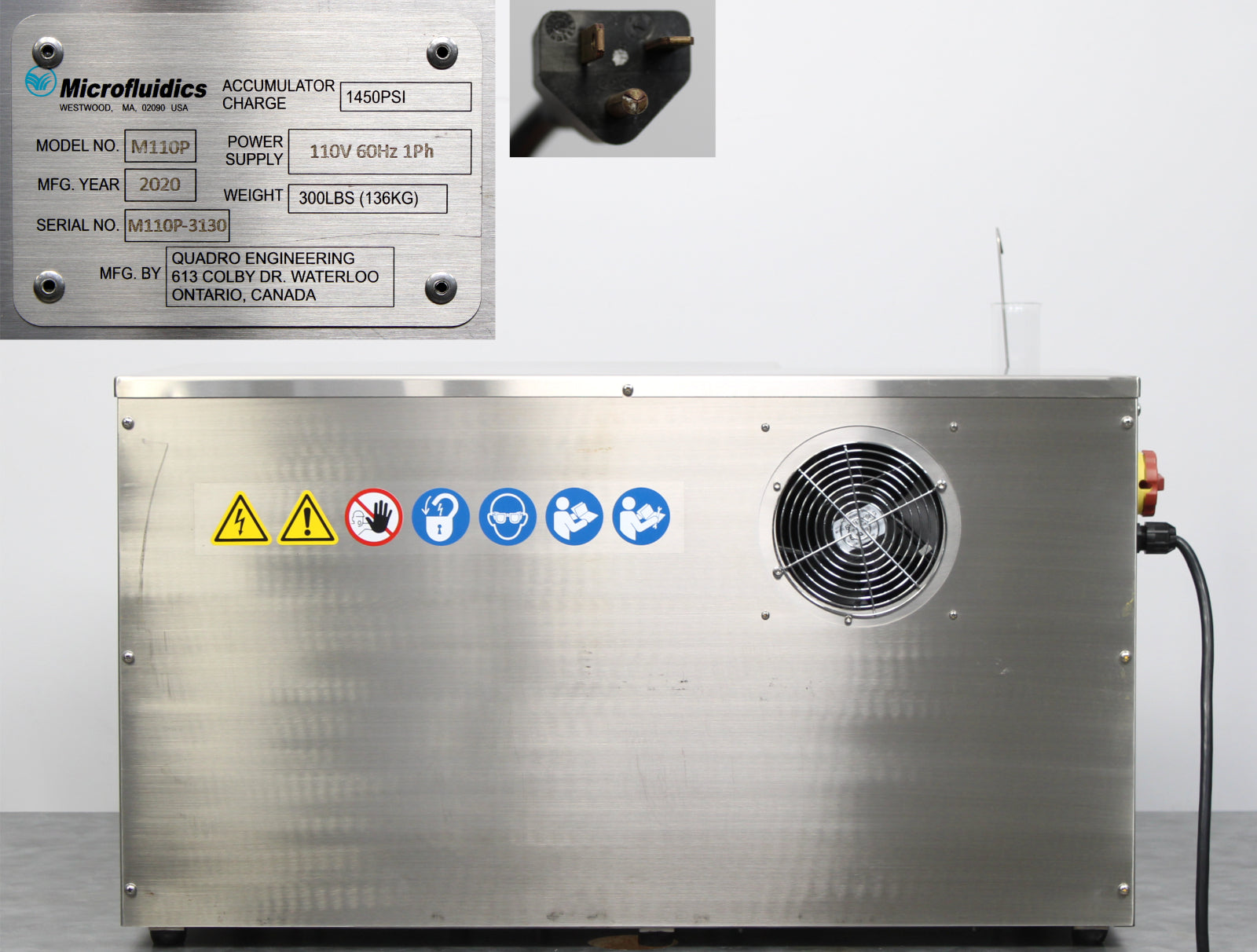

Serial No.
|
M110P-3130
|
Mfg. year
|
2020
|
Maximum operating pressure
|
up to 30,000 psi (2068 bar)
|
Minimum sample size
|
50 ml
|
Flow rate
|
up to 120 mL/min
|
Product temperature limit
|
158°F (70°C)
|
Noise level
|
80 dB TWA
|
Power rating
|
110V, 60Hz, 1Ph
|
Dimensions (W x D x H)
|
35 x 27 x 20 in
|
Weight
|
300 lb (136 kg)
|
