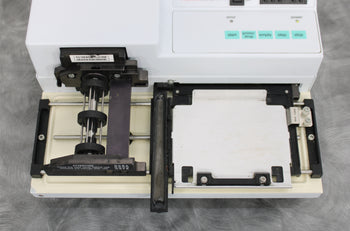

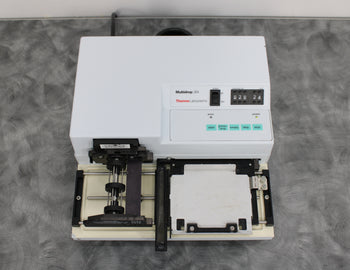

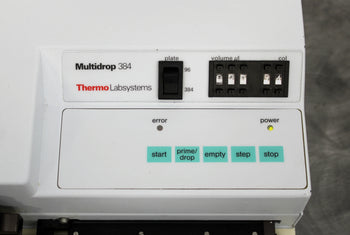

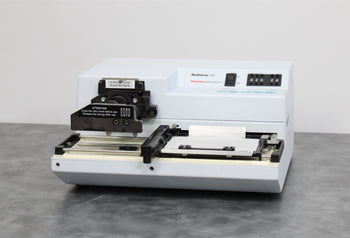

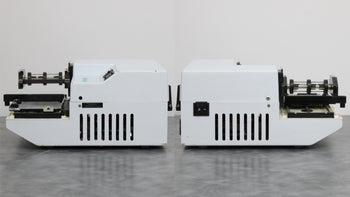

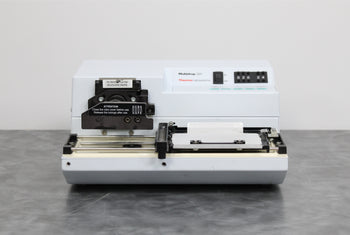

- Thermo Labsystems Multidrop 384 Type 832 Microplate Washer (5840157)
- Power Cable
- 90-Day Warranty

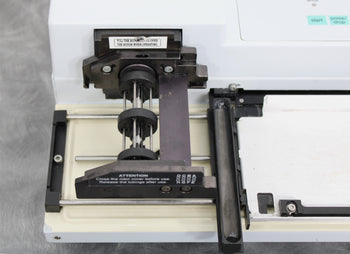

- Dispensing Cassette
- Bottle
After its initial disinfection and inspection, our technicians tested the Thermo Labsystems Multidrop 384 Type 832 microplate washer with the following results:
- Ran washer with 96-well: PASSED
- Ran washer with 384-well: PASSED

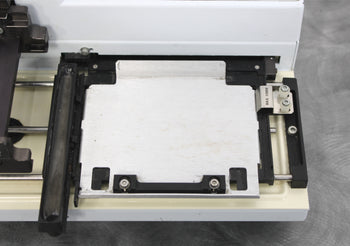

- Plate movement: PASSED
- Dispenser rotation: PASSED
|
Manufacturer
|
Thermo Labsystems
|
|
Model
|
Multidrop 384
|
|
Type
|
832
|
|

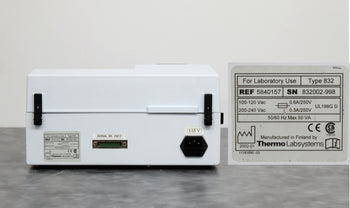

Ref. No.
|
5840157
|
|
Serial No.
|
832002-998
|
|
Mfg. date
|
2002-01
|
|
Dispensing volume
|
5-100 µl in 5 µl increments (384-well)
5-395 µl in 5 µl increments (96-well)
|
|
Dispensing speed
|
20 s/20 µl into 384 wells
5 s/20 µl into 96 wells
|
|
Dispensing accuracy
|
± 3% or ± 1 µl, whichever is greater
5 µl: ± 3% or ± 1 µl, whichever is greater
20 µl: ± 2% (typical*)
100 µl: ± 1% (typical*)
|
|
Dispensing precision
|
5 µl: CV ≤ 10% or SD ≤ 0.6 µl, whichever is greater
10 ― 395 µl: CV ≤ 3.0% or SD ≤ 0.4 µl, whichever is greater
5 µl: ≤ 10% (typical)
20 µl: ≤ 1.5% (typical)
100 µl: ≤ 1% (typical)
|
|
Power rating
|
100-120VAC, 50/60Hz
200-240VAC, 50/60Hz
|
|
Power consumption
|
50VA max.
|
|
Dimensions (W x D x H)
|
12.2 x 12.6 x 6.1 in (31 x 32 x 15.5 cm)
|
|
Weight
|
13.7 lb (6.2 kg)
|
* using the calibration procedure in section 7.5 the accuracy can be improved to ± 1.5%
