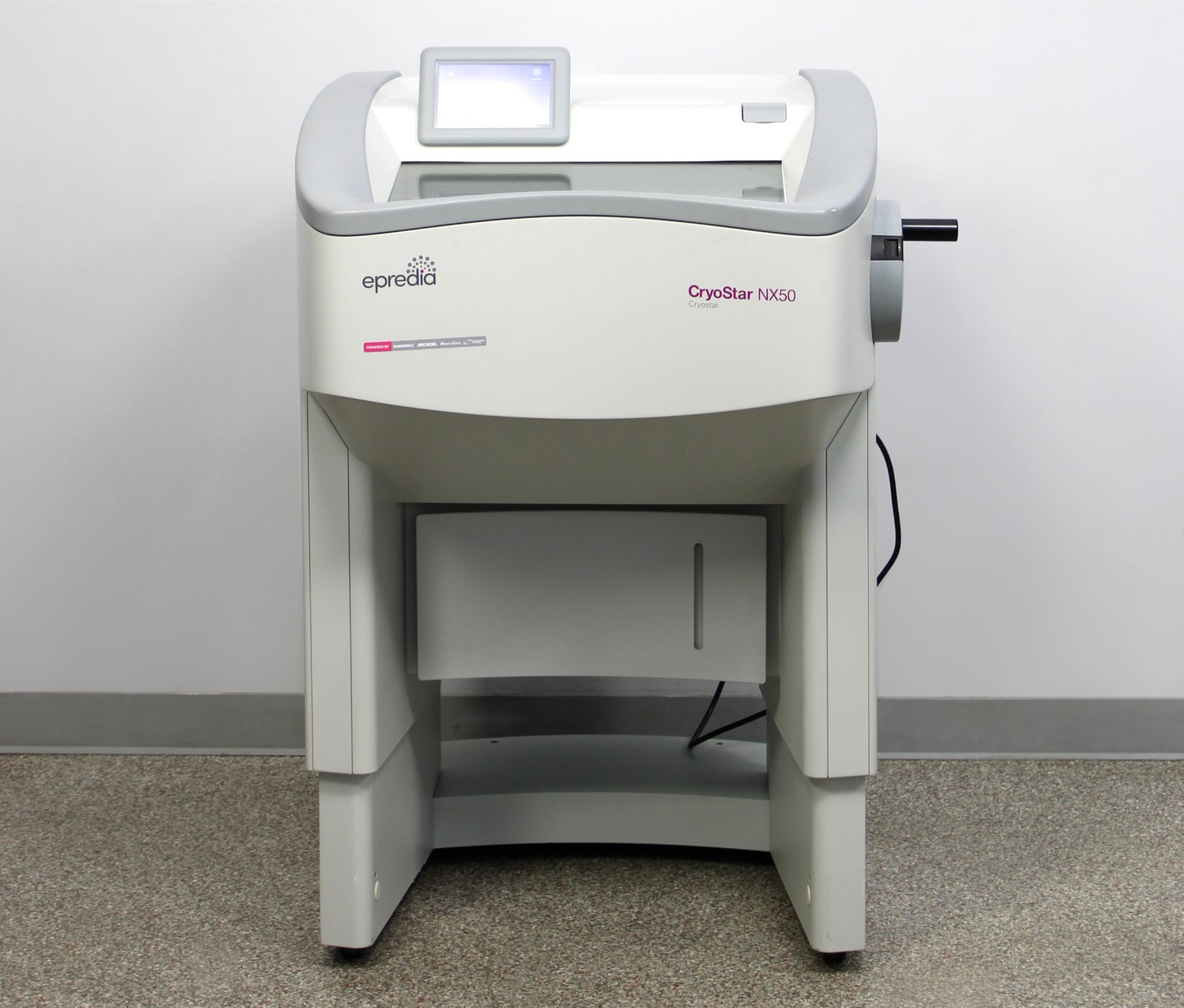

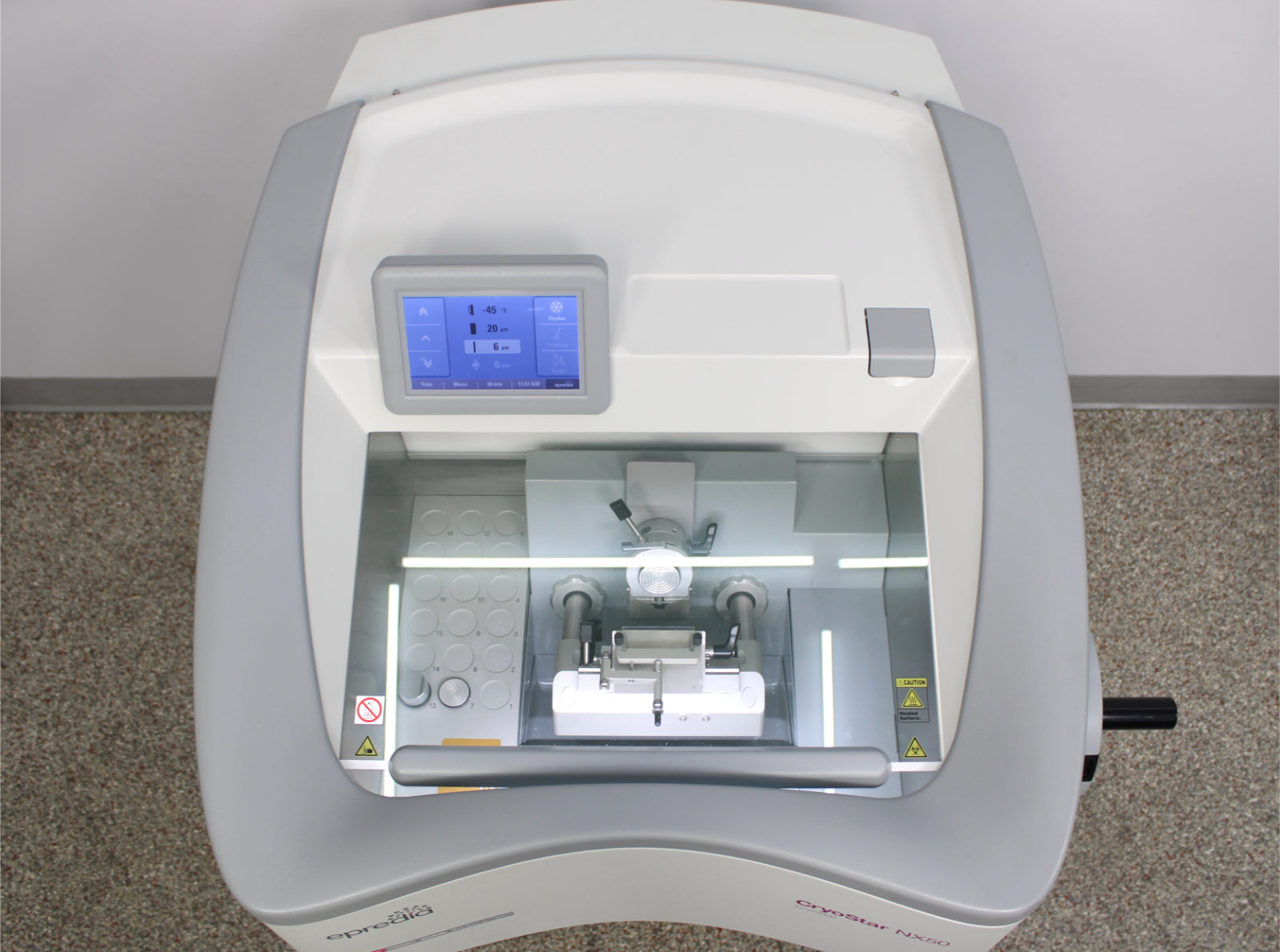

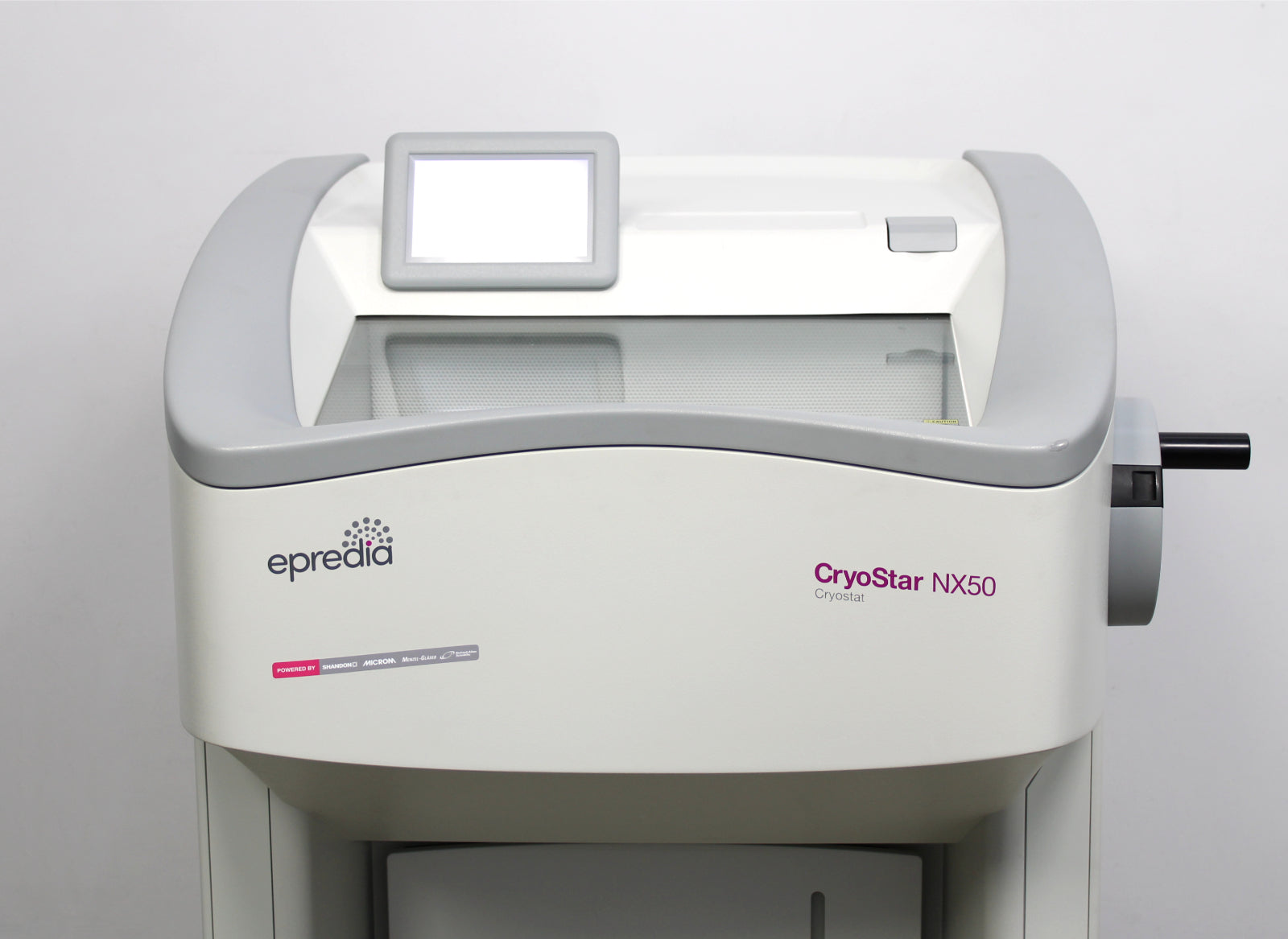

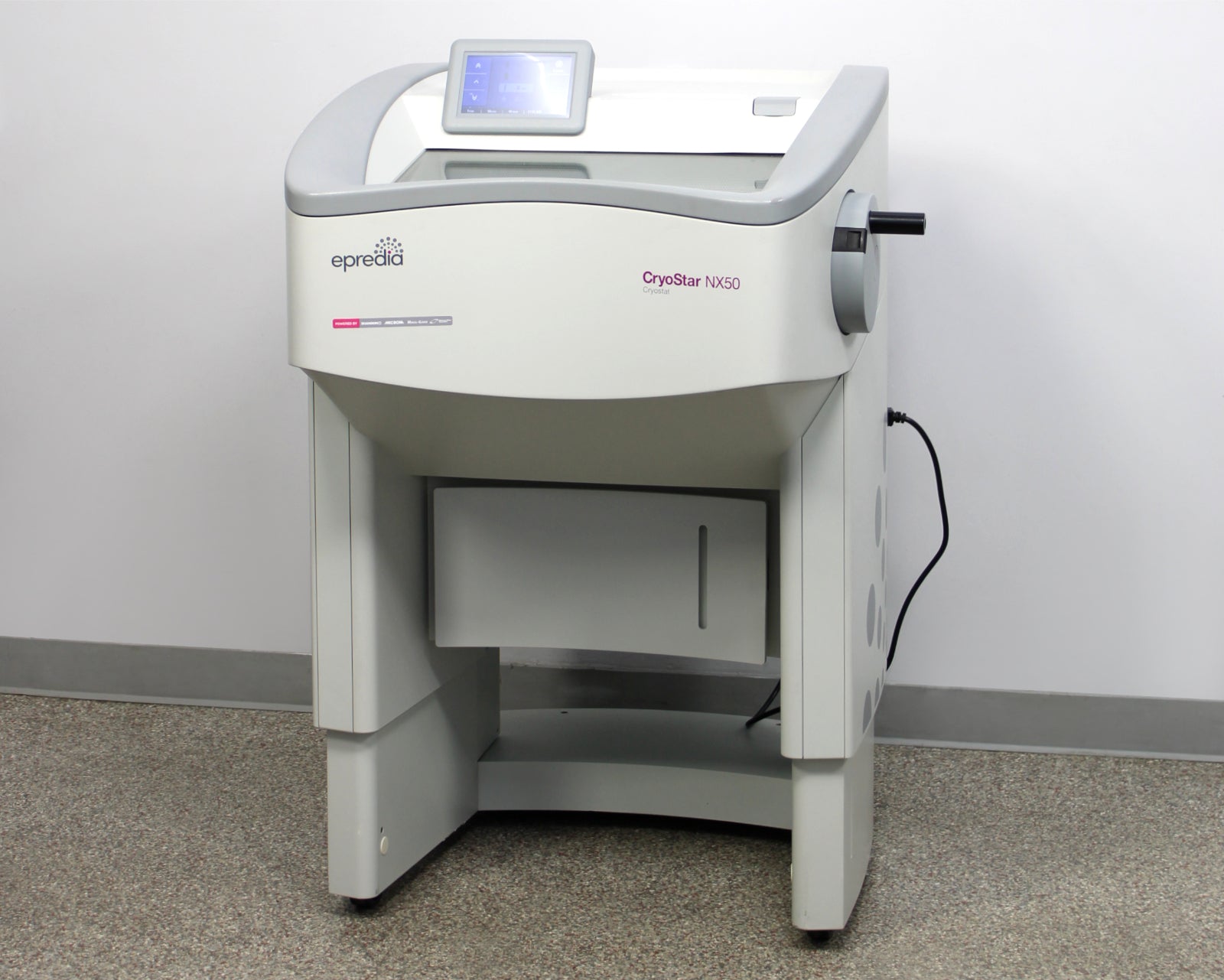

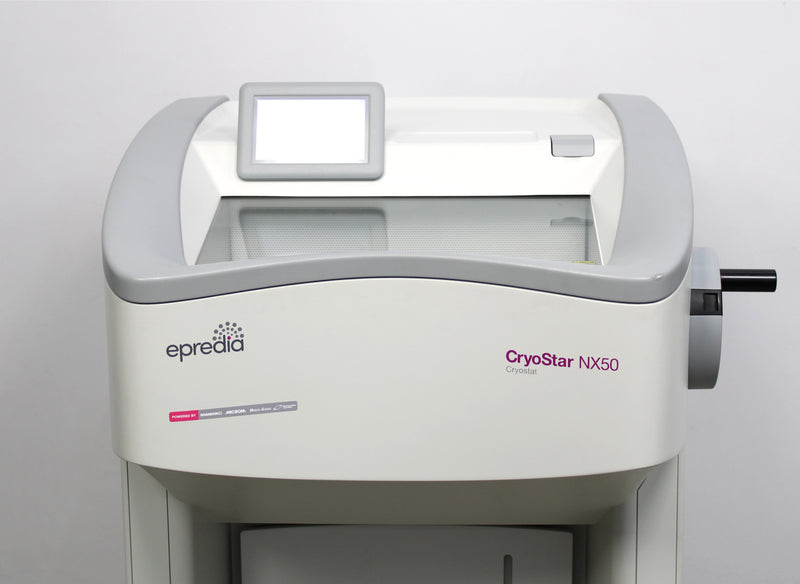

- Epredia CryoStar NX50 OP Microtome Cryostat (957250)

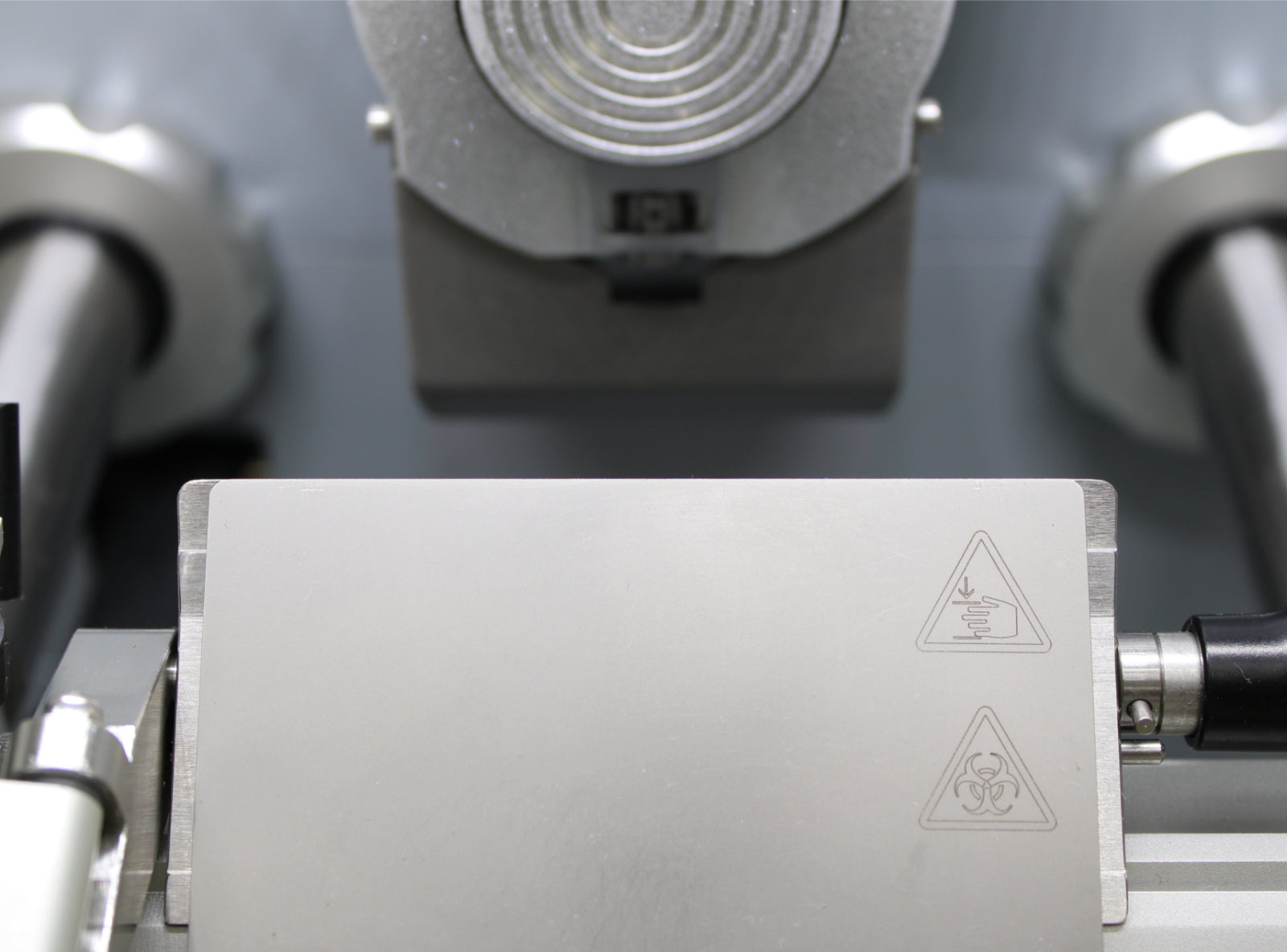

- Blade Holder Assembly
- x2 Specimen Discs
- Power Cable
- 90-Day Warranty
Option O - Specimen cooling
Option P - Peltier cooling cryobar

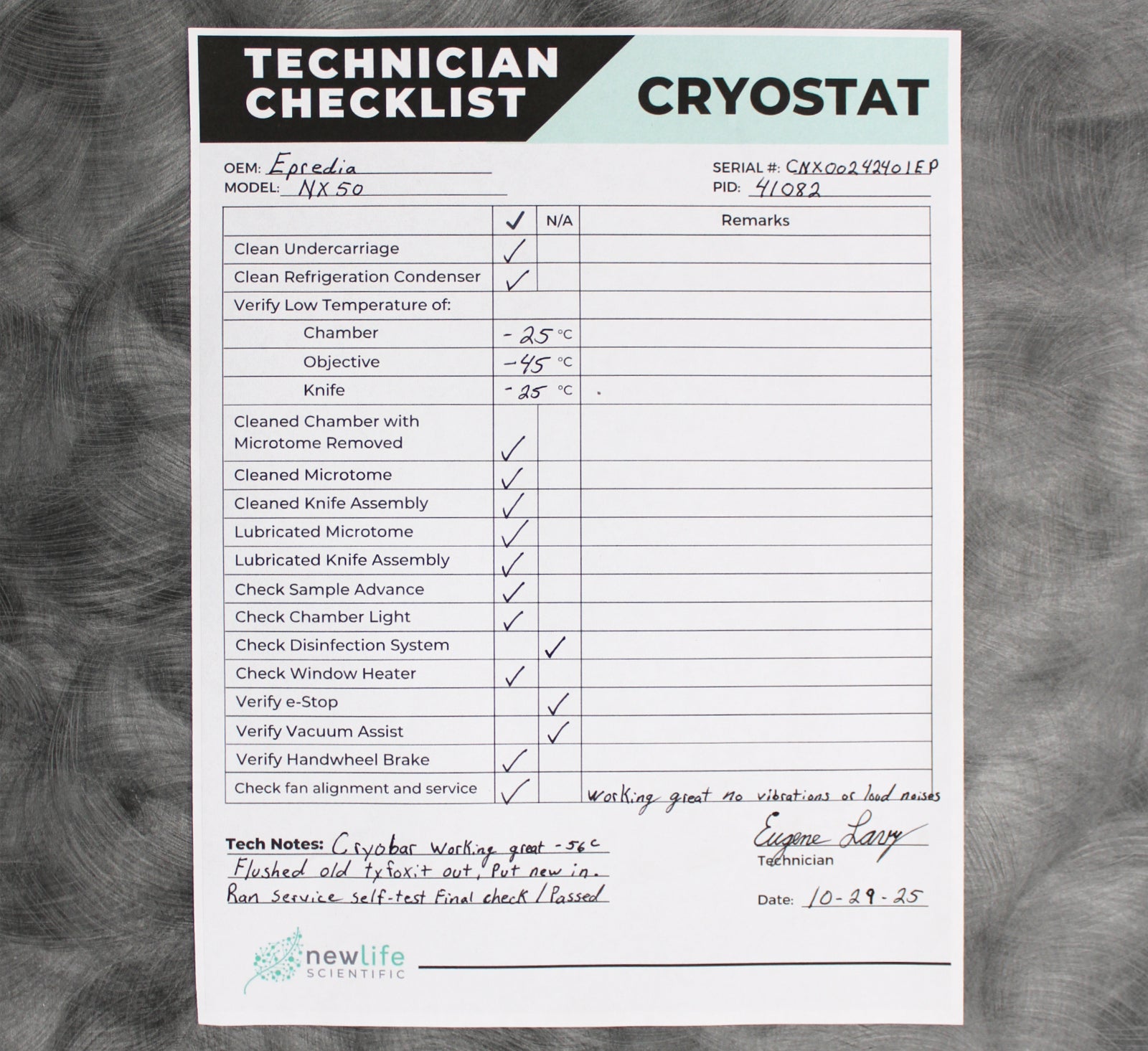

After its initial disinfection and inspection, our technicians tested the Epredia CryoStar NX50 OP microtome cryostat with the following results:

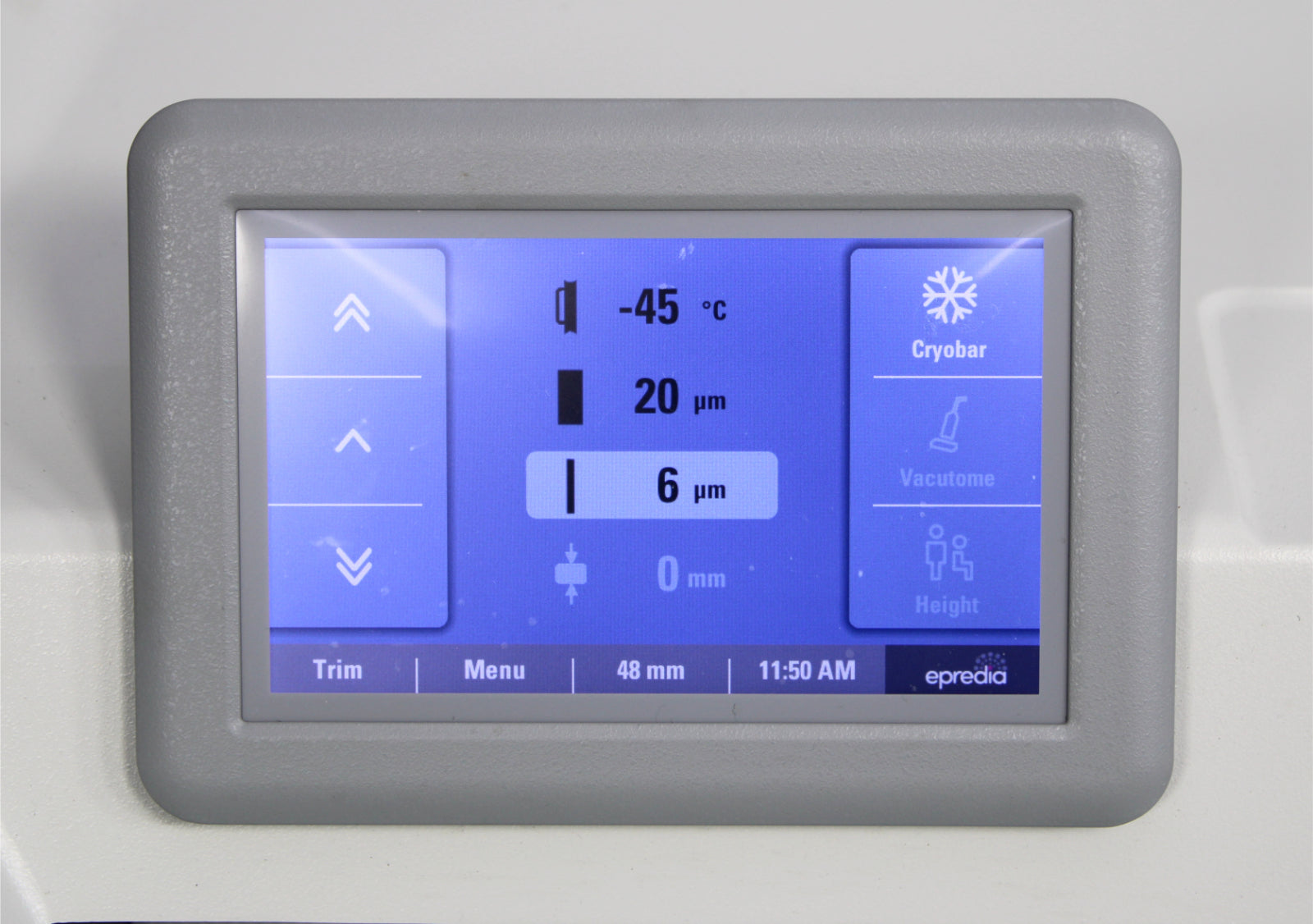

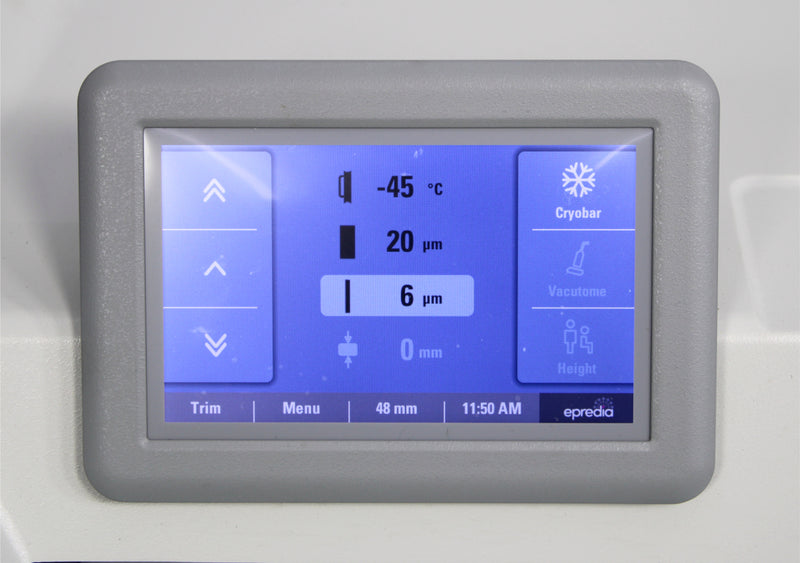

- Specimen cooling -45°C setpoint: PASSED
- Chamber cooling reaches -25°C: PASSED
- Peltier cooling cryobar: PASSED
- Sample advance: PASSED
- Defrost: PASSED
- Window heater: PASSED
- Chamber light: PASSED
- Service self-test: PASSED
- Drained, flushed, and filled the tyfoxit cooling unit.
- Cleaned undercarriage.
- Cleaned refrigeration condenser.

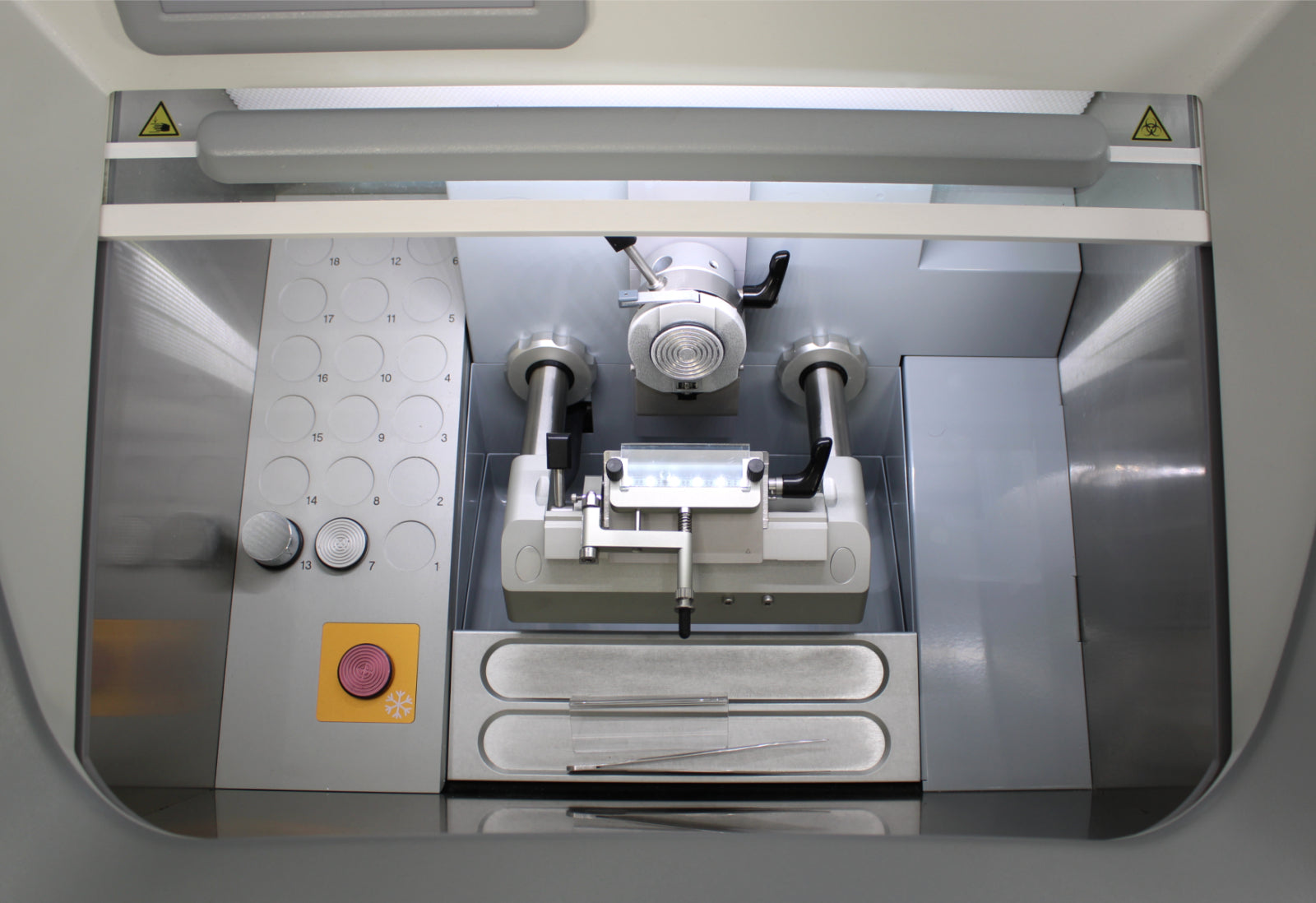

- Cleaned chamber with microtome removed.

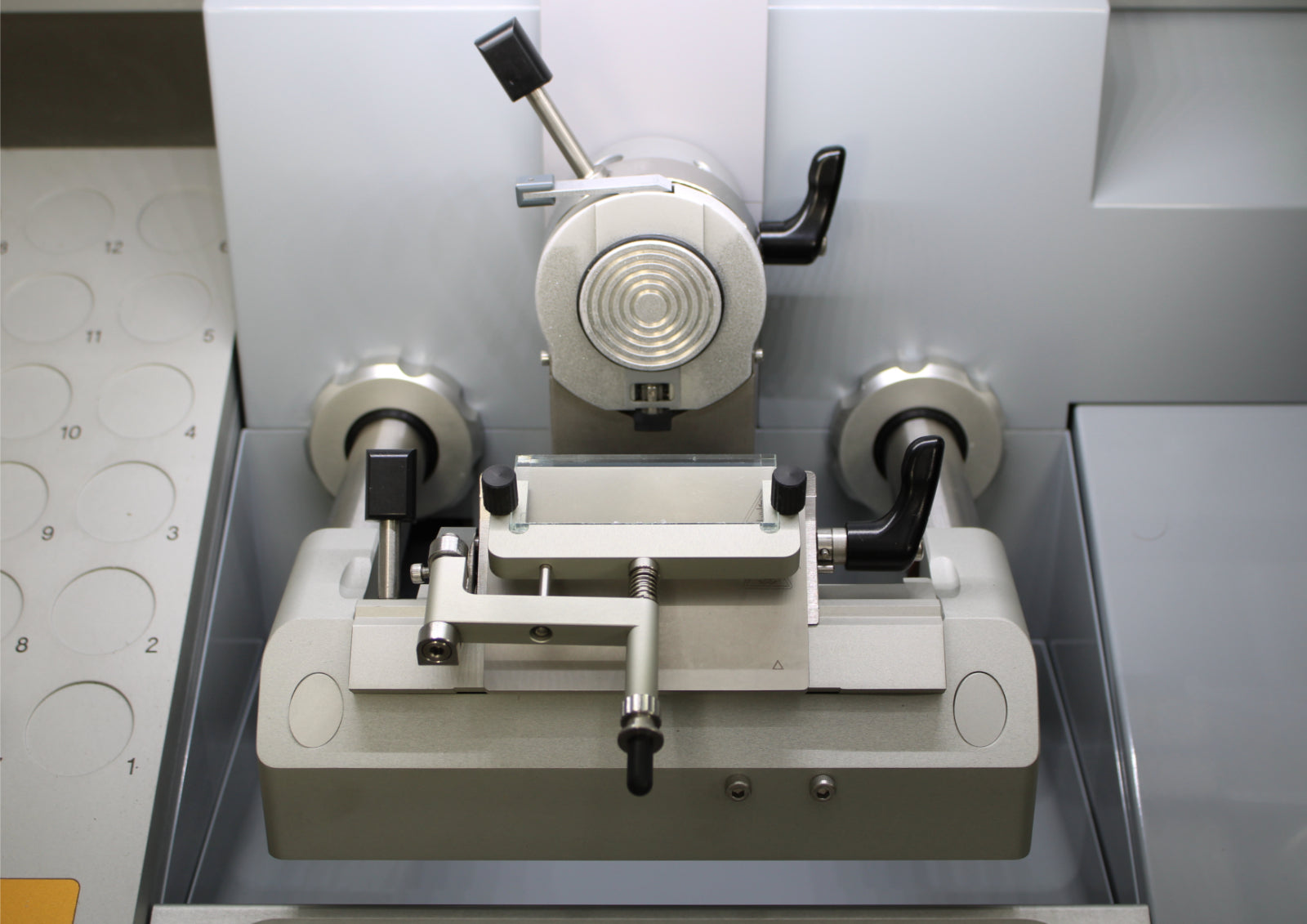

- Cleaned microtome and knife assembly.
- Lubricated microtome and knife assembly.
|
Manufacturer
|
Epredia
|
|
Model
|
CryoStar NX50 OP
|
|
Ref. No.
|
957250
|
|

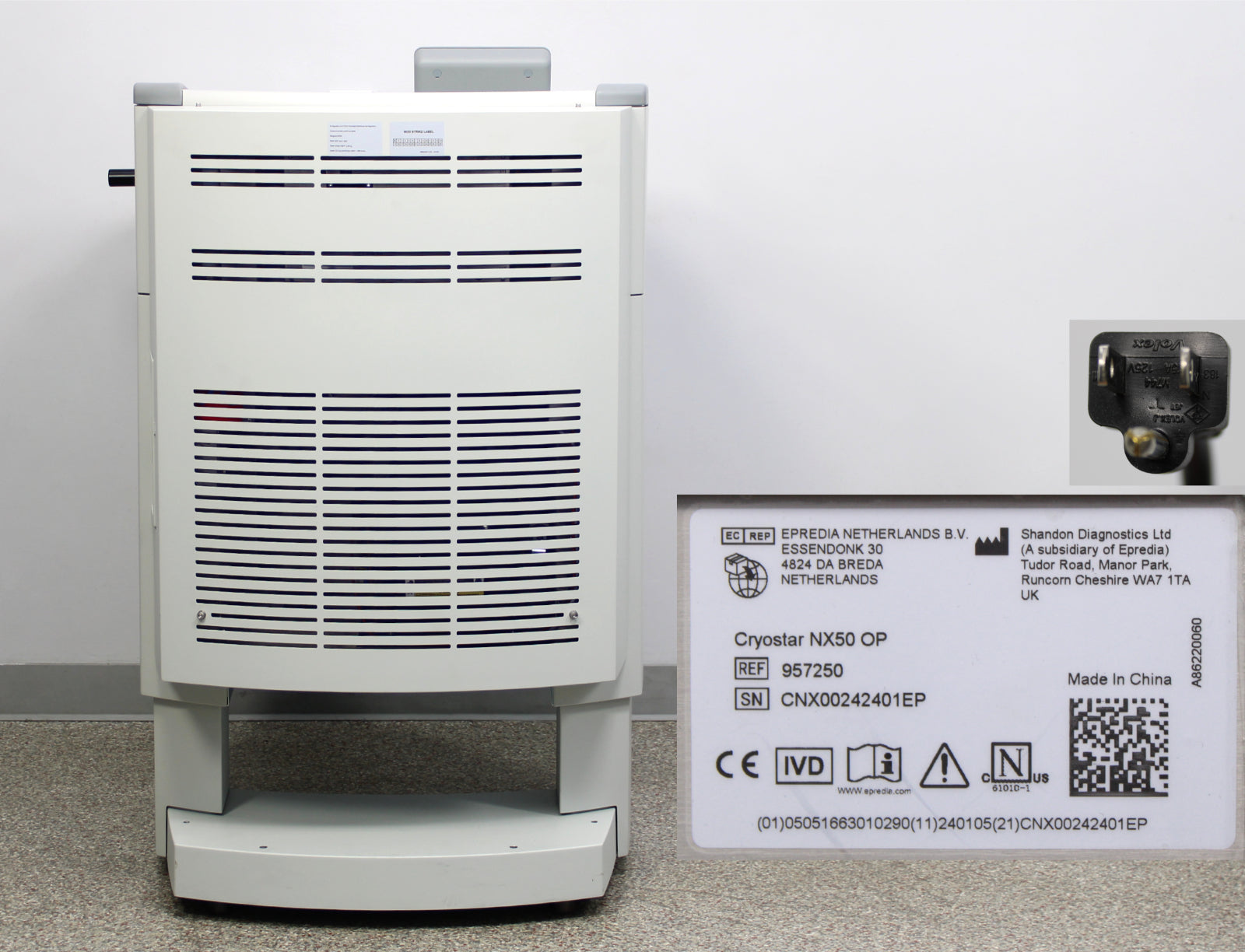

Serial No.
|
CNX00242401EP
|
|
Fine section thickness range
|
0.5 - 100 µm
|
|
Trimming thickness range
|
5 - 500 µm
|
|
Vertical specimen stroke
|
64 mm (2.5 in)
|
|
Horizontal knife movement
|
48 mm (1.9 in)
|
|
Specimen orientation
|
x- and y- axes universal 8° with zero positioning; z-axis up to 360°
|
|
Specimen retraction
|
20 µm
|
|
Specimen temperature control
|
-43°C ±2°C (-45.4°F) at 20°C (68°F) ambient
|
|
Cryobar cooling
|
-57°C ±3°C (-70.6°F) at 20°C (68°F) ambient
|
|
Cryochamber
|
-25°C ±2°C (-13°F) at 20°C (68°F) ambient; continuously cooled
|
|
Knife holder
|
-27°C ±2°C (-16.6°F) at 20°C to 30°C (68°F to 86°F) ambient; continuously cooled
|
|
Defrosting options
|
Programmed / Immediate
|
|
Certifications
|
CSA, CE
|
|

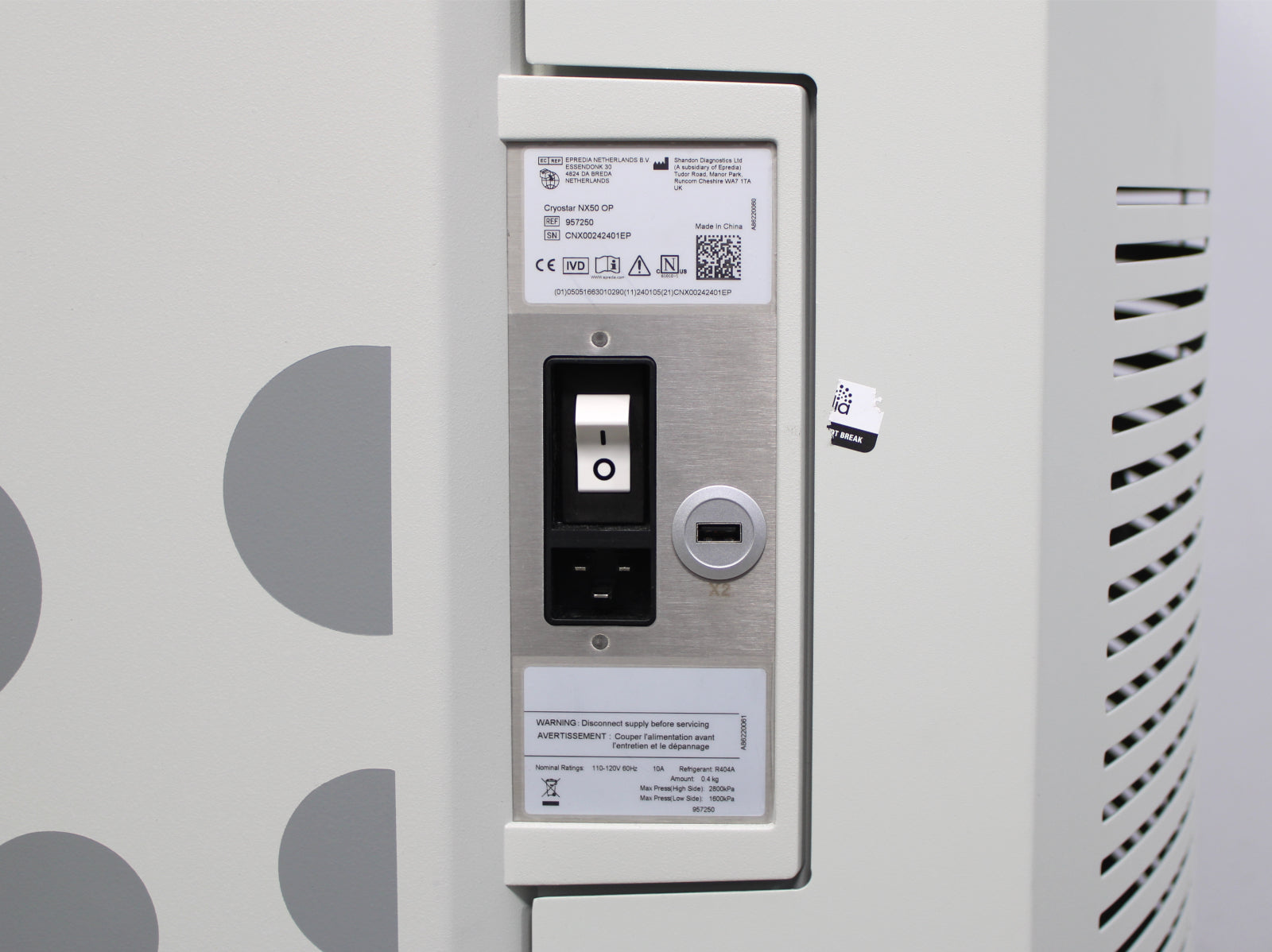

Power rating
|
110-120V~, 60Hz, 10A
|
|
Dimensions (W x D x H)
|
33 x 38 x 43
|
|
Weight
|
441 lb (200 kg)
|
