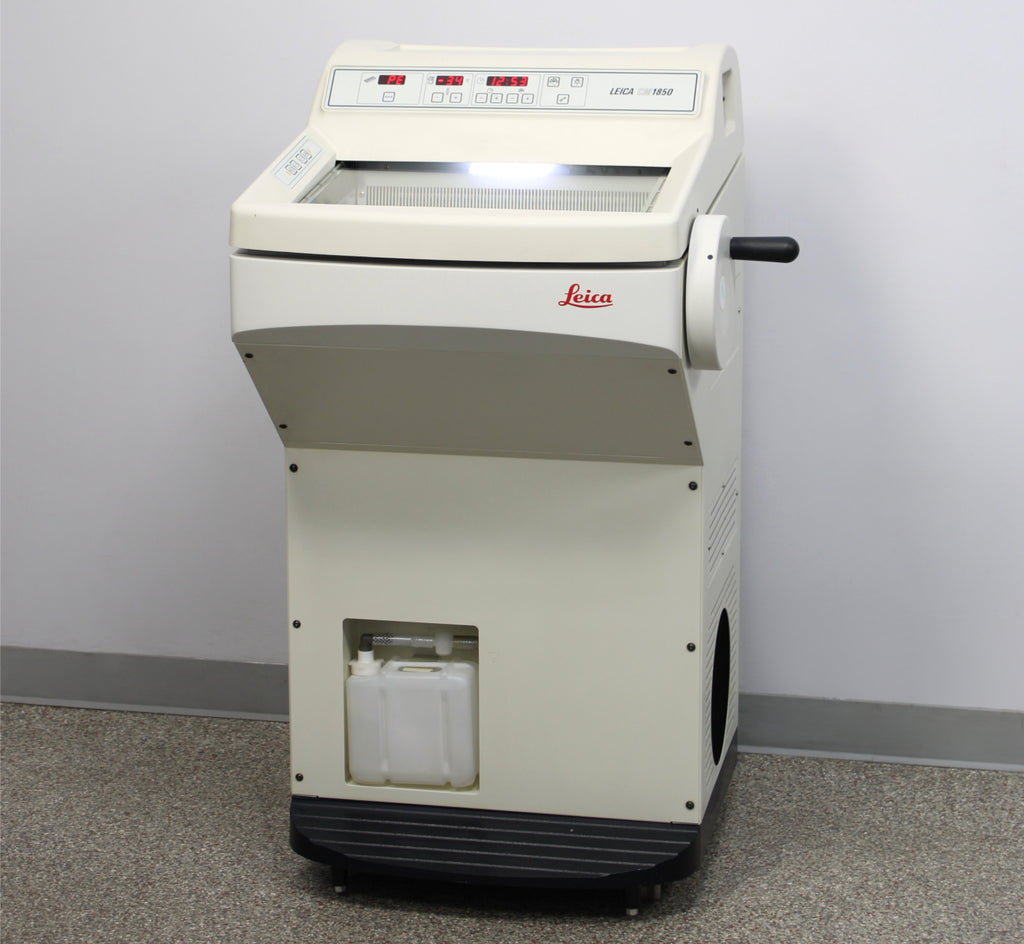

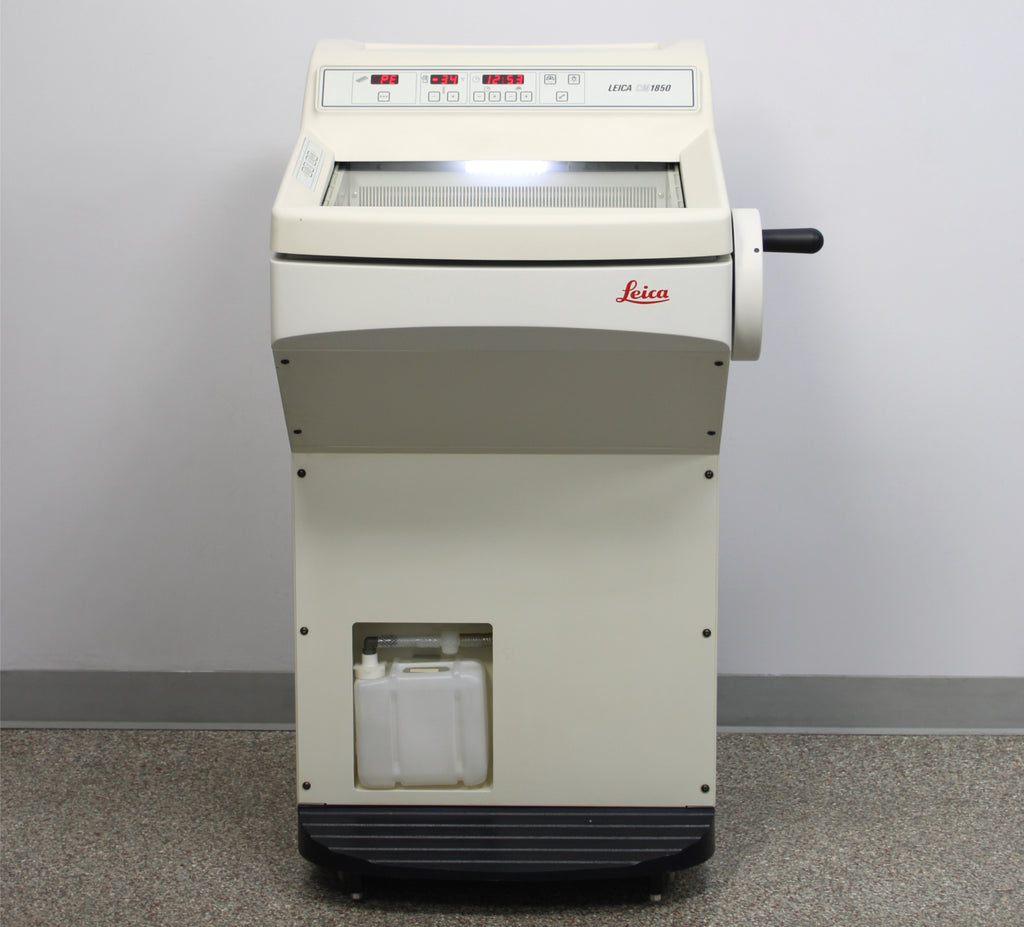

- Leica CM1850-3-1 Cryostat Microtome (047131148)

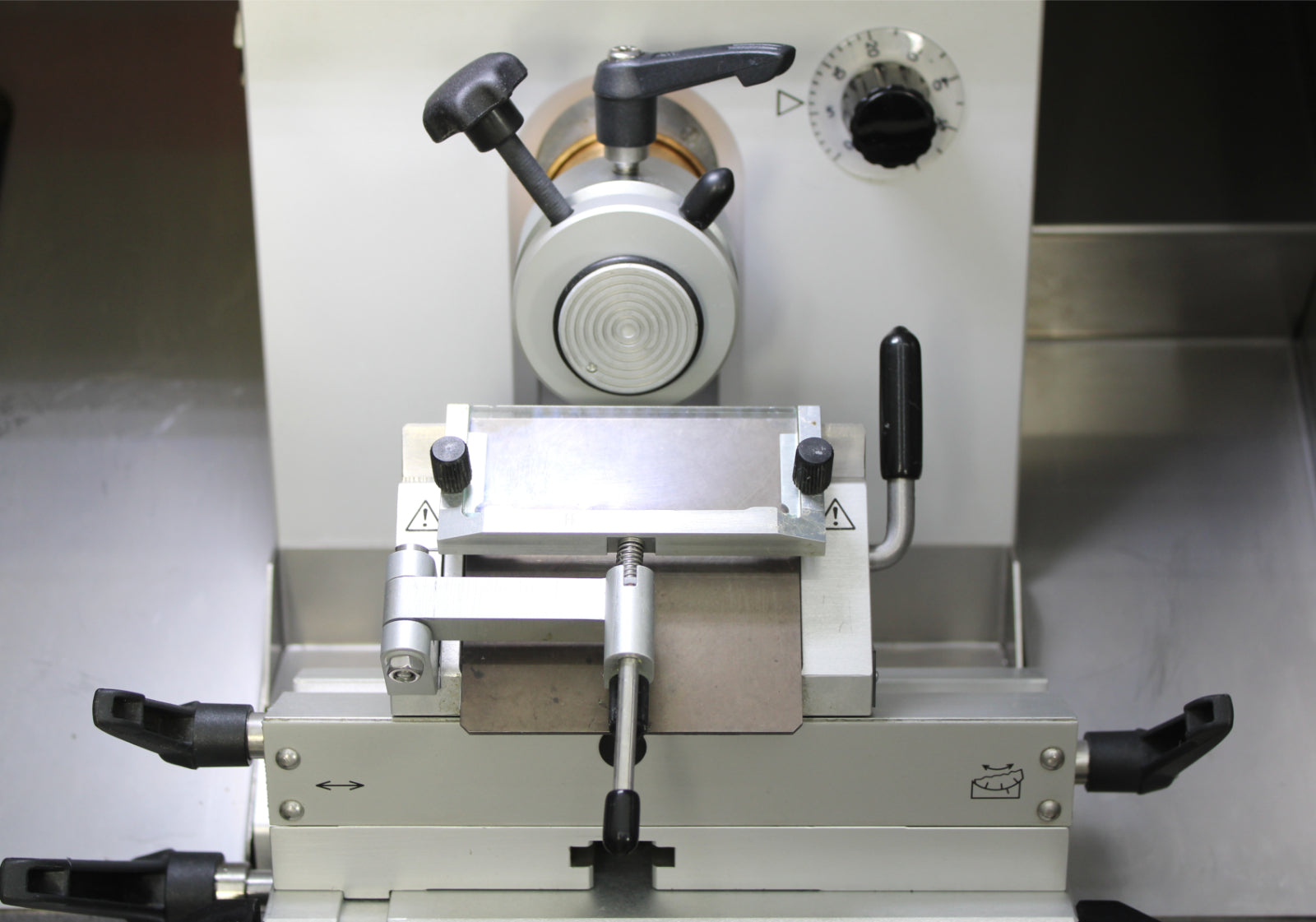

- Knife Blade Holder Assembly with Glass Anti-Roll Plate

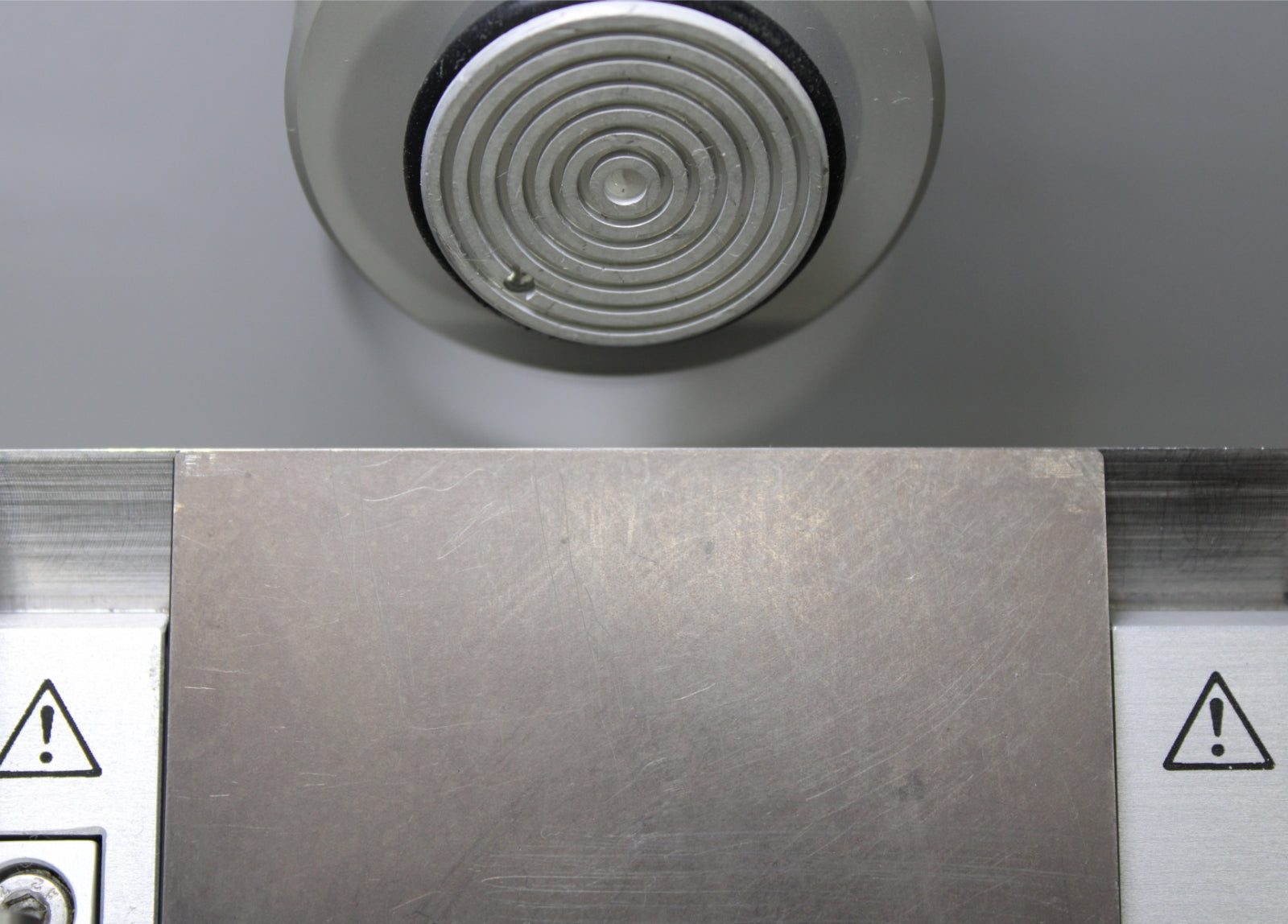

- x2 Specimen Discs
- Tool Tray
- Attached Power Cable
- 90-Day Warranty

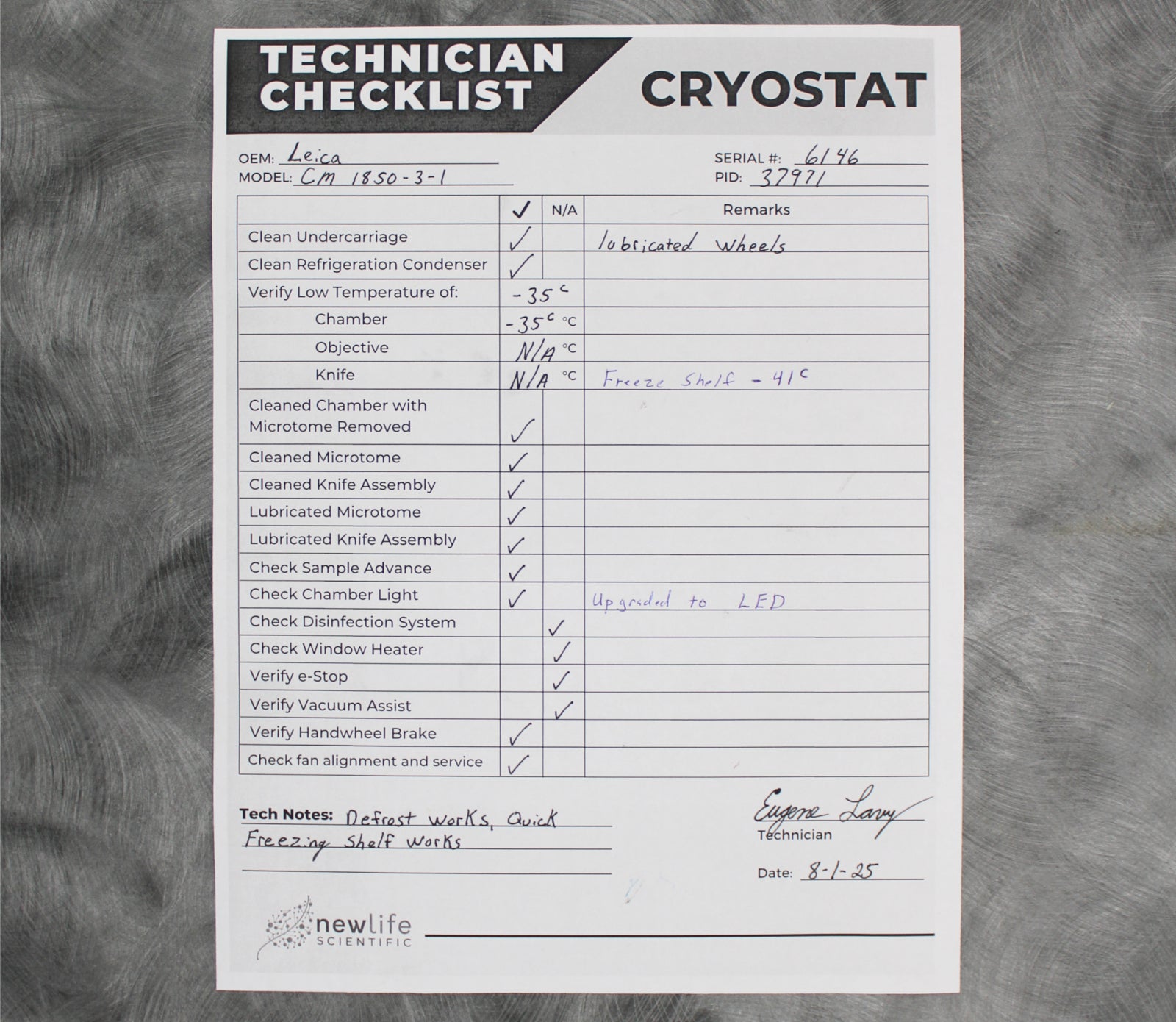

After its initial disinfection and inspection, our technicians tested the Leica CM1850-3-1 cryostat microtome with the following results:

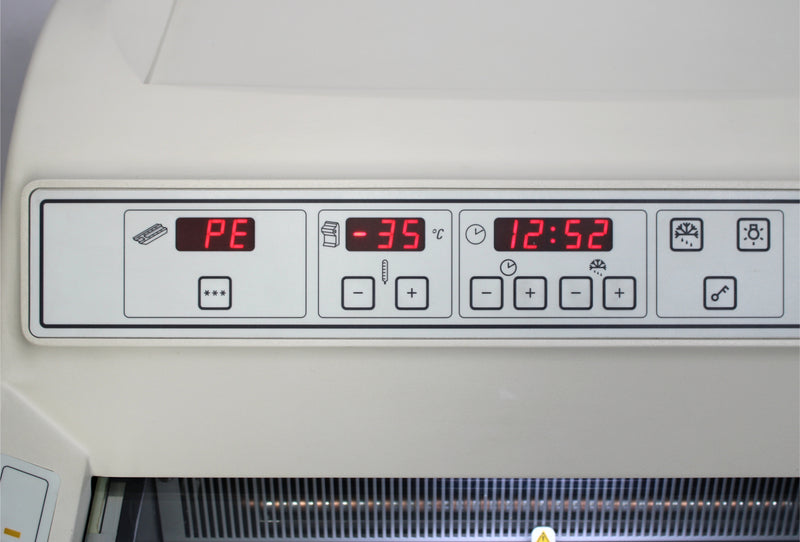

- Chamber temperature achieved -35°C: PASSED
- Check sample advance: PASSED
- Check chamber light: PASSED
- Check defrost: PASSED
- Check quick freezing shelf: PASSED

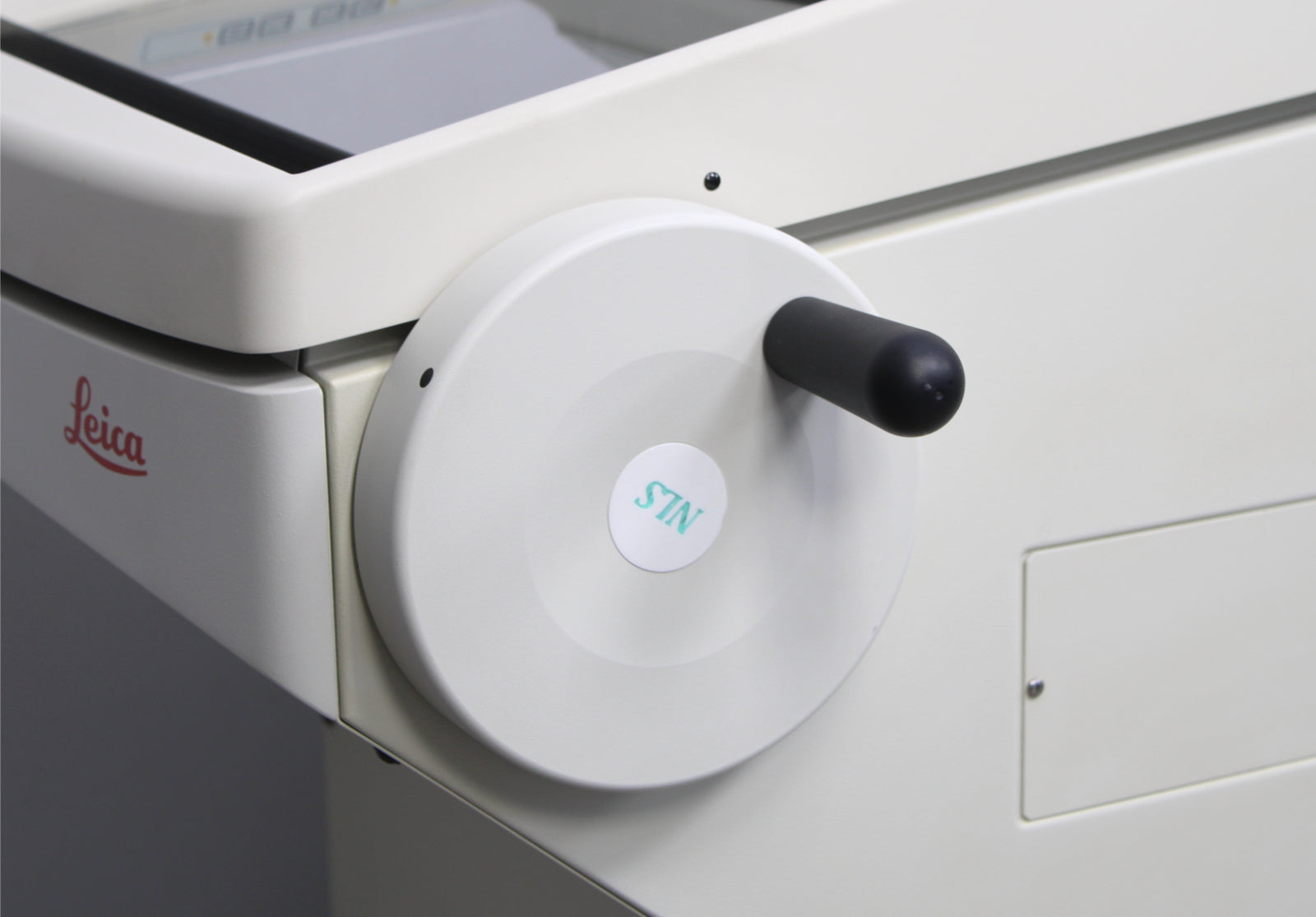

- Verify handwheel brake: PASSED
- Reinsulated refrigeration lines.
- Upgraded light to LED.
- Cleaned undercarriage.
- Lubricated wheels.
- Cleaned refrigeration condenser.

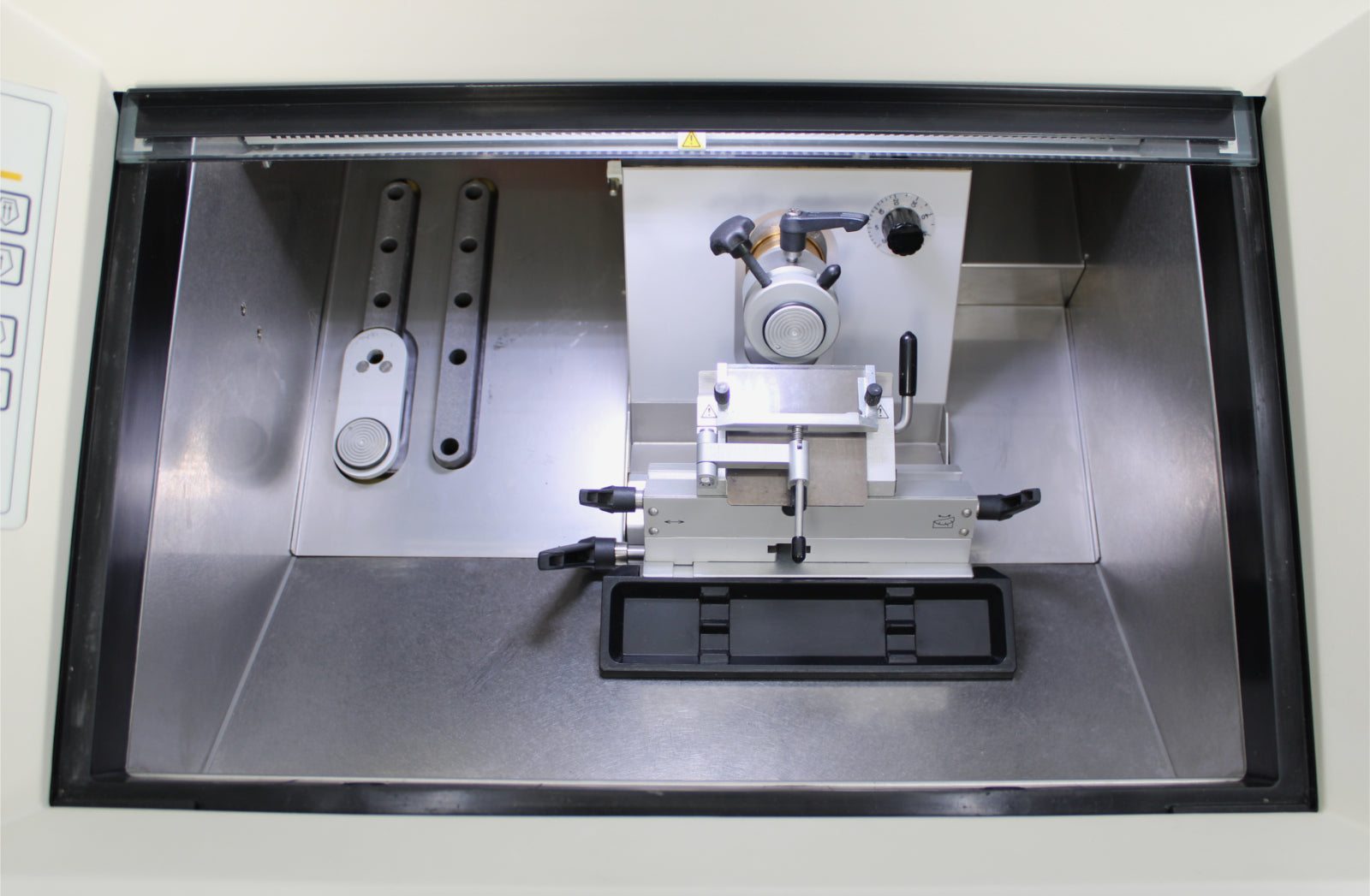

- Cleaned chamber, microtome, and knife assembly.
- Lubricate microtome and knife assembly.

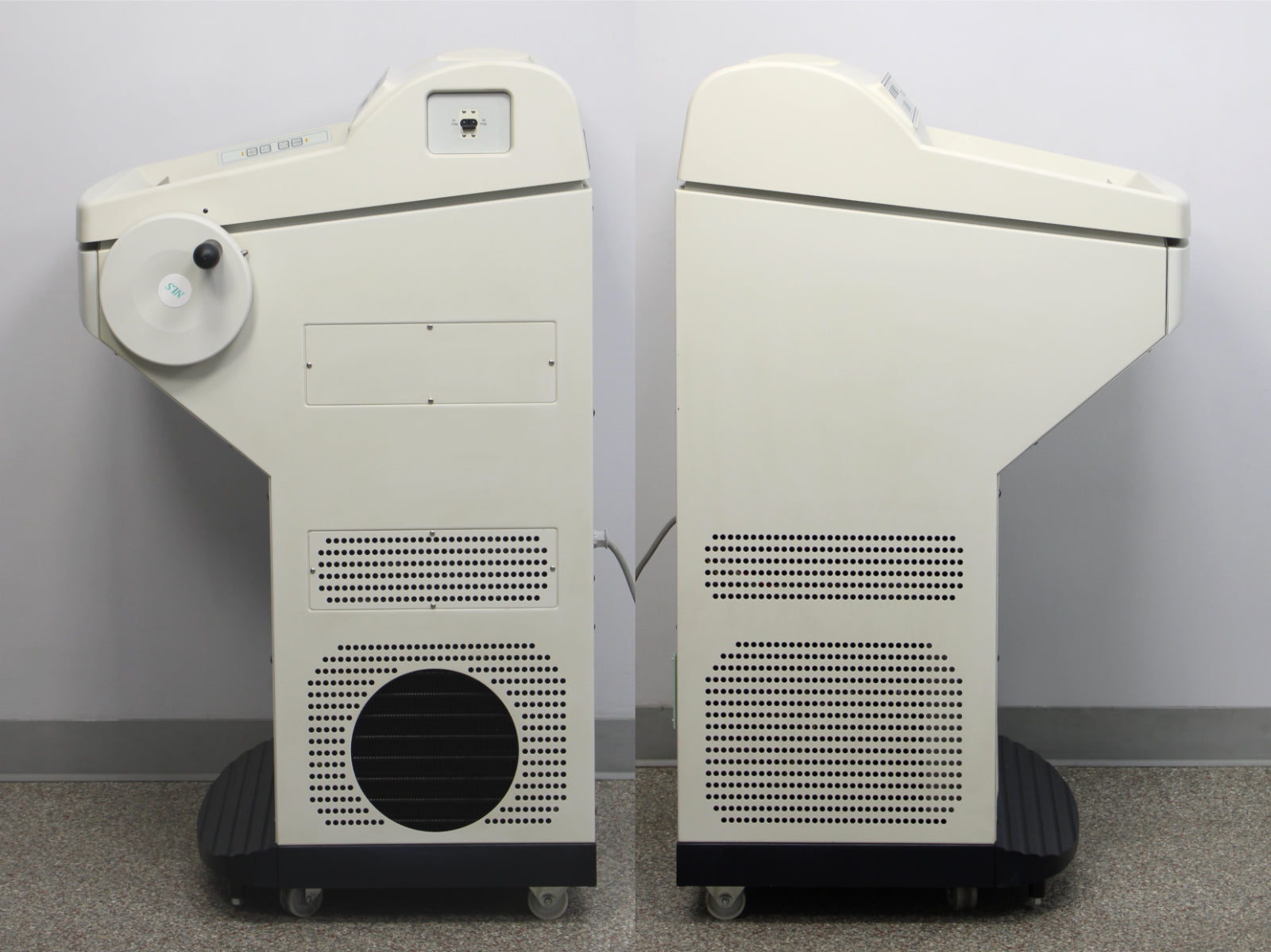

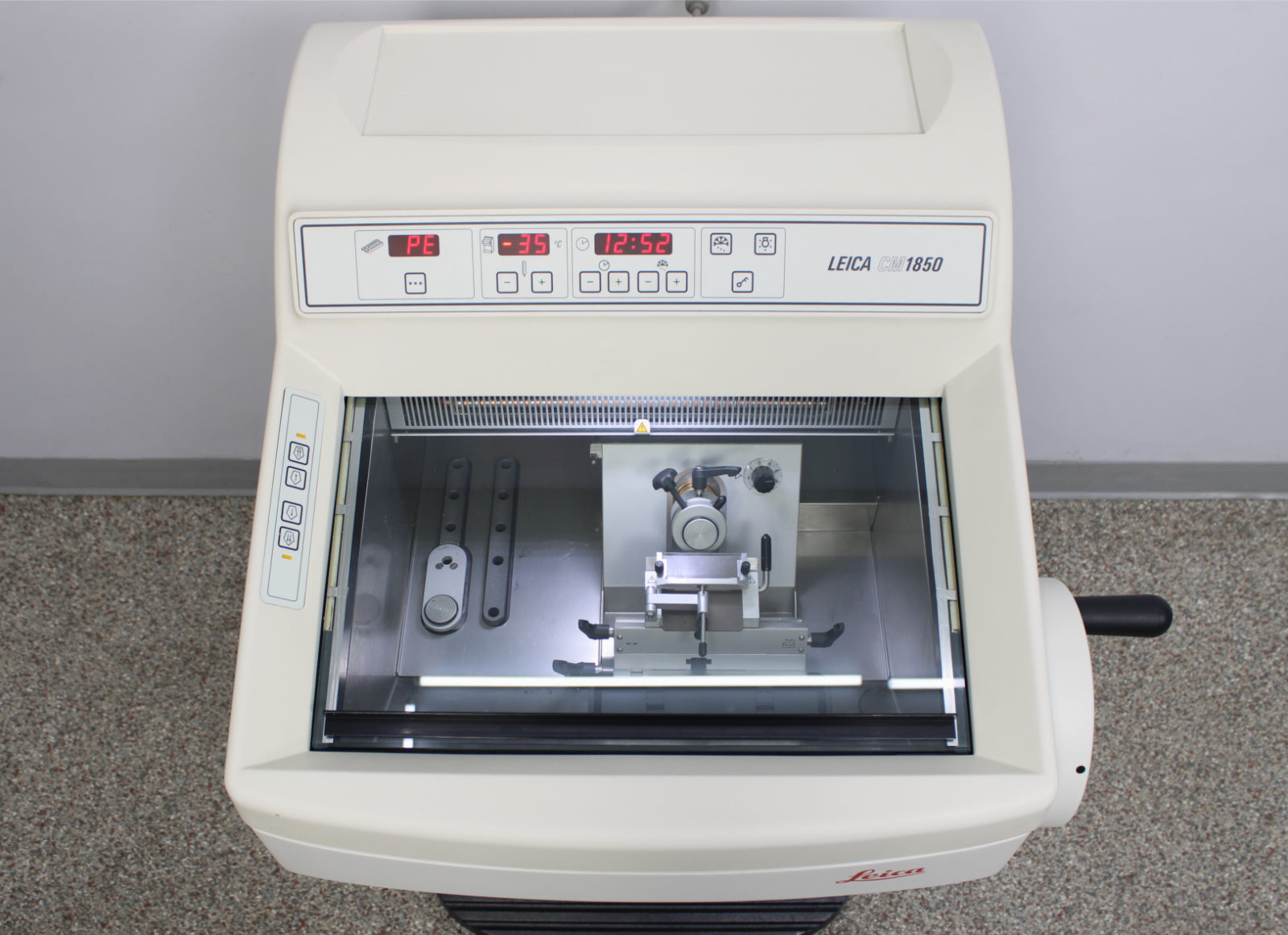

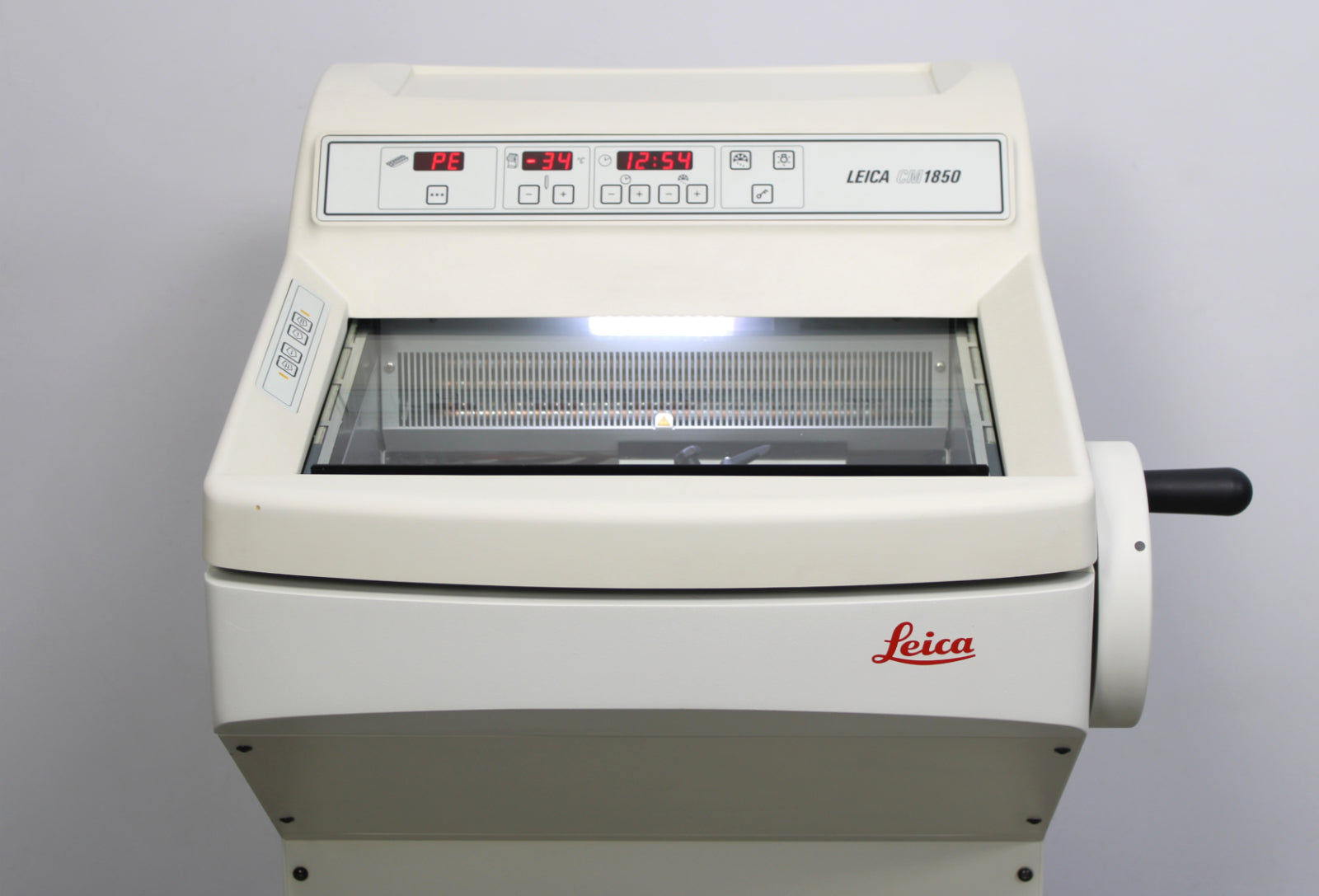

Notice: This cryostat has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

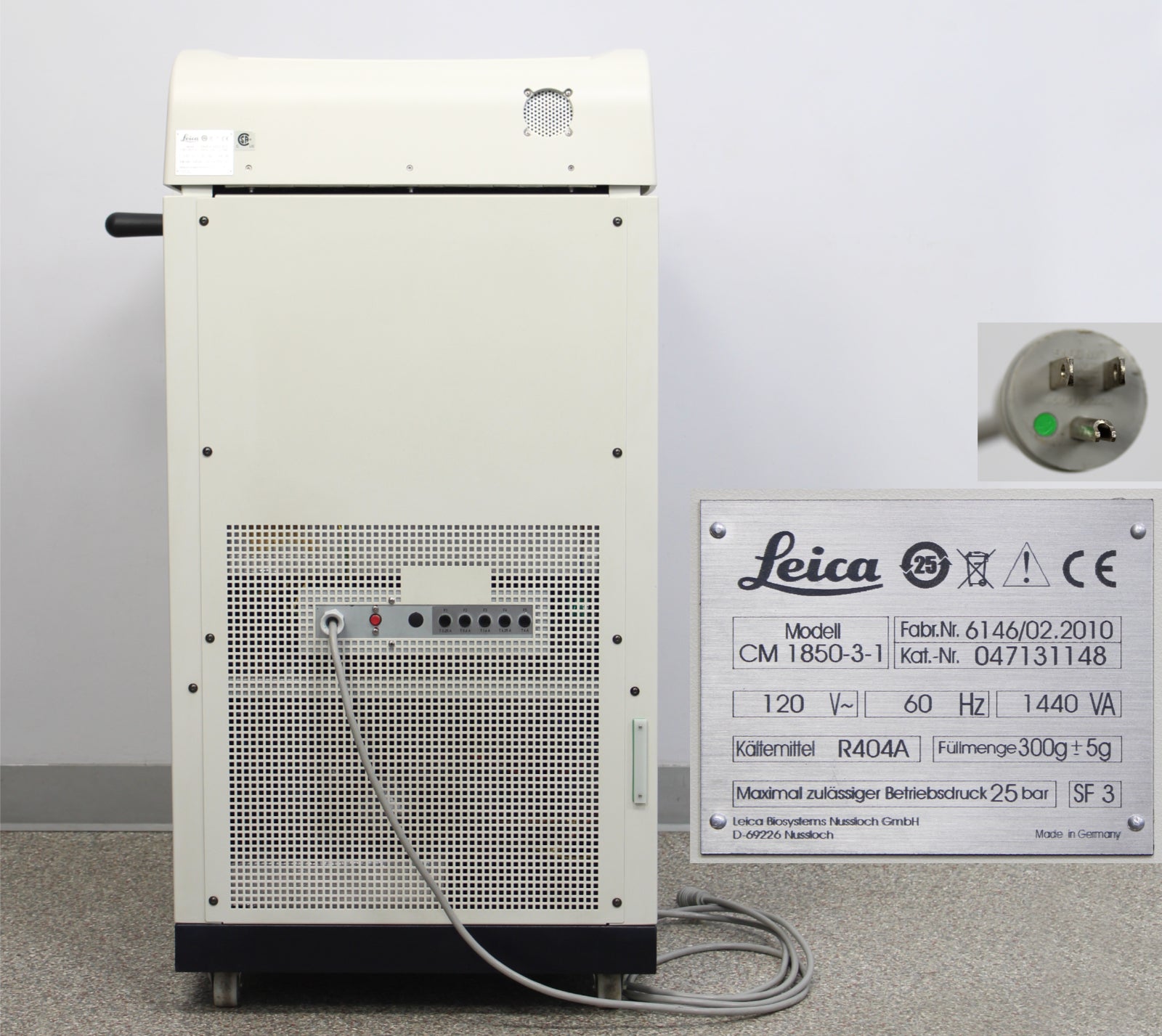

Manufacturer
|
Leica
|
|
Model
|
CM 1850-3-1
|
|
Catalog No.
|
047131148
|
|
Serial No.
|
6146/02.2010
|
|
Mfg. date
|
02.2010
|
|
Mfg. location
|
Germany
|
|
Cooling range
|
-35°C to 0°C
|
|
Section thickness range
|
1-60 µm
From 1 to 10 µm in 1 µm intervals
From 10 to 20 µm in 2 µm intervals
From 20 to 60 µm in 5 µm intervals
|
|
Horizontal specimen feed
|
25mm / 0.98 in
|
|
Vertical stroke
|
59 mm / 2.32 in
|
|
Maximum specimen size
|
55 mm x 55 mm / 2.17 in x 2.17 in
|
|
Specimen orientation
|
8° (x-, y-, z-axis)
|
|
Power rating
|
120V~, 60Hz
|
|
Power consumption
|
1440VA
|
|
Dimensions (W x D x H)
|
28 x 27.5 x 47.5 in
|
|
Weight
|
296.62 lb (~135 kg)
|
