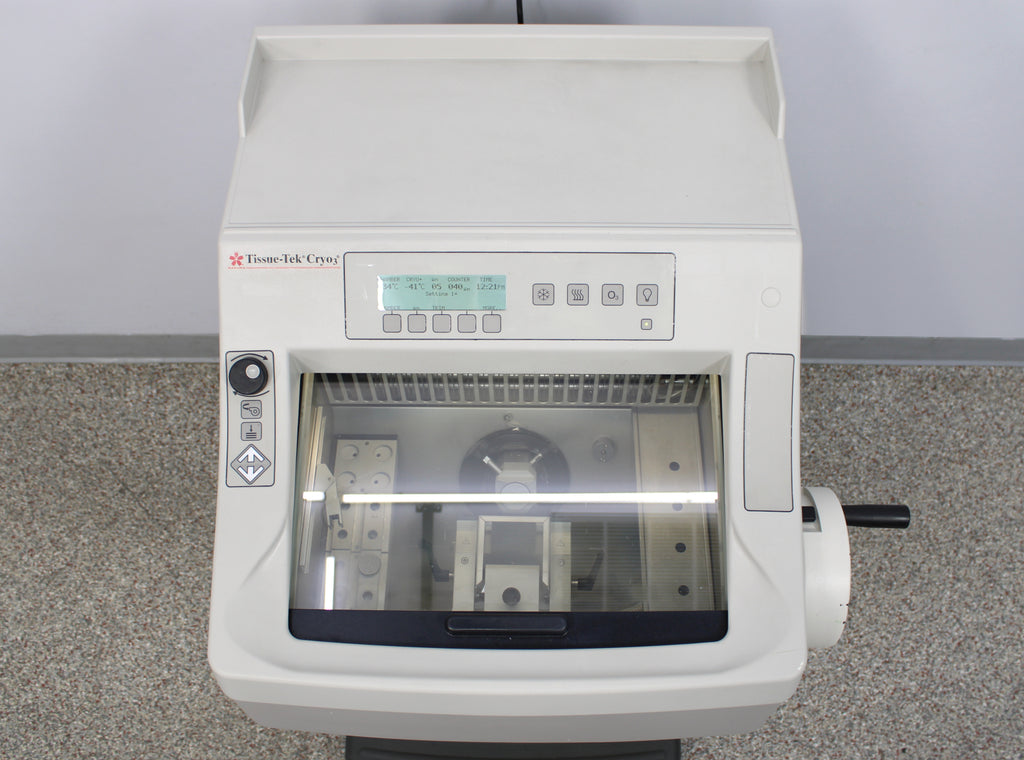

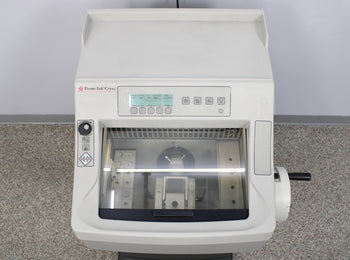

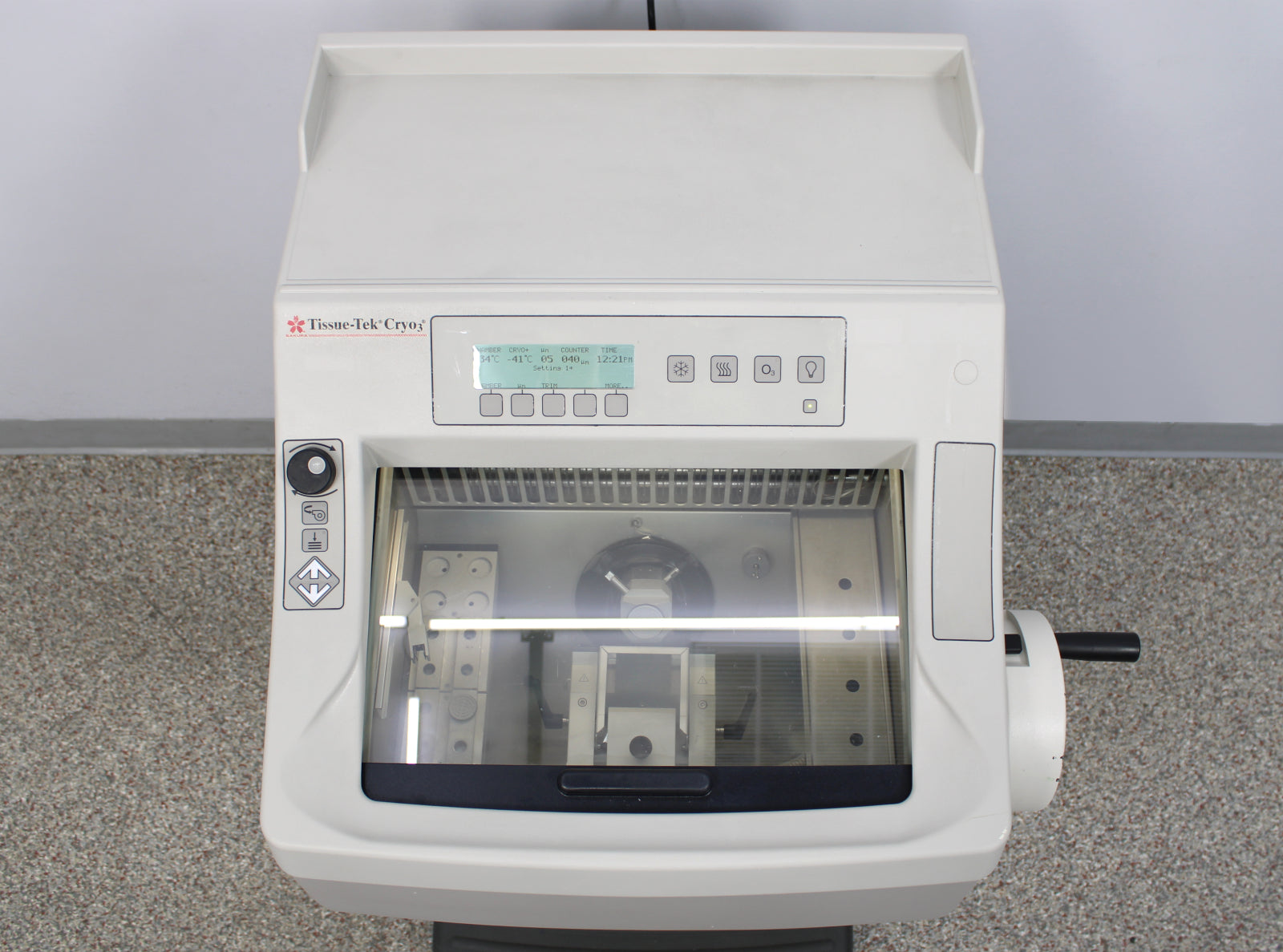

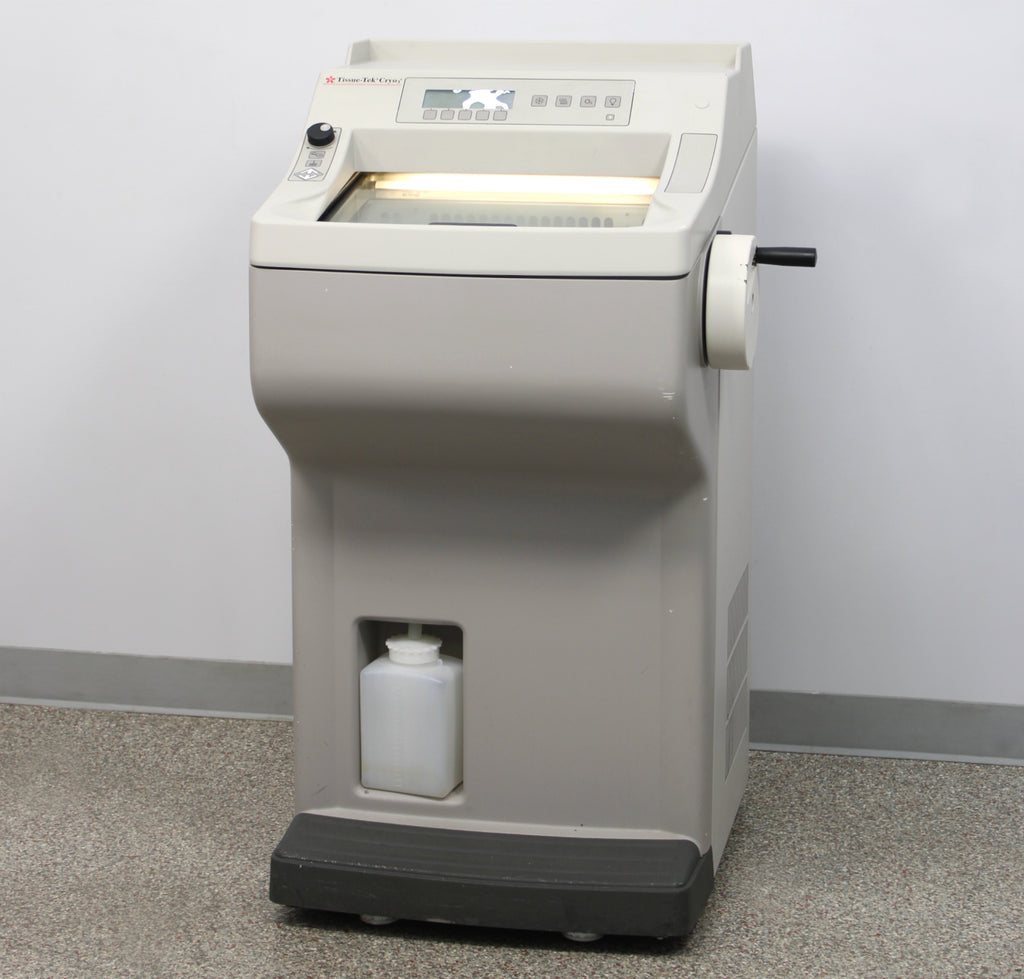

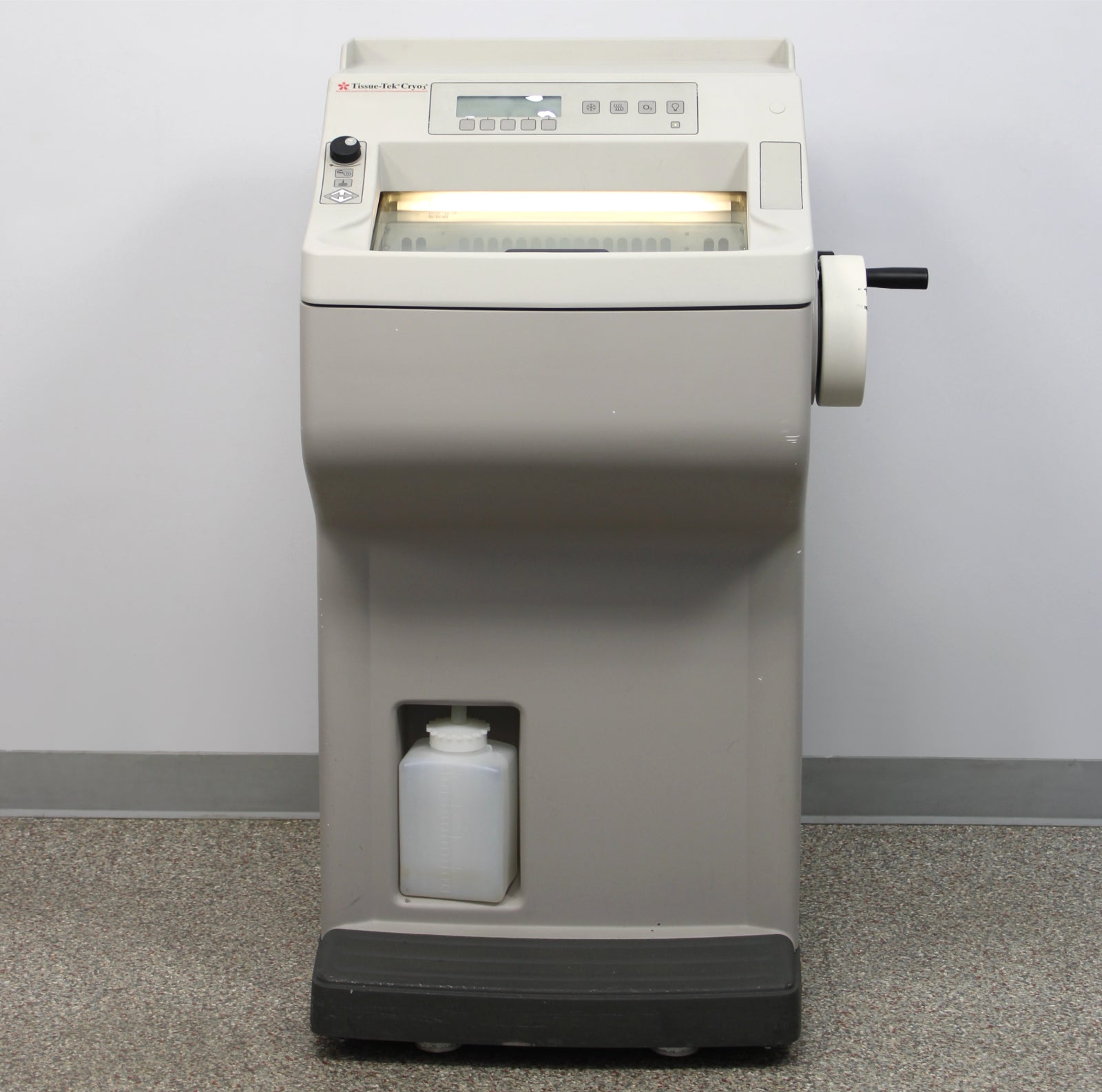

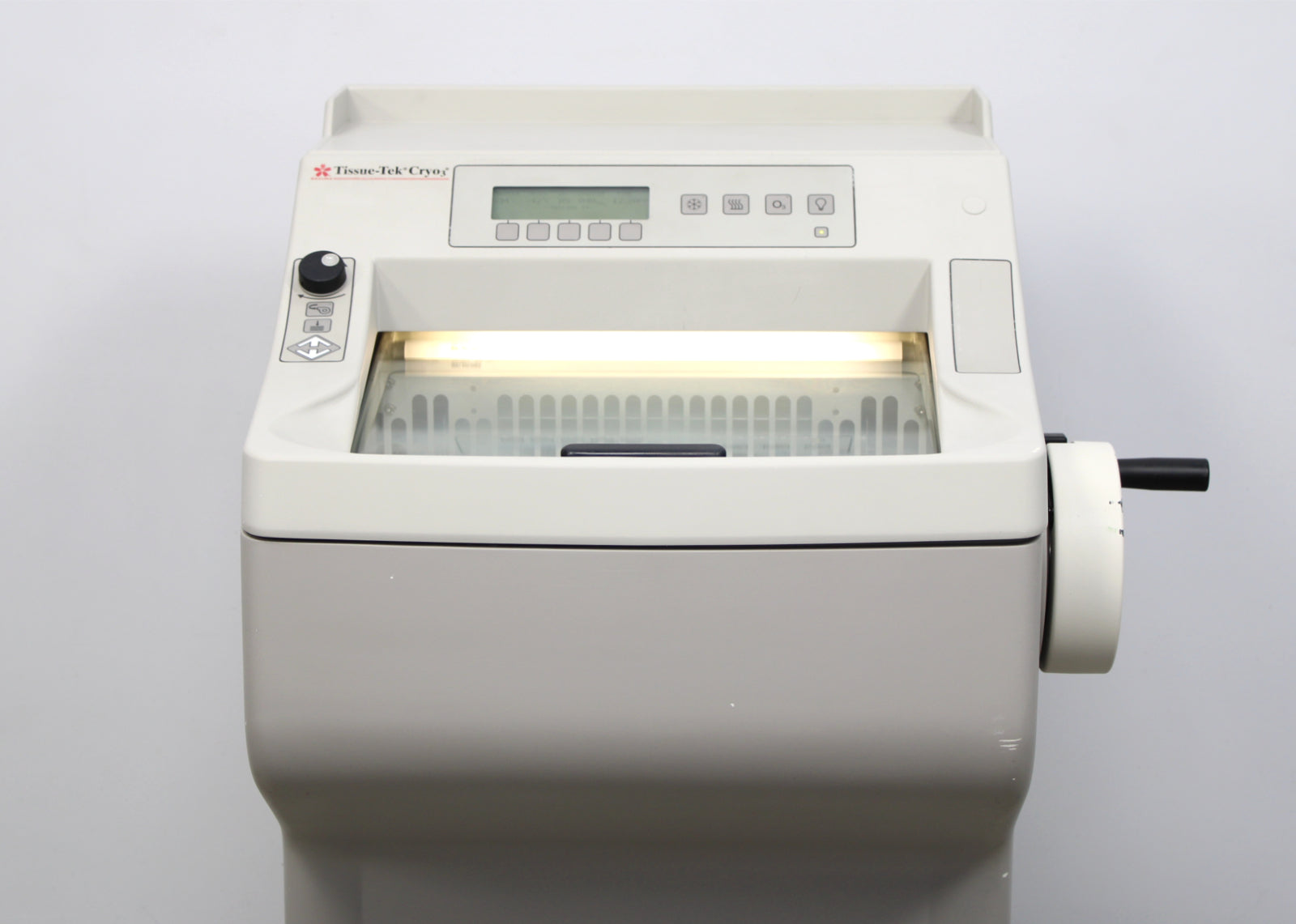

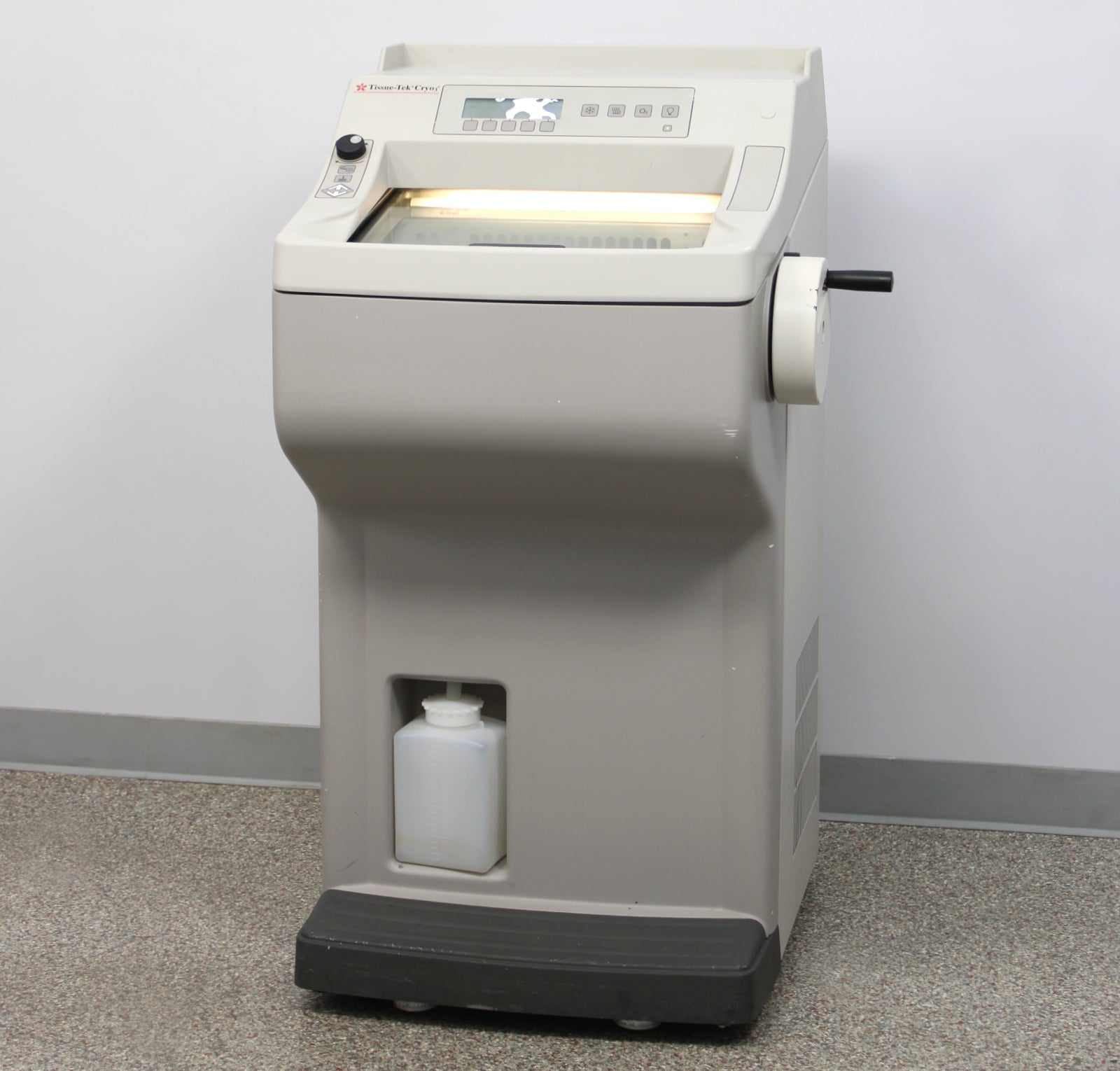

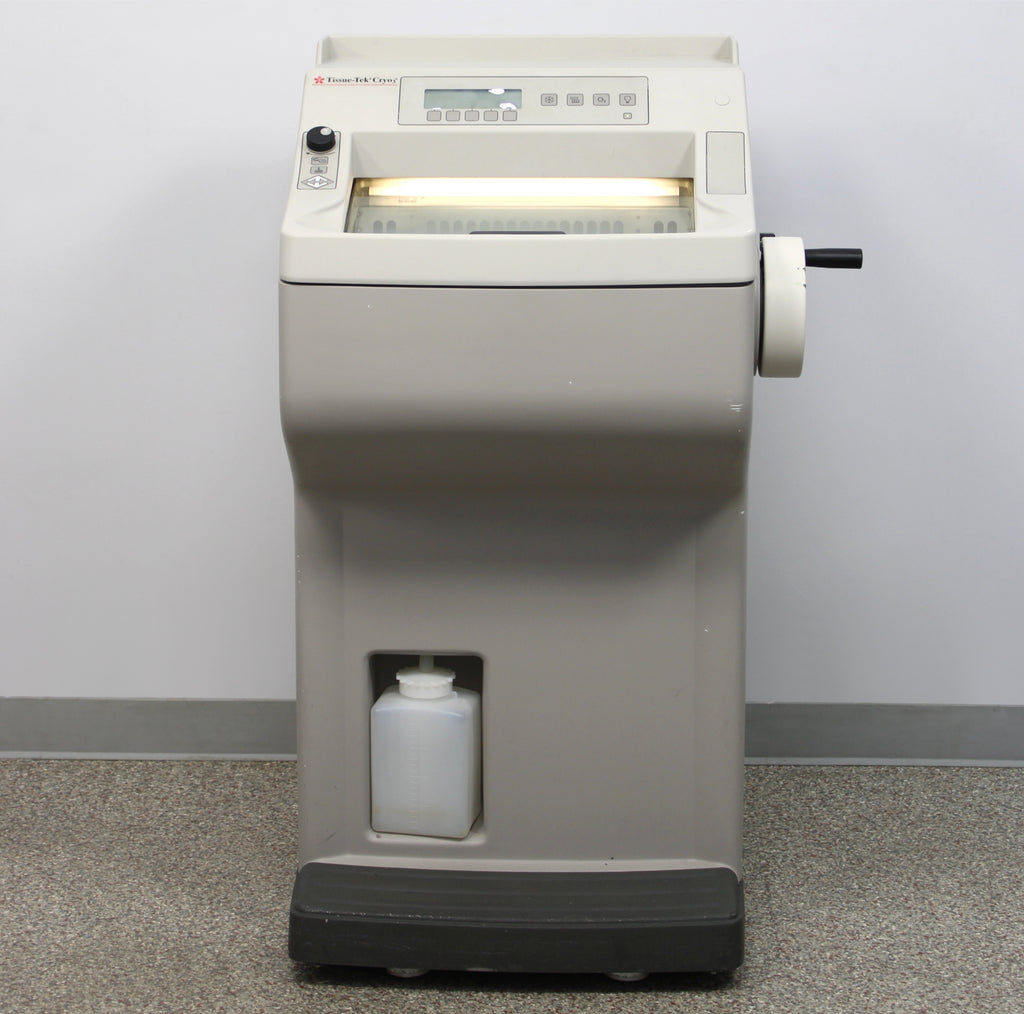

- Sakura Tissue-Tek Cryo3 D115 Microtome Cryostat (5801)

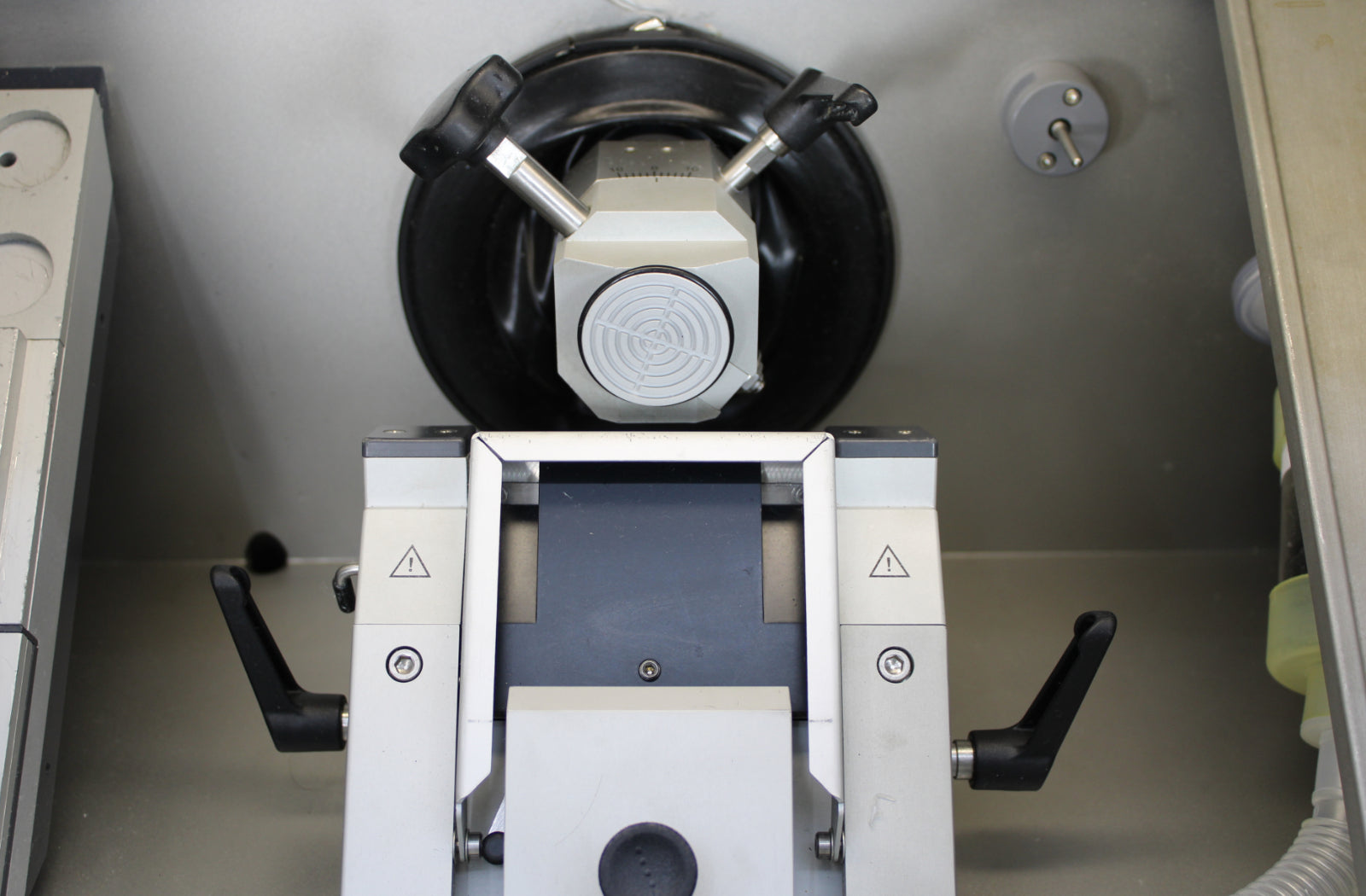

- Blade Holder Assembly

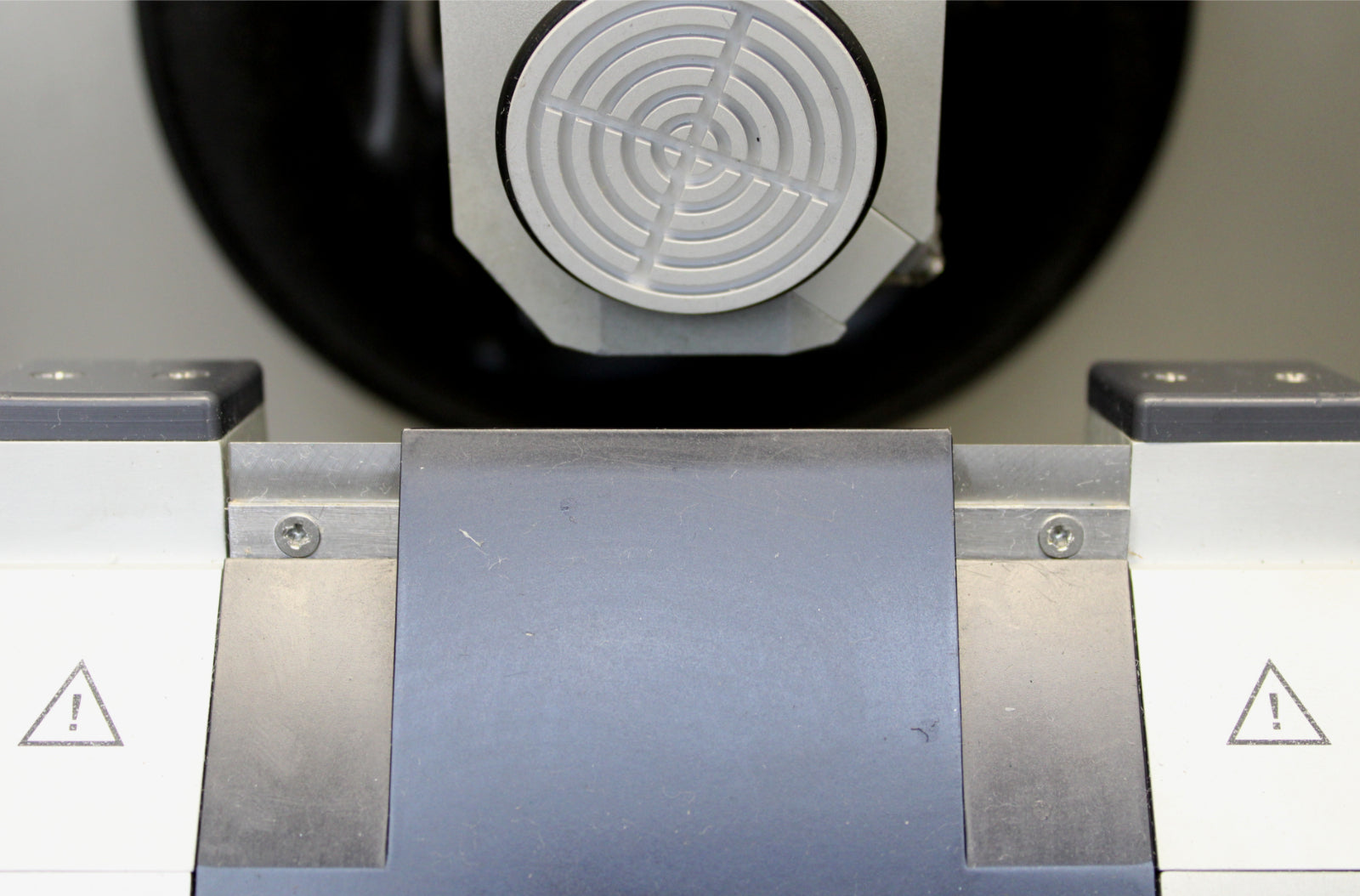

- x2 Specimen Discs
- Vacuum Extension Hose
- Power Cable
- 90-Day Warranty

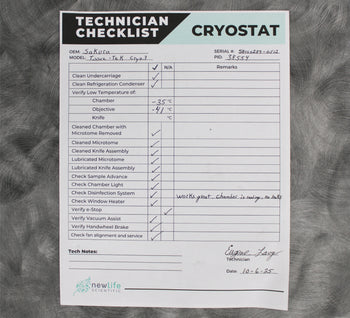

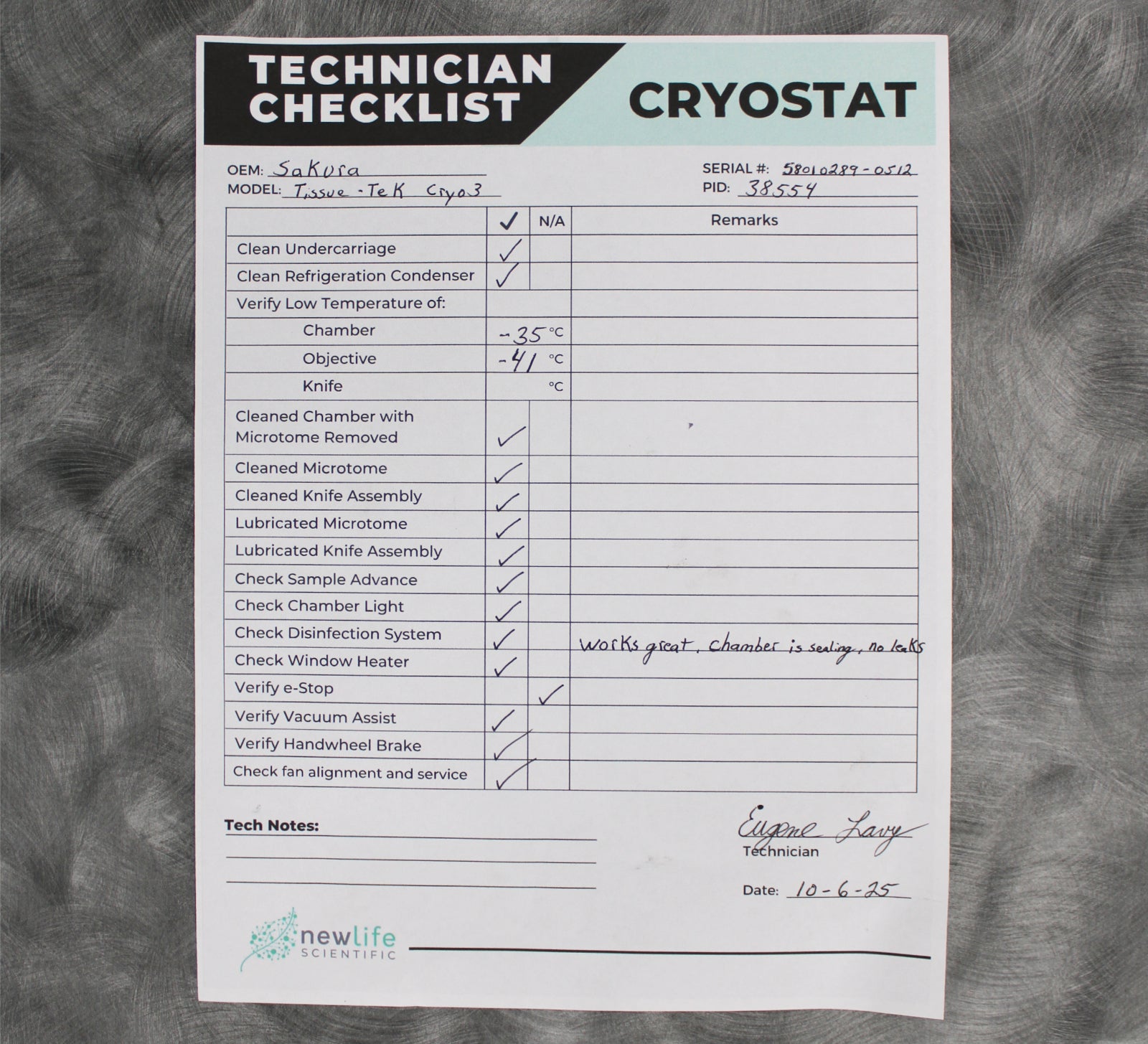

After its initial disinfection and inspection, our technicians tested the Sakura Tissue-Tek Cryo3 D115 microtome cryostat with the following results:

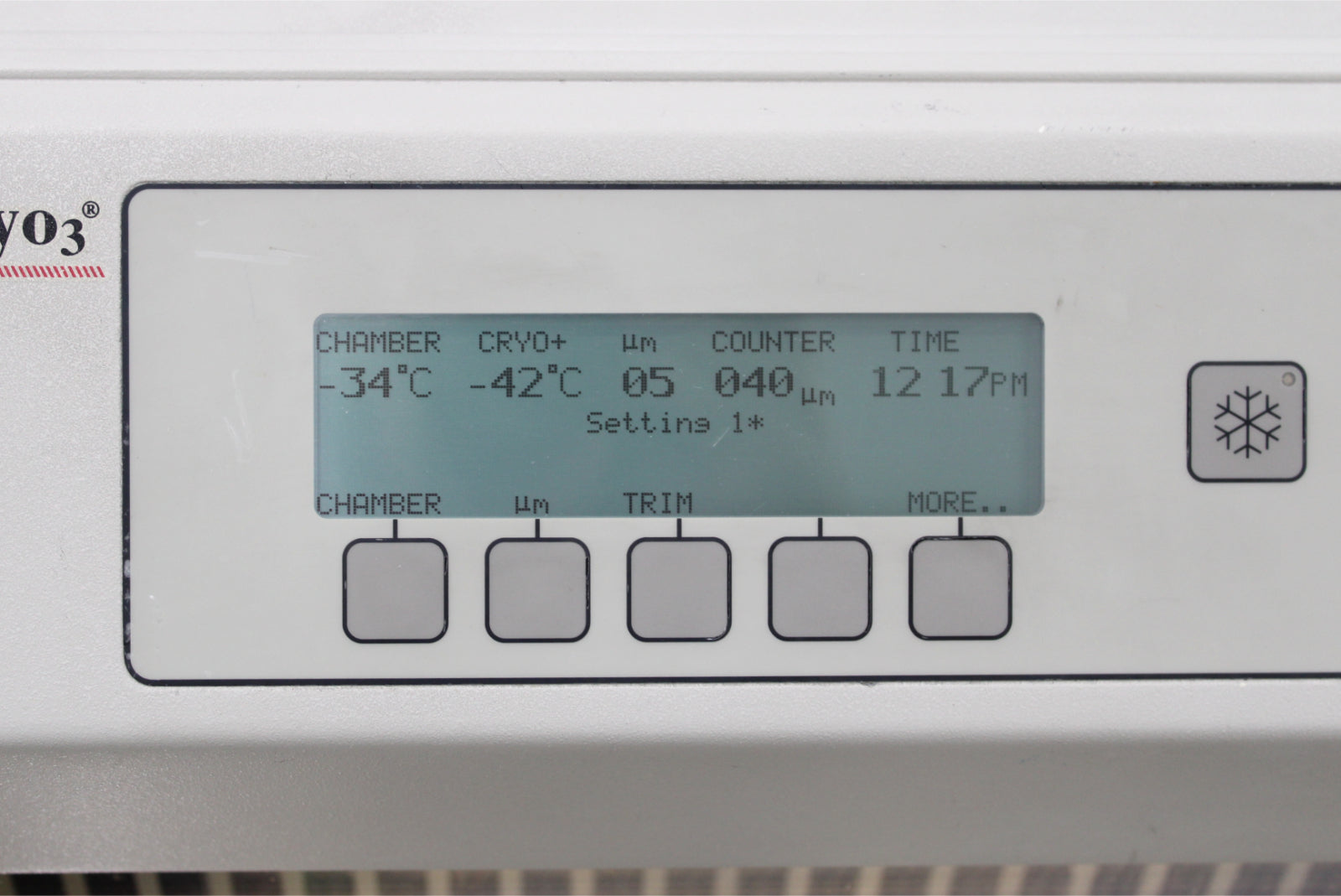

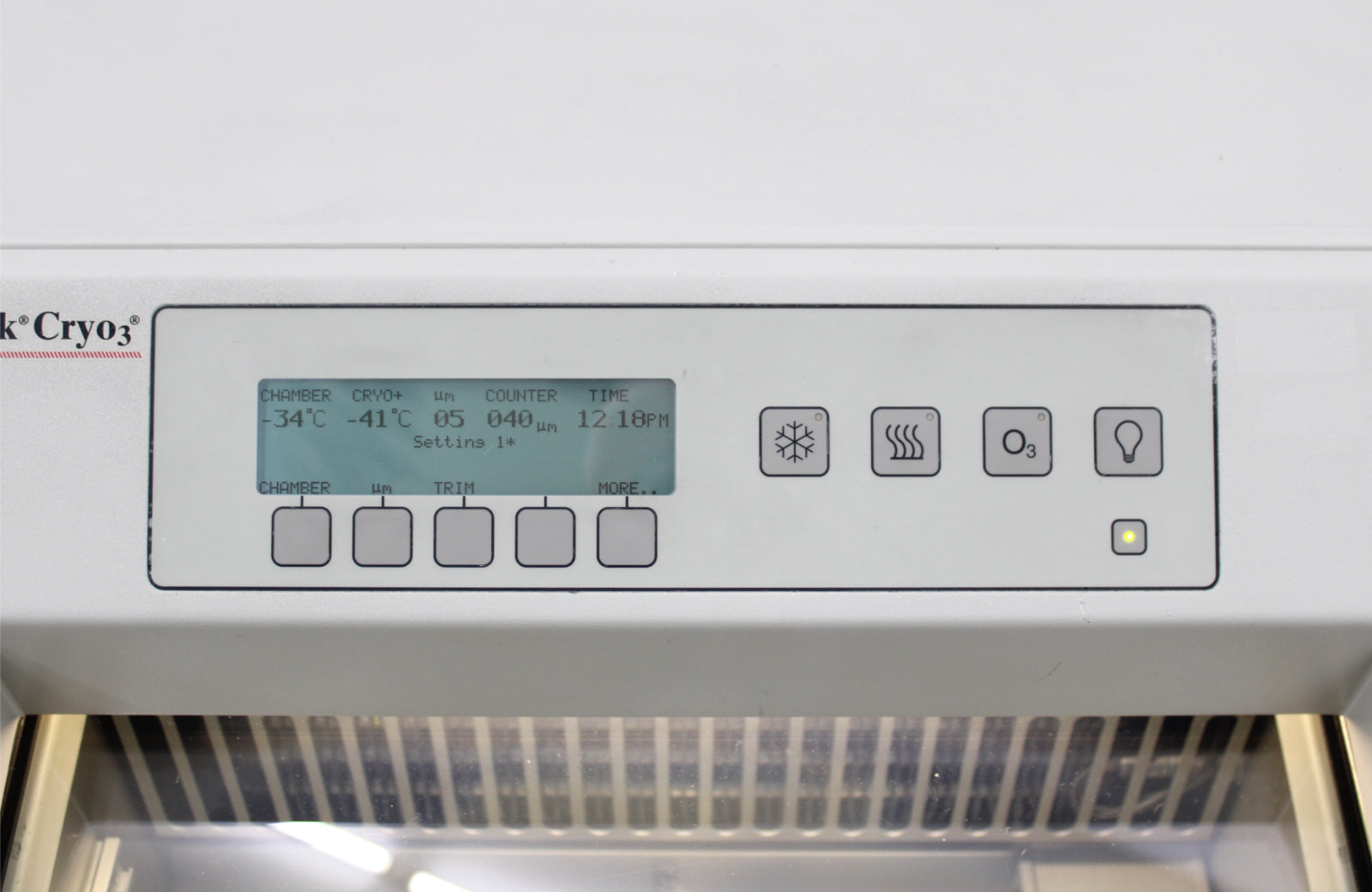

- Chamber temperature reaches -34°C: PASSED
- Cryobar temperature reaches -40°C: PASSED
- Disinfection system; chamber sealing: PASSED
- Sample advance: PASSED
- Chamber light: PASSED
- Window heater: PASSED
- Vacuum assist: PASSED

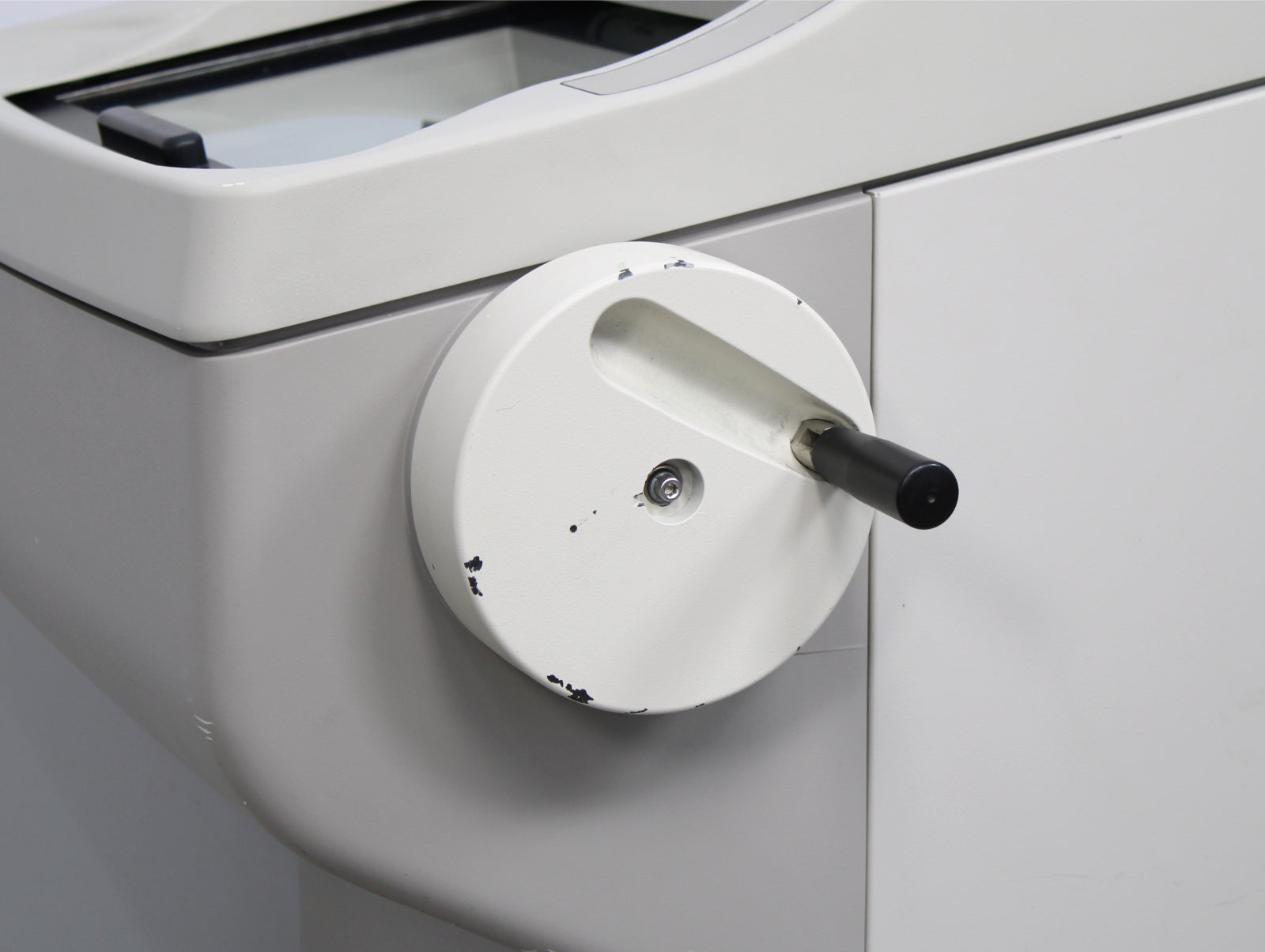

- Handwheel brake: PASSED
- Cleaned undercarriage.
- Cleaned refrigeration condenser.

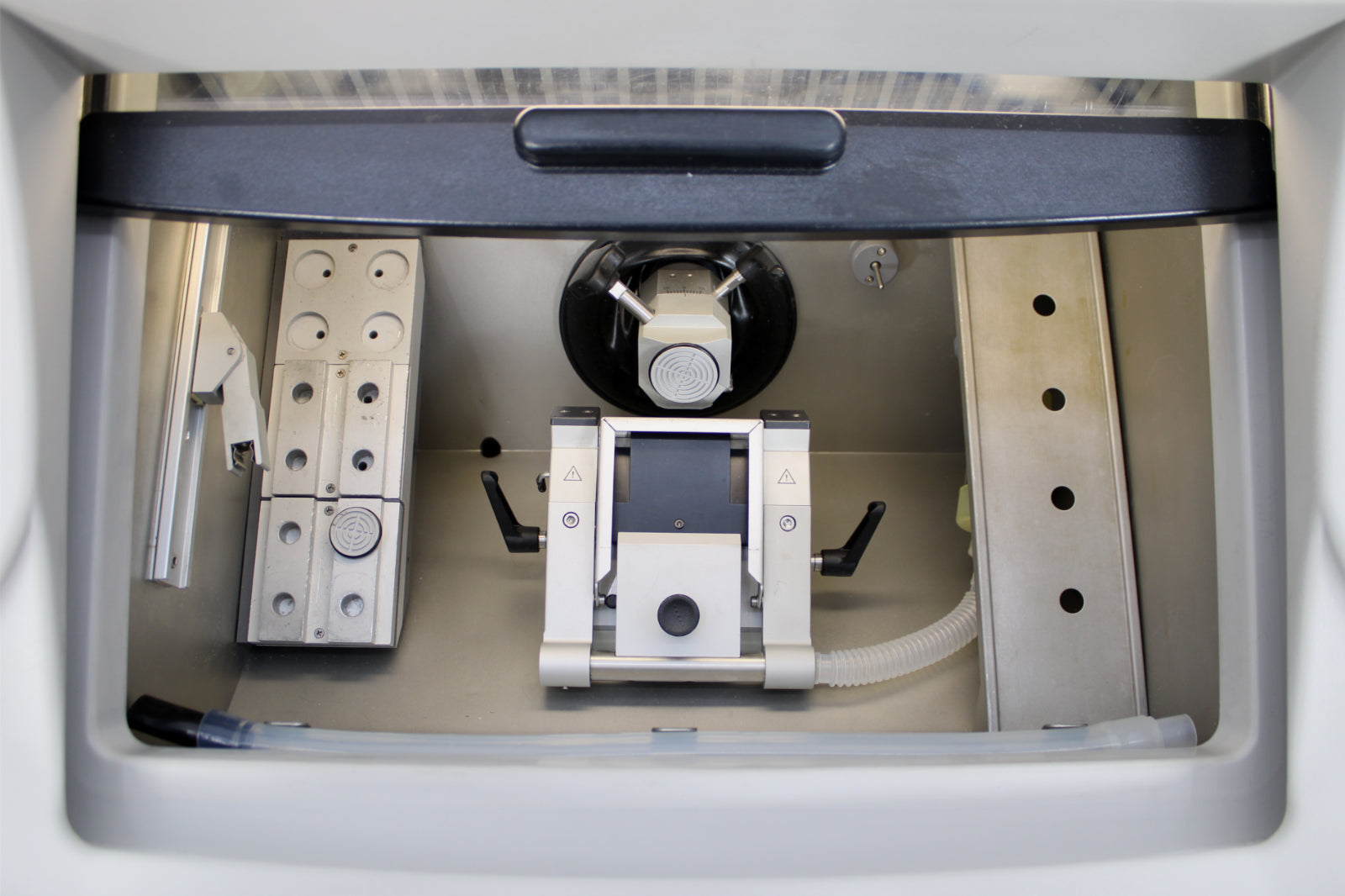

- Cleaned chamber with microtome removed.
- Cleaned and lubricated microtome.
- Cleaned and lubricated knife assembly.

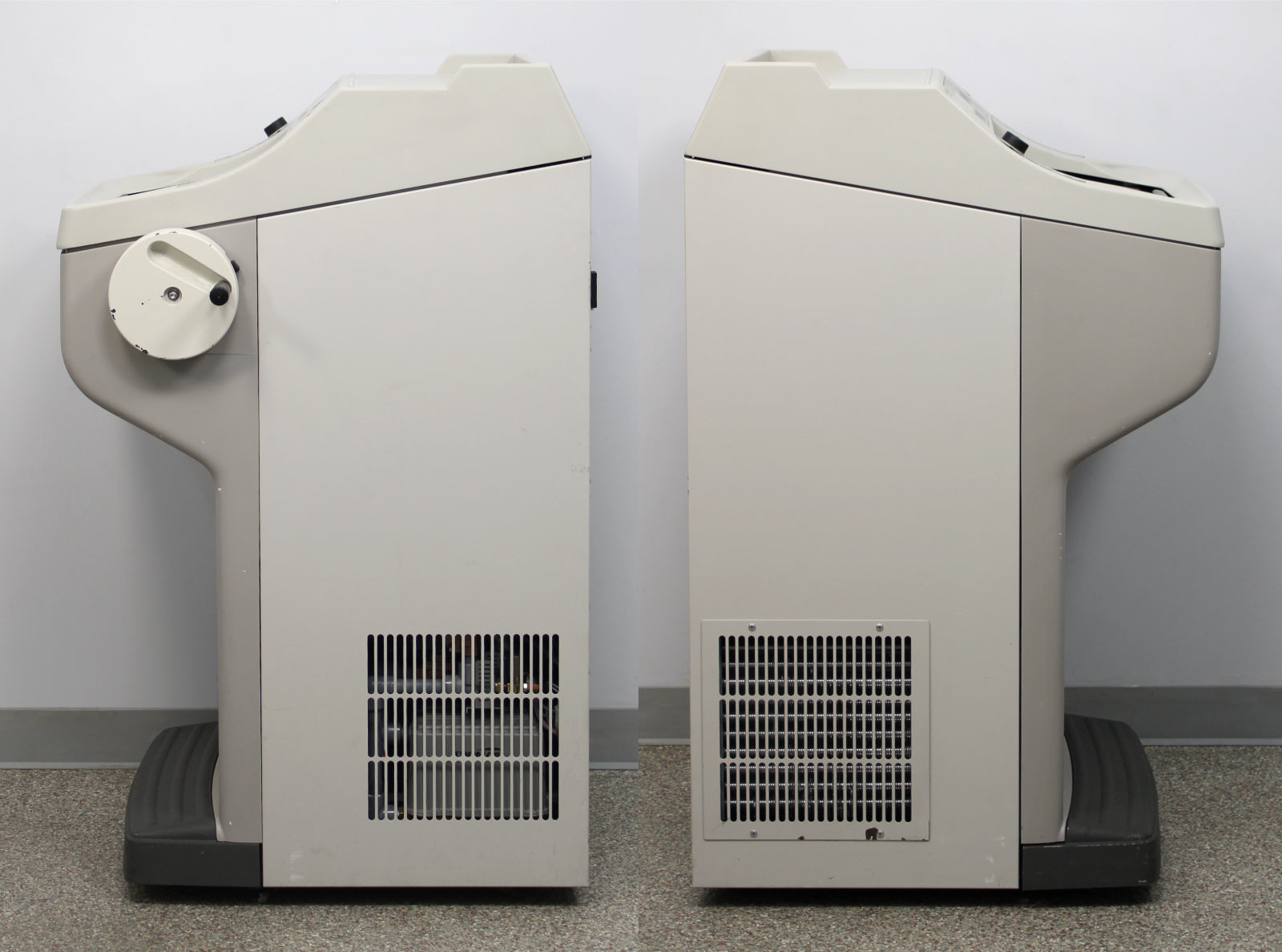

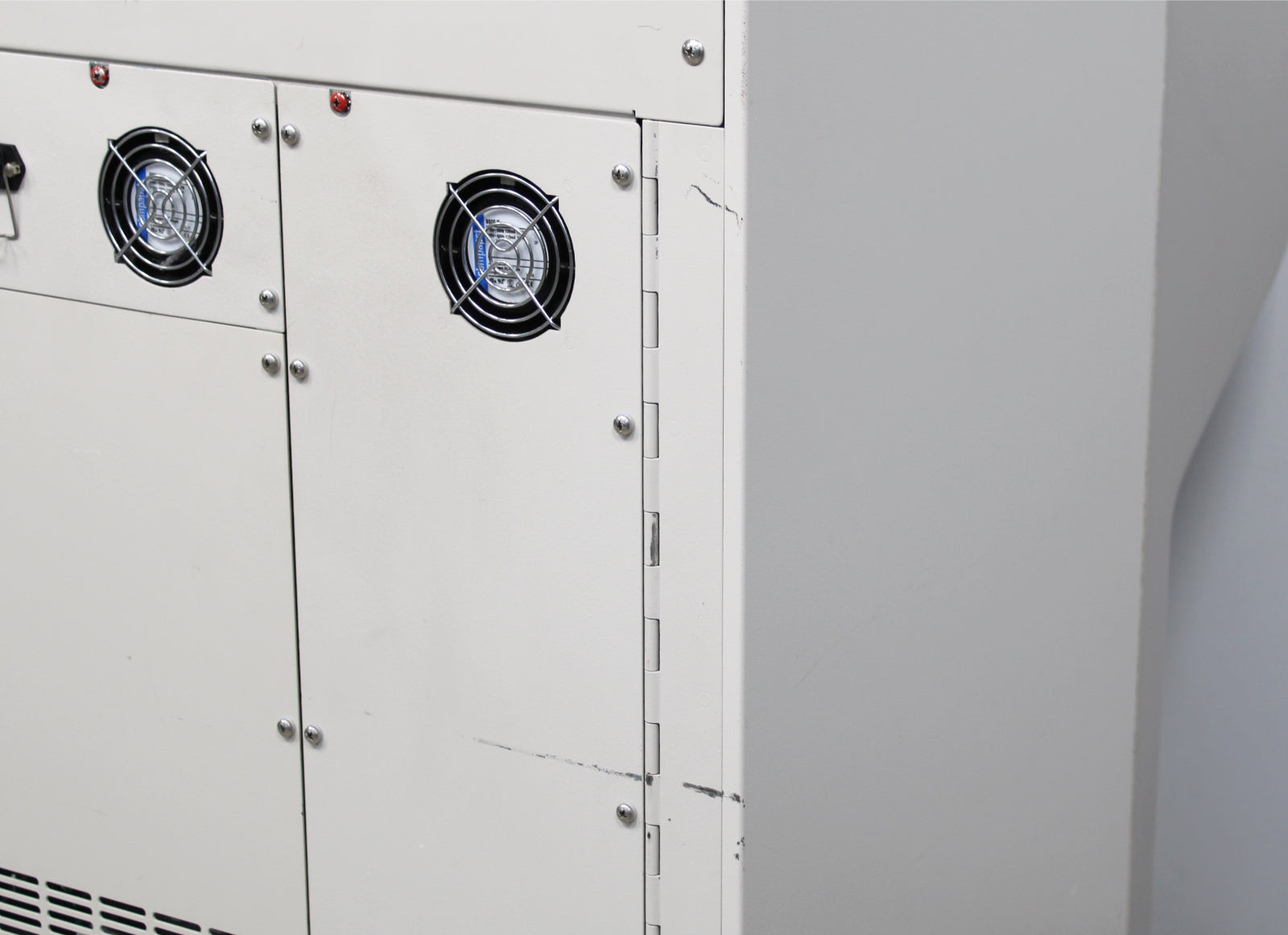

Notice: This cryostat has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Sakura
|
|
Model
|
Tissue-Tek Cryo3
|
|
Model No.
|
D115
|
|

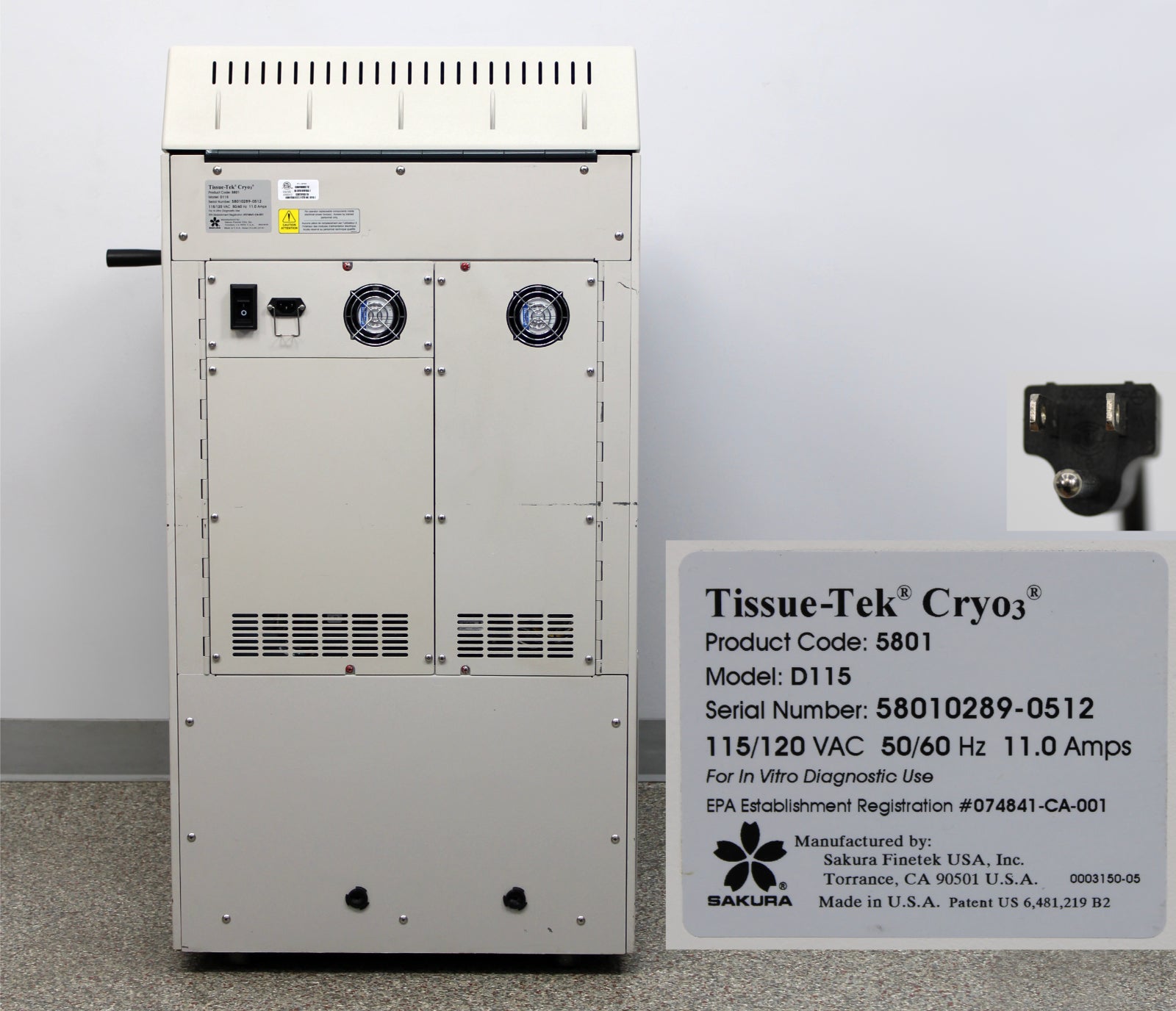

Ref. No.
|
5801
|
|
Serial No.
|
58010289-0512
|
|
Mfg. date
|
May 2012
|
|
Chamber temperature range
|
-35°C to 0°C
|
|
Cryobar temperature
|
-50°C minimum (CRYO+ section)
|
|
Specimen size
|
Up to 25 mm, 38 mm or 55 mm in diameter when the small, medium, or large Specimen Holder is used
|
|
Specimen orientation
|
±10° (z axis), 360° (y axis)
|
|
Travel range
|
Vertical ‒ 63 mm (2.48 in)
Horizontal ‒ 11.9 mm (0.47 in)
|
|
Sectioning range
|
1 to 99 micrometers in 1 micrometer increments
|
|
Power rating
|
115/120VAC, 50/60Hz, 11.0A
|
|
Dimensions (W x D x H)
|
28.5 x 29 x 47 in
|
