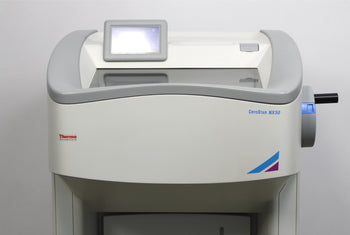

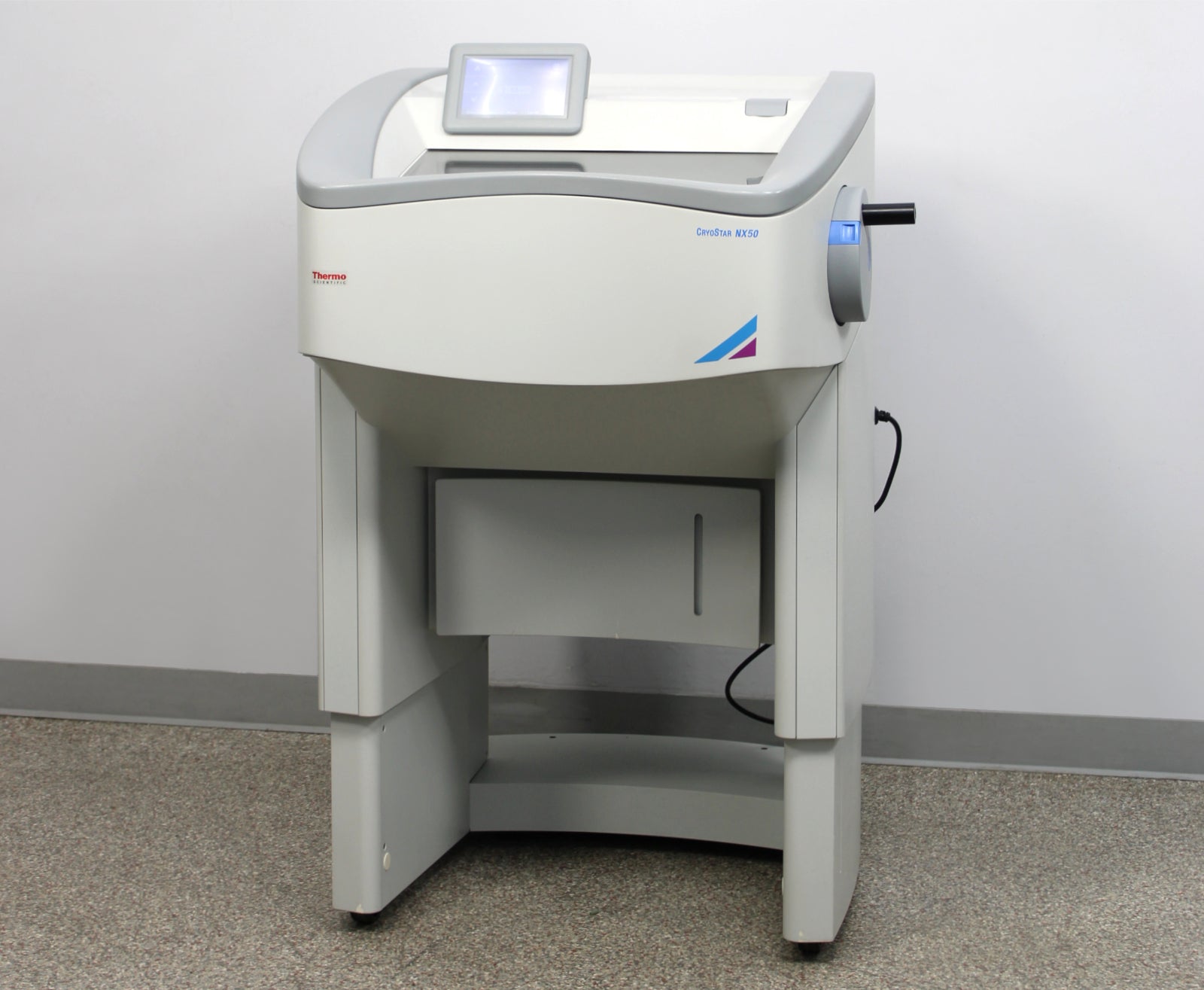

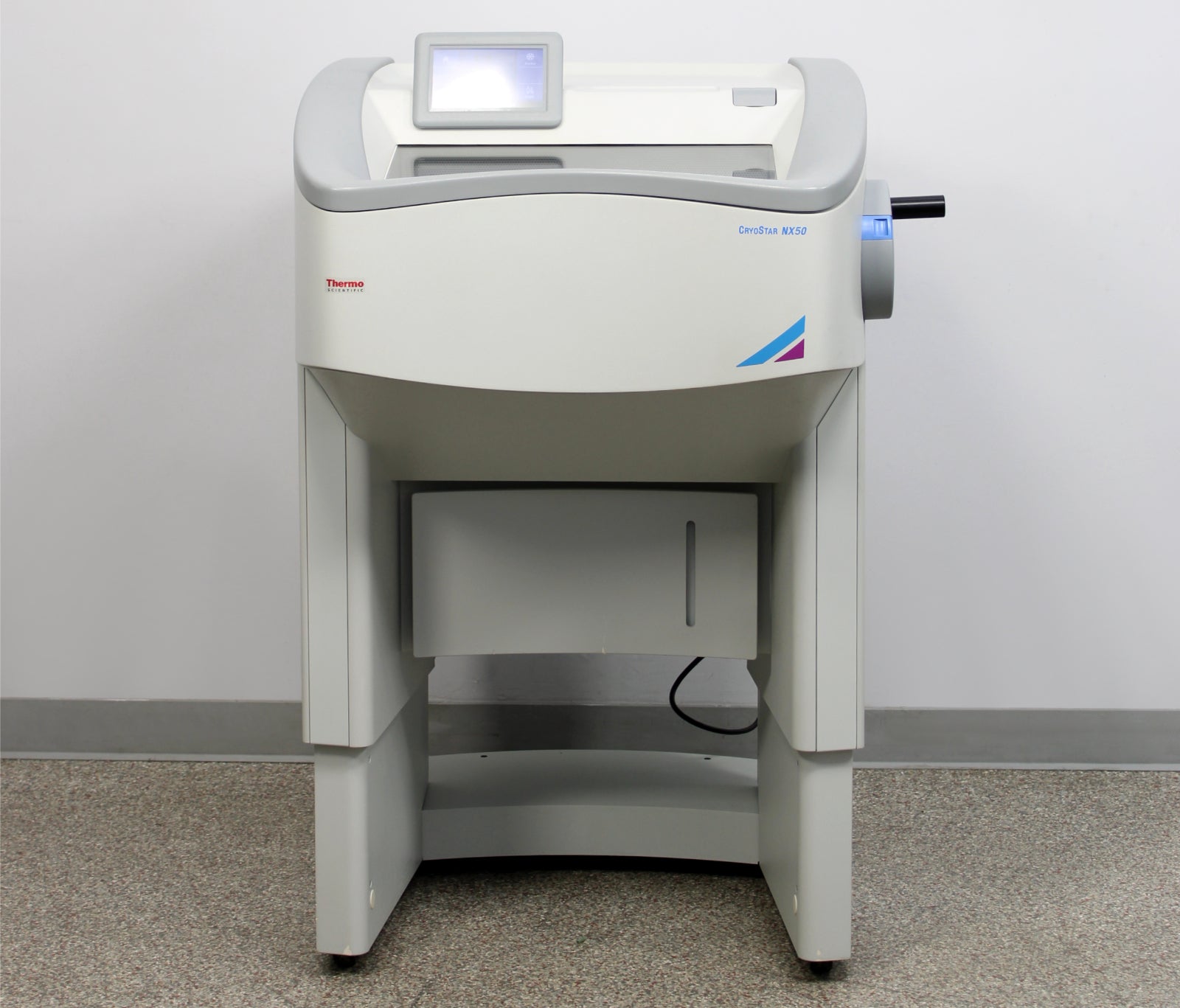

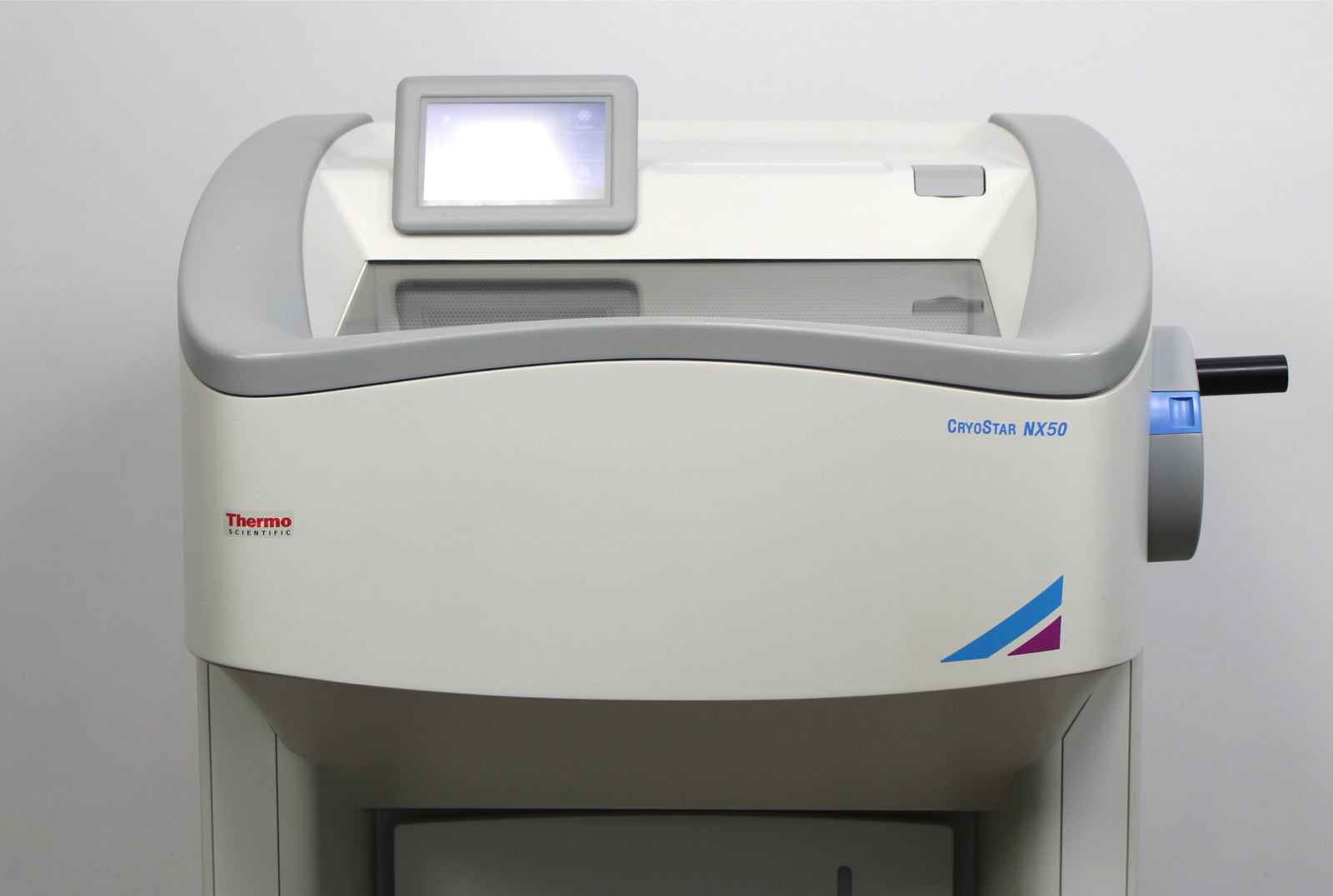

- Thermo Scientific CryoStar NX50 HOP Microtome Cryostat (957260)

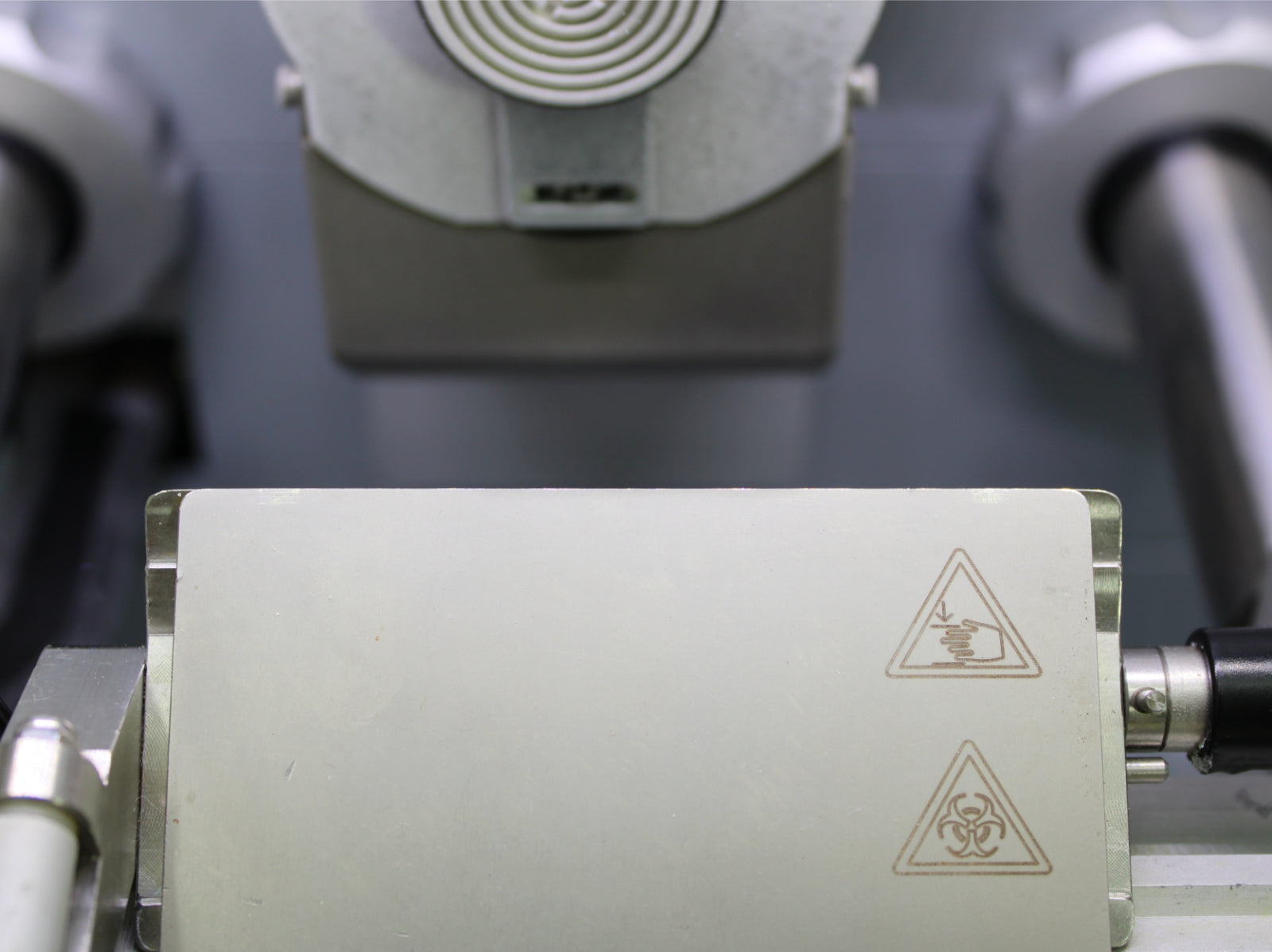

- Knife Holder Assembly with Glass Anti-Roll Plate
- x2 Specimen Discs
- Power Cable
- 90-Day Warranty
Option H - Height adjustment that raises and lowers the work area
Option O - Specimen cooling
Option P - Peltier cooling cryobar

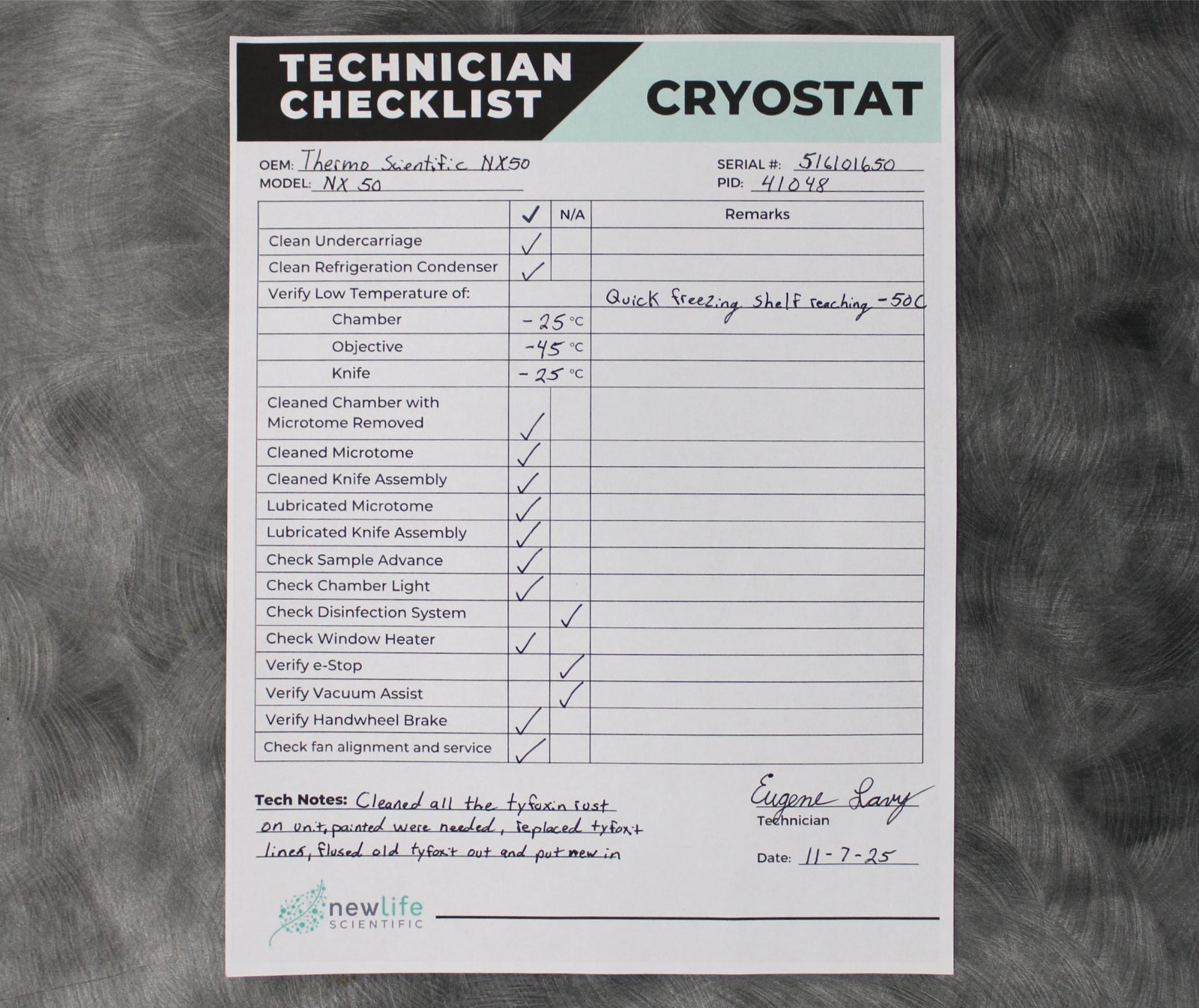

After its initial disinfection and inspection, our technicians tested the Thermo Scientific CryoStar NX50 HOP microtome cryostat with the following results:
- Specimen temperature at -45°C: PASSED
- Cryobar temperature at -50°C: PASSED
- Knife temperature at -25°C: PASSED
- Chamber temperature at -25°C: PASSED
- Defrost: PASSED
- Chamber light: PASSED
- Height adjustment: PASSED
- Sample advance: PASSED
- Window heater: PASSED

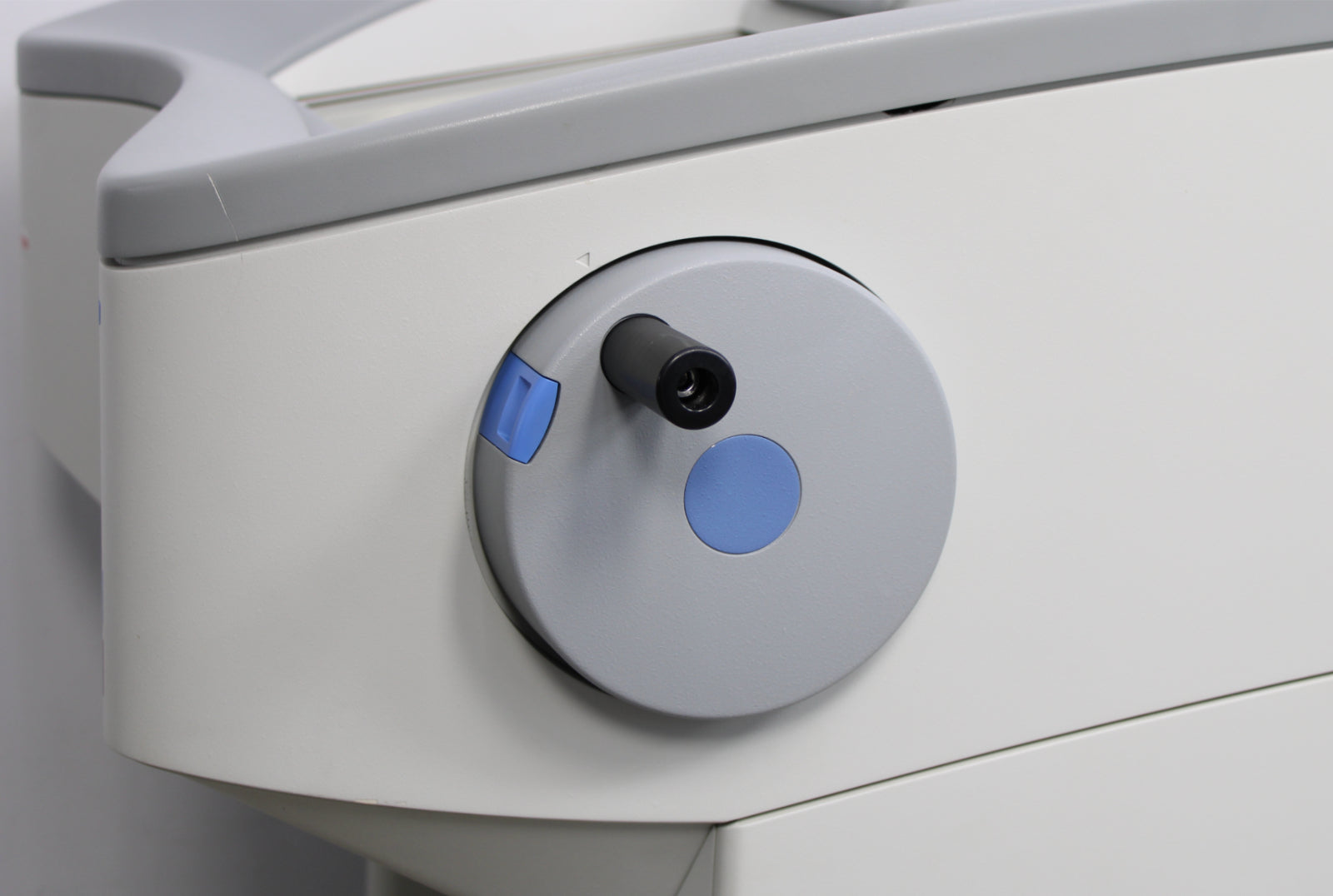

- Handwheel brake: PASSED
- Cleaned undercarriage.
- Cleaned refrigeration condenser.

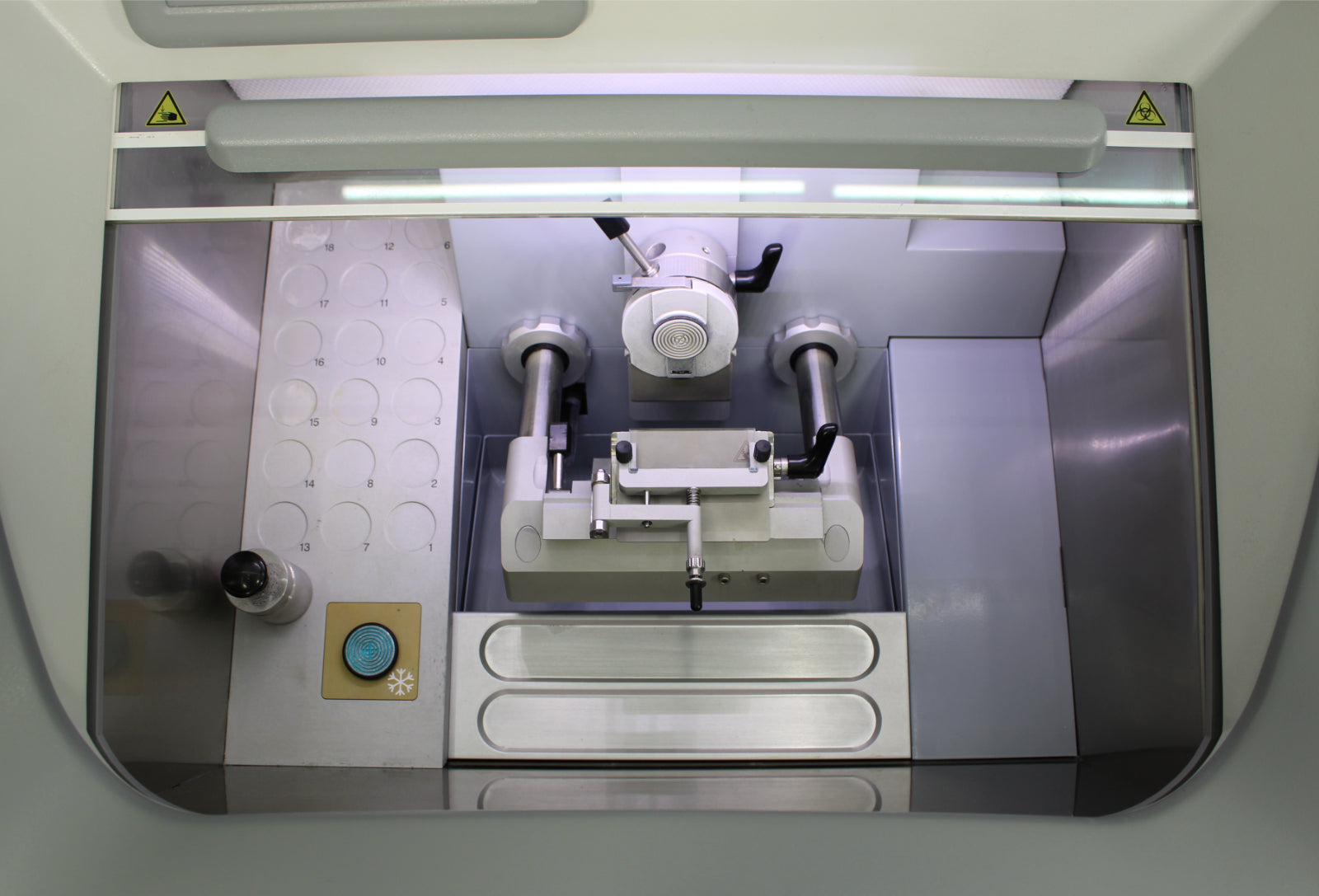

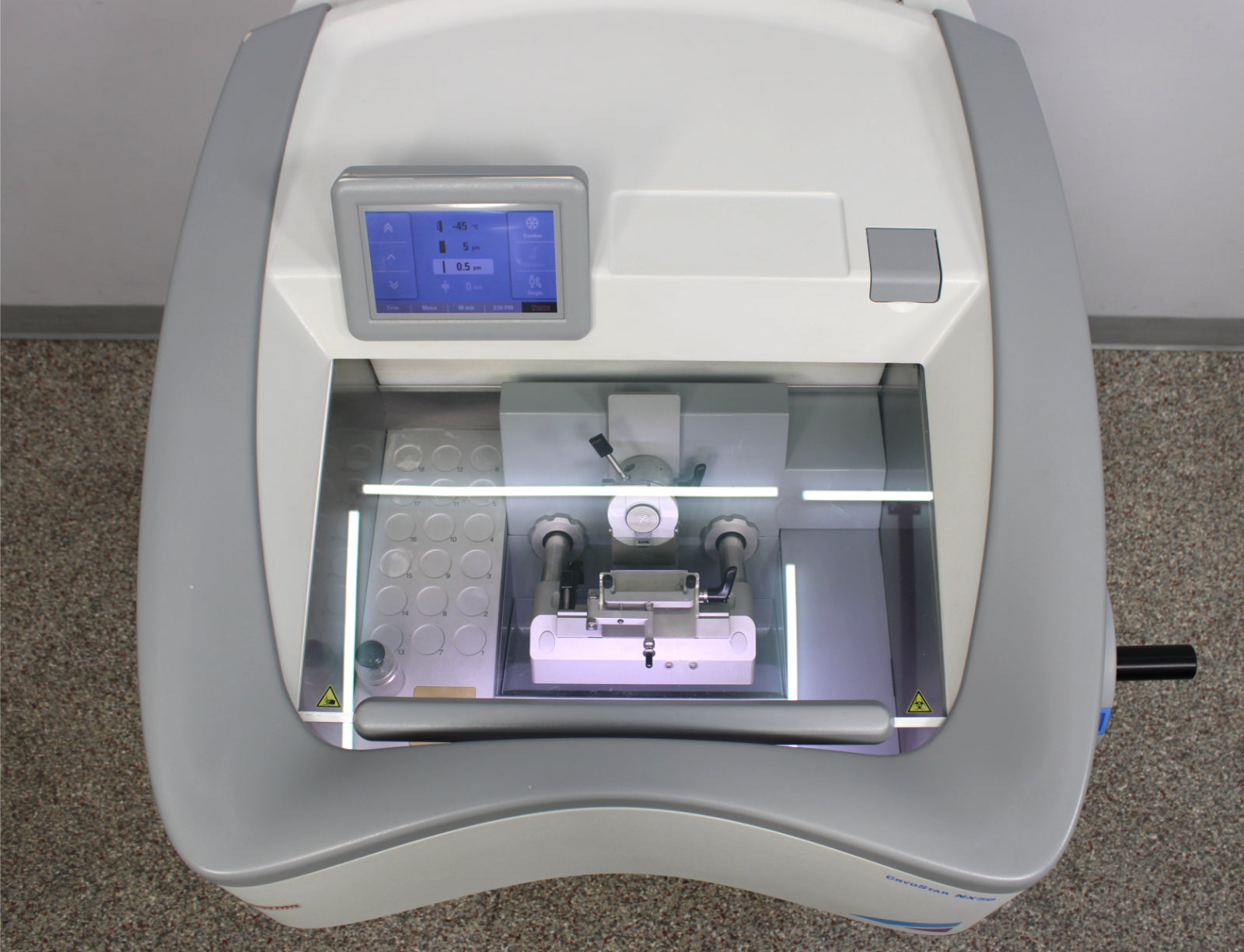

- Cleaned chamber with microtome removed.

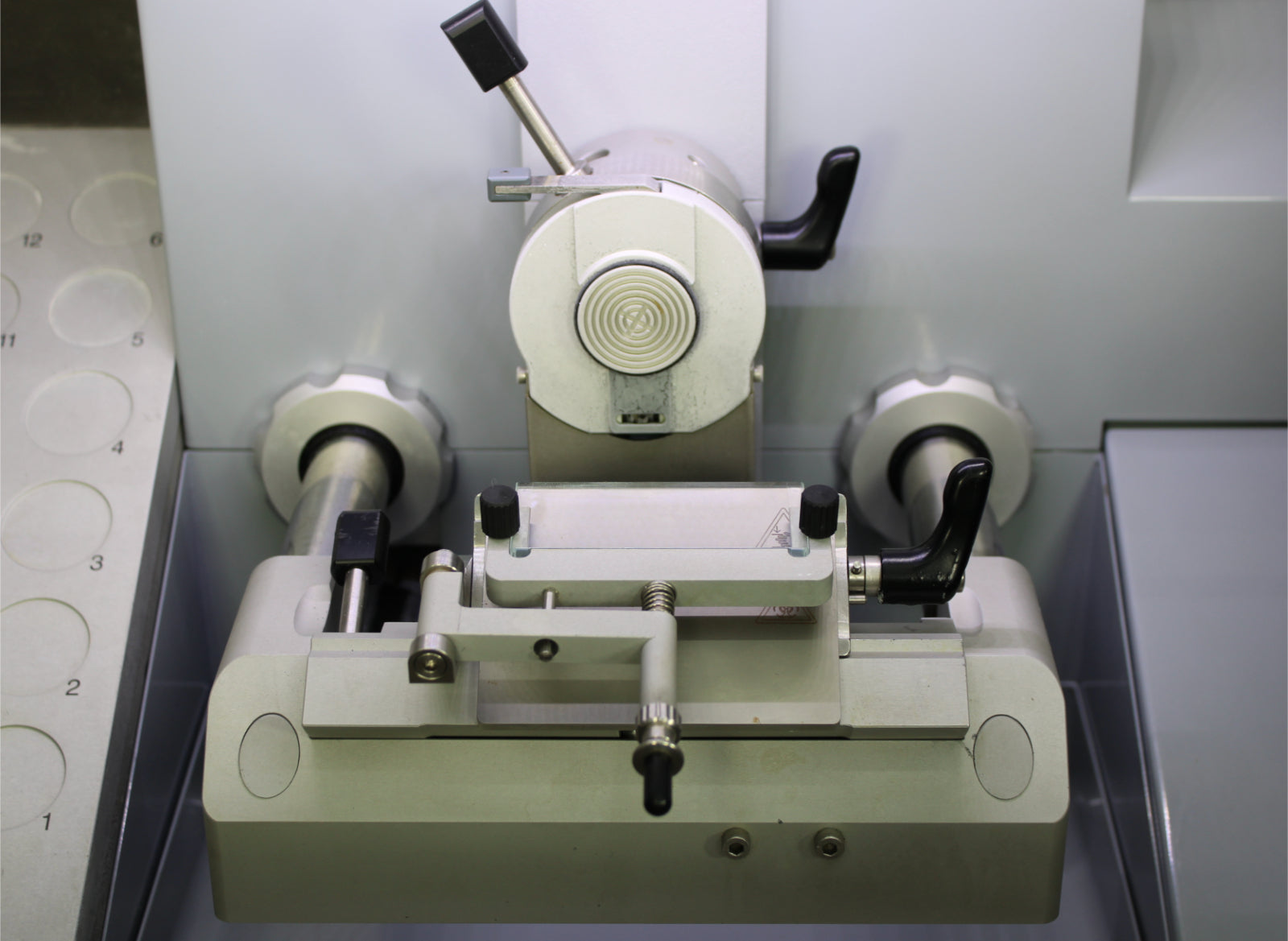

- Cleaned microtome and knife assembly.
- Lubricated microtome and knife assembly.

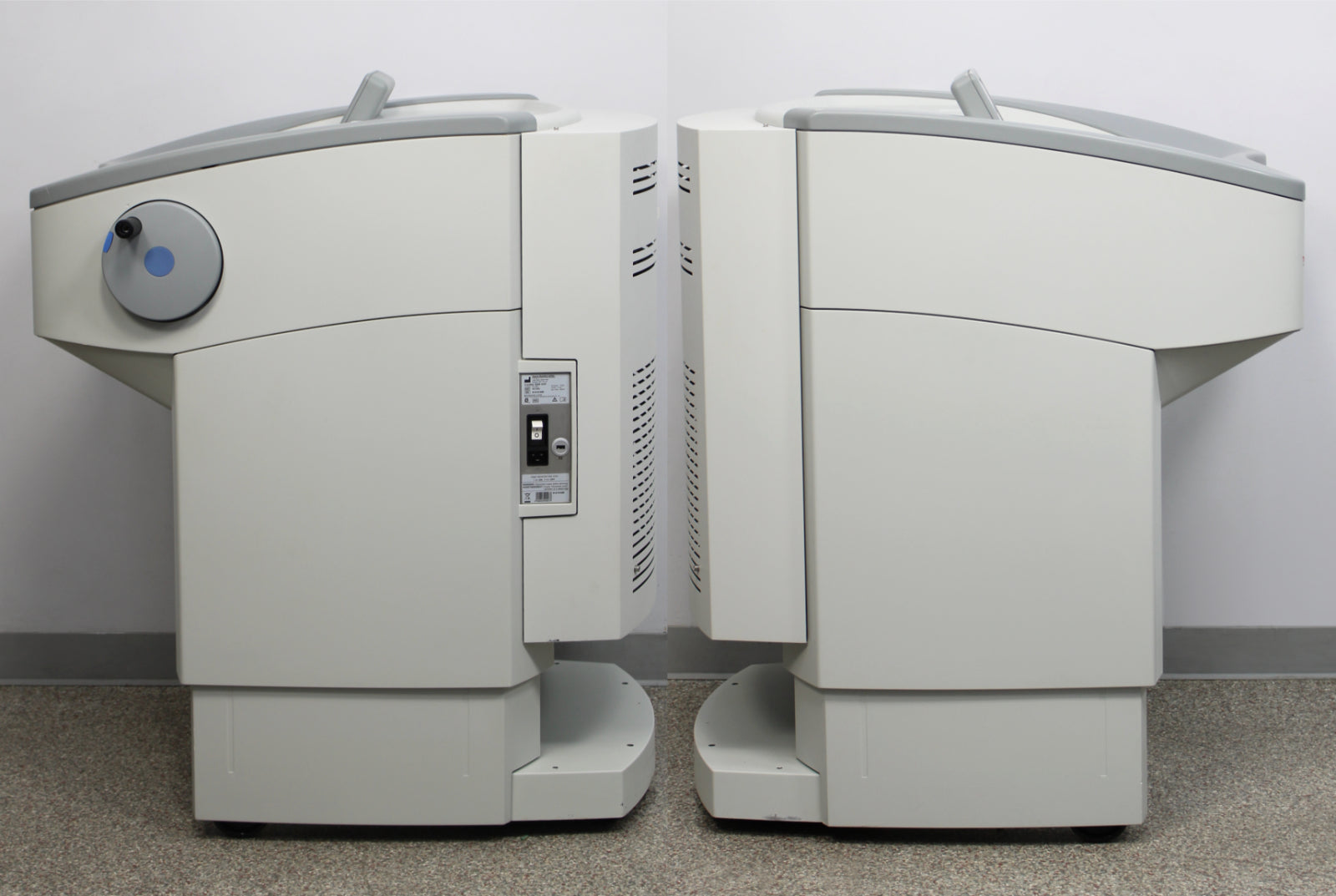

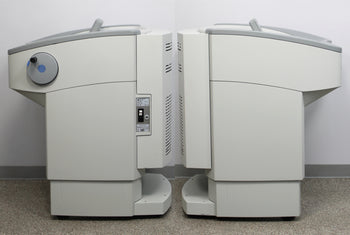

Notice: This cryostat has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

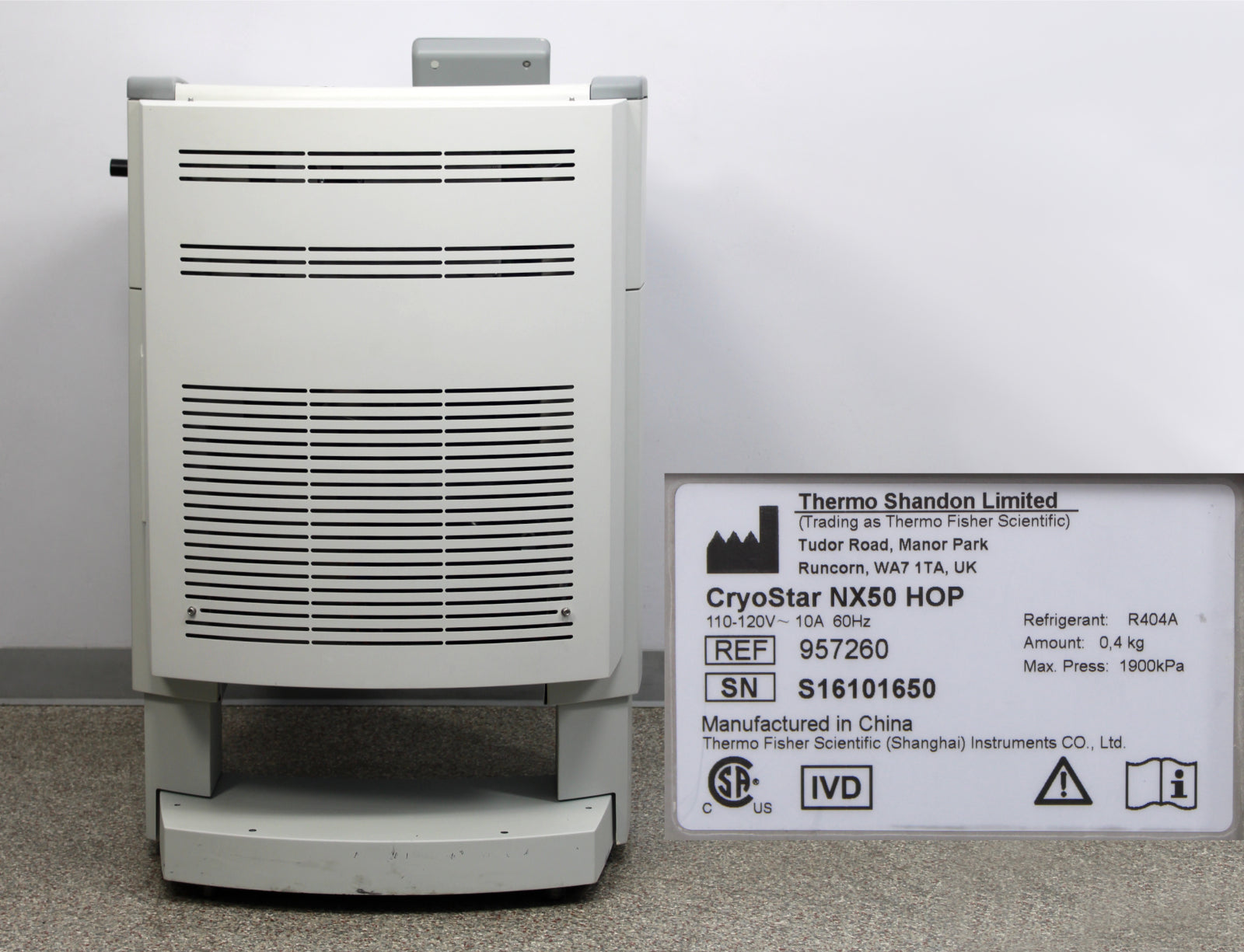

Manufacturer
|
Thermo Scientific
|
|
Model
|
CryoStar NX50 HOP
|
|
Ref. No.
|
957260
|
|
Serial No.
|
S16101650
|
|
Fine section thickness range
|
0.5 - 100 µm
|
|
Trimming thickness range
|
5 - 500 µm
|
|
Vertical specimen stroke
|
64 mm (2.5 in)
|
|
Horizontal knife movement
|
48 mm (1.9 in)
|
|
Specimen orientation
|
x- and y- axes universal 8° with zero positioning; z-axis up to 360°
|
|
Specimen retraction
|
20 µm
|
|
Specimen temperature control
|
-43°C ±2°C (-45.4°F) at 20°C (68°F) ambient
|
|
Cryobar cooling
|
-57°C ±3°C (-70.6°F) at 20°C (68°F) ambient
|
|
Cryochamber
|
-25°C ±2°C (-13°F) at 20°C (68°F) ambient; continuously cooled
|
|
Knife holder
|
-27°C ±2°C (-16.6°F) at 20°C to 30°C (68°F to 86°F) ambient; continuously cooled
|
|
Defrosting options
|
Programmed / Immediate
|
|
Certifications
|
CSA, CE
|
|
Power rating
|
110-120V~, 60Hz, 10A
|
|
Dimensions (W x D x H)
|
33 x 39 x 43 to 54.5 in
|
|
Weight
|
441 lb (200 kg)
|
