**Currently en route to our facility. It will take about 30 days to arrive, after which we will test and certify it.**
Included Items

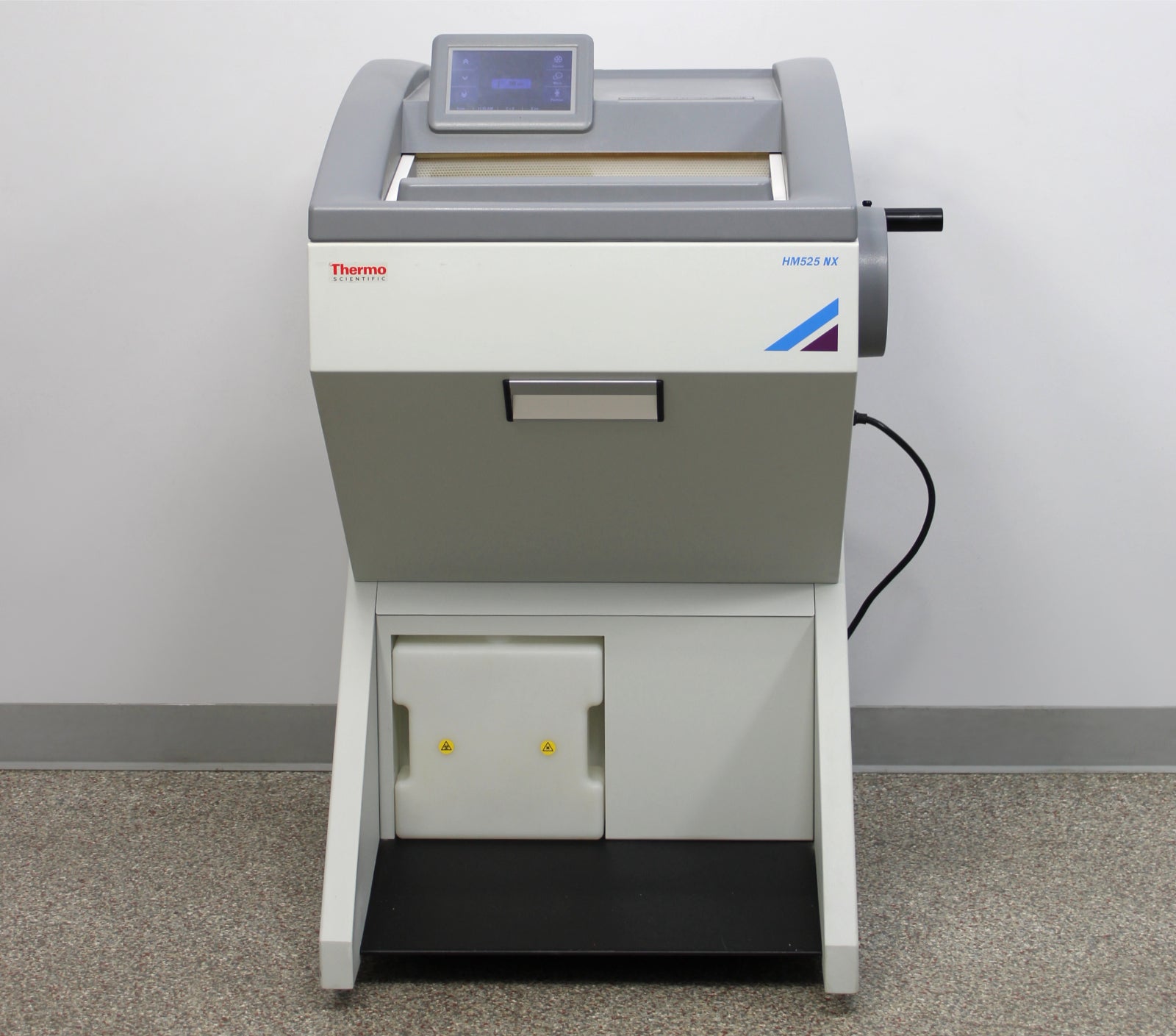

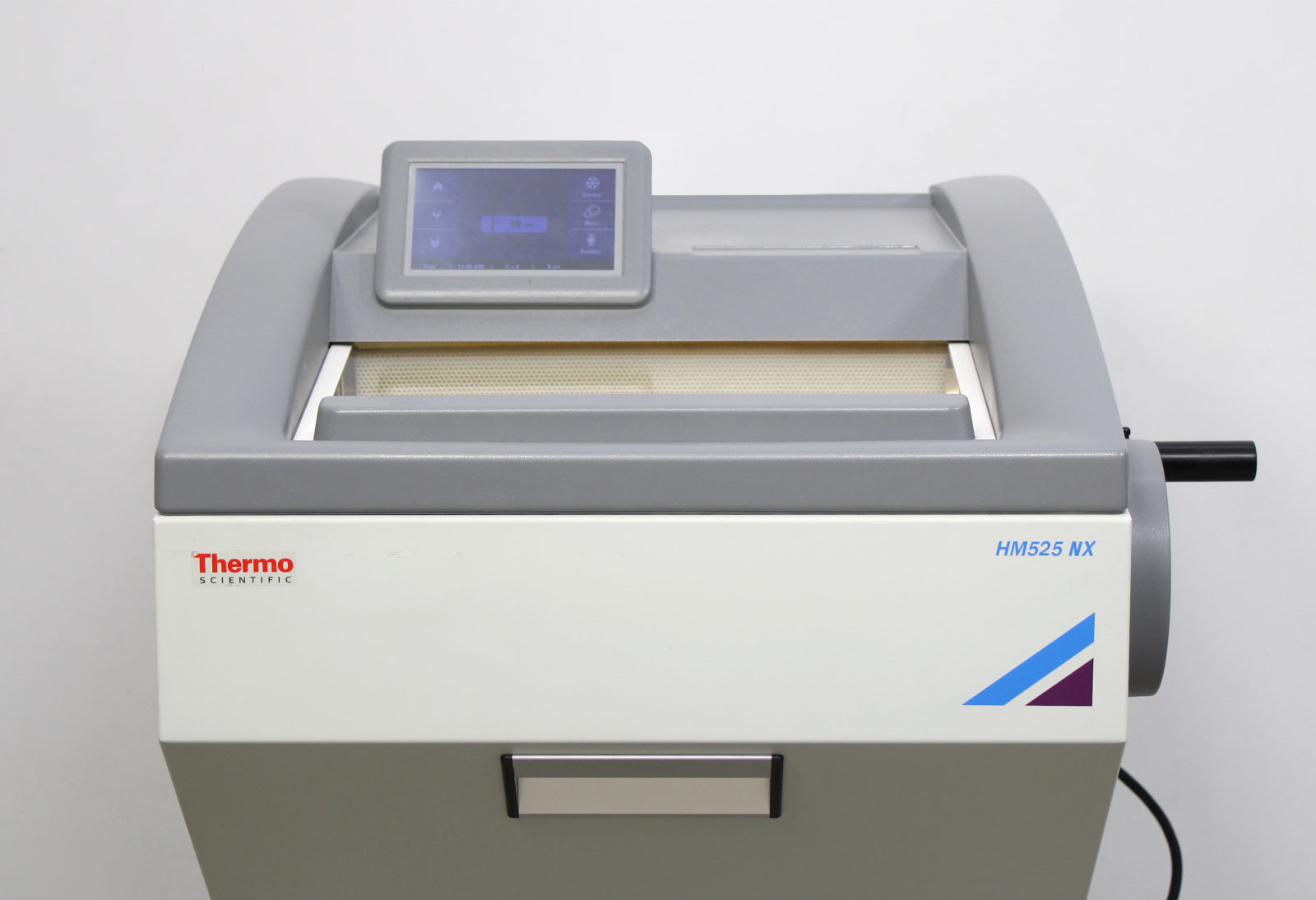

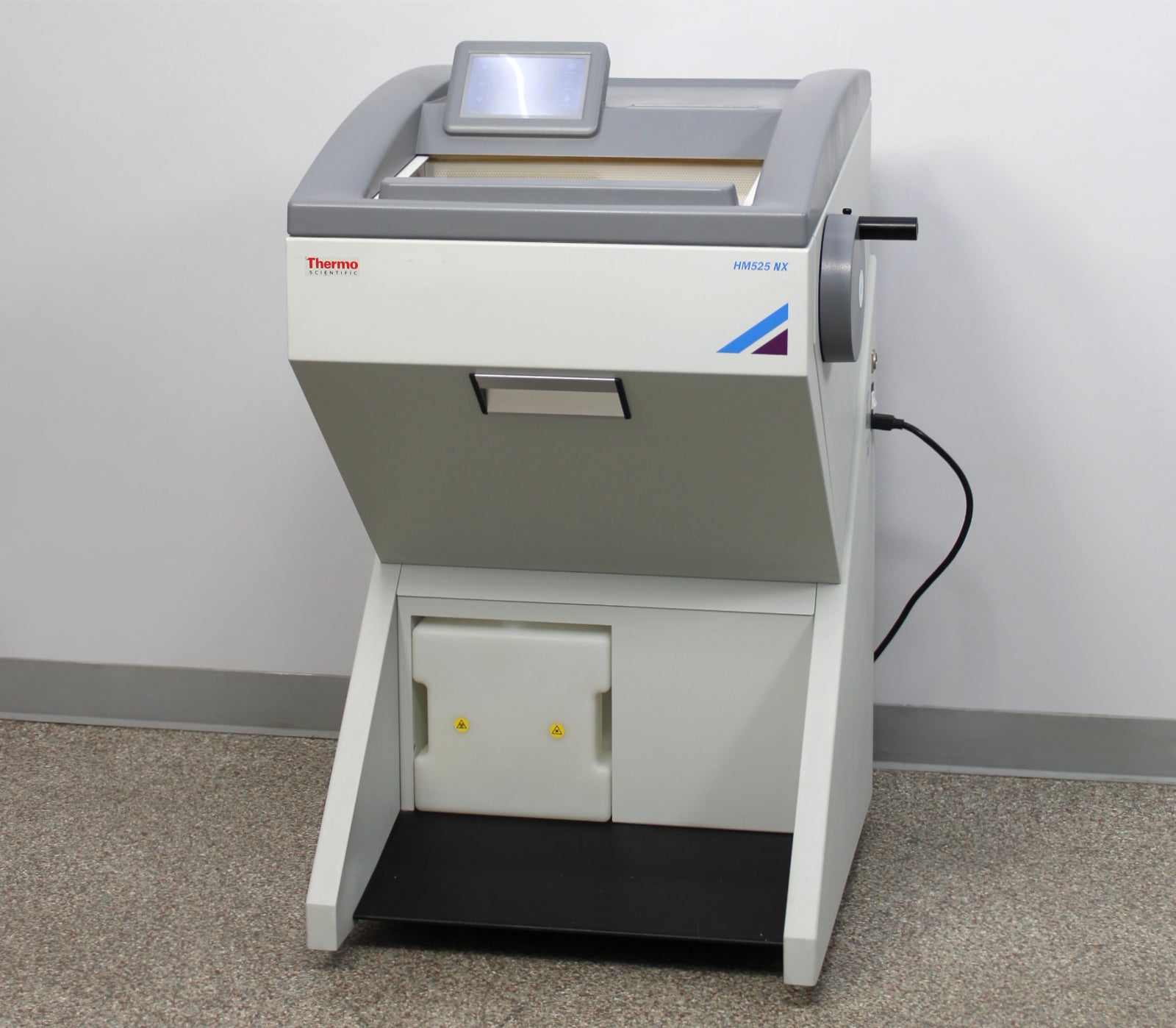

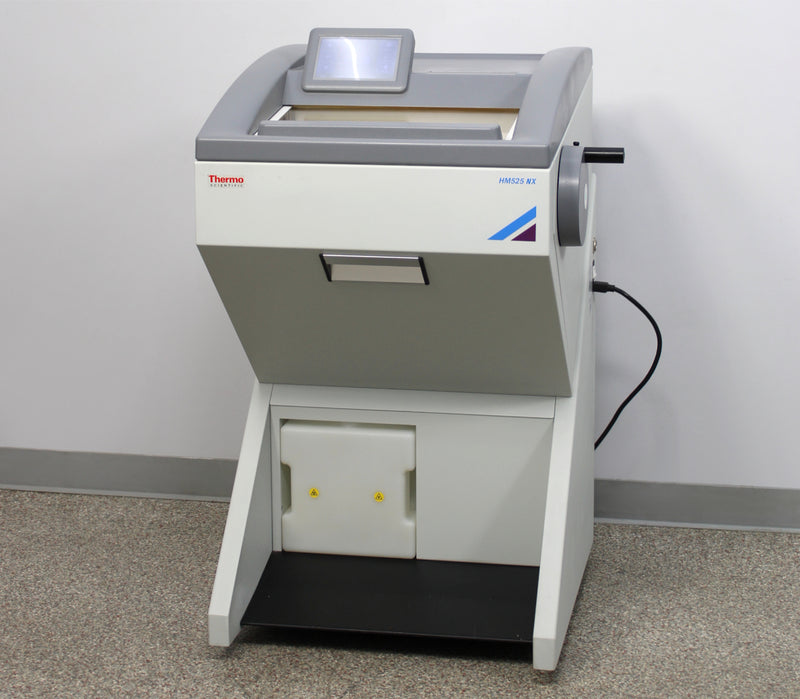

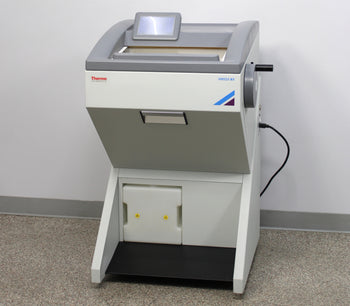

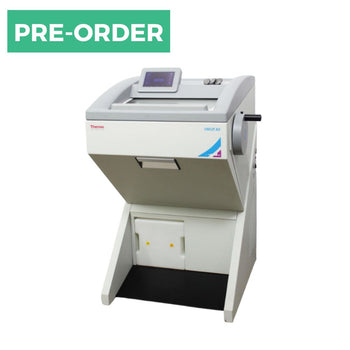

- Thermo Scientific HM525 NX UV Cryostat Microtome

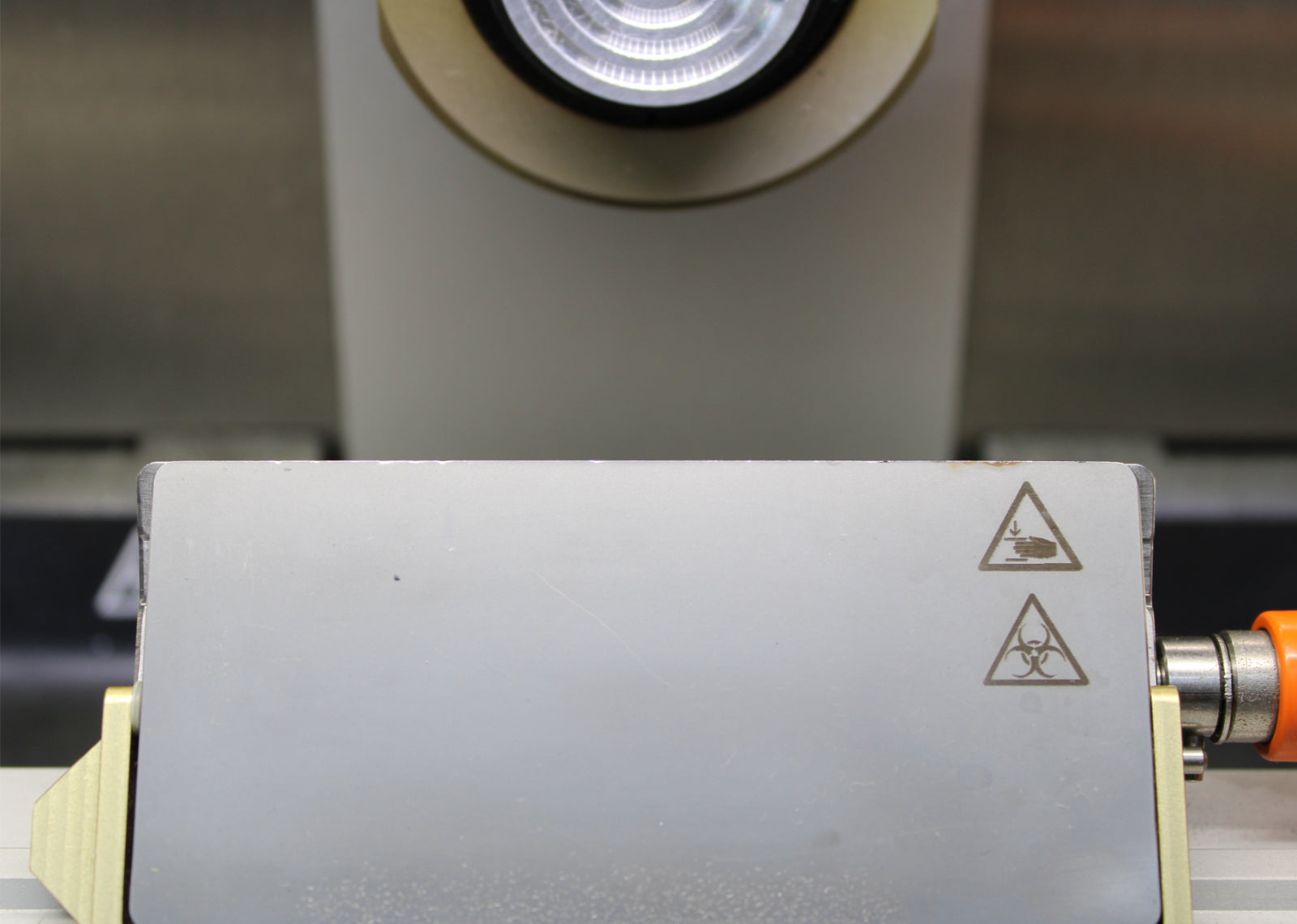

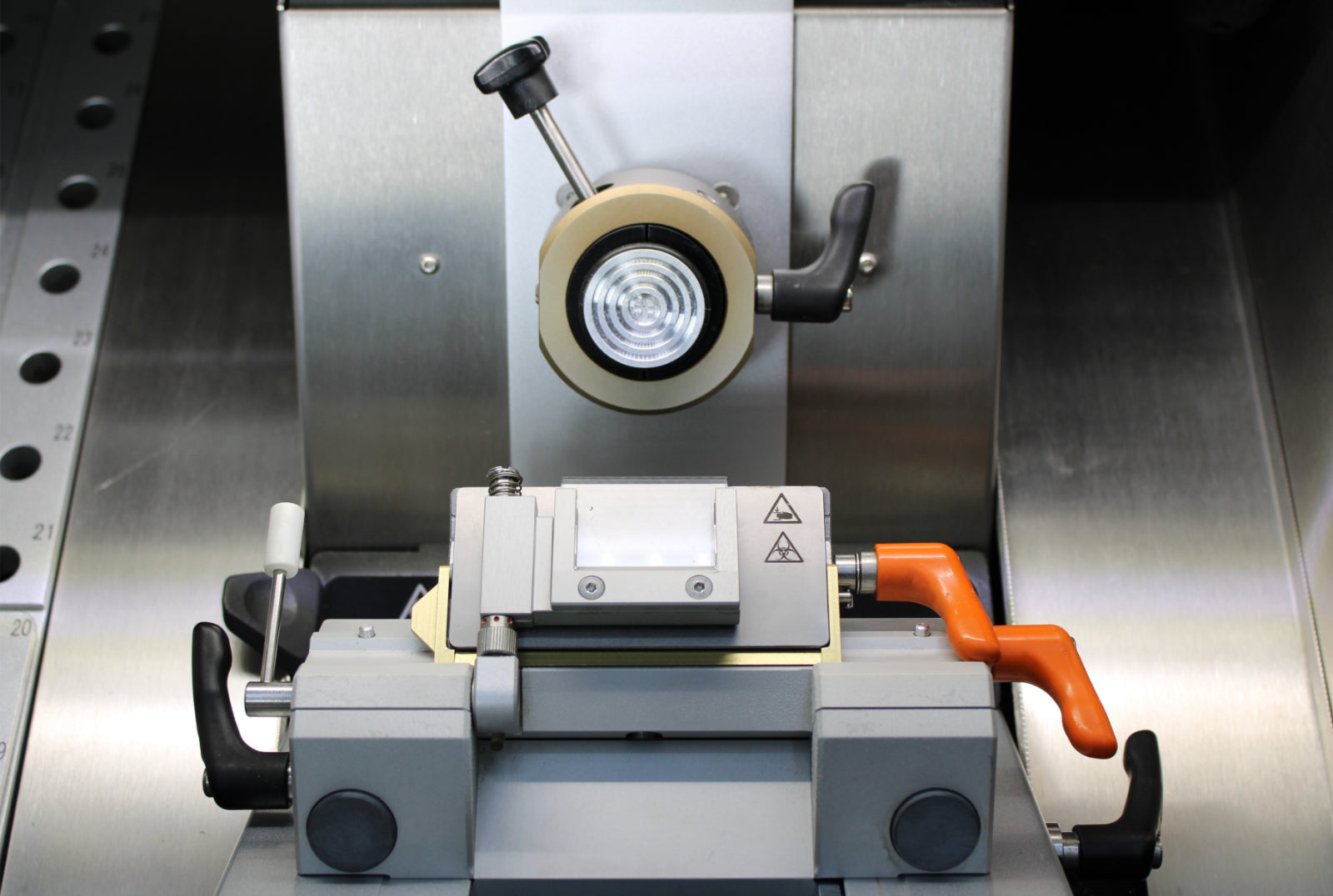

- Blade Holder
- Power Cable
Certified to Perform at Manufacturer Specifications

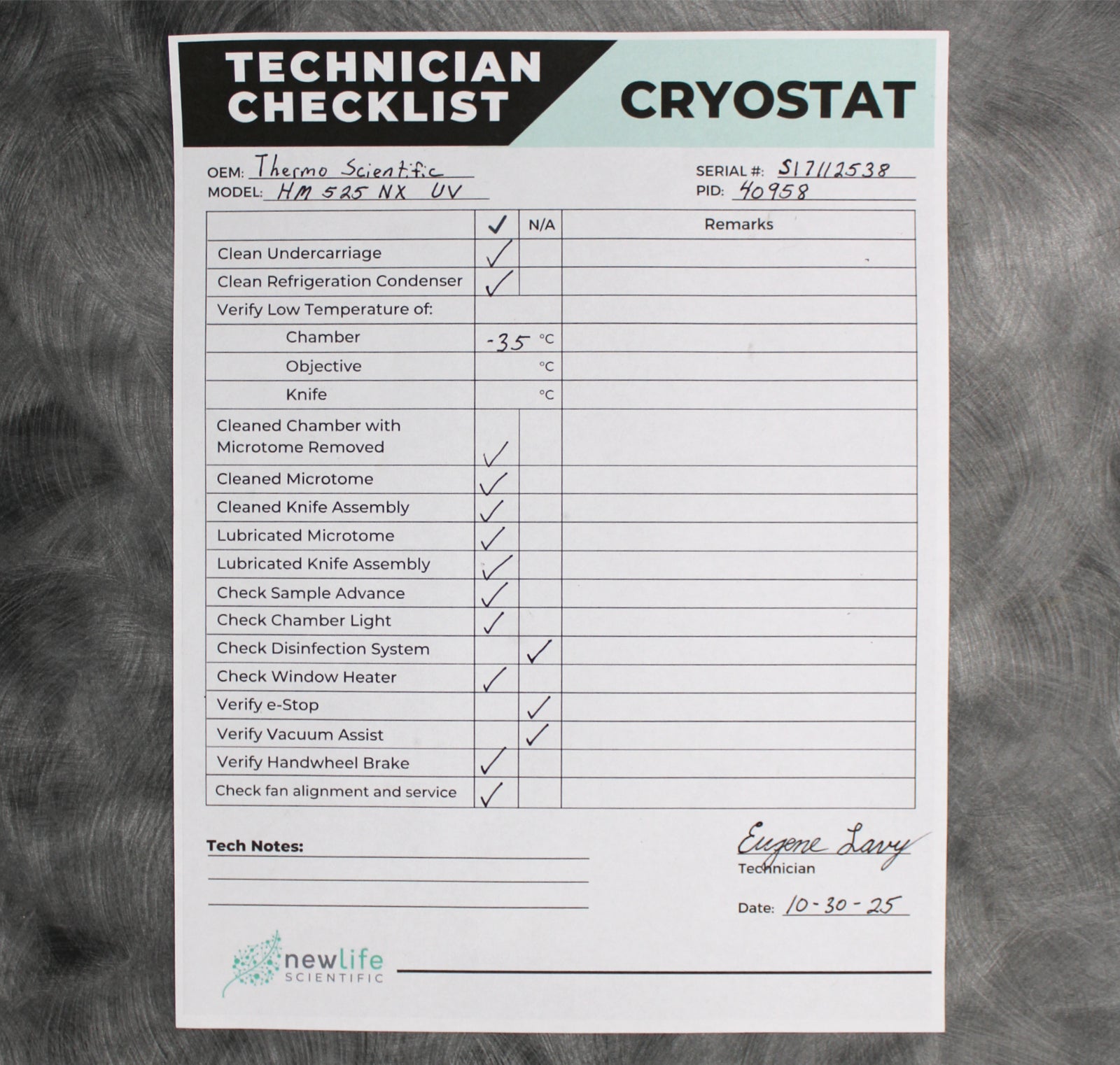

After your instrument arrives at our facility, it will be inspected and tested to certify it performs at manufacturer specifications. If any component does not pass testing, then it will receive the service necessary to restore full functionality.
Specifications
|
Manufacturer
|
Microm
|
|
Model
|
HM 525
|
|
Fine section thickness range
|
1-100um
|
|
Fine section thickness resolution
|
1-10um in 1um steps
10-20um in 2um steps
20-50um in 5um steps
50-100um in 10um steps
|
|
Trimming thickness range
|
5-500um
|
|
Trimming thickness resolution
|
5-30um in 5um steps
30-100um in 10um steps
100-200um in 20um steps
200-500um in 50um steps
|
|
Specimen retraction (return travel)
|
20um
|
|
Chamber temperature
|
Max. -35°C +/-3°C at +20°C room temp
|
|
Cryobar cooling (Peltier element)
|
Max. -55°C +/-3°C at 20°C ambient
|
|
Defrosting options
|
Programmed/Immediate
|
|
Certifications
|
CSA, CE
|
|

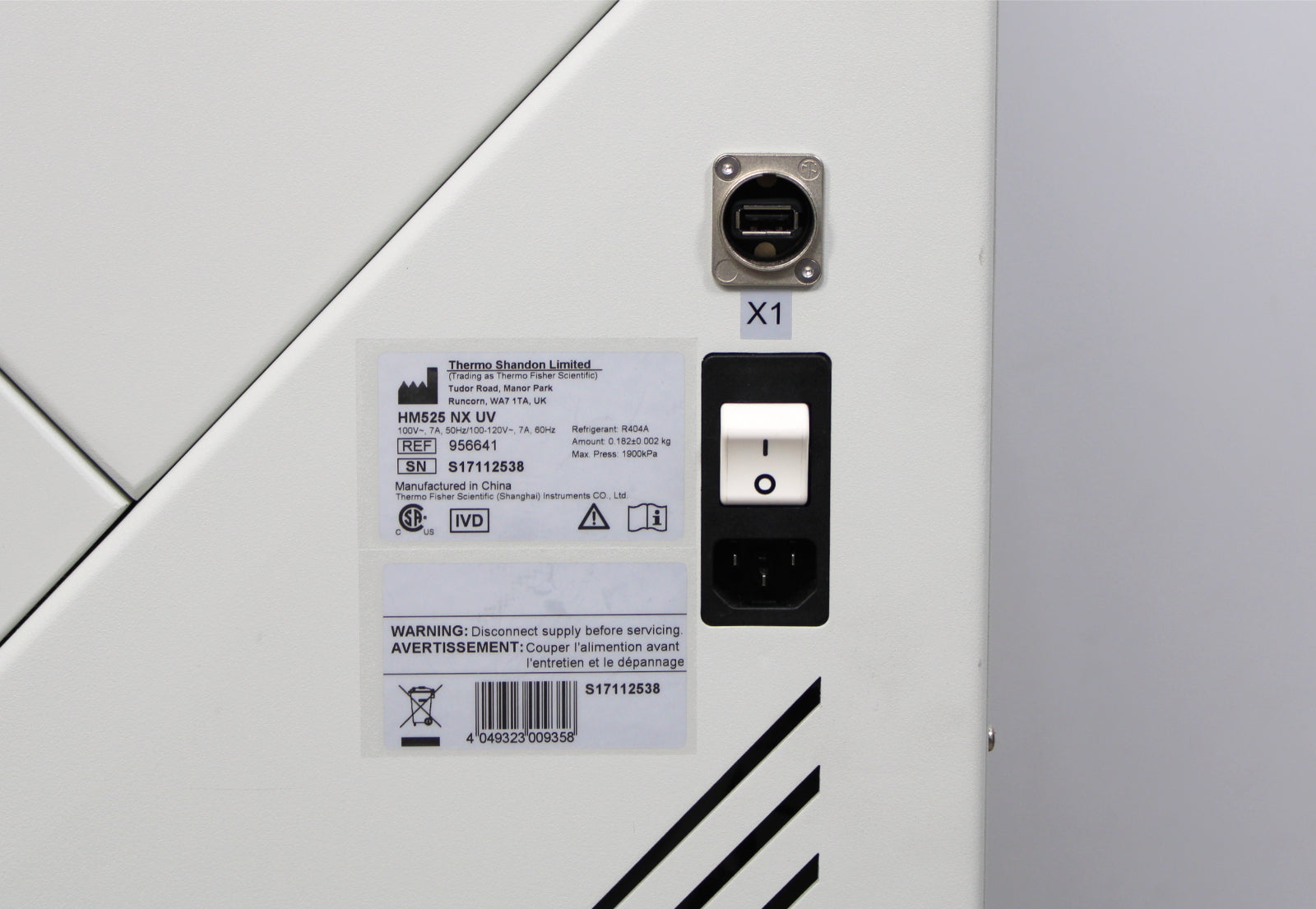

Electrical specifications
|
100V, 50Hz, 7A
100-120V, 60Hz, 7A
|
|
Dimensions (W x D x H)
|
29 x 30 x 45 in.
|
