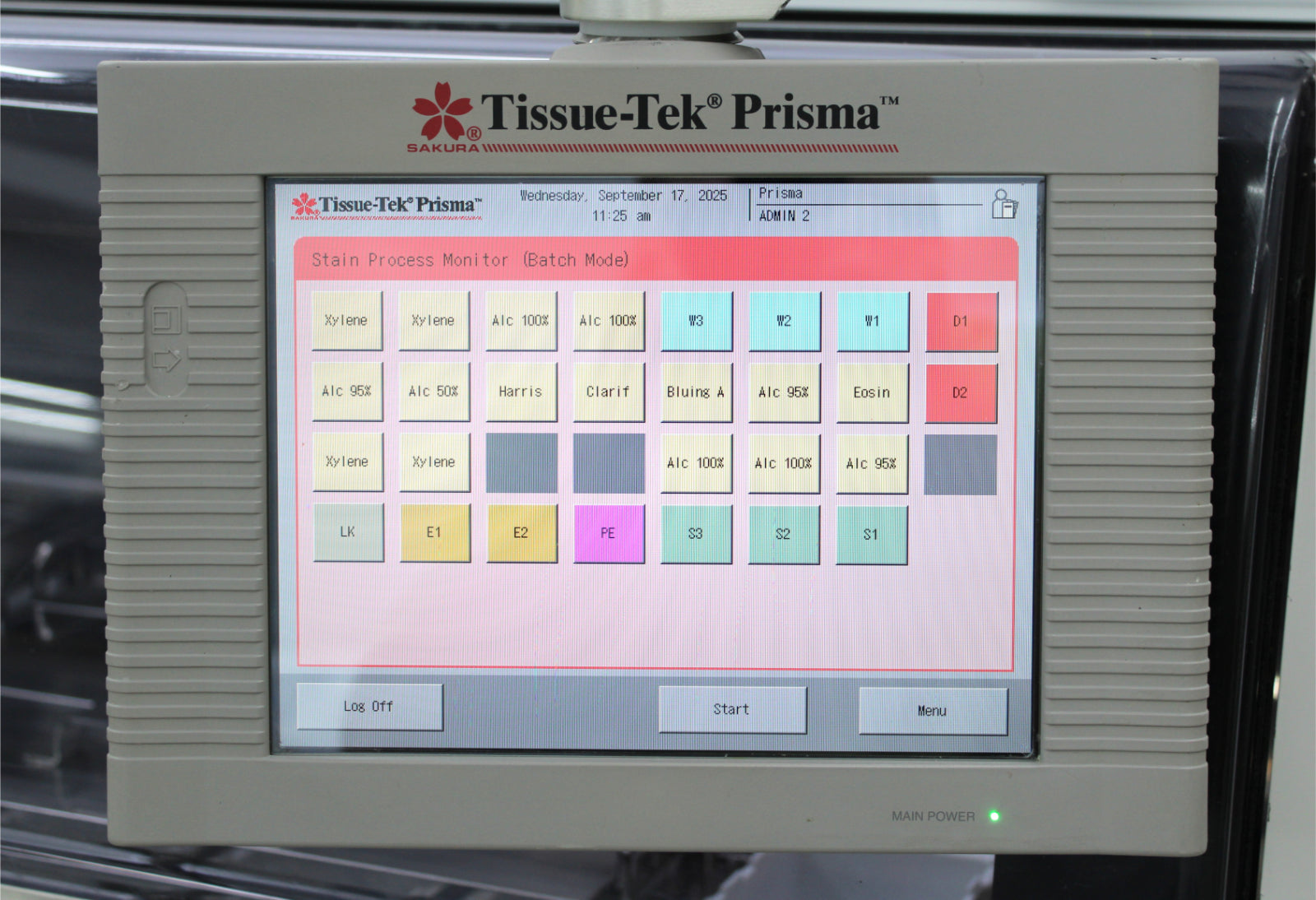

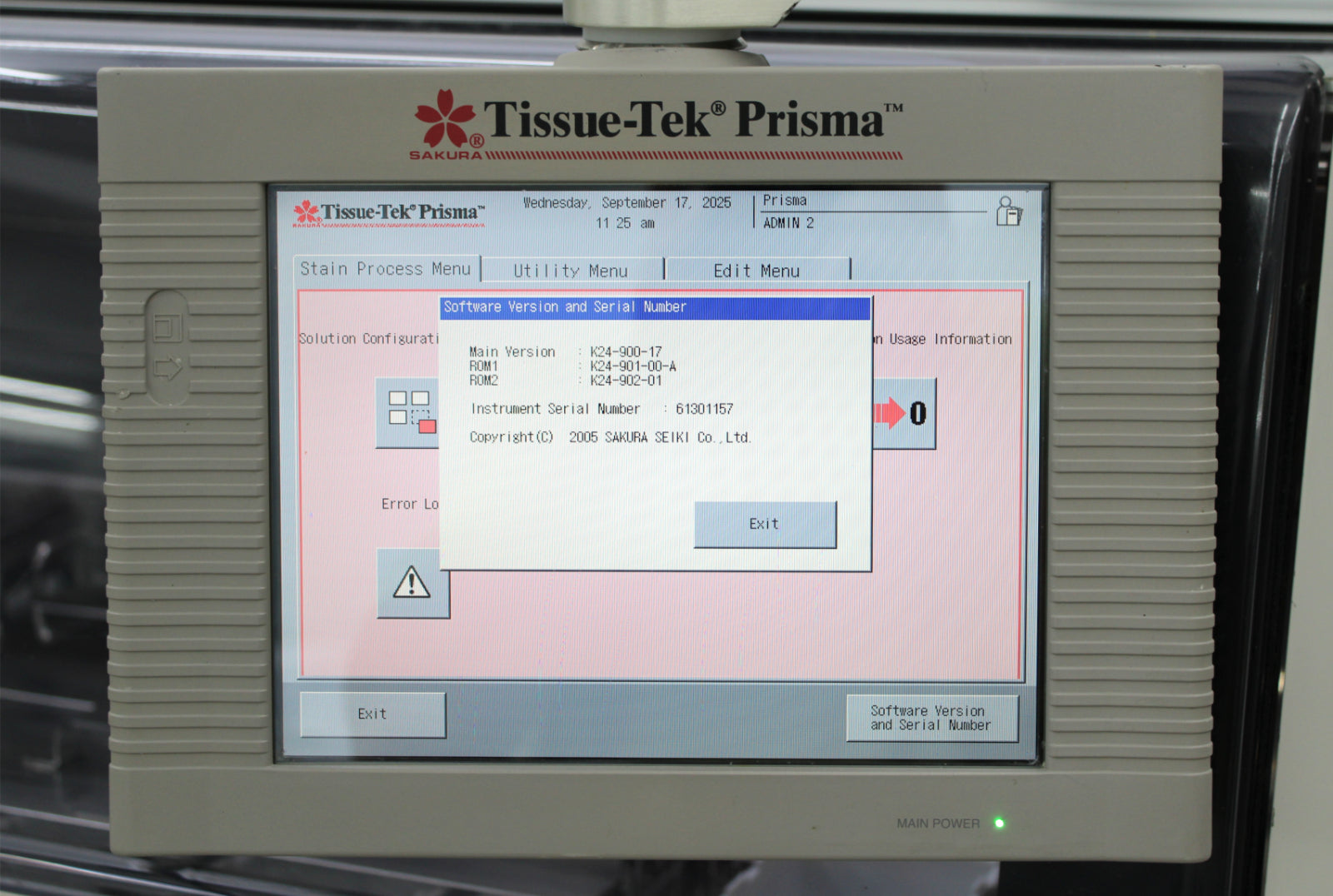

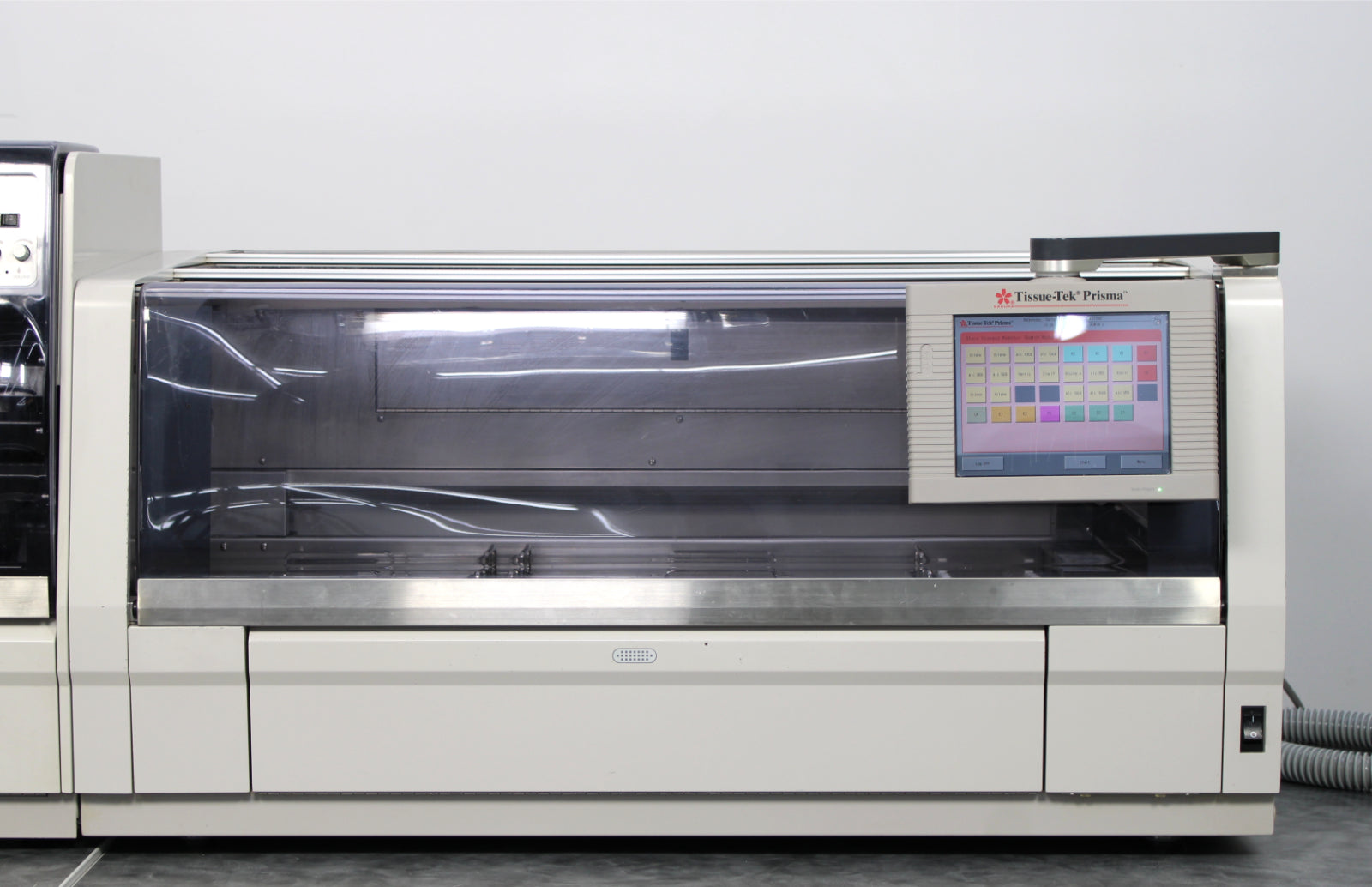

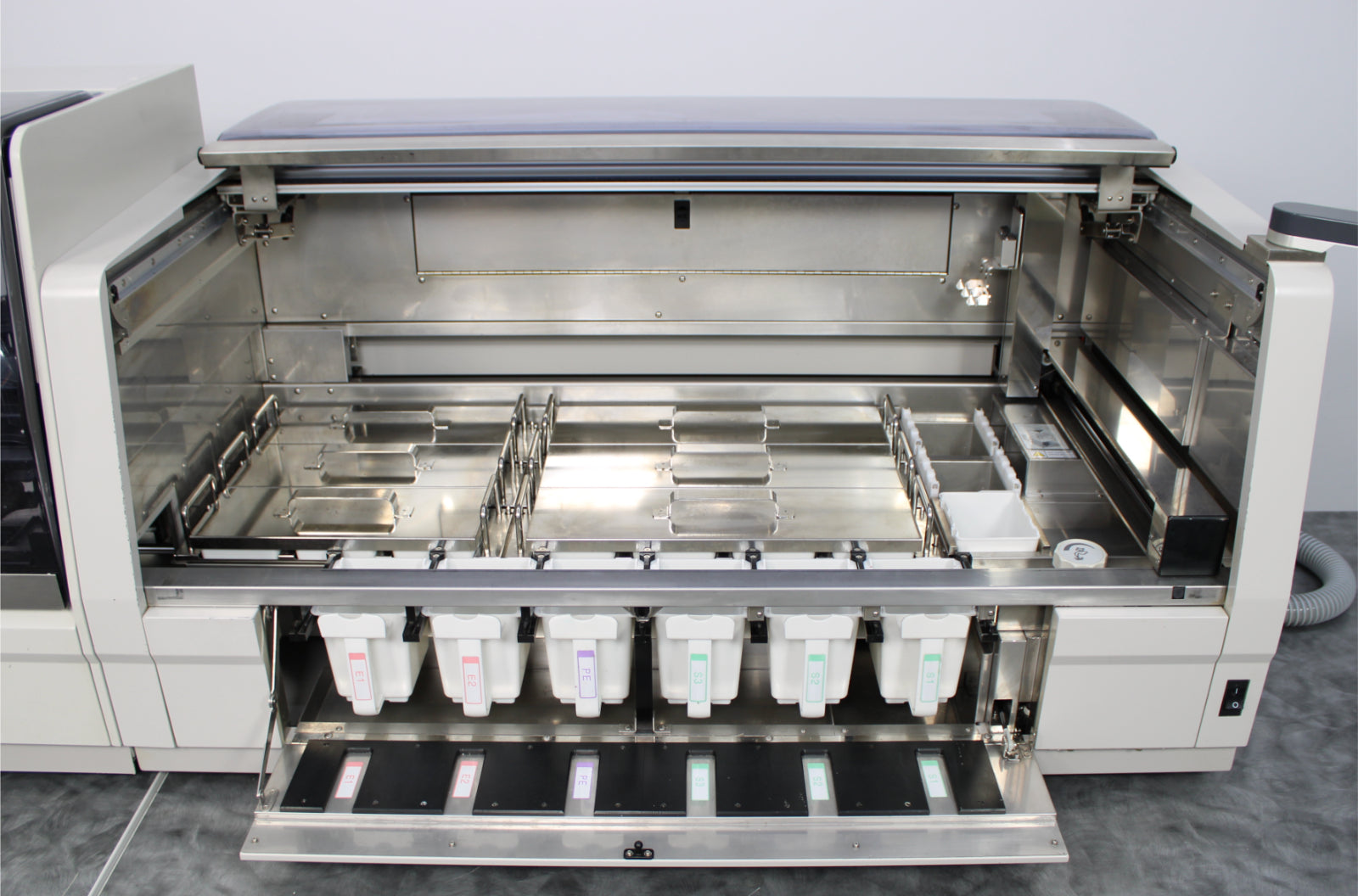

- Sakura Tissue-Tek Prisma-A1D Automated Slide Stainer (6130)

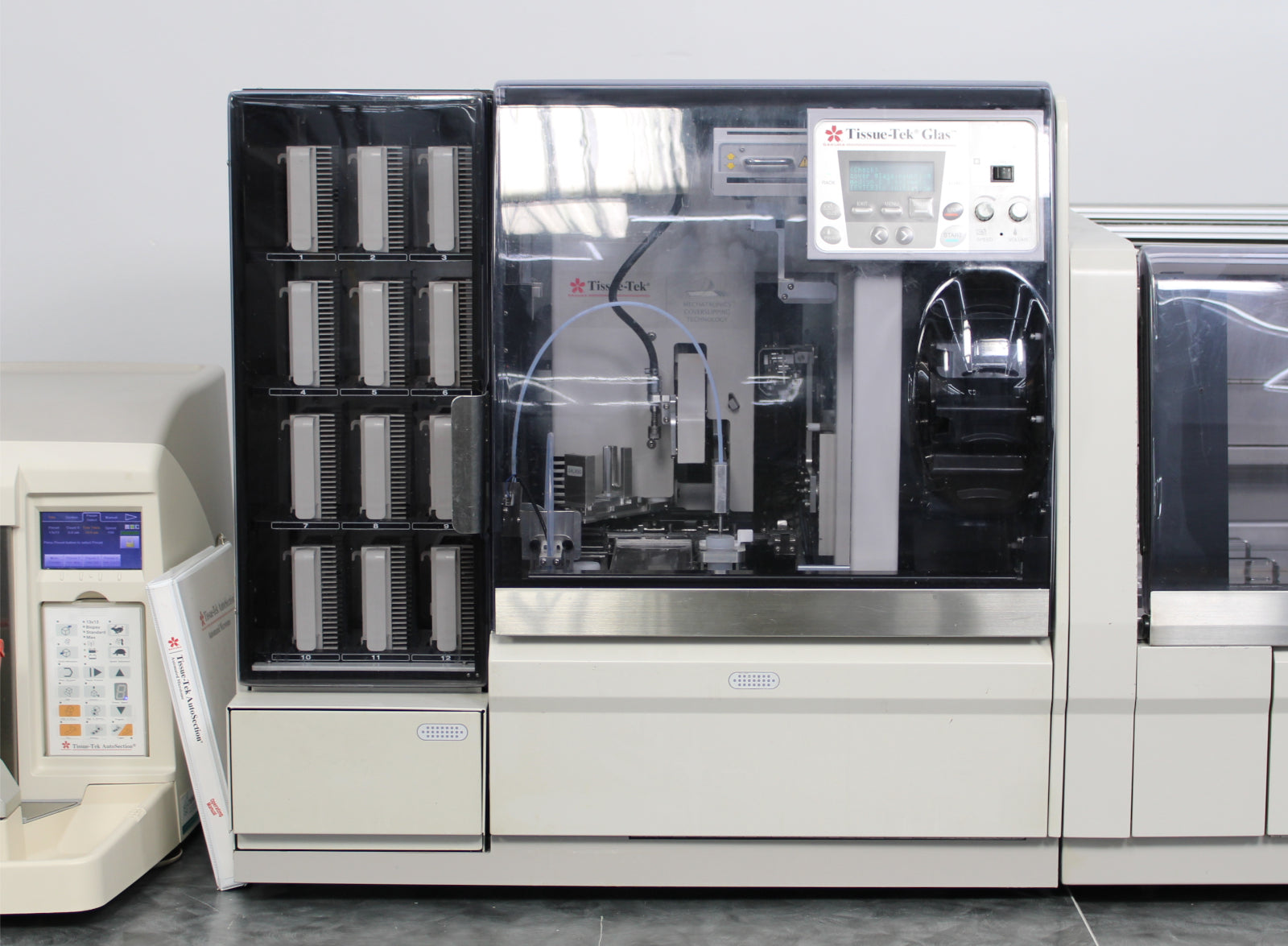

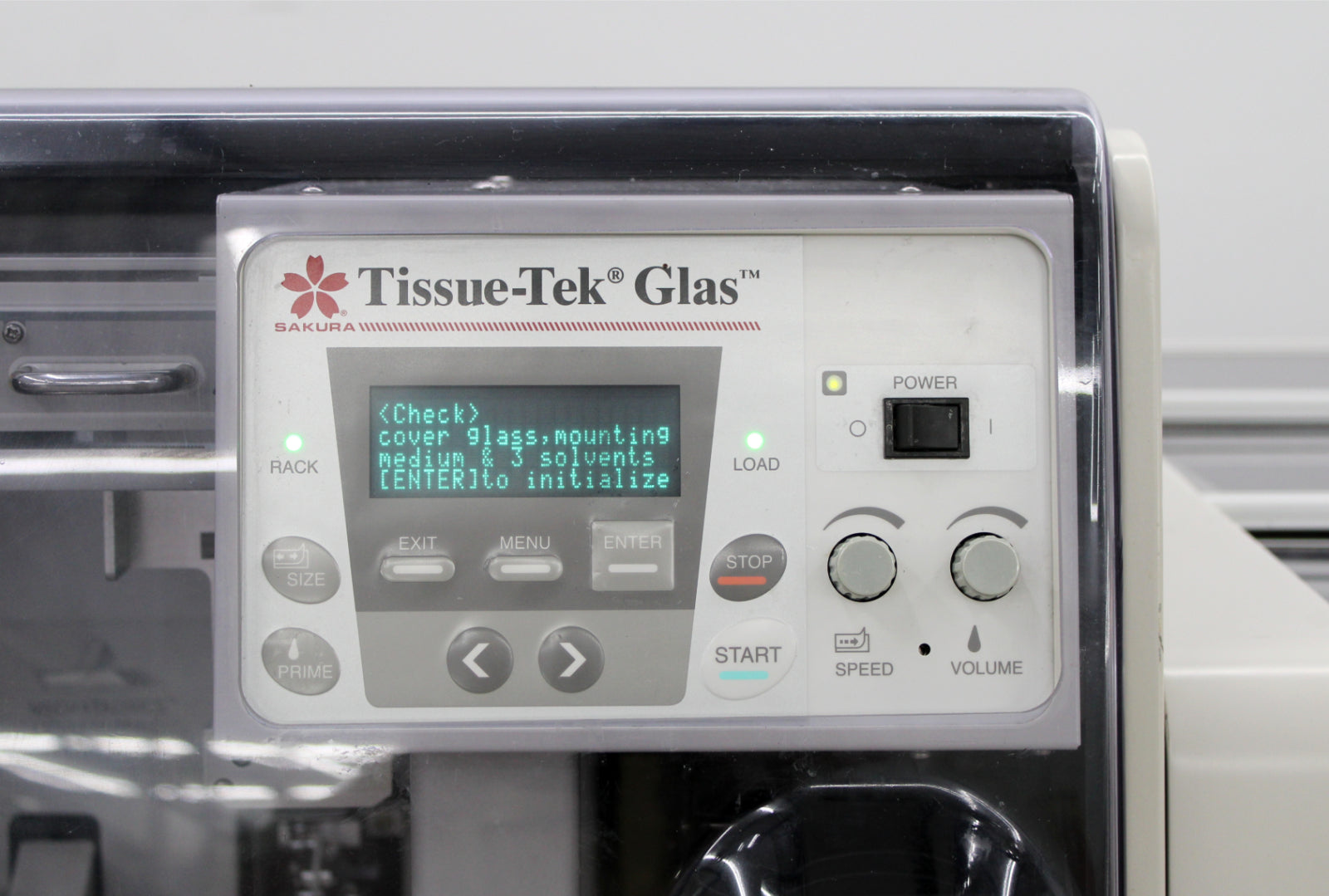

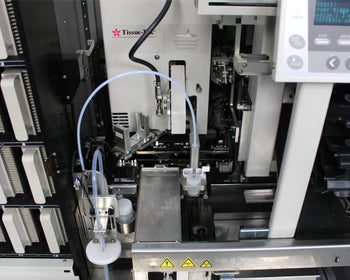

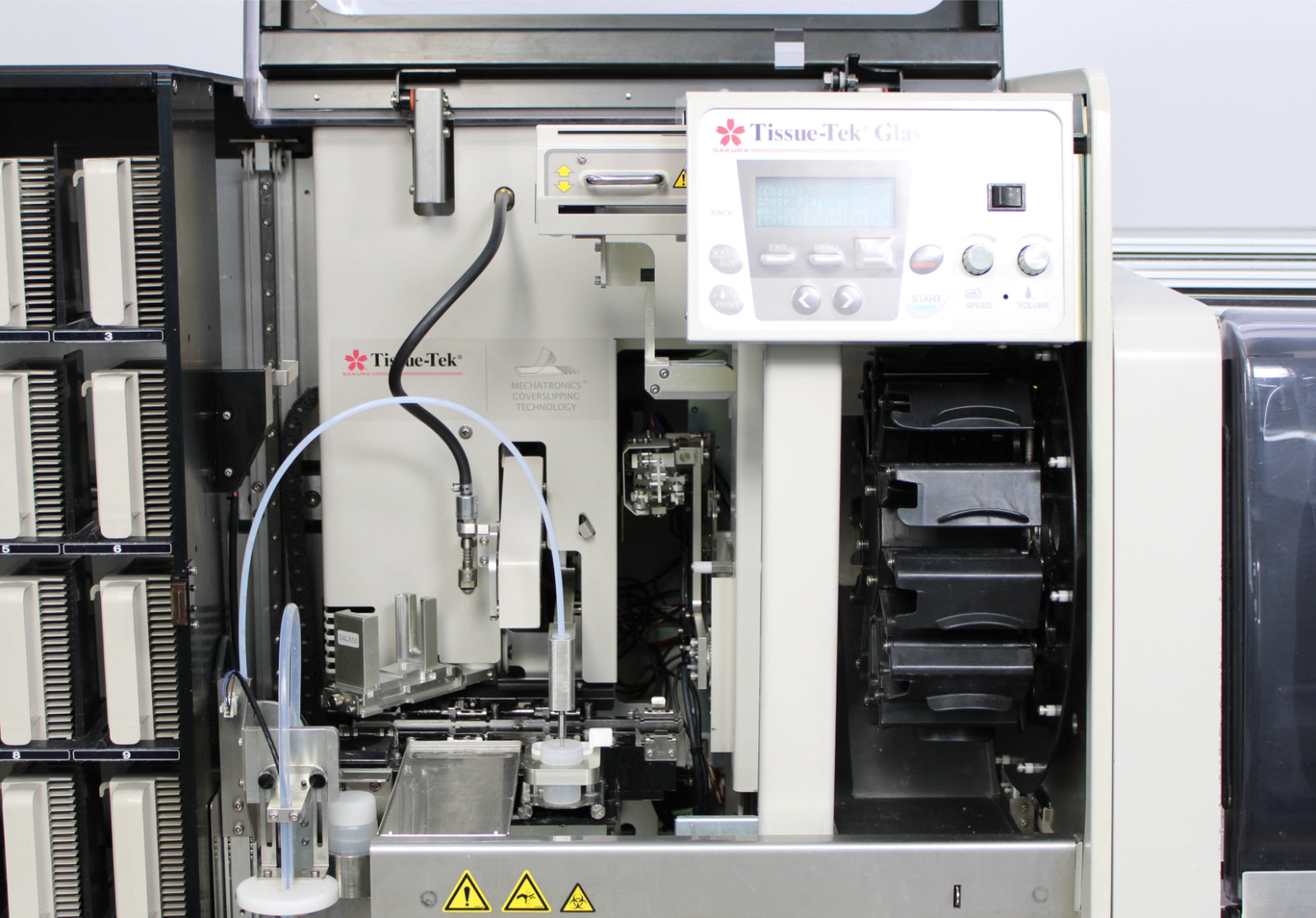

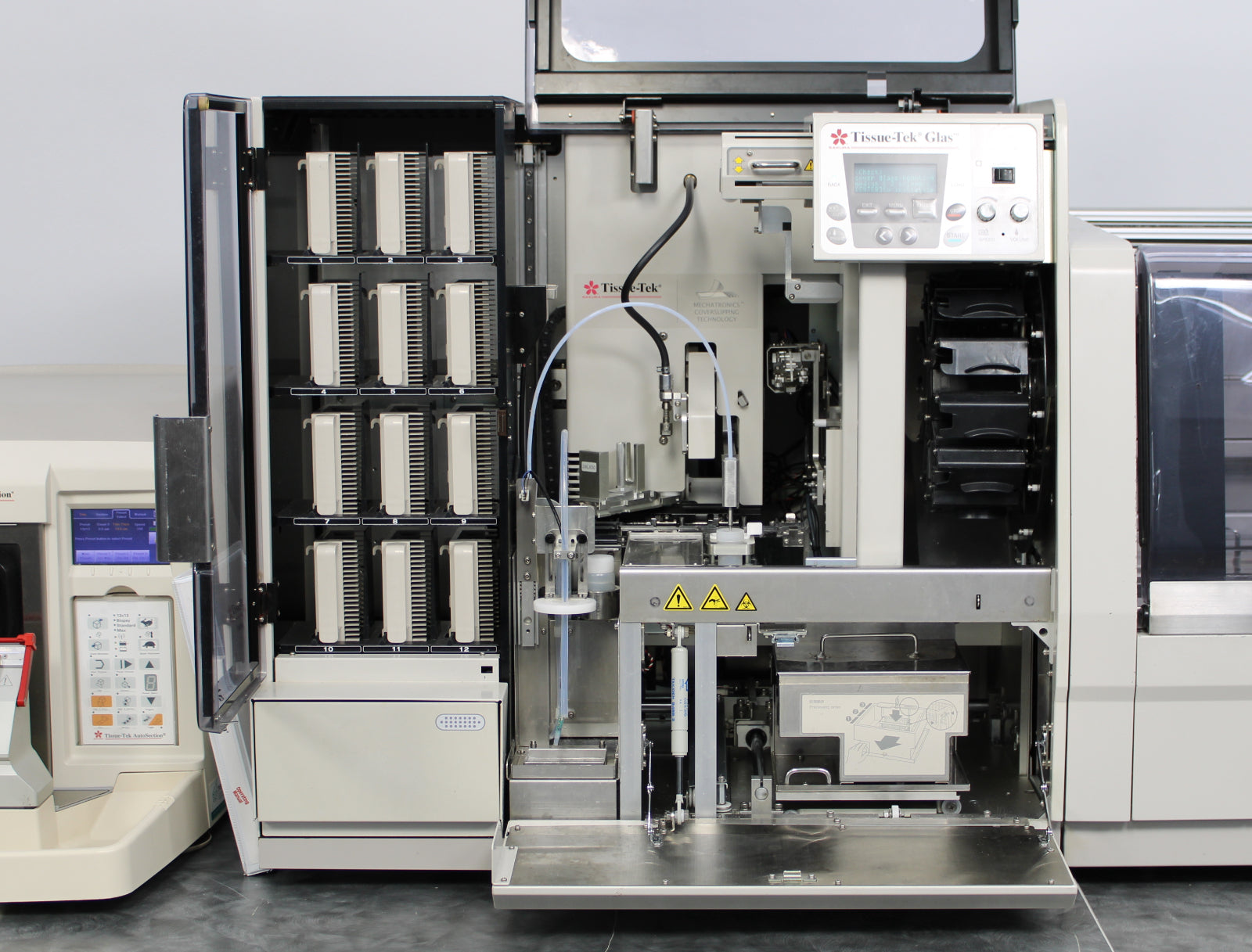

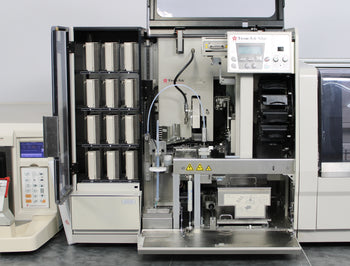

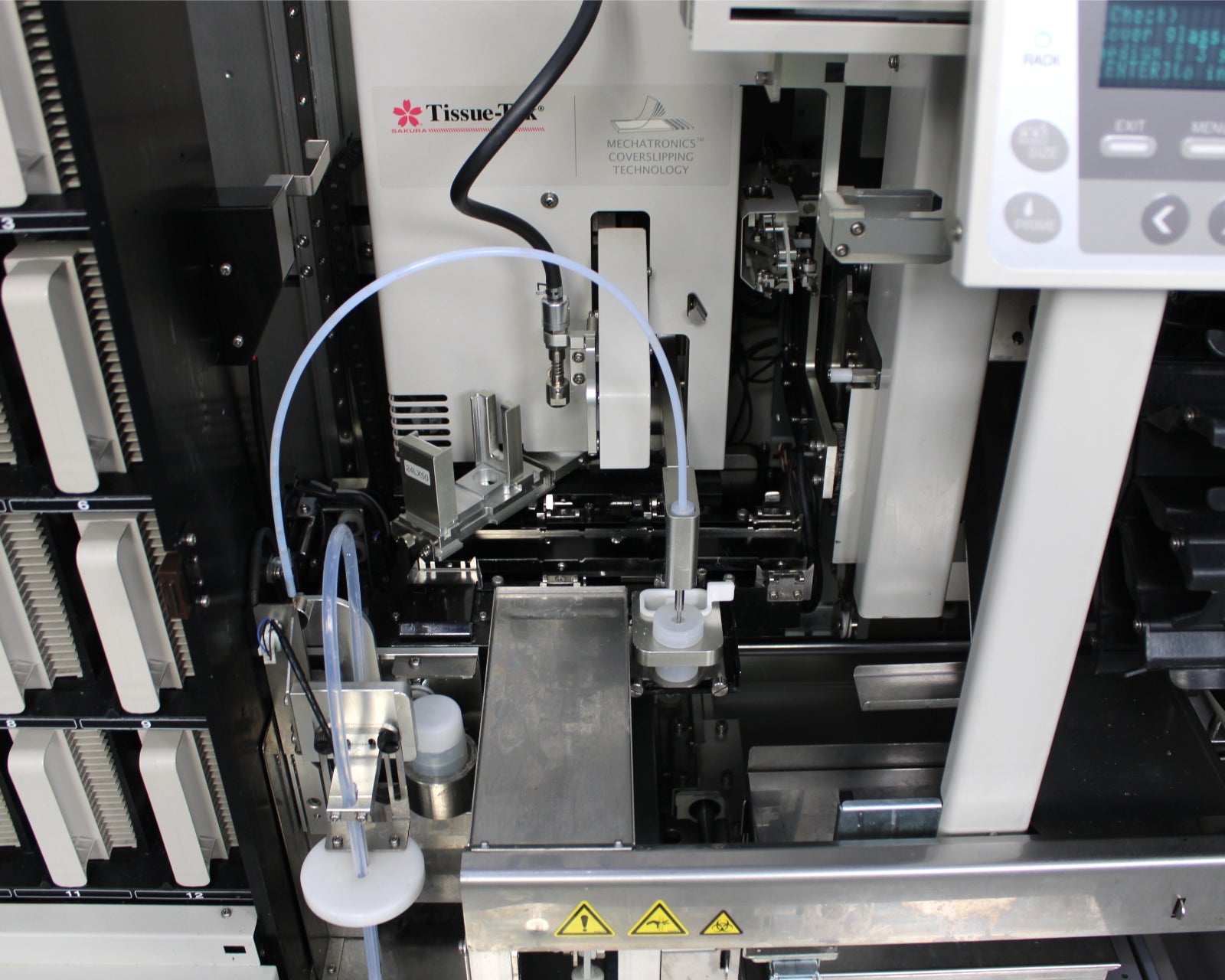

- Sakura Tissue-Tek Glas g2-A1 Automated Glass Coverslipper (6500)

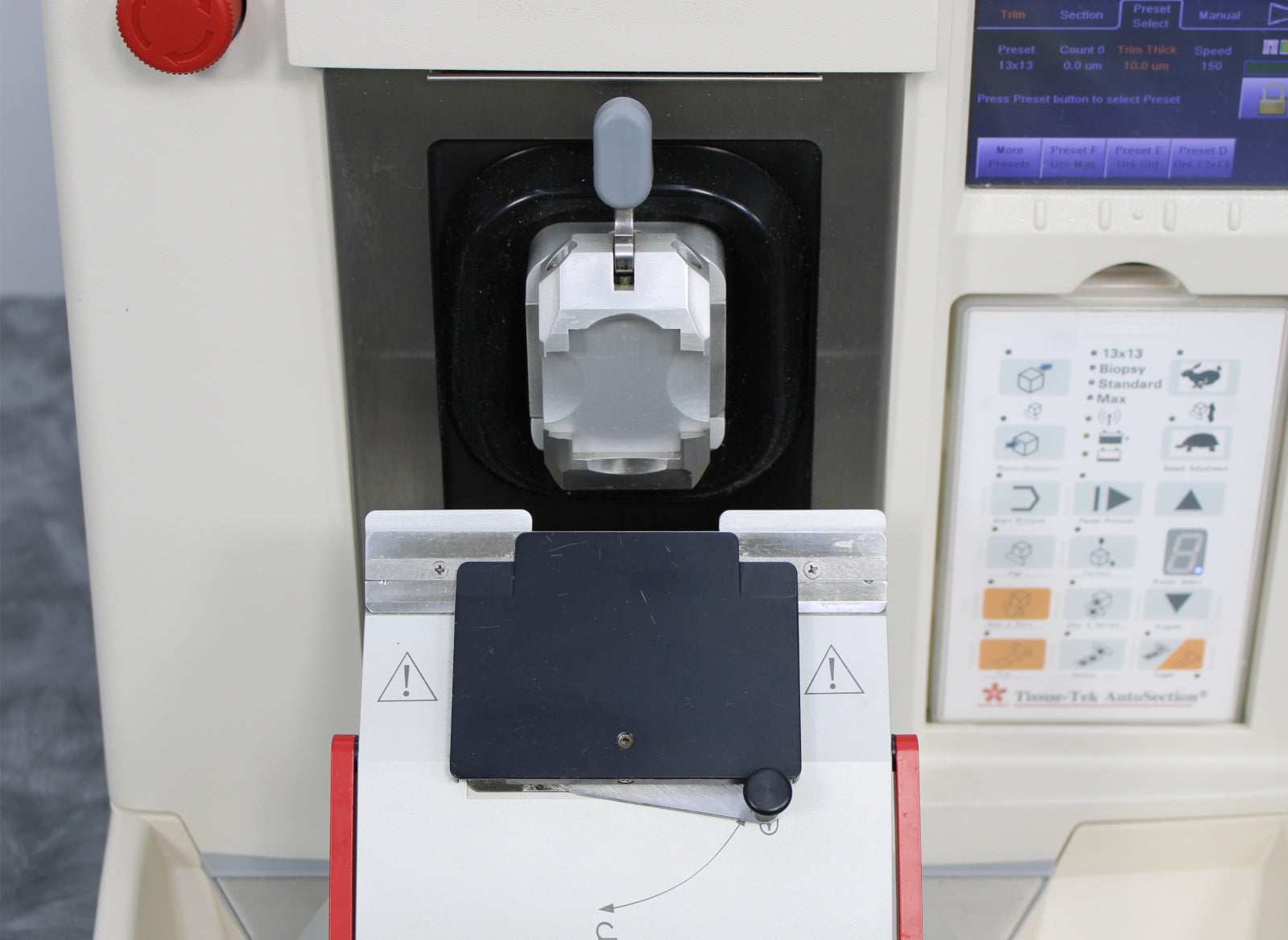

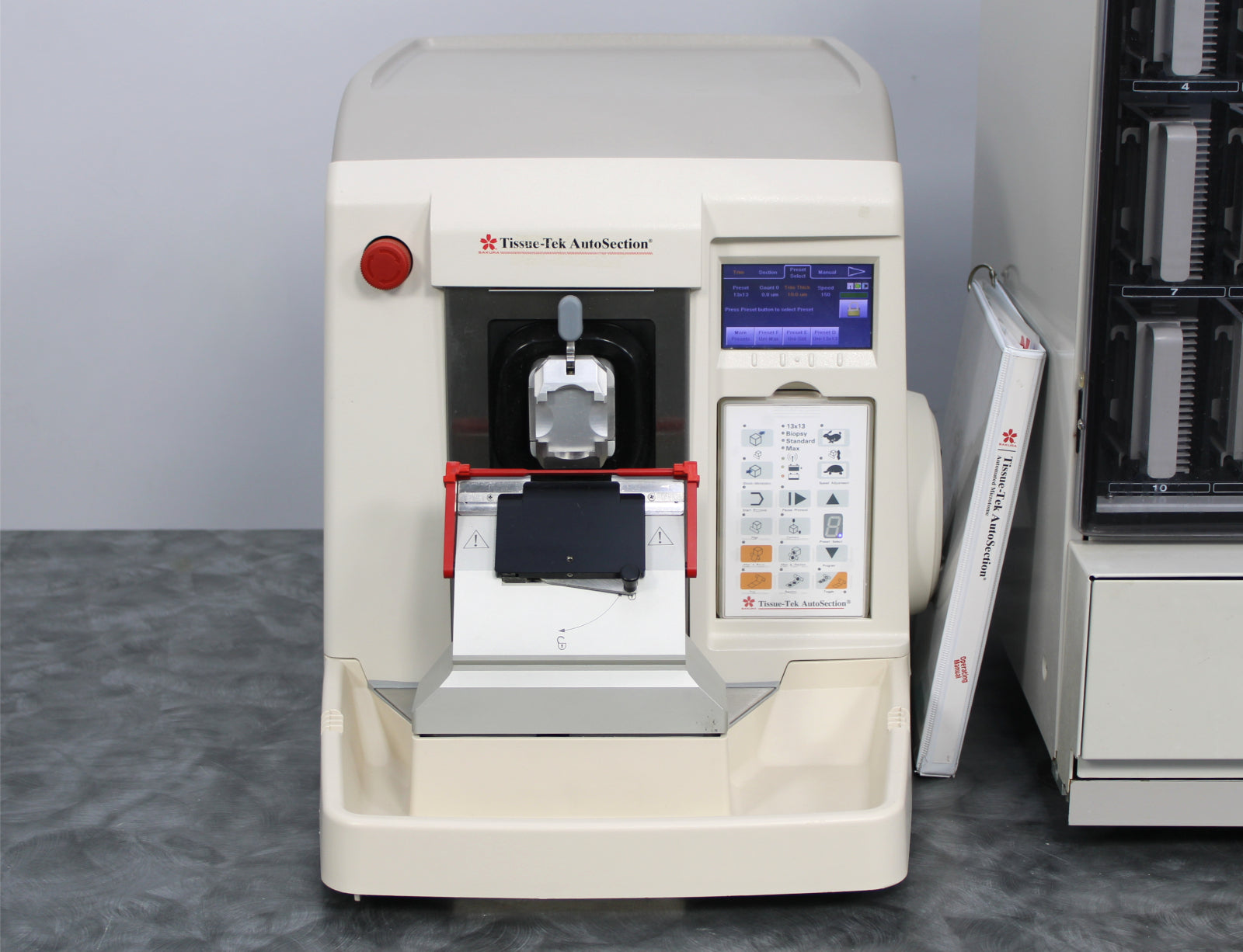

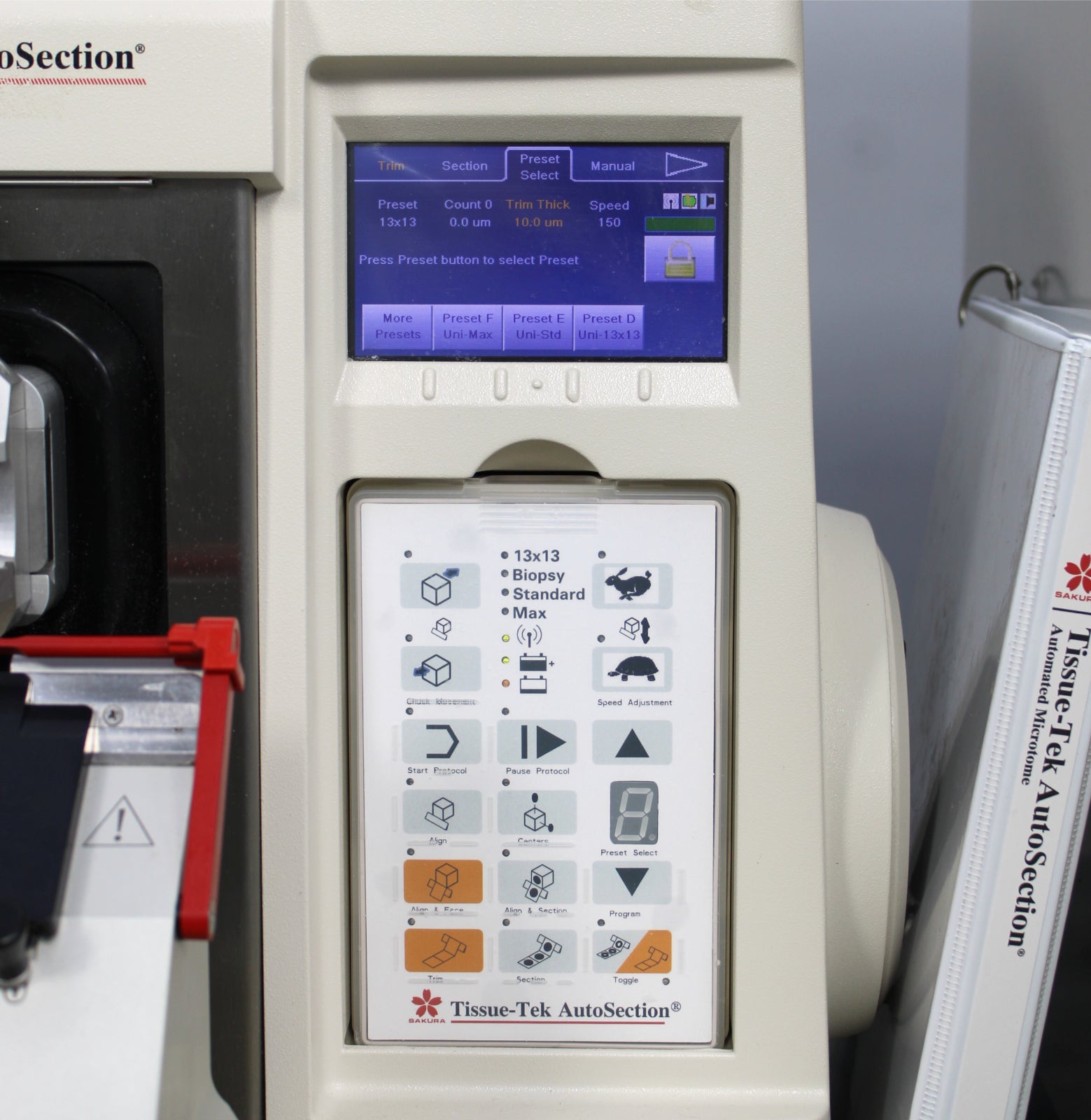

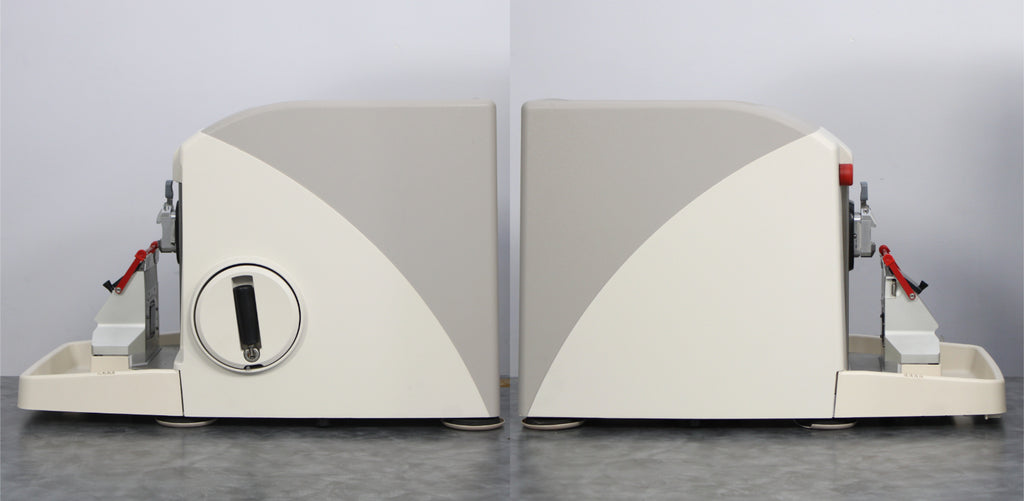

- Sakura Tissue-Tek AutoSection Automated Microtome (5010)

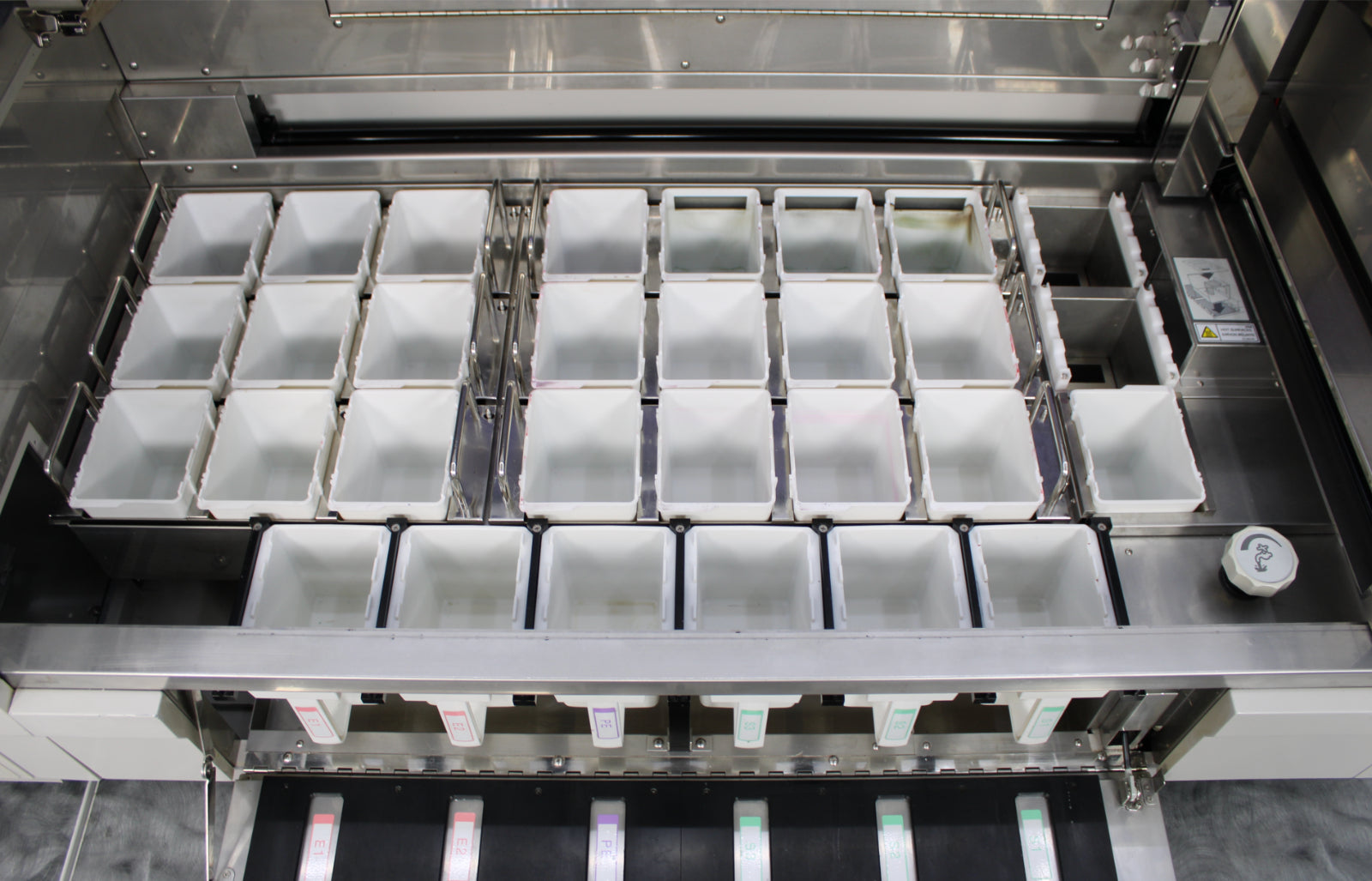

- Vessels and Lids
- Transfer Station with Lid
- Drying Agent Bottles
- Bottle Adapters
- Coverslip Holder
- x9 Slide Holders
- Communication Cable
- Power Cables
- 90-Day Warranty
- Consumables such as slides, coverslips, glue and bottle

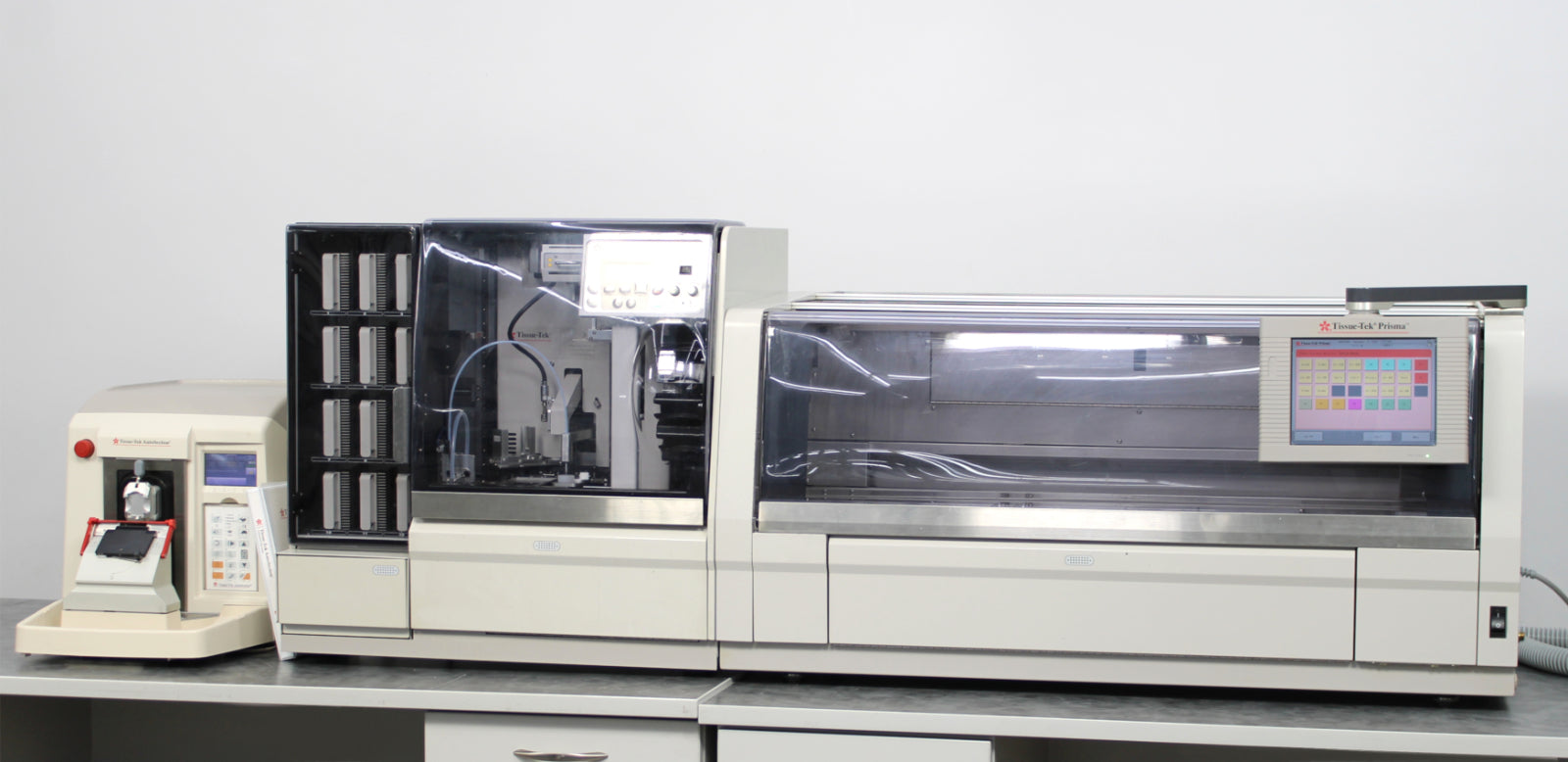

After its initial disinfection and inspection, our technicians tested the Sakura Tissue-Tek automated stainer, coverslipper, and microtome with the following results:
- Ran full test of stainer stations: PASSED
- Ran transfer station: PASSED
- Ran full cycle of Glas coverslipper: PASSED
- Microtome sectioning: PASSED
Notice: This system has some cosmetic blemishes. Please review the available photos to see the cosmetic condition before purchasing.

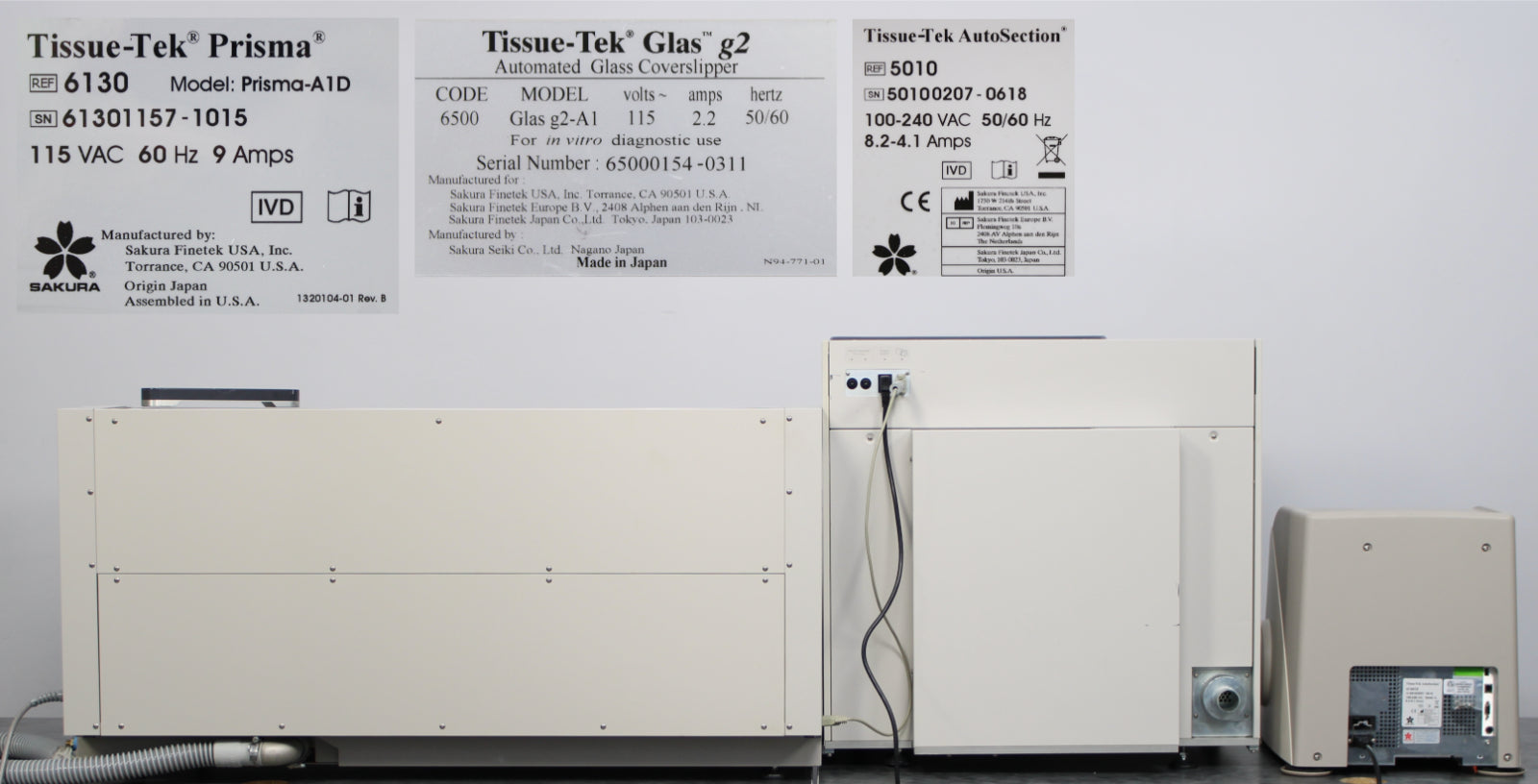

Manufacturer
|
Sakura Finetek
|
Model
|
Prisma-A1D
|
Product code
|
6130
|
Serial No.
|
61301157-1015
|
Mfg. date
|
October 2015
|
Power rating
|
115VAC, 60Hz, 9A
|
Dimensions (W x D x H)
|
49.3 x 28 x 24.8 in (125 x 71.3 x 63 cm)
|
Weight
|
330 lb (150 kg)
|
Manufacturer
|
Sakura Finetek
|
Model
|
Glas g2-A1
|
Product code
|
6500
|
Serial No.
|
65000154-0311
|
Mfg. date
|
March 2011
|
Application
|
Histology, Cytology, Special Staining, Advanced Staining
|
Throughput
|
Up to 400 slides/hour
|
Configuration
|
Benchtop
|
Integrated staining via Link
|
Tissue-Tek Prisma® or Tissue-Tek Prisma® Plus, using the Link Between Tissue-Tek Prisma® and Tissue-Tek® Glas™ g2 (6168)
|
Load capacity
|
3 baskets into the load station
|
Unload capacity
|
12 baskets (240 slides in the unload station)
|
Mounting medium
|
16 oz. xylene-base
|
Fume filtration
|
Activated Carbon Filters on-board Optional external vent connection
|
Slide size
|
1 x 3 inches (25 x 75 mm)
|
Coverslip reusable holders
|
40, 50, 55, or 60 mm
|
Acceptable dimensions of coverslips
|
24 x 40 mm, 24 x 50 mm, 24 x 55 mm, 24 x 60 mm 25 x 40 mm, 25 x 50 mm, 25 x 55 mm, 25 x 60 mm
|
User interface display
|
LCD, 4 lines (20 characters each), 2 LED’s
|
LIS connectivity
|
Optional barcode reader (6508)
|
Operating temperature
|
10 to 40°C (50 to 104°F)
|
Certifications
|
IEC 61010-1 2nd ed., CAN/CSA C22.2 No. 61010-1, UL 61010-1
|
Regulatory status
|
IVD, FDA Class I
|
Power rating
|
115V ± 10%, 50/60Hz, 2.2A, Single phase
|
Dimensions (W x D x H)
|
29.5 x 24.4 x 29.5 in (75 x 62 x 75 cm)
|
Weight
|
242 lb (110 kg), without reagents
|
Manufacturer
|
Sakura Finetek
|
Model
|
Tissue-Tek AutoSection
|
Product code
|
5010
|
Serial No.
|
50100207-0618
|
Mfg. date
|
June 2018
|
Section thickness
|
0.5 - 100 microns
|
Trimming thickness
|
1 - 200 microns
|
Retraction distance
|
No retraction, 20-100 microns
|
Sectioning speed
|
10 - 450 mm/second
|
Trimming speed
|
10 - 450 mm/second
|
Return speed
|
10 - 450 mm/second
|
Typical vertical stroke
|
5.2 inches (132 mm)
|
Typical horizontal stroke
|
0.37 inches (9.4 mm)
|
Number of presets
|
Up to 15 different presets
|
Number of program steps
|
Up to 16 steps
|
Number of user preferences
|
Up to 32 different preferences
|
3D Chuck/Specimen holder
|
Vertical and horizontal axes adjustment range ±4°
|
3D Chuck/Specimen holder angle resolution
|
0.05°
|
Blade angle
|
Fixed
|
Alignment to the blade edge
|
±0.05°
|
Alignment distance to the blade
|
+/-10 microns
|
User interface display
|

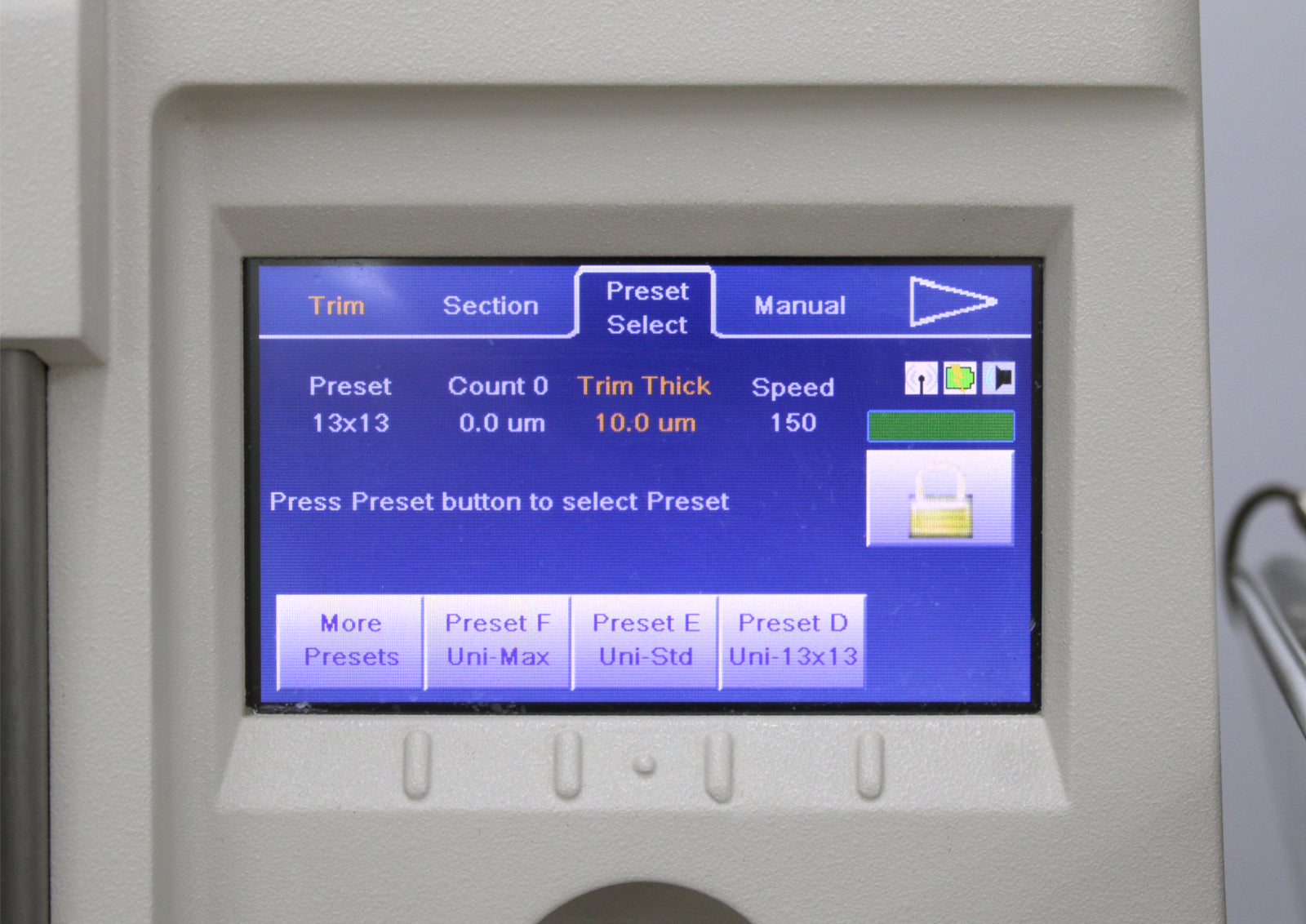

4.3” color LCD touchscreen with 480 x 272 pixels
|
Remote
|
Bluetooth wireless remote
|
Data interface
|
USB 2.0
|
Certifications
|
UL 61010-1, CAN/CSA C22.2 #61010-1, CAN/CSA C22.2 #61010-2-101, IEC 61010-1:2001, IEC61010-2-101, EMC
|
Regulatory status
|
IVD, FDA Class I
|
Power rating
|
100-240VAC, 50/60Hz, 8.2-4.1A
|
Dimensions (W x D x H)
|
16.5 x 26.4 x 17.4 in (42 x 67 x 44 cm)
|
Weight
|
121 lb (55 kg)
|
