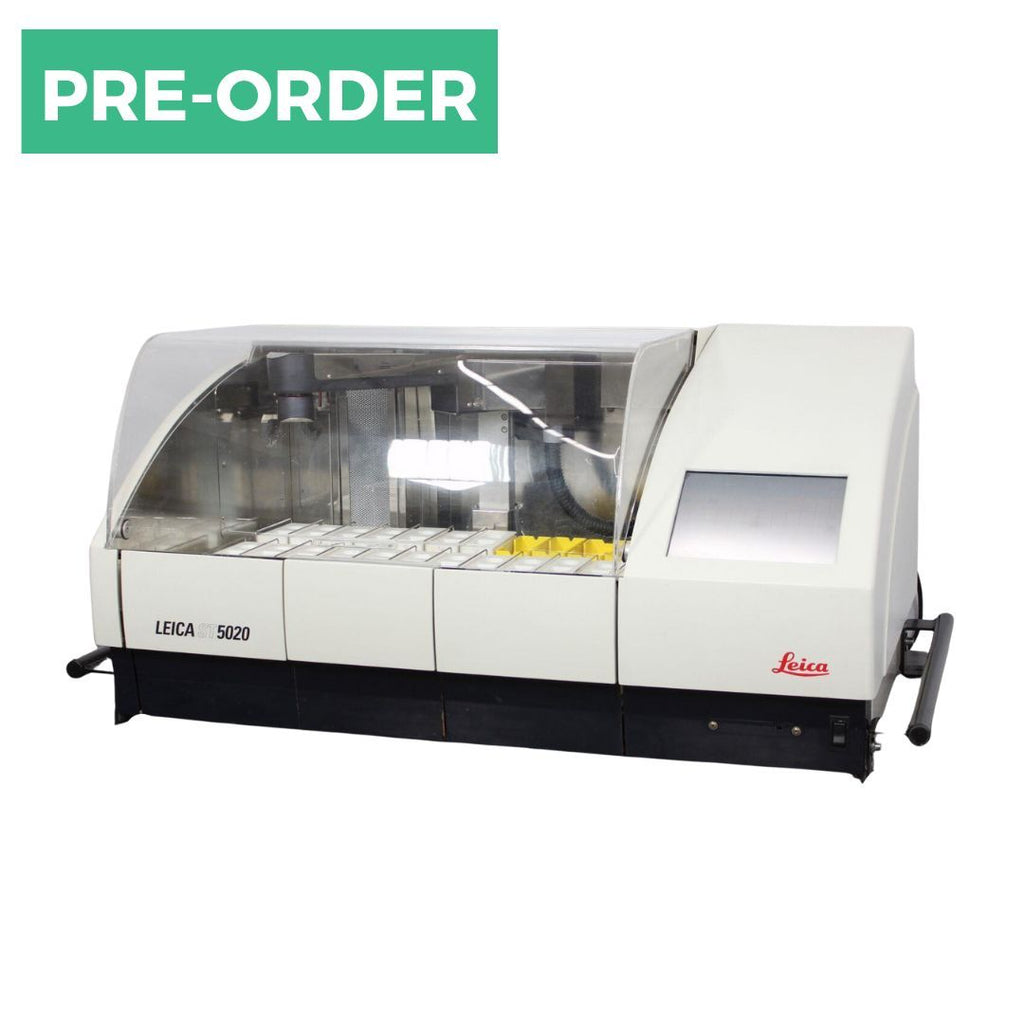

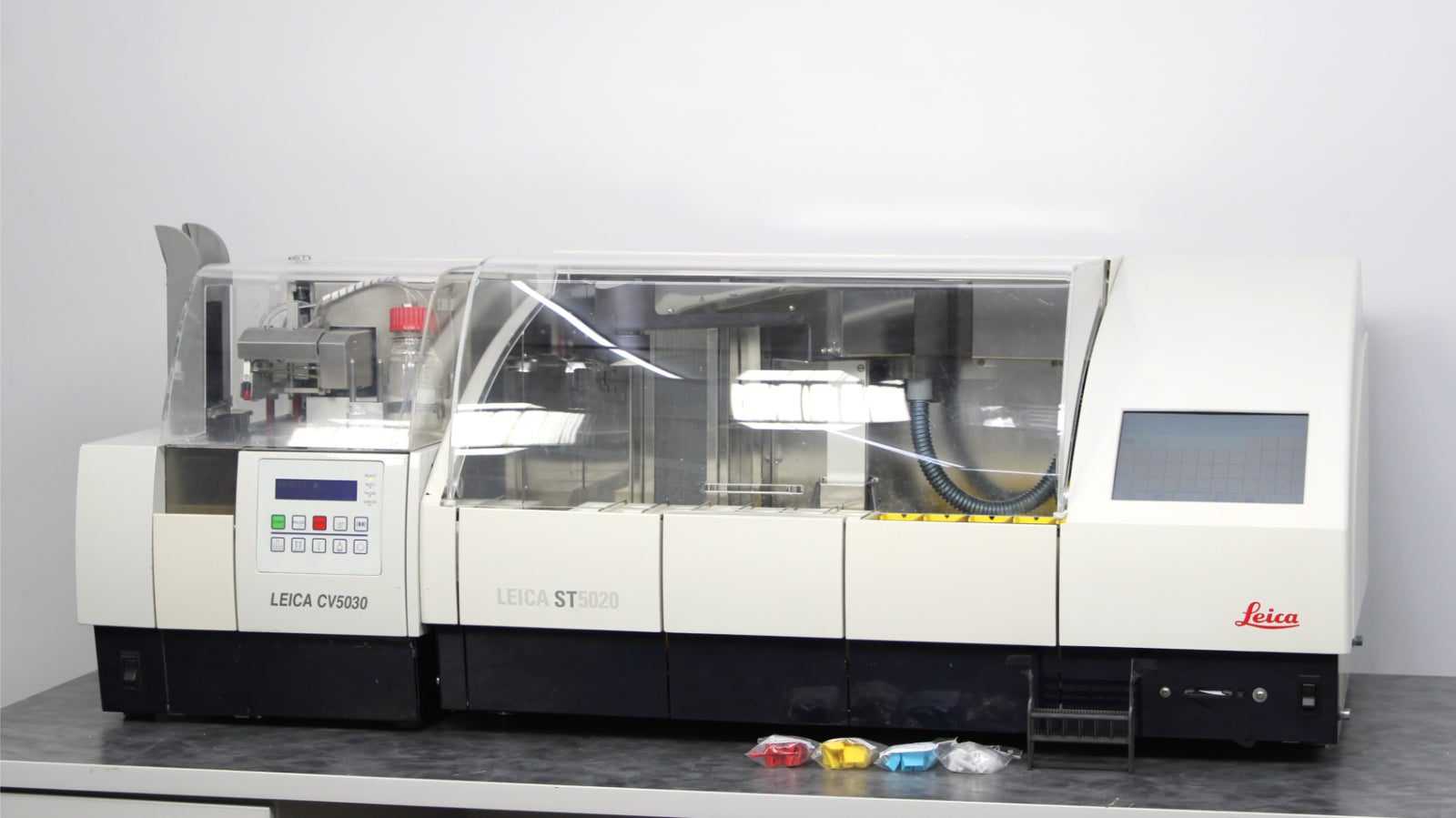

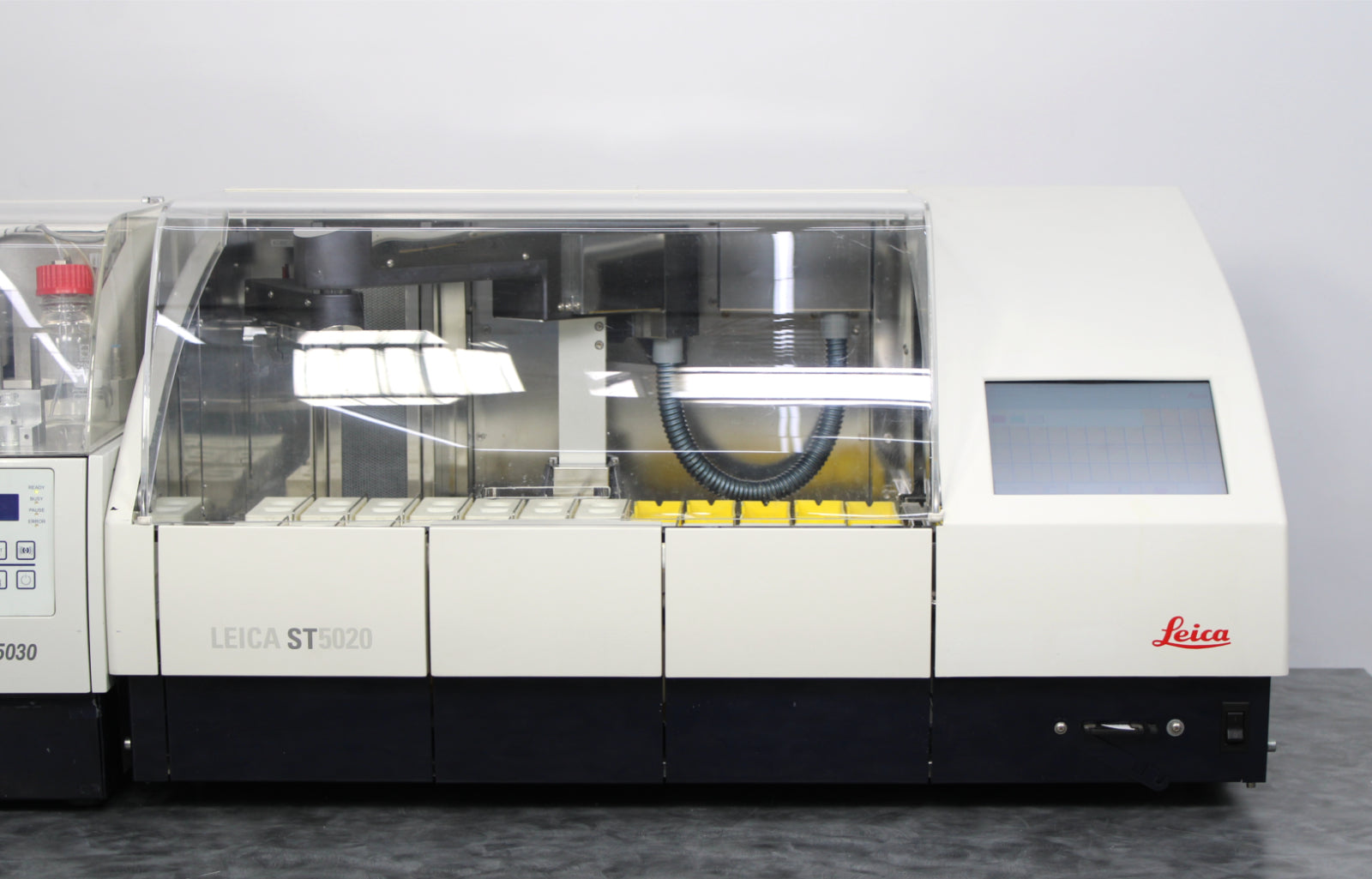

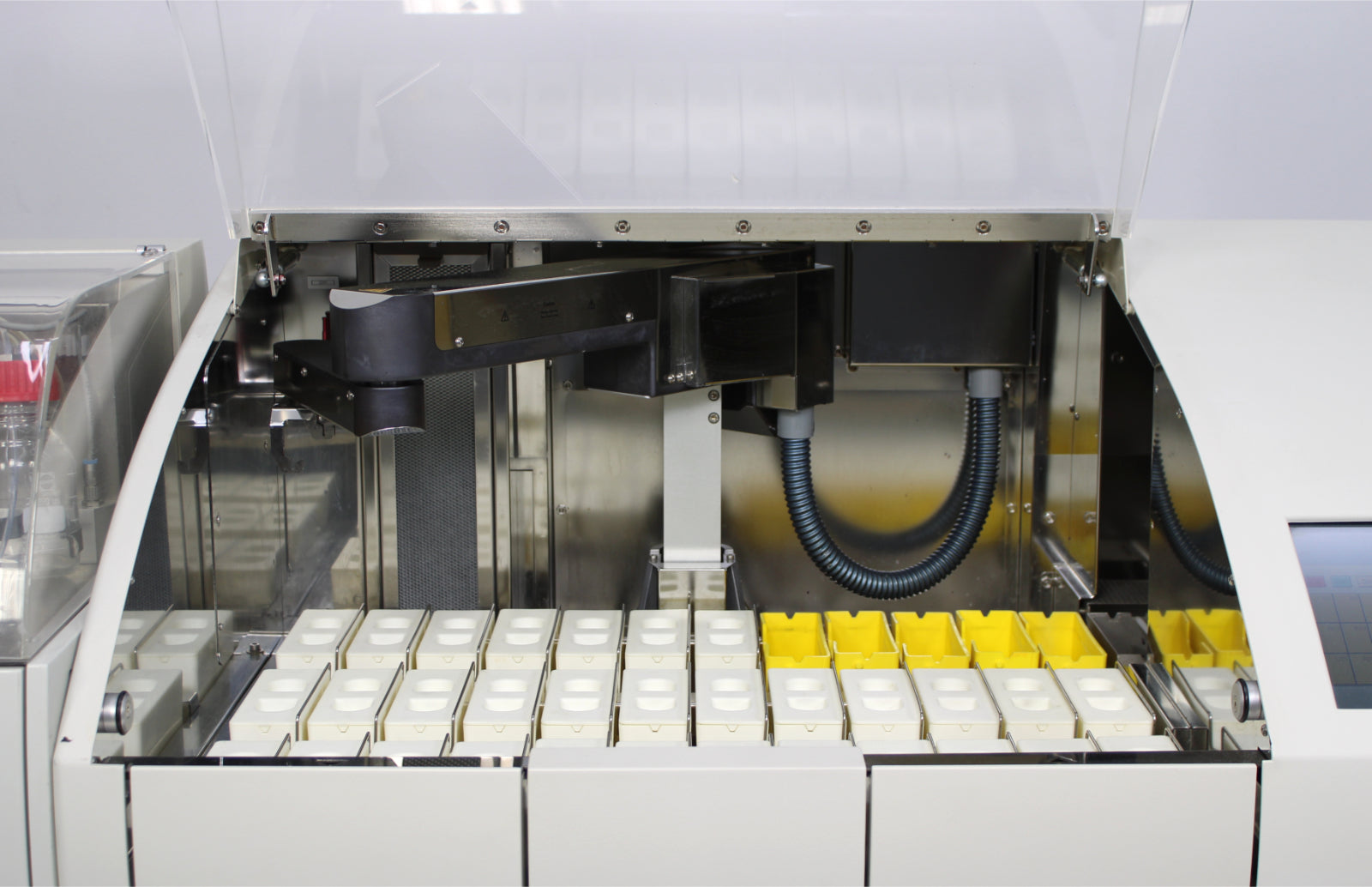

- Leica ST5020 Automated Slide Stainer with Oven Option (14047533623)

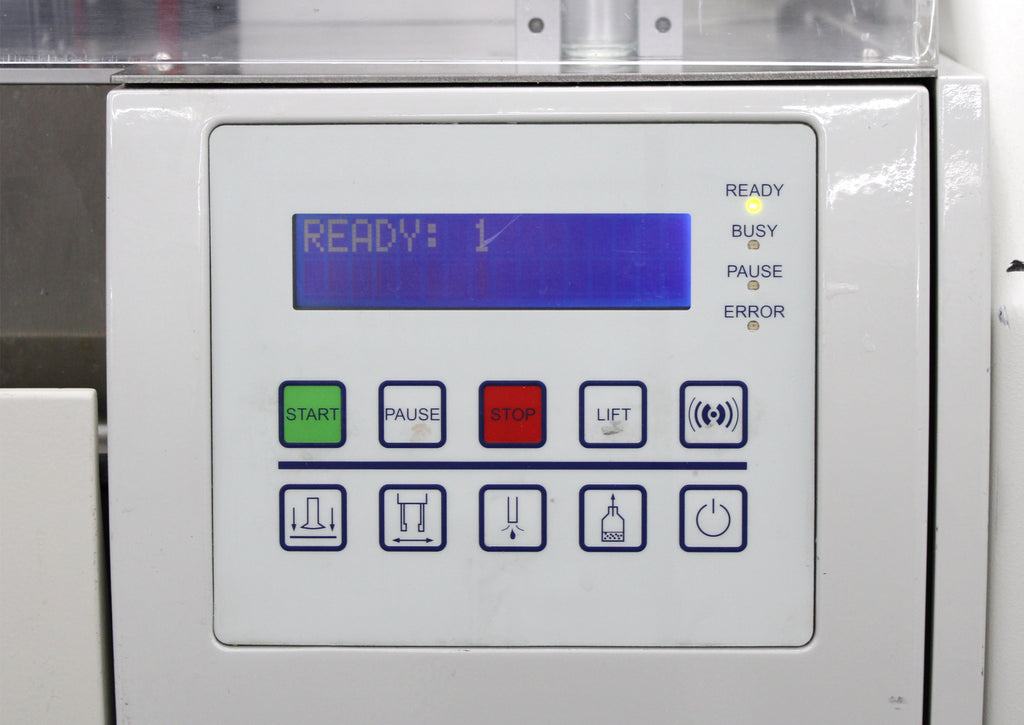

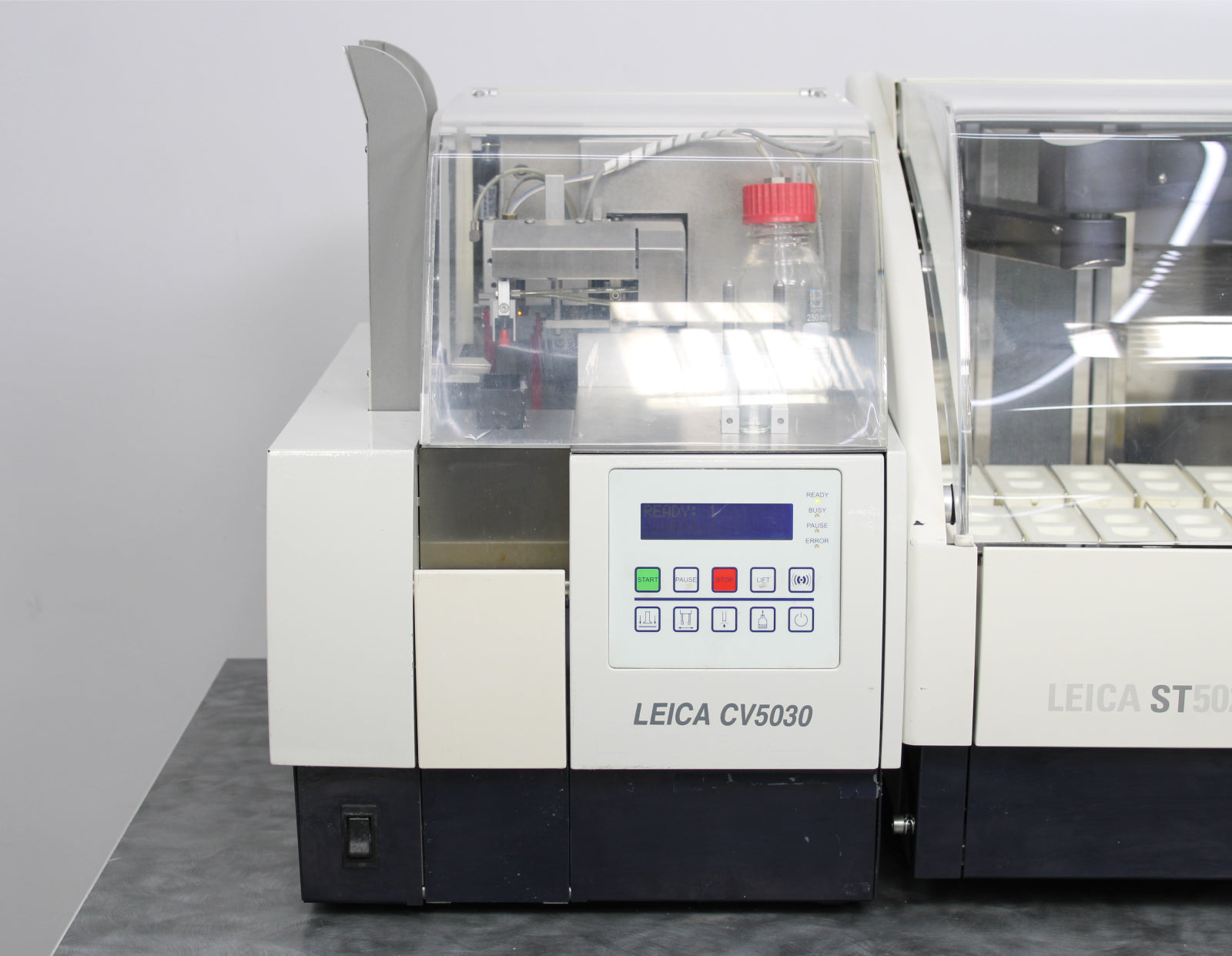

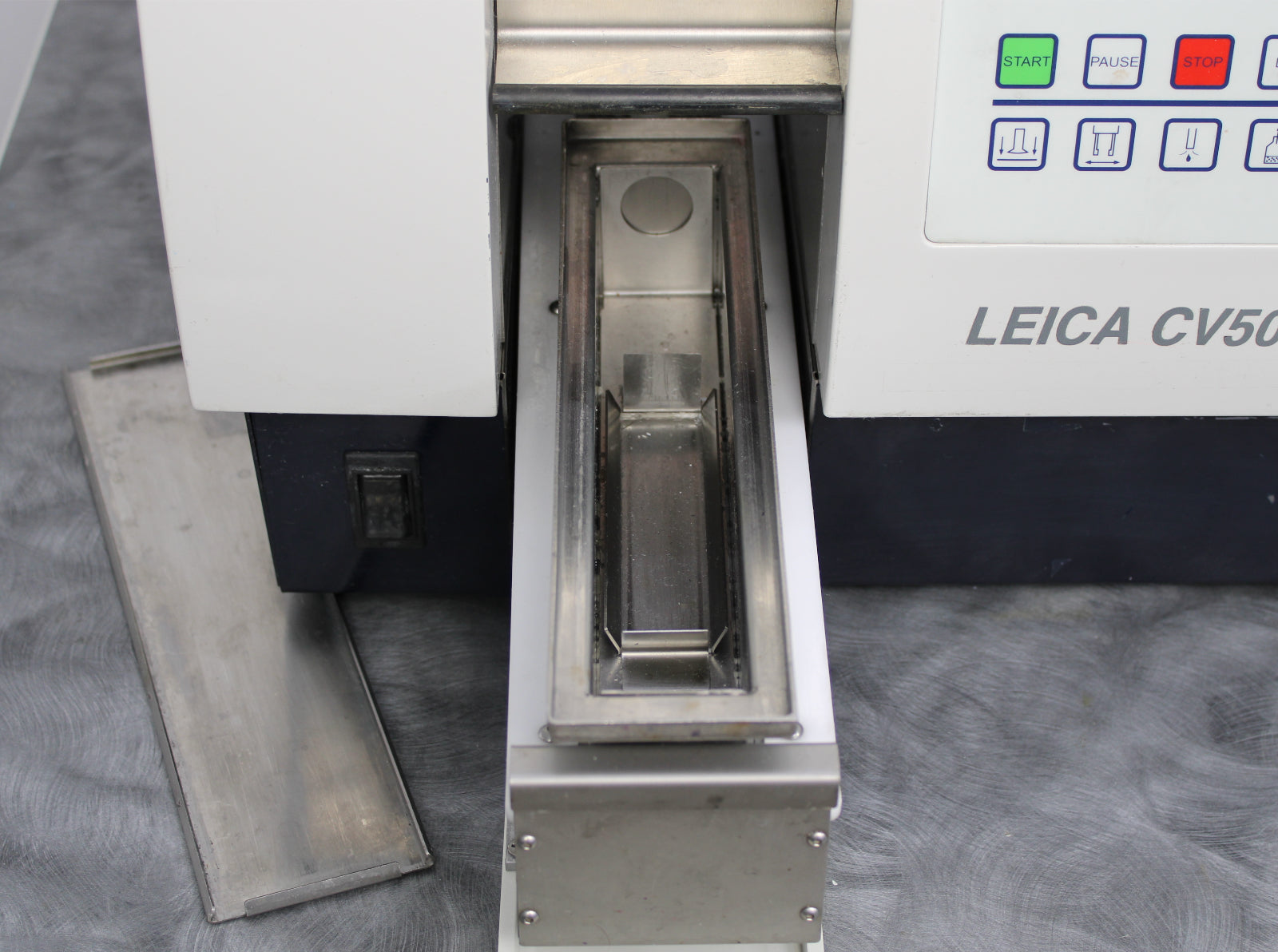

- Leica CV5030 Automated Glass Coverslipper (047839700)

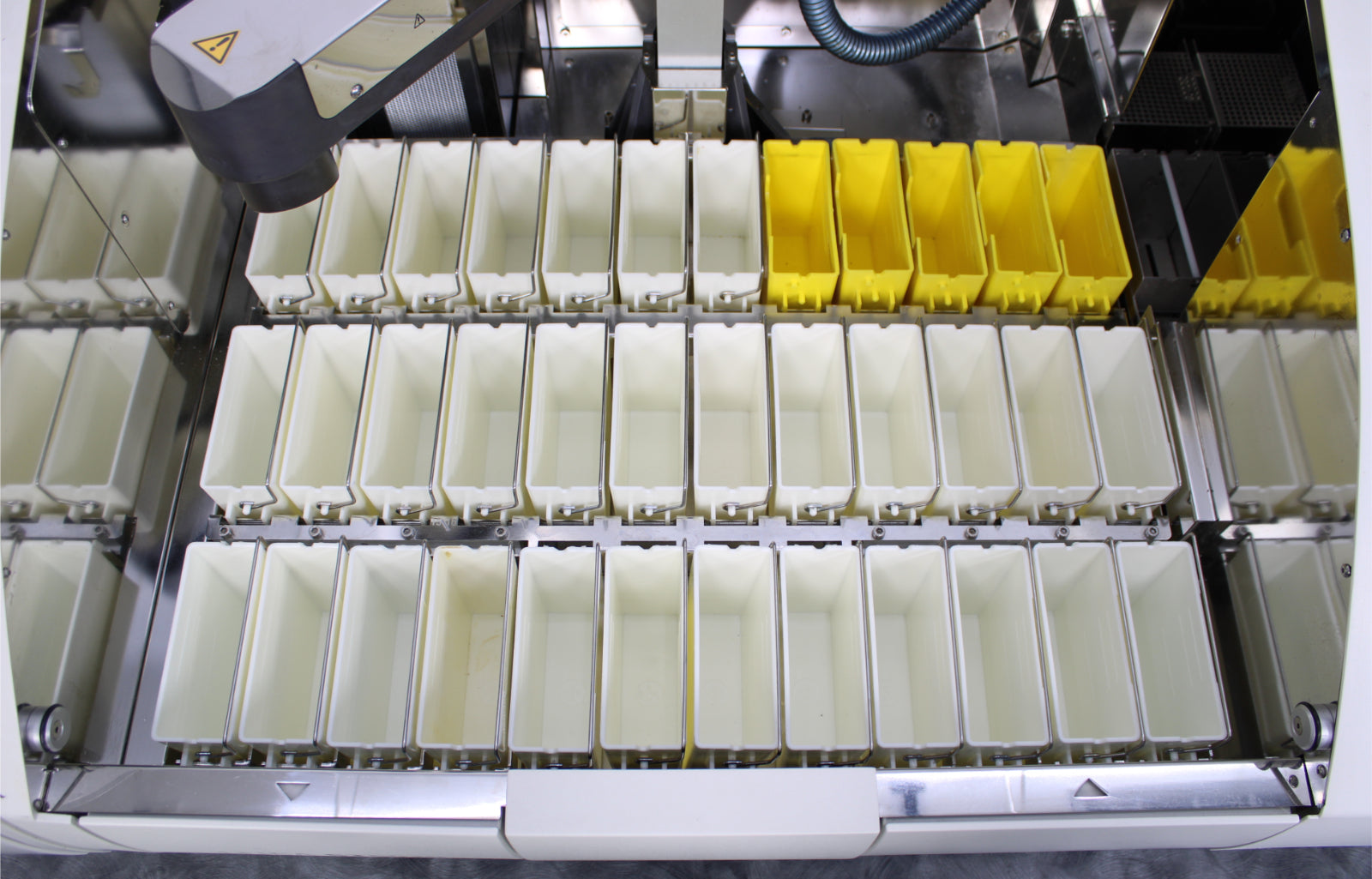

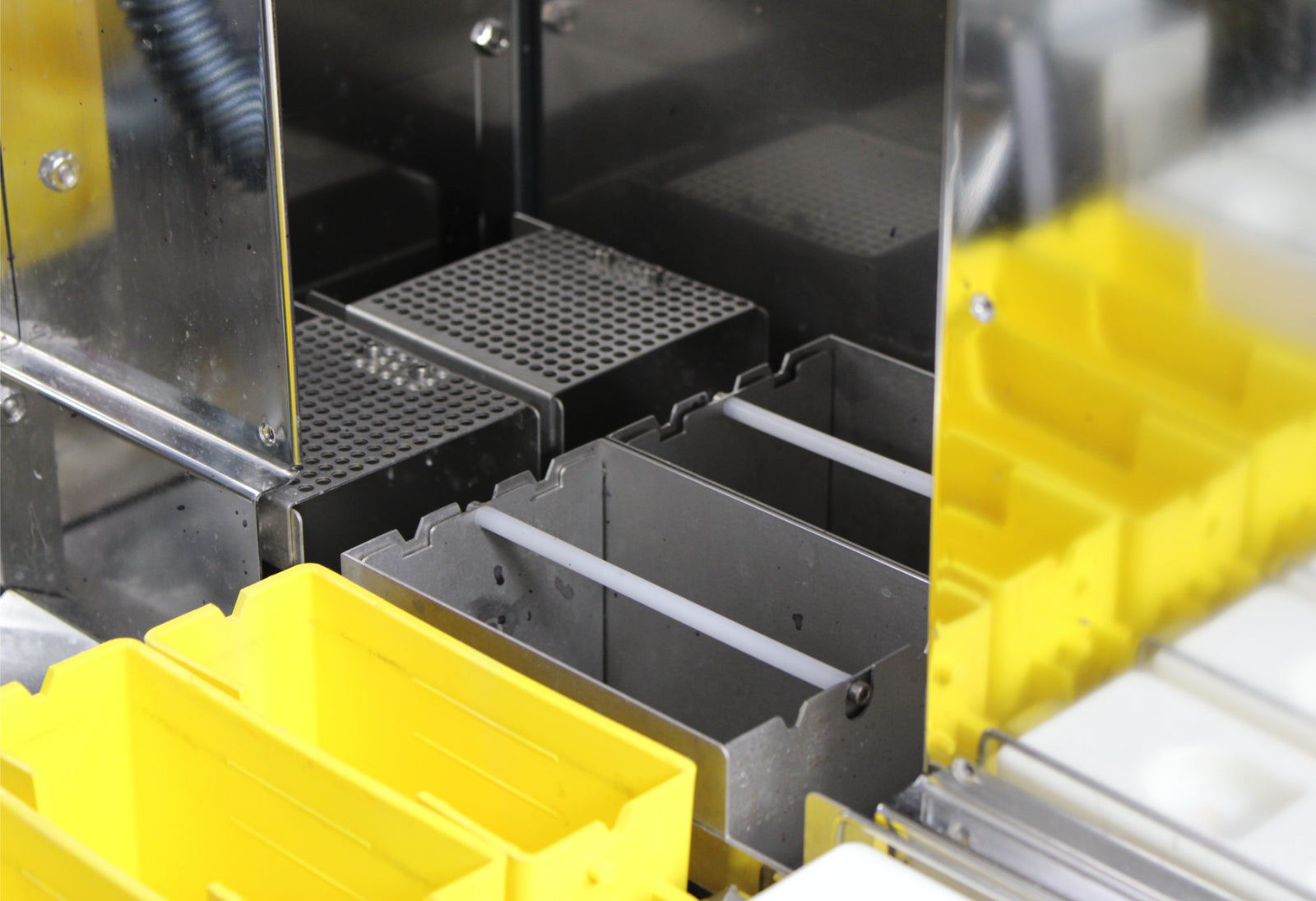

- x31 Reagent Stations

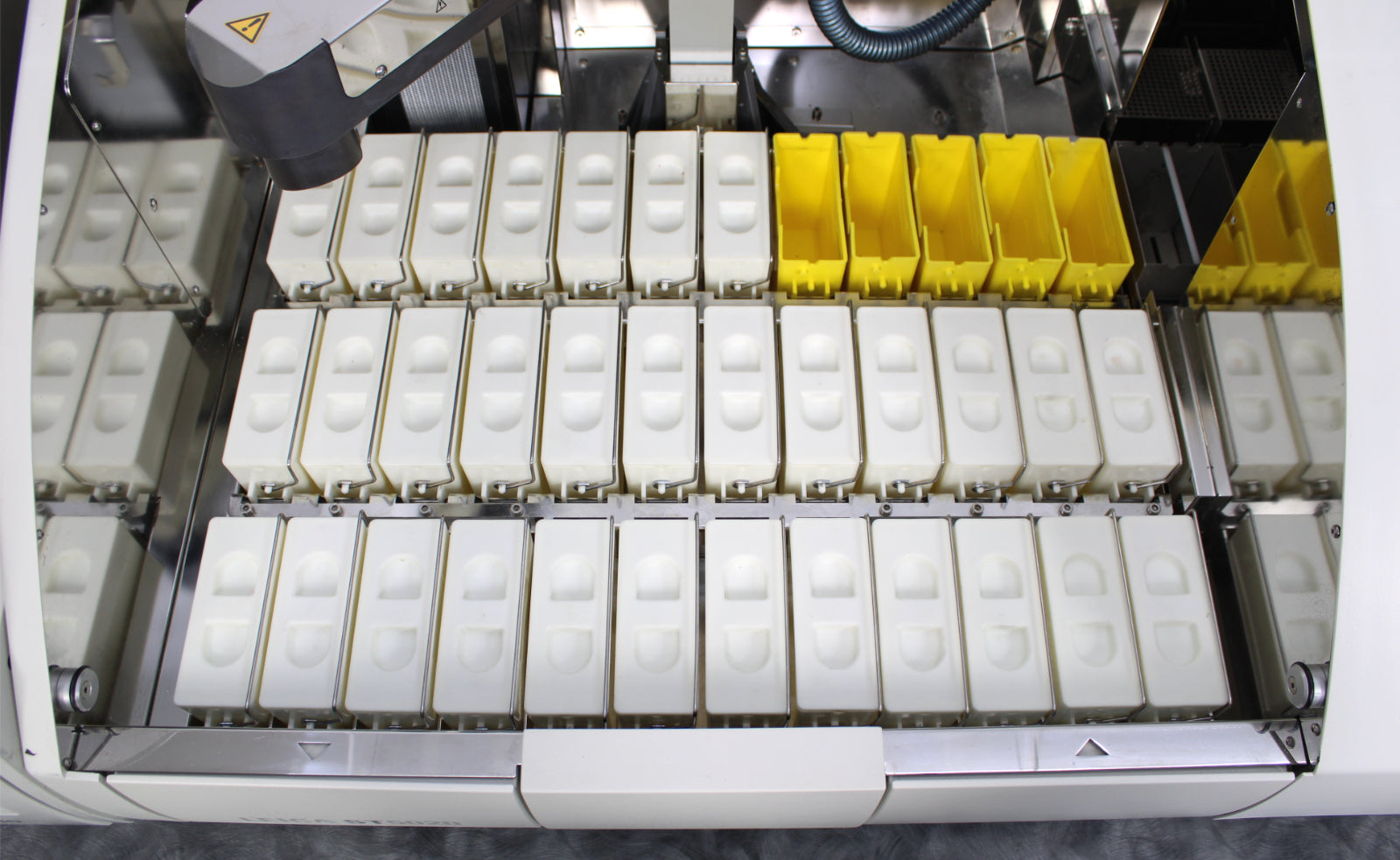

- x31 Reagent Station Lids
- x5 Rinse Stations

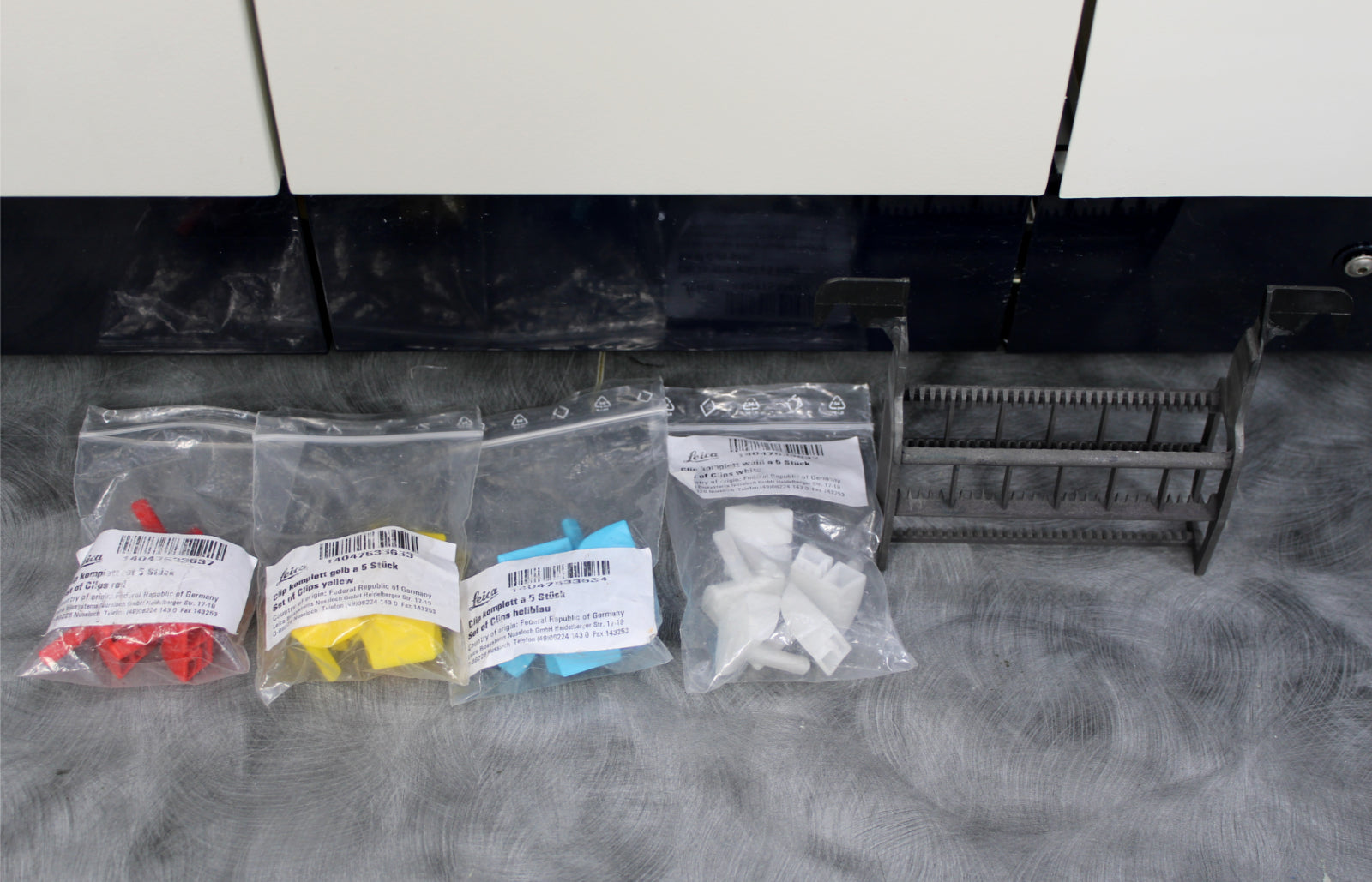

- Slide Rack
- x20 Color Coded Clips (5 light blue, 5 white, 5 yellow, 5 red)

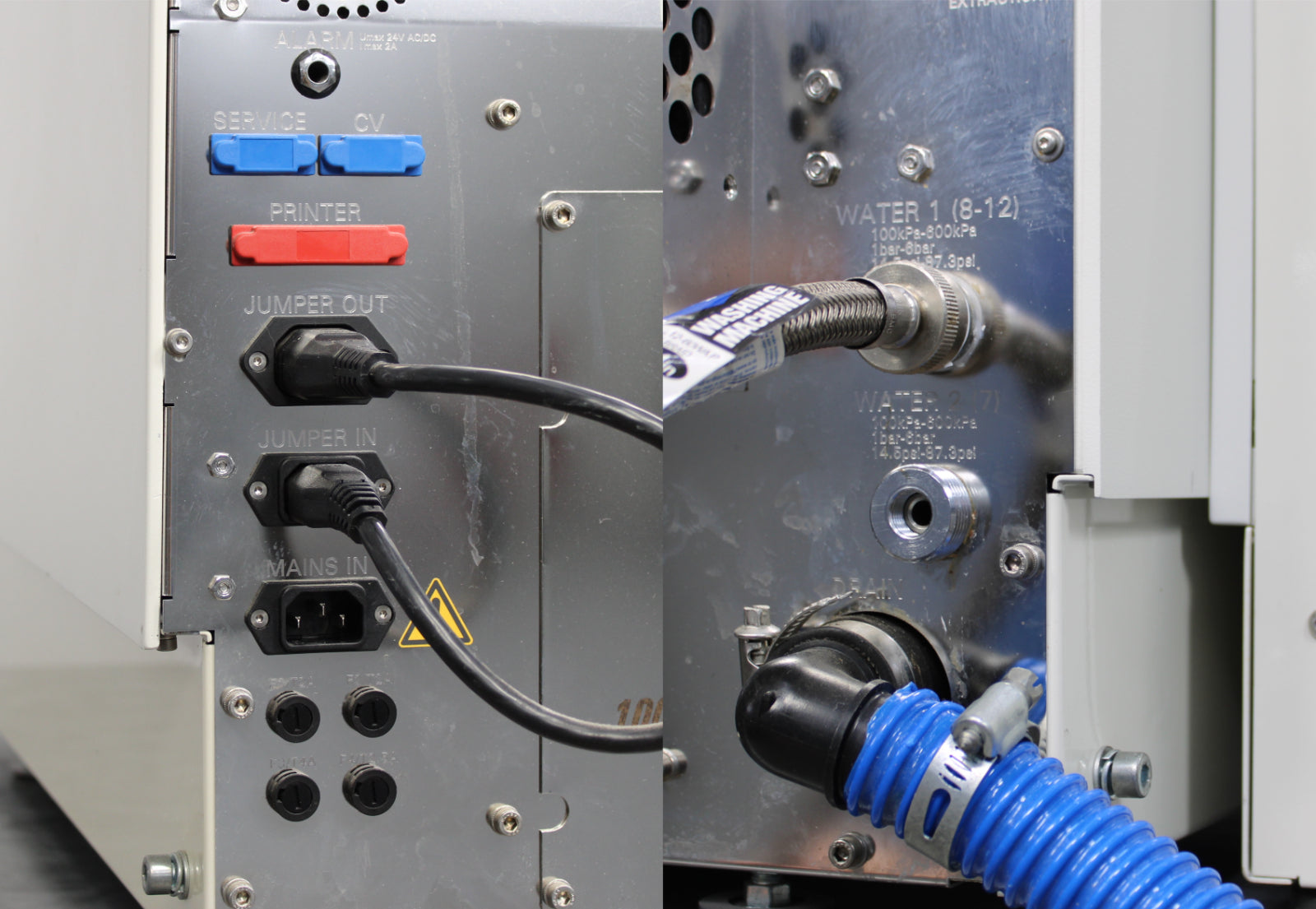

- Ventilation Hose
- Water Hose
- Power Cables
- 90-Day Warranty
Notice: Does not include a transfer station. The transfer must be done manually from the stainer to the coverslipper.
After its initial disinfection and inspection, our technicians tested the Leica ST5020 automated slide stainer and coverslipper with the following results:
- Ran autostainer program: PASSED
- Coverslipper identifies slide positioning: PASSED

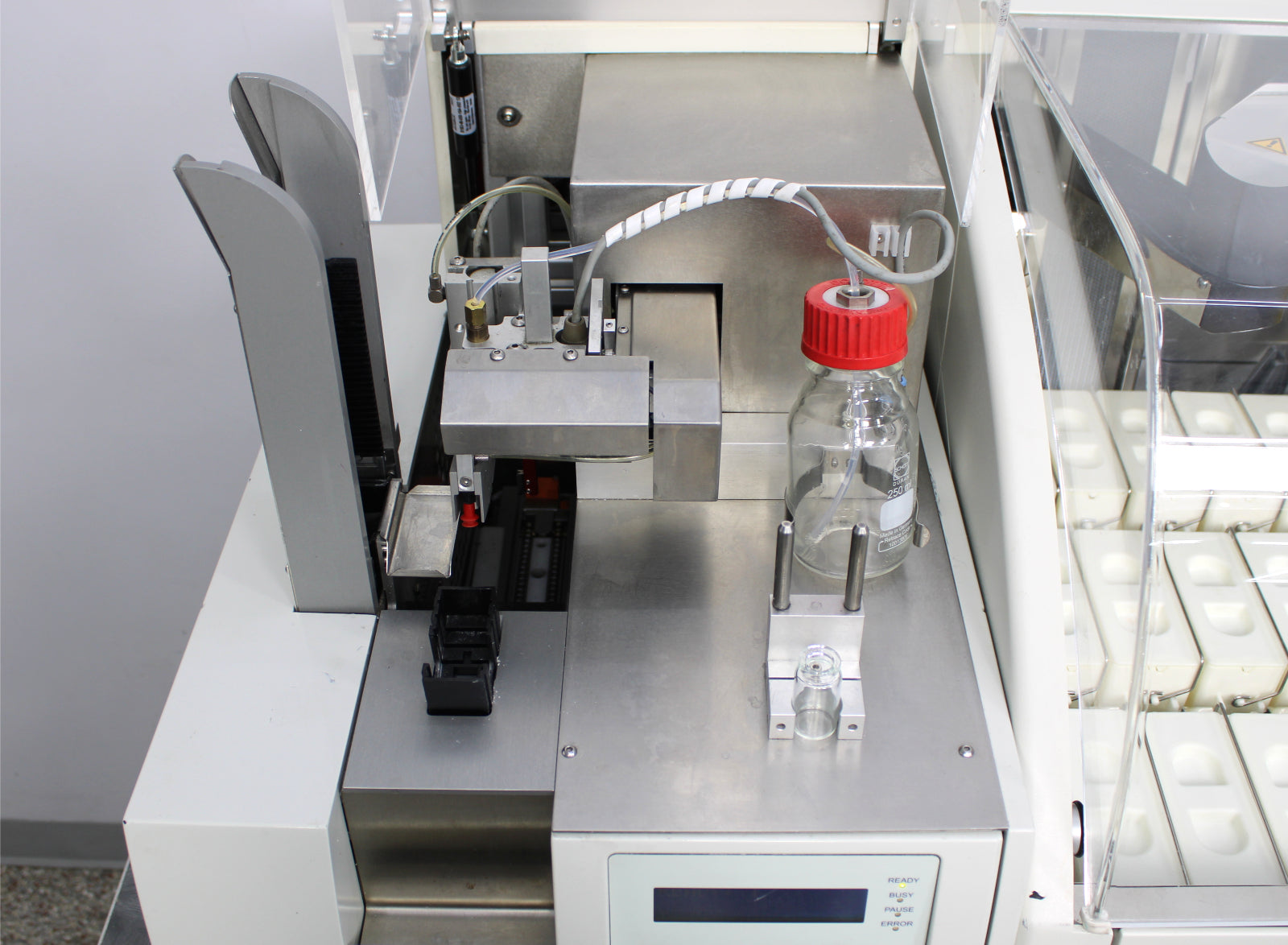

- Coverslipper slide pickup, dispense fluid, and slip placement: PASSED
- Moved basket to output position: PASSED
- Replaced autostainer filter.
- Replaced coverslipper filter.
- Flushed coverslipper lines.

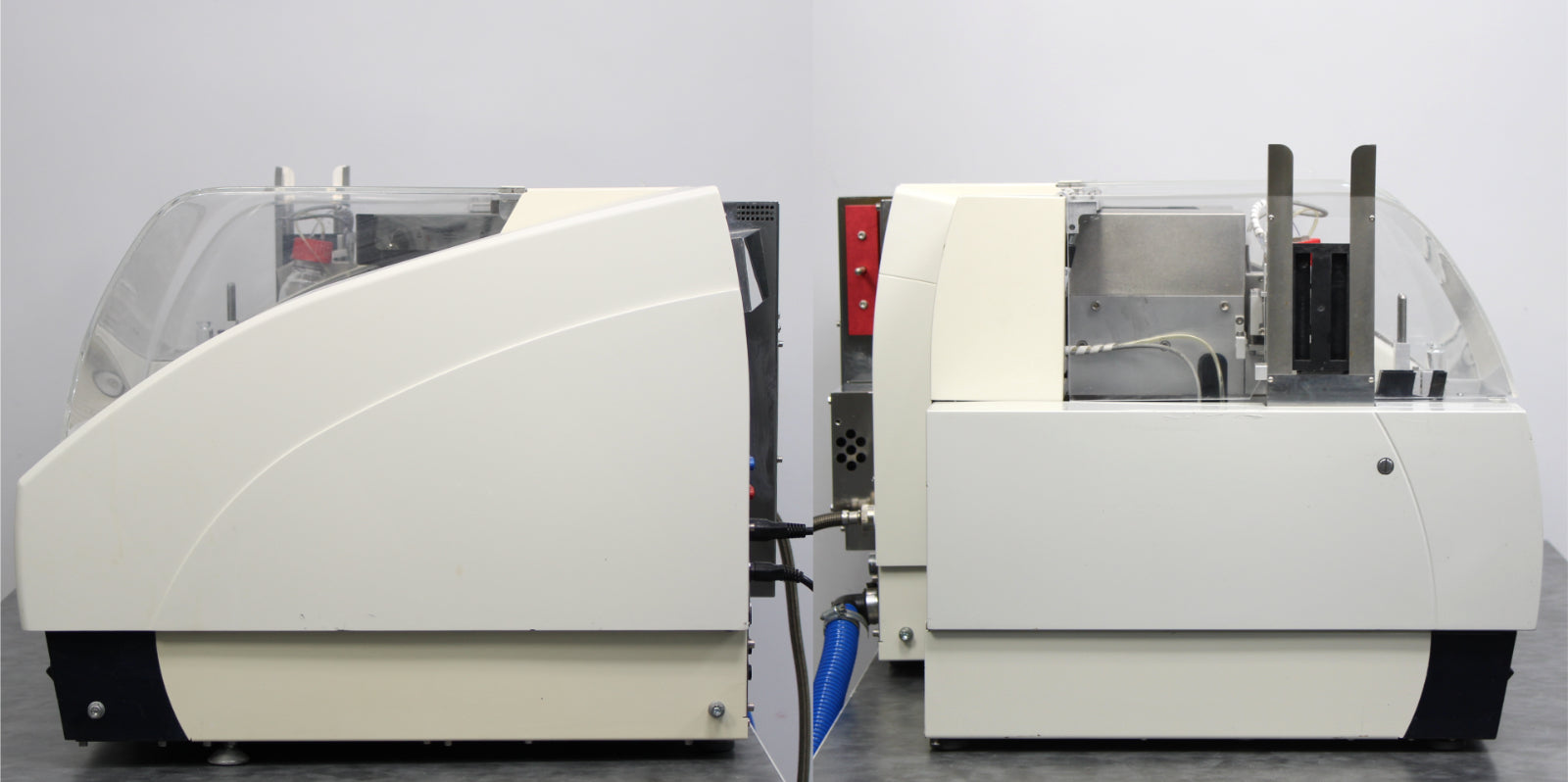

Notice: This automated slide stainer system has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Leica
|
|
Model
|
ST5020
|
|

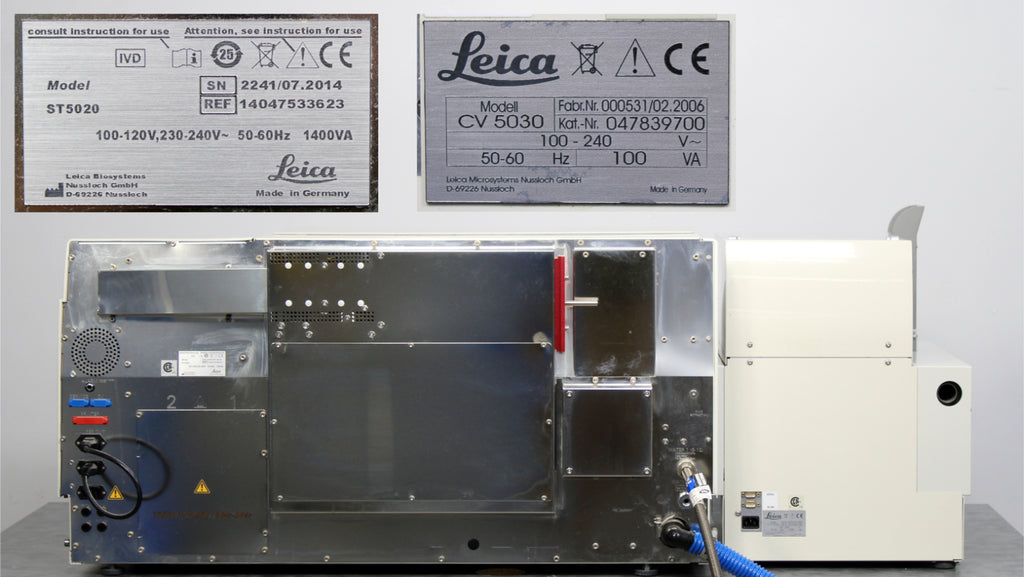

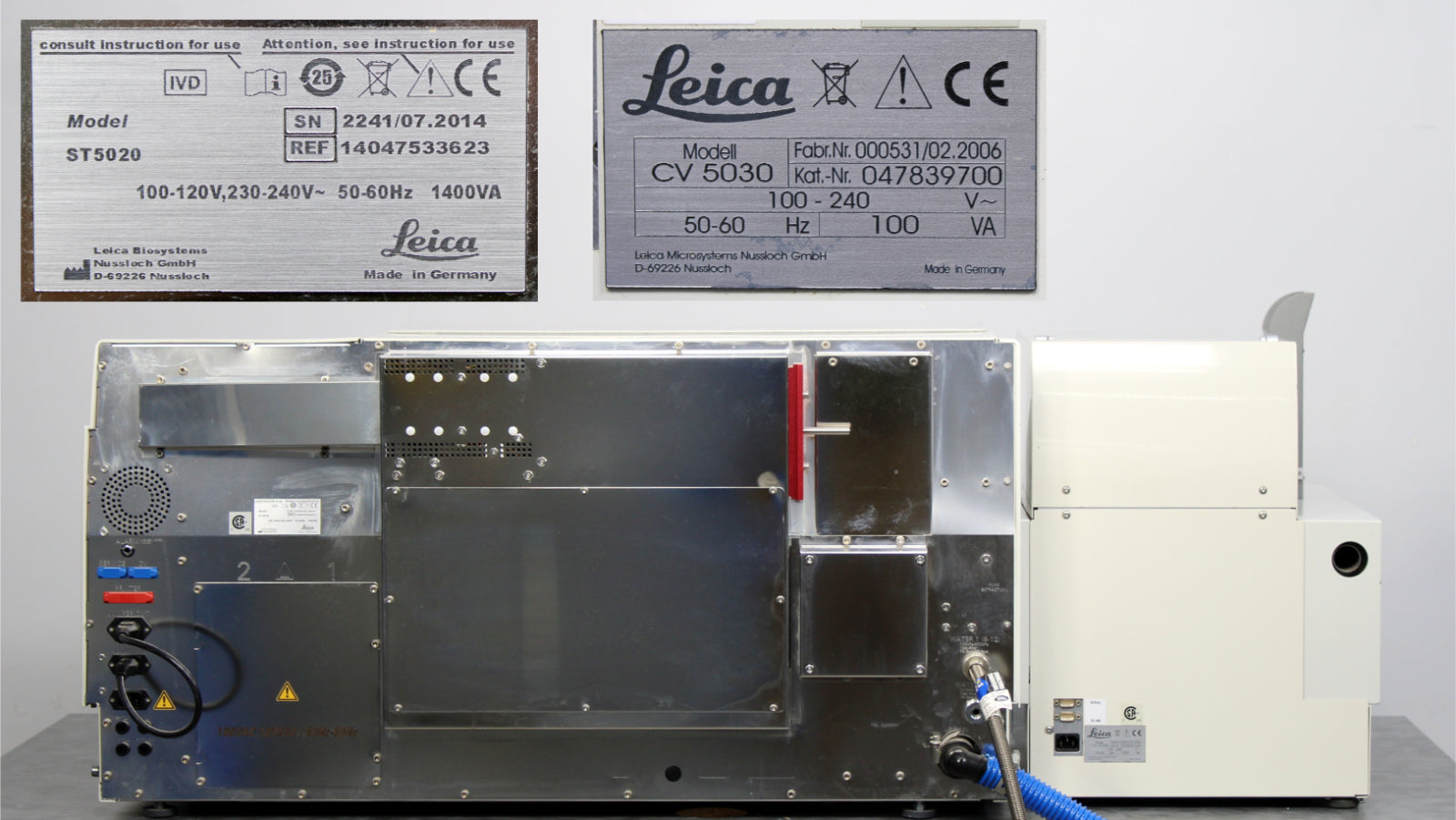

Cat. No.
|
14047533623
|
|
Serial No.
|
2241/07.2014
|
|
Mfg. date
|
07.2014
|
|
Sample types
|
Histology and cytology specimens
|
|
Throughput
|
Up to 12 racks in parallel (depending on protocol, loading schedule and instrument set-up)
|
|
Power rating
|
100-120/230-240V~, 50-60Hz
|
|
Power consumption
|
1400VA
|
|
Dimensions (W x D x H)
|
41 x 29 x 21.5 in
|
|
Weight
|
198.5 lb (90 kg)
|
|
Manufacturer
|
Leica
|
|
Model
|
CV5030
|
|
Cat. No.
|
047839700
|
|
Serial No.
|
000531/02.2006
|
|
Mfg. date
|
02.2006
|
|
Slide Throughput
|
1 slide in 9 seconds
|
|
Volume Mounting Media Bottle
|
250 mL
|
|
Maximum Filling Volume
|
200 mL
|
|
Relative Humidity
|
max 80%, non-condensing
|
|
Power rating
|
100-240V~, 50-60 Hz
|
|
Power consumption
|
100VA
|
|
Dimensions (W x D x H)
|
16.5 x 23 x 23 in
|
