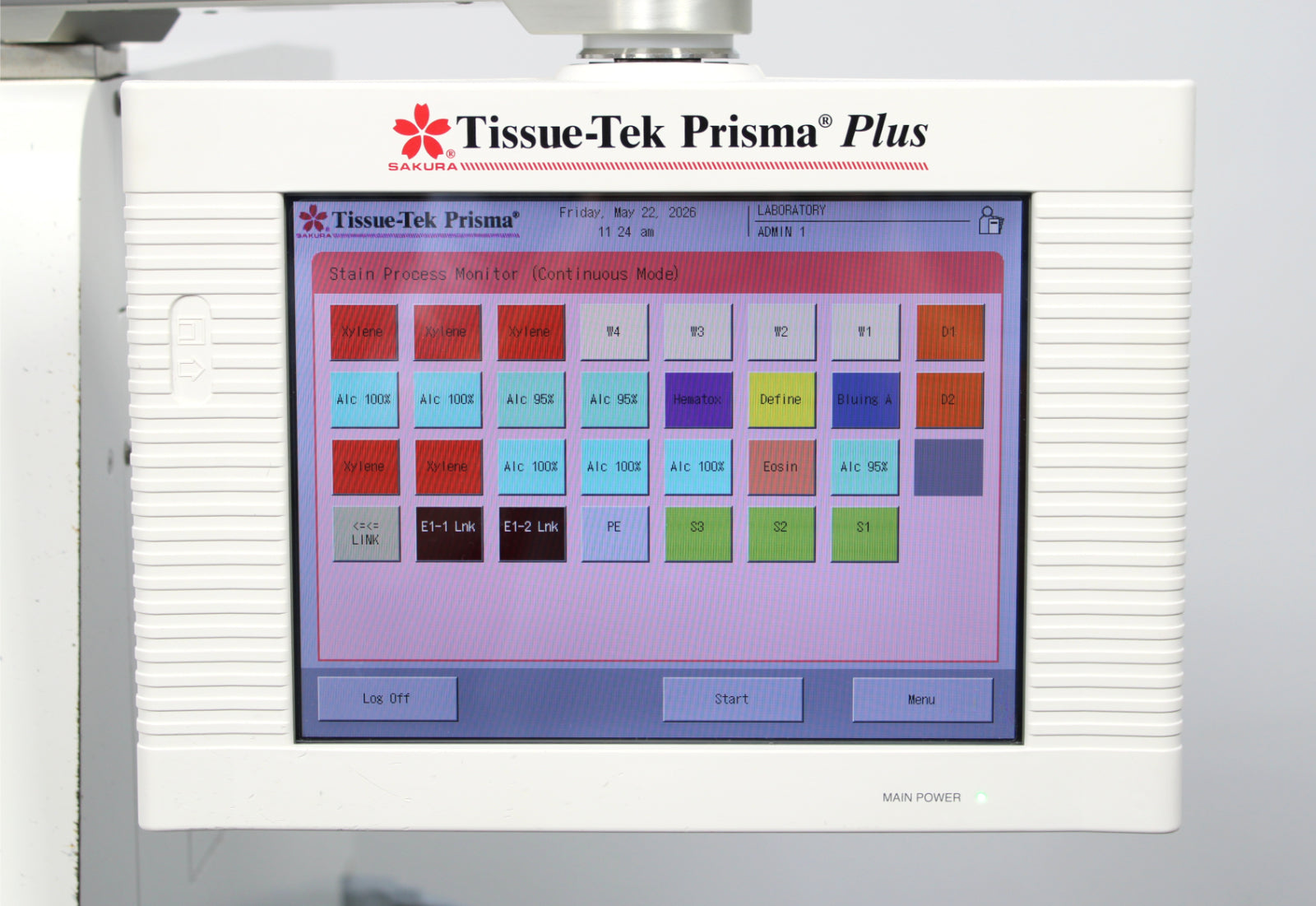

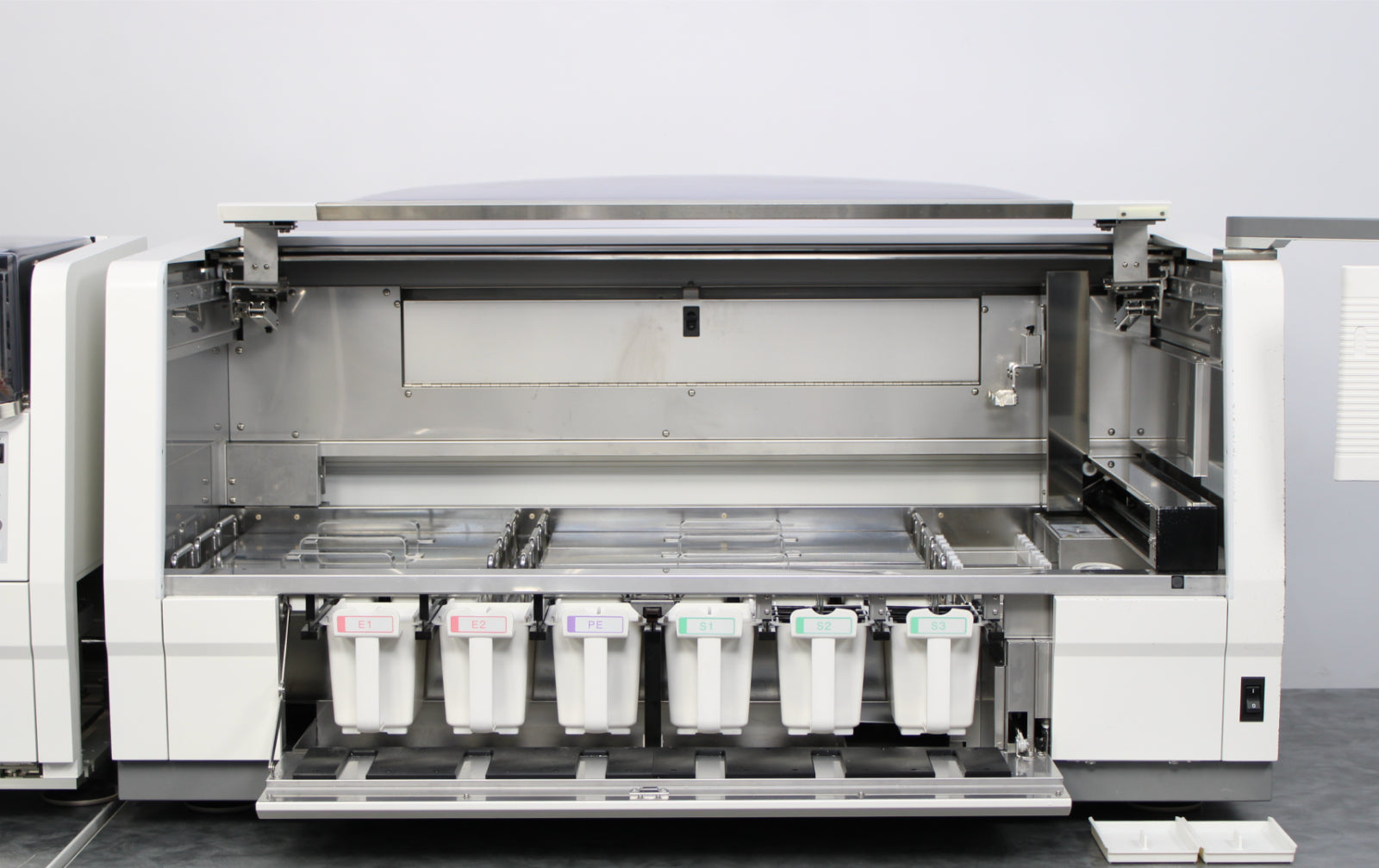

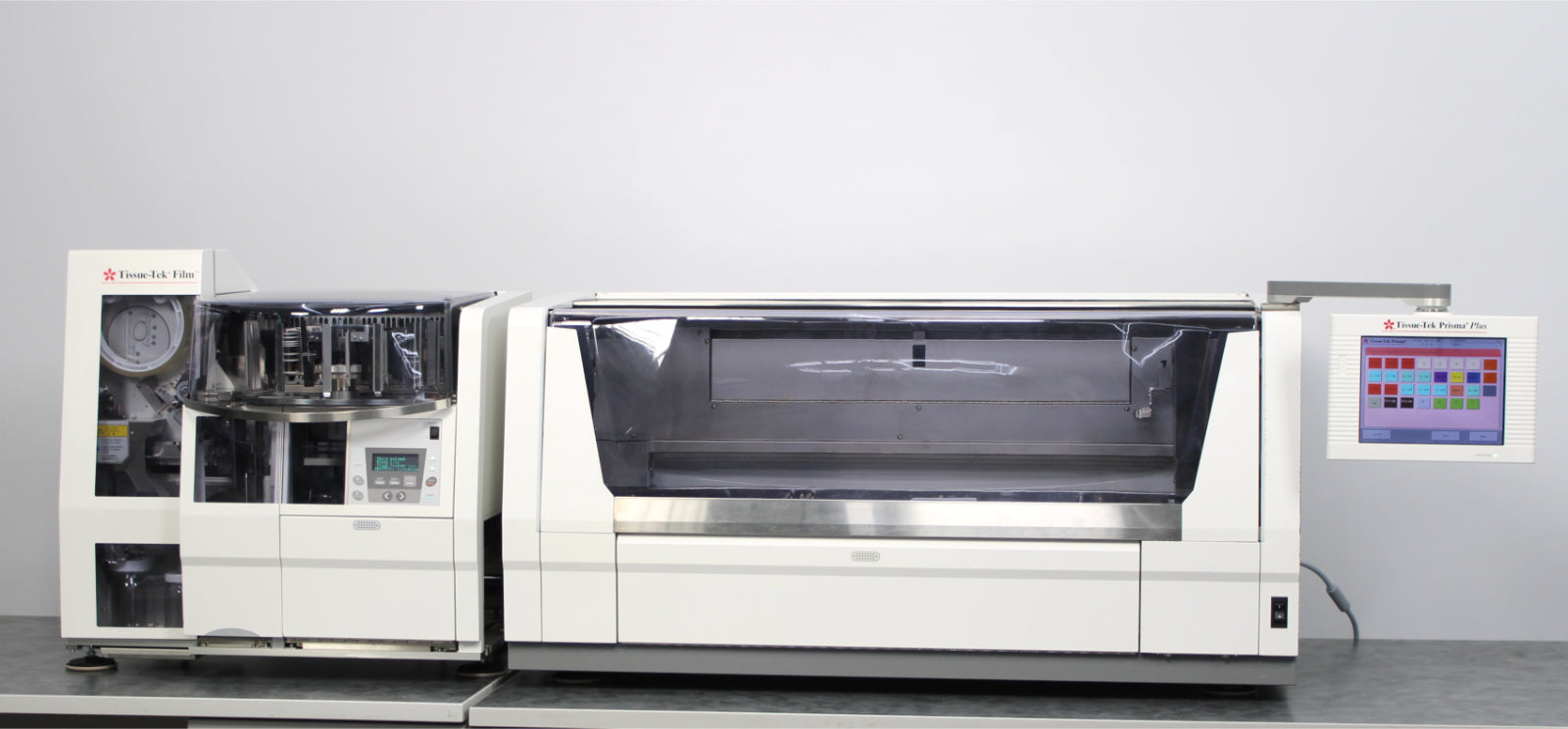

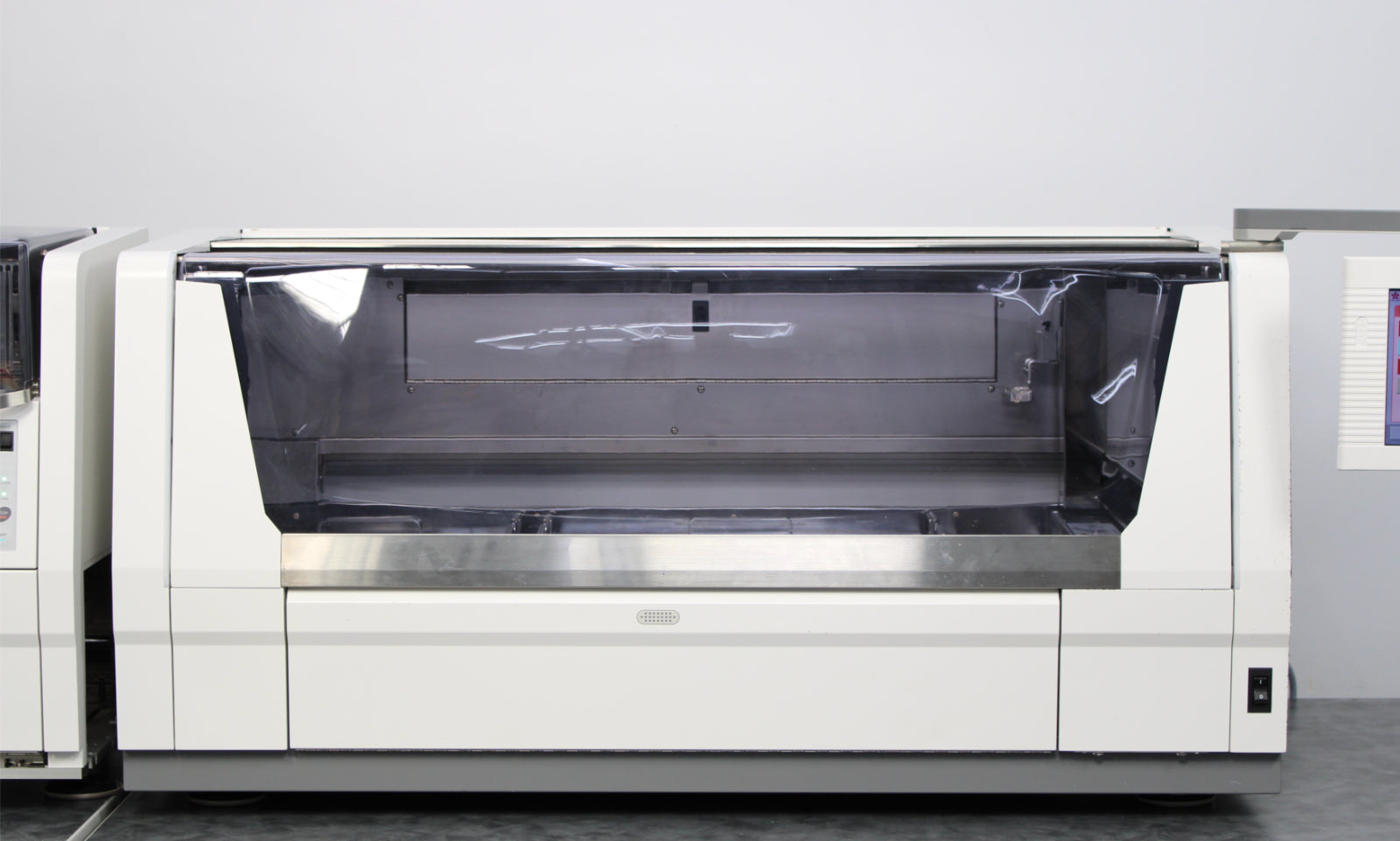

- Sakura Tissue-Tek Prisma Plus Prisma-P-AD Automated Slide Stainer (6170)

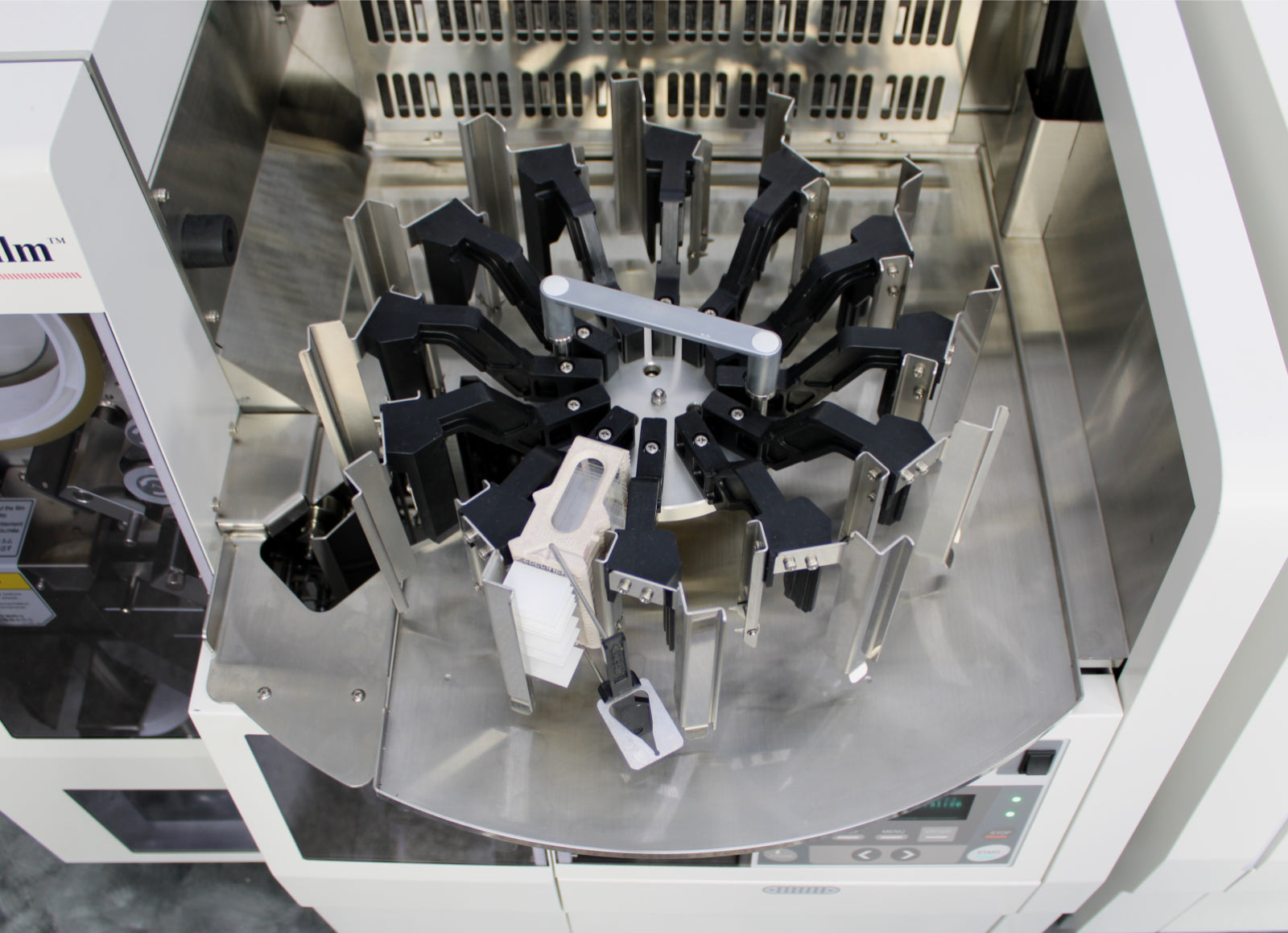

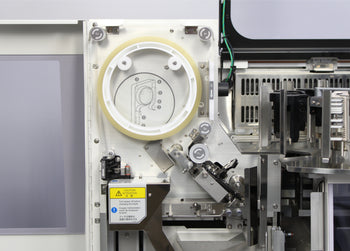

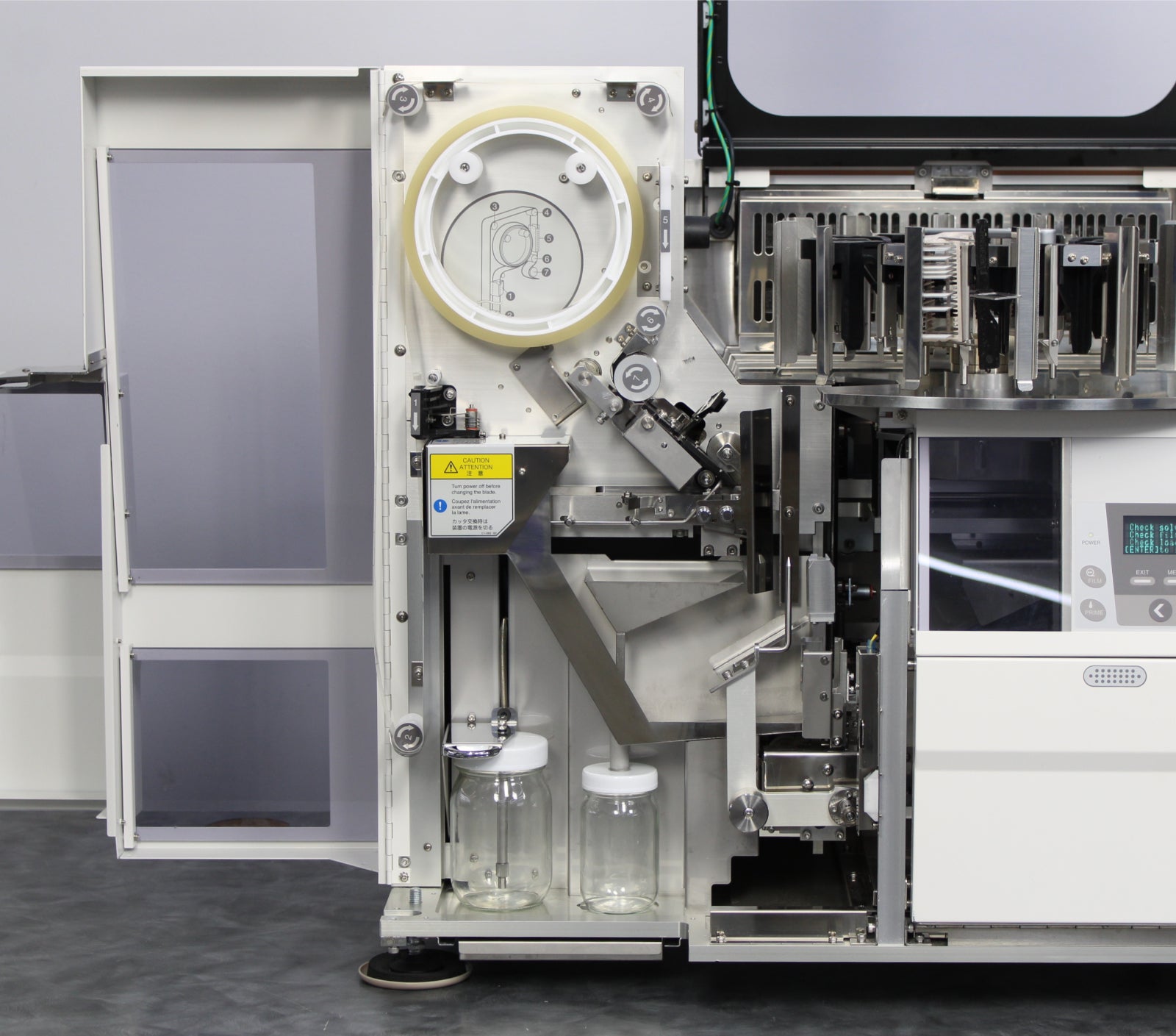

- Sakura Tissue-Tek Film-A1 Automated Film Coverslipper (4740)

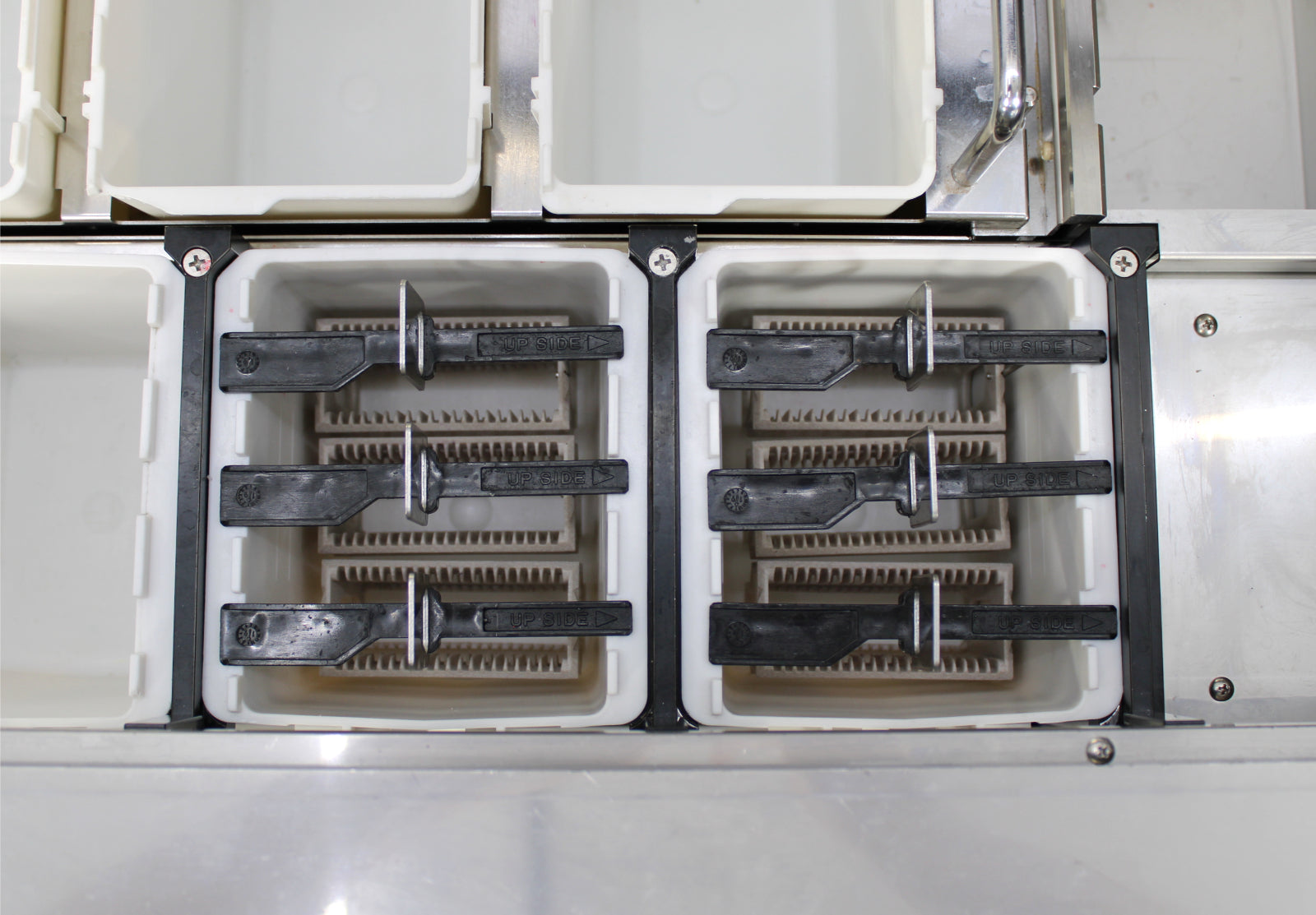

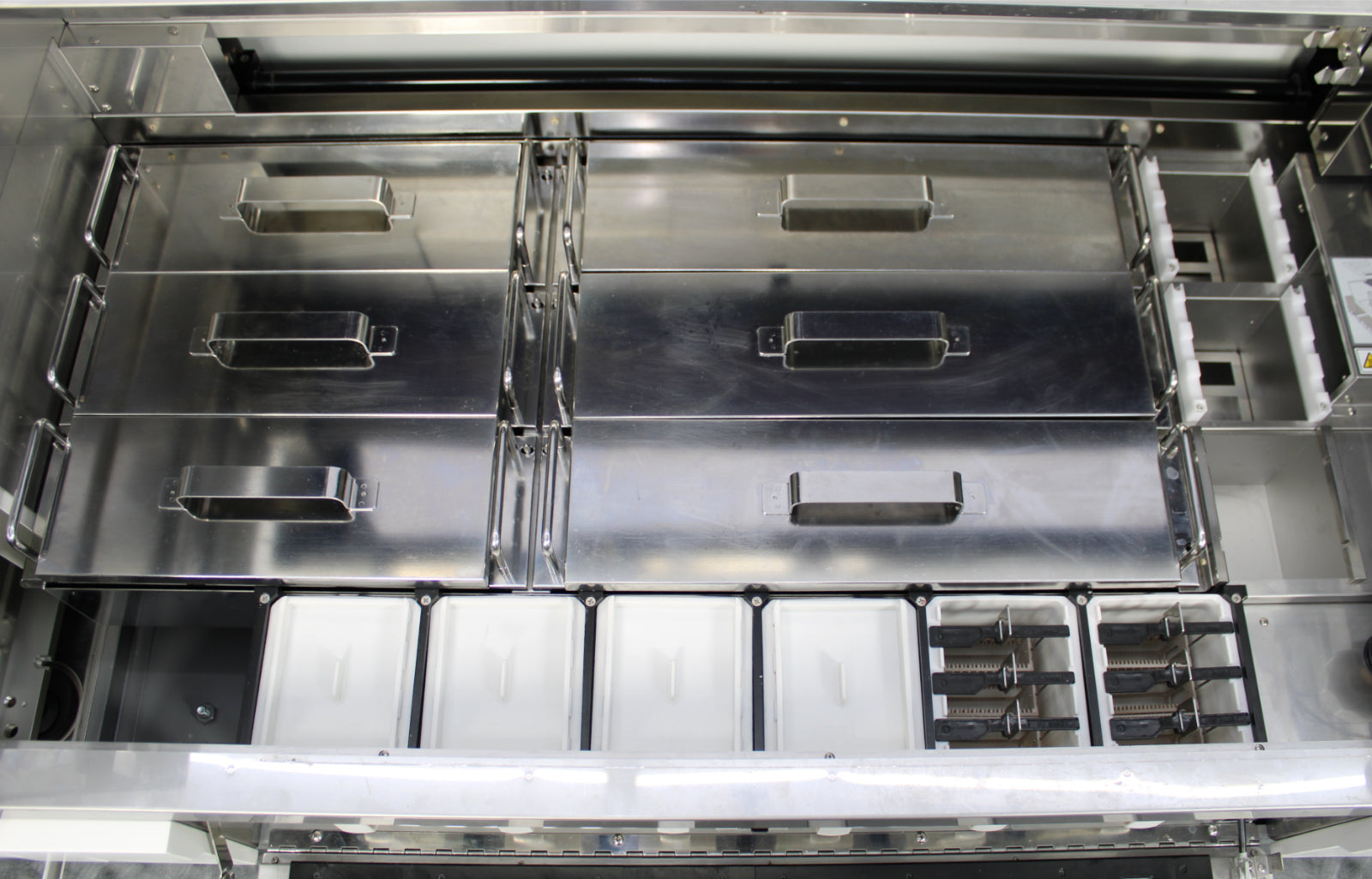

- Slide Stainer Vessels
- x6 Slide Baskets
- x6 Stainless Steel Lids
- x6 Standard Plastic Lids
- Tissue-Tek Prisma Plus Automated Slide Stainer Operating Manual
- Tissue-Tek Film Automated Coverslipper Operating Manual

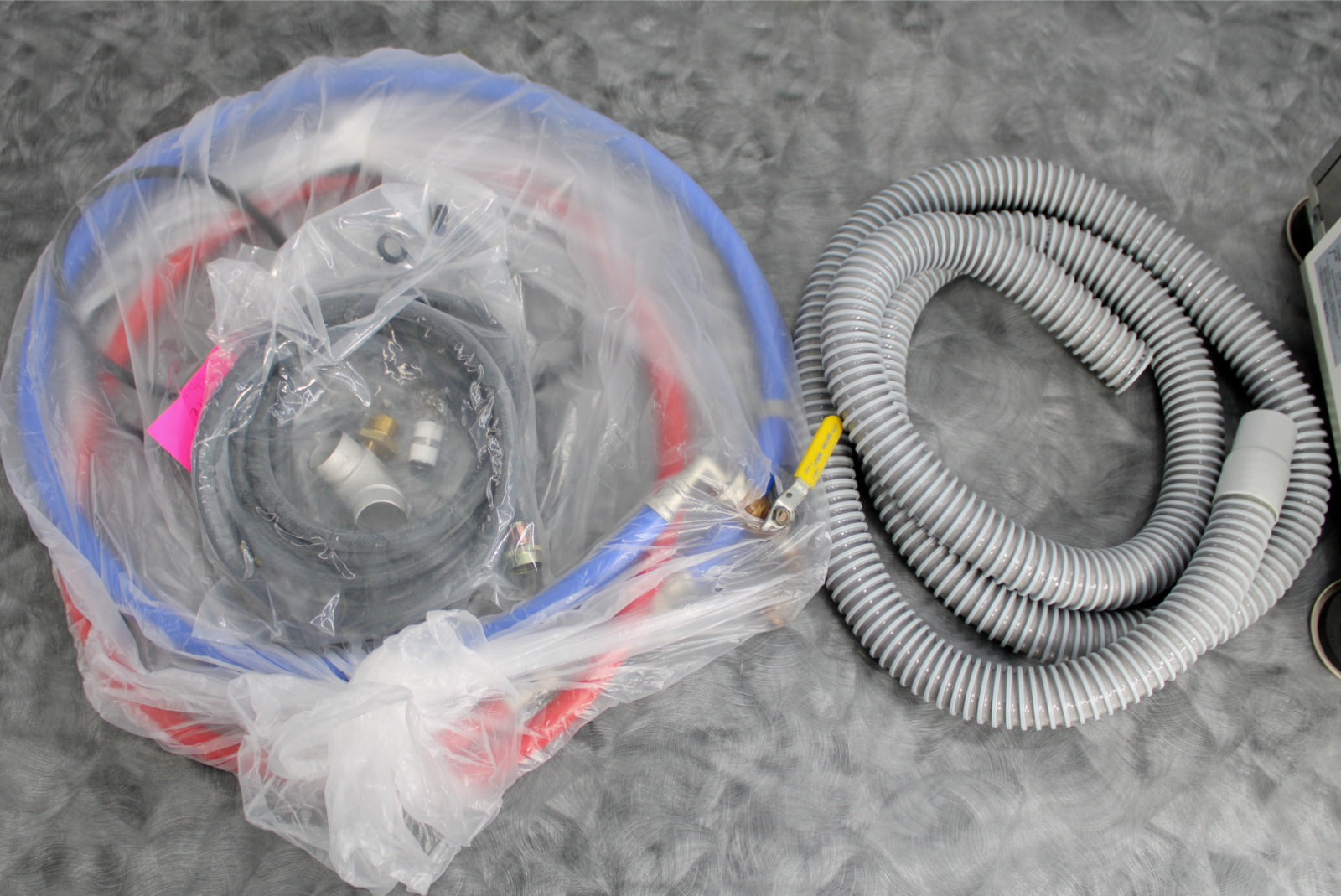

- Exhaust Hose
- Water Inlet Hose
- Communication Cable
- x2 Power Cables
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Sakura Tissue-Tek Prisma Plus slide stainer and film coverslipper with the following results:
- Power and initialization of stainer: PASSED
- Power and initialization of coverslipper: PASSED
- Robotics movement: PASSED
- Stainer to coverslipper transfer: PASSED
- Carrier sensing and handling: PASSED
- Slide sensing and handling: PASSED
- Mounting media dispensing: PASSED

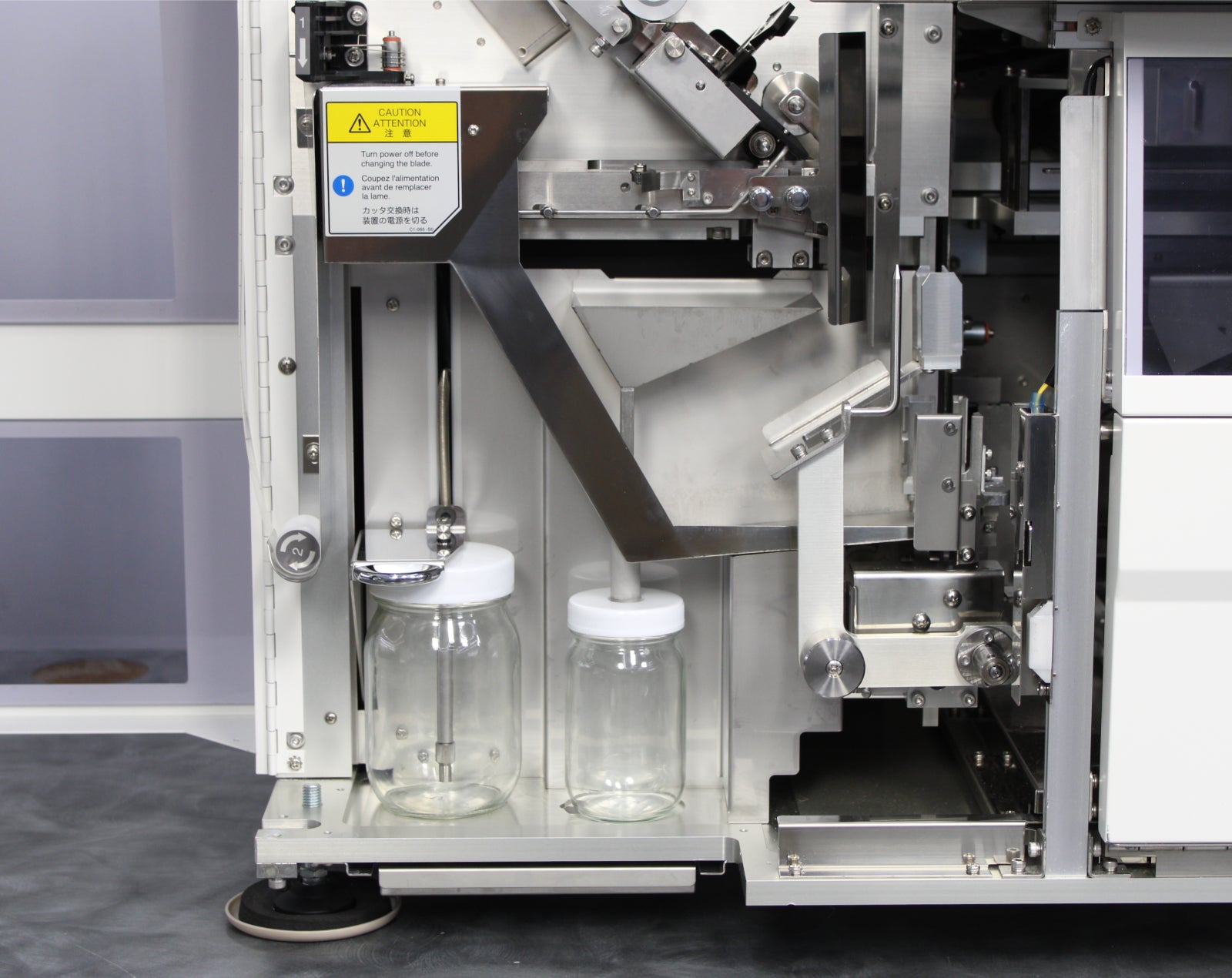

- Cutting and placement of xylene and coverslips: PASSED
Notice: This system was serviced by Sakura in the year 2025 and is due for service in July 2026.
Notice: This system has some minor cosmetic blemishes. Please review the available photos to see the cosmetic condition before purchasing.
|
Manufacturer
|
Sakura Finetek
|
|
Product line
|
Tissue-Tek
|
|
Product type
|
Slide stainer
|
|
Application
|
Automated preparation of routine histological and cytological stains for use in pathology laboratories to assist with the following tasks: staining, dewaxing, rehydration, dehydration, etc.
|
|
Model
|
Prisma-P-AD
|
|
Product code
|
6170
|
|

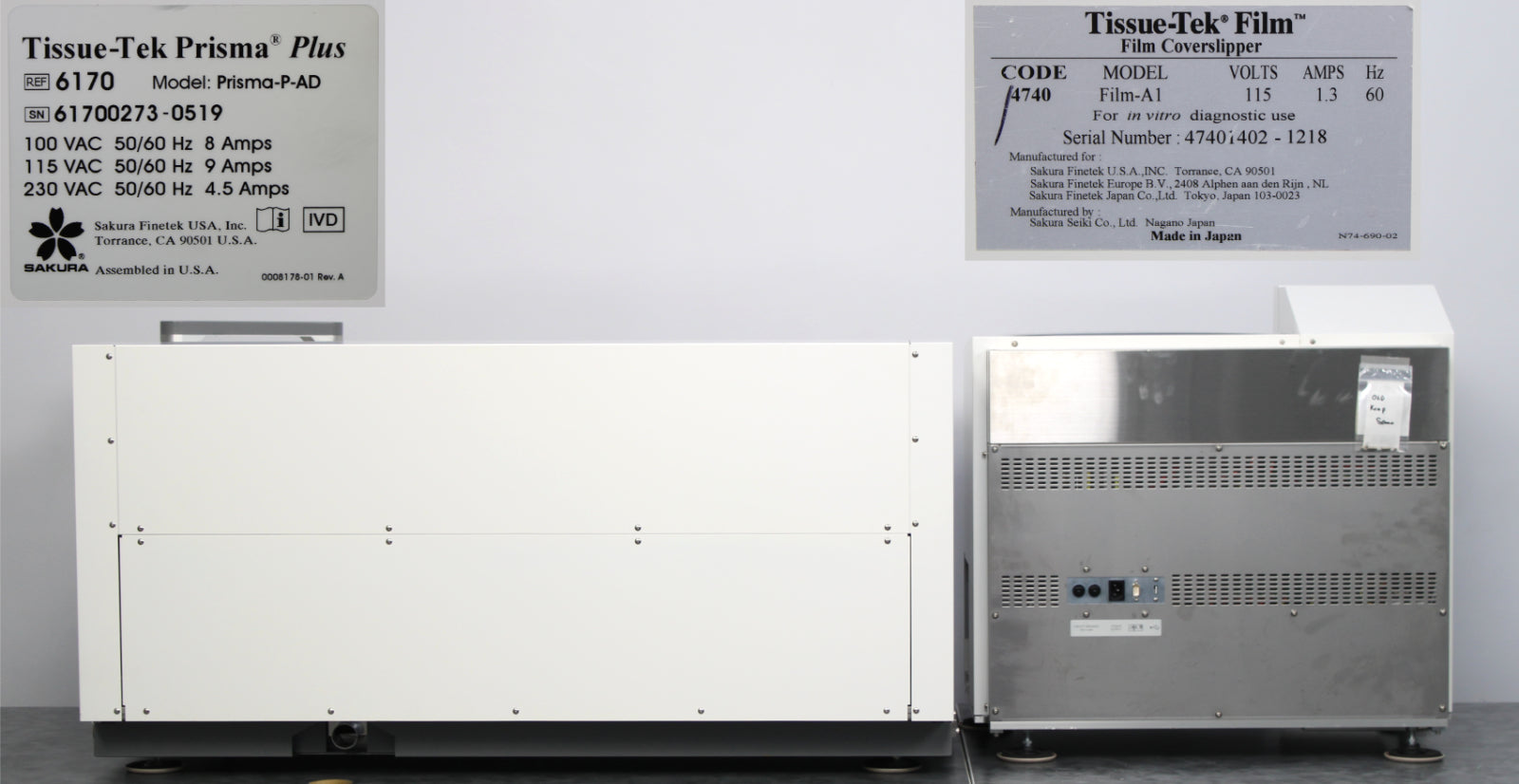

Serial No.
|
61700273-0519
|
|
Mfg. date
|
May 2019
|
|
Throughput
|
Up to 530 slides per hour
|
|

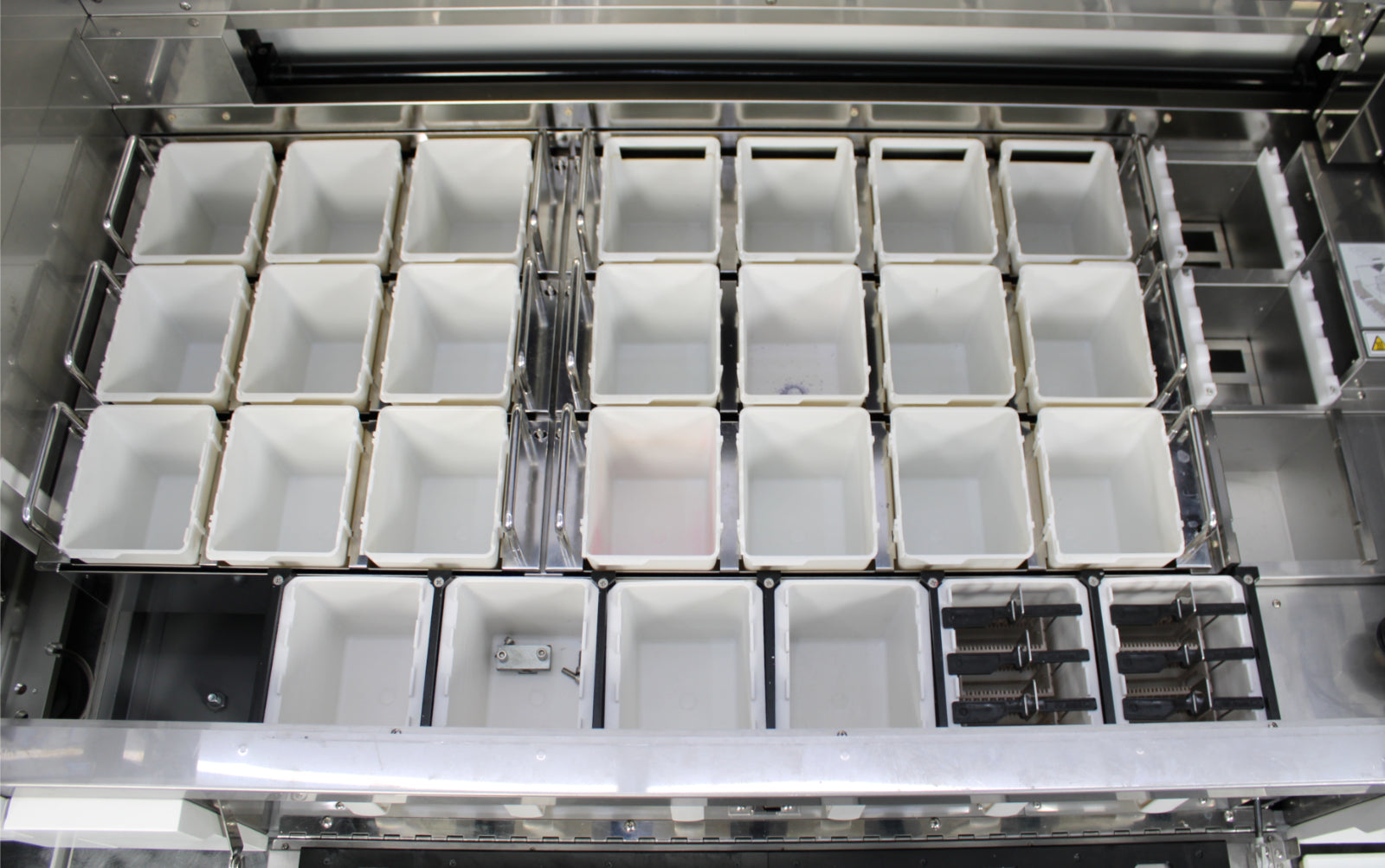

Number of reservoirs
|
Start - 1 to 3 stations
Reagent - 31 to 51 reservoirs
Drying - 0 to 2 stations
Wash - 0 to 4 stations (8 programmable steps)
Heating (optional) - 2 stations
|
|
Capacity
|
Reagent volume - 160, 260 and 680 mL
Staining protocols - 11 runs continuously loading, and simultaneously running
Baskets - 10 or 20 slide basket
Loading - up to 60 slides per run
|
|
Temperature
|
Drying station - 86 ~ 149°F (30 ~ 65°C)
Heating station - 86 ~ 158°F (30 ~ 70°C)
|
|
Heating
|
2 stations
|
|
Staining
|
Up to 50 protocols
|
|
Security
|
Door and cover
|
|
Certifications
|
IEC 61010-1 2nd ed., CAN/CSA C22.2 61010-1, UL 61010-1
|
|
Regulatory status
|
IVD, FDA Class I
|
|
Power rating
|
100 VAC, 50/60 Hz, 8 Amps
115 VAC, 50/60 Hz, 9 Amps
230 VAC, 50/60 Hz, 4.5 Amps
|
|
Dimensions (W x D x H)
|
49.2 x 28 x 25 inches (125 x 71 x 63 cm)
|
|
Weight
|
330 lb (150 kg)
|
|
Manufacturer
|
Sakura Finetek
|
|
Product line
|
Tissue-Tek
|
|
Product type
|

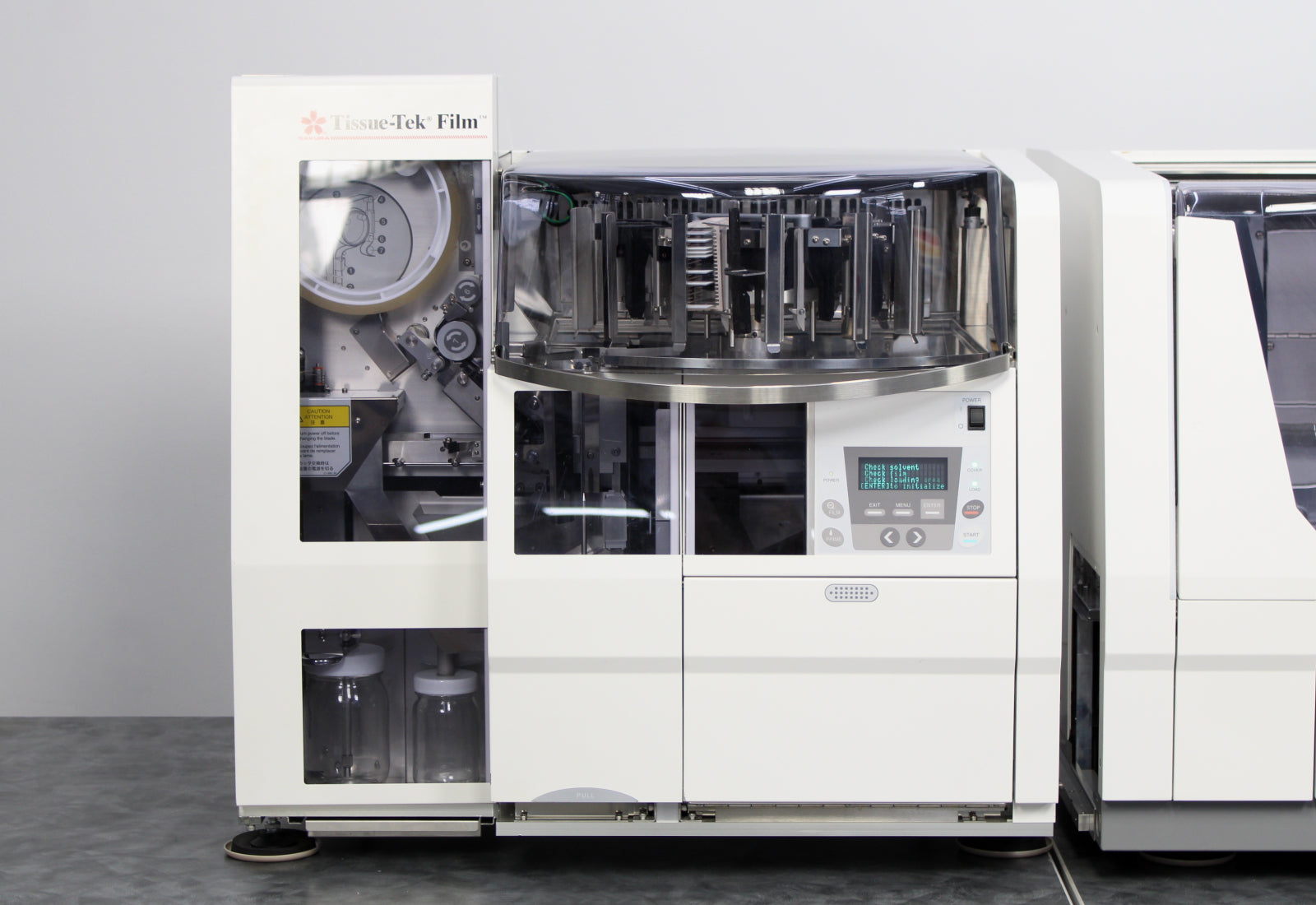

Film coverslipper
|
|
Application
|
Histology, Cytology, Special Staining, Advanced Staining
|
|
Product code
|
4740
|
|
Model
|
Film-A1
|
|
Serial No.
|
47401402-1218
|
|
Mfg. year
|
December 2018
|
|
Throughput
|
Up to 1,080 slides/hr
|
|
Configuration
|
Benchtop
|
|
Load capacity
|
3 baskets into load stations
|
|
Unload capacity
|
12 baskets, 240 slides
|
|
Xylene capacity
|
500 mL bottle
|
|
Slide size
|
1 x 3 inches (25 x 75 mm)
|
|
Coverslipping lengths
|
45, 50, 55 or 60 mm
|
|

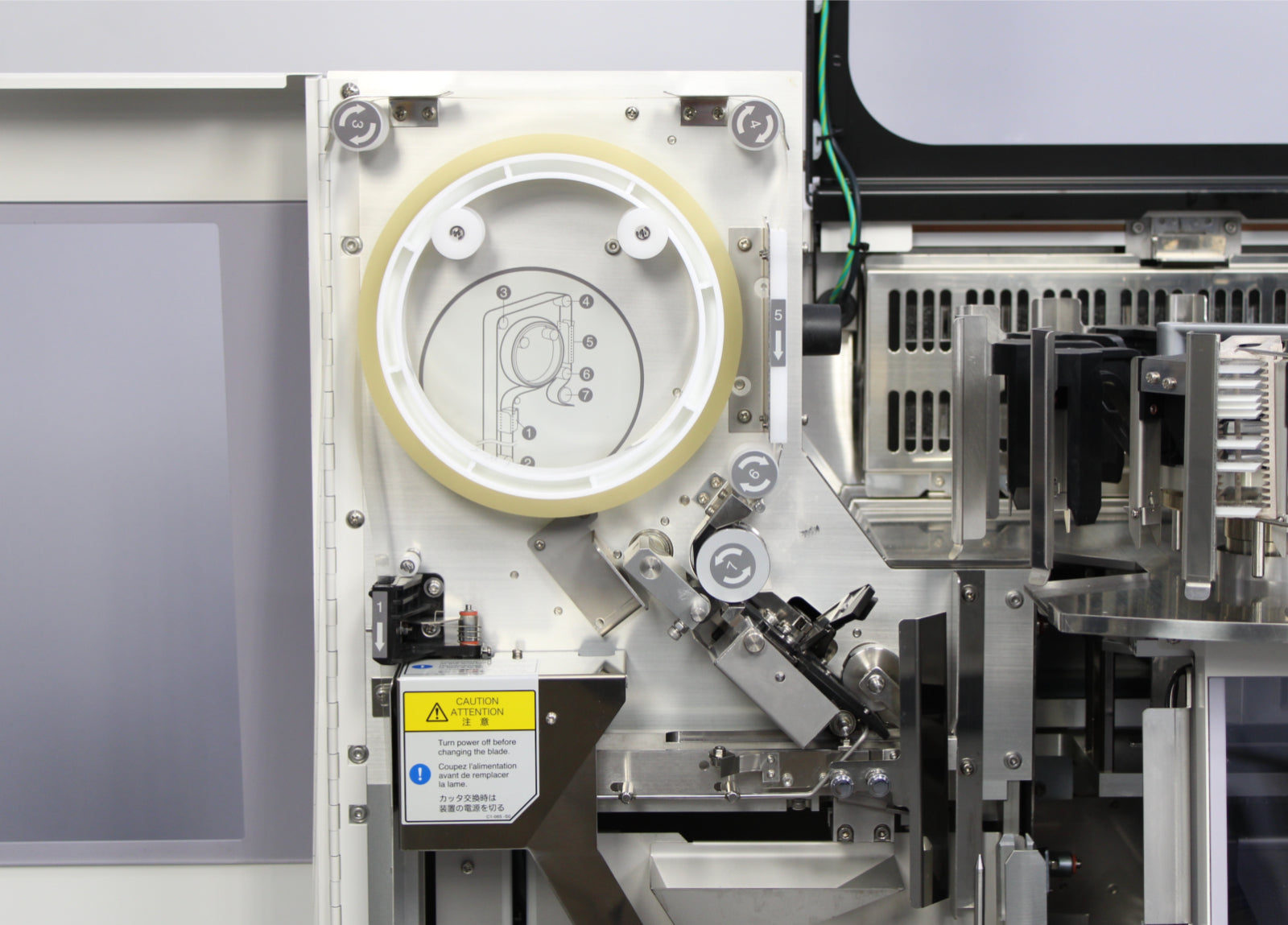

Coverslips per roll
|
1,333 when selecting coverslip length of 45 mm
|
|
Operating temperature
|
50 to 104°F (10 to 40°C)
|
|
Fume filtration
|
Activated carbon filters on-board
Optional external vent connection
|
|
Integration with stainer
|
With Tissue-Tek Prisma or Tissue-Tek Prisma Plus using Tissue-Tek Film Link (6134)
|
|

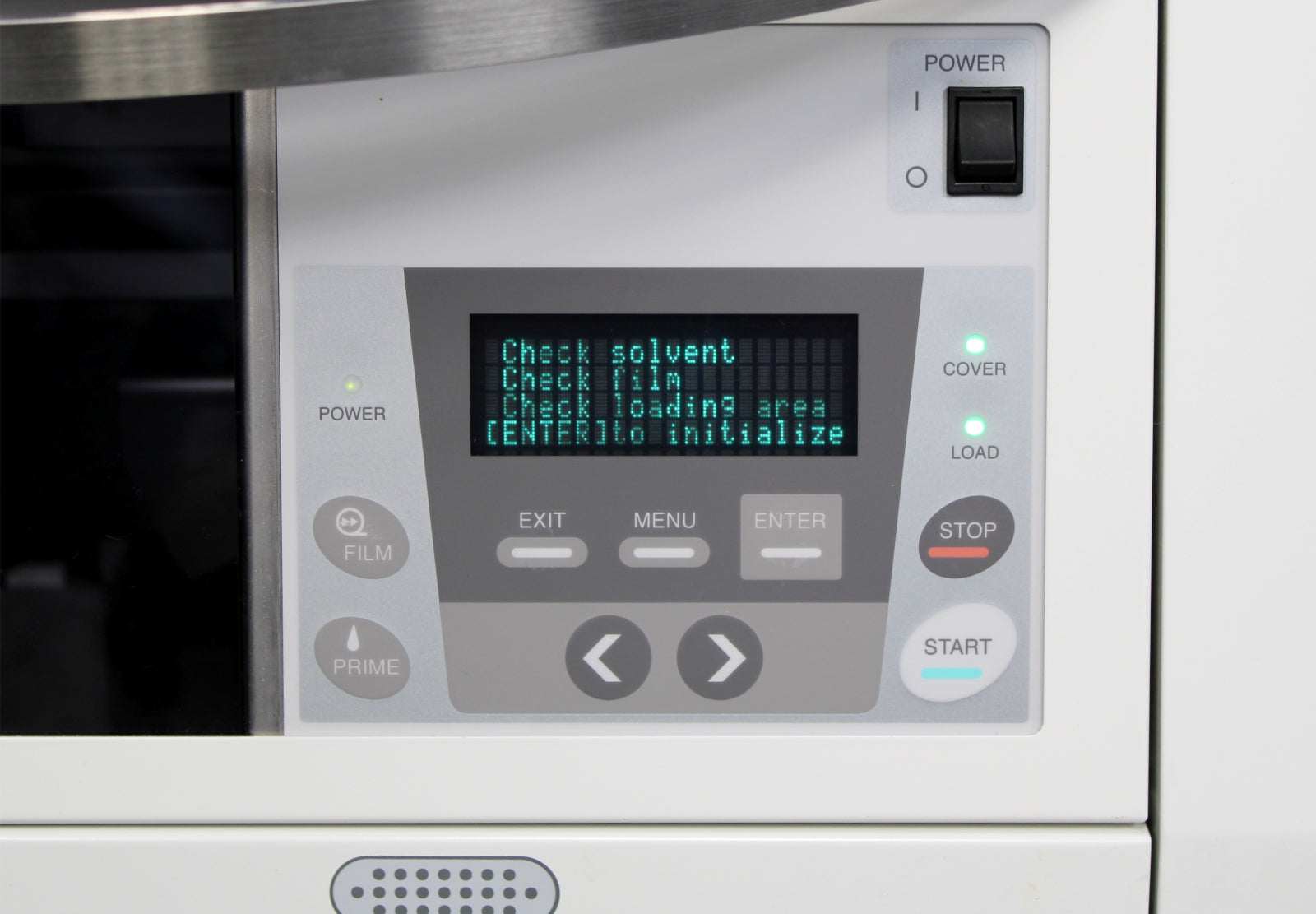

User interface display
|
VFD (Vacuum Fluorescent Display), 20 characters x 4 lines, 3 LED’s
|
|
Certifications
|
IEC 61010-1 2nd ed., CAN/CSA C22.2
No. 61010-1, UL 61010-1
|
|
Special applications
|
Validated for use on the Hologic Thin Prep Stain Plus Imaging System
|
|
Regulatory status
|
IVD, FDA Class I
|
|
Power rating
|
115V, 60Hz, 1.3A
|
|
Dimensions (W x D x H)
|
28.3 x 23.2 x 27.1 inches (72 x 59 x 69 cm)
|
|
Weight
|
165 lb (75 kg), without reagents
|
