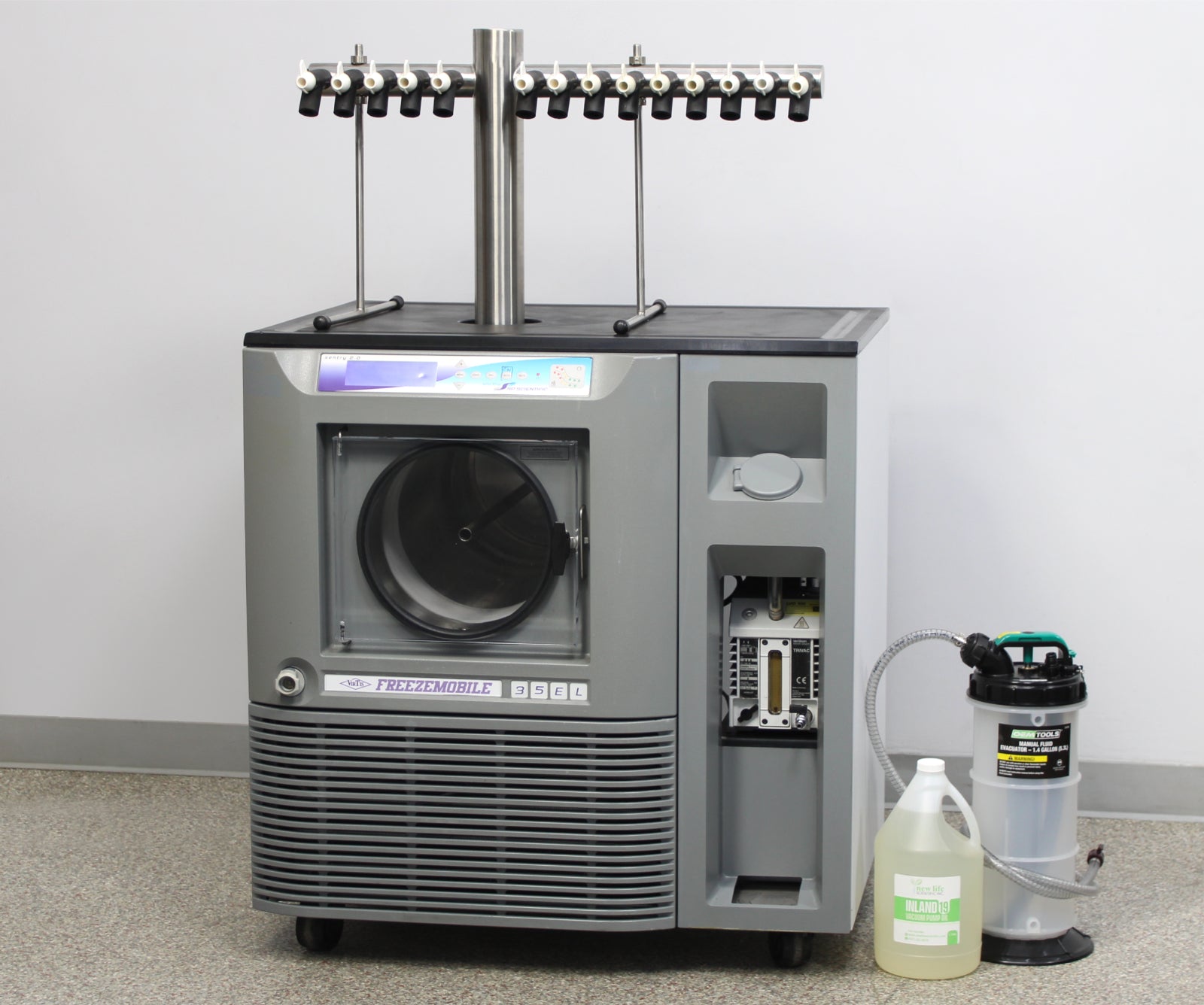

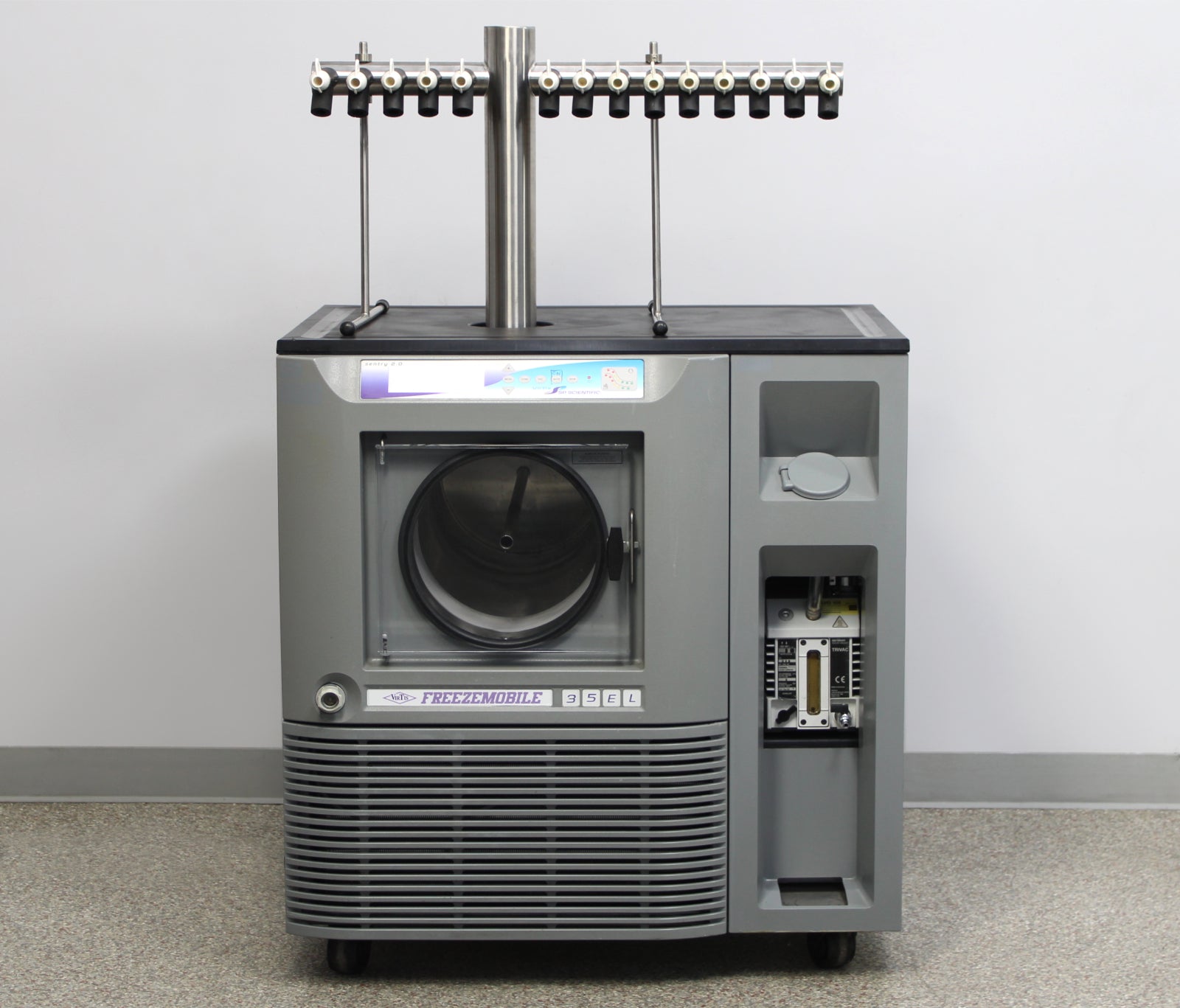

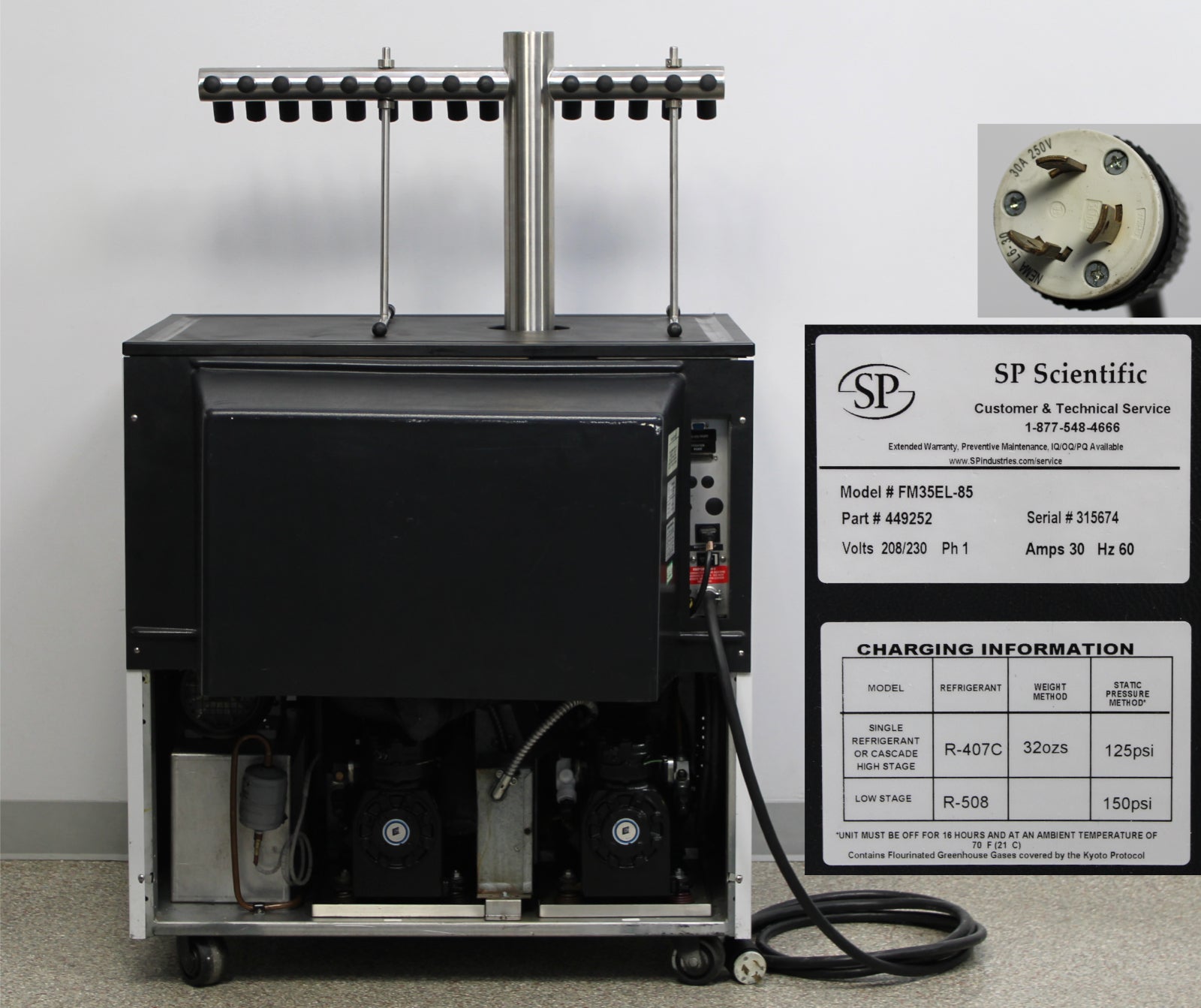

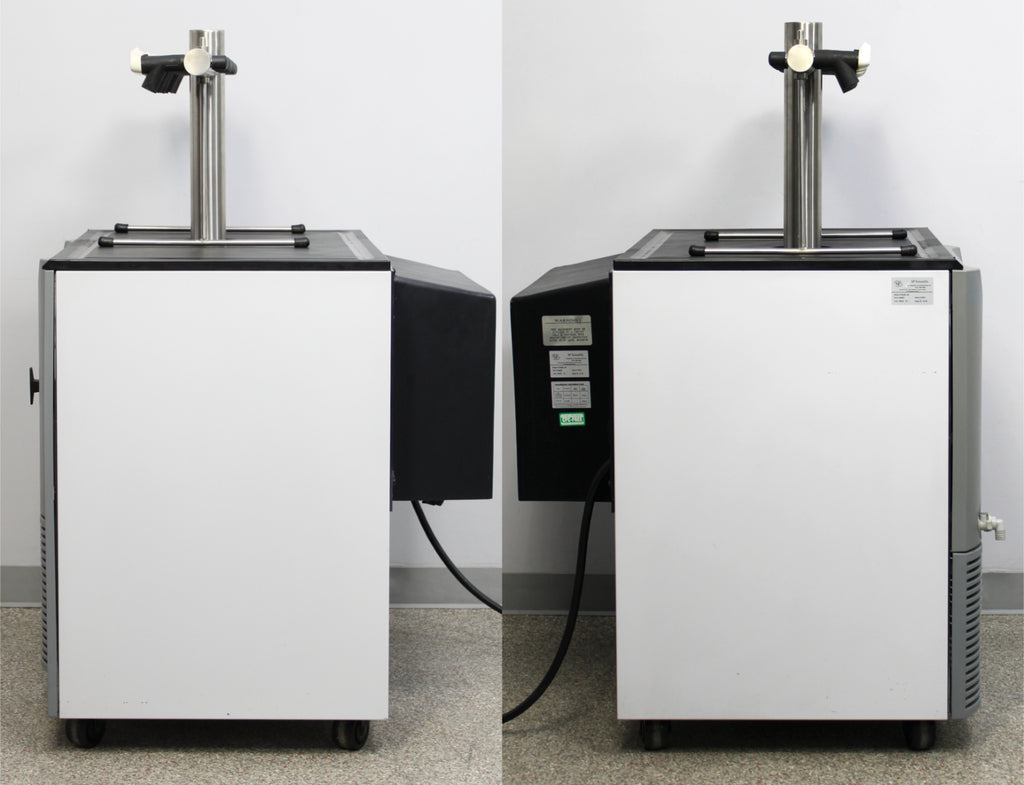

- SP Scientific VirTis Freezemobile 35EL FM35EL-85 Floor Freeze Dryer (449252)

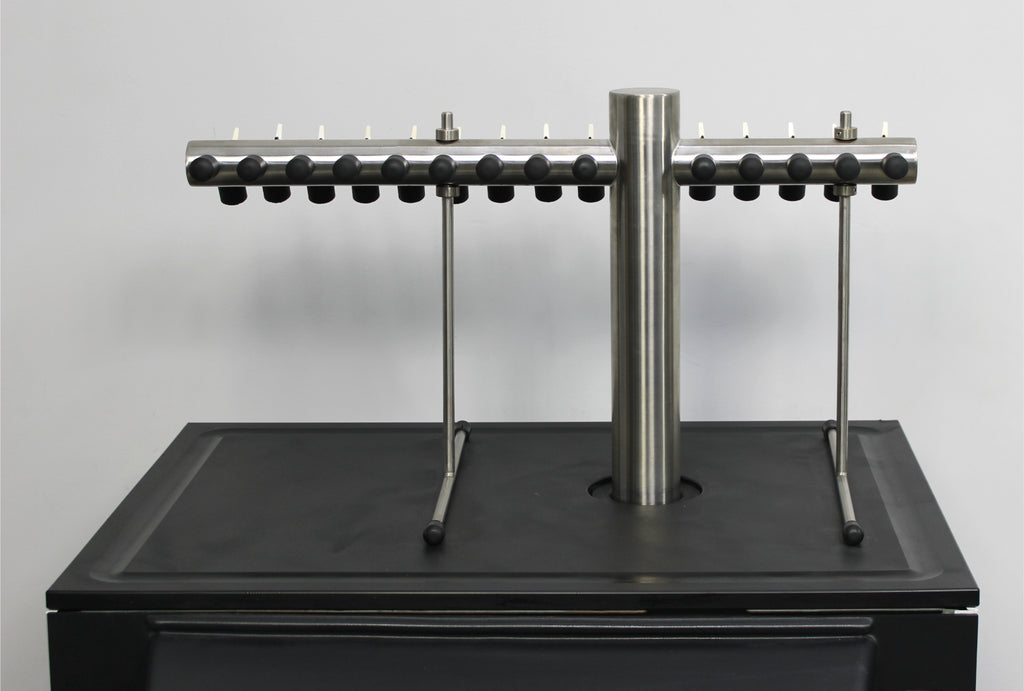

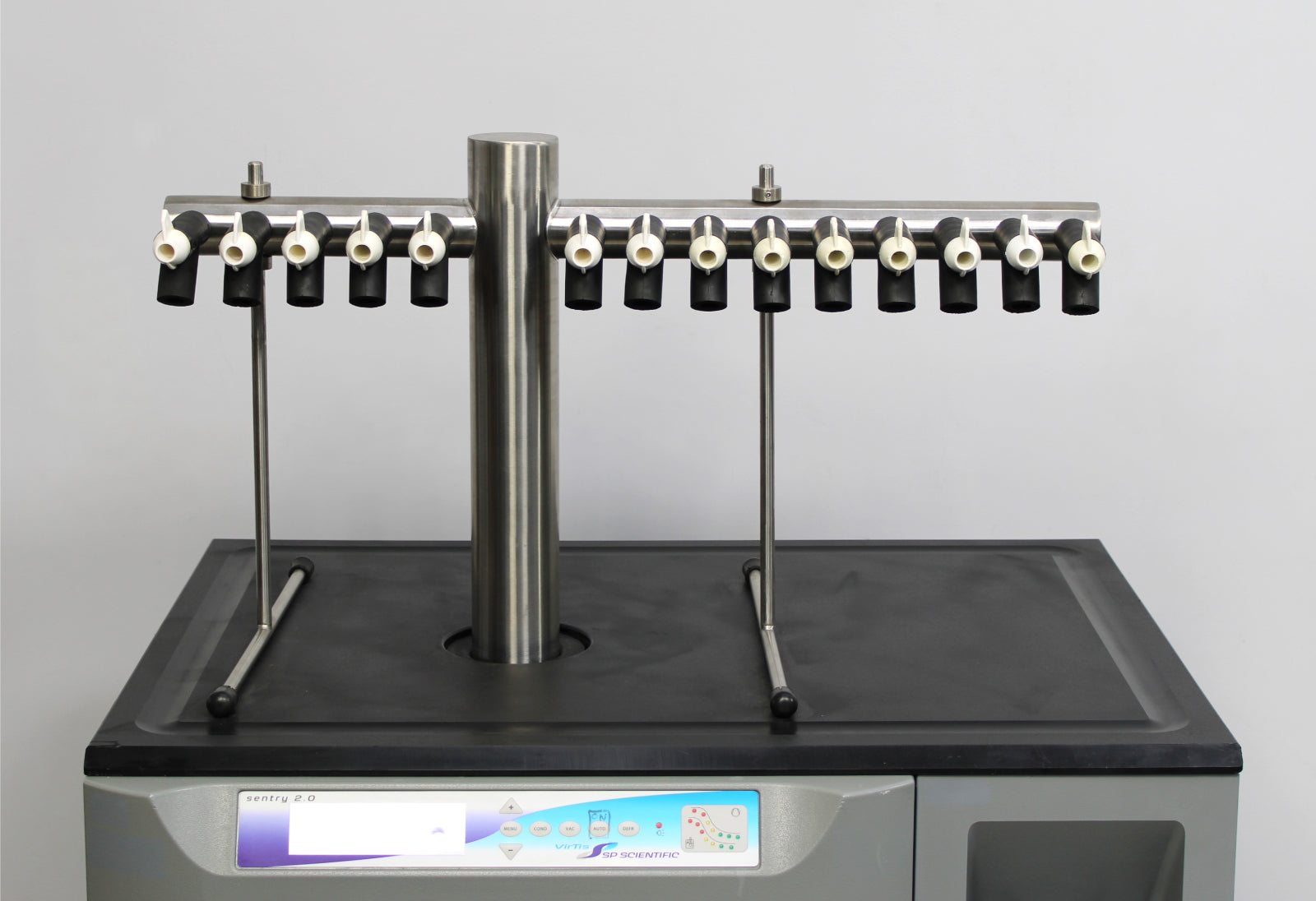

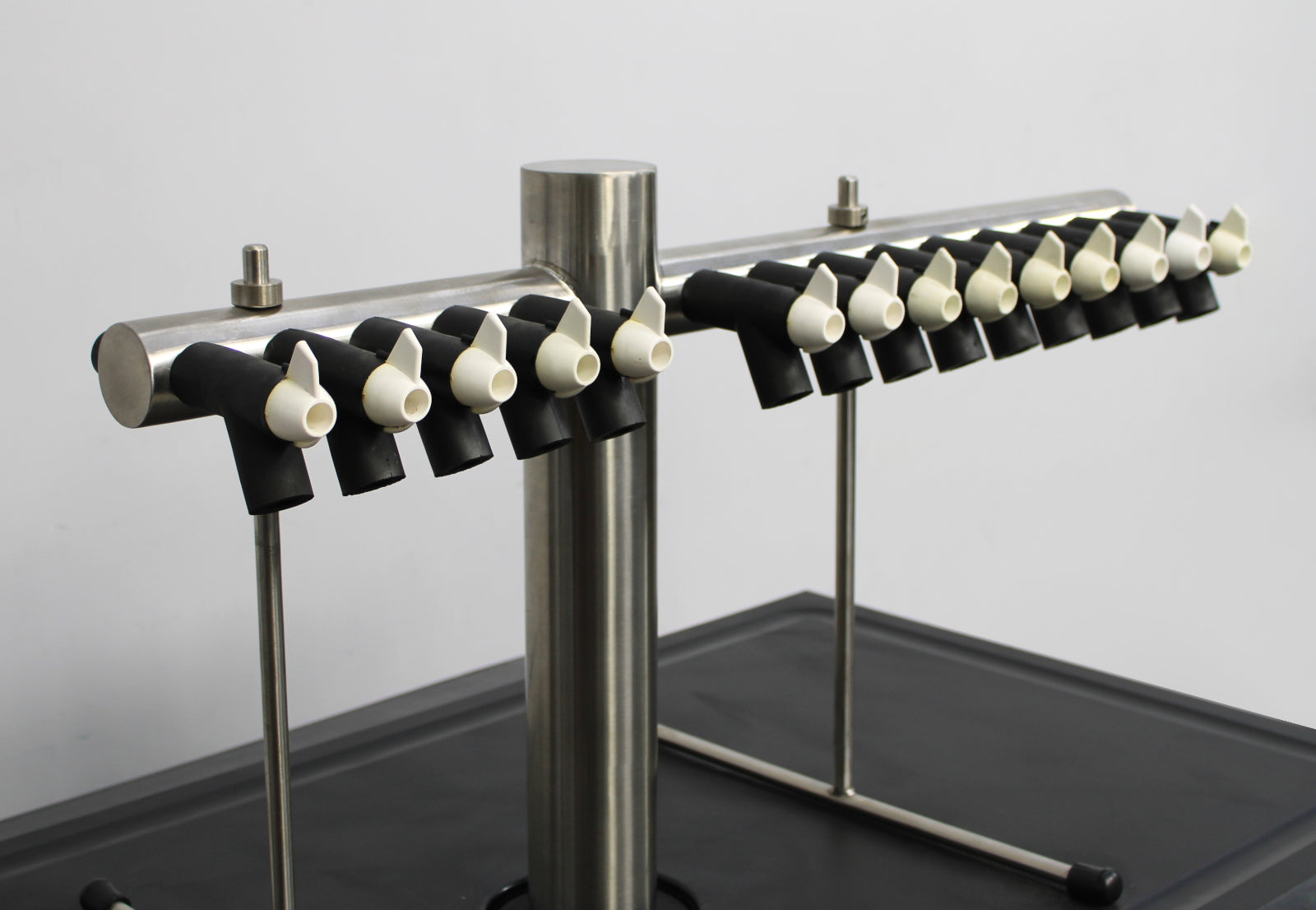

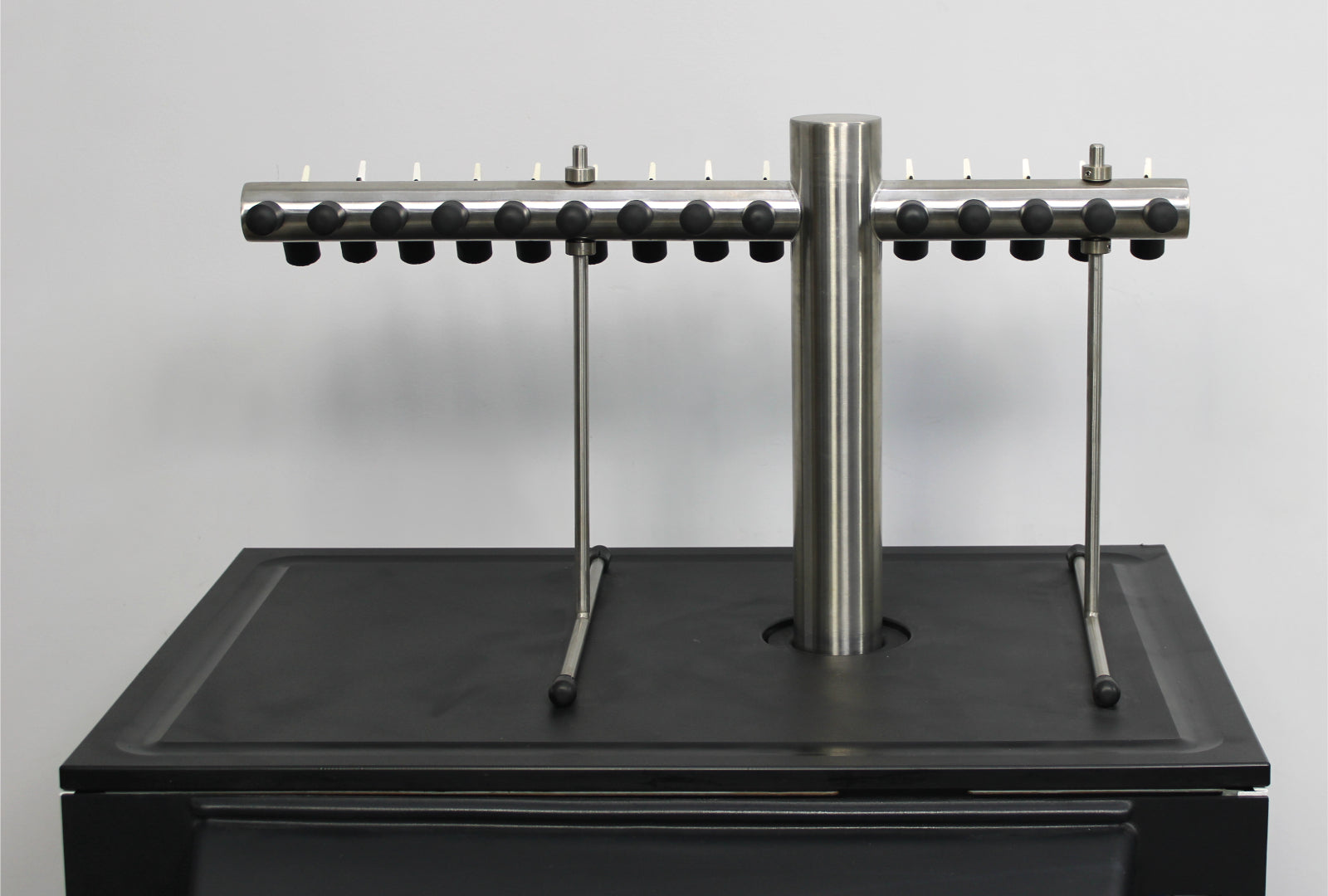

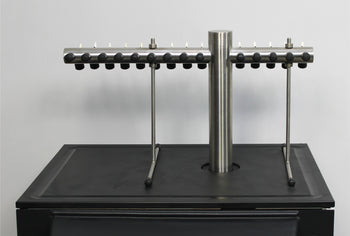

- Tree Manifold with 28-Ports and 14 Manifold Valves

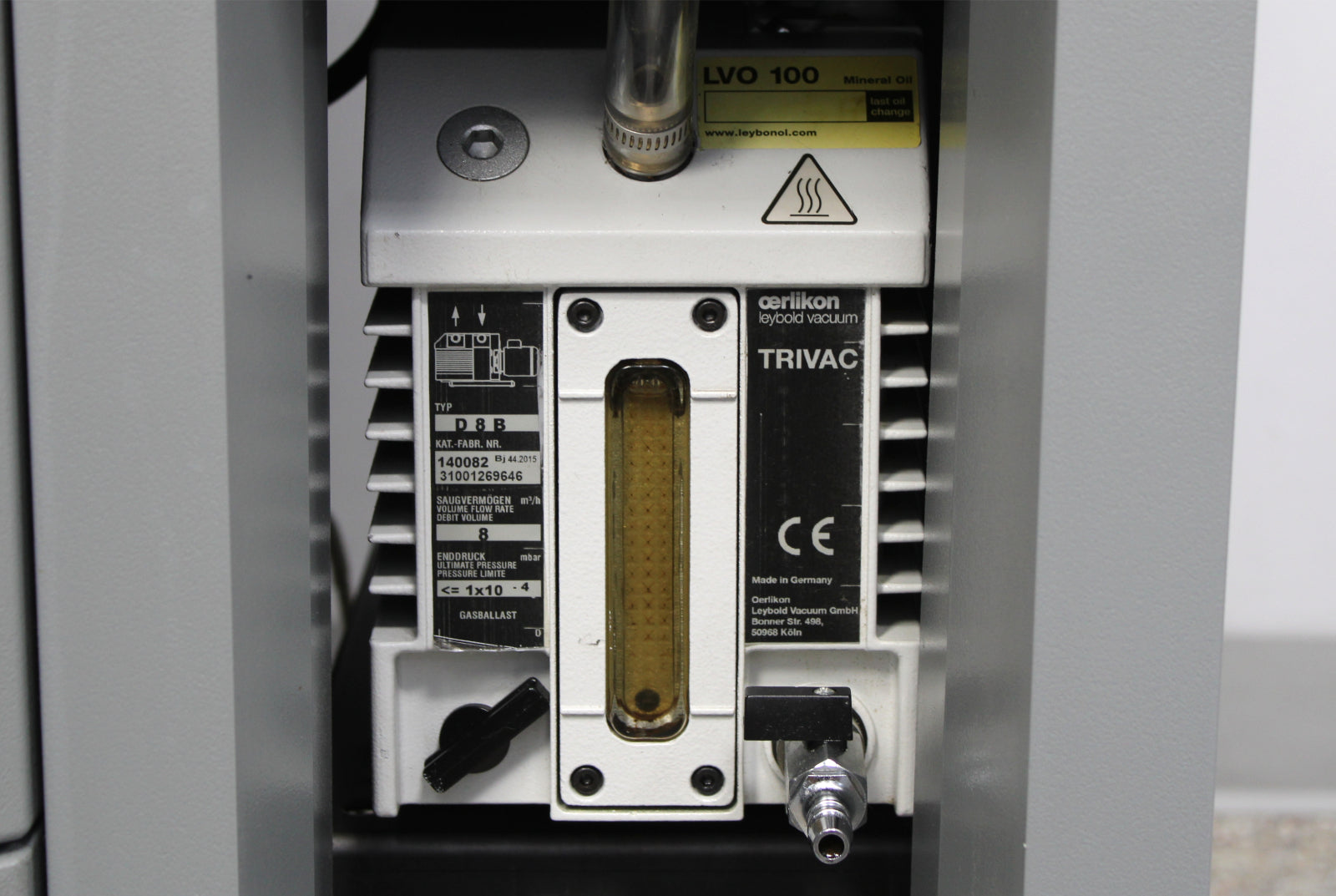

- Leybold Trivac D8B Vacuum Pump

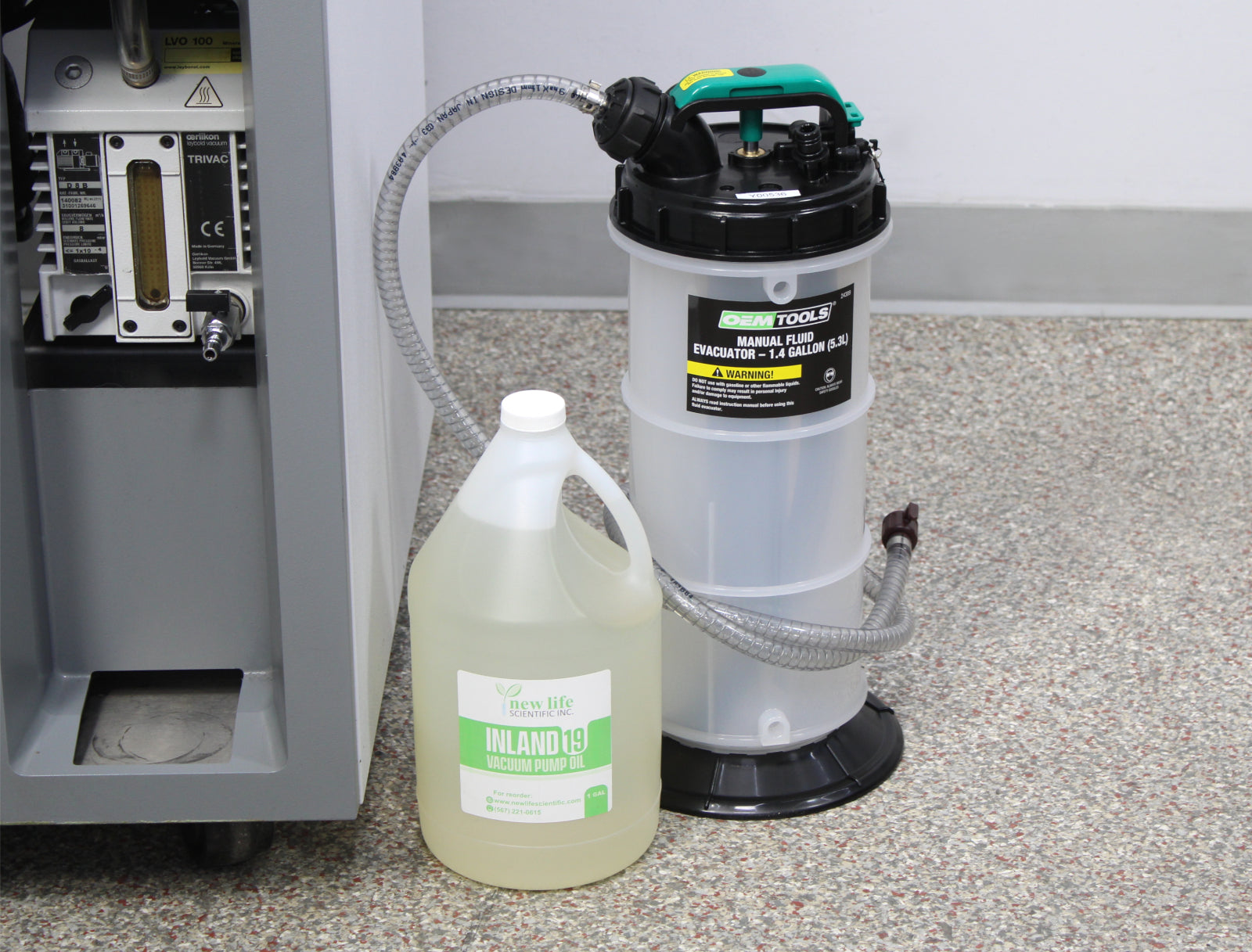

- 1 Gallon of Inland-19 Vacuum Pump Oil
- 1.4 Gallon (5.3L) Manual Fluid Evacuator
- Attached Power Cable
- 90-Day Warranty

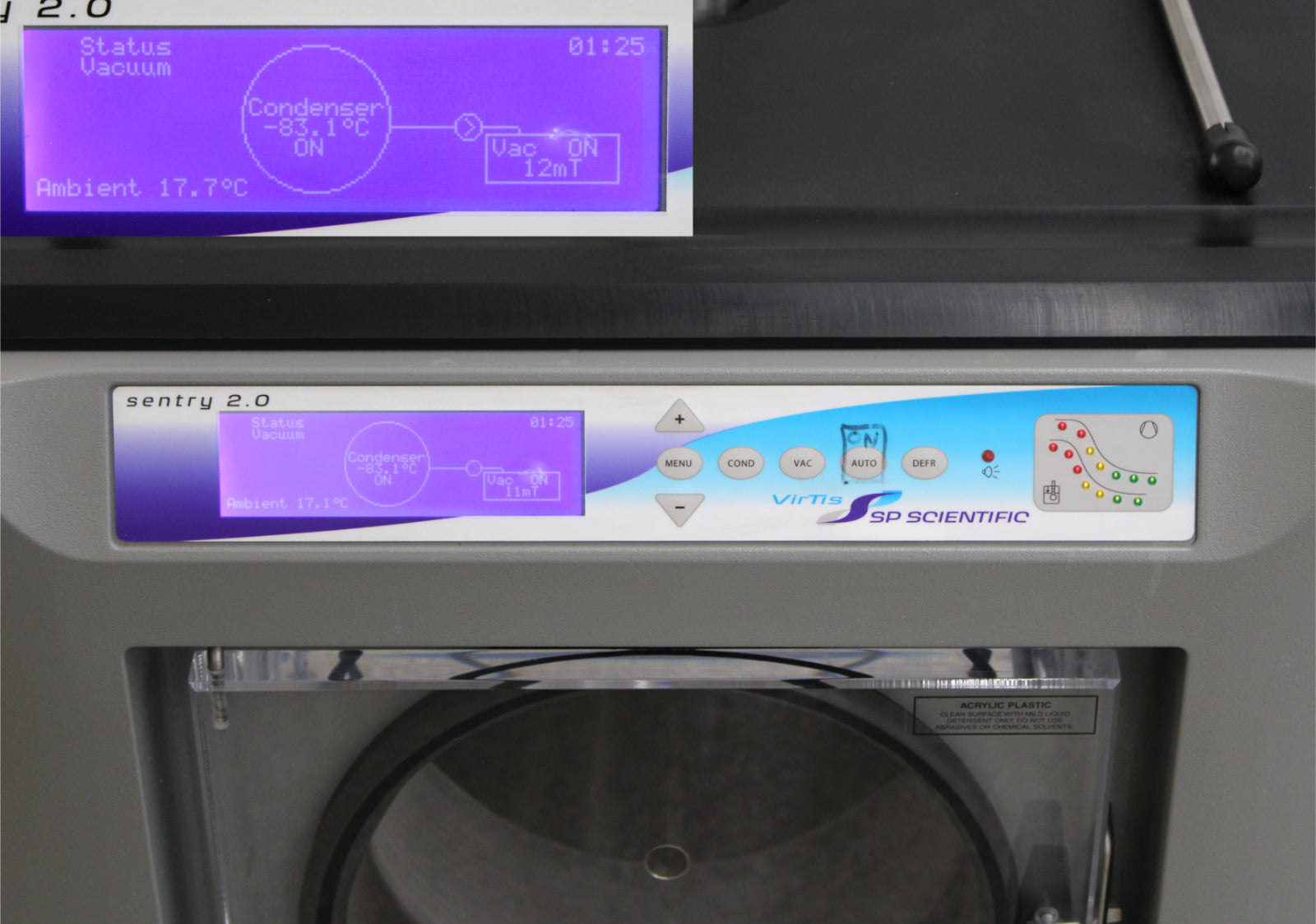

After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis Freezemobile FM35EL-85 freeze dryer with the following results:
- Condenser temperature achieved -83.1°C: PASSED
- Vacuum achieved 12mT: PASSED
- Insulated refrigeration lines.
- Replaced vacuum hoses.
- Flushed and filled vacuum pump.
- Cleaned and greased manifold valves.
- Calibrated temperature and vacuum.

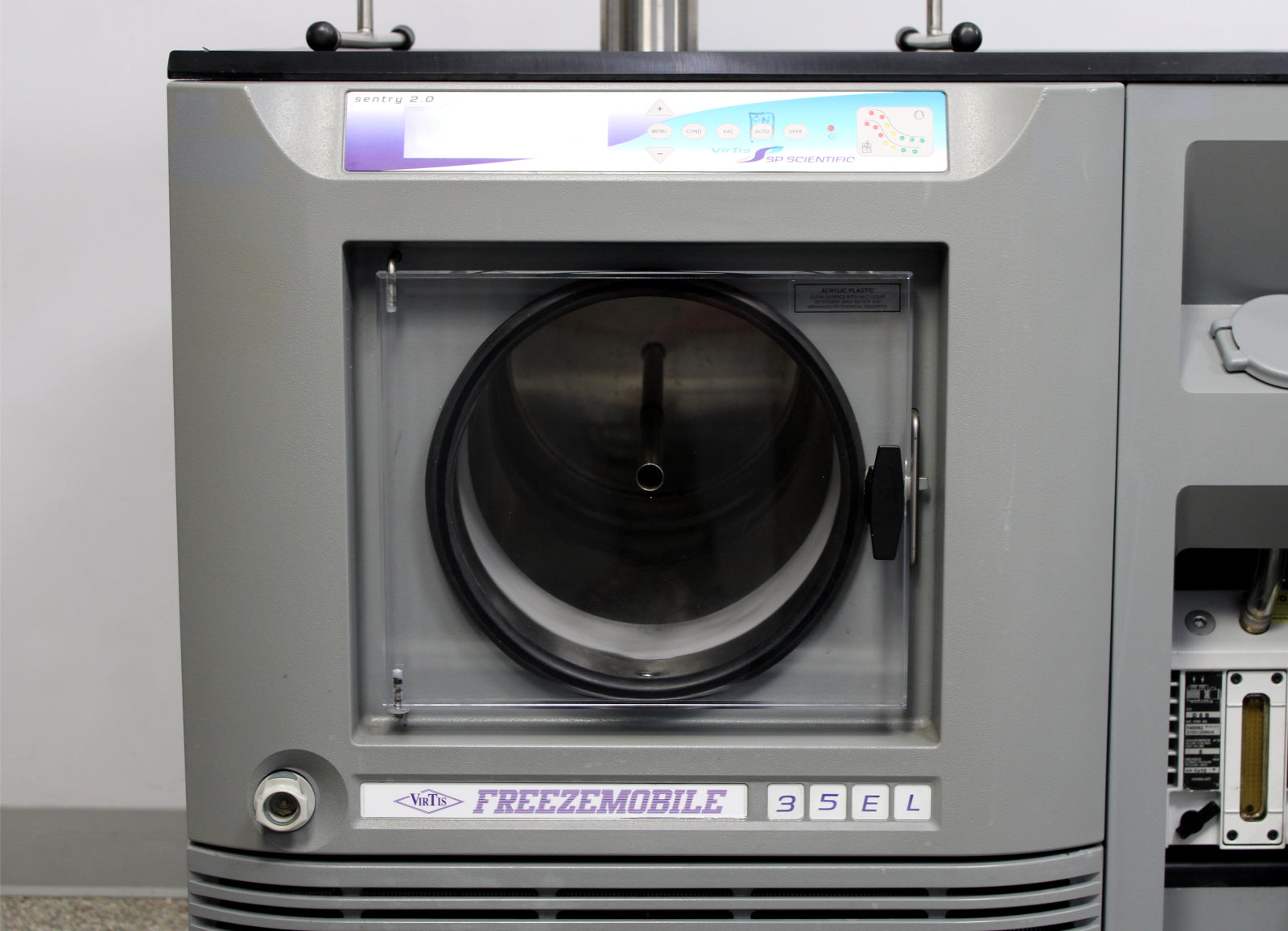

- Replaced condenser acrylic door.
- Installed new door gasket.
Notice: This freeze dryer has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

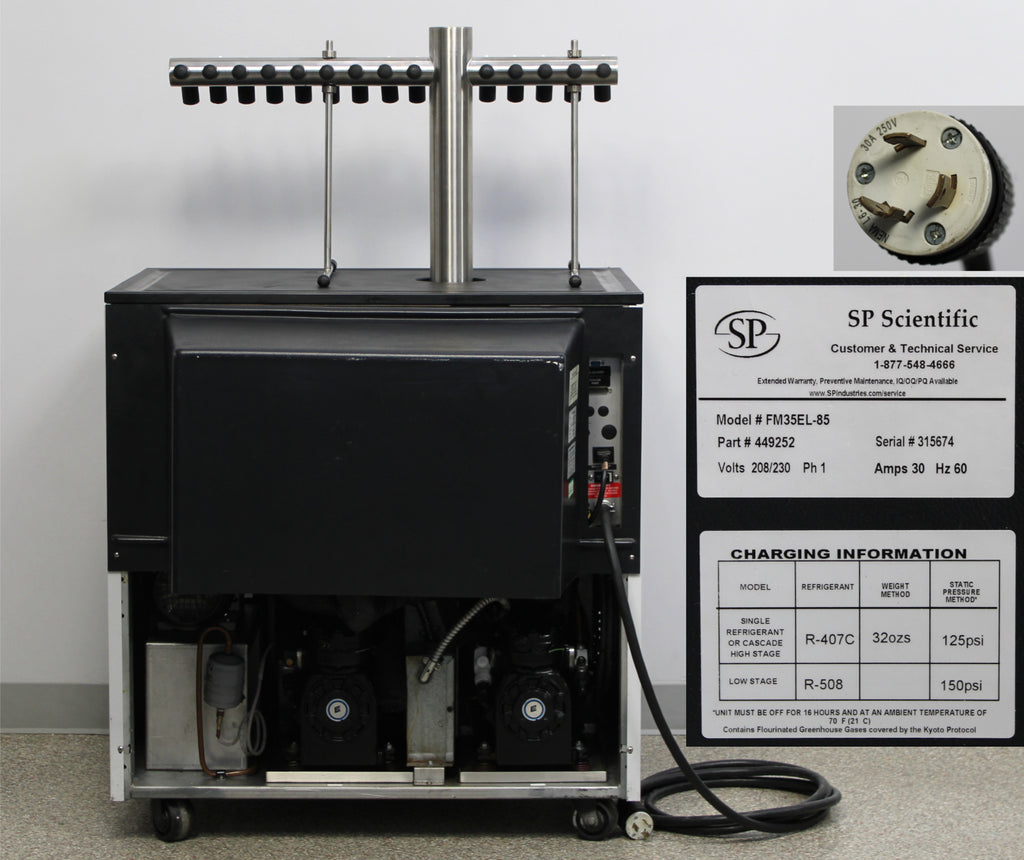

Manufacturer
|
SP Scientific
|
|
Model
|
Freezemobile 35EL
|
|
Model No.
|
FM35EL-85
|
|
Part No.
|
449252
|
|
Serial No.
|
315674
|
|
Lowest Condenser Temp. (50 Hz / 60Hz)
|
-82°C / -85°C
|
|
Max. Condenser Capacity
|
35L
|
|

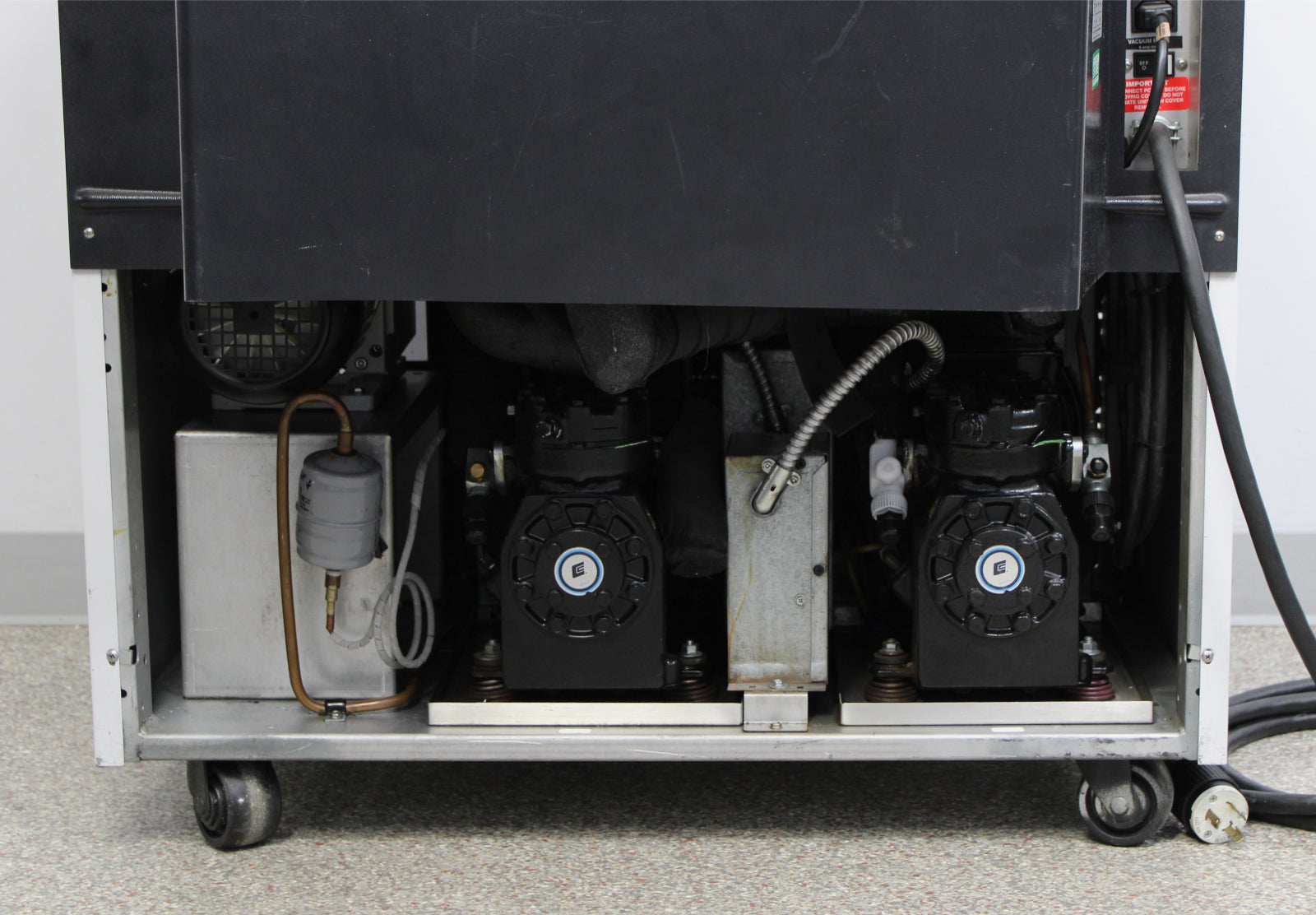

Number of Compressors
|
2
|
|
Compressor Horsepower
|
1.0, 1.5
|
|
Vacuum Time to 100 Millitorr
|
≤ 20 minutes
|
|
Lowest System Vacuum
|
≤ 15 mT
|
|
Refrigerant
|
CFC-Free
|
|
Construction
|
316L stainless steel condenser chamber
|
|
Power rating
|
208/230V, 60Hz, 30A, 1Ph
|
|
Dimensions (W x D x H)
|
35 x 35 x 37 in
|
|
Dimensions with manifold (W x D x H)
|
35 x 35 x 54 in
|
