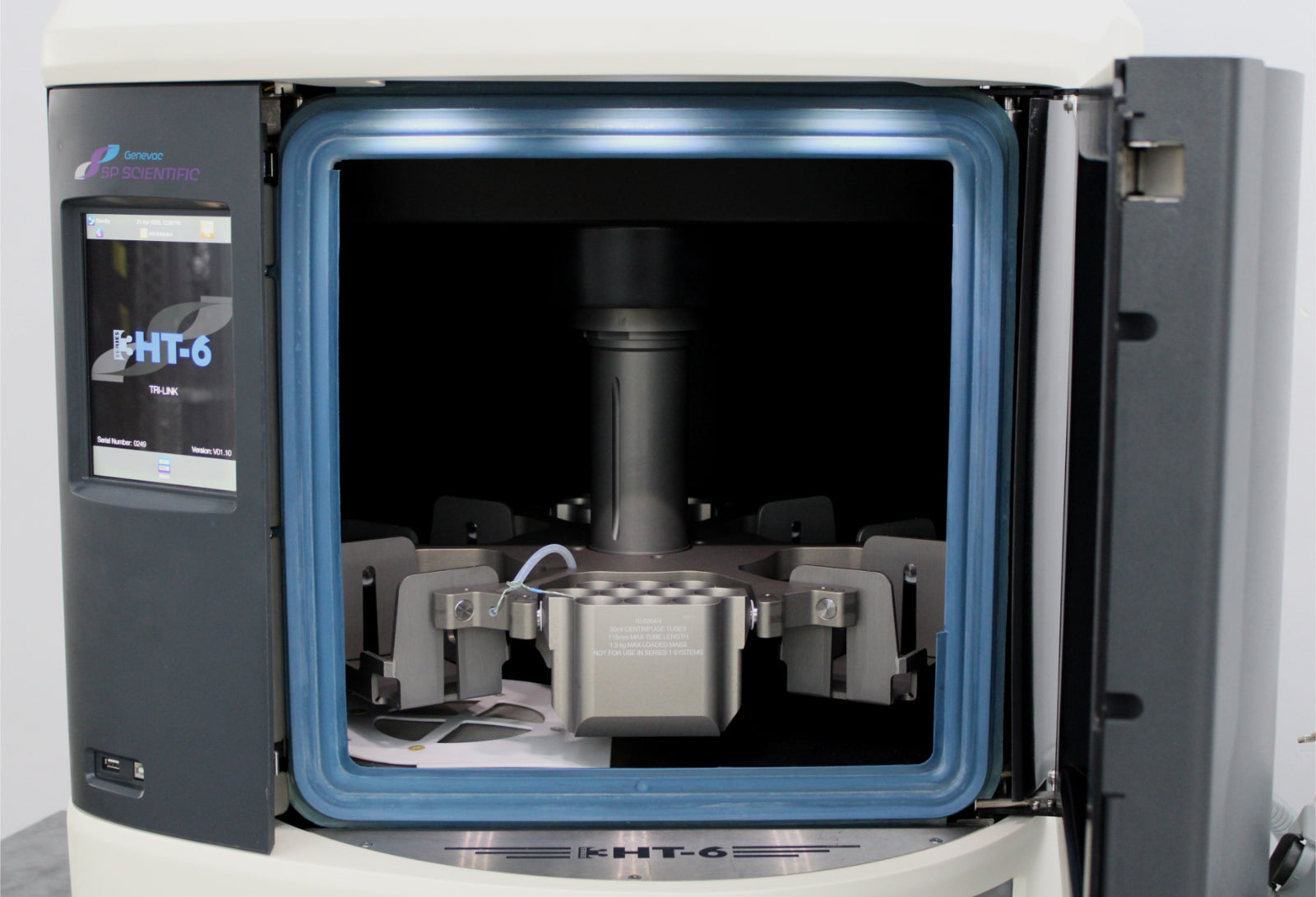

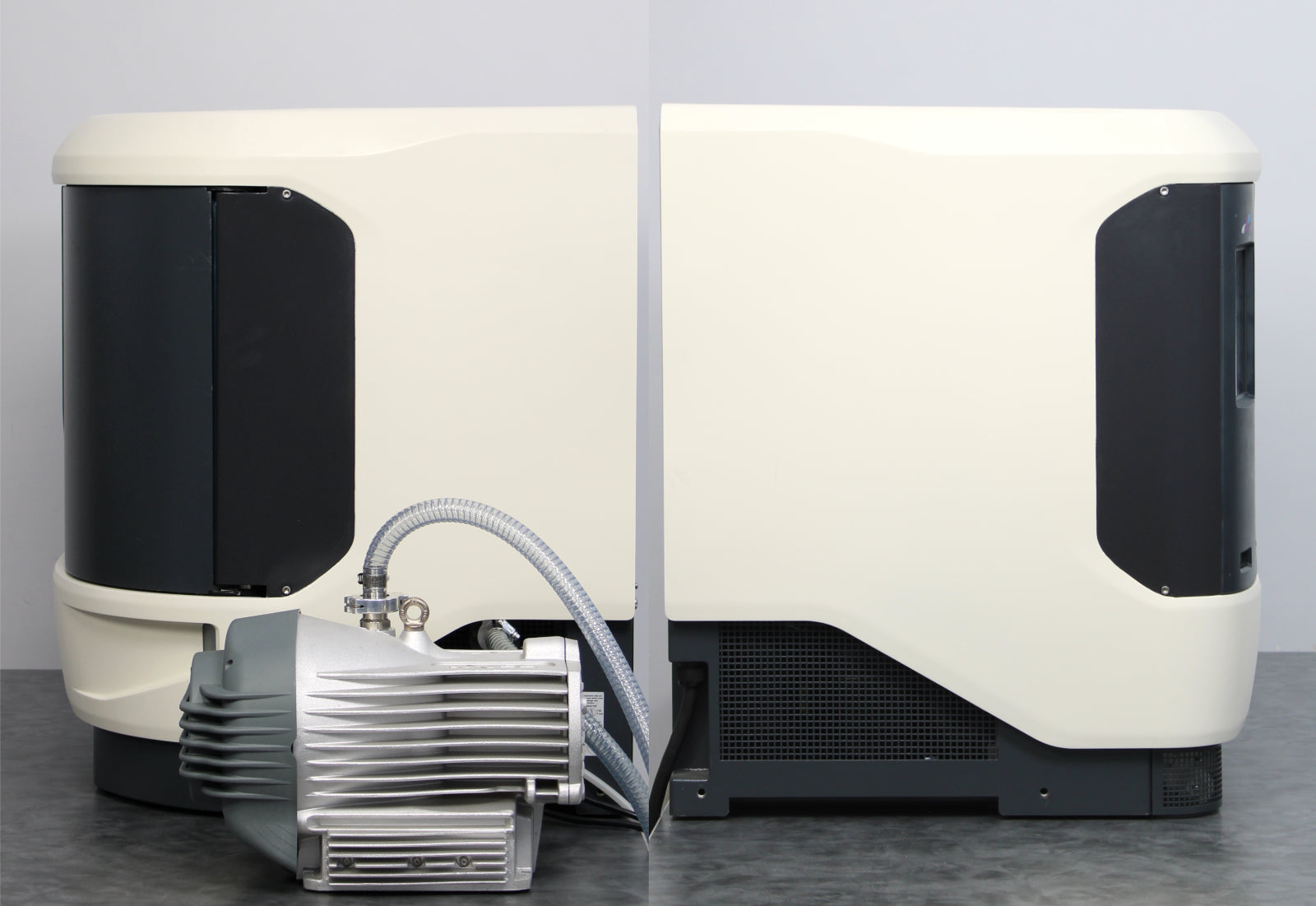

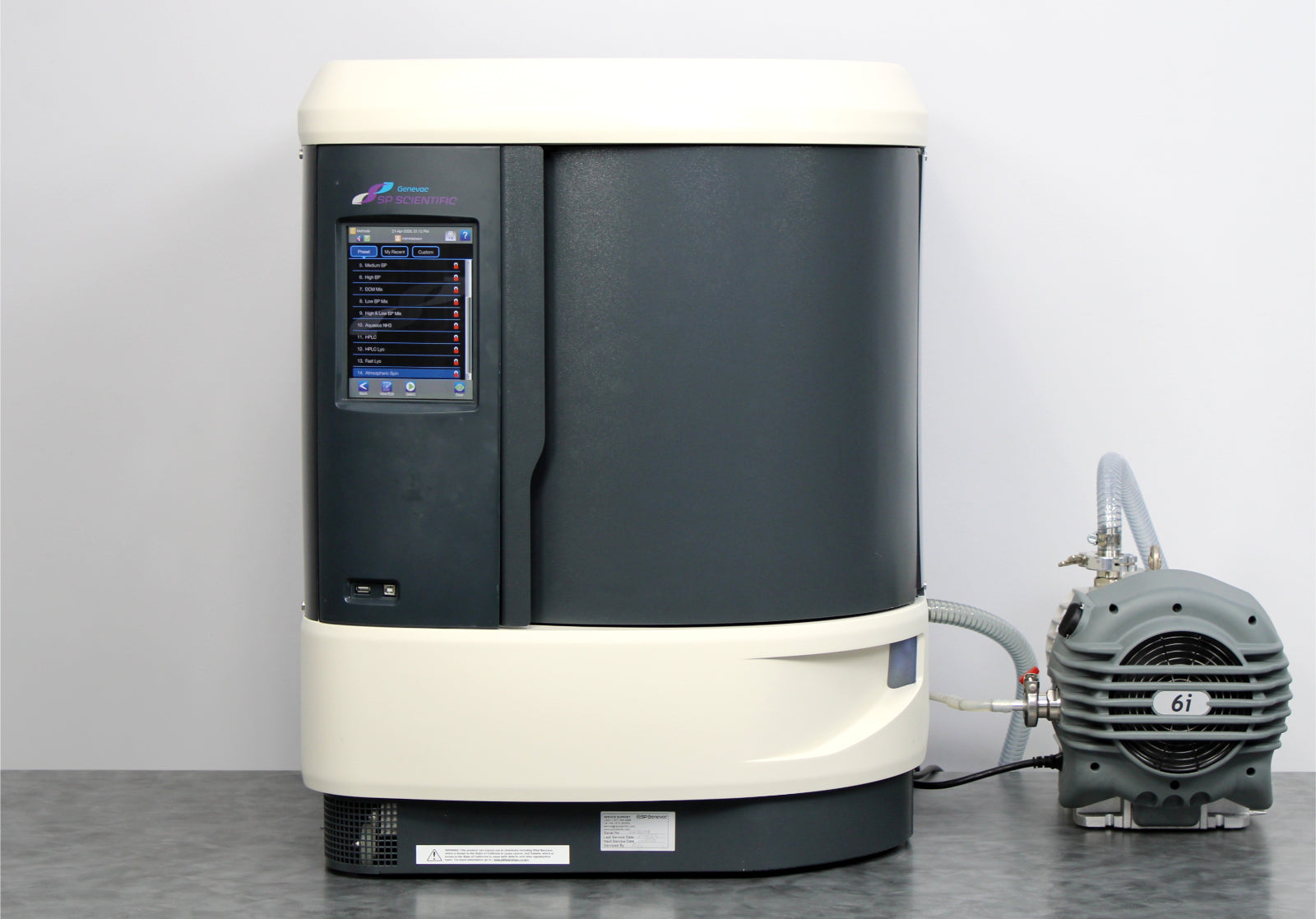

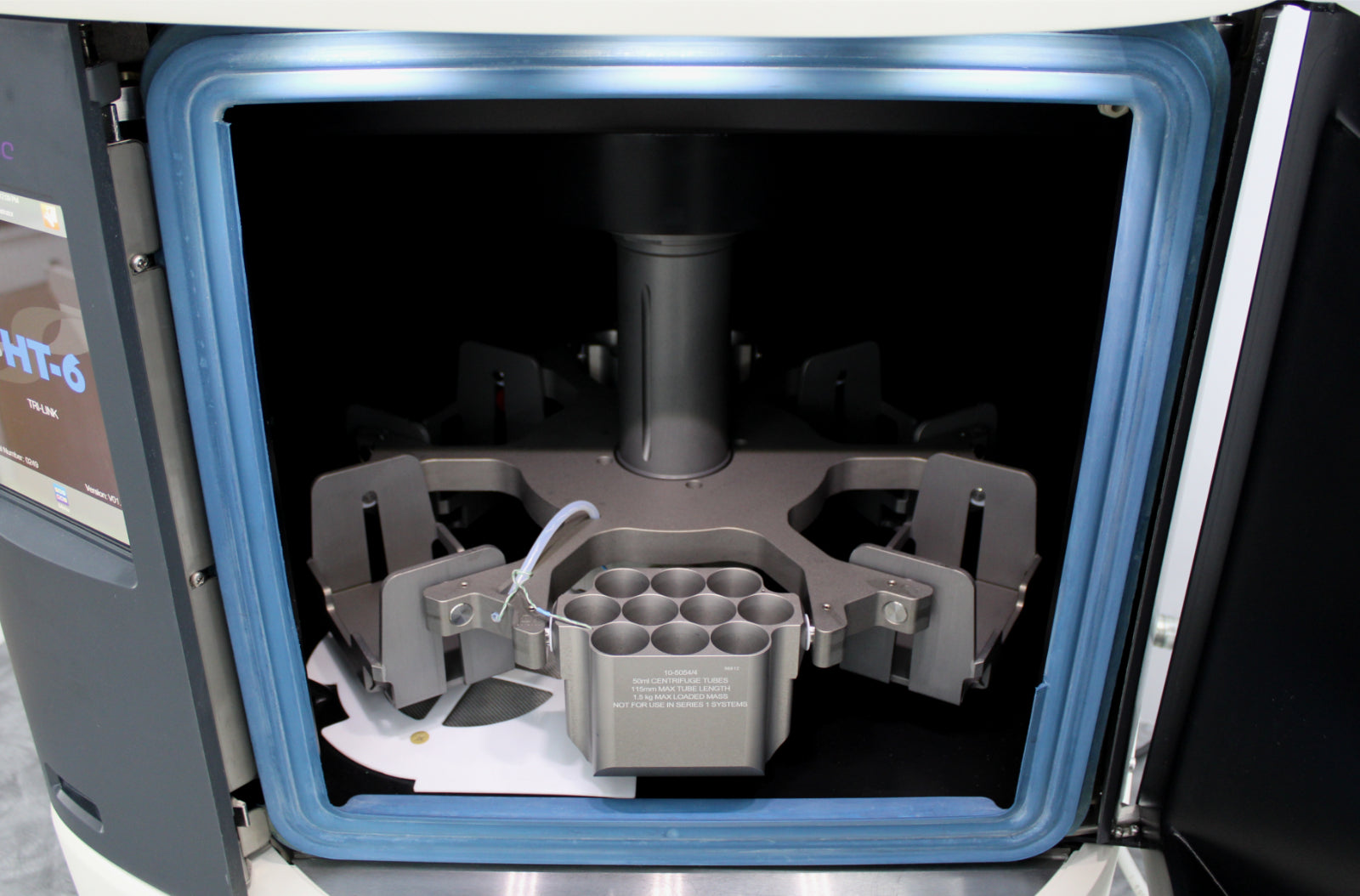

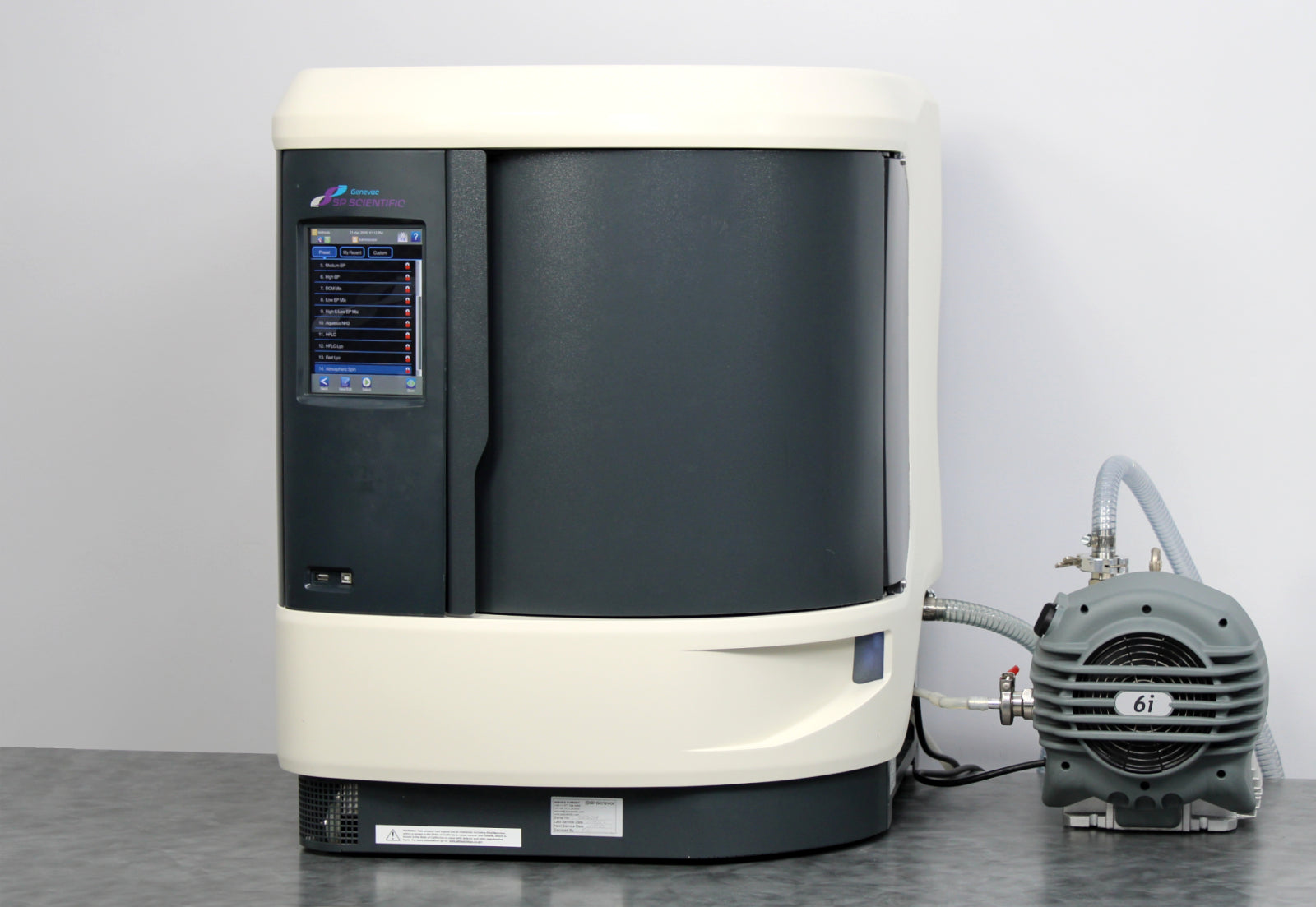

- SP Scientific GeneVac Series 3 HT-6 Benchtop Centrifugal Evaporator

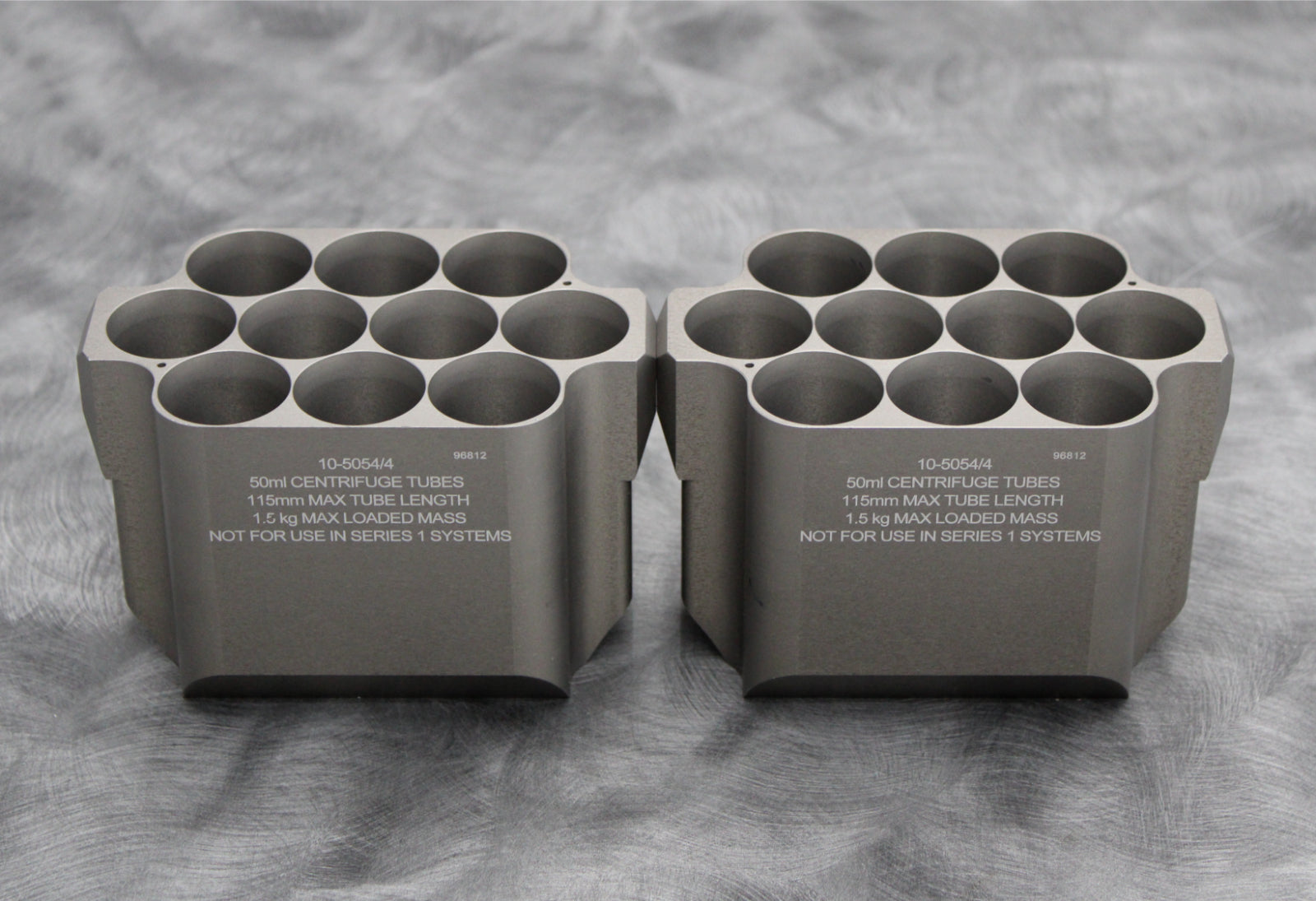

- x2 Buckets (10-5054/4)

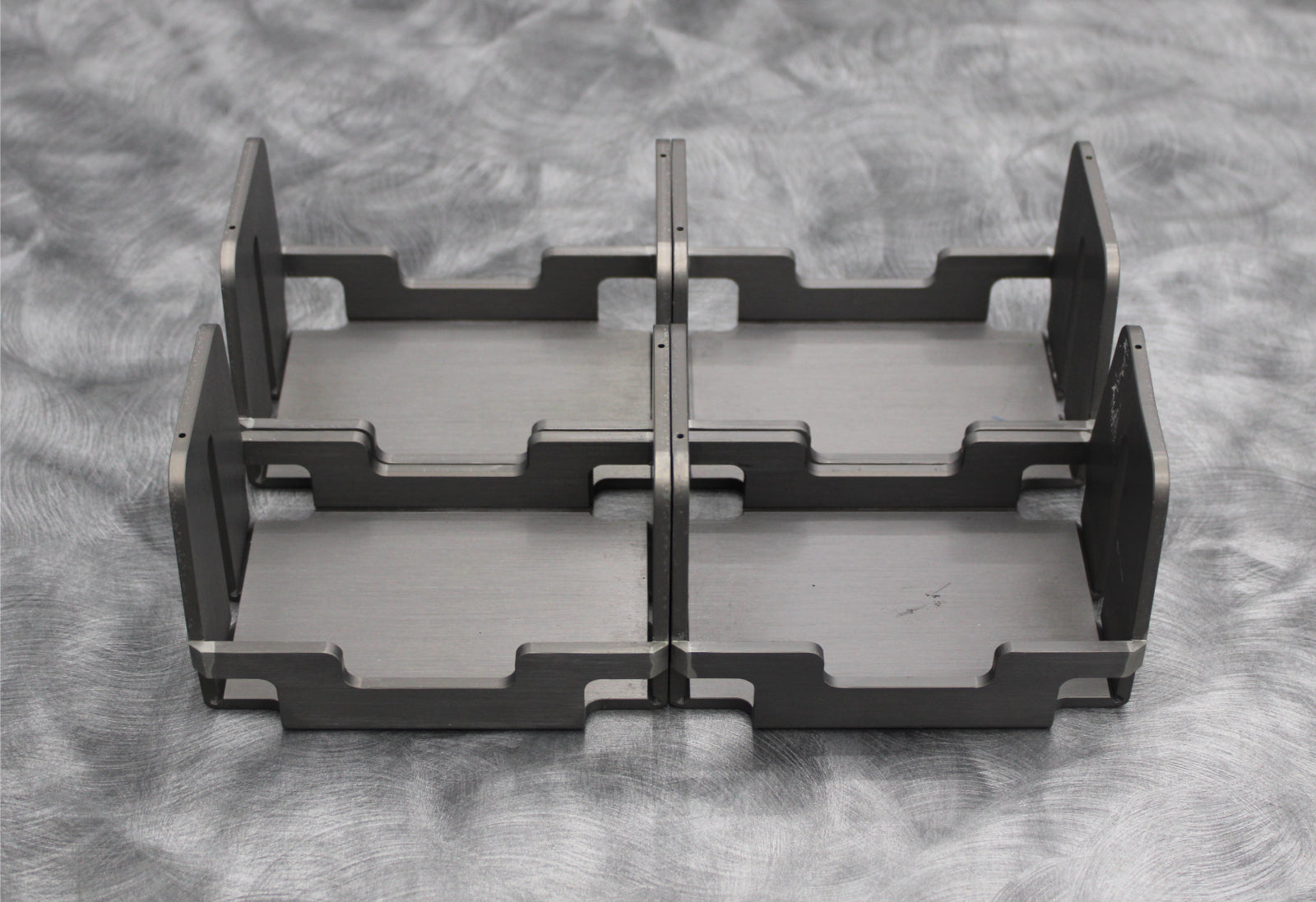

- x4 Plate Carriers

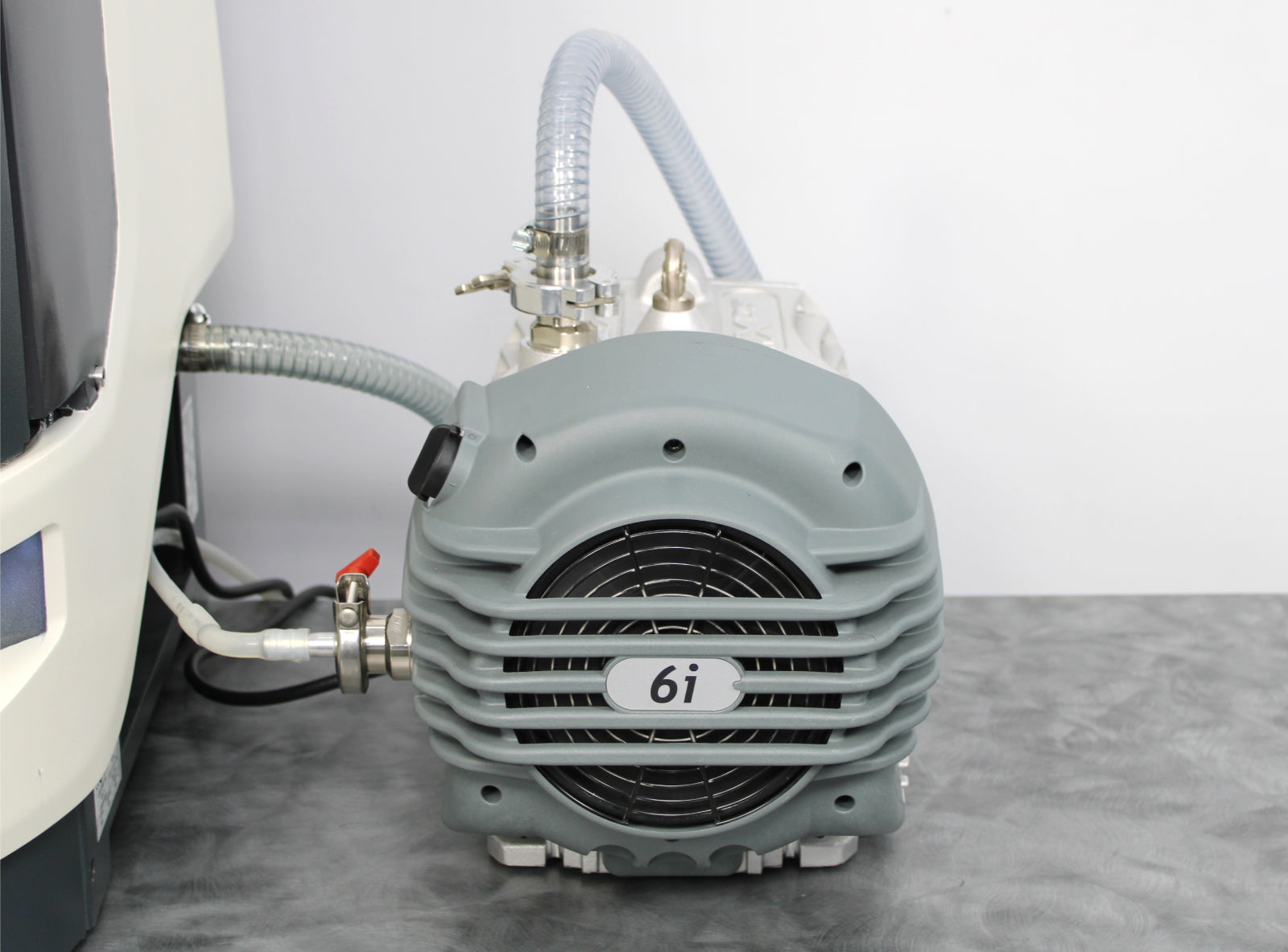

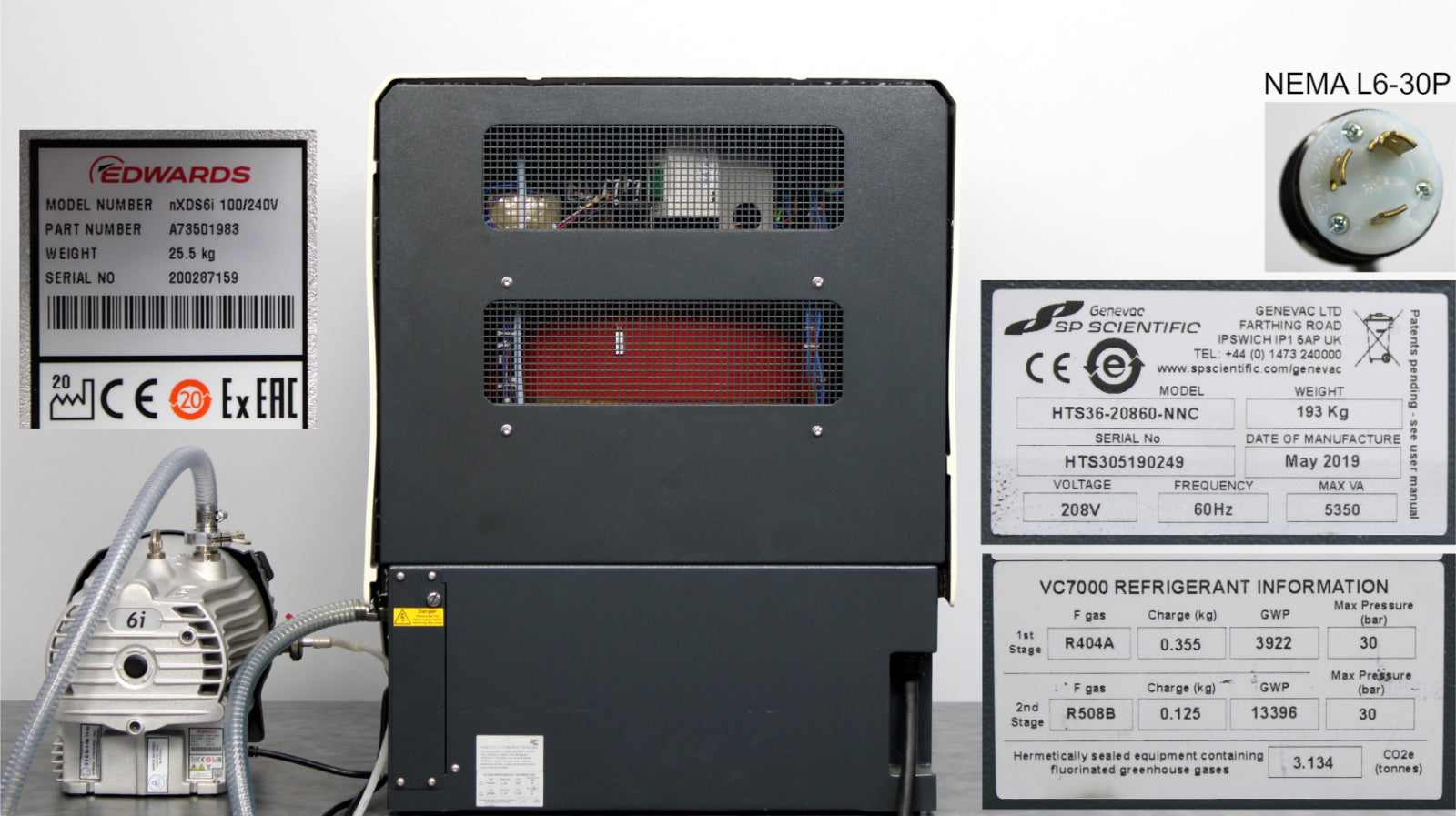

- Edwards nXDS6i 100/240V Dry Scroll Vacuum Pump (A73501983)
- Vacuum Hose
- Pump Power Cable
- Main Power Cable with NEMA L6-30P Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the SP Scientific GeneVac Series 3 HT-6 benchtop centrifugal evaporator with the following results:
- Power and initialization: PASSED

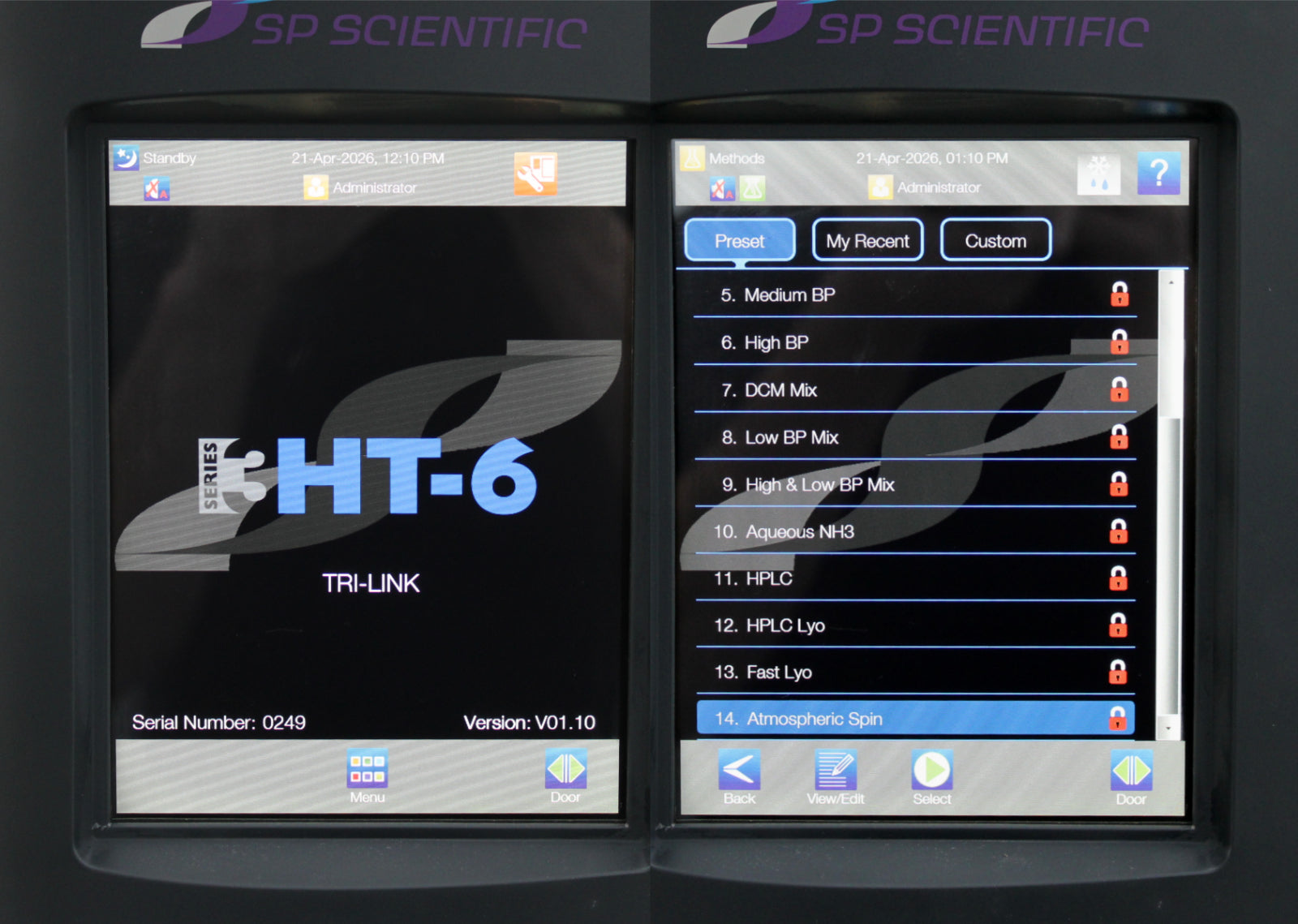

- User interface: PASSED

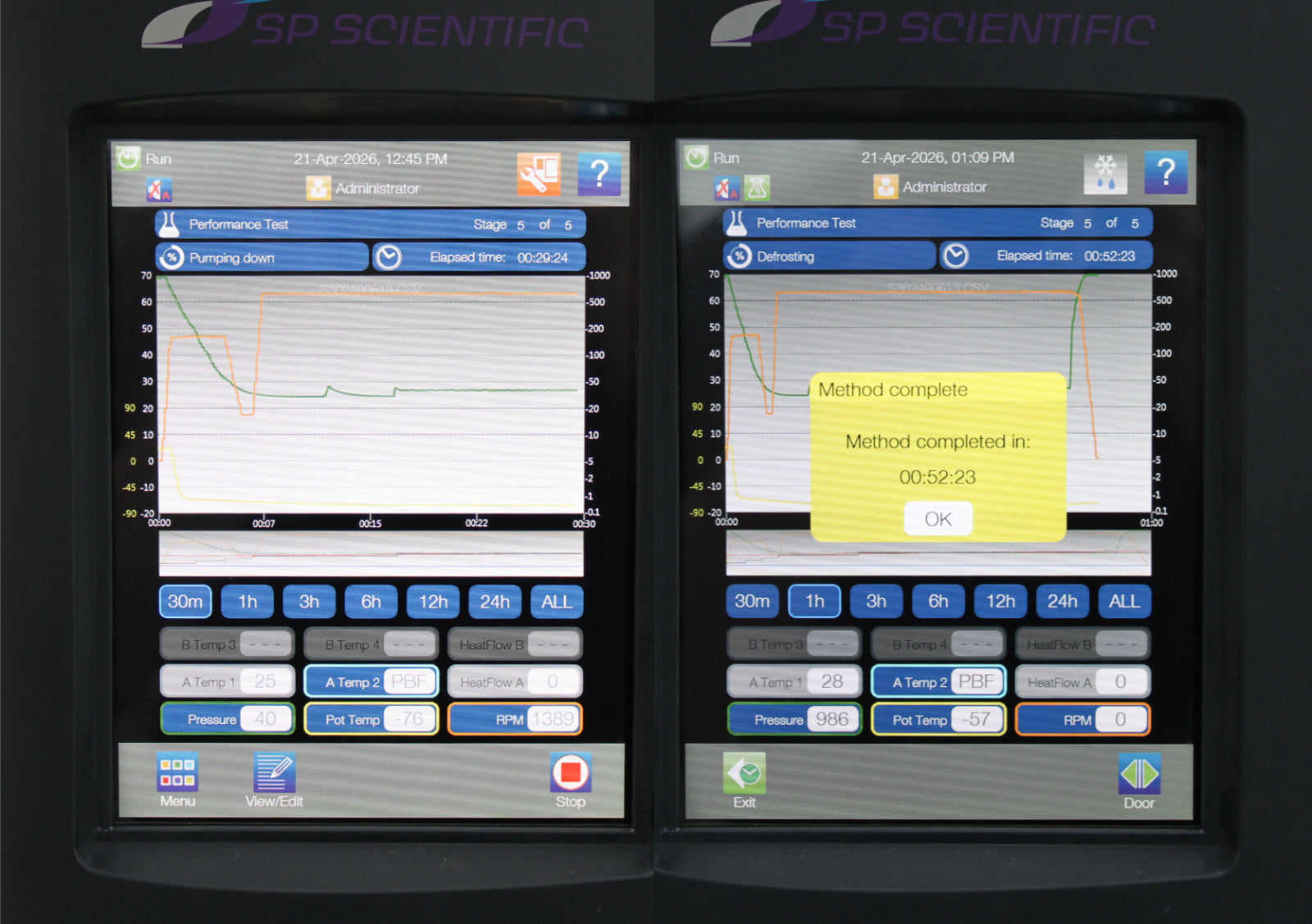

- Performance test: PASSED
|
Manufacturer
|
SP Scientific
|
|
Model
|
Series 3 HT-6
|
|
Model No.
|
HTS36-20860-NNC
|
|
Serial No.
|
HTS305190249
|
|
Mfg. date
|
May 2019
|
|
Maximum speed
|
1415 rpm
|
|
Maximum G-force
|
500 g
|
|
Drive system
|
Direct drive
|
|
Motor drive
|
Multi speed Inverter drive
|
|
Vacuum pressure display
|
0-120mbar
|
|
Vacuum pressure control
|
Automatic 1mbar to atmosphere
|
|
System ultimate vacuum
|
0.4mbar
|
|
Bumping/foaming protection
|
Dri-Pure
|
|
Temperature control range
|
Ambient +10°C to 60°C
|
|
Temperature control accuracy
|
±1°C (at ≤50°C)
|
|
Temperature sensing
|
Thermocouple
|
|
Display range
|
0°C to 60°C
|
|
End of method
|
Time or automatic
|
|
Process visualization
|
Graphical display
|
|
Condenser temperature
|
Minimum -75°C;
|
|
Refrigerant gas - stage 1
|
R404A, GWP=3922
|
|
Refrigerant charge - stage 1
|
0.330 kg
|
|
Refrigerant gas - stage 2
|
R508B, GWP=13396
|
|
Refrigerant charge - stage 2
|
0.120 kg
|
|
CO2 equivalent (CO2e)
|
2.768 tonnes
|
|
Boiling point range
|
40°C to 200°C at atmospheric pressure
|
|
HCI
|
Resistant option required
|
|
Diethyl ether, Pentane
|
Requires Inert Gas Purge option
|
|
USB A
|
For data upload and download
|
|
Plug type
|
NEMA L6-30P
|
|
Power rating
|
208V, 60Hz
|
|
Power consumption
|
5350VA
|
|
Dimensions (W x D x H)
|
26 x 28 x 33 in (66 x 71 x 84 cm)
|
|
Weight
|
425 lb (193 kg) varies with build options
|
