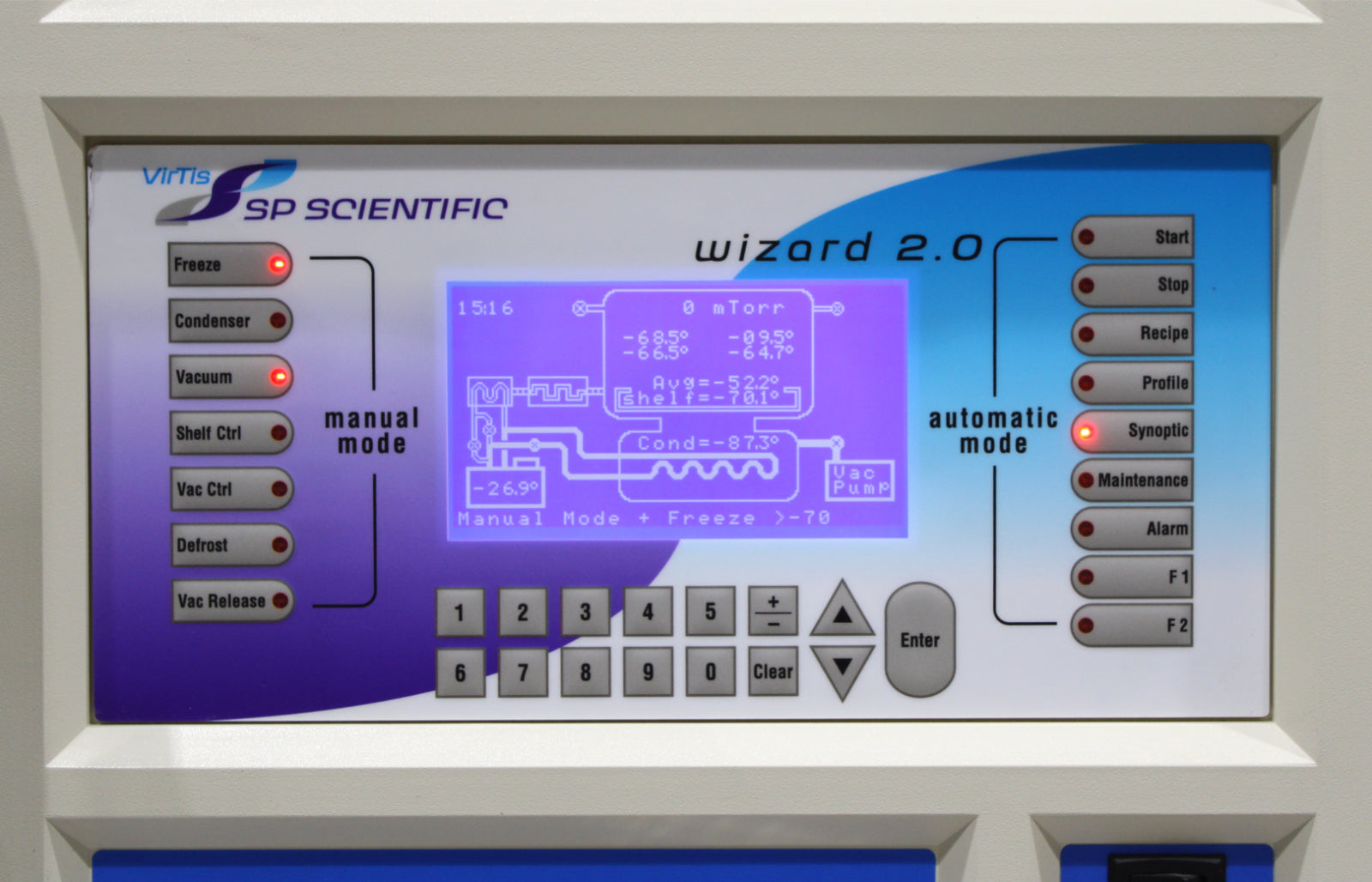

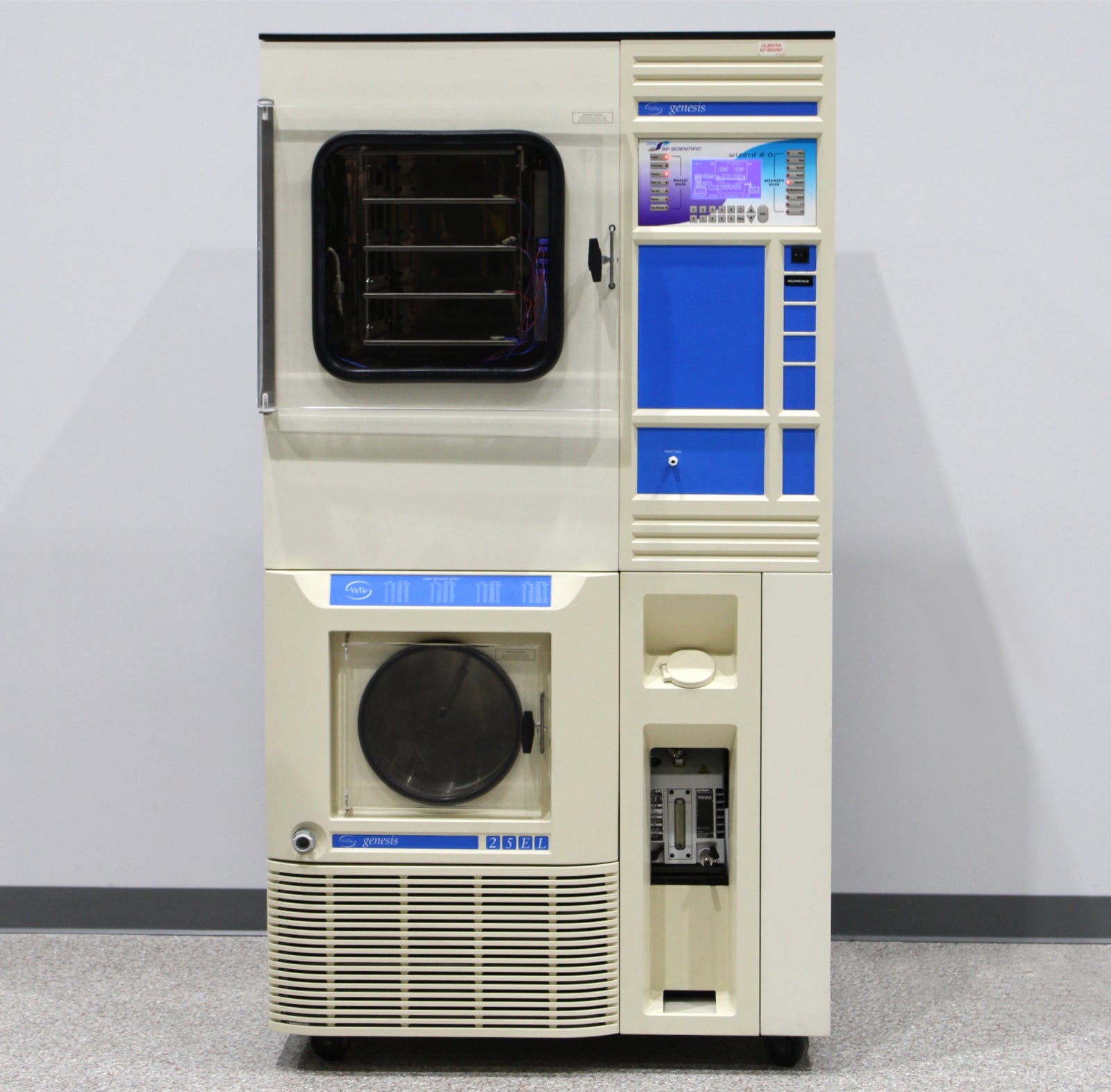

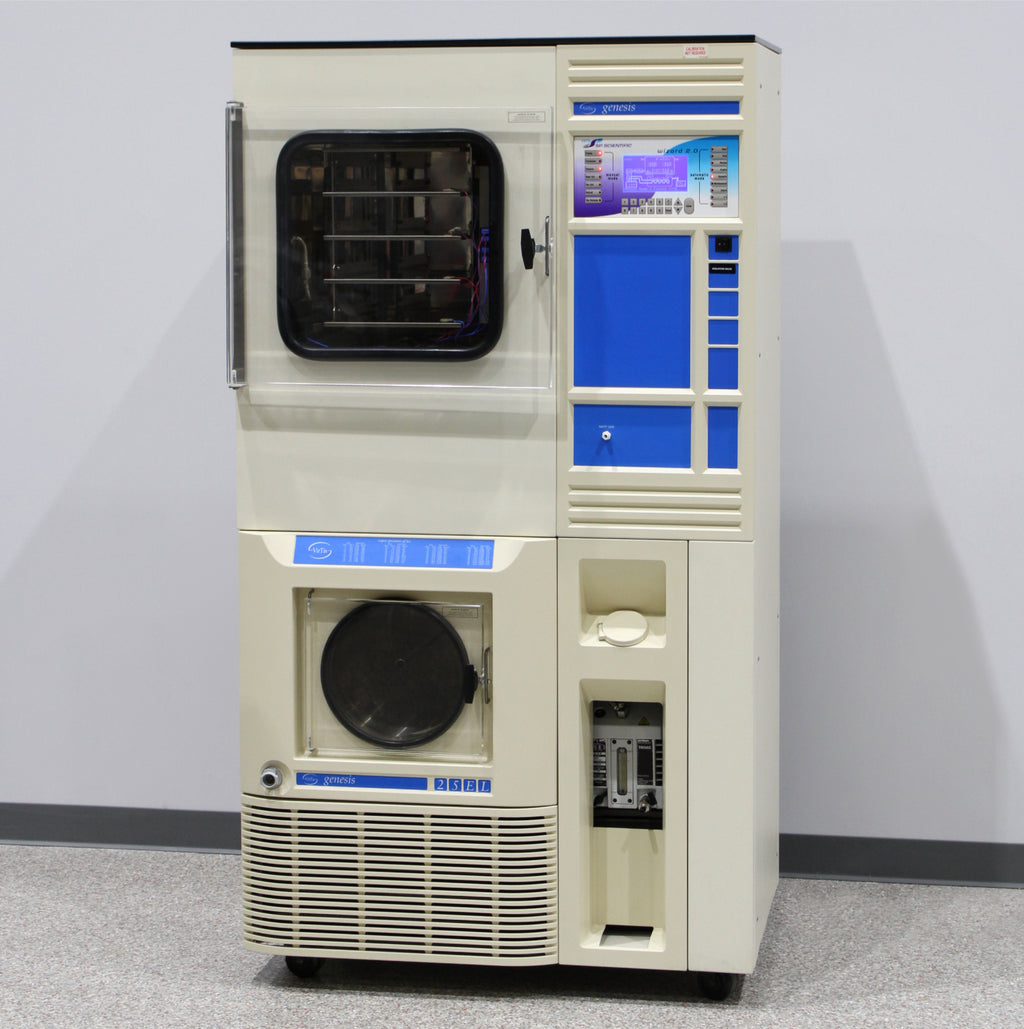

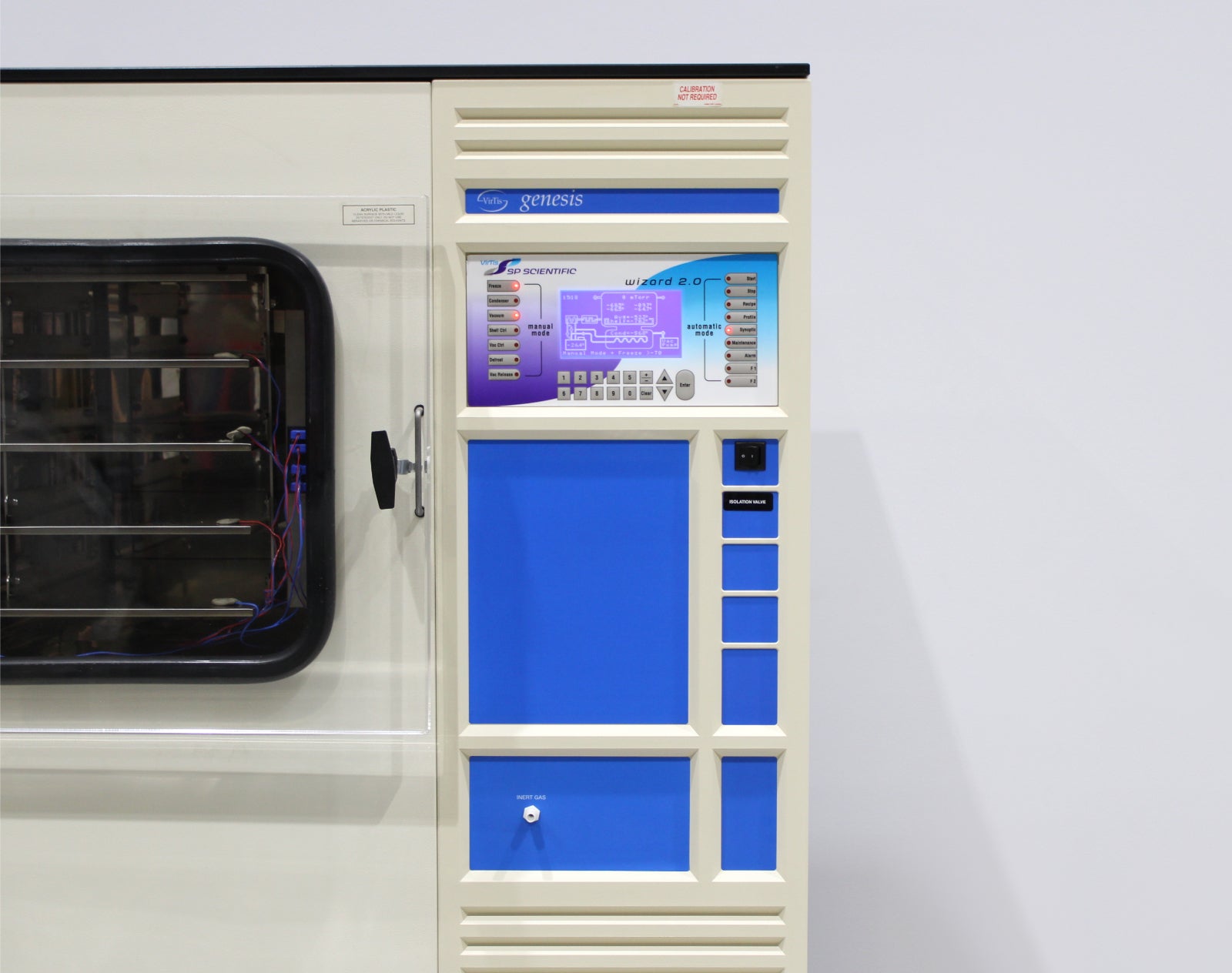

- SP Scientific VirTis 25L Genesis SQ EL-85 Freeze Dryer Lyophilizer (446590) with Wizard 2.0 Control System

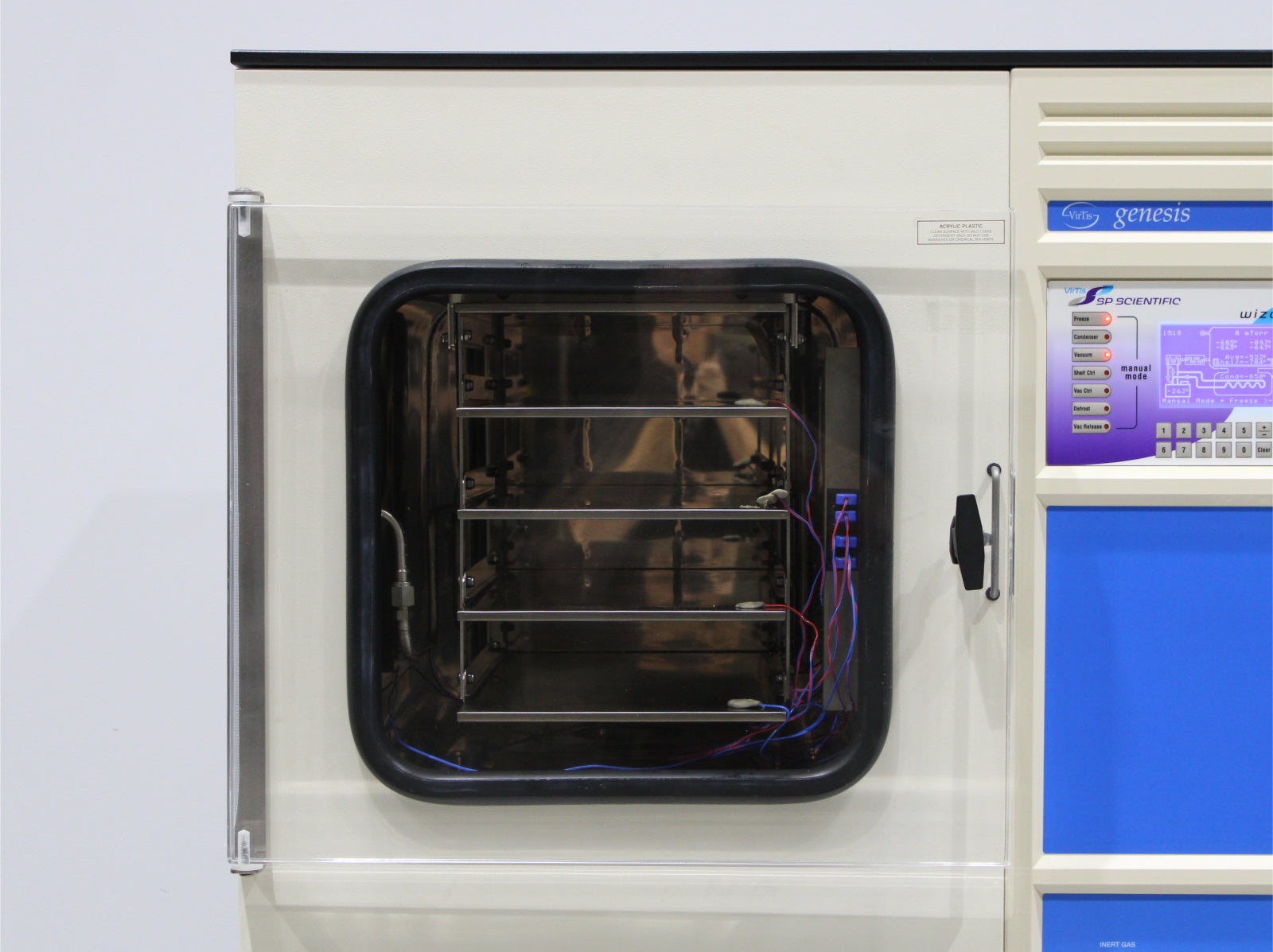

- 4 Shelves

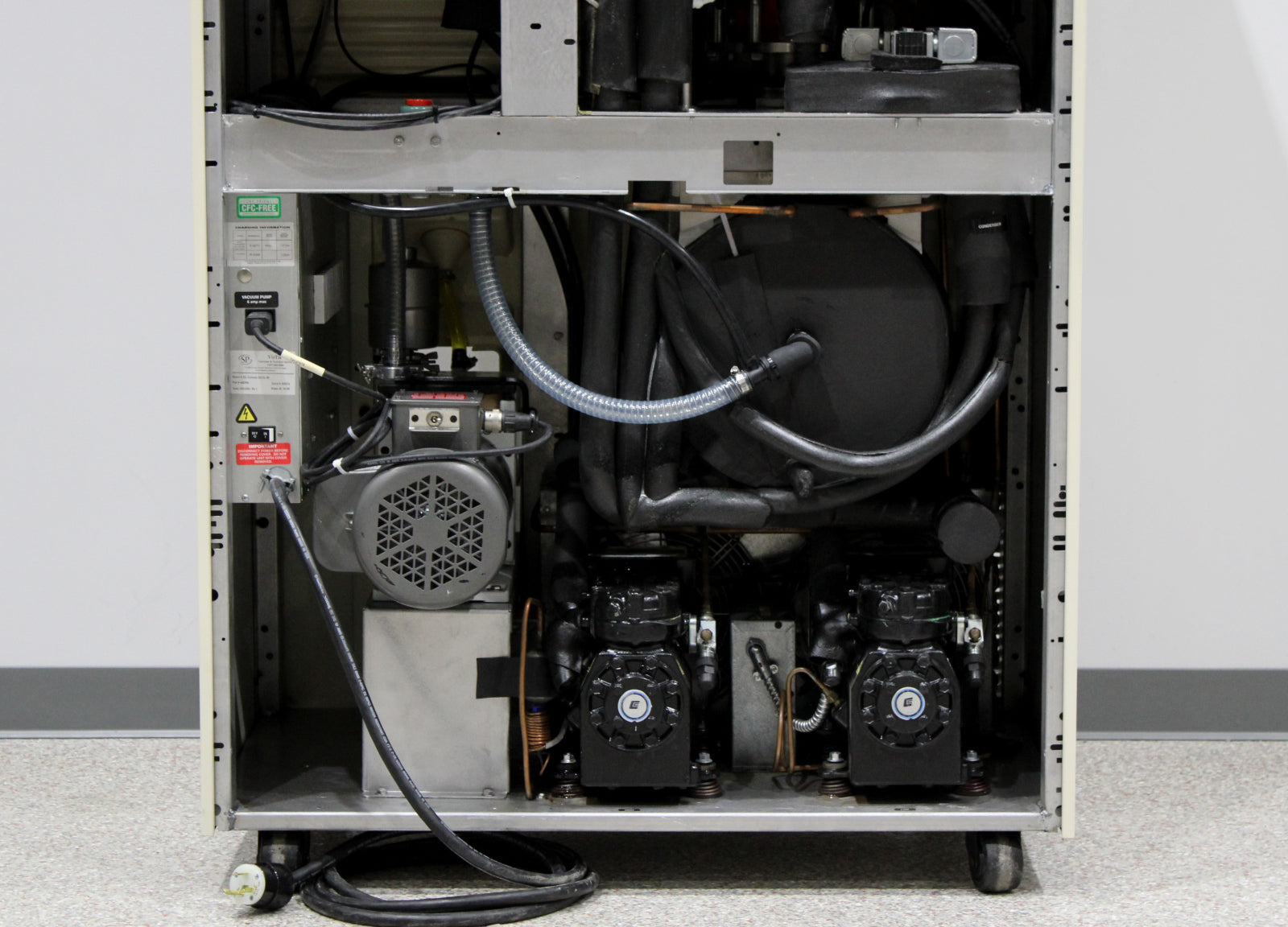

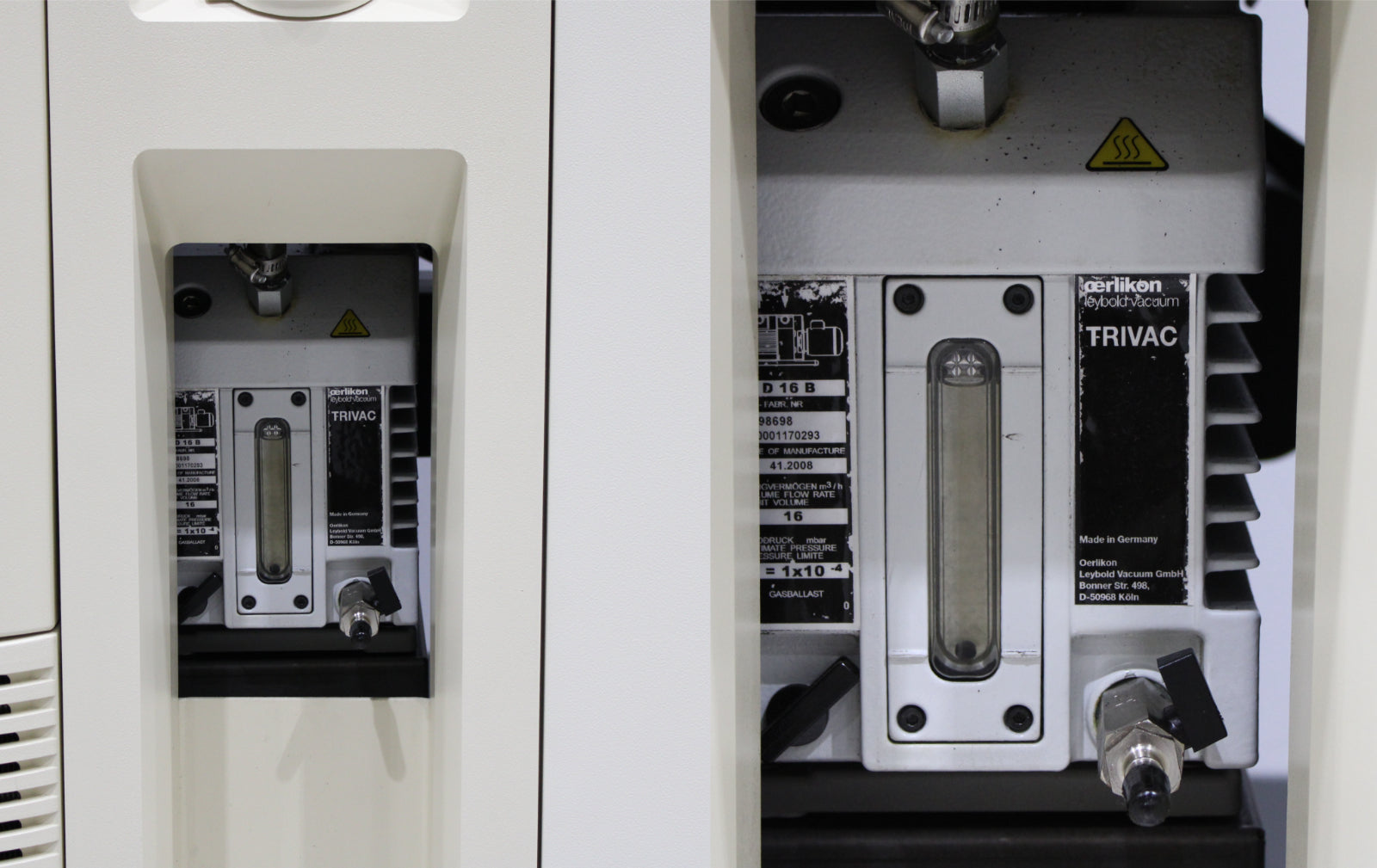

- Vacuum Pump
- Attached Power Cable
- 90-Day Warranty
Notice: This freeze dryer does not have the stoppering option.
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis 25L Genesis SQ EL-85 freeze dryer with the following results:
- Calibrated temperature: PASSED
- Condenser temperature achieved -85°C: PASSED
- Shelf temperature achieved -70°C: PASSED
- Calibrated vacuum: PASSED
- Vacuum achieved 15mT: PASSED
- Inspected and replaced vacuum hoses as needed.
- Inspected and replaced refrigeration insulation as needed.
- Inspected door seals.
- Cleaned with dry ice blasting.
Shelf size (W x D): 10.8 in x 20.5 in (274.3 mm x 520.7 mm)

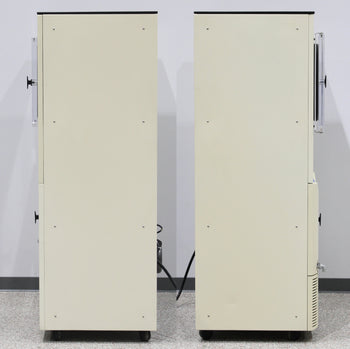

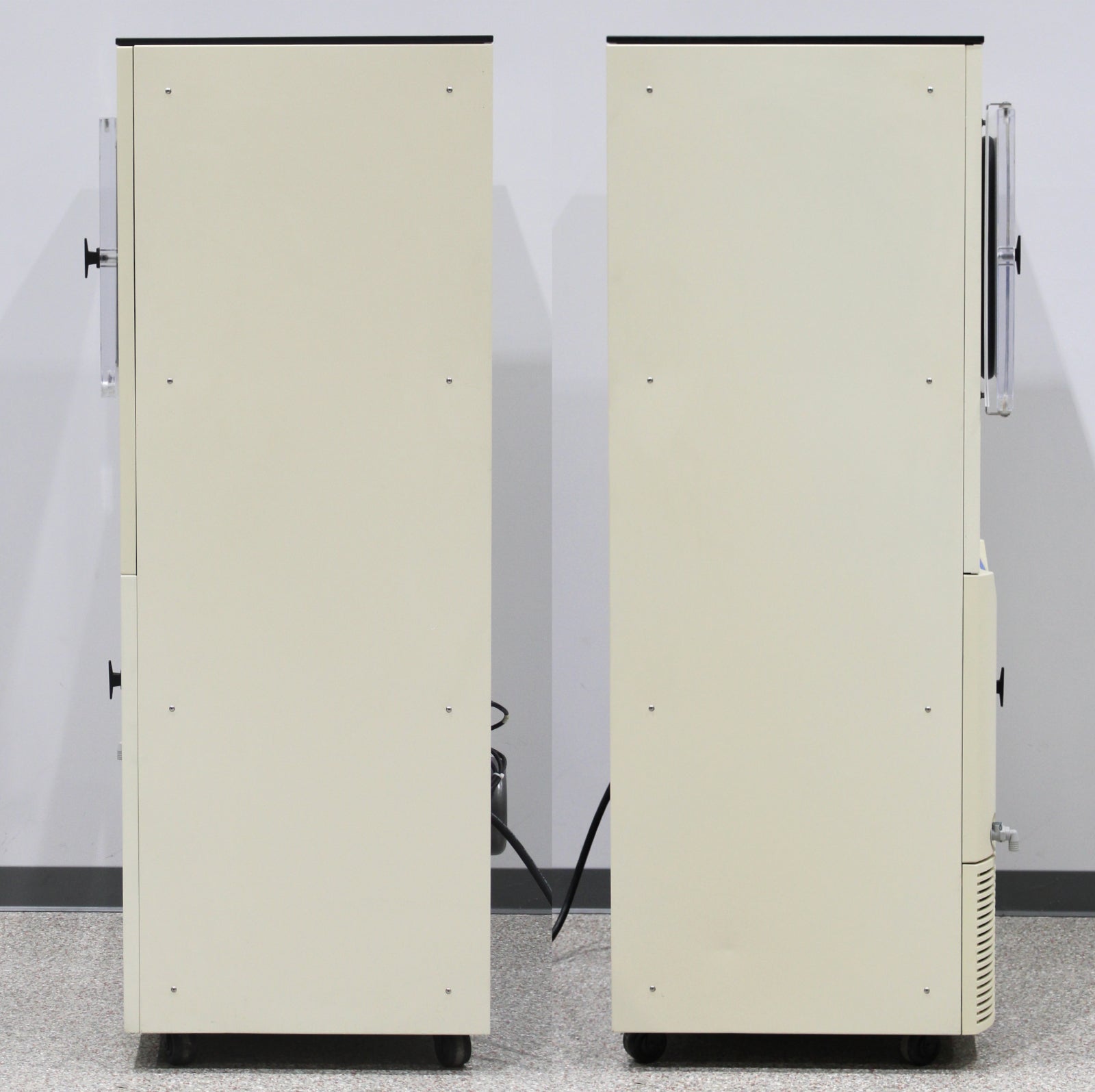

Notice: This freeze dryer has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
SP Scientific
|
|
Model
|
25L Genesis SQ EL-85
|
|

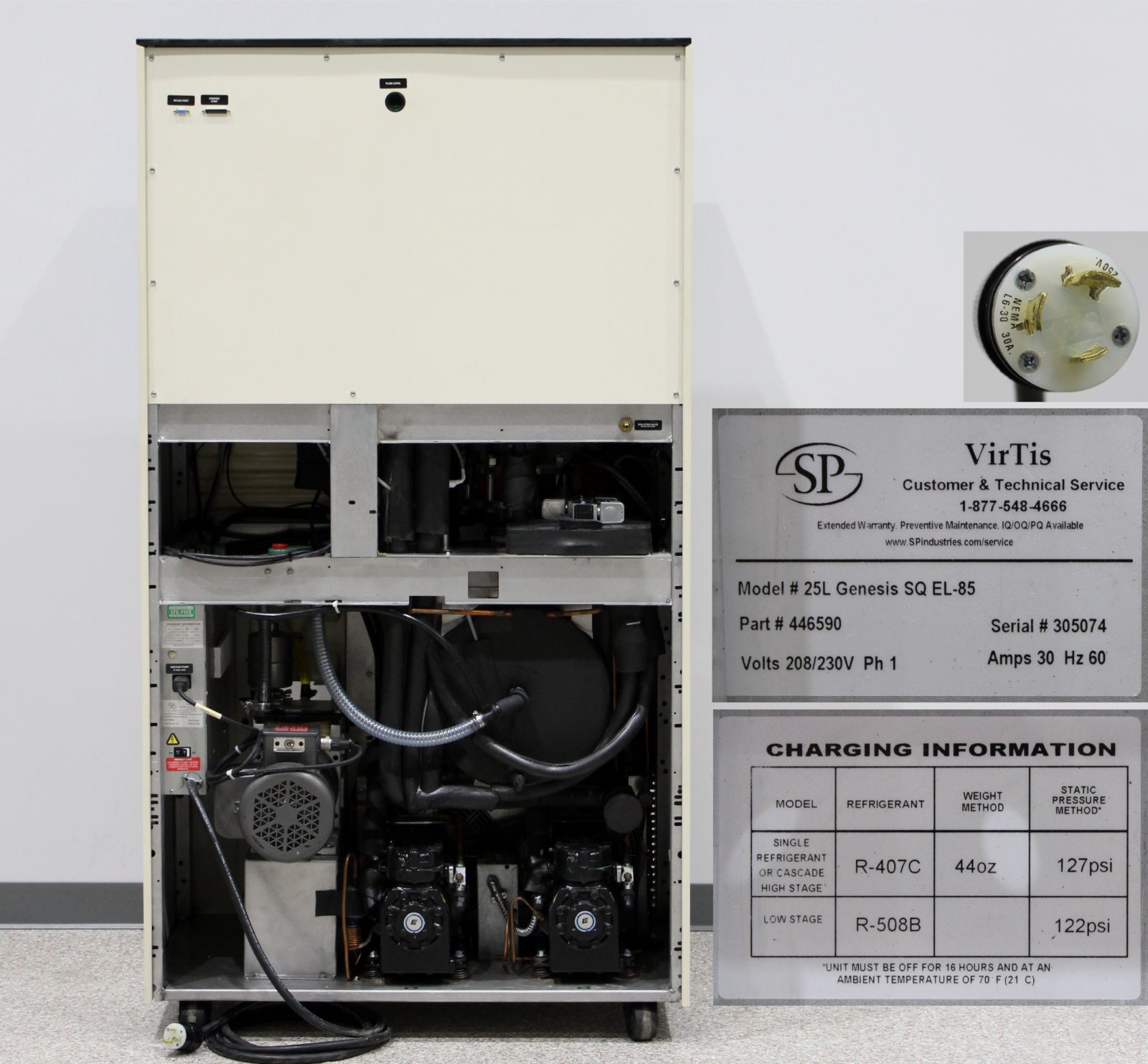

Part No.
|
446590
|
|
Serial No.
|
305074
|
|
Shelf temperature control range
|
-55°C to 65°C
|
|
Lowest shelf temperature (50Hz/60Hz)
|
-67°C/-70°C
|
|
Lowest condenser temperature (50Hz/60Hz)
|
-82°C/-85°C
|
|
Maximum condenser capacity
|
25 liters
|
|
Condenser surface area
|
506 in2
|
|
Maximum ice condensing capacity in 24 hours
|
12 liters
|
|
Condenser pull-down from 20°C to -45°C
|
25 minutes or less
|
|
Shelf pull-down from 20°C to -40°C
|
30 minutes or less
|
|
Vacuum time to 100 millitorr
|
20 minutes or less
|
|
Lowest system vacuum
|
15 mT or less
|
|
Temperature uniformity
|
± 1.0°C
|
|
Power rating
|
208/230V, 60Hz, 30A, 1Ph
|
|
Dimensions (W x D x H)
|
40 x 30 x 79 in
|
|
Weight
|
800 lb (362.9 kg)
|
|
Minimum clearance on all sides
|
10 inches
|
Note: Performance specifications are based on SP Scientific test data from units operating at an ambient room temperature of approximately 20°C. SP recommends an optimum operating range of 15-25°C (59-77°F).
Note: SP Scientific recommends a 24-inch (61 cm) clearance around all sides of the unit for serviceability. If machines are placed side by side, increase the minimum clearance to 48 inches (121.9 cm)
