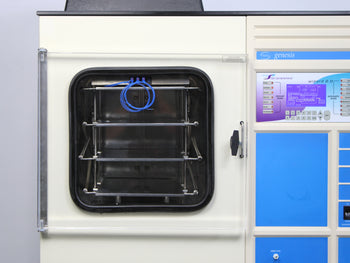

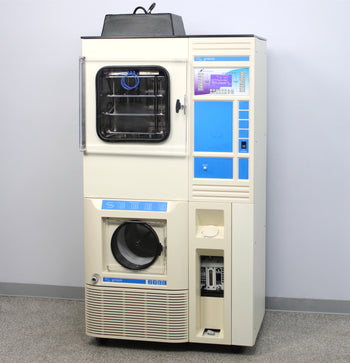

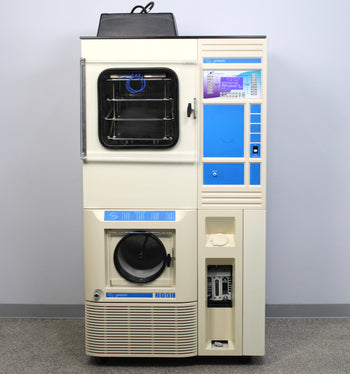

- SP Scientific VirTis 25L Genesis SQ EL-85 Stoppering Freeze Dryer (446693) with Shelves

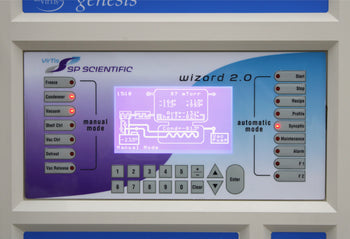

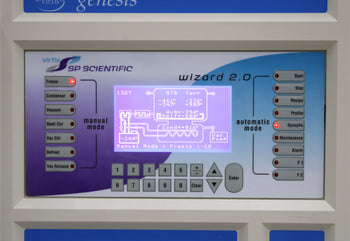

- Wizard 2.0 Controller

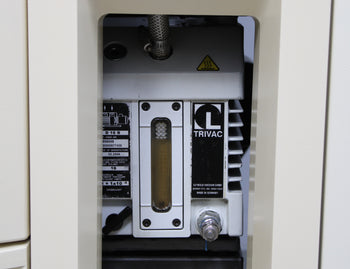

- Vacuum Pump
- Attached Power Cable
- 90-Day warranty
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis 25L Genesis SQ EL-85 stoppering freeze dryer with the following results:
- Condenser temperature achieved specification -80°C: PASSED
- Vacuum achieved 25mT: PASSED
- Shelf temperature achieved specification -68°C: PASSED
- Calibrated temperature: PASSED
- Replaced vacuum hoses.

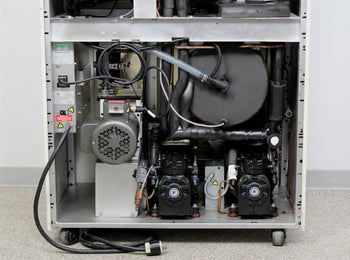

- Reinsulated refrigeration lines.
- Cleaned refrigeration compartment.

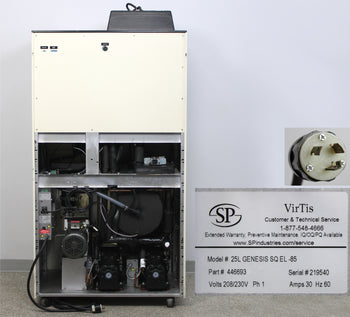

Manufacturer
|
SP Scientific
|
Model
|
25L Genesis SQ EL-85
|
Part No.
|
446693
|
Serial No.
|
219540
|
Mfg. date
|
2015
|
Shelf temperature control range
|
-55°C to 65°C
|
Lowest shelf temperature (50Hz/60Hz)
|
-67°C/-70°C
|
Lowest condenser temperature (50Hz/60Hz)
|
-82°C/-85°C
|
Maximum condenser capacity
|
25 liters
|
Condenser surface area
|
506 in2
|
Maximum ice condensing capacity in 24 hours
|
12 liters
|
Condenser pull-down from 20°C to -45°C
|
25 minutes or less
|
Shelf pull-down from 20°C to -40°C
|
30 minutes or less
|
Vacuum time to 100 millitorr
|
20 minutes or less
|
Lowest system vacuum
|
15 mT or less
|
Temperature uniformity
|
+/- 1.0°C
|
Electrical requirements
|
208/230V, 60Hz, 30A, 1Ph
|
Dimensions (W x D x H)
|
40 x 30 x 79 in
|
Weight
|
800 lb (362.9 kg)
|
Minimum clearance on all sides
|
10 inches
|
