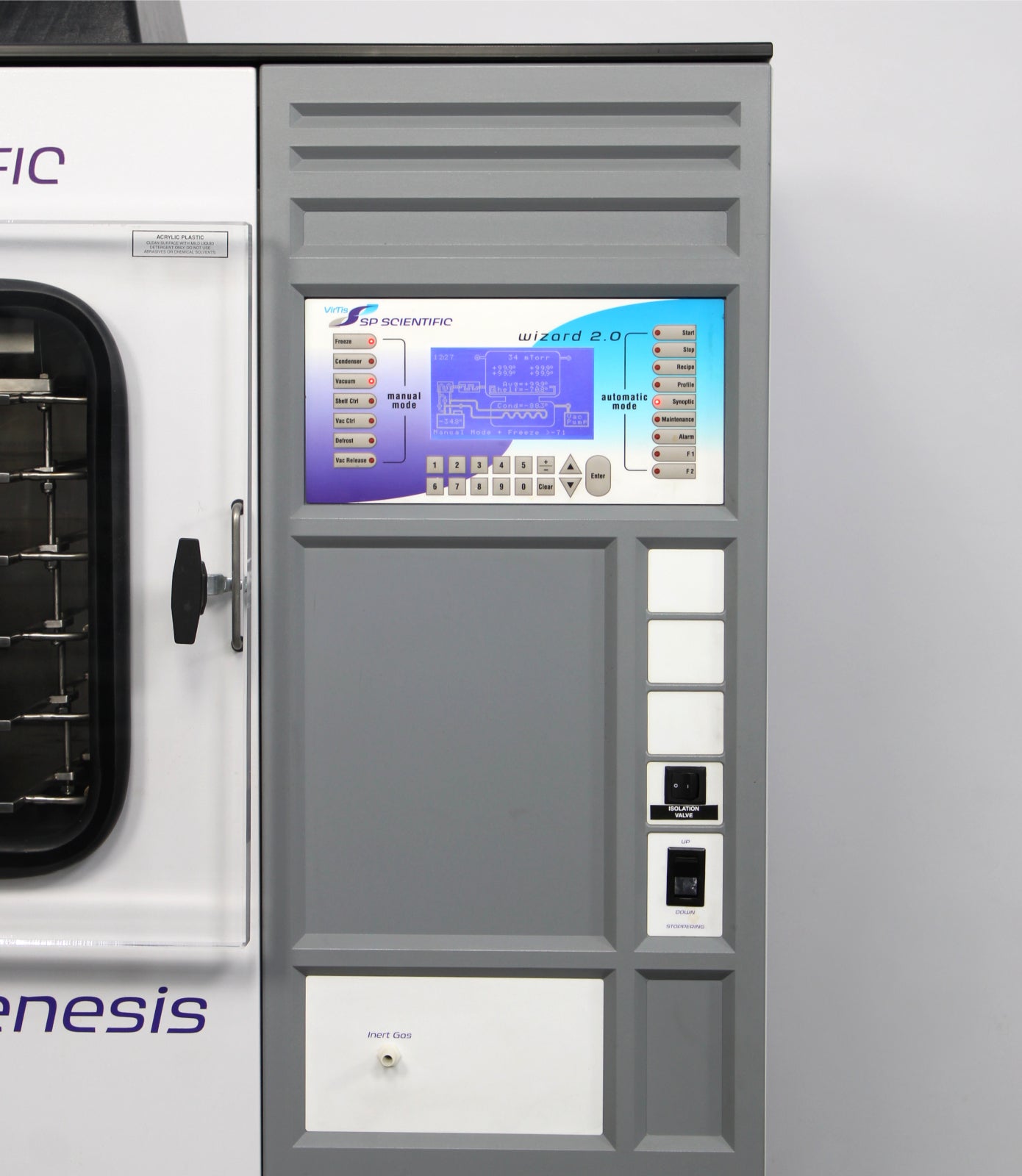

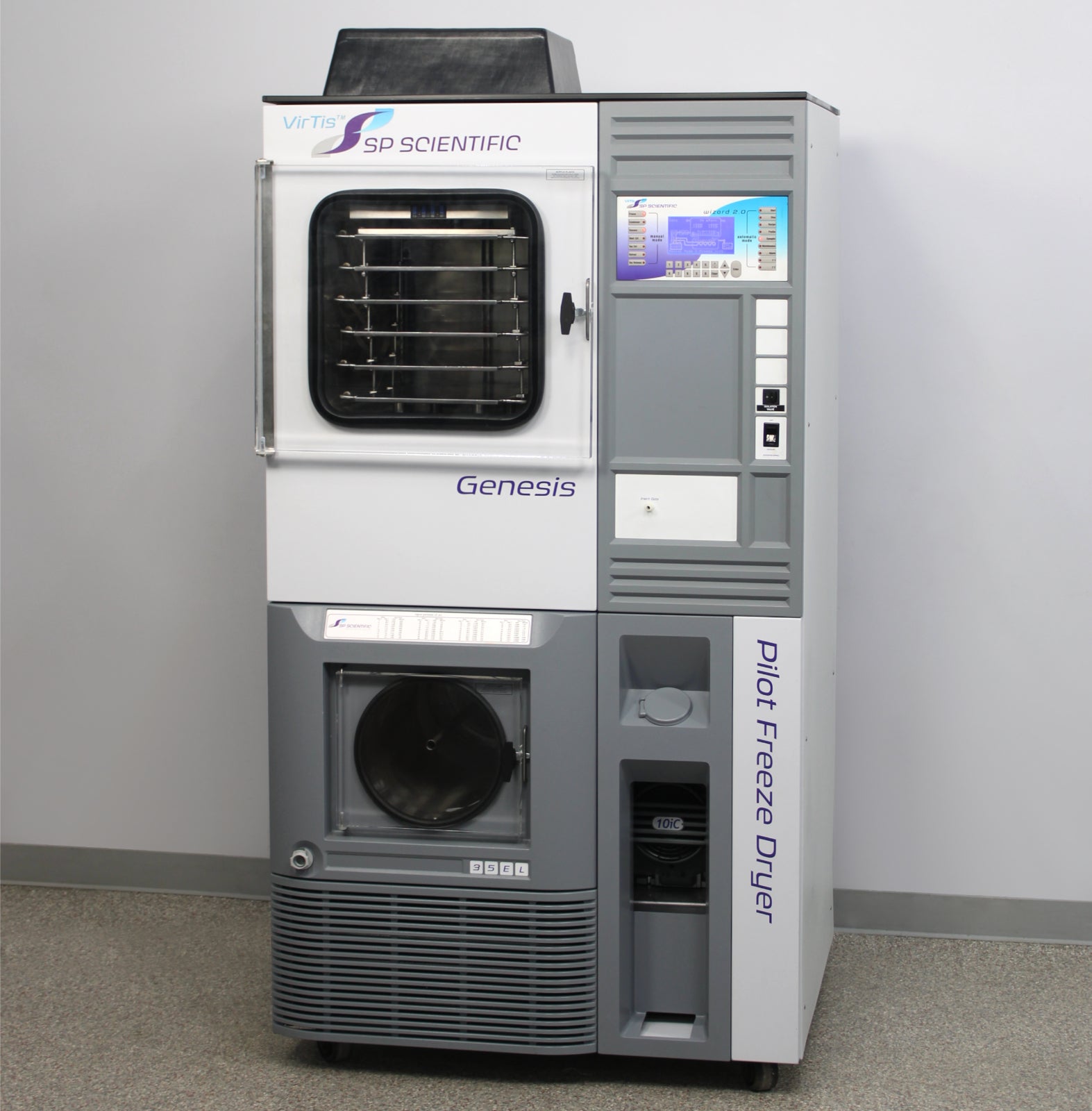

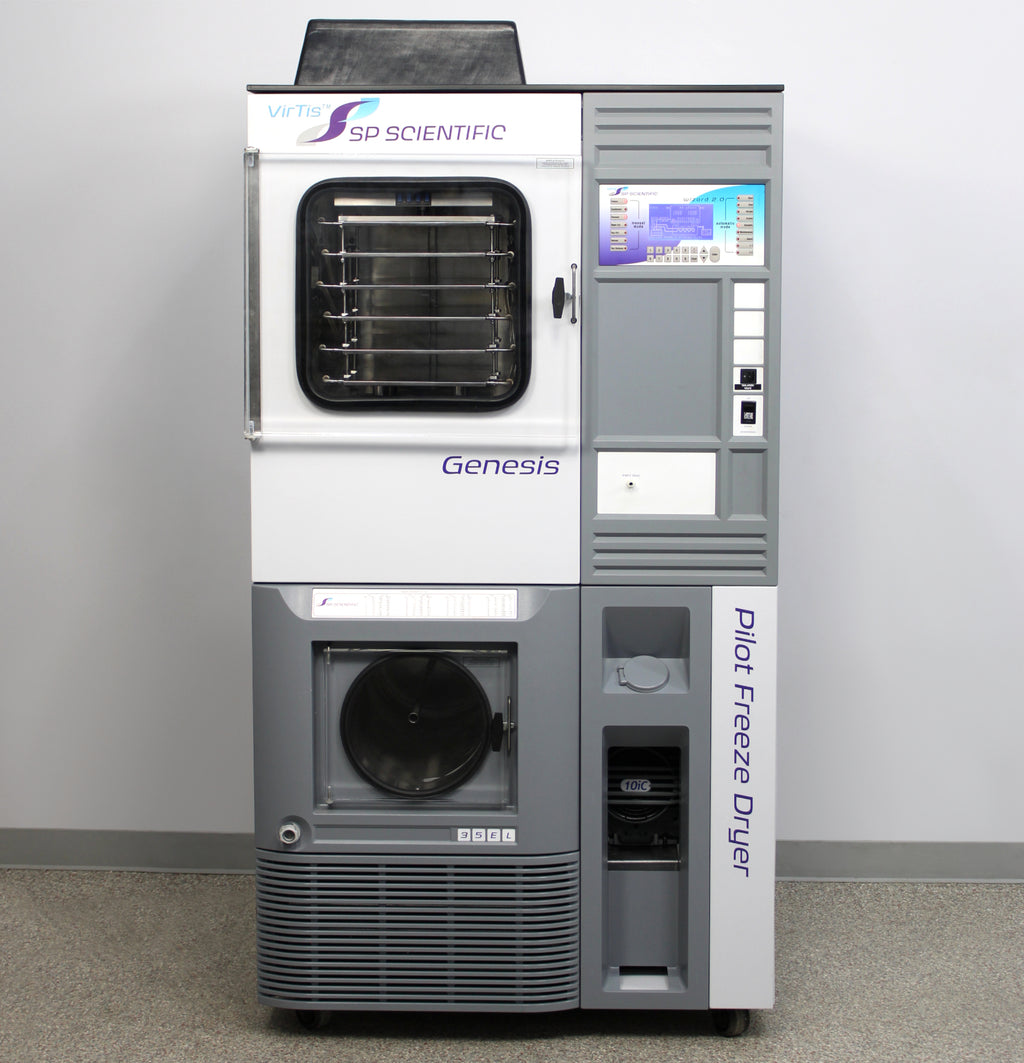

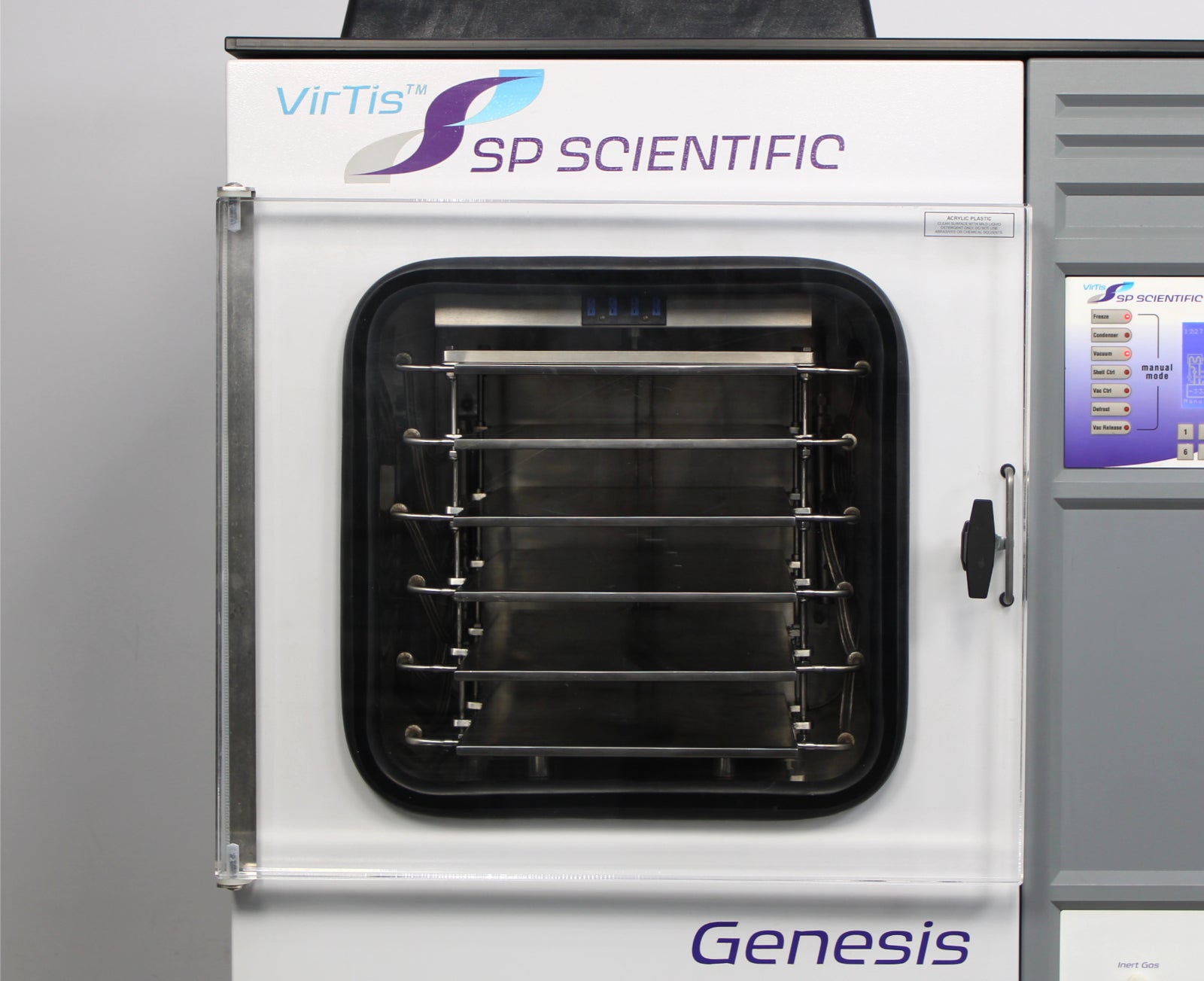

- SP Scientific VirTis 35L Genesis SQ EL-85 Stoppering Tray Pilot Freeze Dryer (100009741) with Wizard 2.0
- x5 Shelves with Stoppering

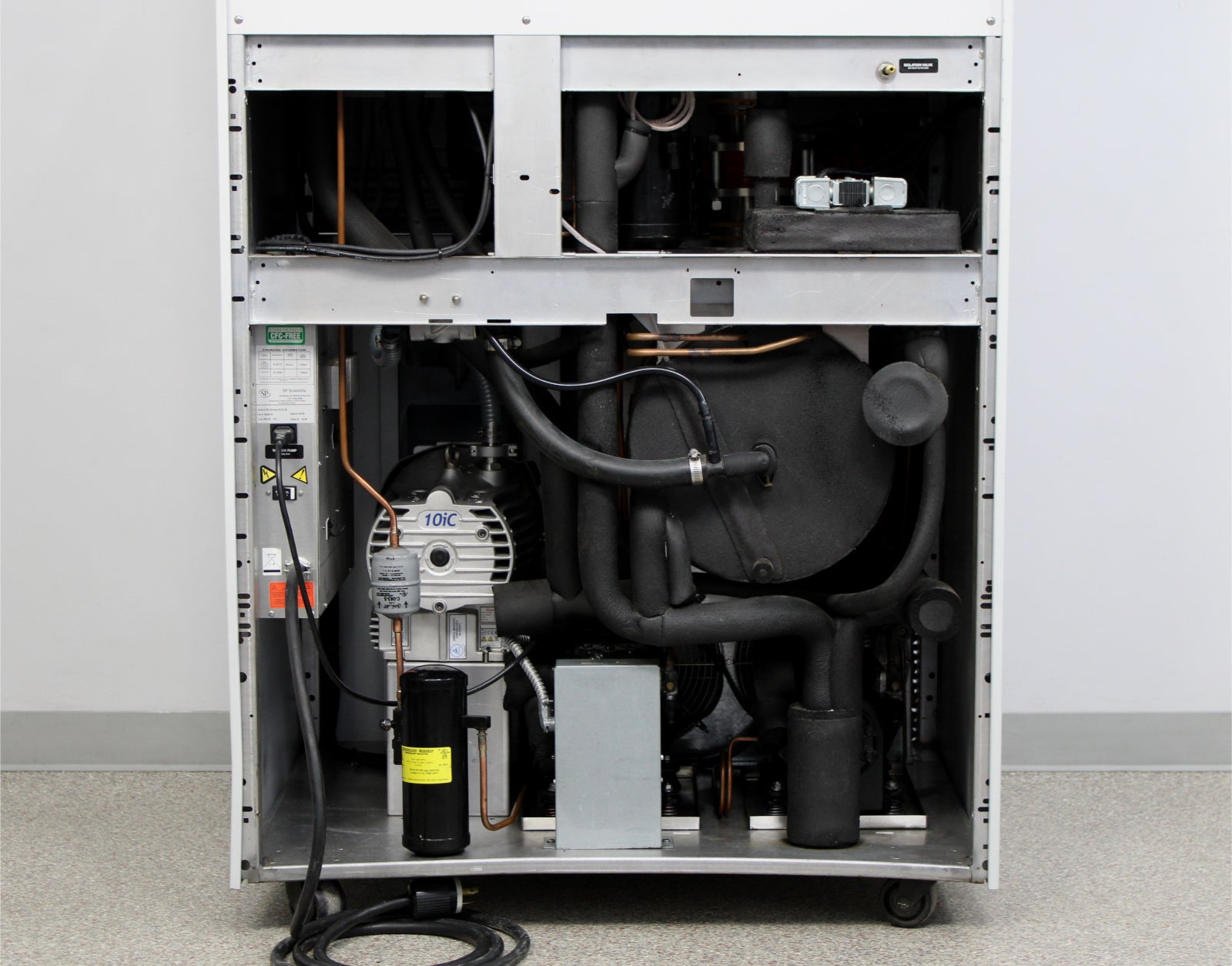

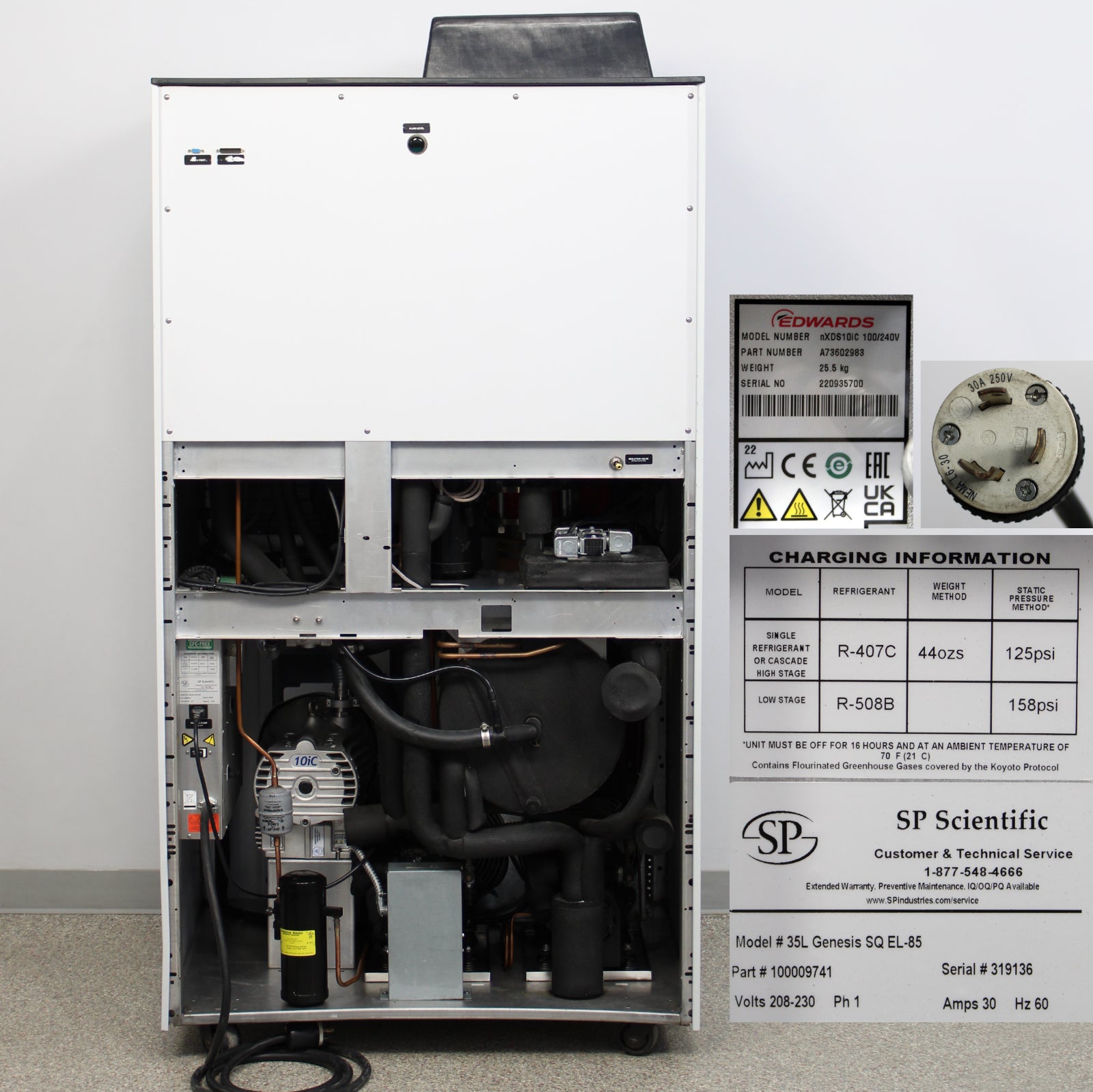

- Edwards nXDS10iC 100/240V Dry Scroll Vacuum Pump (A73602983)
- Attached Power Cable with NEMA L6-30 Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis 35L Genesis SQ EL-85 stoppering freeze dryer with the following results:
- Condenser temperature achieved -88°C: PASSED
- Shelf temperature achieved -70°C: PASSED

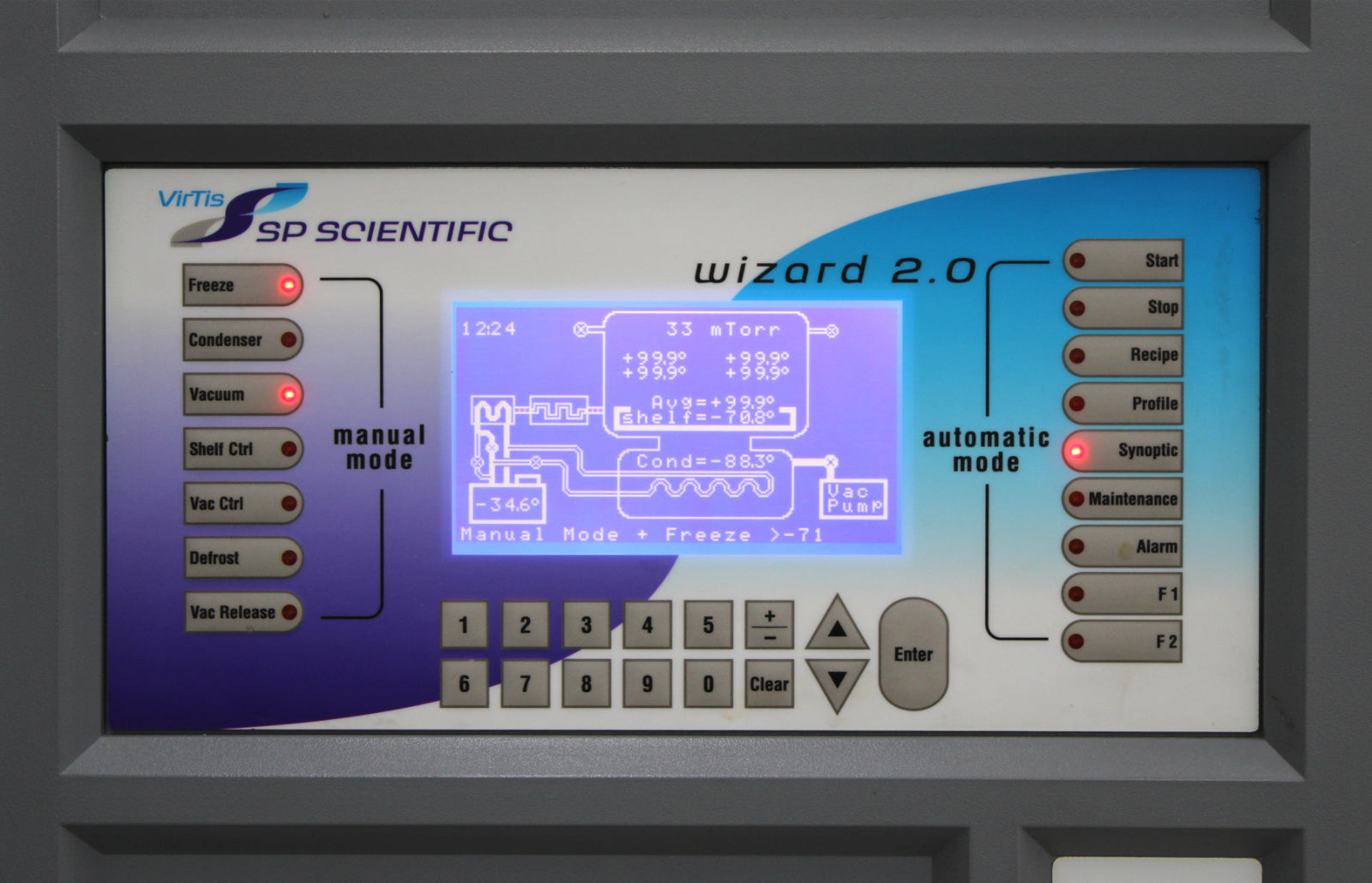

- Vacuum achieved 33 mTorr: PASSED
- Calibrated temperature system: PASSED
- Calibrated vacuum system: PASSED
- Inspected and replaced vacuum hoses as needed.
- Inspected and replaced refrigeration insulation as needed.
- Inspected door seals.
- Cleaned with dry ice.
|
Manufacturer
|
SP Scientific
|
|
Model No.
|
35L Genesis SQ EL-85
|
|
Part No.
|
100009741
|
|
Serial No.
|
319136
|
|
Shelf temperature control range
|
-55°C to 65°C
|
|
Lowest shelf temperature (50Hz/60Hz)
|
-67°C/-70°C
|
|
Lowest condenser temperature (50Hz/60Hz)
|
-82°C/-85°C
|
|
Maximum condenser capacity
|
35 liters
|
|
Condenser surface area
|
750 in2
|
|
Maximum ice condensing capacity in 24 hours
|
20 liters
|
|
Condenser pull-down from 20°C to -45°C
|
25 minutes or less
|
|
Shelf pull-down from 20°C to -40°C
|
30 minutes or less
|
|
Vacuum time to 100 millitorr
|
20 minutes or less
|
|
Lowest system vacuum
|
15 mT or less
|
|
Temperature uniformity
|
±1.0°C
|
|
Shelf dimensions (W x D)
|
10.5 x 20.5 in
|
|
Electrical requirements
|
208-230V, 60Hz, 30A, 1Ph
|
|
Dimensions (W x D x H)
|
40 x 37 x 80 in
|
|
Weight
|
850 lb (385.6 kg)
|
|
Minimum clearance on all sides
|
10 in
|
