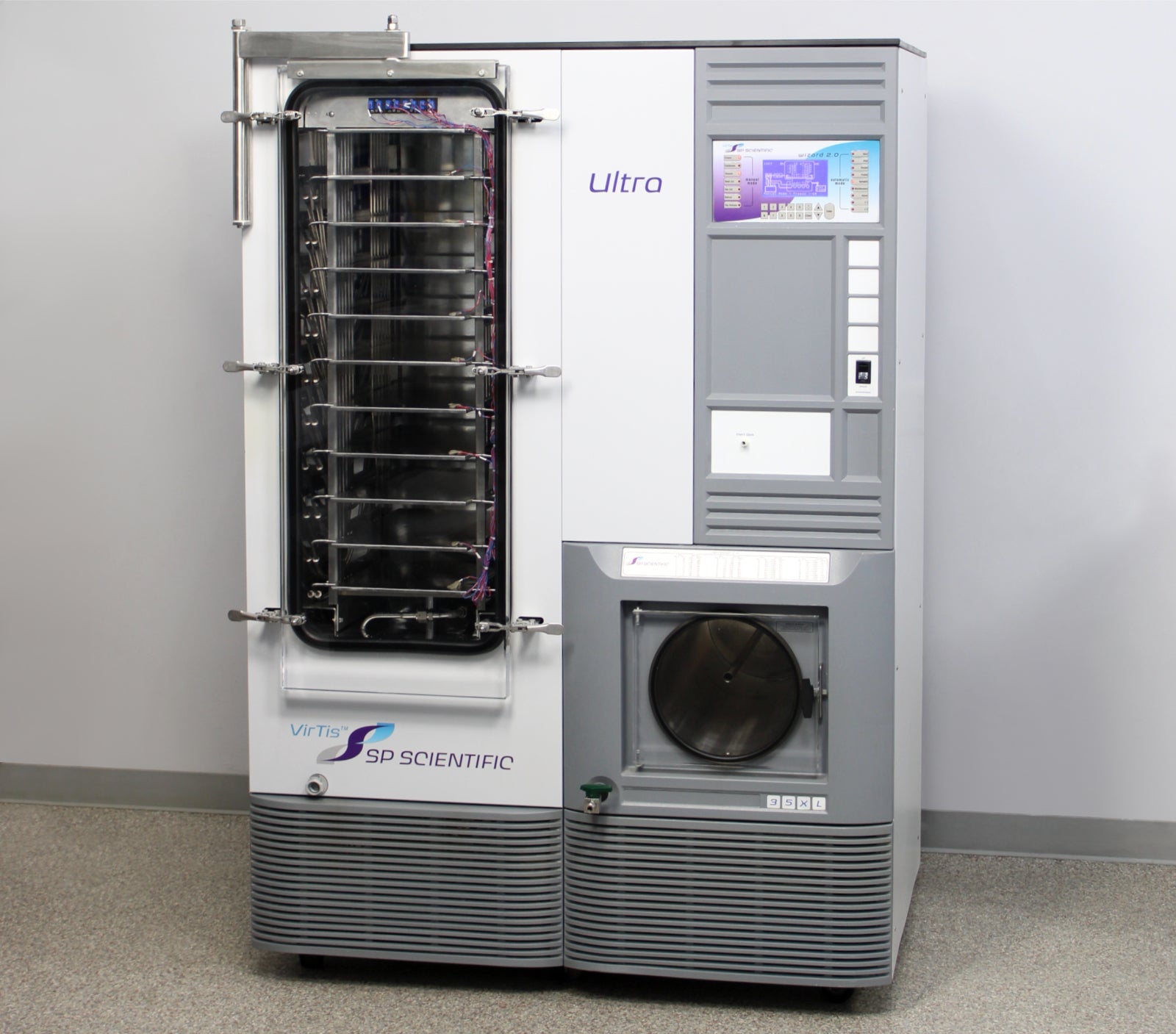

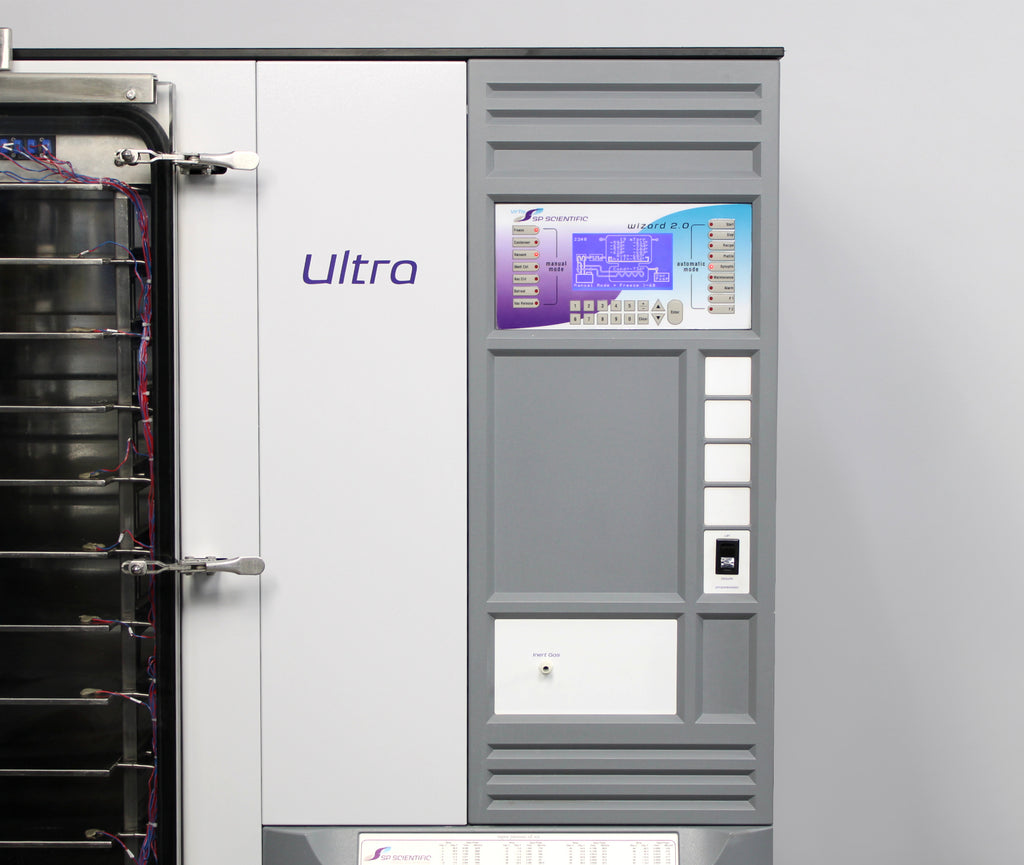

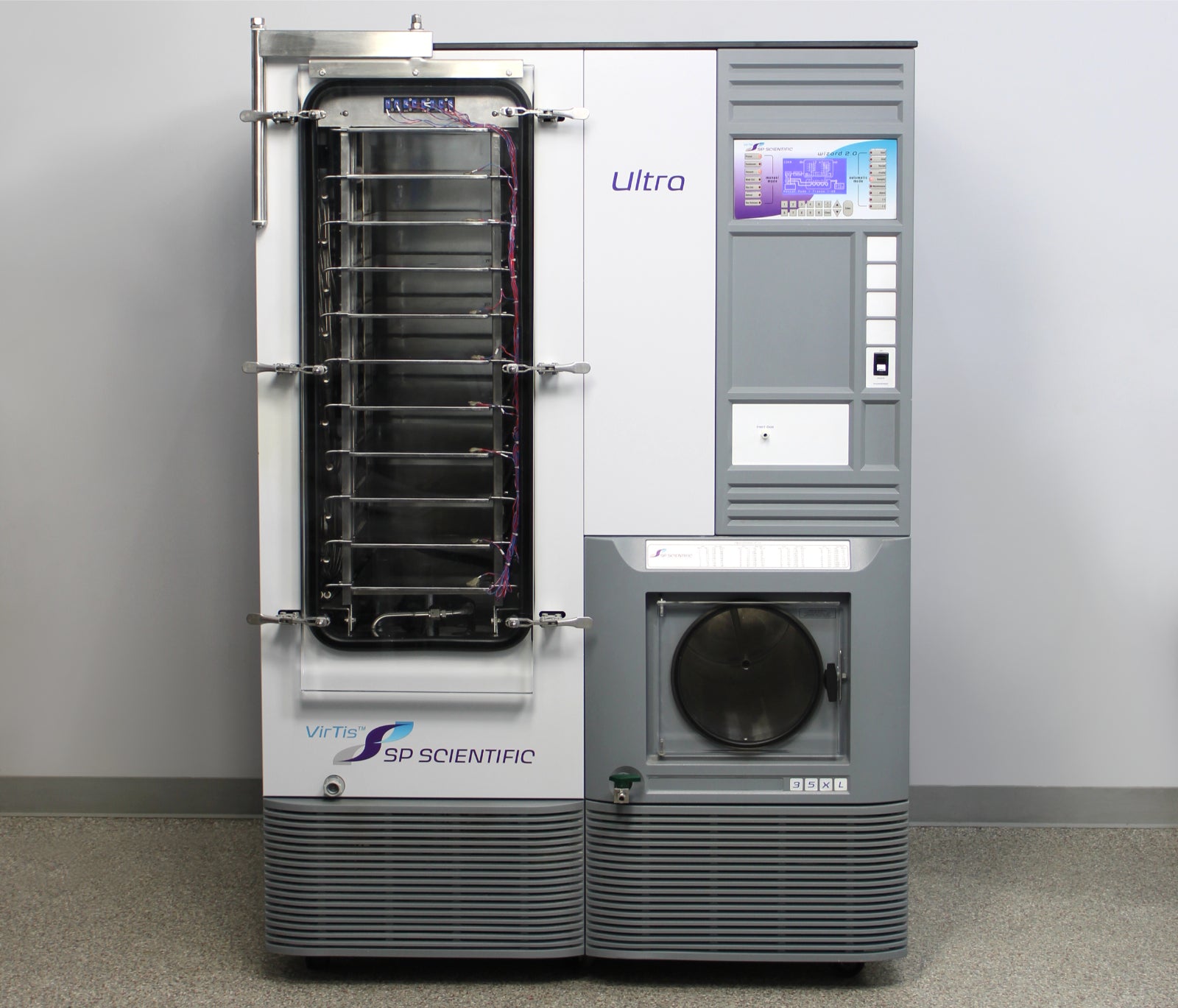

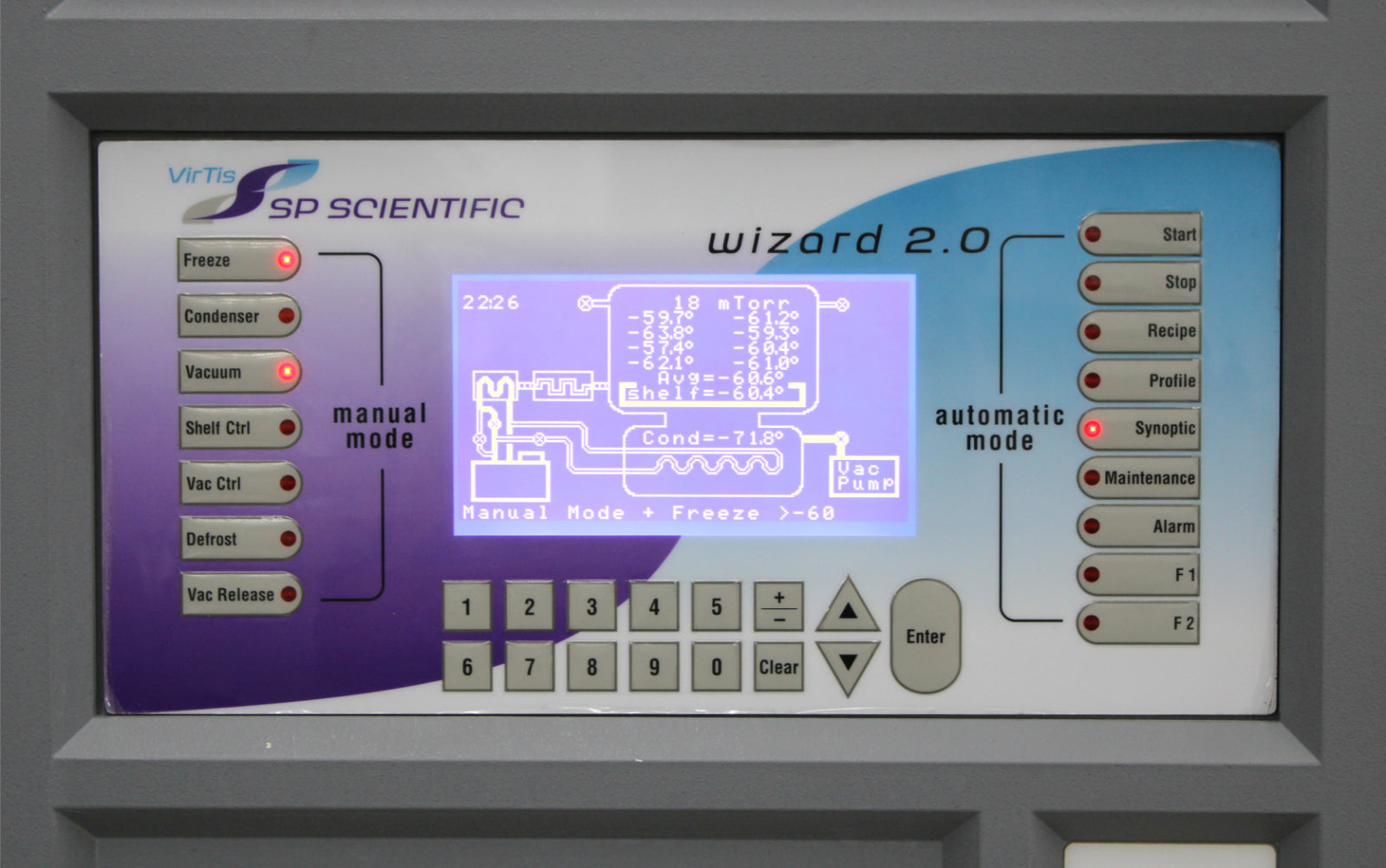

- SP Scientific VirTis 35L Ultra Super XL-70 Stoppering Freeze Dryer Lyophilizer (100010129) with Wizard 2.0 Control System

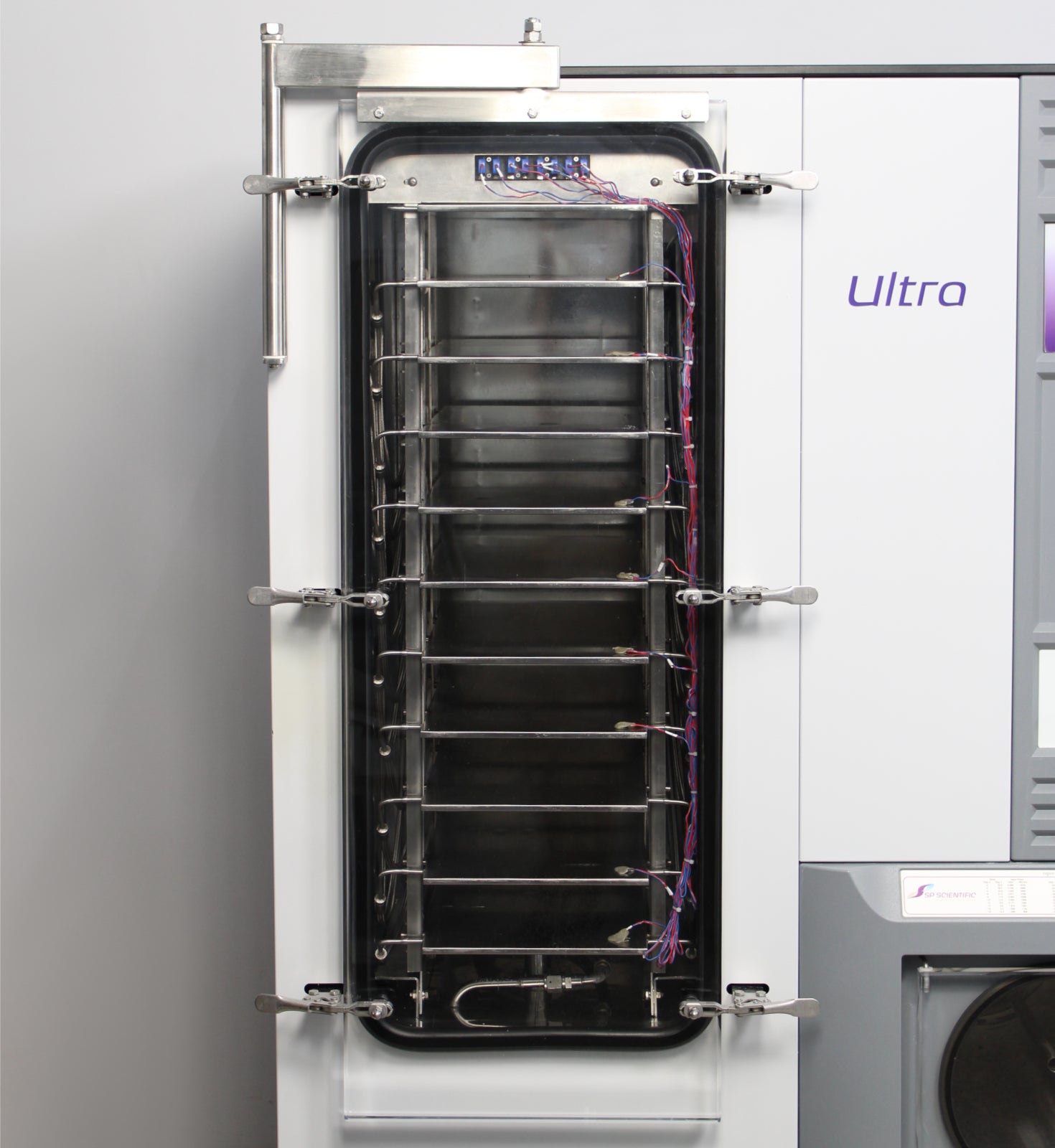

- 10 Shelves with Stoppering
- Vacuum Pump
- Attached Power Cable
- 90-Day Warranty
- 1 Year Extended Warranty
- Annual PM Service Visit: Preventative maintenance involves checking vacuum integrity and instrument calibration
- IQ/OQ Service: Installation Qualification and Operational Qualification Service Visit. This can be a requirement for any company that is producing products that fall under FDA Regulations.
- Acid Trap Installation: Necessary for applications that involve the processing of corrosive materials
Please contact us if you would like to know more about these service upgrades.
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis 35L Ultra Super XL-70 stoppering freeze dryer with the following results:
- Calibrated temperature: PASSED
- Condenser temperature achieved -70°C: PASSED
- Shelf temperature achieved -60°C: PASSED
- Calibrated vacuum: PASSED
- Vacuum achieved 18mT: PASSED

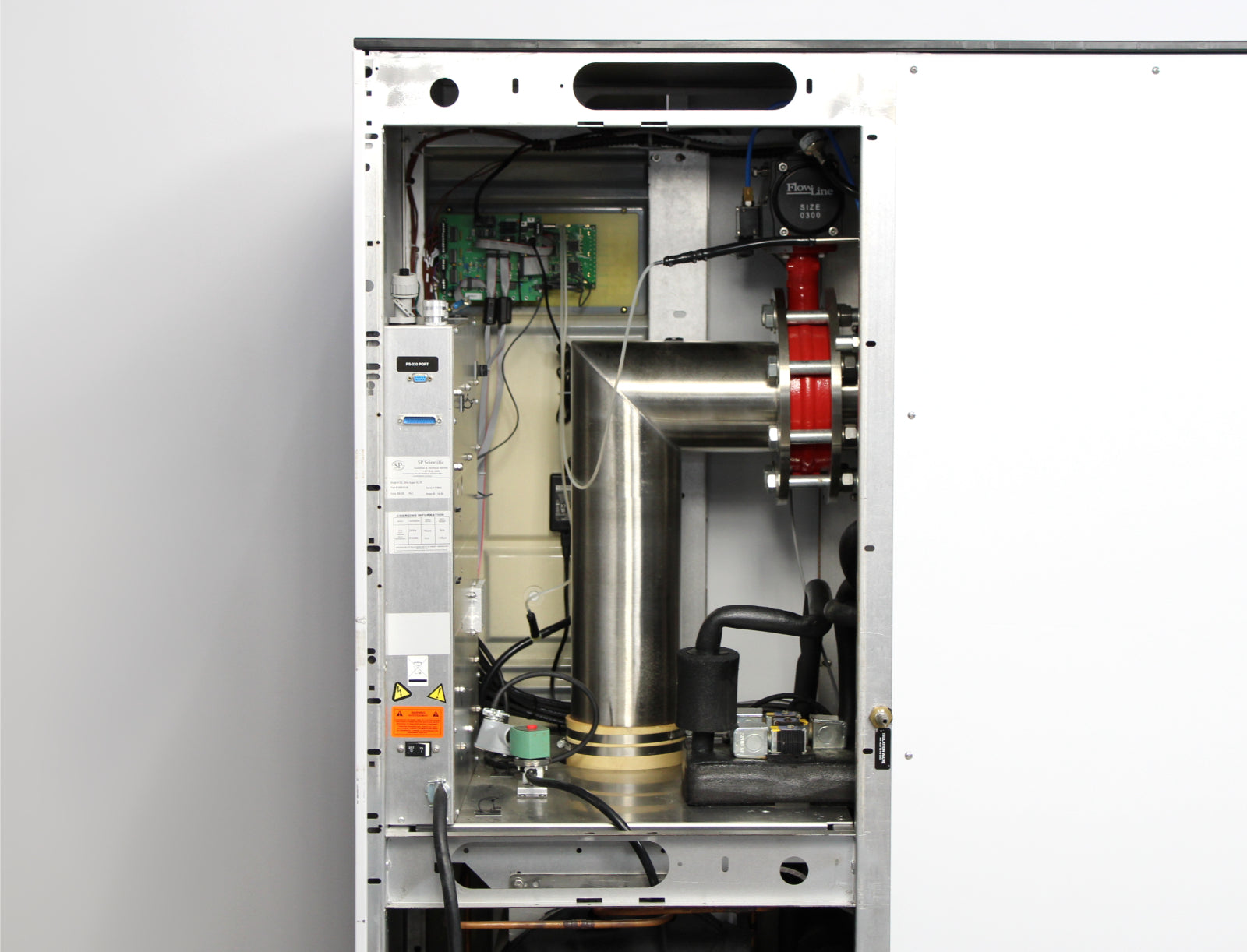

- Inspected and replaced vacuum hoses as needed.
- Inspected and replaced refrigeration insulation as needed.
- Inspected door seals.
- Cleaned with dry ice blasting.
Shelf size (W x D): 10.8 in x 20.5 in (274.3 mm x 520.7 mm)
Shelf area: 15.3 ft2 (14,214 cm2)
Shelf clearance: ~3.15 in (79 mm)

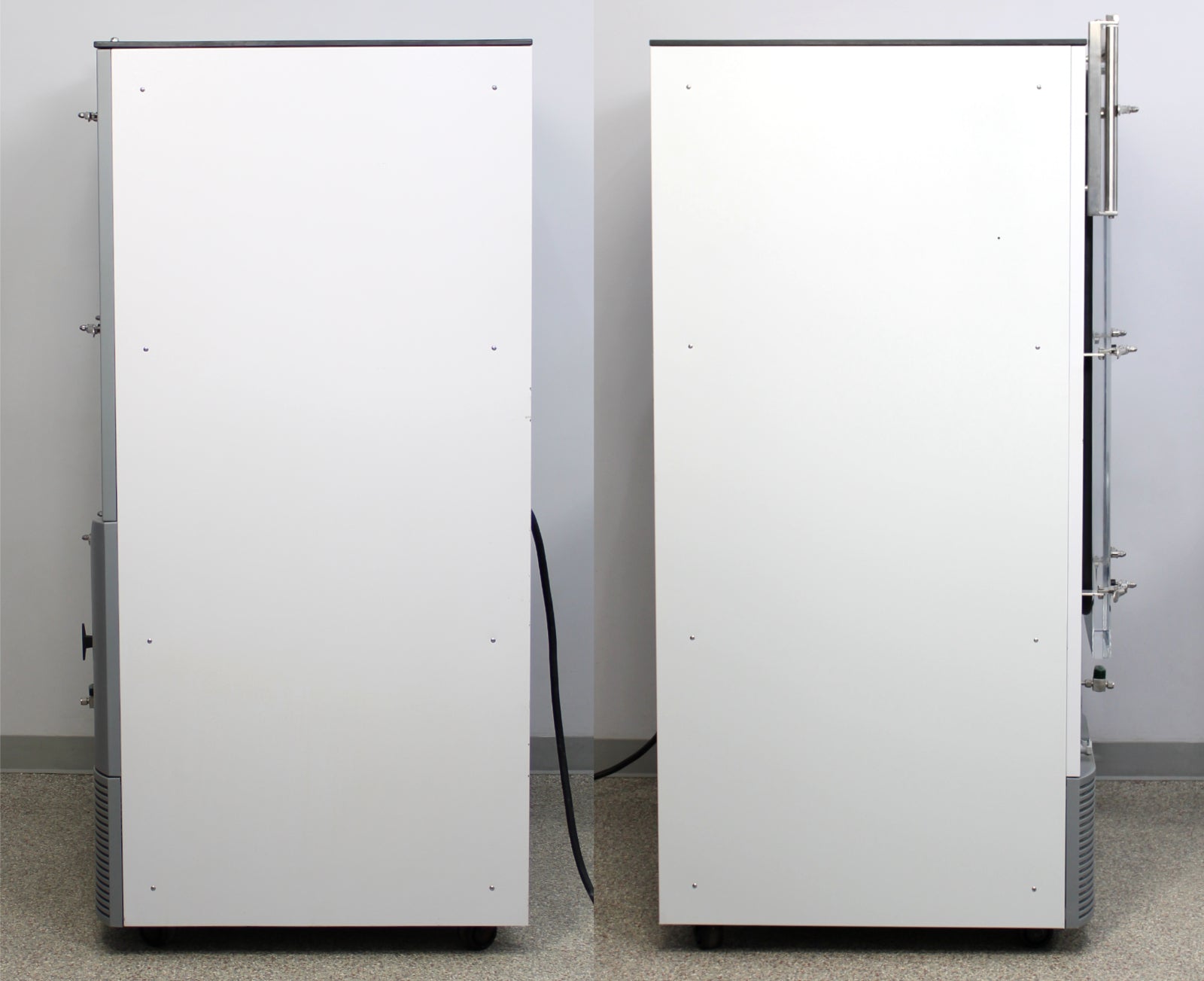

Notice: This freeze dryer has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

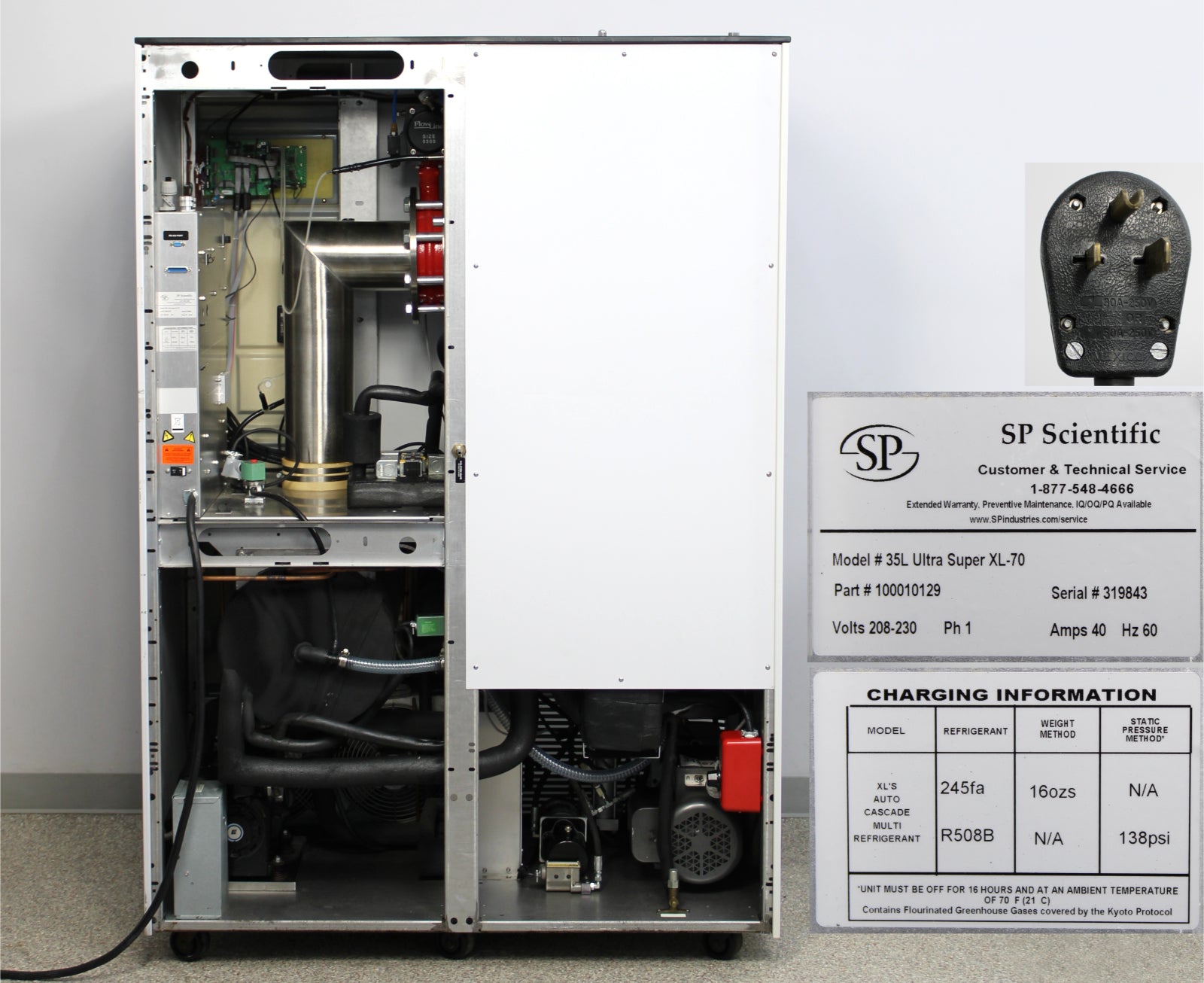

Manufacturer
|
SP Scientific
|
|
Model
|
35L Ultra Super XL-70
|
|
Part No.
|
100010129
|
|
Serial No.
|
319843
|
|
Lowest shelf temperature (50Hz / 60Hz)
|
-57°C / -60°C
|
|
Shelf temperature control range
|
-55 to +65°C
|
|
Shelf pull-down from 20°C to -40°C
|
≤ 90 minutes
|
|
Lowest condenser temperature (50Hz / 60 Hz)
|
-67°C / -70°C
|
|
Maximum condenser capacity
|
35 L
|
|

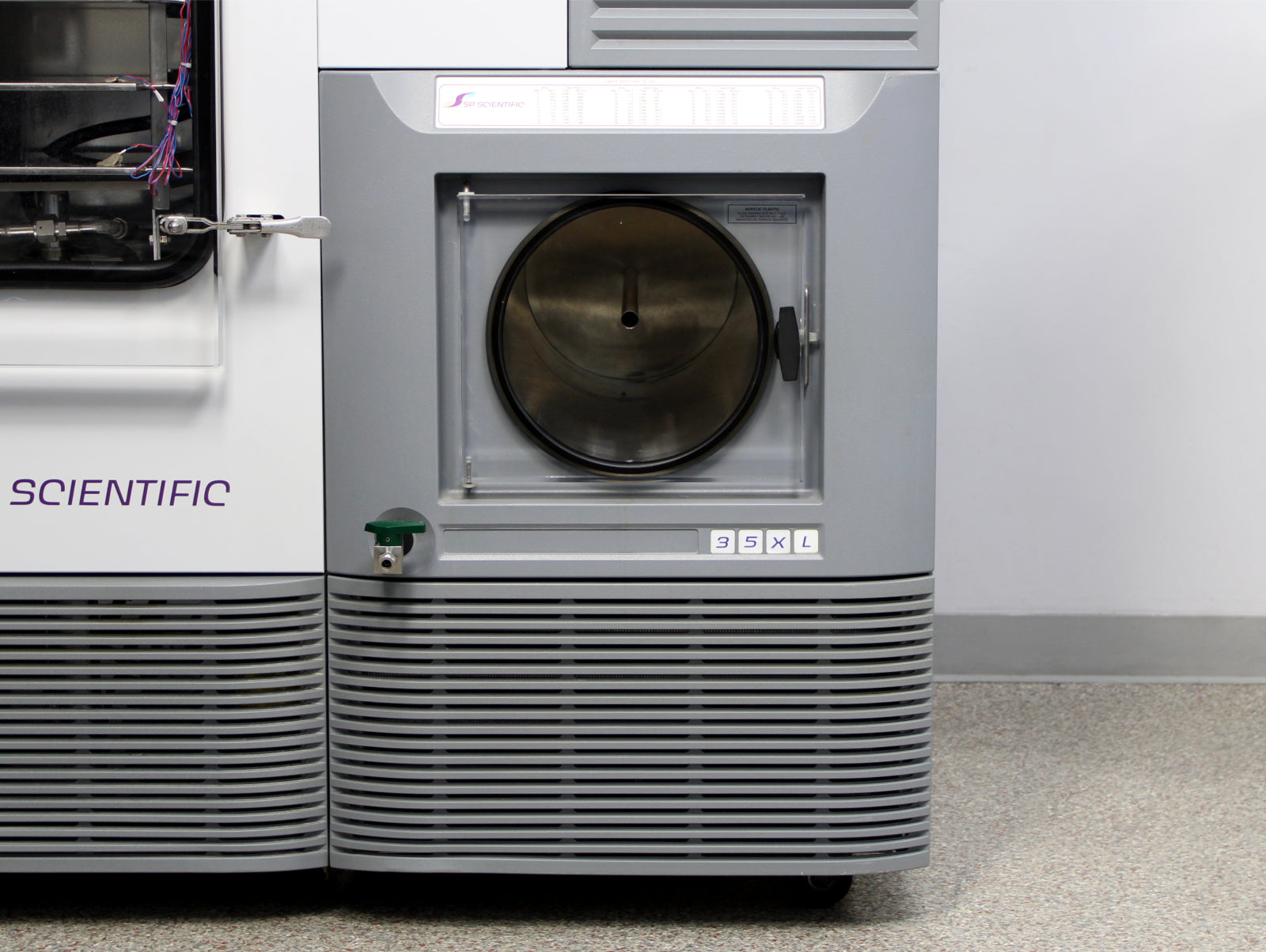

Condenser surface area
|
750 in2 (4,838 cm2)
|
|
Condenser pull-down from 20°C to -45°C
|
≤ 25 minutes
|
|
Maximum ice condensing capacity in 24 hours
|
≥ 20 L
|
|
Maximum deposition rate
|
0.83 L/hour
|
|

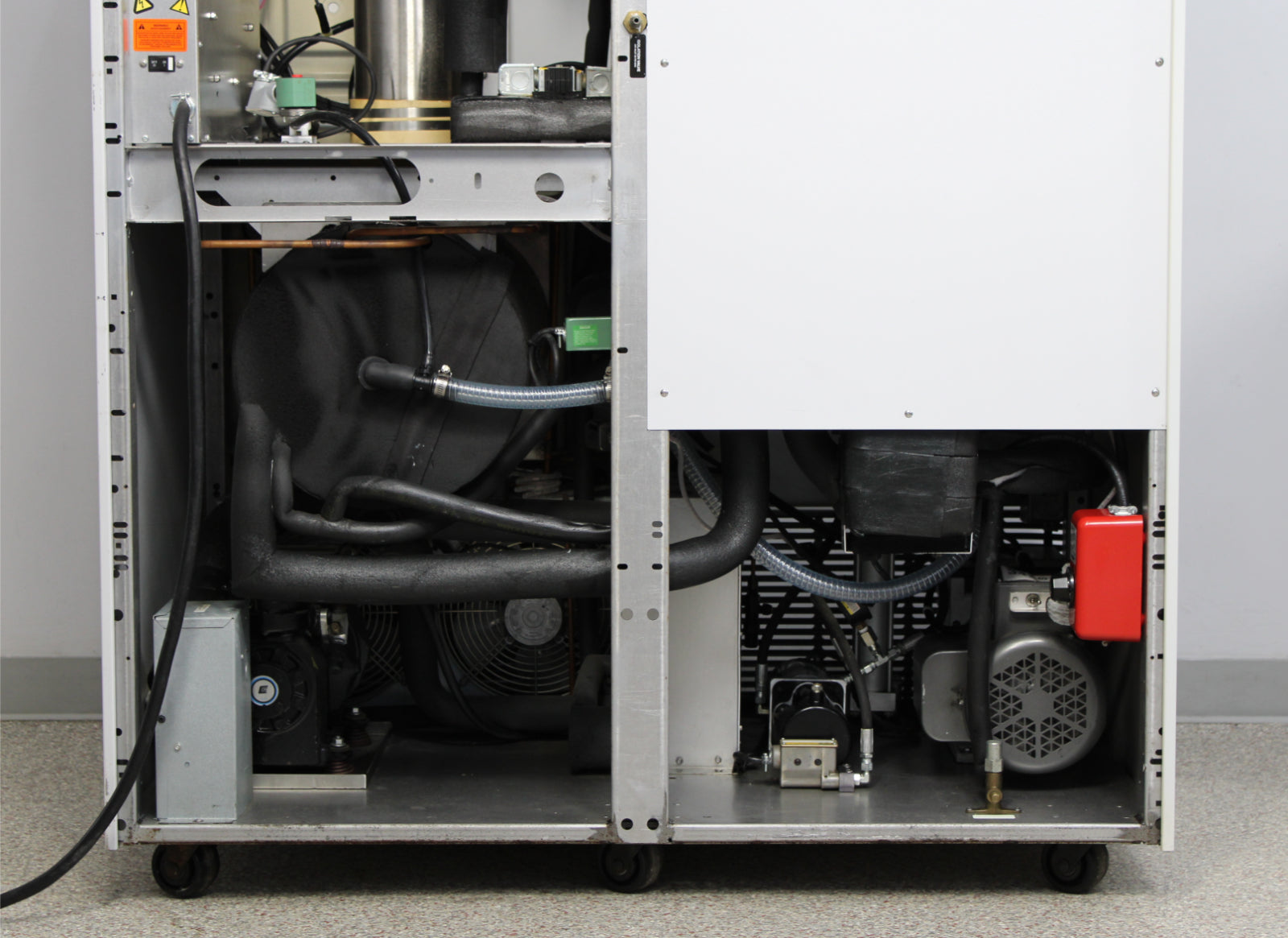

Number of compressors
|
1
|
|
Compressor horsepower
|
1.5 hp
|
|
System refrigerant
|
R245fa / R508B
|
|
Vacuum time to 100 mTorr
|
≤ 30 minutes
|
|
Vacuum rate of rise
|
≤ 30 mT/hour
|
|
Volume-based leak rate
|
≤ .0036 mbar L/sec
|
|
Lowest system vacuum
|
≤ 15 mT
|
|
Temperature uniformity
|
± 1.0°C
|
|
Construction
|
316L stainless steel shelves, product chamber and condenser chamber
|
|
Stoppering
|
Bottom-up hydraulic
|
|
Defrost type
|
Hot gas
|
|
Refrigerant type
|
CFC-free
|
|
Vapor port
|
6 in
|
|
Power rating
|
208/230VAC, 60Hz, 40A, 1Ph
|
|
Recommended outlet
|
NEMA 6-50R
|
|
Dimensions (W x D x H)
|
50 x 38.75 x 75.75 in (127 x 98 x 193 cm)
|
|
Minimum clearance
|
10 in (25.4 cm)
|
|
Weight
|
2,000 lb (909 kg)
|
Note: Performance specifications are based on SP Scientific test data from units operating at an ambient room temperature of approximately 20°C. SP recommends an optimum operating range of 15-25°C (59-77°F).
Note: SP recommends a 24-inch (61 cm) clearance around all sides of the unit for serviceability. If machines are placed side by side, increase the minimum clearance to 48 inches (121.9 cm)
|
Compressed air (for units with isolation valve)
|
80 psig (5.5 bar)
|
|
Ambient room temperature
|
15-25°C (59-77°F)
|
|
Approx. peak heat generated
|
15,500 BTU/h (4.5 kW)
|
